USER MANUAL GSR 36.0 VE-2-LI Professional BOSCH

OBJ_BUCH-1916-003.book. Page 1 Thursday, October 6, 2016 12:15 PM

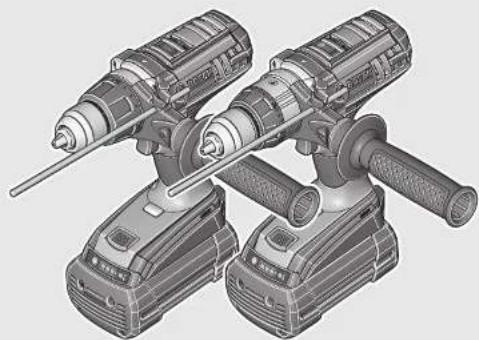

Technical illustration of two electric drillers with visible shafts and motors (no text or symbols)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 2NO (2014.11) / 170 EURO

GSR | GSB Professional

36 VE-2-LI

BOSCH

Henk Becker Executive Vice President Engineering and Manufacturing Helmut Heinzelmann Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

English | 9

▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Drills and Screwdrivers

GSB 36 VE-2-LI

▶ Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.

GSR 36 VE-2-LI/GSB 36 VE-2-LI

Hold power tool by insulated gripping surfaces when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory and fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
▶ Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage.
Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when: — the power tool is subject to overload or — it becomes wedged in the workpiece.
When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
▶ Hold the machine with a firm grip. High reaction torque can briefly occur while driving in and loosening screws.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Do not open the battery. Danger of short-circuiting.

Protect the battery against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.

use of damage and improper use of the battery, va may be emitted. Ventilate the area and seek al help in case of complaints. The vapours can irri- e respiratory system.

▶ Use the battery only in conjunction with your Bosch power tool. This measure alone protects the battery against dangerous overload.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit can occur and the battery can burn, smoke, explode or overheat.
▶ Insert the battery pack completely. When doing this, the battery pack can be heard to engage twice.

Additional Safety and Working Instructions

Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health and cause allergic reactions, lead to respiratory infections and/or cancer. Materials containing asbestos may only be worked by specialists.

-Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator.

10 | English

Observe the relevant regulations in your country for the materials to be worked.

The battery is supplied partially charged. To ensure full battery capacity, completely charge the battery in the battery charger before using for the first time.
▶ Read the operating instructions of the battery charger.
▶ Apply the power tool to the screw only when it is switched off. Rotating tool inserts can slip off.
▶ Adjust the gear switch only when the machine is at a complete stop.
▶ Always push the gear selector and turn the operating mode selector switch through to the stop. Otherwise, the machine can become damaged.
In case of excessive loading, e. g., prolonged blocking of the application tool, the electronics switch off the power tool. After switching on again, the power tool can be used again as intended for. In case of continued overload, the power tool will switch off again in order to prevent damage to the motor.

To save energy, only switch the power tool on when using it.

Before performing any work, make sure that the auxiliary handle is firmly tightened. Loss of control can lead to injury.

Rapid Shut-off

The rapid shut-off feature enables better control of the power tool. The power tool shuts off in case of sudden and unexpected rotation of the power tool around the drilling axis.
The rapid shut-off feature is indicated by a flashing LED on the power tool.
▶ To restart the machine, release the On/Off switch and then actuate again.
▶ Rapid shut-off can trigger only when the power tool is running at maximum operating speed and can rotate freely around the drill bit axis. Choose a suitable work position for this. Otherwise, rapid shut-off will not be ensured.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the machine in a better and safer manner.

Symbol Meaning

GSR 36 VE-2-LI/GSB 36 VE-2-LI: Cordless screwdriver/Combination cordless drill

Grey-marked area: Handle (insulated gripping surface)

Symbol Meaning

Article number

Read all safety warnings and all instructions.

Before any work on the machine itself, remove the battery.

Always wear ear protection.

Movement direction

Reaction direction

Screwdriving

Drilling and screwdriving

Impact drilling

Low speed

High speed

Switching On

Switching Off

Right/left rotation

Prohibited action

Battery Capacity

U Rated voltage

n_s Impact rate

n_0 1 No-load speed (1. gear)

n_02 No-load speed (2. gear)

M Maximum torque according to ISO 5393

Brickwork

English | 11

Symbol Meaning

26	Metal
	Wood

∅ Drilling diameter, max.

∅ Max. screw dia.

	Chuck clamping range
	Weight according to EPTA-Procedure01:2014

* depending on the battery pack being used

L_pA	Sound pressure level
L_wA	Sound power level

K

U

n

c

a_h	Vibration total value
T_1	permitted ambient temperature during charging

T_2	permitted ambient temperature during operation and storage
	*Limited performance at temperatures <0 °C

Recommended chargers

Delivery Scope

Cordless screwdriver with auxiliary handle/Combination cordless drill with auxiliary handle.

Battery, application tools and other accessories shown or described are not part of the standard delivery scope.

A complete overview of accessories can be found in our accessories program.

Intended Use

The machine is intended for driving in and loosening screws as well as for drilling in wood, metal, ceramics and plastic. GSB machines are additionally intended for impact drilling in bricks, brickwork and masonry.

The light of this power tool is intended to illuminate the power tool's direct area of working operation and is not suitable for household room illumination.

Technical Data

The technical data of the machine are listed in the table on page 162.

Declaration of Conformity

We declare under our sole responsibility that the product described under "Technical Data" is in conformity with all relevant provisions of the directives 2009/125/EC (Regulation 1194/2012), 2011/65/EU, 2014/30/EU, 2006/42/EC including their amendments and complies with the following standards: EN 60745-1, EN 60745-2-1, EN 60745-2-2, EN 50581.

Technical file (2006/42/EC) at:

Robert Bosch Power Tools GmbH, PT/ECS, 70538 Stuttgart, GERMANY

Henk Becker e Helmut Heinzelmann t Executive Vice President Head of Product Certification Engineering and PT/ECS

Manufacturing

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Noise/Vibration Information

The measured values of the machine are listed in the table on page 162.

Sound emission values determined according to EN 60745-2-1.

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 60745.

The vibration level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or insertion tools or is poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period. Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Mounting and Operation

Action Figure Page

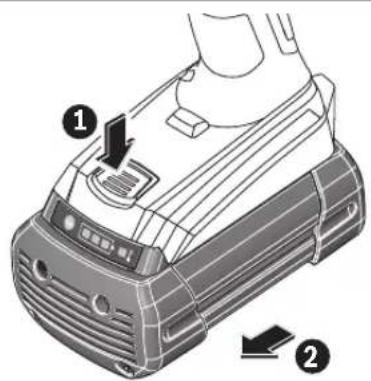

Removing the battery 1 163

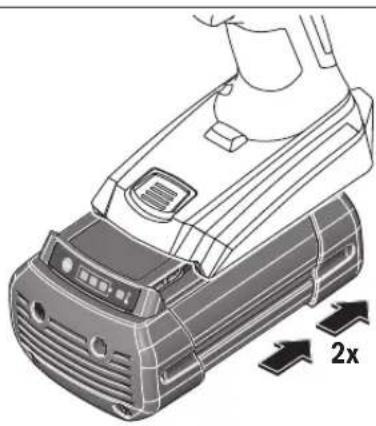

Inserting the battery 2 163

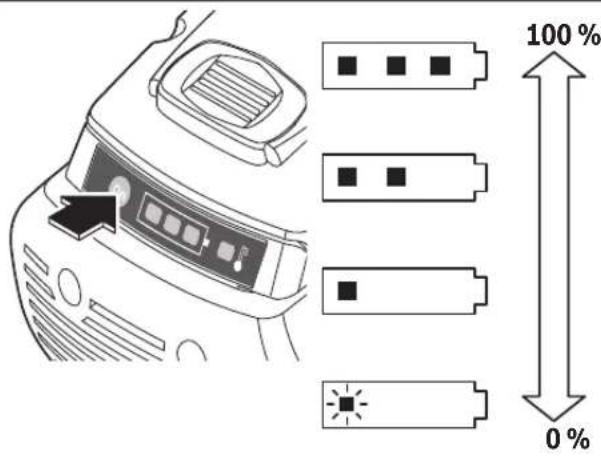

Checking the battery charge condition	3	163

Bosch Power Tools 1 609 92A 2NO | (6.10.16)

12 | English

Action	Figure	Page
Assembling/Dismantling auxiliary handle 4 164

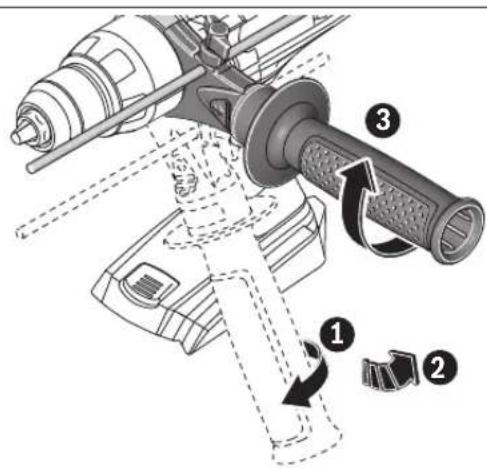

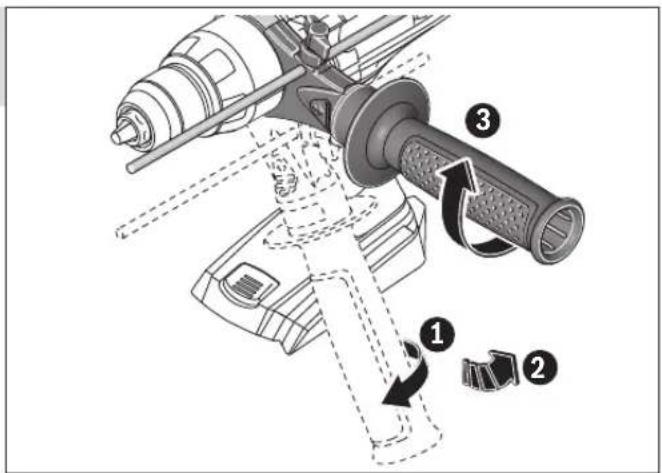

Changing the position of the auxiliary handle 5 164

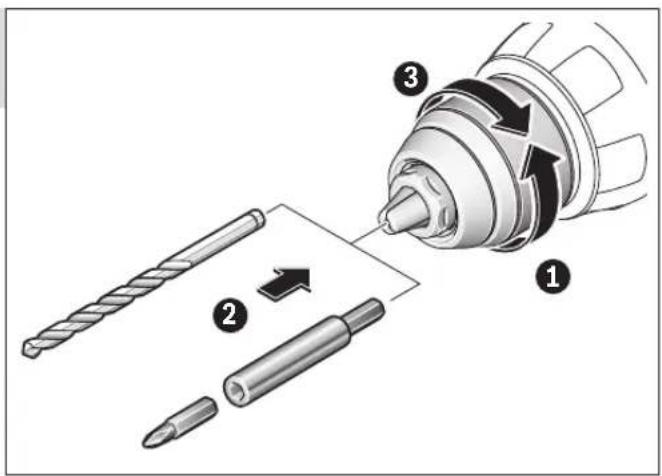

Mounting application tools 6 164

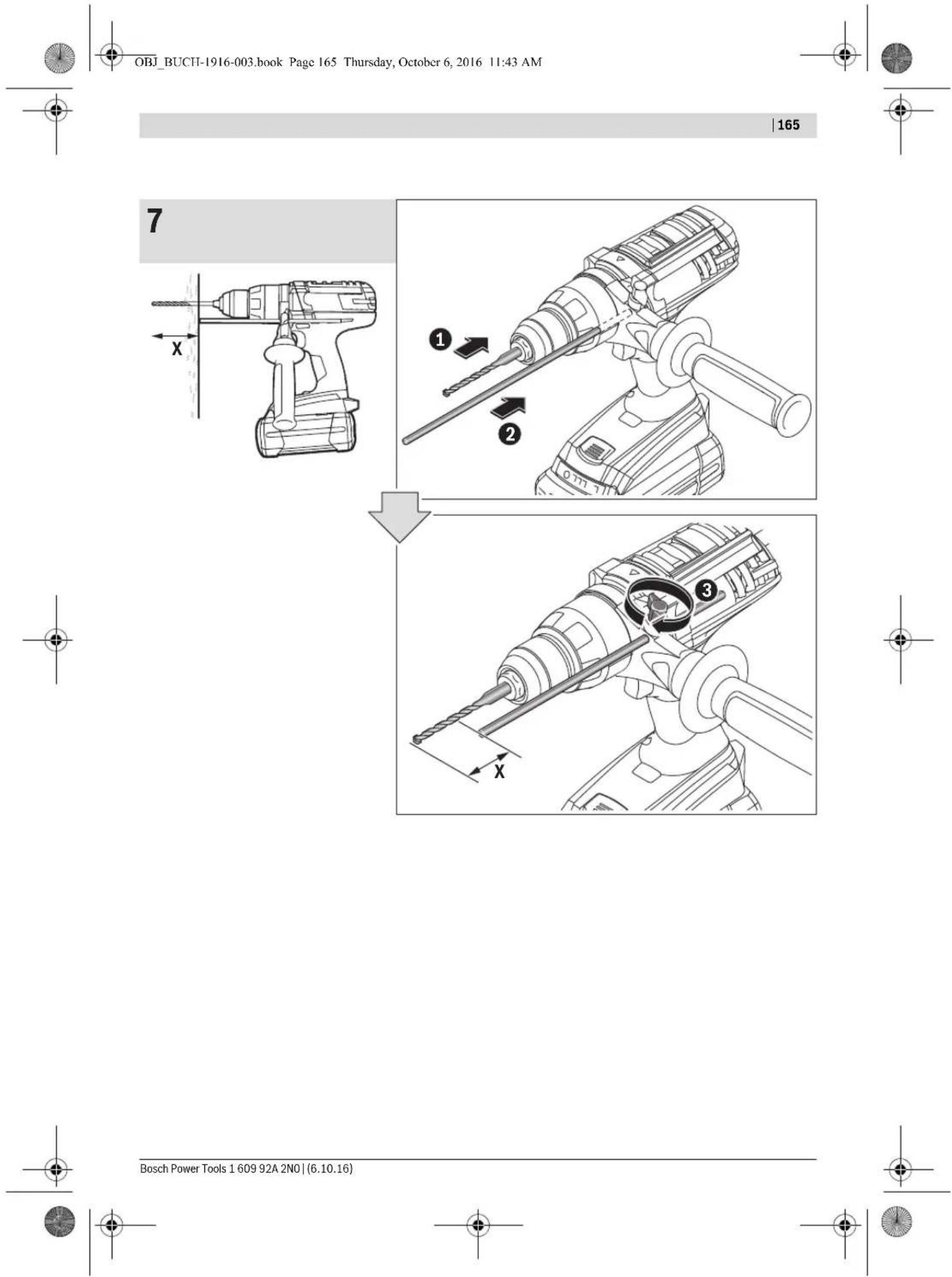

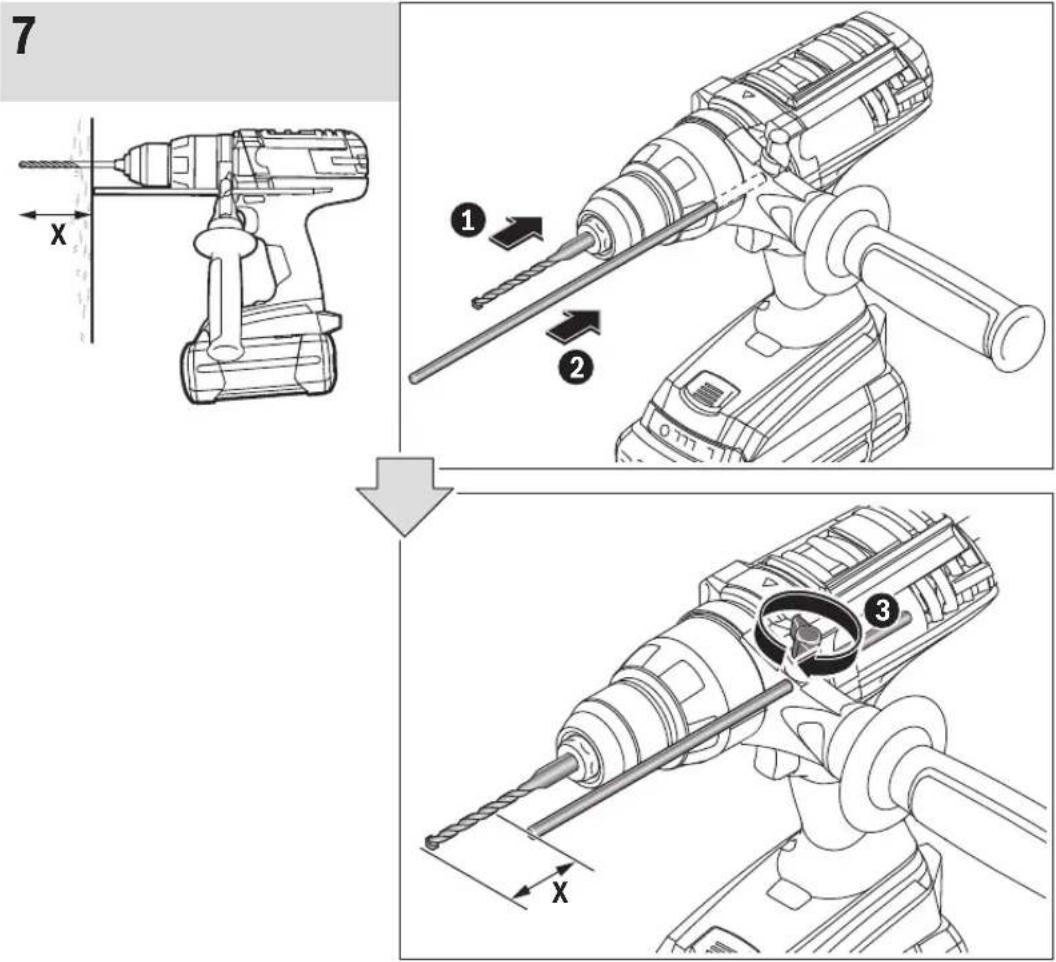

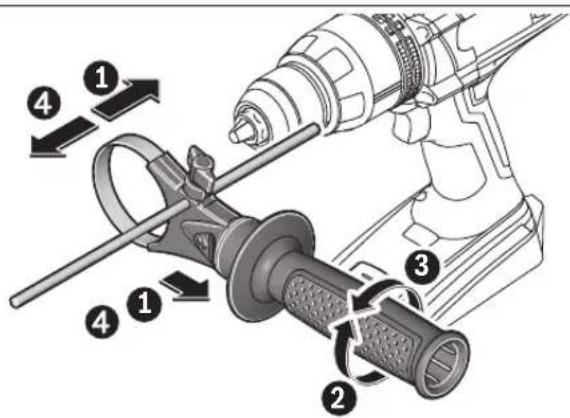

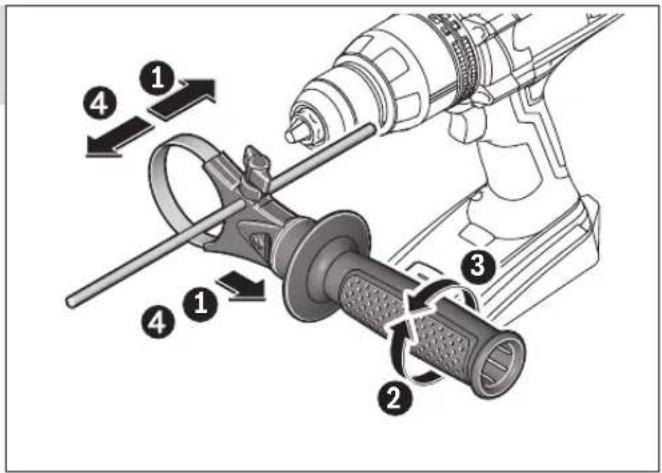

Adjusting the drilling depth X	7

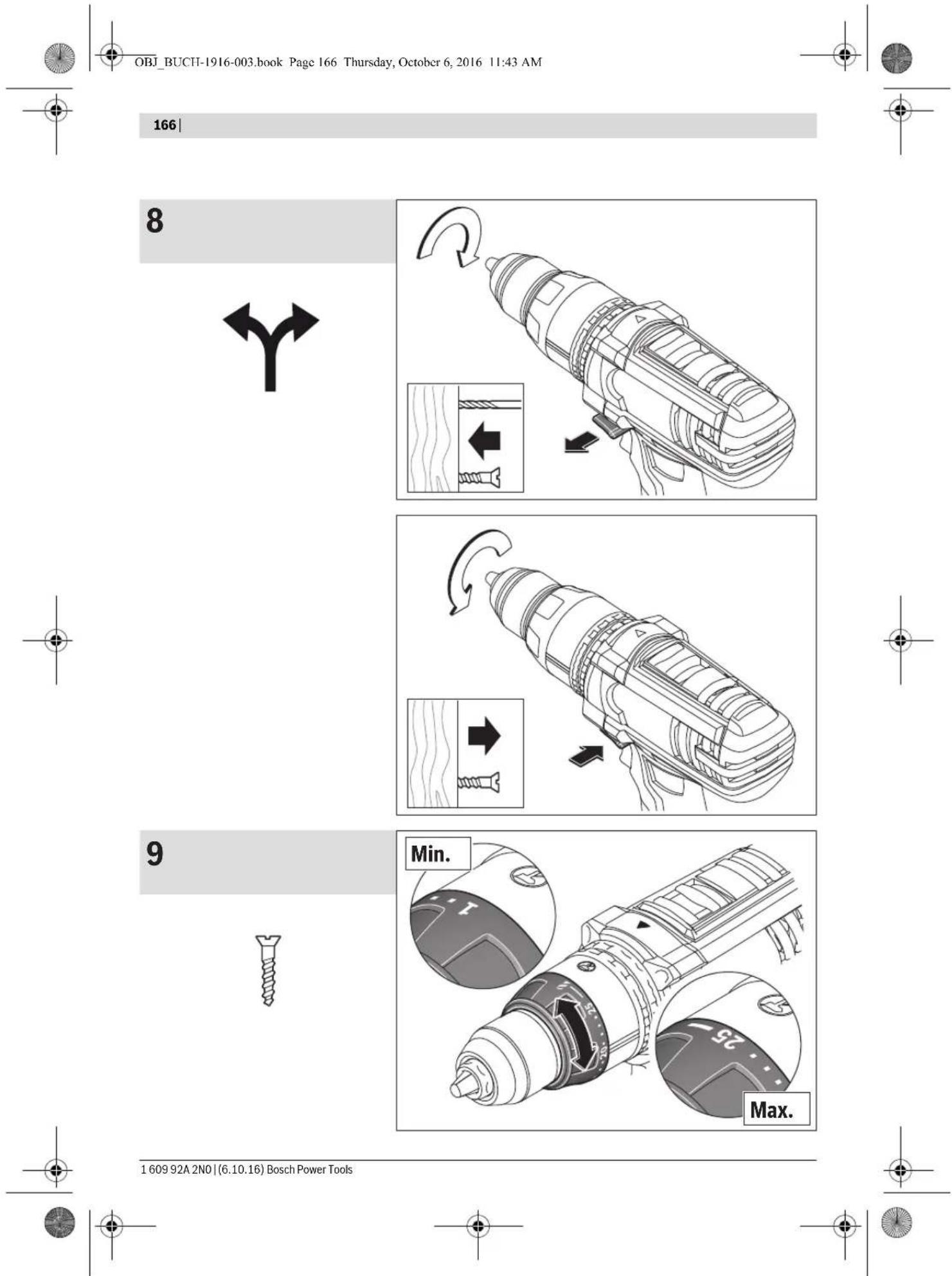

Reversing the rotational direction	8	166

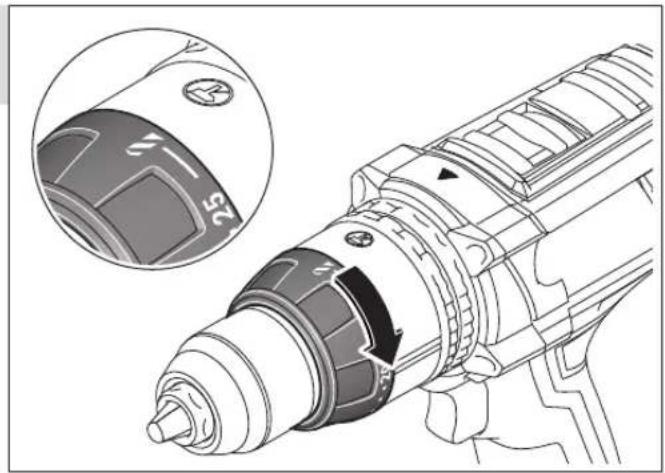

Setting the torque 9 166
Selecting the drilling position 10 167

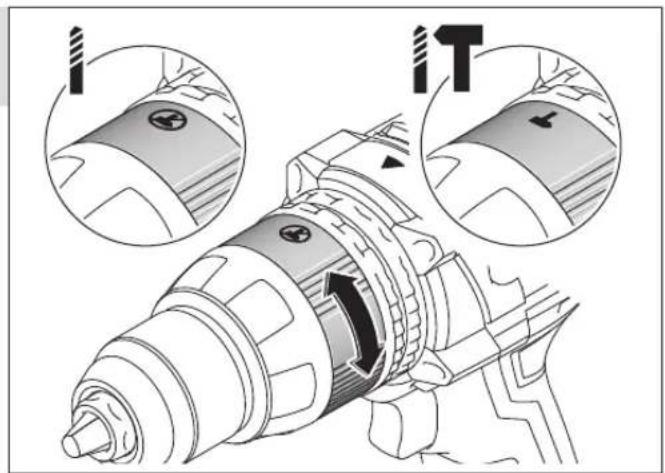

Setting the operating mode 11 167

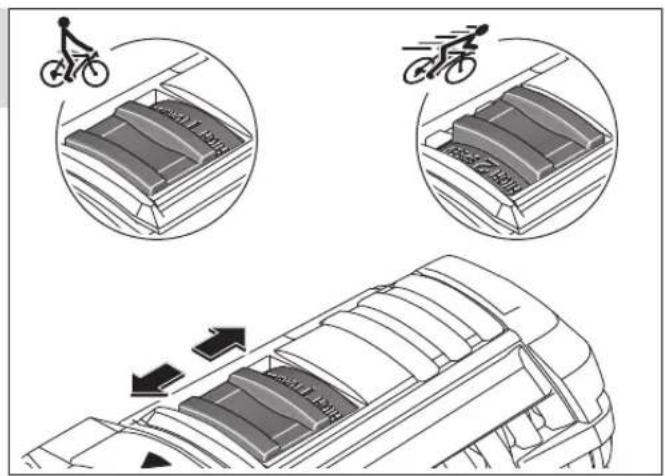

Gear selection, mechanical 12 167

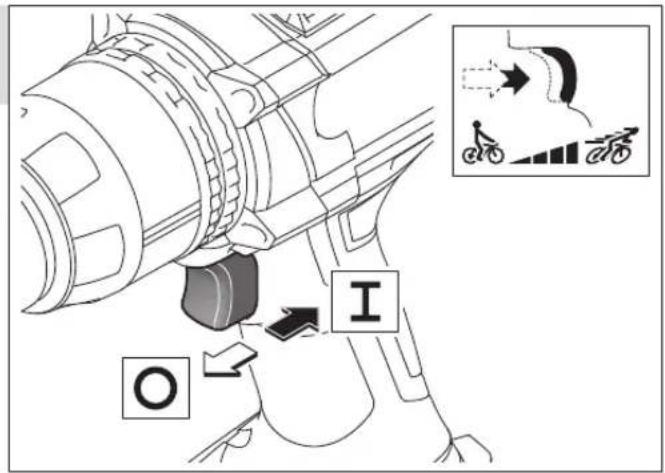

Switching On and Off 13 168

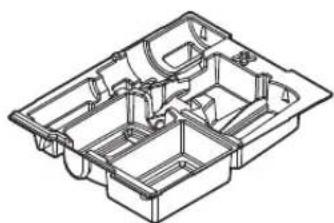

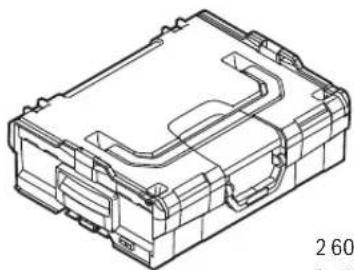

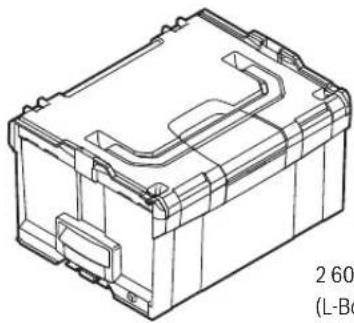

Selecting Accessories	-	169

165

Maintenance and Cleaning

For safe and proper working, always keep the machine and ventilation slots clean.

Clean the application tool, the tool holder, the power tool's ventilations slots, and the battery's ventilation slots each time after using.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Français | 13

Transport

The contained lithium-ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements. When being transported by third parties (e.g.: air transport or forwarding agency), special requirements on packaging and labelling must be observed. For preparation of the item being shipped, consulting an expert for hazardous material is required.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging. Please also observe possibly more detailed national regulations.

Disposal

The machine, rechargeable batteries, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools and batteries/rechargeable batteries into household waste!

Only for EC countries:

According to the European Guideline 2012/19/EU, measuring tools that are no longer usable, and according to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Subject to change without notice.

Français

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Robert Bosch (France) S.A.S.

Henk Becker	Helmut Heinzelmann
Executive Vice President	Head of Product Certification
Engineering and	PT/ECS

Manufacturing

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

r

t

e

[Non-Text]

Bosch Power Tools 1 609 92A 2NO | (6.10.16)

28 | Português

Henk Becker Executive Vice President Engineering and Manufacturing Helmut Heinzelmann Head of Product Certification PT/ECS

jaw Bo i.v. u.w.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Executive Vice President Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. k-m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Støj-/vibrationsinformation

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

Transport

Henk Becker Executive Vice President Engineering and Manufacturing

Helmut Heinzelmann Head of Product Certification PT/ECS

i.v. h=mc

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Buller-/vibrationsdata

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

Transport

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Melu-/tärinätiedot

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

i.v. h=mc

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Gürültü/Titreşim bilgisi

Bosch San. ve Tic. A.S.

Ahi Evran Cad. No:1 Kat:22

Polaris Plaza

80670 Maslak/Istanbul

Bosch Uzman Ekibi [phone]

Işıklar LTD.ŞTİ.

Kızılay Cad. No: 16/C Seyhan

Adana

Tel.: [phone]

Tel.: [phone]

Executive Vice President

Head of Product Certification

Engineering and

PT/ECS

Manufacturing

jawr Sea i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Robert Bosch Sp. z o.o.

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

Executive Vice President Engineering and Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Informácia o hlučnosti/vibráciách

Executive Vice President Head of Product Certification

Engineering and PT/ECS

Manufacturing

jaw Bao i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President Engineering and Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

jaw Sea i.v. h.w.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Henk Becker A Helmut Heinzelmann N Executive Vice President Head of Product Certification Engineering and PT/ECS

Manufacturing

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Executive Vice President Engineering and Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Informatie privind zgomotul/vibratiile

Tel. service scule electrice: [phone]

Fax: [phone]

E-Mail: [e-mail]

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

if we see i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Henk Becker Executive Vice President Engineering and Helmut Heinzelmann Head of Product Certification PT/ECS

Manufacturing

jaw See i.v. h: w.c.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Информации за бучава/вибрации

Executive Vice President

Head of Product Certification

Engineering and

PT/ECS

Manufacturing

i. v. h. w. u

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

jaw Sea i.v. h.w.

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Informacije o buci i vibracijama

Mjerne vrijednosti za proizvod navedeni su u tablici na stranici 162.

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Henk Becker Executive Vice President Engineering and Manufacturing

Helmut Heinzelmann Head of Product Certification PT/ECS e

jaw Sea i.v. h.w.

Robert Bosch Power Tools GmbH 70538 Stuttgart, GERMANY Stuttgart, 01.01.2017

Executive Vice President

Engineering and

Manufacturing

Helmut Heinzelmann

Head of Product Certification

PT/ECS

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President Head of Product Certification

Engineering and PT/ECS

Manufacturing

A##B## i.V. H:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Executive Vice President Head of Product Certification

Engineering and PT/ECS

Manufacturing

A## B## i.v. h:m

Robert Bosch Power Tools GmbH

70538 Stuttgart, GERMANY

Stuttgart, 01.01.2017

Line drawing of a drill putter and its internal components, with an arrow indicating the next component (no text or symbols present)

Technical diagram of a printer with labeled parts and directional arrows indicating assembly or operation.

2

Line drawing of a handheld electric drill with a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical device with directional arrows indicating 2x speed (no text or symbols present)

3

100% 0%

164

4

Line drawing of a drill bit and drill pen tool (no text or symbols)

Technical diagram showing a drill press tool with four labeled steps for tool operation

Technical diagram showing a drill press tool with four labeled parts for machining or assembly steps

5

Simple line drawing of a mechanical device with curved arrows indicating motion or rotation (no text or symbols)

Technical diagram of a drill bit with numbered components and directional arrows indicating motion or assembly.

Technical diagram of a drill bit with numbered parts and directional arrows indicating motion or assembly.

6

Technical diagram showing a drill bit and screwdriver assembly with numbered components

OBJ_BUCH-1916-003.book Page 165 Thursday, October 6, 2016 11:43 AM

| 165

Bosch Power Tools 1 609 92A 2NO | (6.10.16)

OBJ_BUCH-1916-003.book Page 166 Thursday, October 6, 2016 11:43 AM

166

8

9

1 609 92A 2N0 | (6.10.16) Bosch Power Tools

| 167

10

Technical illustration of a drill bit with a close-up inset showing internal components (no text or symbols)

11
GSB 36 VE-2-LI

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

12

1 2

Diagram illustrating bicycle lane installation with labeled components and directional arrows indicating flow or movement.

OBJ_BUCH-1916-003.book Page 168 Thursday, October 6, 2016 11:43 AM

168

13

Technical diagram showing mechanical assembly with labeled components and motion indicators

Line drawing of a car front bumper with ventilation grilles (no text or symbols)

Line drawing of a portable electronic device with buttons and ventilation slots (no text or symbols)

GBA 36V

Line drawing of a robotic vacuum cleaner (no text or symbols)

AL 3640 CV

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

2 608 438 692 (L-Boxx 136)

Isometric line drawing of a mechanical housing or enclosure with internal compartments and mounting brackets (no text or symbols)

2608438111

Technical line drawing of a mechanical housing or enclosure component (no text or symbols)

2 608 438 693 (L-Boxx 238)

Isometric line drawing of a mechanical housing or enclosure with internal components (no text or symbols)

2608438112
