303495 - Compressor Brandson - Free user manual and instructions

Product Type	Cordless Electric Air Compressor
Brand	Brandson
Model	303495
Power Supply	230 V/50 Hz AC mains adapter, 12 V DC car adapter, 7.6 Wh (12.8 V) Li-ion battery
Maximum Pump Pressure	150 PSI (approx. 10.3 bar), tolerance ± 3 PSI (±0.2 bar)
Battery Capacity	7.6 Wh
Charging Time	Approximately 2 hours
Operating Temperature	-20°C to +50°C
Main Functions	Inflation with automatic shut-off, pressure measurement, target pressure setting, LED lighting
Included Adapters	Sclaverand adapter, balloon adapter, leisure item adapter, 30 cm extension with car valve
Pressure Units	PSI, bar, kPa, kg/cm²
Safety	Automatic shut-off at set pressure, safety shut-off in case of overheating or abnormal noise, child lock (UNIT key lock)
Maintenance and Cleaning	Clean with a soft, dry cloth; store in a dry, frost-free place; recharge every 3 months if unused
Spare Parts / Accessories	Provided adapters; 14.4 V/350 mA power supply; 12 V car adapter
General Information	Category: compressor; indoor use; do not use in wet outdoor conditions

Frequently Asked Questions - 303495 Brandson

How to charge the Brandson 303495 compressor?

Use the provided mains adapter (230 V/50 Hz AC) or the car adapter (12 V). Plug it into the device and the power source. The charging indicator on the screen shows the status. Charging time is approximately 2 hours.

How to set the desired target pressure?

Press the UNIT key multiple times to select the unit (PSI, bar, kPa, or kg/cm²). Use the + and - keys to set the desired pressure. The pump stops automatically once this pressure is reached.

What to do if the pump does not inflate to the set pressure?

Ensure the battery is fully charged. If the problem persists, reset the device by pressing the + and - keys simultaneously for about 3 seconds until all screen symbols briefly light up.

How to clean the compressor?

Turn off the device. Clean the housing with a soft, dry cloth. Do not use aggressive or chemical cleaners. Avoid contact with liquids.

What adapters are included with the compressor?

The kit includes: an air hose, a Sclaverand valve adapter, a balloon pump adapter, an inflatable leisure item adapter, and a 30 cm extension with a car valve adapter.

How to use the pressure measurement function?

Connect the device to the object to be measured (tire, ball, etc.). Press the UNIT key to display the current pressure on the screen. The pump does not start in measurement mode.

What does the automatic shut-off of the pump mean?

When the pressure of the object reaches the set target value, the pump stops automatically to prevent over-inflation. You can also stop it manually with the ON/OFF key.

How to reset the compressor in case of malfunction?

If the pump does not work correctly, press the + and - keys simultaneously for about 3 seconds. All screen symbols briefly light up, then the device restarts normally.

How to store the compressor for a long period?

Store the device in a dry, frost-free place. Fully recharge the battery approximately every 3 months to maintain its performance.

What to do in case of unusual noise or overheating?

Immediately turn off the device and let it cool down for at least 30 minutes. If the problem persists, stop using it and contact customer service.

USER MANUAL 303495 Brandson

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check if the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Electric air compressor
• 30cm extension (car valve)
- 14.4V / 350mA power adapter (5.5mm x 2.5mm DC coaxial connector)
• 12V car power adapter (5.5mm x 2.5mm DC coaxial connector)
- various adapters

1. Technical data

Power supply • Mains adapter: AC 230V/50Hz• Car mains adapter: 12V DC

Battery Li-Ion battery / 7.6 Wh 12.8V

Charging time every 2 hours

Max. pump. pressure 150 PSI (~ 10.3 bar), pressure tolerance ± 3 PSI (± 0.2 bar)

Operating temperature approx. -20 °C to +50 °C

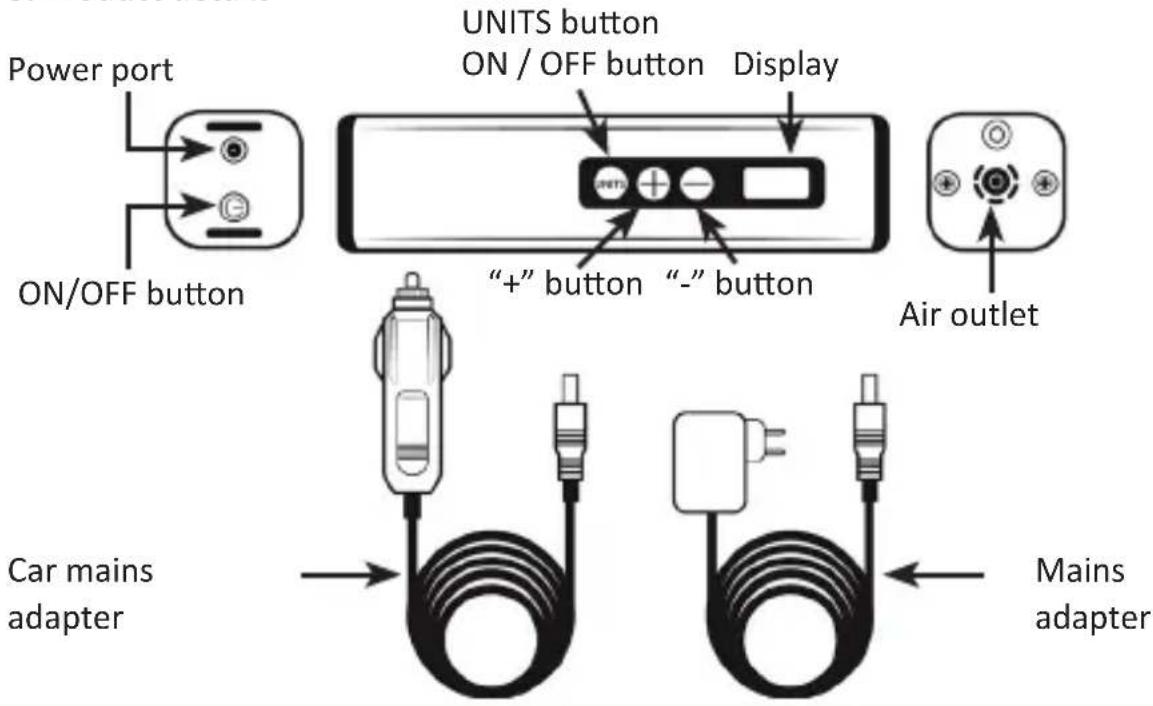

1. Product details

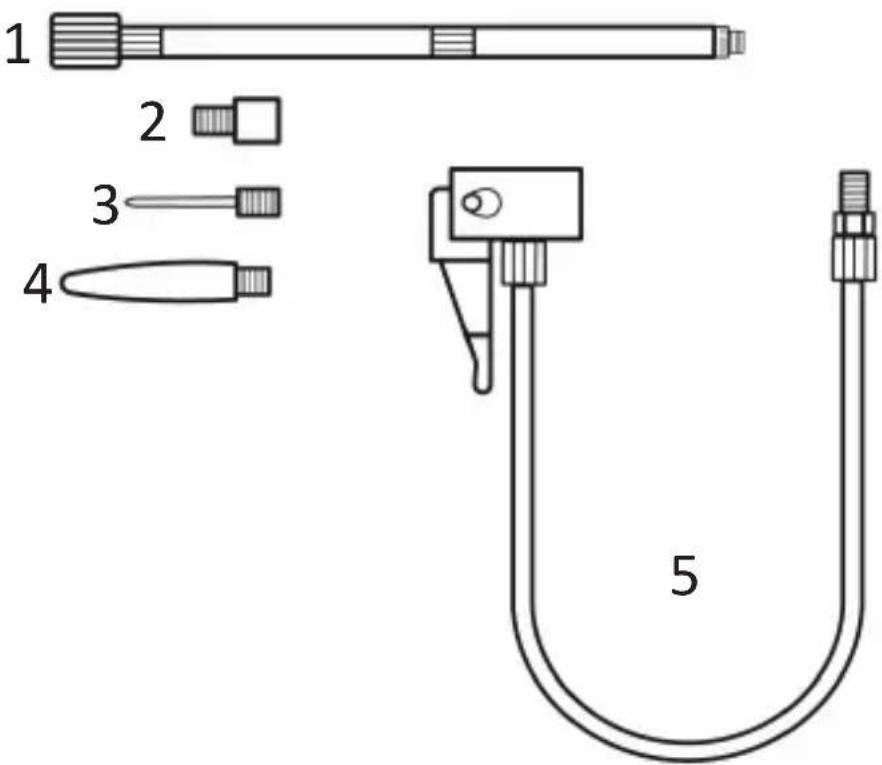

4. Valves

Number Description
1 Air hose
2 Sclaverand valve adapter
3 Ball pump adapter
4 Adapters for inflatable toys
5 30cm extension with car valve adapter

5. Safety instructions

• Children should not play with the device.
• Cleaning and maintenance of the device should not be carried out by children without supervision.
• Use the product only for the intended purpose.
• Never leave the device unattended when in use.
- Use only the air pressure specified by the manufacturer of the object being inflated.
• Never use the product on people or devices.
• Make sure that the compressor is not exposed to oil or hot objects. Keep the hose away from sharp edges.
- Only use accessories or spares that are specified in the manual, or those recommended by the manufacturer.
- Stop using the device if it is damaged. Check the device each time before use.
• If the air pump is making unusual noises or overheating, turn it off immediately and allow it to cool for at least 30 minutes.
- Please fully discharge and recharge the device every 6 months.

6. Commissioning

Take the device out of the package and remove all the packaging material. Before using the product for the first time, charge it completely. To do this, take one of the supplied power adapter and connect it to the power source (electrical socket or car mains socket) and the device. The battery level indicator is located on the device display.

6.1 Operation

1. Connect the device to the air hose or car valve adapter. All the other supplied adapters can be attached to the end of the air hose.
2. Press the "UNIT" button repeatedly to select the pressure unit (PSI, bar, kPa or kg / cm²). Adjust the desired pressure using "+" and "-"
3. Press the "ON/OFF button, to start the pumping. During the pumping, the LED on the side of the compressor starts glowing.
4. If the inflatable object reaches the adjusted pressure, the pump automatically stops the pumping process. Press the "ON / OFF" button to turn the LED off. The pumping can be stopped manually at any time by pressing the "ON / OFF" button.
5. Disconnect the air hose along with valve, after pumping is complete.
6. Store the compressor in a dry and clean place.

During charging, you can prevent the device from turn on accidentally by pressing and holding the "UNIT" button by switching it on ("ON") or off ("OFF").

7. Air pressure measurement function

Connect the device to the object to be measured and press the "UNIT" button. The display now shows the actual tyre pressure.

8. Standby function

If the device does not detect any pressure when the pump is running, it turns off automatically after about 60 seconds.

9. Cleaning and Care

Store the device in a dry and frost-free location. If the air pump is not needed for a long time, charge the battery approximately once in 3 months.

Turn off the device before cleaning and wipe the housing using a soft dry cloth. Do not use any aggressive or chemical cleaning agents. Never allow fluids to get into the device.

10. Troubleshooting

Error Solution
The pump only starts up shortly and the LED lights up or it does not pump up to the set pressure	Fully charge the machine. Then press the “+” and “-” keys simultaneously for about 3 seconds until all the symbols in the display light up briefly.The device is reseted and should work normally again.

11. Safety instructions and disclaimer

Never try to open the device to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy.

Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without special prior notice.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

WD Plus GmbH hereby certifies that the device 303495/20200605NB093 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
