Product type	Door/window alarm system
Brand	Bearware
Model	306608
Power supply	2 AAA 1.5 V batteries (not included)
Sound level	Approximately 120 dB
Operating modes	4 modes: general alarm, door/window open alarm, entry warning, door/window open reminder
Operating temperature	-10°C to +50°C
Detection distance	Less than 1 cm between the magnet and the main unit
Installation	Double-sided adhesive, clean and dry surface
Material	ABS plastic
Dimensions (approx.)	8 x 3 x 2 cm
Weight (approx.)	50 g (with batteries)
Maintenance	Clean with a dry, clean cloth
Safety	Do not open, avoid shocks and humidity
Spare parts	AAA batteries
Warranty	Subject to legal conditions
General information	Instructions downloadable free of charge from notice-facile.com

Frequently Asked Questions - 306608 Bearware

How to activate the alarm for the first time?

Open the battery compartment, insert 2 AAA batteries respecting polarity, then press the Activate/Deactivate button. The device is then ready.

What are the different operating modes?

The alarm has 4 modes: general alarm (1 beep), door/window open alarm (2 beeps), entry warning (3 beeps), and door/window open reminder (3 beeps but continuous sound). Change mode with the Mode button.

How to install the alarm on a door?

Clean the surface, remove the adhesive tape and stick the main unit on the frame. Place the magnet on the door less than 1 cm from the main unit, aligning the triangular marks. Press firmly for 10 seconds.

What to do if the alarm does not sound?

Check that the alarm is activated (press the Activate/Deactivate button). Replace the batteries if the volume is low. Ensure that the magnet is on the triangle side and that the distance is less than 1 cm.

How to replace the batteries?

Open the battery compartment by sliding the cover. Remove the old batteries and insert two new AAA batteries respecting polarity. Close the compartment.

Is the alarm waterproof?

No, the device is not waterproof. Use it only indoors, away from water, snow and high humidity.

What is the detection range?

The alarm triggers when the door or window opens, which moves the magnet away from the main unit by more than 1 cm. The maximum detection distance is therefore 1 cm.

Can I use the alarm on a sliding window?

Yes, provided that the magnet and the main unit can be fixed less than 1 cm apart when the window is closed. Test the proper operation first.

How to temporarily disable the alarm?

Press the Activate/Deactivate button to switch to disarmed mode. No sound will be emitted. To rearm, press again.

What to do if the adhesive no longer holds?

Clean the surface thoroughly with a dry and degreasing cloth. Replace the adhesive if necessary (strong double-sided tape). Avoid uneven or dusty surfaces.

USER MANUAL 306608 Bearware

Index of contents

1. Deutsch .... 3
2. English....10
3. Français 17
4. Italiano 25
5. Español....32

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for purchasing a BEARWARE product. Please read the following quick guide carefully so that you can enjoy your purchased device for a long time.

1. Scope of delivery

• Window/door alarm
• Operating instructions

2. Technical data

Power supply 2x AAA 1,5V Batterien
Alarm volume ca. 120dB
Features	General alarmOpen door/window alarmEntrance warningReminder mode for open doors/windows
Operating temperature -10°C - +50°C

3. Additional information about this product

The window/door alarm has 4 different operating modes to meet your different needs. It offers an easy-to-use, cost-effective security solution to protect you and your family from home burglaries.

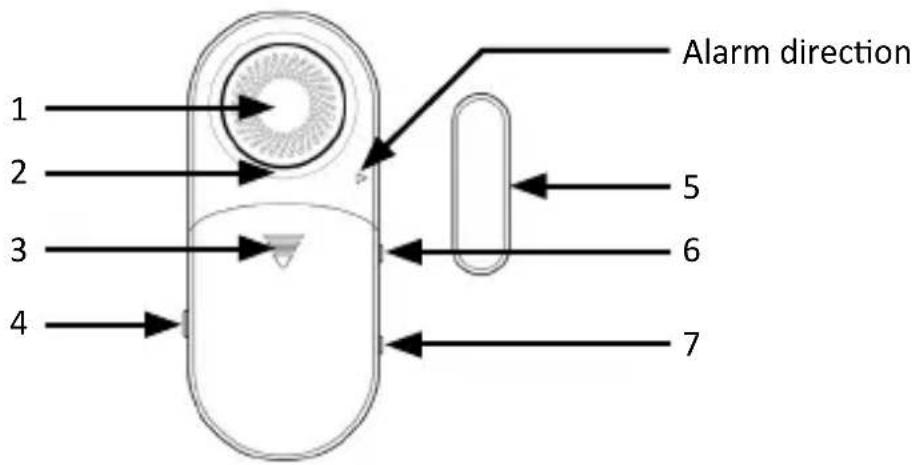

4. Product details

Number Description
1 Buzzer
2 Status LED
3 Battery compartment
4 ON/OFF switch
5 Magnet
6 Mode button
7 Activate/Deactivate button

5. Start-up

Remove the device from the packaging and remove all packaging material.

Open the battery compartment by sliding it downwards in the direction of the arrow and insert 2x AAA batteries. Always ensure that the polarity of the contacts is correct.

The device is then ready for operation.

6. Switch on alarm

By default, the door or window alarm is switched off when it arrives in your parcel. Please switch it on before use.

7. Set the operating mode

You can choose between four operating modes, which you can switch between by briefly pressing the „Mode“ button. To indicate which „operating mode“ the door or window alarm is in, the device confirms operation with different times.

General alarm mode

When this mode is set, you will hear a single beep.

You can activate or deactivate the alarm by pressing the „Activate/deactivate“ button.

- Arming (activate): If the window or door is opened, the alarm will continue to sound and flash red for 1 minute, even if the window or door is closed again. The only way to switch off the alarm is to switch to disarming status.

- Disarm (deactivate): No sound is emitted, regardless of whether the doors or windows are open or closed.

Open door/window alarm mode

If this mode is set, you will hear two beeps.

The alarm sounds and flashes red when the window or door is opened, but stops when the window or door is closed again.

Entry alarm mode

When this mode is set, the alarm beeps three times.

The alarm sounds with a beep when the door or window is opened.

Reminder mode for open doors/windows

If this mode is set, you will hear four beeps.

The alarm sounds every 3 seconds when the window or door is opened, but stops when the window or door is closed again.

7. Replace batteries

If the alarm is significantly quieter than normal, please replace the batteries.

Open the battery compartment, remove the old batteries and dispose of them properly.

Then insert two new batteries into the device. Ensure that the polarity of the contacts is correct.

8. Before the installation

1. Please remove the insulating strip from the battery compartment before use.
2. The magnet and the main unit should be less than 1cm apart when closed.
3. Do not install the alarm near magnetic parts that could accidentally trigger the alarm.
4. The device is not waterproof! Use it for indoor use only.
5. Please stick the main unit on a flat and clean surface. Please note that the adhesive strip will adhere poorly if the surface is dirty or uneven. Sunlight or water will also impair adhesion over a long period of time.

9. Installation

This alarm can be fitted to doors, windows and all other objects that can be opened and closed. Before installation, test whether the alarm is working properly and make sure that the door (window) and frame are at the correct distance to allow the sensor to be fitted.

1. Use a clean, dry cloth to clean the area where you want to install the alarm system.
2. Remove the adhesive tape from the alarm and the magnet.
3. Stick the alarm to the desired location and press firmly for approx. 10 seconds to ensure that the device is securely attached.

Note: The magnet must be attached to the side of the alarm with the triangular symbol (alarm direction). The distance between the magnet and the main unit should be less than 1cm.

10. Troubleshooting

Error Cause	Solution
The alarm does not emit a sound after being triggered	The alarm is not switched on or is in a blurred state	Switch on the alarm or arm the alarm if it is in general alarm mode.
	Low battery voltage Replace battery
	The magnet is not on the side of the sensor with the triangular marking	Please place the magnet only on the side of the sensor with the angle marking
	The magnet is too far away from the main unit	Please ensure that the distance between the main unit and the magnet is less than 1 cm when the door or window is closed.

11. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, please only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic parts. Check the device for damage before use.

14 English

The appliance should not be used if it has been knocked or damaged in any other way. Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons.

Any repair or modification to the appliance that is not carried out by the original supplier will invalidate the warranty or guarantee. The appliance may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

12. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be recycled or disposed of separately, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly.

As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment.

13. Notes on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following: The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

CE

WEEE Directive 2012/19/EU WEEE Register No.: DE 94495668

Hereby, the company WD Plus GmbH declares that the device 306608 is in compliance with the essential requirements and other relevant provisions of the Directive. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
