Thank you for choosing a quality product from Hoshizaki.

This manual will advise you how to install, use and maintain your new product.

Before our products leave the factory, they undergo a full function and quality test.

Should you nevertheless experience problems with the product, then contact your local dealer. Hoshizaki representatives and dealers placed all over the world are ready to help you.

Please refer to your dealer for information about the warranty coverage of your new Gram product.

Any warranty is subject to correct use according to specifications in this user manual, where e.g. common maintenance and eventual repairs are carried out by authorized technicians with proper knowledge of the product and only using original spare parts.

Changes in installation and other use of the product than prescribed in this manual, might affect the operation and durability of the product.

The manual is written according to our current technical knowledge. We constantly work on updating this information, and we reserve the right to make technical changes.

Intended use

The product is intended for the storage of foodstuffs in non-household environments but not for the display to or access by customers.

The product is designed for storage at a constant temperature and not be used for chilling down or freezing hot/fresh foodstuff.

The product is only to be used for the purpose for which it has been expressly designed. Any other use could cause that the foodstuff stored in the product is not kept at the correct temperature or even damage the product.

The product is not suited for storing blood plasma, laboratory samples, pharmaceuticals or similar substances.

The manufacturer will not be held liable or responsible for any damage caused by improper, incorrect or unreasonable use of the product.

Safety information

Important

Description of symbols used in this manual.

Warning Lacking observation to these instructions might result in accidents with personal injury.

Important If these instructions are not observed, the product might be damaged or destroyed.

Be aware that Hoshizaki has taken precautions to ensure that the safety of the product is in order.

Please read carefully the following information regarding safety.

It is important, that everyone who are to use or install the product, to have access to this manual.

This appliance is not intended for use by persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

The appliance might contain parts with sharp edges in the compressor compartment, and in the inside compartment.

The appliance is not to be transported on a sack truck, there is a danger of loosing the balance, causing danger to persons.

Do not pull the power cord to disconnect the appliance, or when moving the appliance.

Location

When receiving the cabinet, check the packaging material for damage.

If any damage occurs at the packaging material, it should be considered if the cabinet might have been damaged too. If the damage is substantial, please contact your dealer.

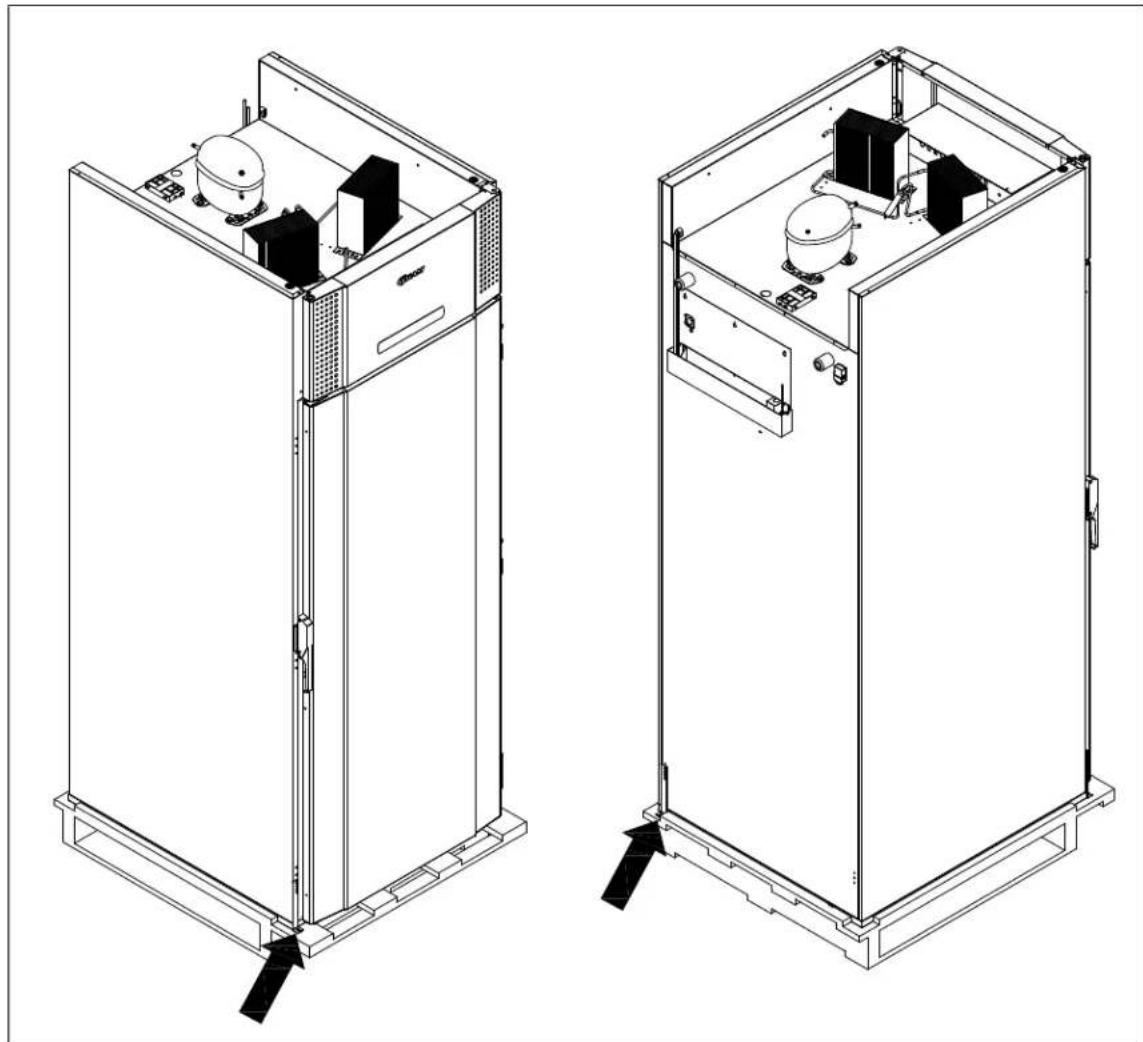

The transport pallet can be removed by loosening the screws that fasten the pallet to the cabinet.

This task requires at least 2 persons. The heaviest part of the cabinet is at the top. Be aware of this, when removing the transport pallet.

Technical line drawings of two views of an internal appliance cabinet (no text or symbols)

Fig.1

If the cabinet has been transported in horizontal position it must stand upright at least 2 hours before it is started to allow the oil from the compressor to run back.

Because of the heavy weight of the cabinet, the floor might be damaged or scratched when moving the cabinet.

Correct set up gives the most effective operation.

The cabinet should be located in a dry and adequately ventilated room.

To ensure efficient operation, it may not be placed in direct sunlight or against heat-emitting surfaces. The cabinet is designed to operate in an ambient temperature of up to +30^ C.

Avoid placement of the cabinet in a chlorine/acid-containing environment (swimming bath etc.) due to risk of corrosion.

The cabinet and parts of the interior is equipped with a protecting film, which should be removed before use.

Clean the cabinet with a mild soap solution before use.

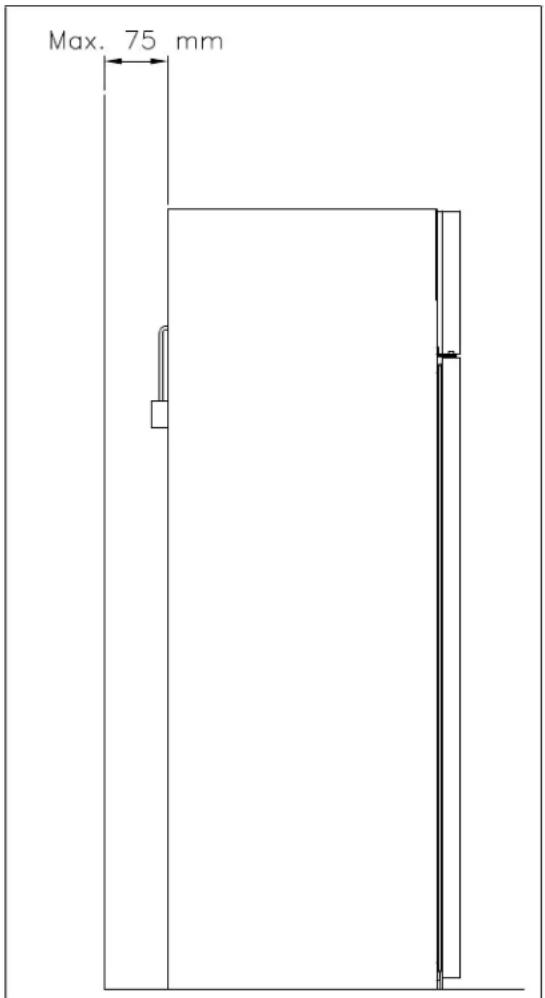

It is ideal to install the cabinet as close as possible up against the wall, however max. 75 mm from the wall.

Max. 75 mm

Fig. 2

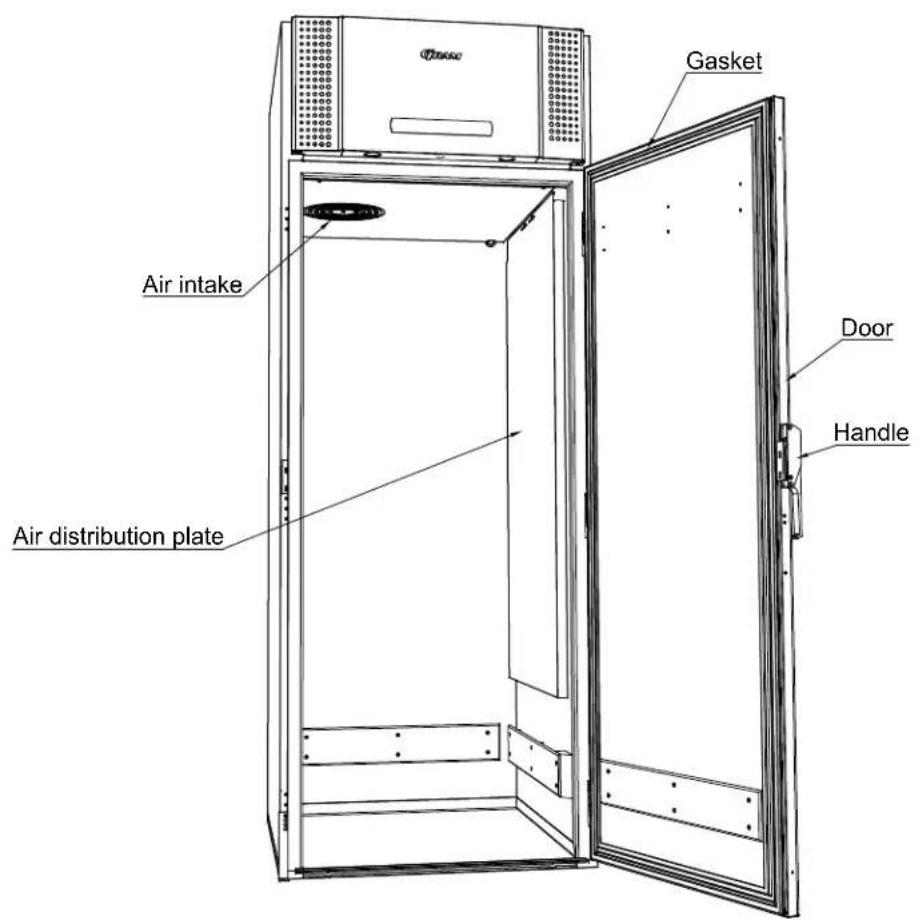

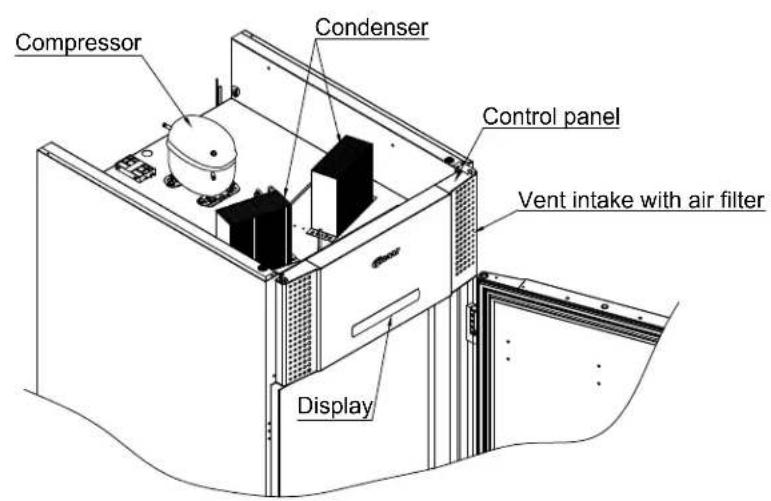

General description

Compressor Condenser Control panel Vent intake with air filter Display

Gasket Air intake Air distribution plate Door Handle

Fig. 3

Refrigerant / GWP value

	Refrigerant	Charge kg	GWP	CO2Equivalent t
K 1500 G R290 0,102 3	0,000306
M 1500 G R290 0,102 3	0,000306
F 1500 G	R290	0,105	3	0,000315

Climate / temperature class

Products in this category are tested according to the following climate classes. Information about the climate class applicable for the different products can be found at the name plate.

Climate class
3 25°C / 60 % RH
4 30°C / 55 % RH
5 40°C / 40 % RH

Electrical connection

Read the text below thoroughly before electrical connection.

The cabinet is intended for connection to alternating current. The connection voltage (V) and frequency (Hz) are shown on the name plate in the cabinet (see Fig. 7). Only the supplied detachable powercord is to be used (see Fig. 4).

Never use an extension cord for this appliance!

If a wall socket is placed in a longer distance than the length of the supplied power cord, contact an electrician to establish a wall socket within the range of the supplied power cord.

If the product is defective, it must be examined by an authorized technician with proper knowledge of the product during the guarantee period, if it is a product with built-in compressor.

If it is a product connected to an external compressor unit, it must be examined by the company who has connected the product to the unit.

Outside the guarantee period, it is advisable to use the service advised by your dealer. If this is not the case, assistance is required from an authorized technician with proper knowledge of the product.

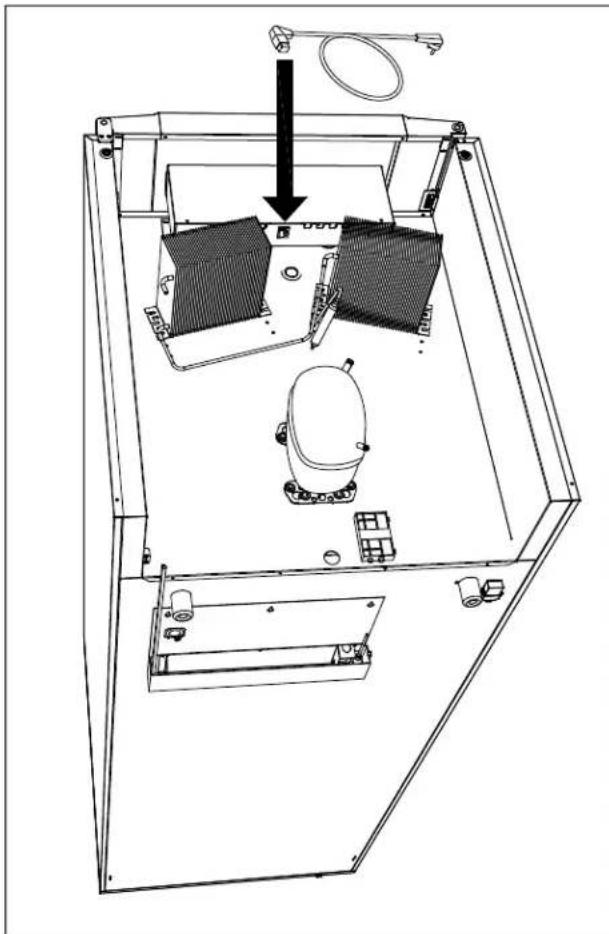

Connecting the detachable cord:

Technical line drawing of an electronic device casing with internal components and a downward arrow indicating a component (no text or symbols present)

Fig. 4

Always disconnect the power if interruptions in power supply occur, and when electrical parts are removed/put on, and before cleaning and maintenance of the appliance.

Repairing of electrical/technical parts may only be performed by authorized technicians with proper knowledge of the product.

Do not use the appliance before all coverings are installed, so that live or rotating machine parts can not be touched.

The cabinet is not to be used outdoor.

All earthing requirements stipulated by the local electricity authorities must be observed. The cabinet plug and wall socket should then give correct earthing. If necessary, contact an electrician.

Make sure the appliance is switched off at the socket before service is performed on electrical parts. It is not sufficient to switch off the cabinet by the START/STOP key as there will still be voltage to some electrical parts of the cabinet..

General use

Do not block vent holes in the front panel.

Do not damage the refrigeration system parts.

During normal operation, some parts of the refrigeration system in the compressor compartment might reach high temperatures, and could therefore cause burns if touching these components.

If the door is locked with the key, it can not be opened from the inside. Therefore the inside of the cabinet must be checked before locking the door.

Do not use electrical devices inside the cabinet.

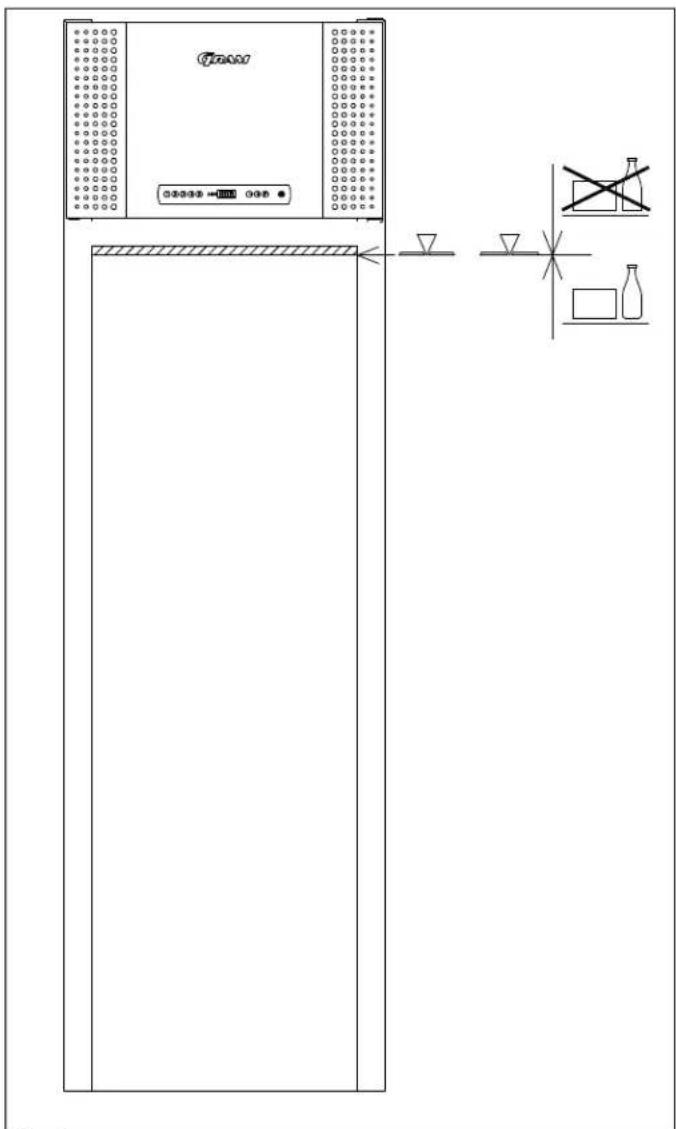

To ensure correct and efficient air flow in the cabinet, the shaded areas must be kept free of products. (see Fig. 5)

All products to be stored, that are not wrapped or packed, must be covered in order to avoid unnecessary corrosion of the inner parts of the cabinet.

If any controller parameters are changed from default, this could cause that the appliance is not functioning normally, and harmful temperatures could damage products that are kept inside the appliance.

If the appliance is turned off, wait minimum 3 minutes before turning the appliance on again. This is to protect the compressor from damage.

Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.

Be aware, if bottles are stored near the air outlet, they may freeze up and break, causing a risk of injury.

Do not pack the cabinet with foods. Allow some space between them to ensure a good airflow.

Moist or fresh foods and those with a strong smell should be wrapped up in a plastic film or packed in a container. Otherwise the food may dry up or give their smell to other foods.

Foods containing acetic acid or yeast should be wrapped up in plastic film. Otherwise they may accelerate corrosion of the evaporator and metal parts, resulting in failure.

Technical diagram of a device with labeled ports and warning symbols, including a cross symbol and spray bottle.

Fig. 5

Starting up

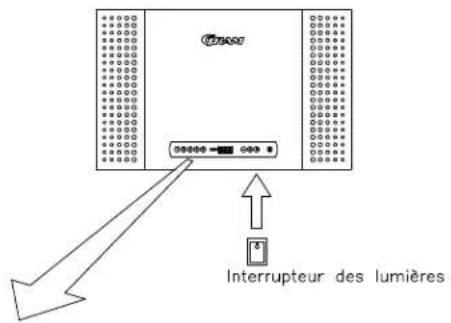

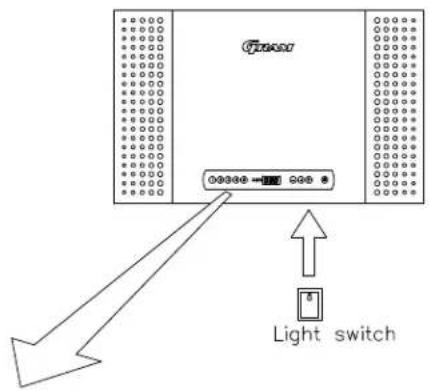

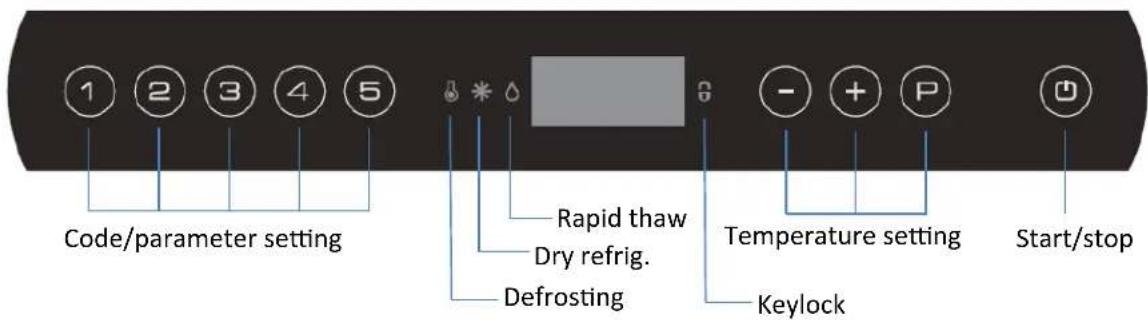

Display overview:

Light switch

Code/parameter setting Rapid thaw Dry refrig. Defrosting Temperature setting Start/stop Keylock

Plug in the cabinet.

To start, press the START/STOP key.

During start up, the software version is displayed, followed by the software variant. The cabinet temperature is displayed, when the cabinet starts normal operation.

The cabinet starts with a defrost, which is stopped shortly after, when the system has performed a system check.

To cancel the defrost program, press keys and for more than 3 seconds. is turned off.

To turn off the cabinet, push for more than 3 seconds.

Shortcuts:

Key combination	Time	Function
P+	>3 seconds	Start or stop manual defrosting
∅+1	>5 seconds	Activation/deactivation of keylock
P	-	Displays temperature setpoint
P+1	>3 seconds	Access to user menu and alarm settings

Temperature setting

Temperature control:

Press to see the cabinet temperature setting; the display will show the set temperature.

Temperature regulation:

Keep pressed. At the same time, press or .

Each time or is pressed the temperature will change one degree. When the display shows the desired temperature, let go of the two keys and the setting has been made.

Error codes on the display

Display code	Description
- o - The door is open
A1	Door alarm "dAd" from LAL and/or EAL has been activated
A2 Local	upper alarm LHL is or has been activated
A4 External	upper alarm EHL is or has been activated
F1 Cabinet sensor error. In the meantime the cabinet itself will maintain the set temperature by the memory of the controller. Temperature stability will be affected. Service assistance is required.
F2 Evaporator sensor error. Service assistance is required. The cabinet will keep running until the error has been mended.
F3* Condenser sensor 1 error. The cabinet will keep running, until the error has been mended. Service assistance is required.
F4* Condenser sensor 2 error. The cabinet will keep running, until the error has been mended. Service assistance is required.
F7* Indicates that the condenser temperature is too high. The cause might be a clogged condenser, or too high ambient temperature. If the condenser or air filter needs cleaning, the cabinet must be disconnected at the mains power. Cleaning of the condenser is done with a brush or a vacuum cleaner. The air filter can be removed and cleaned in a dishwasher at max. 50°C. If the ambient temperature is too high, the placement of the cabinet might be wrong, and an alternative place should be found. Ventilation might help. If this does not help, request service assistance.

* Applies only to cabinets with built-in compressor.

Acknowledgement of the acoustic alarm:

Acknowledge an alarm: push Ⓟ

Example:

To acknowledge a door alarm: A1 flashes at the display. Push Ⓟ

Troubleshooting

Noise:

• If abnormal noise occurs, request service assistance.
• Operating sounds from compressor, condenser fan and interior fan are normal. Some models are equipped with a drain pump.
• If sheet metal parts, front panels or panels in front of the compressor compartment are making noise, these might be open. Close the panels. The front panel is equipped with a catch, fitting into a locking system. The locking system could be locked unintentionally, then the catch can be extracted with a tool.

Frosting inside compartment:

• Ambient humidity too high.
• The door is opened too often.
• The door is left open for too long.
• Damaged door gasket.

Poor cooling performance:

• Ambient temperature too high.
• The door is opened too often and/or open for too long.
• The door is left open.
• Damaged door gasket.
• Cabinet temperature setting too high.
• Cabinet too packed with foods - air inlet/outlet blocked.
• Condenser mesh filter is clogged.
• Warm or hot foods inside.
• Defrost in progress. The cabinet temperature may rise temporarily during the defrost cycle, but it will not affect the foods inside.

Some of the foods are frozen:

• Cabinet too packed with foods - air inlet/outlet blocked.
• Cabinet temperature setting too low.

Condensation around the door:

• Ambient humidity too high.
• The door is not closed tightly.
• Damaged door gasket.

Too high energy consumption:

• Ambient temperature too high.
• The door is opened too often and/or open for too long.
• The door is left open.
• Damaged door gasket.
• Cabinet temperature setting too low.
• Cabinet too packed with foods - air inlet/outlet blocked.
• Condenser mesh filter is clogged.
• Warm or hot foods are brought into the cabinet too often.
• Cabinet placed in direct sunlight or close to heat-emitting surfaces.
• The default settings have been changed.

User menu

This chapter includes setting of alarm values, dry refrigeration and rapid thaw.

Setting of dry refrigeration only applies to cabinets equipped with dry refrigeration.

Setting of rapid thaw only applies to cabinets equipped with rapid thaw. The temperature setpoint must be set at between +2°C and +8°C

The alarm system is divided into 2 systems. The one system only triggers local alarms, which means that the error codes are only shown at the display. The other alarm system triggers both alarms at the display, but it also activates the remote alarm outlet. Each alarm system operates independently of each other.

If a change of the setting is required, get access to the menu by pushing for more than 3 seconds. The values are changed by pushing the or keys. The new setting is saved by pushing To exit the menu, push .

Menu access P + 1 → ↓		→↑
Dry refrigeration dC H0/H1 Activation of dry refrigeration.(H0=on; H1=off)
Rapid thaw UF on/off	Activation of rapid thaw. (on/off)
Local alarm setting	LAL	LHL	°C	Setting the upper alarm limit. At alarm, the display shows: A2
		LHd	min.	Time delay for the upper alarm limit.
		dA	On/off Activation of local door alarm. At alarm, the display shows: A1(1=on / 0=off)
		dAd	min.	Time delay for the door alarm.
		BU	On/off Activation of buzzer. The buzzer sounds at alarms A1, A2. (1=on / 0=off)
External alarm setting	EAL	EHL	°C	Setting the upper alarm limit. At alarm, the display shows: A3
		ELL	°C	Setting the lower alarm limit. At alarm, the display shows: A4
		EHd	min.	Time delay for upper alarm.
		ELd	min.	Time delay for lower alarm.
Temperature offset (sensor calibration)	CAL	CA	K	-5...+5 K
Escorting alarm limits ALL FAS/ESC			Activation of escorting alarm limits.FAS= fixed limits / ESC = limits following the setpoint
No. of defrosts	dEF	4		Number of defrosts in 24 hours.

Keylock

The keypad can be locked by simultaneously pushing for more than 5 seconds.

lights to indicate that the keys are locked, and a short beep sounds. Now it is not possible to use the keys for temperature setting etc. The same code is to be used for unlocking the keypad again.

Defrosting

Defrosting is automatically performed 4 times every 24 hours. If the cabinet is operating under severe load (frequent door opening and frequent replenishment), manual defrosting can become necessary.

Starting manual defrosting: push simultaneously for more than 3 seconds.

The next defrost will occur 6 hours later. lights up to indicate a defrosting cycle.

It is possible to change the number of defrosts. See the chapter "User menu" for setting.

Do not use sharp or pointed objects to accelerate the defrosting process.

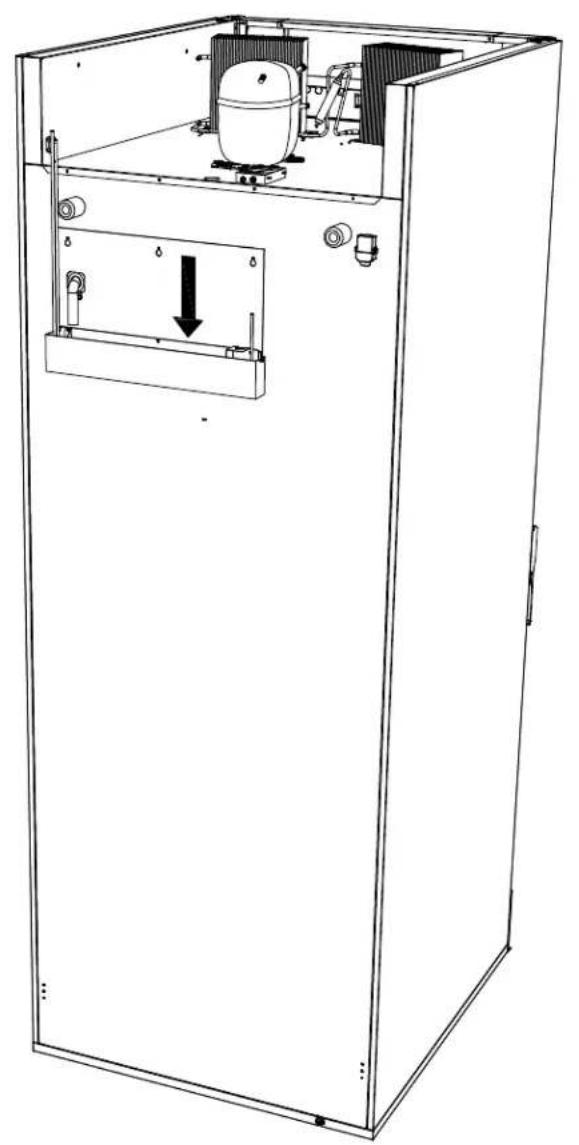

Defrost water

The cabinet expels defrost water during defrosting, which is led into a tray on the backside of the cabinet (see Fig. 6).

A re-evaporation pipe from the refrigeration system, and an electrical heating element, placed in the tray, re-evaporates the water.

Some models are equipped with a condensate pump, which pumps the water up into a tray in the compressor compartment, where it is re-evaporated..

It is recommended to clean the tray and water trap at least once a year. Remember to disconnect the cabinet before cleaning.

Be careful not to damage the re-evaporation pipe and heating element during cleaning.

Technical line drawing of a mechanical device with internal components and a downward arrow indicating a component (no text or symbols present)

Fig. 6

Power failure

In the event of a power failure, the control remembers the temperature setting and restarts the cabinet when power is restored. If the power failure persists for some time, the control might revert to the factory setting.

Cleaning

Insufficient cleaning will cause that the cabinet will not work at optimum performance, or eventually it will be defective.

Before cleaning, the cabinet should always be disconnected.

Do not flush the cabinet with water, do not use water jet or steam hose as this may cause short-circuits in the electrical system.

Cleansing agents containing chlorine or compounds of chlorine as well as other corrosive means, are not to be used, as they might cause corrosion to the stainless panels of the cabinet and the evaporator.

The compressor compartment and in particular the condenser must be kept free from dust and dirt. This is best done with a vacuum cleaner and a brush.

The air filters on the condenser and the front panel can be removed and cleaned in a dishwasher at max. 50°C.

For the external maintenance – use stainless steel polish.

The cabinet should be cleaned internally with a mild soap solution at suitable intervals and checked thoroughly before it is put into operation again.

Door gaskets

This chapter deals with the importance of a well-functioning door gasket.

Gaskets are an important part of a refrigerator/freezer. Gaskets with reduced functionality, reduces the tightness of the cabinet. Reduced tightness might cause increased humidity, internal icing, an iced up evaporator (leading to reduced refrigeration capacity), and in worst case reduced lifecycle of the cabinet.

Therefore it is important to be aware of the condition of the gasket. Regular inspection is recommended.

The gasket should be cleaned regularly with a mild soap solution.

If a gasket needs replacement, contact your supplier.

Long term storage

If the cabinet is taken out of operation, and need to be prepared for long-term storage, clean the inside compartment, the door and door gasket thoroughly with a hot soapy damp cloth.

Eventual remnants of food could create mould.

Service

The refrigerating system and the hermetically sealed compressor require no maintenance - they merely must be kept clean.

If refrigeration fails, first investigate whether the unit has been unintentionally disconnected or switched off at the socket, or whether a fuse has blown.

If it is not possible to find the cause of the refrigeration failure, please contact your dealer.

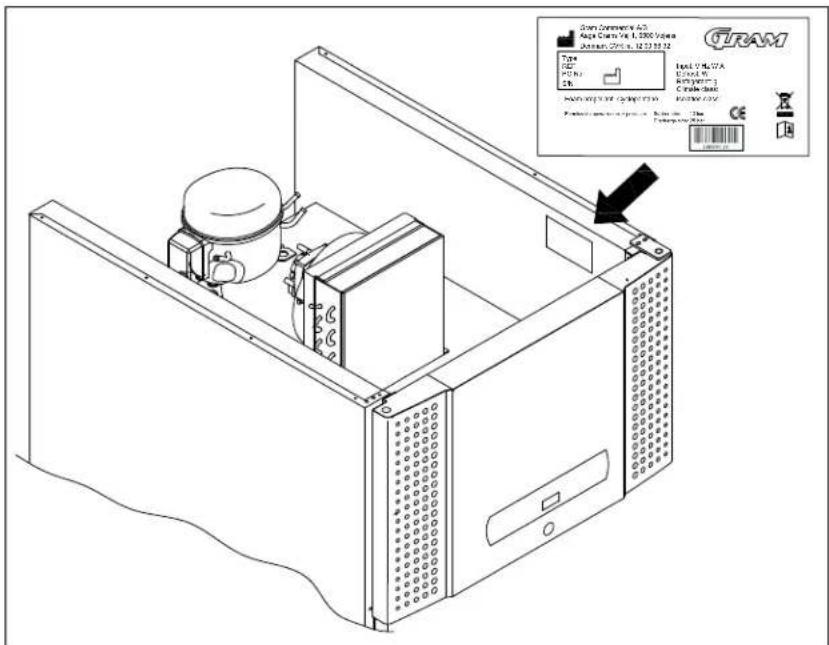

When reporting a malfunction please state the type and serial number (S/N) of the cabinet. This information is found on the name plate, see Fig. 7.

Location of the name plate:

CTRAM CTRAM Size PC PC No 2h Hole: 0.1kVA C/Max: 3 Kerriever: 3 Cable: Max Hole: 0.1kVA / Cyber/CP Kerriever: 3 Cable: Max Pakar: 0.1kVA / Cyber/CP Cable: Max CE 10

Fig.7

Disposal

Electrical and electronic equipment (EEE) contains materials, components and substances that can be dangerous and harmful to human health and the environment if the waste (WEEE) is not disposed of properly.

Products that are labelled with a “crossed-out wheelie bin” is considered electric and electronic equipment. The crossed-out wheelie bin symbolizes that waste of this type cannot be disposed of with unsorted municipal waste but must be collected separately. Contact your local dealer when the product needs to be disposed of.

Please be aware of not damaging the refrigeration system and piping when a product is taken out of use. This will prevent the uncontrolled escape of the refrigerant from the refrigeration system.

The below only concerns the United Kingdom.

Disposal of an old cabinet is only available when we are delivering a new one at the same time. Cabinets must be fully defrosted and emptied prior to collection.

Hoshizaki recognises that our products for the catering market are considered as WEEE when they become obsolete. To ensure that Hoshizaki's responsibilities are handled correctly and environmentally friendly, we are signed up the largest Business to Business compliance scheme in the UK – B2B Compliance http://www.b2bcompliance.org.uk

B2B Compliance will on our behalf deal with all areas of our responsibilities when collecting and disposing of equipment which fall under the UK WEEE regulations. B2B Compliance can be contacted on telephone number 01691 676124.

DEUTSCH

Technical line drawing of two open industrial cabinets with internal components and mounting brackets (no text or symbols)

Fig.1

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Fig. 4

Technical diagram of a device with labeled components and warning symbols, including a crosshair symbol and spray bottle.

Fig. 5

Inbetriebnahme

Technical line drawing of an open industrial machine with internal components and a downward arrow indicating a component (no text or symbols present)

Fig. 6

Stromausfall

Control Control Unit Page 101-01-01 - 12/01/01 Control Unit: 12/01/01 Port REF PC No. CH Enter Impeller Component Input: V 16.74 A Dashed V Replished g Inadeable drier Balloide drier Functional operation: C-95-03 C-95-03 Control unit: 12/01/01 GTRAM

Fig.7

Entsorgung

Technical line drawing of two open industrial cabinets with internal components and mounting brackets (no text or symbols)

Fig. 1

Technical line drawing of a mechanical device with internal components and a downward arrow indicating motion (no text or symbols)

Fig. 4

Technical diagram of a device with labeled components and warning symbols, including a control panel and safety indicators.

Fig. 5

Mise en marche

Afficheur :

Technical line drawing of an industrial machine cabinet with internal components and a downward arrow indicating a component (no text or symbols present)

Fig. 6

Panne de courant

Control Panel 4.0 Amp Control Unit (W/3000mm) The control unit is set to Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 C Tram Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Control Panel 4.0 Controls: Box1, Box2, Box3, Box4, Box5, Box6, Box7, Box8, Box9, Box10, Box11, Box12, Box13, Box14, Box15, Box16, Box17, Box18, Box19, Box20, Box21, Box22, Box23, Box24, Box25, Box26, Box27, Box28, Box29, Box30, Box31, Box32, Box33, Box34, Box35, Box36, Box37, Box38, Box39, Box40, Box41, Box42, Box43, Box44, Box45, Box46, Box47, Box48, Box49, Box50, Box51, Box52, Box53, Box54, Box55, Box56, Box57, Box58, Box59, Box60, Box61, Box62, Box63, Box64, Box65, Box66, Box67, Box68, Box69, Box70, Box71, Box72, Box73, Box74, Box75, Box76, Box77, Box78, Box79, Box80, Box81, Box82, Box83, Box84, Box85, Box86, Box87, Box88, Box89, Box90, Box91, Box92, Box93, Box94, Box95, Box96, Box97, Box98, Box99, Box100

Fig. 7

Enlèvement

Technical line drawing of two open industrial cabinets with internal components and mounting brackets (no text or symbols)

Fig. 1.

Technical line drawing of a mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols)

Fig. 4

Technical line drawing of an open industrial machine with internal components and a downward arrow indicating motion (no text or symbols)

Fig. 6

Stroomstoring

Technical diagram of a refrigerant unit with labeled components and a highlighted inset showing a device panel.

Fig. 7

Vernietigen

Technical line drawings of two open industrial cabinets with internal components and mounting brackets (no text or symbols)

Fig. 1

Technical line drawing of a mechanical assembly with internal components and a downward arrow indicating motion (no text or symbols)

Fig. 4

Technical line drawing of an industrial machine cabinet with internal components and a downward arrow indicating a component (no text or symbols present)

Fig. 6

Strömavbrott

Glass Diameter: 10 Max. Cable (W), 5,000 Vdc Transistor CMN: 12.246-030 Type: Power S/O: Pressure/Min: 70 dB Max. Cable (W) Transistor Circuit Transistor CMN TRAM CE R A B C D E F G H I J K L M N O P Q R S T U V W X Y Z A B C D E F G H I J K L M N O P Q R S T U V W X Y Z

Fig.7

Utbyte av skåp
