KSI 301754 - Refrigerator GRAM - Free user manual and instructions

Product type	Freestanding refrigerator-freezer
Brand	Gram
Model	KSI 301754
Total gross capacity	410 L
Fridge net capacity	320 L
Freezer net capacity	90 L
Energy efficiency class	F (EU 2019/2016)
Annual energy consumption	300 kWh/year
Noise level	42 dB (A)
Climate class	N-ST (16°C to 38°C)
Dimensions (H x W x D)	1850 x 595 x 650 mm
Weight	70 kg
Power supply	220-240 V, 50 Hz
Defrost system	Automatic in fridge, manual in freezer
Lighting	LED interior light
Door hinges	Reversible
Shelves	4 glass shelves, 1 salad drawer
Freezer drawers	3 drawers
Child lock	Yes
Control type	Electronic with display
Cleaning	Use mild detergent and water; avoid abrasive cleaners
Spare parts availability	Available through Gram service centers
Safety features	Overheat protection, automatic shutdown on door open (after 2 minutes)

Frequently Asked Questions - KSI 301754 GRAM

How do I adjust the temperature in my Gram KSI 301754 refrigerator?

Use the control panel inside the fridge to set the temperature. The recommended setting is 4°C for the fridge and -18°C for the freezer.

Why is my fridge making unusual noises?

Normal sounds include a humming compressor, clicking when turning on/off, and flowing refrigerant. If noise is loud or irregular, check leveling and ensure no contact with walls or cabinets.

How often should I defrost the freezer?

Defrost the freezer when ice build-up reaches 3-5 mm thickness. For manual defrost models, unplug the fridge, remove food, and let ice melt naturally.

The door seal is damaged, can I replace it?

Yes, the door seal (gasket) can be replaced. Contact Gram customer service or an authorized technician for the correct part and installation.

How do I clean the interior of my fridge?

Unplug the fridge and remove all food. Clean shelves and drawers with a mild detergent solution, rinse with clean water, and dry thoroughly. Avoid harsh chemicals.

Why is there water pooling at the bottom of the fridge?

This is often due to a clogged defrost drain. Check the drain hole at the back of the fridge and clear any debris using a pipe cleaner or warm water.

What is the energy consumption of this fridge?

The Gram KSI 301754 has an annual energy consumption of approximately 300 kWh, making it energy class F under EU standards.

Can I change the door opening direction?

Yes, the door hinges are reversible. Follow the instructions in the user manual to switch the door opening direction from right to left or vice versa.

How do I change the interior light bulb?

The fridge uses an LED light that is integrated and not user-replaceable. If it fails, contact Gram service for assistance.

What should I do if the fridge is not cooling?

First, check that the power cord is plugged in and the thermostat is set correctly. Ensure the condenser coils at the back are clean. If the problem persists, contact a professional technician.

USER MANUAL KSI 301754 GRAM

-bed & breakfast-like environments;

-catering and similar applications outside of retail.

1.2 Installation warnings

or

Note: When

Thank you for choosing this product.

This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance.

Please take the time to read this user manual before using your appliance and keep this book for future reference.

Icon Type Meaning
	WARNING Serious injury or death risk
	RISK OF ELECTRIC SHOCK Dangerous voltage risk
	FIRE Warning; Risk of fire / flammable materials
	CAUTION Injury or property damage risk
	IMPORTANT Operating the system correctly

CONTENTS

1 SAFETY INSTRUCTIONS ...... 20

1.1 General Safety Warnings ....20 1.2 Installation warnings....24 1.3 During Usage....24

2 DESCRIPTION OF THE APPLIANCE....25

2.1 Dimensions....27

3 USING THE APPLIANCE 28

3.1 Thermostat Setting ......28 3.2 Temperature Settings Warnings ....28 3.2.1 The Bottle Holder (In some models) 29 3.2.2 The Fresh Dial (In some models) 29 3.2.3 Adjustable Door Shelf (In some models) 29 3.2.4 Adjustable Glass Shelf (In some models)....29

4 FOOD STORAGE 30

5 CLEANING AND MAINTENANCE....31

5.1 Defrosting 31

6 SHIPMENT AND REPOSITIONING....32

6.1 Transportation and Changing Positioning ....32

7 BEFORE CALLING AFTER-SALES SERVICE 32

8 TIPS FOR SAVING ENERGY 33

9 TECHNICAL DATA....33

10 INFORMATION FOR TEST INSTITUTES 33

11 CUSTOMER CARE AND SERVICE....34

1 SAFETY INSTRUCTIONS

1.1 General Safety Warnings

Read this user manual carefully.

⚠ WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. ⚠ WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. ⚠ WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. ⚠ WARNING: Do not damage the refrigerant circuit. ⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged. ⚠ WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. ⚠ WARNING: In order to avoid any hazards resulting from the instability of the appliance, it must be fixed in accordance with the instructions. ⚠️ If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and

natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

• While carrying and positioning the fridge, do not damage the cooler gas circuit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended to be used in household and domestic applications such as:

- staff kitchen areas in shops, offices and other working environments.

- farm houses and by clients in hotels, motels and other residential type environments.

- bed and breakfast type environments;

- catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.
• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 10 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulnerable people are not expected to use appliances safely unless continuous supervision is given.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

1.2 Installation warnings

Before using your fridge for the first time, please pay attention to the following points:

• The operating voltage for your fridge is 220-240 V at 50Hz.
• The plug must be accessible after installation.
• Your fridge may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge starts to cool.
• Before connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.
• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).
• We do not accept responsibility for any damages that occur due to ungrounded usage.
• Place your fridge where it will not be exposed to direct sunlight.
• Your fridge must never be used outdoors or exposed to rain.
• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.
• If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.
• Do not cover the body or top of fridge with lace. This will affect the performance of your fridge.
• Clearance of at least 150 mm is required

at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.
• Clean the appliance thoroughly before use (see Cleaning and Maintenance).
• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.
• The installation procedure into a kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

1.3 During Usage

• Do not connect your fridge to the mains electricity supply using an extension lead.
• Do not use damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• Do not use plug adapter.
• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.
• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.
• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

Old and Out-of-order Fridges

• If your old fridge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

CE Declaration of conformity

We declare that our products meet the applicable European Directives, Decisions

and Regulations and the requirements listed in the standards referenced.

Disposal of your old appliance

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Packaging and the Environment

Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environmentally friendly as they are recyclable. The use of recycled material reduces raw material consumption and therefore decreases waste production.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable

for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance.

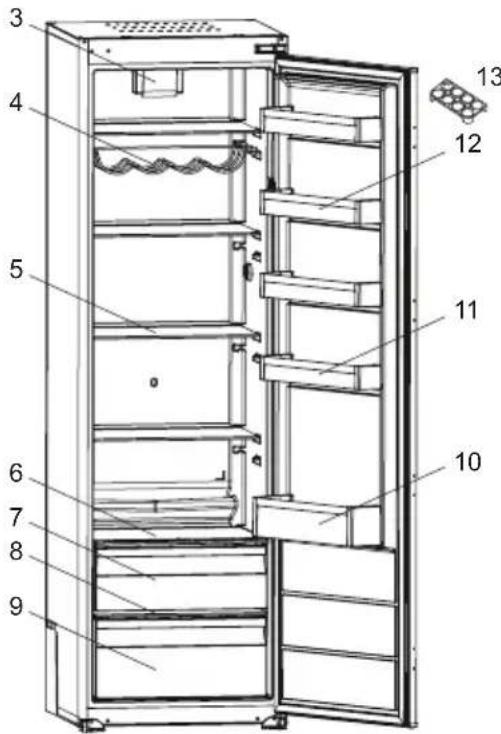

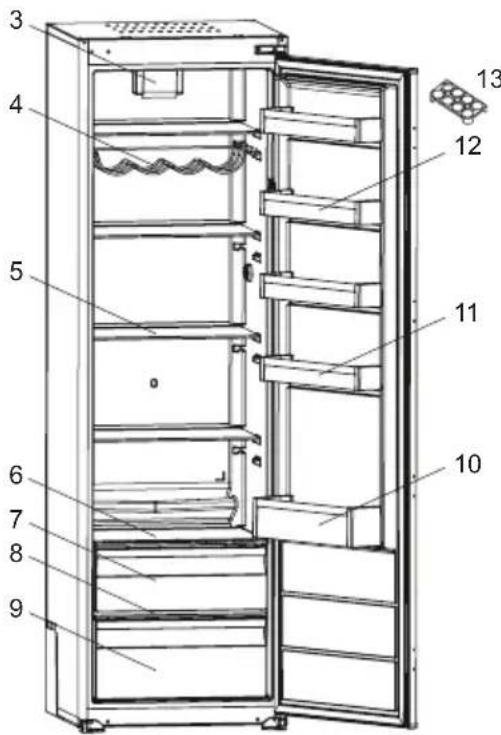

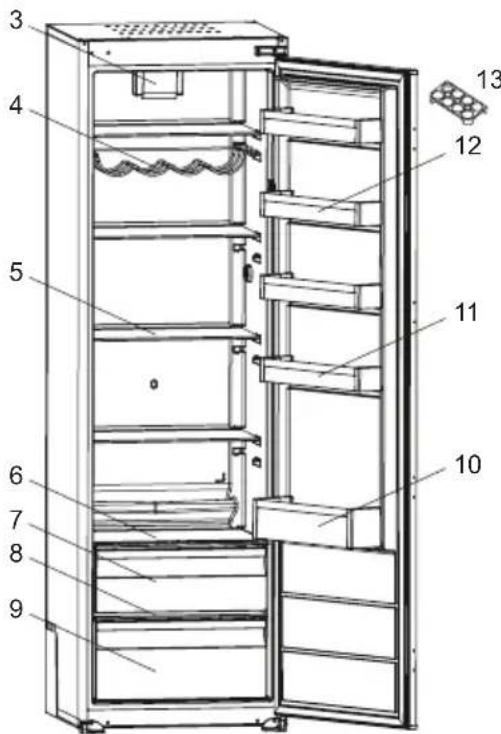

2 DESCRIPTION OF THE APPLIANCE

This appliance is not intended to be used as a built-in appliance.

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Thermostat knob 2) Lamp cover 3) Turbo fan * 4) Wine rack * 5) Refrigerator shelves 6) Upper crisper cover * 7) Upper crisper * 8) Crisper cover

9) Crisper 10) Bottle shelf 11) Adjustable door shelf * / door shelf 12) Door shelves 13) Egg holder

* In some models

General notes:

Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption.

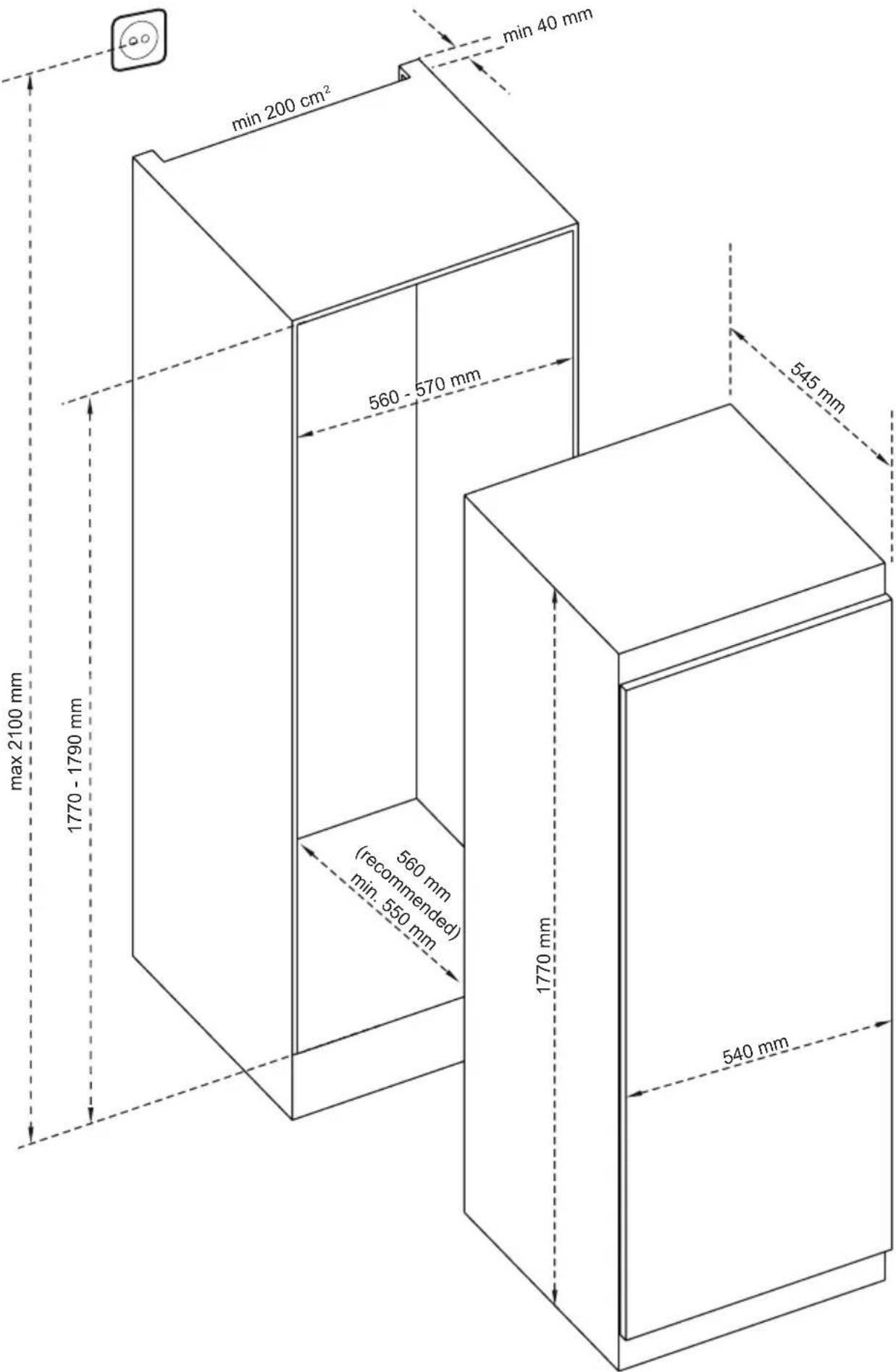

2.1 Dimensions

* 1770 - 1778 for metal top cover

3 USING THE APPLIANCE

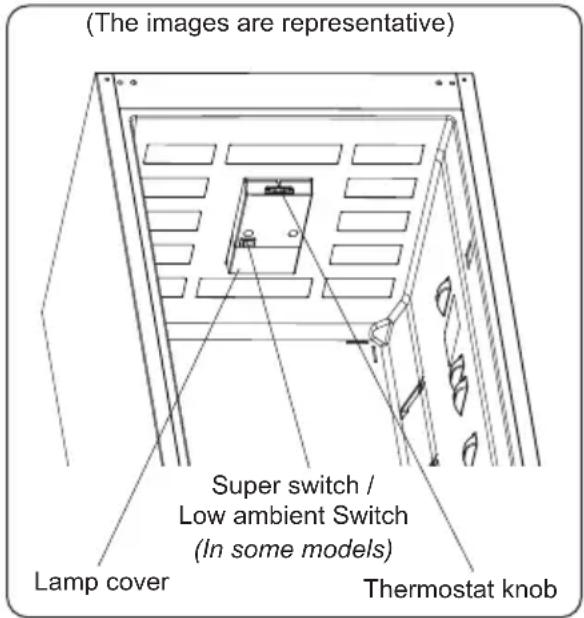

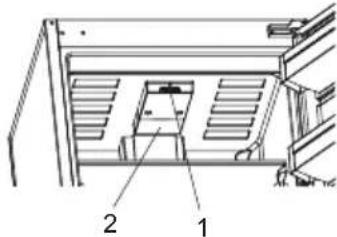

3.1 Thermostat Setting

The thermostat automatically regulates the temperature inside the cooler compartments. Refrigerator temperatures can be obtained by rotating the knob to higher numbers.

(Maximum numbers on the thermostat depends on your product.)

Thermostat settings:

1 – 2 : For short-term storage of food 3 – 4 : For long-term storage of food 5 : Maximum cooling position. The appliance will work longer. If required, change the temperature setting.

3.2 Temperature Settings Warnings

• Your appliance is designed to operate in the ambient temperature ranges stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are outside of the stated temperature ranges. This will reduce the cooling efficiency of the appliance.
• Temperature adjustments should be made according to the frequency of door openings, the quantity of food kept inside the appliance and the ambient temperature in the location of your appliance.
• When the appliance is first switched on, allow it to run for 24 hours in order to reach operating temperature. During this time, do not open the door and do not keep a large quantity of food inside.
• A max 50 minute delaying function is applied to prevent damage to the compressor of your appliance, when you take the plug off and then plug it on again to operate it or when an energy breakdown occurs. Your appliance will start to operate normally after max 50 minutes

Climate class and meaning:

T (tropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C.

ST (subtropical): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

N (temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

SN (extended temperate): This refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C.

The Turbo Fan (if available)

Do not block the air inlet and outlet openings when storing food, otherwise air circulation provided by the turbo fan will be impaired.

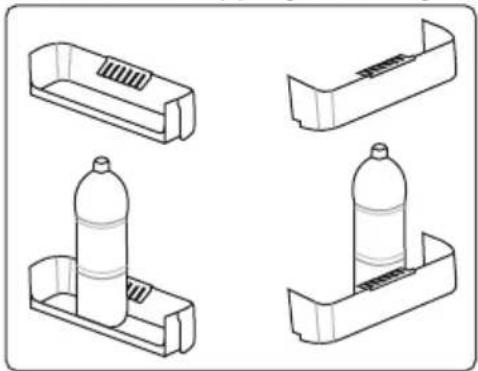

3.2.1 The Bottle Holder (In some models)

Use the bottle holder to prevent bottles from slipping or falling over.

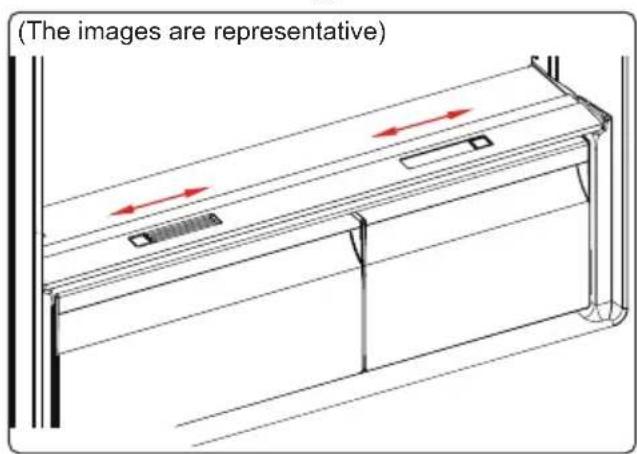

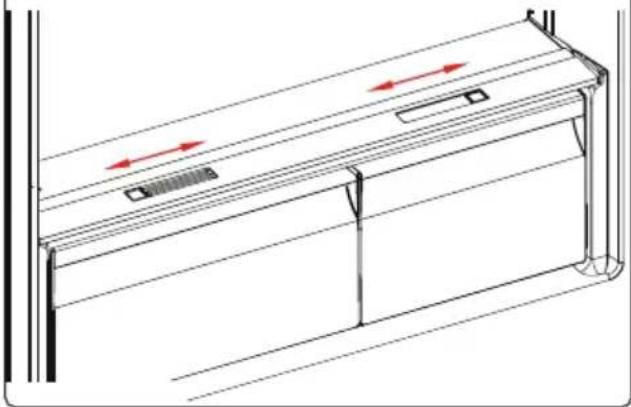

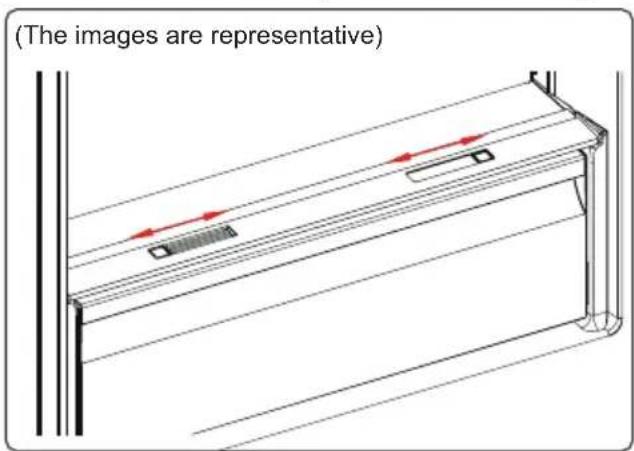

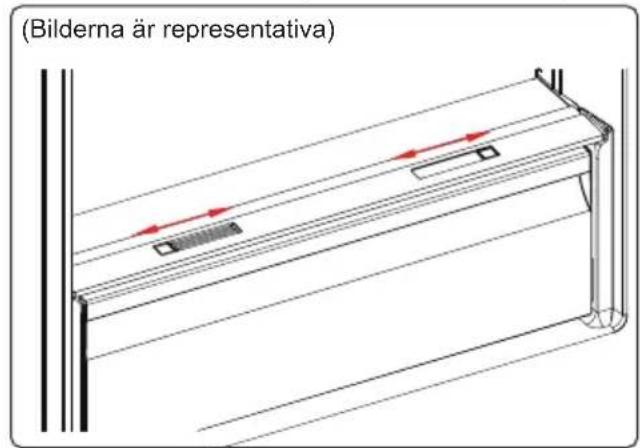

3.2.2 The Fresh Dial (In some models)

or

If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within.

The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf.

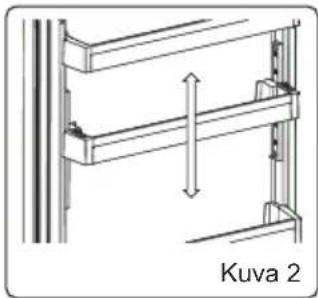

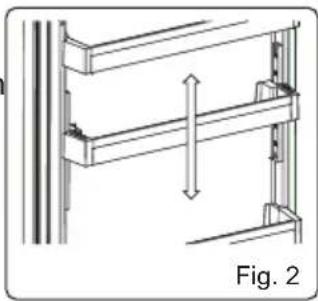

3.2.3 Adjustable Door Shelf (In some models)

Six different height adjustments can be made to provide storage areas that you need by adjustable door shelf.

To change the position of adjustable door shelf ;

Hold the bottom of the shelf and pull the

buttons on the side of the door shelf in the direction of the arrow.

(Fig.1)

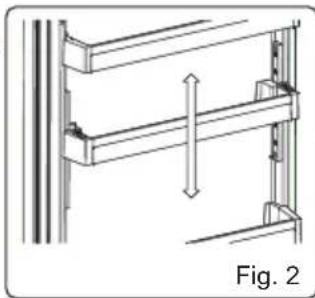

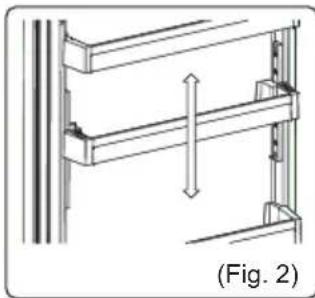

Position the door shelf at the height you need by moving it up and down. Once you have the desired position, release the buttons on the side of the door shelf (Fig. 2). Before releasing the door shelf, move it up and down to ensure it is fixed.

Note: Before moving the door shelf, if it is loaded, you must hold the shelf by supporting the bottom. Otherwise, the door shelf could fall off the rails due to the weight, which may cause damage to the door shelf or rails.

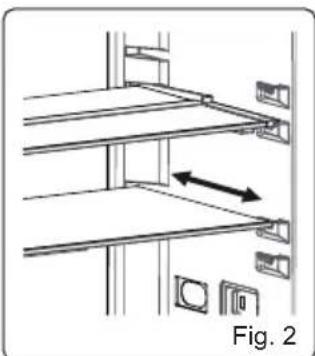

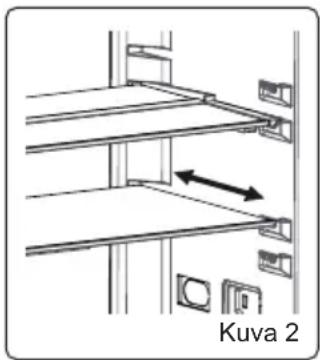

3.2.4 Adjustable Glass Shelf (in some models)

The adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it.

You can load your food as you want in the resulting extra space. To bring the shelf back to its original position, pull it toward you.

4 FOOD STORAGE

• To reduce humidity and avoid the consequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.
• Cooked dishes must remain covered when they are kept in the fridge. Do not place warm foods in the fridge. Place them when they are cool; otherwise, the temperature and humidity inside the fridge will increase, reducing the fridge's efficiency.
• Make sure no items are in direct contact with the rear wall of the appliance, as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.
• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.
• Store loose fruit and vegetable items in the crisper containers.
• Storing fruit and vegetables separately helps prevent ethylene-sensitive vegetables (green leaves, broccoli, carrot, etc.) from being affected by ethylene-releaser fruits (banana, peach, apricot, fig, etc.).
• Do not put wet vegetables into the refrigerator.
• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.
• Do not put food in front of the air flow.

passage.

- Consume packaged foods before the recommended expiry date.

Do not allow food to come into contact with the temperature sensor, which is located in the refrigerator compartment, in order to keep the refrigerator compartment at optimum temperature.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refrigerator to +4 °C.
• The temperature of the fridge compartment should be in the range of 0-8 °C, fresh foods below 0 °C are iced and rotted, bacterial load increases above 8 °C, and spoils.
• Do not put hot food in the refrigerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.
• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if available)
• To prevent cross contamination, meat products and fruit vegetables are not stored together.
• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors.

The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment.

Food	Maximum storage time	How and where to store
Vegetables and fruits	1 week Vegetable bin
Meat and fish	2 - 3 days	Wrap in plastic foil, bags, or in a meat container and store on the glass shelf
Fresh cheese	3 - 4 days	On the designated door shelf
Butter and margarine	1 week	On the designated door shelf
Bottled products e.g. milk and yoghurt	Until the expiry date recommended by the producer	On the designated door shelf
Eggs 1 month		On the designated egg shelf
Cooked food	2 days All shelves

NOTE:

Potatoes, onions and garlic should not be stored in the refrigerator.

5 CLEANING AND MAINTENANCE

Disconnect the unit from the power supply before cleaning.

Do not wash your appliance by pouring water on it.

Do not use abrasive products, detergents, or soaps for cleaning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the power supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components. • The appliance should be cleaned regularly using a solution of bicarbonate of soda and lukewarm water. - Clean the accessories separately by hand with soap and water. Do not wash accessories in a dishwasher. - Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity.

The power supply must be disconnected during cleaning.

5.1 Defrosting

Defrosting the Refrigerator Compartment

• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically.

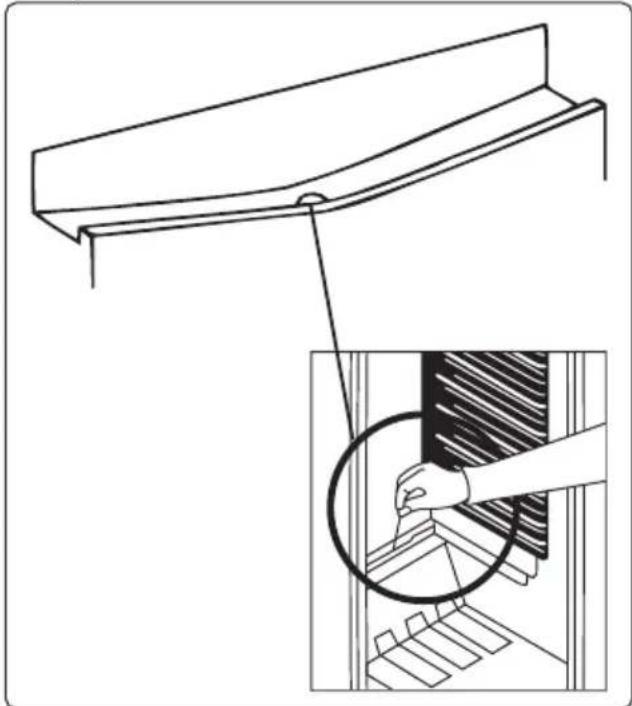

• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.
• You can also clean the drain hole by pouring half a glass of water down it.

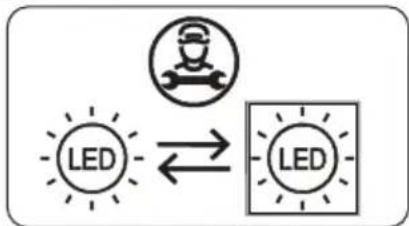

Replacing LED Lighting

To replace any of the LEDs, please contact the nearest Authorised Service Centre.

Note: The numbers and location of the LED strips may change according to model.

If product equipped with LED lamp

This product contains a light source of

energy efficiency class .

If product equipped with LED Strip(s) or LED card(s)

This product contains a light source of energy efficiency class .

6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing Positioning

• The original packaging and foam may be kept for re-transportation (optional).
• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.
• Remove all movable parts or fix them into the appliance against shocks using bands when re-positioning or transporting.

Always carry your appliance in the upright position.

7 BEFORE CALLING AFTER- SALES SERVICE

If you are experiencing a problem with your appliance, please check the following before contacting the after-sales service.

Your appliance is not operating

Check if:

• There is power • The plug is correctly placed in the socket
• The plug fuse or the mains fuse has blown
• The socket is defective. To check this, plug another working appliance into the same socket.

The appliance performs poorly Check if:

• The appliance is overloaded • The appliance door is closed properly - There is any dust on the condenser - There is enough space near the rear and side walls.

Your appliance is operating noisily

Normal noises

Cracking noise occurs:

• During automatic defrosting - When the appliance is cooled or warmed (due to expansion of appliance material).

Short cracking noise occurs: When the thermostat switches the compressor on/off.

Motor noise: Indicates the compressor is operating normally. The compressor may cause more noise for a short time when it is first activated.

Bubbling noise and splash occurs: Due to the flow of the refrigerant in the tubes of the system.

Water flowing noise occurs: Due to water flowing to the evaporation container. This noise is normal during defrosting.

Air blowing noise occurs: In some models during normal operation of the system due to the circulation of air.

The edges of the appliance in contact with the door joint are warm

Especially during summer (warm seasons), the surfaces in contact with the door joint may become warmer during the operation of the compressor, this is normal.

There is a build-up of humidity inside the appliance

Check if:

• All food is packed properly. Containers must be dry before being placed in the appliance.
• The appliance door is opened frequently. Humidity from the room enters the appliance when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high.

The door does not open or close properly

Check if:

- There is food or packaging preventing the door from closing

• The door joints are broken or torn - Your appliance is on a level surface.

Recommendations

• If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.
• If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean your appliance according to chapter cleaning and leave the door open to prevent humidity and smell.
• If a problem persists after you have followed all the above instructions, please consult the nearest authorised service centre.
• The appliance you have purchased is designed for domestic use only. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) otherwise an insulating plate should be used.
2. Allow warm food and drinks to cool before placing them inside the appliance.
3. Place thawing food in the refrigerator compartment if available. The low temperature of the frozen food will help cool the refrigerator compartment while the food is thawing. This will save energy. Frozen food left to thaw outside of the appliance will result in a waste of energy.
4. Drinks or other liquids should be covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping

Covering drinks and other liquids helps preserve their smell and taste.

1. Avoid keeping the doors open for long periods and opening them too frequently, as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.
2. Keep the covers of the different temperature compartments (such as the crisper and chiller, if available) closed.
3. The door gasket must be clean and pliable. In case of wear, replace the gasket.

9 TECHNICAL DATA

The technical information is located on the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database.

Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

10 INFORMATION FOR TEST INSTITUTES

Appliance for any EcoDesign verification shall be compliant with EN 62552. Ventilation requirements, recess dimensions, and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number, and Service Index.

The information can be found on the rating plate. You can find the rating label inside the fridge zone on the left lower side. The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model.

Visit our website:

www.gram.dk

www.gram.se

www.gram.no

www.gram.fi

7 BEFORE CALLING AFTER-SALES SERVICE 49

8 TIPS FOR SAVING ENERGY....50

10 INFORMATION FOR TEST INSTITUTES 50

-bed and breakfast accommodations

3.2.2 Freshness drawer (on some models)

Note:

3.2.4 Adjustable glass shelf (on some models)

7 BEFORE CALLING AFTER-SALES SERVICE

5 CLEANING AND MAINTENANCE 65

5.1 Defrosting 65

6 SHIPPING AND MOVING....65

1.2 Mounting warnings

or

(images are representative)

Note: Before you

5 WASHING AND MAINTENANCE

9 TECHNICAL DATA....83

10 INFORMATION FOR TESTING LABORATORIES 83

11 CUSTOMER SERVICE AND MAINTENANCE 84

1 SAFETY INSTRUCTIONS
