USER MANUAL Spabot POLARIS

Spabot™ Cordless, Battery-Powered Robotic Spa Cleaner

TYPE ES37--, ES38--

WARNING

FOR YOUR SAFETY - For anything other than the routine cleaning and maintenance described in this guide, this product must be serviced by a qualified professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in the product's complete installation and operations manual can be followed exactly. All safety instructions in the complete manual must be followed explicitly in order to prevent injury hazards. Improper installation and/or operation may void the warranty. Never turn the cleaner on unless it is fully submerged in the water. Doing so may void the warranty and may cause severe damage to the cleaner motors.

Table of Contents

Section 1. Important Safety Instructions.. 4
Section 2. Introduction 6
Section 3. Important Tips. 7
Section 4. Anatomy.. 8
Section 5. Charging 9
Section 6. Cleaning 10
6.1 Cleaning Pattern 10
6.2 Start Cleaning 10
6.3 Remove from Spa 11
6.4 Empty the Filter Canister 11

Section 7. Storing & Maintaining 13

7.1 Everyday Storage. 13
7.2 Routine Maintenance 13
7.3 Long-Term & Winter 13
7.4 Recycling & Disposal 14
7.5 Basic Troubleshooting 15

THANK YOU FOR PURCHASING THIS ROBOTIC SPA CLEANER. YOUR ROBOTIC CLEANER HAS BEEN DESIGNED AND MANUFACTURED TO BE EASILY INSTALLED AND TO PROVIDE LOW MAINTENANCE OPERATION. PRIOR TO INSTALLING YOUR NEW CLEANER, PLEASE DO THE FOLLOWING:

1) Apply for product registration
2) Record your purchase information on the spaces provided below
3) Attach your invoice (or a copy) to this page.

Taking these steps will help ensure prompt warranty service, should it be required. If service is required, please contact your original dealer. If the original dealer does not perform warranty service, please call our Technical Support department at 1.800.822.7933.

RECORD YOUR CLEANER DATA HERE:

Date of Purchase Purchased From

Serial Number (located on robot)

City State/Province Zip/Postal Code

SAVE THESE INSTRUCTIONS

FCC Statement

This device complies with Part 15 of the FCC Rules and IC licence-exempt RSS standard. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Any changes or modifications not expressly approved by the part responsible for compliance could void the user's authority to operate the equipment.

SAVE THESE INSTRUCTIONS

Section 1. Important Safety Instructions

READ AND FOLLOW ALL INSTRUCTIONS

Congratulations on purchasing this Polaris Robotic Spa Cleaner. Please read through the entire manual before installing your new robotic spa cleaner. Your cleaner must be installed and operated as specified.

WARNING

Battery Life & Disposal of Li-Ion Batteries ·Regulations and laws pertaining to the recycling and disposal of Li-Ion batteries vary from country to country as well as by state and local governments. You should check the laws and regulations where you live. ·There are a number of facilities that recycle Li-Ion batteries. The Rechargeable Battery Recycling Corporation's web site, www.rbrc.org, is an excellent source for finding a facility to handle these types of batteries. If you are not sure if your waste facility can handle Li-Ion batteries, contact them and verify if they are permitted or not. ·Remember that before any type of disposal the batteries should be discharged completely. Tape the cleaner charging contacts with electrical tape and package so as to prevent contacts accidentally coming together at any time ·This cleaner contains a maintenance-free, rechargeable lithium ion battery pack, which must be disposed properly. Recycling is required.

Battery Charger ·Use ONLY the battery charger provided with this appliance. ·The battery charger must be connected only to a supply circuit that is protected by a ground-fault by a GFCI.

▲WARNING

·Please read the manual carefully, especially the safety instructions, and make sure you understand them fully before using the product. Only use the equipment for the purposes specifically intended by the manufacturer. Carefully follow the instructions on operation, maintenance and repair. ·Not intended for use in swimming pools. ·Do not operate the cleaner when there are people in the spa. ·This Cleaner is not suitable for use by children and people with reduced physical, sensory or mental capabilities or inexperienced people who are not familiar with the product. Children should be supervised to ensure that they do not play with the appliance, even when it is not in operation. ·Operators who perform maintenance must be fully conversant with its special features and safety regulations. Before using the cleaner, carefully read the operating manual and make sure you understand the instructions.

• Only use original spare parts, do not change the design of the Cleaner, do not remove, bypass or tamper with the safety devices installed. The manufacturer shall not be held liable if non-original spare parts are used. Failure to comply with this requirement may seriously endanger the health and safety of people.
• Ensure the cleaner is turned off before performing any adjustment or maintenance that the user is authorized to perform. Cleaning and maintenance must not be performed by children.
• Do not use the cleaner if the top cover or brushes are damaged.
• Never use and recharge the cleaner in explosive and/or flammable environments.
• Only use the battery charger supplied by the manufacturer. Improper use may cause electric shocks, overheating or leakage of corrosive liquids from the battery.
• If any liquid leaks, wash the cleaner with water/neutraliser; in case of contact with eyes, seek medical attention. Liquid ejected from the battery may cause irritation or burns.
• If the battery charger is damaged, have it replaced by the manufacturer or an authorized Fluidra dealer. DO NOT attempt to service the battery charger. A damaged cord can lead to contact with live parts.
  The appliance is not a toy for children.
• The product contains magnets and components that emit electromagnetic fields. The magnets and electromagnetic fields can interfere with pacemakers, defibrillators and other medical devices. Keep a safe distance between the medical device and the product. Consult your doctor or the manufacturer of the medical device for specific information about it. If you think that the product is interfering with a pacemaker, defibrillator, or any other medical device, stop using the product starting from the distance at which you feel interference.
• Do not smoke around, or allow the cleaner to be near sparks or flames. The batteries can generate gases which could possibly ignite.
• Do not expose cleaner to fire or excessive temperature. Exposure to fire or temperature above 265^ (130^) may cause explosion.
• If at any time you detect any physical damage to the cleaner chassis, such as swollen or cracked casing, STOP and do not continue discharging or charging the battery.
• Never attempt to disassemble a battery pack. A battery can produce a short circuit causing severe burns. Avoid contact between any wires or metal items that could cause sparking and short circuit the battery.
• If a battery leak occurs, avoid any contact with the leaking fluids and place the cleaner in a plastic bag. Wear complete eye protection, gloves and protective clothing when disposing of cleaner. If leaking fluids come in contact with skin and clothing, wash immediately with plenty of soap and water. If leaking fluids come in contact with eyes, do not rub eyes, immediately flush eyes with cool running water for at least 15 minutes and do not rub them. Seek medical attention as soon as possible. If leaking fluids enter the spa water, drain and refill spa and follow spa manufacturers instructions for start-up and water balance.
• Do not use a battery operated appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion, or risk of injury.

SAVE THESE INSTRUCTIONS

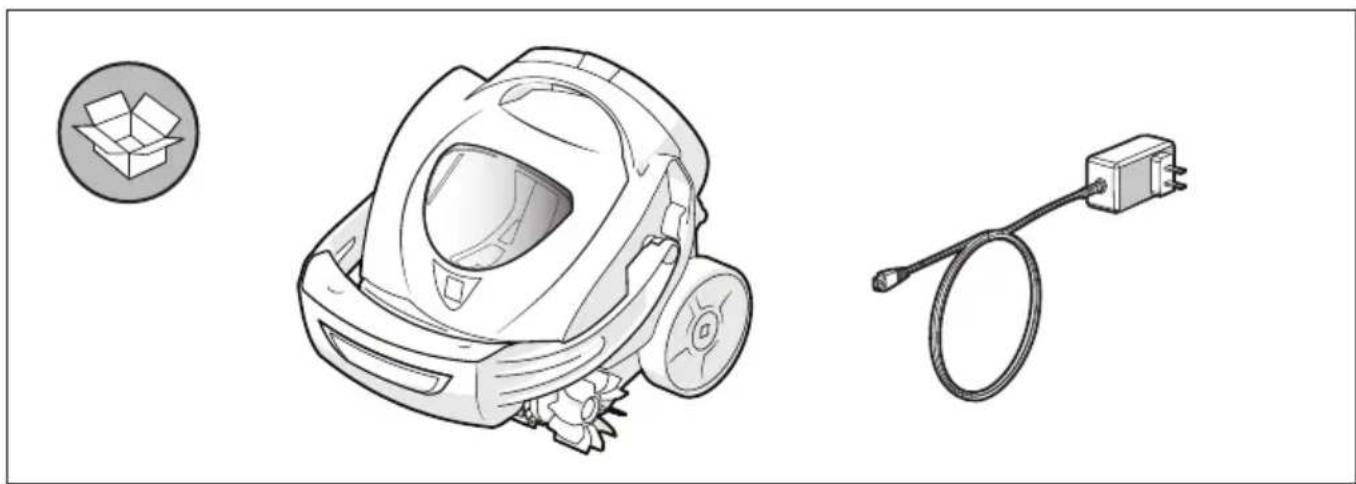

Section 2. Introduction

WARNING

Only use the battery charger supplied with the cleaner. Product is not intended for use in swimming pools.

Specifications

Battery Charger Input: 100-240V, 50/60Hz. 0.6A Max.

Charge Temperature: Max. 104°F (40°C) Min. 40°F (5°C)

Water Temperature: Max. 104°F (40°C) Min. 40°F (5°C)

Operation Depth: Max. 5.5 ft. (1.6 m) Min. 10 in. (25 cm)

Section 3. Important Tips

• Use only the battery charger supplied with the cleaner.
• Empty and clean the filter canister after every use.
• Charge Spabot indoors and allow cleaner to fully charge before each cycle.

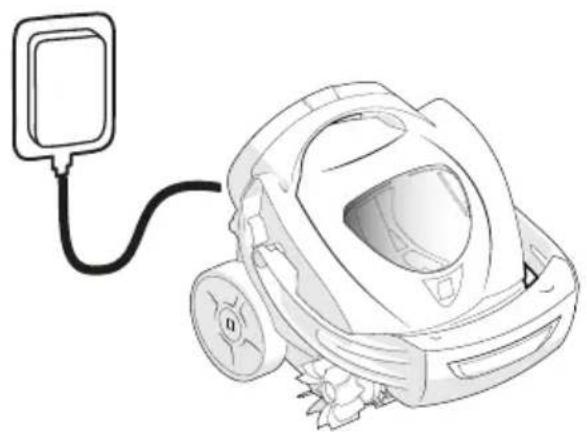

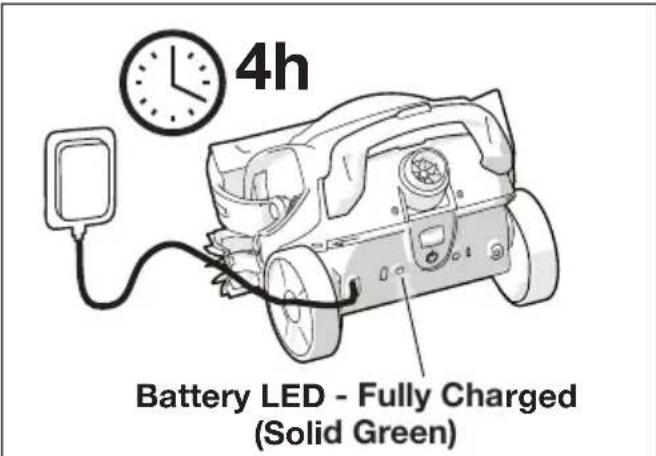

Fully charge spabot before first use

4h

Turning Spabot On and Off

ON

• Slide the On / Off switch towards the symbol to turn Spabot ON. The wheels and brushes will move forward and back once. The Battery LED will be solid green and the Info LED will flash green. Spabot is now ready to be placed in the spa. Spabot will automatically turn off if not placed in the water.

OFF

• Slide the On / Off switch towards the symbol to turn Spabot OFF. The Battery LED and the Info LED will turn off. Spabot will automatically turn off after the cleaning cycle is complete.

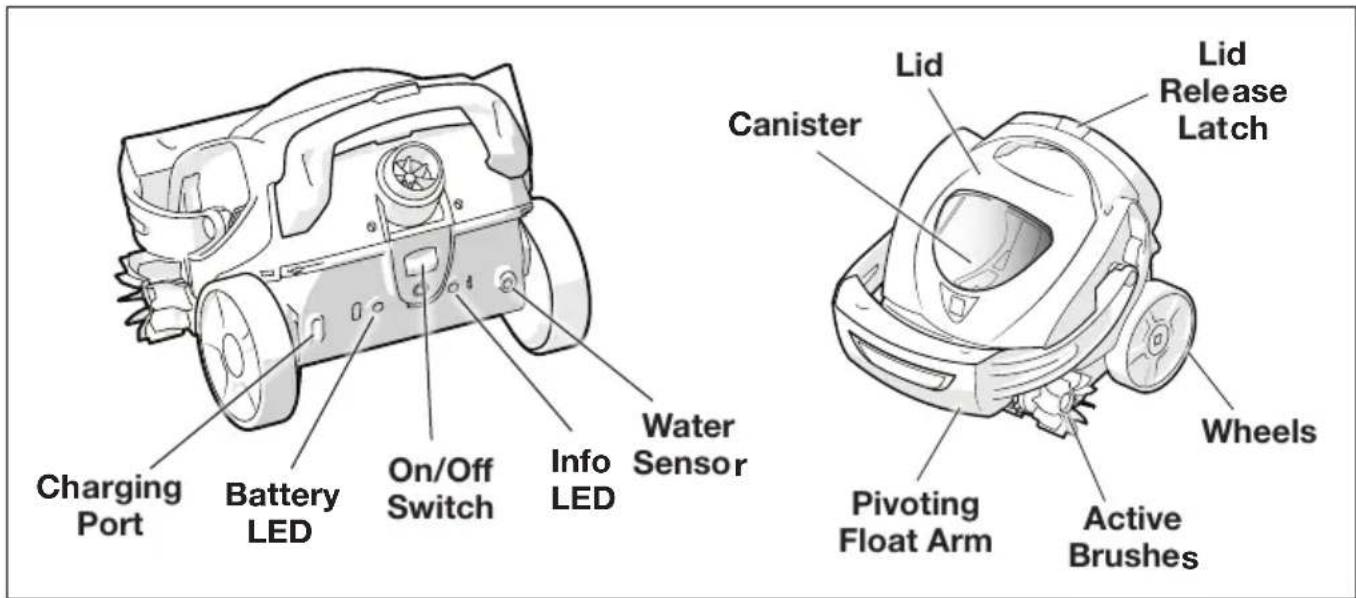

Section 4. Anatomy

Battery LED
Solid Green Fully charged. Ready to run a full cycle.
Flashing Orange Charging.
Flashing Orange Running. Battery low.
Flashes Orange (when On/Off pressed)	Very low battery level. Charge needed. Cannot run cleaner.
Flashing Red Charging error.

Info LED
Flashing Green On. Not in water.
Solid Green Running. In water.
Flashing Red Error.

Section 5. Charging

WARNING

Only use the battery charger supplied with the cleaner. Do not use an extension cord. Follow all charging instructions and do not charge Spabot outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

The cleaner is shipped with a partial charge for safety. Fully charge the cleaner (4 hrs) before using it for the first time.

1. When charging, place the cleaner on a flat surface in a clean, dry, well-ventilated area indoors, preferably inside your home, a garage, or shed, with an ambient temperature between 40^ ( 5^ ) and 104^ ( 40^ ).

NOTE: When charging, the cleaner must not be exposed to direct sunlight, heat ignition sources, pool chemicals or water. Do not position in direct contact with soil or humid environments.

1. Connect the battery charger to the back of the cleaner.

NOTE: The charger plug is keyed and only fits into the charging port one way.

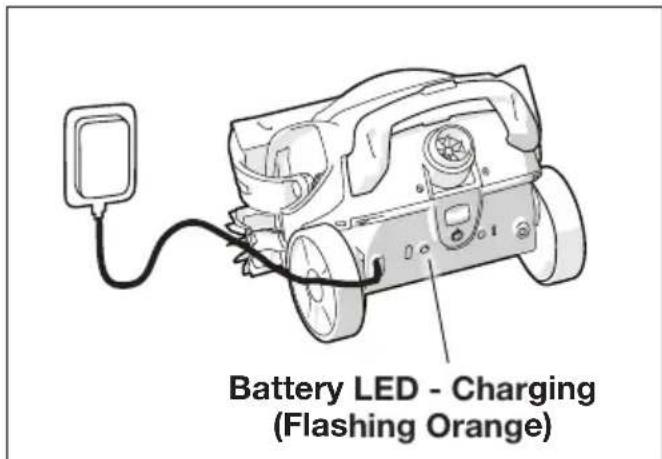

1. Plug the power cord into a GFCI- protected power outlet. The Battery LED will be flashing Orange to indicate power is on and the cleaner is charging.

1. When charging is complete, the Battery LED is solid Green, indicating a full charge.

NOTE: Unplug the charger from the back of the cleaner when fully charged, to extend battery life.

Section 6. Cleaning

WARNING
	To avoid risk of potentially serious injury, do not use the spa when the cleaner is submerged or operating. Turn off spa pump and jets while using cleaner. Not intended for use in swimming pools.

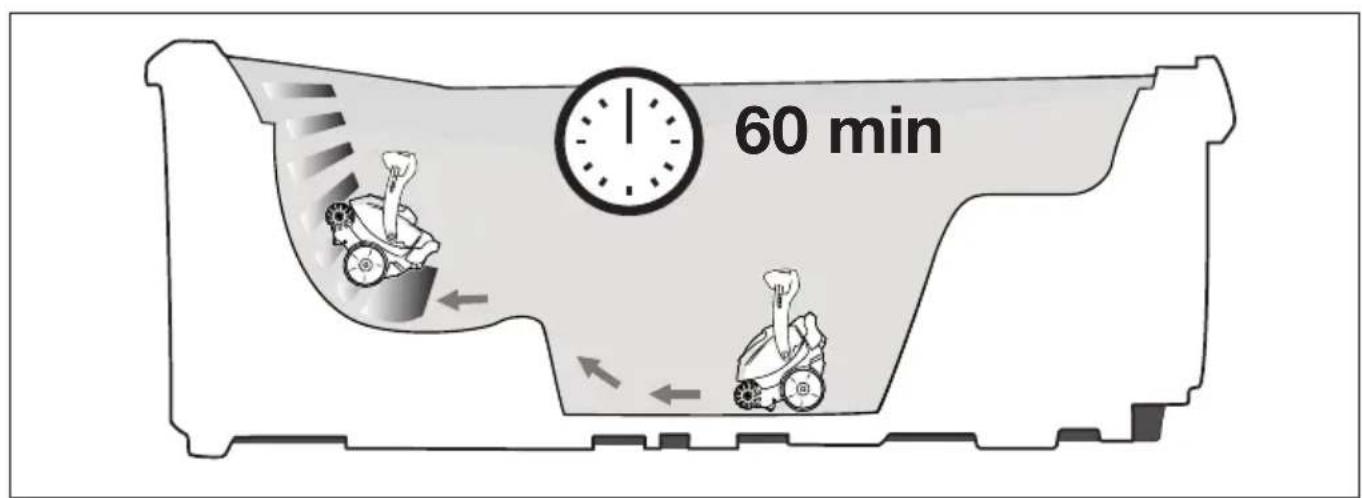

6.1 Cleaning Pattern

Spabot autonomously navigates around the floor, seats, and walls of your spa to clean in only 60 minutes.

6.2 Start Cleaning

1. Slide down and release the On/Off power switch. Wheels and brushes quickly move forward and back one time to confirm power is on.

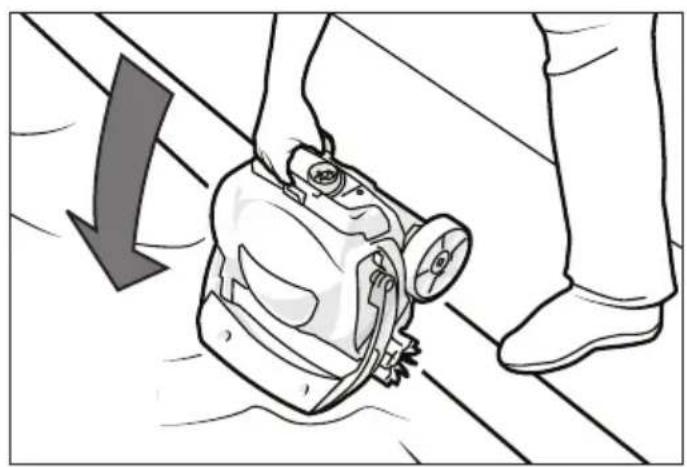

2. Submerge the cleaner in the spa. (The cleaner will not begin until it senses water.)

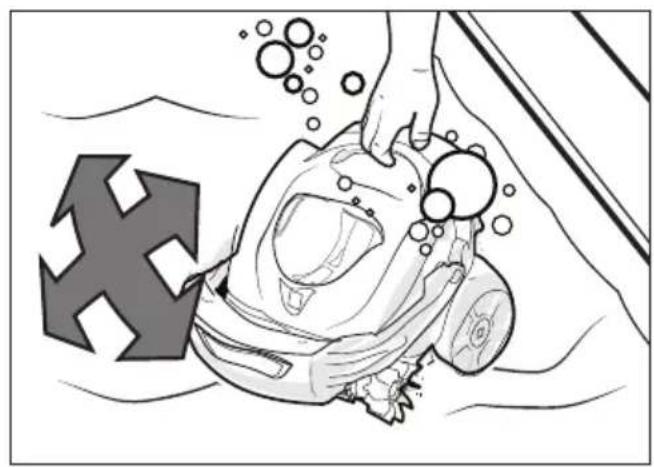

1. Hold under water until the bubbles are gone.
2. When the bubbles stop, release the cleaner. The cleaner will sense it is in water and begin to move.

6.3 Remove from Spa

1. When the cleaning cycle ends, the cleaner will float at the surface and the LEDs will be OFF.

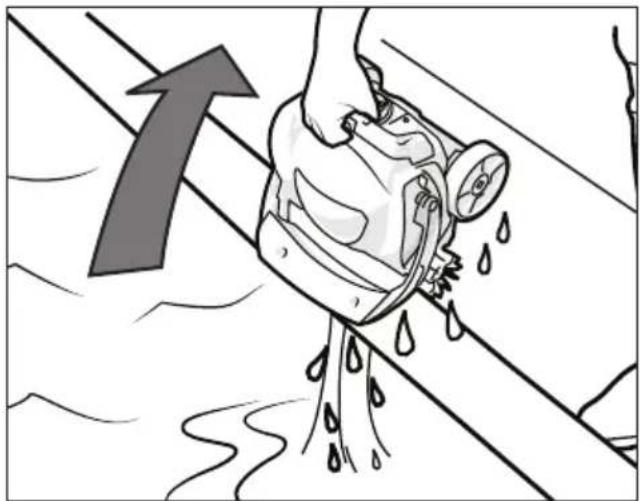

2. When in reach, grab the cleaner and remove from the spa.

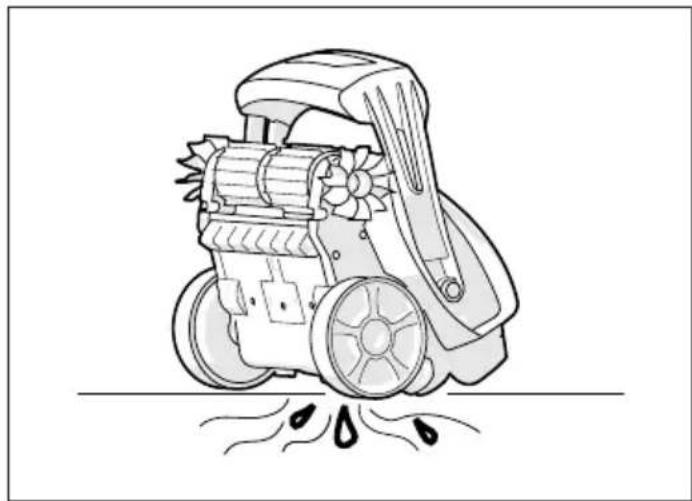

1. Set the cleaner on its back to accelerate water drainage.

6.4 Empty the Filter Canister

Empty the filter canister after every cleaning cycle.

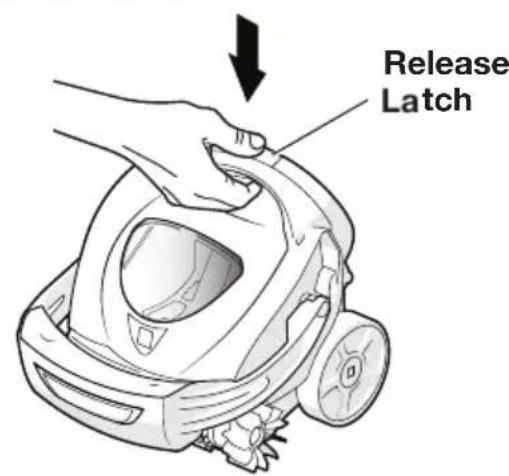

1. Press the lid release latch and remove the lid.

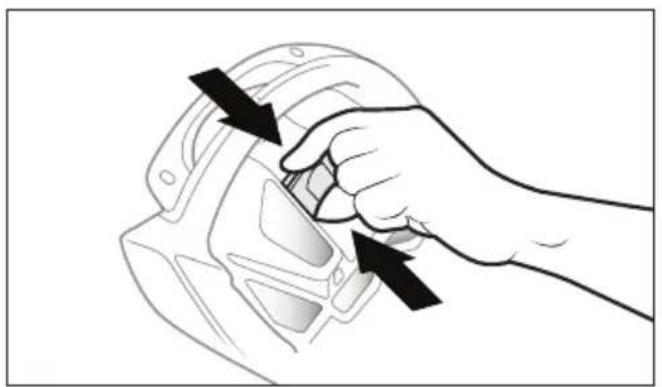

1. Press the filter cover release to remove the filter canister.

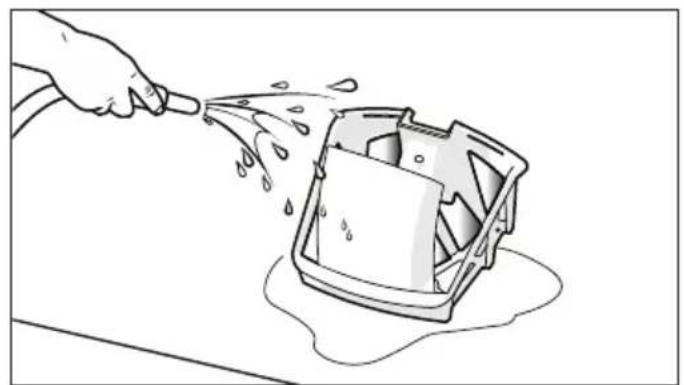

1. Empty debris and rinse the filter canister with fresh water. Reattach canister to the lid.

NOTE: Fine debris can impact the canister filtration and cleaner performance over time. Periodically, clean thoroughly with soapy water and a soft bristle brush.

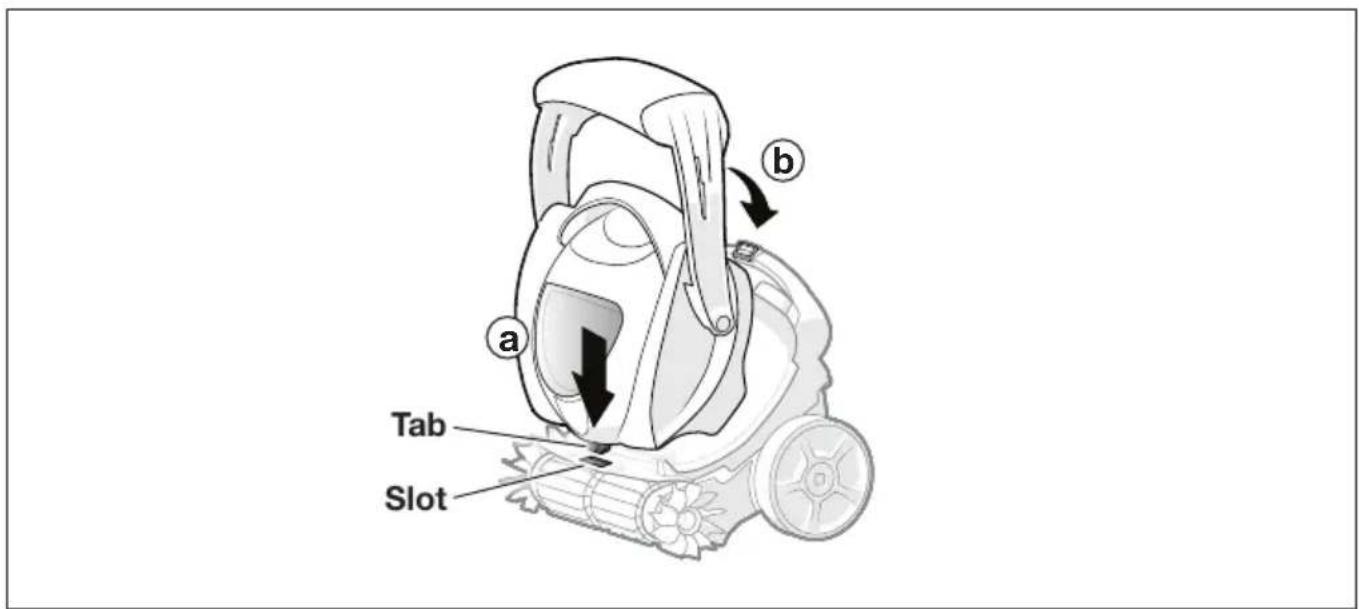

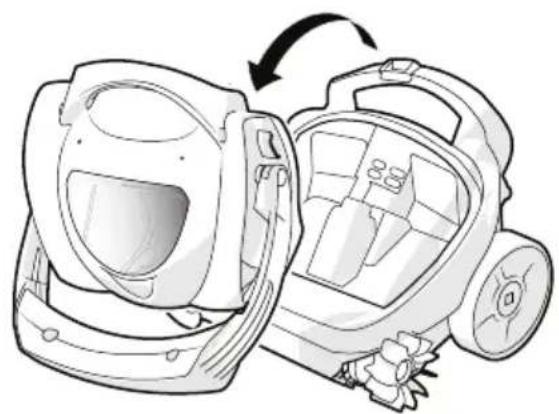

1. To reattach the lid, insert the tab on the lid into the slot on the body (a), then rotate the lid down to close the latch (b).

1. Allow the cleaner to dry fully before reconnecting it to the charger.

Section 7. Storing & Maintaining

7.1 Everyday Storage

• Store the cleaner in a protected and dry place with an ambient temperature between 40^ (5^) and 104^ (40^) , out of reach of children and pets.
• Never store or dry the cleaner in direct sunlight.
• Do not expose cleaner to fire, excessive temperatures, ignition sources, or pool/spa chemicals.
• Do NOT leave cleaner in water when not in use.

7.2 Routine Maintenance

Routine maintenance is essential for keeping the cleaner in good working order and can prolong the life of your spa cleaner.

• Clean brushes and all exposed moving parts.
• Periodically, clean the filter canister thoroughly with soapy water and a soft bristle brush.
• Check for worn or damaged parts, such as lid, filter canister, brushes.
• Check battery charge level and recharge the cleaner at least every 6 months.
• Disconnect charger from the power supply when not in use.

7.3 Long-Term & Winter

• Remove the cleaner from the spa and drain all water to avoid freezing water damage (freeze damage is not covered under the warranty).
• You must recharge the battery at least once every 6 months when it is not in use.
• Unplug the battery charger from the cleaner.

7.4 Recycling & Disposal

WARNING

The battery is not a serviceable or replaceable component. Do not attempt to service the battery.

• Regulations and laws pertaining to the recycling and disposal of Li-lon batteries vary from country to country as well as by state and local governments. You should check the laws and regulations where you live.
• There are a number of facilities that recycle Li-lon batteries. The Rechargeable Battery Recycling Corporation's website: www.rbrc.org is an excellent source for finding a facility to handle these types of batteries. If you are not sure if your waste facility can handle Li-lon batteries, contact them and verify if they are permitted or not.
• Remember that before any type of disposal the batteries should be discharged completely. Tape the cleaner charging contact with electrical tape and package so as to prevent contacts accidentally coming together at any time.
• This cleaner contains a maintenance-free, rechargeable lithium ion battery pack, which must be disposed properly. Recycling is required.

7.5 Basic Troubleshooting

Problem Solution
Cleaner does not turn on	·Low battery. Charge until battery LED is solid green. ·Slide the On / Off switch down towards the symbol to start the cleaner. ·Overheated. Move cleaner to cooler area. Do not store above 104°F (40°C) or in direct sunlight.
Cleaner does not charge	·No power. Reset GFCI circuit breaker. Plug the charger into a different outlet. ·Dirty connection. Clear debris from charging port on cleaner.
Cleaner does not dive-or- does not move in water	·Trapped air. Hold cleaner under water, tilt and shake to release air bubbles. ·Filter full / dirty. Empty canister, wash with soapy water and a soft brush. ·Make sure the pivoting float arm moves freely. ·Manually rotate wheels back and forth to release blockage.
Cleaner does not climb spa walls -or- does not reach all areas	·Filter full / dirty. Empty canister, wash with soapy water and a soft brush. ·Turn off spa pump and jets while using cleaner. ·Water chemistry imbalance. Consult a spa service professional. ·Some spa designs may have areas inaccessible to the cleaner.
Lid detaches unexpectedly	·Reattach lid securely (see step in the Cleaning section, Empty the Filter Canister). ·Latch stuck. See latch problem / solutions below.
Latch is difficult to open-or- does not stay closed	·Submerge cleaner in water, open and close latch a few times to rinse out debris. ·Completely dry out cleaner, open and close latch a few times, blow out debris.
Debris escaping from filter	·Remove canister, wash with soapy water and a soft brush. ·Make sure canister is seated and oriented properly.
Cleaner floats to the surface	·Normal operation. Cleaner stops and floats when the cleaning cycle is done. ·Normal operation. Cleaner floats periodically during navigation.
Cleaner does not float to the surface at end of cycle	·Canister full with heavy debris. Empty filter canister.
Flashing red LED	·Blockage detected. Turn off cleaner and remove lid. Clear debris from exposed moving parts.

NOTE: If a problem persists, please contact your local retailer to request a diagnostic review, or call 1.800.822.7933 for technical support.

Zodiac Pool Systems LLC

2882 Whiptail Loop # 100

Carlsbad, CA 92010, USA

PolarisPool.com | 1.800.822.7933

Zodiac Pool Systems Canada, Inc.

2-3365 Mainway

Burlington, ON L7M 1A6, Canada

PolarisPool.ca | 1.800.822.7933

A Fluidra Brand

©2023 Zodiac Pool Systems LLC. All rights reserved. ZODIAC ® is a registered trademark of Zodiac International, S.A.S.U., used under license. All other trademarks are the property of their respective owners.

H0655300_REVE

Intertek

ETL Listed. Conforms to

ANSI/UL STD 1081.

Certified to CSA STD C22.2

No.60335-1,CSA STD 60335-2-41
