306981 - Lighting Brandson - Free user manual and instructions

Product Type	Electric Lighter with LED Flashlight
Brand	Brandson
Model	306981
Power Supply	5 V DC via microUSB port
Battery	Rechargeable Li-Ion 200 mAh
Charging Time	Approximately 1.5 to 2 hours
Battery Life	Approximately 80 to 100 uses per charge
Operating Ambient Temperature	0 °C to 40 °C
Material	Plastic and metal
Ignition Function	Electric arc with automatic shut-off after 7 seconds
Flashlight	Integrated LED, turned on by dedicated button
Flexible Neck	Yes, for access to hard-to-reach areas
Charging Indicator	Flashing blue LED during charging, solid once charged
Switch	On/Off for the device
Delivery Contents	Electric lighter, microUSB charging cable
Weight	Approximately 50 g
Dimensions	Approximately 18 cm in length
Maintenance	Clean with a dry cloth, do not use harsh chemicals
Safety	Do not expose to moisture, do not open, keep out of reach of children
Recycling	Comply with WEEE regulations, return to collection point
Warranty	Refer to manufacturer's terms

Frequently Asked Questions - 306981 Brandson

How do I charge my Brandson 306981 lighter?

Connect the provided microUSB cable to the lighter and a 5 V power source (smartphone charger or computer). The blue LED flashes during charging. Unplug once the LED is solid.

How long does a full charge take?

A full charge takes approximately 1.5 to 2 hours.

What is the battery life after a full charge?

A full charge provides approximately 80 to 100 uses (ignitions).

How do I use the LED flashlight?

First turn on the device with the on/off switch. Then press and hold the LED button to turn on the flashlight. Press again to turn it off.

How do I ignite the lighter?

Turn on the device with the on/off switch, then press and hold the ignition button to generate the electric arc. Release after ignition. The arc automatically shuts off after 7 seconds.

What if the lighter does not ignite?

Check that the device is turned on (on/off switch) and the battery is charged. If the problem persists, fully charge it for 2 hours and try again.

Can I use the lighter continuously for more than 7 seconds?

No, the arc automatically shuts off after 7 seconds to protect the battery. Prolonged use may reduce product lifespan.

Can I use the lighter while it is charging?

No, it is not recommended to use the lighter while charging. Disconnect it before use.

How do I clean and maintain the lighter?

Clean with a dry, soft cloth. Do not use chemicals. Avoid moisture and extreme temperatures.

What are the important safety precautions?

Do not touch the ignition head (risk of burns or shock). Keep out of reach of children. Do not expose to water. Do not short-circuit the contacts. Respect the maximum usage time of 7 seconds.

USER MANUAL 306981 Brandson

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a product from Brandon. To ensure that you enjoy your purchased device for a long time, please read the following user manual carefully.

1. Scope of delivery

• Electric Stick Lighter
- USB Type A to microUSB charging cable

2. Technical data

Power supply 5V DC (via USB)
Battery Li-Ion Accu 200 mAh
Buttons 2
Features • Charging level	indicator• LED lighting
Ambient temperature 0°C - 40°C

3. Safety instructions

Please keep the stick lighter out of the reach of children. Failure to follow the instructions may result in burns.

1. Disconnect the device from the mains immediately after it is fully charged. The blue indicator light shows when the device is charging. The device is fully charged and should be disconnected from the power supply. A full charge should take about two hours. If the lighter is not used for a long period of time, it must be charged to the maximum.
2. Make sure that the device does not get wet, otherwise a short circuit may occur.
3. Do not use the lighter while the device is charging.
4. Keep the product away from your face, body and flammable clothing.

5. Do not leave the product in direct sunlight for a long period of time.

6. Do not use the lighter function continuously for more than 7 seconds as this may affect the life of the product.

7. Do not touch the ignition head of the product as there is a risk of high temperatures and/or electric shocks.
8. Do not insert any metal objects.

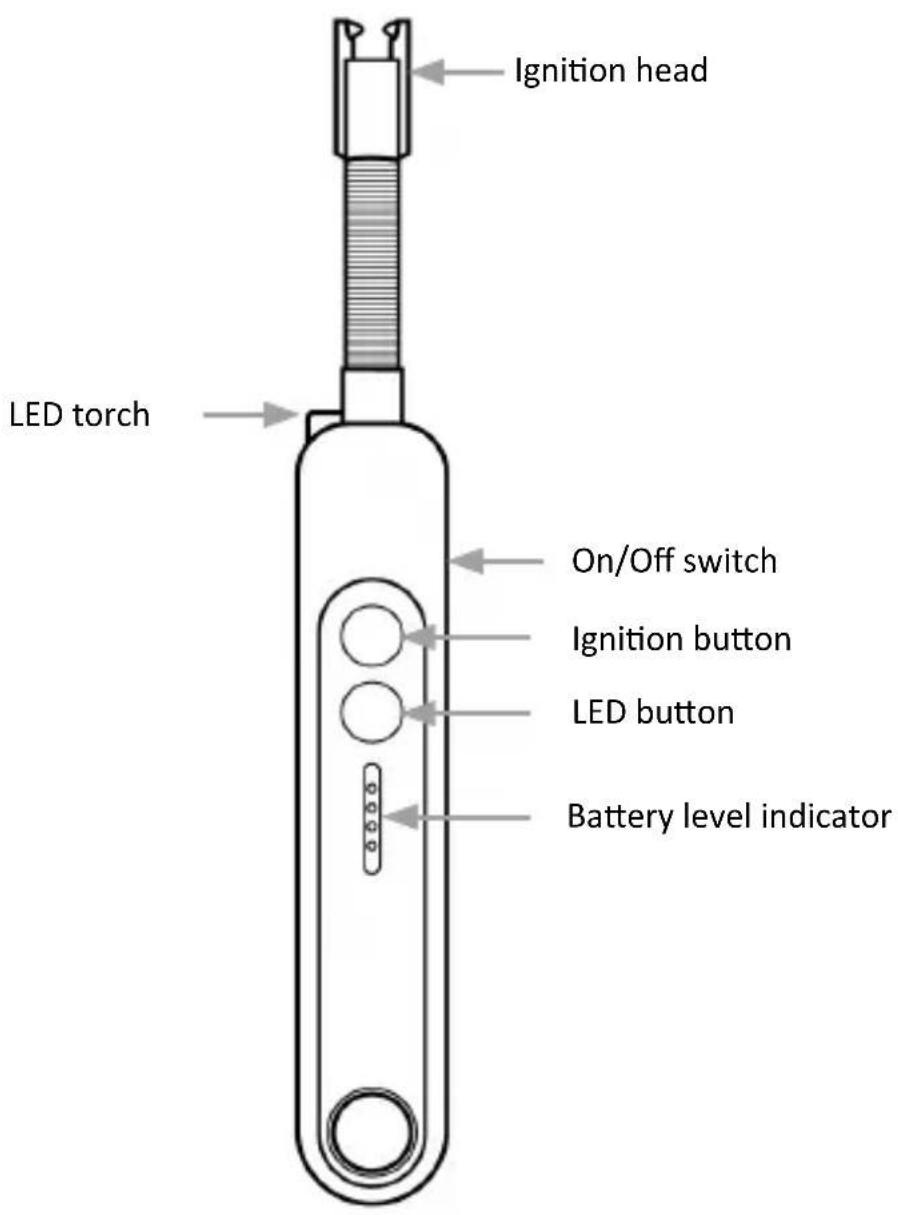

9. Product details

5. Safety information

When you press the ignition button, the electric arc is only ignited for 7 seconds and then switched off in order to preserve battery life. The flexible neck allows access to hard-to-reach places and keeps your hands at a safe distance from the igniter.

6. Charging

No gas or liquid is needed. You can charge the device's battery with the charging cable provided. To do this, connect the charging cable to a 5V DC power source (e.g. a smartphone charger) and to the microUSB port of the lighter. The product can be connected to any charger with an output voltage of 5V DC and an output current of 1.0 A. A full charge takes about 1.5-2 hours. During the charging process, the blue indicator light flashes. After a complete charge, it can be used approx. 80 to 100 times.

7. LED torch

Please switch on the device via the “On/Off switch”. Press and hold the “LED button” to switch on the LED light. Press the “LED button” again to switch off the light.

8. Handling

Switch on the device via the “on/off switch”. Press and hold the “ignition button” to switch on the igniter. Release the button as soon as the ignition has occurred. Switch the unit off via the “On/Off switch”. The LED lighting and the igniter can be used simultaneously.

9. Safety instructions and disclaimer

Never try to repair or modify the device by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. The device is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please follow the national regulations and restrictions.

Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The specifications of the device may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH hereby declares that the device 305374 / 305916 / 306744 / 306745 is in compliance with the essential requirements and the other relevant provisions. A complete declaration of conformity is available at: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
