302035 - Soap dispenser Arendo - Free user manual and instructions

Product type	Automatic soap dispenser
Brand	Arendo
Model	302035
Power supply	4 AAA 1.5V batteries (not included)
Tank capacity	340 ml (max), 40 ml (min)
Dispensing amount	Up to 4 ml per activation
Sensor	Infrared, motion detection
Sound signal	Yes, switchable via switch (SIGNAL / ON / OFF)
Compatible liquids	Liquid soap, lotion (no foam soap, granular soap, disinfectant)
Maintenance and cleaning	Clean the tank with warm water; clean the device only with a damp cloth
Safety instructions	Do not immerse; avoid shocks, high heat, direct sunlight; remove batteries if not used for a long time
Recommended batteries	Alkaline AAA
Operation	Hold your hand under the nozzle for continuous dispensing (up to 4 ml)
Switch	3 positions: OFF, ON (silent), SIGNAL (with sound)
Approximate weight	Approximately 200 g (without batteries)
Approximate dimensions	Height 20 cm, diameter 8 cm (estimate)
Material	ABS plastic
Warranty	Manufacturer's warranty (see terms)
Recycling	Complies with WEEE 2012/19/EU; do not dispose of with household waste
Country of manufacture	China (assumed)

Frequently Asked Questions - 302035 Arendo

How do I install the batteries in the Arendo 302035 soap dispenser?

Make sure the switch is OFF. Open the battery compartment at the bottom of the device. Insert 4 AAA 1.5V batteries, respecting polarity. Close the compartment.

What type of soap can I use?

Use standard liquid soap or lotion. Avoid foam soaps, those containing granules, and disinfectants, as they may clog the mechanism.

How do I fill the tank?

Turn the tank cap counterclockwise to open. Pour liquid up to the MAX mark (340 ml). Close the cap tightly.

What should I do if the dispenser does not dispense soap?

Check that the batteries are installed correctly and the switch is set to ON or SIGNAL. Ensure the tank has enough liquid. Clean the infrared sensor with a soft cloth. If the problem persists, activate the dispensing several times to purge air.

How do I clean the soap dispenser?

Remove the batteries. Open the tank and wash it with warm water. Clean the outside of the device with a damp cloth. Never immerse the device in water and do not use aggressive detergents.

The dispenser makes a noise when dispensing, is this normal?

Yes, if the switch is set to SIGNAL, a sound is emitted with each dispensing. For silent operation, set the switch to ON.

What is the maximum amount dispensed at one time?

The automatic dispensing can distribute up to approximately 4 ml. Dispensing continues as long as the hand remains under the opening, until this limit is reached.

Can I use the dispenser without batteries?

No, the device only operates with 4 AAA 1.5V batteries. There is no mains power.

How do I recycle the device at end of life?

Do not dispose of the device with household waste. In accordance with the WEEE directive, take it to a collection point, the manufacturer, or the retailer for proper recycling.

What should I do if the sensor does not react?

Clean the sensor (small window) with a dry cloth. Check that the batteries are sufficiently charged. Avoid exposing the device to direct sunlight, which can disturb the sensor.

USER MANUAL 302035 Arendo

Black and white handheld device with blue and white segments (no visible text or symbols)

Table of contents

1. Deutsch .... 3
2. English 7
3. Français 11
4. Italiano 15
5. Español....19

Thank you for having chosen this Arendo product and for placing your trust in our company. Please read this manual carefully before installati on to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Delivery contents

• Soap dispenser
• User manual

2 Technical specifi cati ons

Power supply 4x 1.5V AAA batt eries
Capacity	• max. 340ml• min. 40ml
Dosing quanti ty automati c discharge up to about 4 ml
Features • Sound while dispensing soap	• ON/OFF butt on

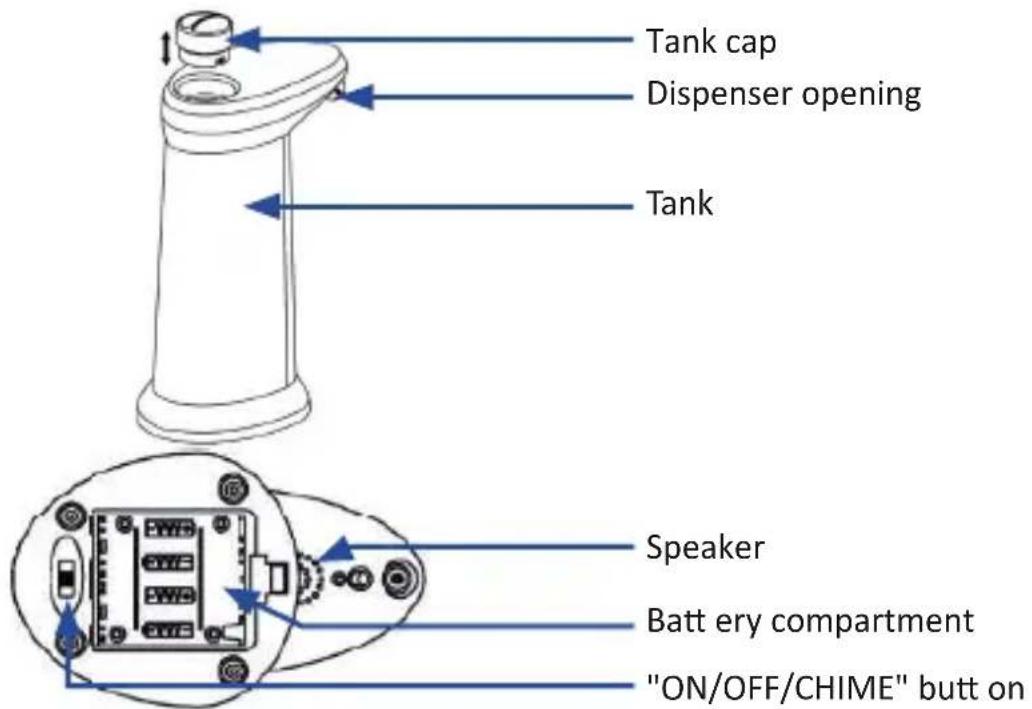

3 Product details

4 Installati on

Take the device out of the package and remove all the packaging material. Ensure that the "ON/OFF/CHIME" butt on is in the "OFF" positi on.

Open the battery compartment at the bottom of the soap dispenser.

Insert 4x1.5V AAA batt eries into the batt ery compartment. Pay att enti on to the correct polarity of the contacts. Then close the batt ery compartment. Now open the tank by turning the tank cap in anti clockwise directi on. Fill the tank with liquid soap or loti on. Note the "MAX" mark while fi lling. This mark should not be exceeded! Close the tank cap and set the selector butt on at the bott om to "CHIME" for discharge with sound or to "ON" for silent discharge.

For the contents to be dispensed, you just have to hold your hand below the opening of the dispenser and automatic dosing follows. The longer you hold your hand under the opening, the more liquid (up to about 4 ml) is dispensed.

Note: When using the soap dispenser for the first time, we recommend you to activate the automatic dosing several times so as to normalise the dispensing of the soap. The automatic dispensing soap can be aborted by removing your hand downward.

5 Important safety guidelines for this device

• Ensure that you replenish the liquid on ti me, otherwise this could lead to loss of soap during dispensin
• Do not mix water with liquid soap, sanitisers or loti ons, as this could lead to loss of liquid while dispensing
• Remove the batteries if you do not intend to use the device for a long time
• The device should not be exposed to blows to avoid any damage
• The device should not be rinsed with water or even submerged in water to avoid damaging the electronic components
• Do not expose the device to direct bright sunlight, as this may lead to malfunction of the infra red sensor

• Always place the device on a flat surface to avoid leakage or overturning

• To prevent accidental discharge of soap, it is recommended to insert the batteries after filling the container or to set the functi on butt on at the bottom to "OFF" positi on

• The soap dispenser is not suitable for foam soaps and soaps containing granules as these could clog the opening of the dispenser
• Do not use disinfectant as the content of the soap dispenser!

6 Cleaning and Maintenance

Remove the batt eries from the batt ery compartment. To clean the liquid tank, you need to open it fi rst. Rinse the liquid tank thoroughly with warm water.

To avoid damage to the device, it should not be cleaned with running water or immersed in water. Clean the device only with a damp cloth and do not use any aggressive cleaning agents.

Ensure that the sensor is kept clean to avoid malfunction.

7 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibrati on as this might damage electronic components.

Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration on to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specificati ons may change without any separate prior notice to this effect.

8 Disposal instructi ons

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directi ve and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inf l ict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collec ti on points. The details in each case are governed by nati onal law. The symbol on the product, the operati ng instructi ons and/or the packaging refers to these regu- lati ons. By separati ng materials in this way, recycling and disposing of old devices, you are making an important contributi on towards protecti ng our environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that the products 302034/20160930DG023 and 302035/20160930DG023 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30719 Hanover
