Product Type	Internal card reader – all-in-one
Brand	CSL
Model	300020
Connectivity	USB 3.0
Form factor	3.5" (8.89 cm) for internal bay
Dimensions (approx.)	146 x 101.6 x 25.4 mm
Weight (approx.)	100 g
Compatible interfaces	MS, MS Duo, CF, CF2, SD, SDHC, MMC, XD, microSD, TF, USB
Supported operating systems	Windows XP and later
Power supply	Via USB port (USB 3.0 + USB 2.0 for power)
Main functions	Reading and writing memory cards
Mounting type	Internal, in a 3.5" bay
Driver installation	Automatic under Windows (sometimes requires update)
Materials	Plastic and steel
Color	Black (typical)
Operating temperature	0 to 40 °C
Relative humidity	20 to 80% (non-condensing)
Maintenance and cleaning	Disconnect before cleaning; use a soft, dry cloth
Safety	Avoid moisture, extreme temperatures, shocks; do not open
Spare parts and repairability	Not user-repairable; contact the manufacturer
General information	Compliant with WEEE directive (2012/19/EU); registration number 94495668

Frequently Asked Questions - 300020 CSL

What types of memory cards are compatible with the CSL 300020?

The reader supports MS, MS Duo, CF, CF2, SD, SDHC, MMC, XD, microSD, and TF formats. It also allows connection of USB devices.

Does the CSL 300020 work under Windows 10?

Yes, the reader is compatible with Windows XP and all later versions, including Windows 10 and 11. The driver installs automatically.

How to install the CSL 300020 in my computer?

Unplug the computer. Open the case and remove the 3.5" bay cover. Insert the card reader from the front, cables first, then secure it with the provided screws. Connect the USB 3.0 cable to the motherboard (a USB 2.0 port is also required). Close the case and restart.

My computer does not detect the CSL 300020 after installation. What to do?

Check that the cables are properly connected (USB 3.0 and USB 2.0). Try restarting. If nothing happens, perform a Windows update via Windows Update. The driver is integrated into the system.

Does the CSL 300020 card reader require external power?

No, it is powered by the computer's USB port. The additional USB 2.0 connection provides the necessary power.

Can I use the CSL 300020 with an adapter or extension cable?

It is designed for internal use, directly connected to the motherboard. Using extension cables is not recommended as it may affect performance and recognition.

Is there an LED indicator on the CSL 300020?

The specifications do not mention an LED, but some models may have one to indicate operation. Refer to the manual for your device.

How to clean the CSL 300020?

Unplug the computer before any cleaning. Use a soft, dry cloth to wipe surfaces. Do not use liquid or abrasive products.

Is the CSL 300020 compatible with SDXC cards?

The manual mentions SDHC compatibility. For SDXC, it is not explicitly listed, but the reader generally supports SDHC and standard SD cards. Check the exact specifications before purchasing.

What to do if I lose the manual for the CSL 300020?

You can download the manual in PDF format for free on sites like notice-facile.com. On this page, you will find the manual in French and other languages.

USER MANUAL 300020 CSL

Close-up of a blue electronic component with multiple pins (no visible text or symbols)

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using for first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• Internal All-In-One Cardreader
- User manual

2 Technical specifications

Port USB 3.0
Form factor 3,5" / 8,89 cm
Interface	MS/MS DuoCF/CF2SD(SDHC/MMCXDmicroSD/TFM2USB
Operating system Microsoft Windows XP or higher

3 Installation

Please disconnect your computer completely from the socket before you start the installation. Do not touch sensitive components in your computer. Open the case of your computer. Then remove the cover from the drive bay.

Plug the card reader into the provided 3.5 "drive bay and secure it with suitable fixing screws on the PC case.

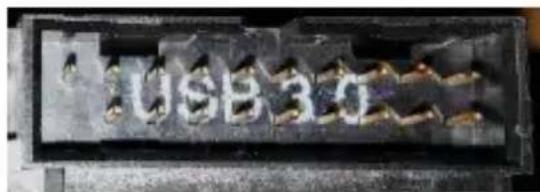

Afterwards find an available USB 3.0 or USB 2.0 slot on the motherboard or on the controller card. Mostly the port is marked "USB XX". Please refer to your motherboard manual for help.

Close-up of a blue electronic component with multiple pins (no visible text or symbols)

Then connect the USB cable of the card reader to a free port. The plug can be connected only in one direction. Please do not use force.

4 Driver Installation

Starting the computer, the card reader will be recognized and installed automatically and ready for use after a few moments. If the card reader is not recognised or installed correctly, please make an OS update and re-start your computer.

5 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The device is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current.

Disregard of tis warning could lead to coming into contact with the operating voltage, or could generate a short circuit.

Pull out the plug before lightning storm or if you do not regularly use this product, to prevent a short- circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperature and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage to the electronic part of this unit.

Check the product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions.

Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention.

This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

6 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment by an incorrect disposal.

As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return end-of-life electrical and electronic equipment to their manufacturer, point of sale, public collection points or importer of charge.

The relevant local laws apply here. The symbol on the product, in the instructions or on its packing points out these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 21061/20161228SZ025 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover
