USER MANUAL 303722 CSL

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Thank you for choosing a CSL product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Gamepad
• User manual

2. Technical data

Connection USB type A
Buttons • 10 buttons	• 2 analogue sticks• Directional pad• HOME button
Operating temperature	-20°C to +65°C
Features • X-input	• Direct input
Compatibility Microsoft Windows 7 / 8 / 8.1 / 10

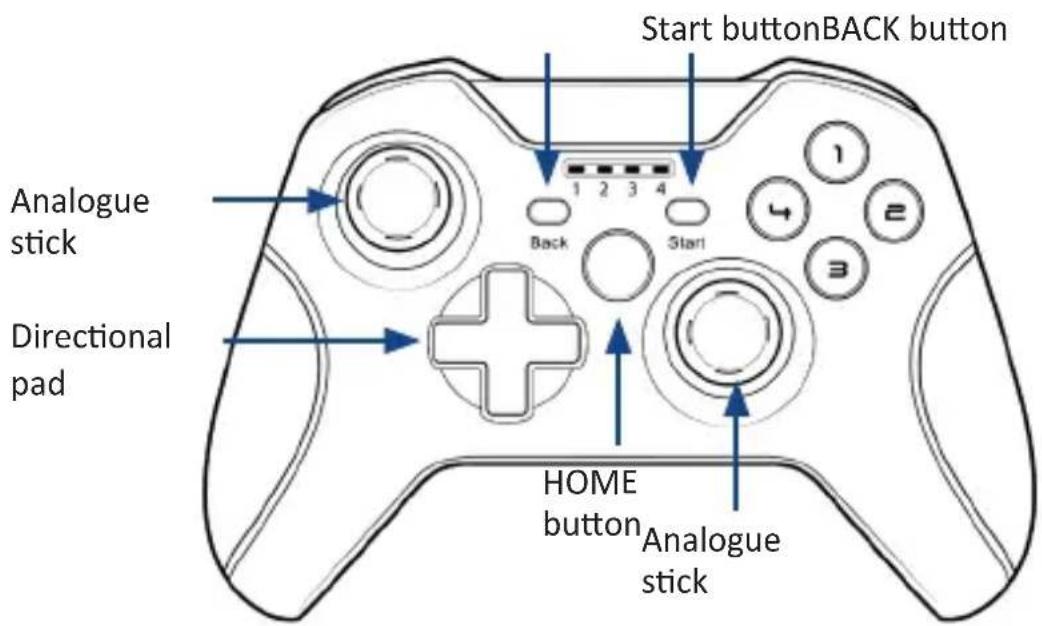

3. Product details

Start buttonBACK button Back Start Analogue stick Directional pad HOME button Analogue stick

4. Initial use

Take the device out of the package and remove all the packaging material. Then connect the Gamepad to any USB port of your computer or your gaming console. As soon as LED1 (left) glows, the Gamepad has been connected successfully. Thanks to Plug&Play, no separate driver installation is required.

Change mode

To change the input mode, press the Home button for about 3 seconds. You can then change between X-input and direct input. Pressing the home button briefly in "Direct Input" mode toggles between the digital mode (LED 1 is turned on) and the analogue mode (LED 1 + 2 turned on). X-input mode is used for most modern PC games.

X-input mode is used for most modern PC games.

In the X-input mode, you will see the gamepad as "XBOX360 controller".

5. Dual vibration function

The Gamepad has two strong vibration motors. The controls are represented more realistically with the vibration effect.

Note: Please note that the vibration works only if the game or the program supports this function and the corresponding feature has been activated in the game options.

You can test the dual vibration function on your computer. Access the Gamepad settings in "System controls" under "Devices and Printers" (Windows /7/8/10).

6. Configuration

It is necessary to configure the Gamepad for some PC games. First check the configuration in the Game controller settings of Windows, then in the game settings (or in an external configuration file) or use an additional emulation software for the required configuration.

Caution!

7. Safety instructions and disclaimer

Never try to open the device to undertake any repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Please use it only in dry places. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which are not carried out by the original supplier, will void any warranty and guarantee claims. The device should be used only by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be recycled or disposed of separately, since toxic and hazardous components can cause lasting damage to the environment if they are disposed of in an improper manner. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE Guideline: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303722/20190426TW001 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
