USER MANUAL 306130 CSL
ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.
Thank you for choosing a CSL product. Please read the following user manual carefully so as to get the most from the product you have purchased.
1. Scope of delivery
- Lamp
- USB Type A to DC coaxial connector cable 3.5 mm
- User manual
2. Technical data
| Power supply 5V via USB | Type A to DC coaxial connector cable 3.5 mm Polarity: ∠C+ |
| Power consumption • Standby: 0 W • Maximum consumption: 7.5 W | |
| Light colours | cool white warm white natural |
| Dimmable via capacitive touch switch (dimmer switch) | |
| Features • Dimmable | 3 light modes Desk holder |

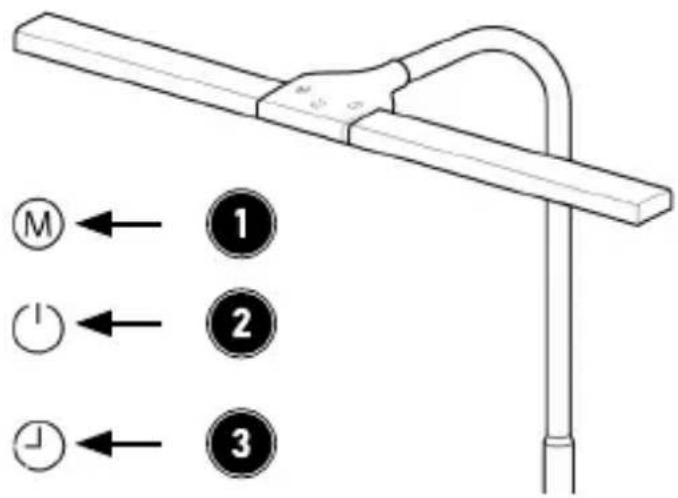

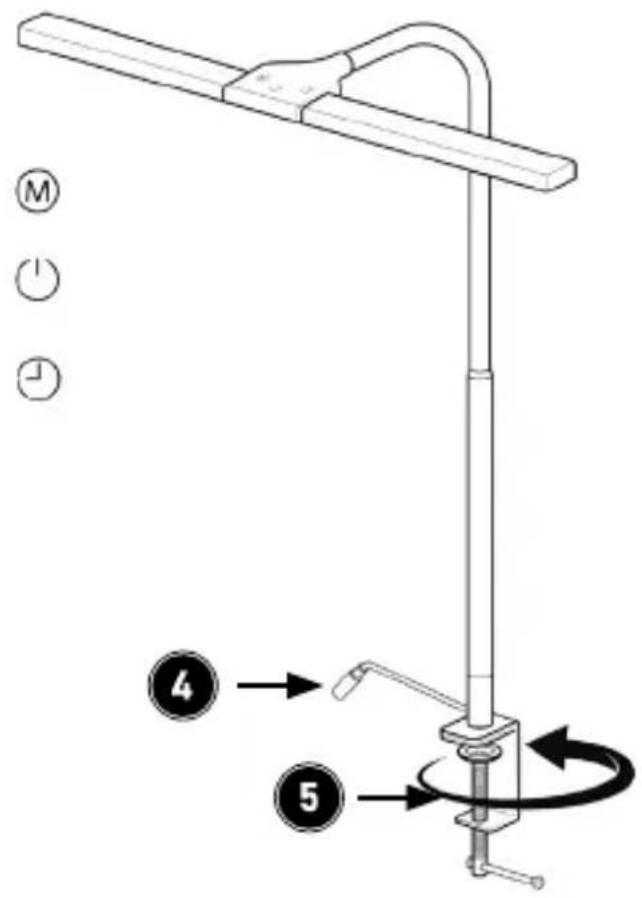

3. Product details
| 1 Colour temperature button |
| 2 On / Off button (brightness switch) |
| 3 Timer button |
| 4 Power supply 3.5 mm DC coaxial connector |
| 5 Bracket |
4. Initial use
Hold the lamp rod and turn the holder at the bottom. Fix the holder to the desired location (e.g., to a table edge) Then screw the holder tightly so that the lamp does not fall off the table and is firmly fixed.
Connect the USB type A to 3.5mm DC coaxial connector cable to the coaxial socket of the lamp and the other end to the 5V power supply.
(1) Colour temperature button:
Brief press: The colour temperature of the lamp can be changed cyclically (natural light cold white light warm white light).
(2) ON/OFF button (Brightness switch):
Brief touch: Lamp ON/OFF
Long touch: continuous brightness adjustment of the lamp
(3) Timer button:
Long press: Switching on the Timer function. The light flashes twice and the timer function starts for 40 minutes. Long press the button again to restart the countdown for 40 minutes. The light is automatically switched off once the countdown is over.
Caution!
5. Safety instructions and disclaimer
Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the product away from high temperatures. Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for damage before using it. The product should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.
Do not use the product for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notification.
6. Disposal instructions
In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or the public collection points set up for this purpose at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment. For information on authorised safe assembly points in your area, please contact your local city or municipal office.
WEEE directive: 2012/19/EU
WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the product 306130 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://model.ganziinfach.de/306130
