USER MANUAL 305665 CSL

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Technical diagram of a mechanical device with labeled components and a circular component showing rotational motion.

Diagram illustrating a mechanical device with two labeled components, showing motion directions and component placement.

Thank you for choosing a CSL product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Monitor lamp
• Table remote control
• USB cable
• User manual

2. Technical data

Power supply 5V DC / 2A (using USB Type C port)
Power consumption • Standby consumption: 0 W• Maximum consumption: 8 W
Battery (remote control)	750 mAh
Light colours	• natural• cool white• warm white
Dimmable Yes (via wireless table remote control)
Features • Dimmable	• 3 light modes• Can be placed on monitors using bracket and clamp• Wireless table remote control

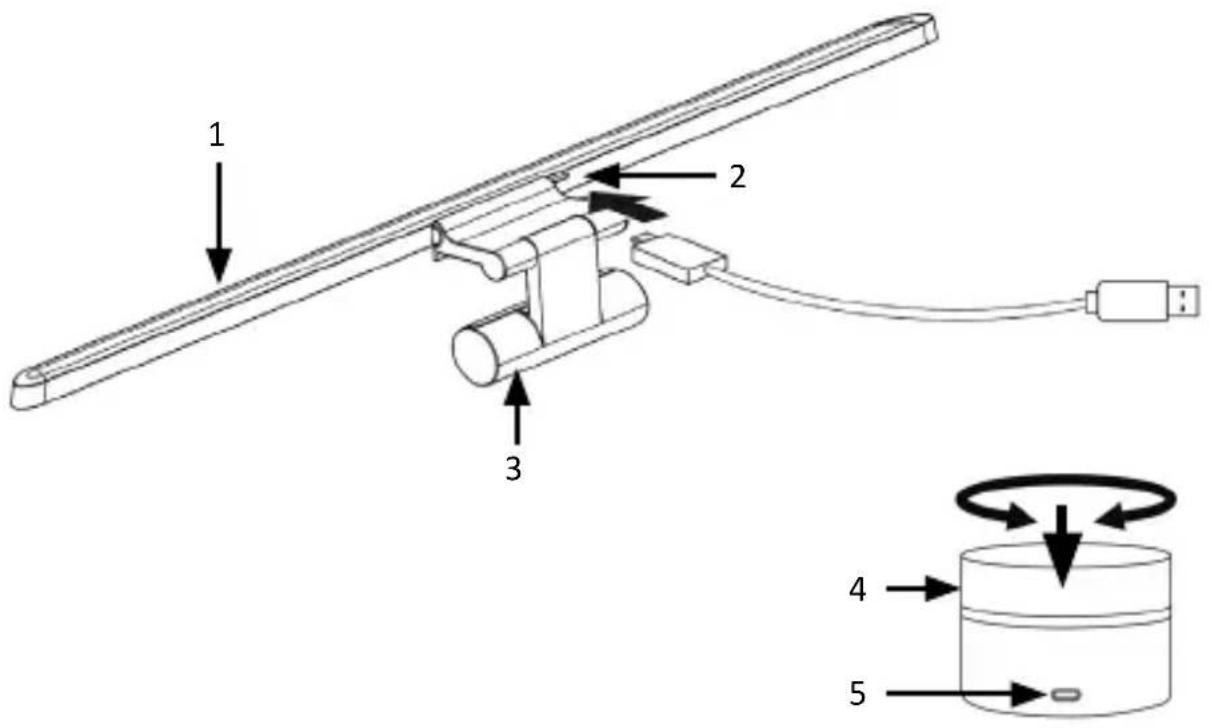

3. Product details

Technical diagram of a mechanical device with labeled components and a circular component showing rotational motion.

1 Monitor lamp
2 Power supply (monitor lamp)
3 Bracket
4 Control button of remote control
5 Charging port of remote control

4. Initial use

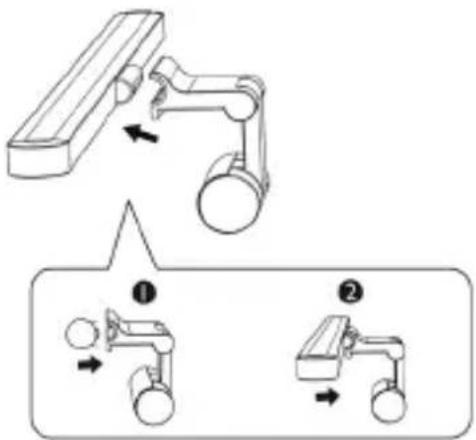

Take the device out of the package and remove all the packaging material. Place the product firmly on the computer screen.

Diagram illustrating a mechanical device with two labeled components, showing directional movement and component positioning.

First, charge the remote control of the device by connecting the remote control via USB cable to a corresponding 5V DC source. The device is charging as long as the status LED of the remote control is red. The device is fully charged when the LED turns green.

Connect the USB cable to the monitor light and to a suitable 5V DC USB port. Alternatively, you can use a USB 5V power adapter (e.g. the charger of a smartphone) to ensure the power supply. After connecting the lamp, press the remote control twice within 10 seconds to connect the remote control to the lamp. The lamp flashes twice once it is successfully connected.

4.1 Operation

Rotate remote control Dimming (brightness adjustment)
Press the remote control briefly	Changing the light colour
Press and hold the remote control	Light On / Off

Caution!

5. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.

Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notification.

6. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

UK CA CE

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305665 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://model.ganzeinfach.de/305665

Diagram illustrating a mechanical device with two labeled components, showing motion directions and component placement.

Technical diagram of a mechanical device with labeled components and a circular component showing rotational motion.

Diagram illustrating a mechanical device with two labeled parts (① and ②) showing directional movement arrows.

Diagram illustrating a mechanical device with two labeled components, showing motion directions and component placement.
