300390 - TV Antenna CSL - Free user manual and instructions

Brand	CSL
Model	300390
Product type	Indoor TV antenna DVB-T / DVB-T2
Antenna gain	30 dBi
Cable length	Approximately 1.5 m
Connection type	Coaxial plug (IEC)
Magnetic base	Yes
Package contents	Antenna, quick start guide
Power supply	Passive (no external power required)
Usage	Indoor only
Reception range	DVB-T and DVB-T2 (depending on region)
Maintenance and cleaning	Clean with a dry, soft cloth. Do not use chemicals.
Safety	Do not open, do not expose to moisture, keep out of reach of children.
Spare parts and reparability	Not user-serviceable. Contact customer service.
Warranty	Legal warranty included
Recycling	Do not dispose of with household waste. Return to a WEEE collection point.
Certifications	Compliant with WEEE Directive 2012/19/EU
Country of origin	Germany (company WD Plus GmbH)

Frequently Asked Questions - 300390 CSL

How to install the CSL 300390 TV antenna?

Place the antenna on a metal surface using its magnetic base. Connect the coaxial cable to the antenna input of your TV or DVB-T/T2 adapter. Start a channel scan from your TV menu.

Why am I not receiving any channels?

Check the antenna orientation and make sure it is not obstructed. Move it away from interfering electronic devices. Perform a new channel scan. Consult websites indicating DVB-T coverage in your area.

Does the antenna work with French TNT?

Yes, the antenna is compatible with DVB-T and DVB-T2 standards used in France for TNT. Make sure your TV or adapter supports these formats.

Does this antenna require a power supply?

No, the CSL 300390 antenna is passive and does not require any external power. It works solely via coaxial connection.

Can the antenna be used outdoors?

No, the antenna is designed for indoor use only. It is not waterproof and can be damaged by moisture or weather.

How to clean the antenna?

Use a dry, soft cloth to wipe off dust. Do not use solvents, alcohol, or abrasive cleaners. Unplug before cleaning.

What to do if the cable is too short?

You can use a female-to-female coaxial extension and an additional cable. Make sure the cable quality is suitable to avoid signal loss.

Can I repair the antenna if it is broken?

The antenna contains no user-serviceable parts. Do not attempt to open it. Contact CSL customer service for an exchange or repair under warranty.

How to improve channel reception?

Try different positions and orientations of the antenna. Move it away from other electronic devices. Use an extension to place it higher or near a window. Sometimes a signal amplifier can help if the signal is weak in your area.

Is the antenna compatible with older TVs?

Yes, if your TV has a coaxial antenna input and supports DVB-T/T2 (or if you use an external adapter with SCART or HDMI output).

USER MANUAL 300390 CSL

Black and gold wireless device with a mounted antenna and connector, no visible text or symbols

DVB-T / DVB-T2 Antenna 30dBi, white

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using the DVB-T / DVB-T2 antenna for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• DVB-T / DVB-T2 antenna 30dBi
- User manual

2 Technical specifications

Cable length approx. 1,5m
Port Coax-plug
Features Magnetic stand

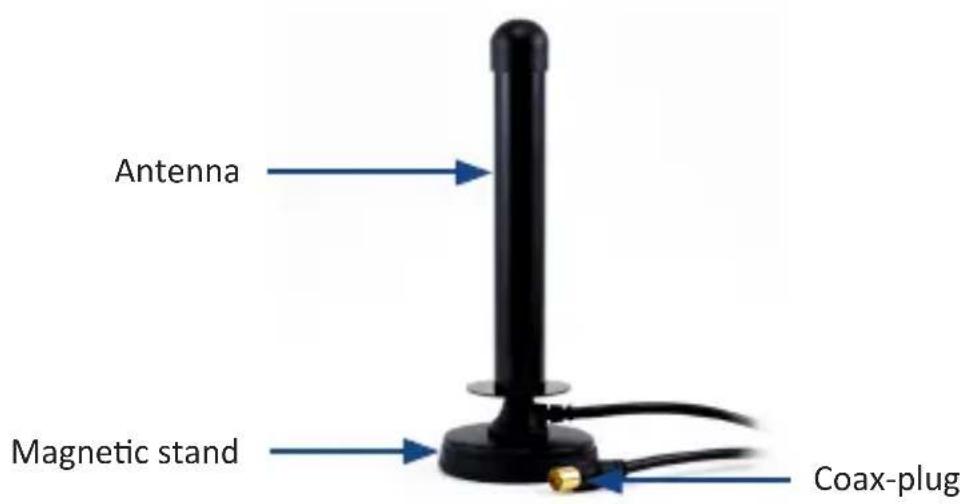

3 Product details

4 Additional notes

If only a few or no stations are found during scanning, then this is mostly likely because of the antenna alignment. Check if the cable is connected to the DVB-T / DVB-T2 antenna, change the position of the antenna and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T / DVB-T2 signal. There are different websites in the internet which could display the signal strength of the DVB-T / DVB-T2 signal in your region. Please do not hesitate to contact our customer support if there are any questions or problems.

5 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight. Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check this product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customers support. Please observetherelevant national provisions and legal restrictions. Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. Persons who are familiar with the operating mawnual and the applicable regulations concerning working safety and accident prevention may only use the DVB-T / DVB-T2 antenna. This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

6 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 94495668

WD Plus GmbH, herewith declares that this product 23756/20170406DG006 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
