USER MANUAL 300026 CSL

Black wireless sensor device with antenna, cable, and connector (no visible text or symbols)

DVB-T / DVB-T2 Antenna 30dBi

Thank you for having chosen this product from CSL and for placing your trust in our company. Before using the DVB-T / DVB-T2-antenna for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual.

1 Scope of delivery

• DVB-T / DVB-T2 antenna 30dBi
- User manual

2 Technical specifications

Cable length approx. 1,5m
Port Coax-plug
Features Magnetic stand

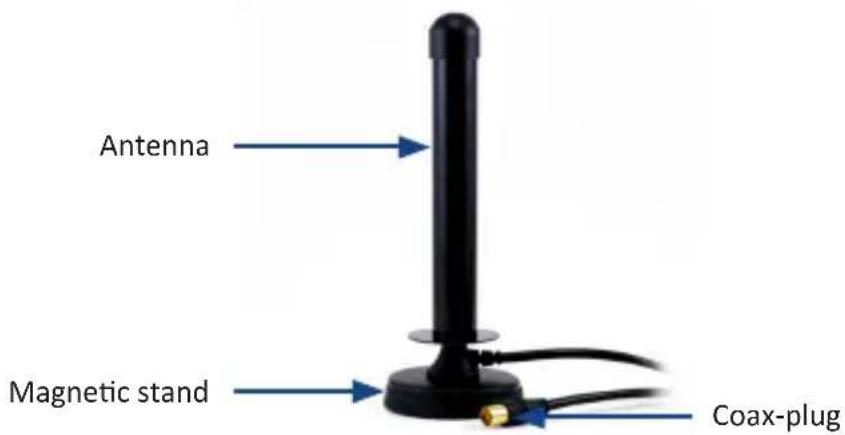

3 Product details

Antenna Magnetic stand Coax-plug

4 Additional notes

If only a few or no stations are found during scanning, then this is mostly likely because of the antenna alignment. Check if the cable is connected to the DVB-T / DVB-T2 antenna, change the position of the antenna and scan once again. Ensure that there are no objects near the antenna, which could shield the DVB-T / DVB-T2 signal. There are different websites in the internet which could display the signal strength of the DVB-T / DVB-T2 signal in your region. Please do not hesitate to contact our customer support if there are any questions or problems.

5 Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight. Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check this product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customers support. Please observetherelevant national provisions and legal restrictions.

Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims. Persons who are familiar with the operating mawnual and the applicable regulations concerning working safety and accident prevention may only use the DVB-T / DVB-T2 antenna. This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

6 Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 94495668

CSL Computer GmbH & Co. KG, herewith declares that this product 20373/20161110DG006 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: CSL Computer GmbH & Co. KG, Sokelantstraße 35, 30165 Hanover
