USER MANUAL 300366 CSL

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Black rectangular electronic device with exposed internal components and ports, no visible text or symbols

Close-up of an electronic device showing internal circuit board and a lid (no visible text or symbols)

Black electronic device with ports and indicator lights (no visible text or symbols)

Thank you for choosing this product from CSL and for placing your trust in our company. Before using the USB 3.2 Gen1 enclosure for the first time, please read this manual carefully to ensure your long-term enjoyment of this product. For future reference, please keep this manual. When the device is put into operation for the first time, check the intactness of the product or components and their function again.

1. Scope of delivery

• USB 3.2 Gen1 enclosure for 3.5" SATA hard disks
• USB 3.2 Gen1 connection cable
• Power adapter
• Stand
• Screwdriver
• User manual

2. Technical specifications

External connection USB 3.2	Gen1 (backwards compatible)
Internal connection Serial ATA (SATA)
Hard-disk form factor 3,5“ /	8,89 cm
Power adaptor 12V DC 2000	mA
Tested operating systems	Windows XP or higher, MacOS 10.4.5 or higher

3. Features

The hard-disk enclosure offers you the opportunity to use a hard-drive as an external drive. For this, please install your serial-ATA hard-drive into the enclosure. After that you can power the device via the supplied power adapter and connect it with the computer using the supplied USB cable. A manual driver installation is not required.

4. Getting started

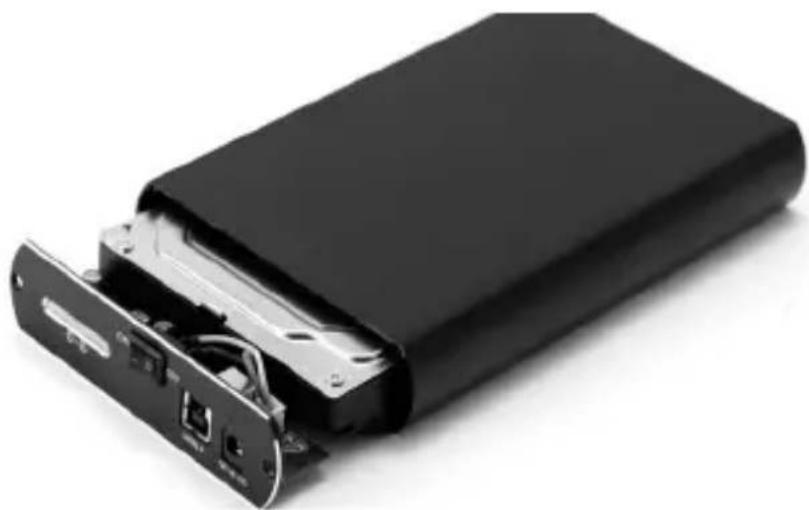

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Please take the hard-disk case out

of its packaging and put the packaging aside. Then please unscrew the two screws on the front side of the hard-disk case. Now please connect your hard disk with the

Black electronic device with exposed internal components and ports, no visible text or symbols

connectors of the case.

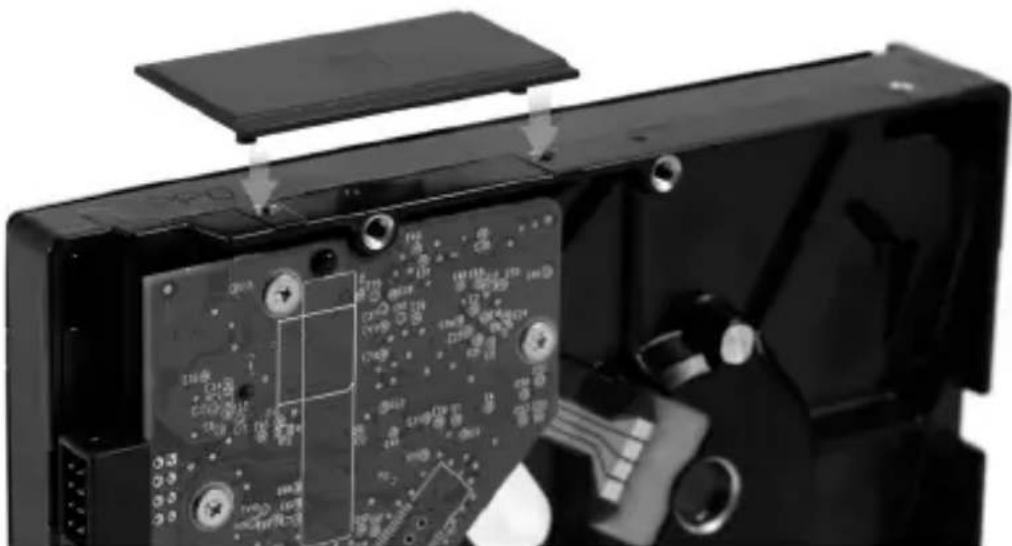

If your hard disk does not firmly sit in the case, please fix the furnished plastic supports on each side of your hard disk to stabilize the fitting of it in the case.

Close-up of an electronic device showing internal circuit board and components (no visible text or symbols)

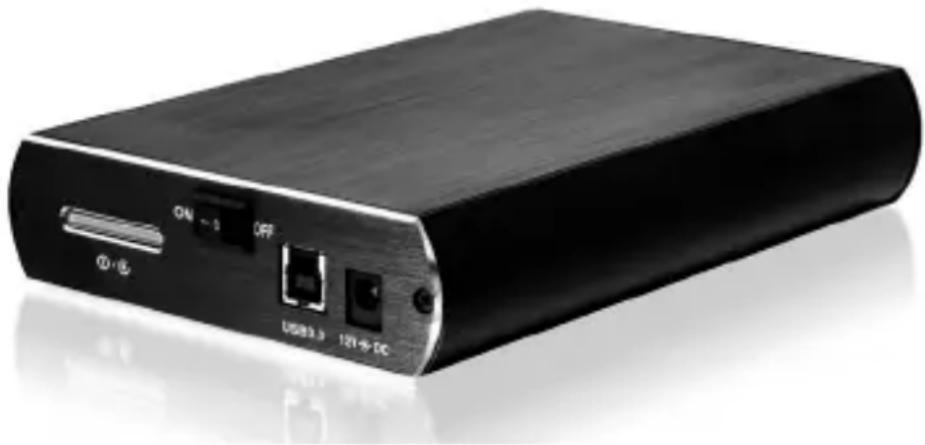

Now you only have to close the case and fix the front side by the two screws on it. Please connect the USB lead with the connector of the hard disk case and your computer or laptop.

Black electronic device with ports and indicator lights (no visible text or symbols)

Then connect the 3.5 mm jack of the power supply charger with the case and connect the power supply charger to a wall plug. Next please put the switch on the case in the "ON" position. Now your hard-disk case is ready for use.

5. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. Please avoid any contact to the electric current. This product is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check this product for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use this product for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

Persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention may only use the network card. This unit is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

6. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or importer free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 300366 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
