Product Type	Electric arc lighter with LED flashlight
Brand	Brandson
Model	306980
Dimensions (L × W × H)	Approx. 15 × 2 × 2 cm
Weight	Approx. 55 g
Power supply	Li-Ion battery 200 mAh, rechargeable via USB 5V DC
Input voltage	5V DC, 1A
Charging time	1.5 to 2 hours
Battery life	80 to 100 uses per charge
Operating temperature	0°C to 40°C
Main functions	Electric arc ignition and LED flashlight
Flashlight	White LED, controlled by dedicated button
Ignition	Electric arc, max duration 7 seconds
Safety	Automatic shut-off after 7 seconds, overheat protection
Flexible neck	Yes, for hard-to-reach places
Charge indicator	Blue LED flashing while charging, solid when charged
Care and cleaning	Clean with a soft, dry cloth; do not immerse
Spare parts and repairability	Not user-repairable, built-in battery
Included cable	USB-A to microUSB cable (approx. 50 cm)
General information	Suitable for lighting candles, barbecue, etc. Use in dry weather only. WEEE compliant recycling.

Frequently Asked Questions - 306980 Brandson

How to charge the Brandson 306980 electric lighter?

Connect the included USB cable to the microUSB port of the device and to a 5V DC power source (smartphone charger). The blue LED flashes during charging and turns off or becomes solid when fully charged.

How long does a full charge take?

A full charge takes approximately 1.5 to 2 hours. Disconnect the device after charging to preserve the battery.

How many uses can I get per charge?

You can get approximately 80 to 100 uses per full charge, depending on the duration of each ignition.

How to turn on the LED flashlight?

First turn on the device with the power button, then press and hold the LED button to turn on the flashlight. Press again to turn it off.

What is the maximum continuous ignition time?

The electric arc automatically turns off after 7 seconds to preserve battery life. You can release and press again for a new use.

Can I use the lighter while charging?

No, it is not recommended to use the lighter while charging. Please disconnect the device before use.

What to do if the device does not turn on?

Check that the battery is charged. If the indicator does not light up, charge the device for 2 hours. If the problem persists, contact customer service.

How to clean the device?

Clean the device with a soft, dry cloth. Do not immerse it in water and avoid any liquid to prevent short circuits.

Is the device waterproof?

No, the device is not waterproof. Use it only in a dry place and protect it from moisture, water, and snow.

How to recycle the device at the end of its life?

Do not dispose of the device with household waste. Take it to a WEEE collection point (recycling center or store) for recycling. The built-in battery must also be recycled.

USER MANUAL 306980 Brandson

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Thank you for choosing a product from Brandon. To ensure that you enjoy your purchased device for a long time, please read the following user manual carefully.

1. Scope of delivery

• Electric Stick Lighter
- USB Type A to microUSB charging cable

2. Technical data

Power supply 5V DC (via USB)
Battery Li-Ion Accu 200 mAh
Buttons 2
Features • Charging level	indicator• LED lighting
Ambient temperature 0°C - 40°C

3. Safety instructions

Please keep the stick lighter out of the reach of children. Failure to follow the instructions may result in burns.

1. Disconnect the device from the mains immediately after it is fully charged. The blue indicator light shows when the device is charging. The device is fully charged and should be disconnected from the power supply. A full charge should take about two hours. If the lighter is not used for a long period of time, it must be charged to the maximum.
2. Make sure that the device does not get wet, otherwise a short circuit may occur.
3. Do not use the lighter while the device is charging.
4. Keep the product away from your face, body and flammable clothing.

5. Do not leave the product in direct sunlight for a long period of time.

6. Do not use the lighter function continuously for more than 7 seconds as this may affect the life of the product.

7. Do not touch the ignition head of the product as there is a risk of high temperatures and/or electric shocks.
8. Do not insert any metal objects.

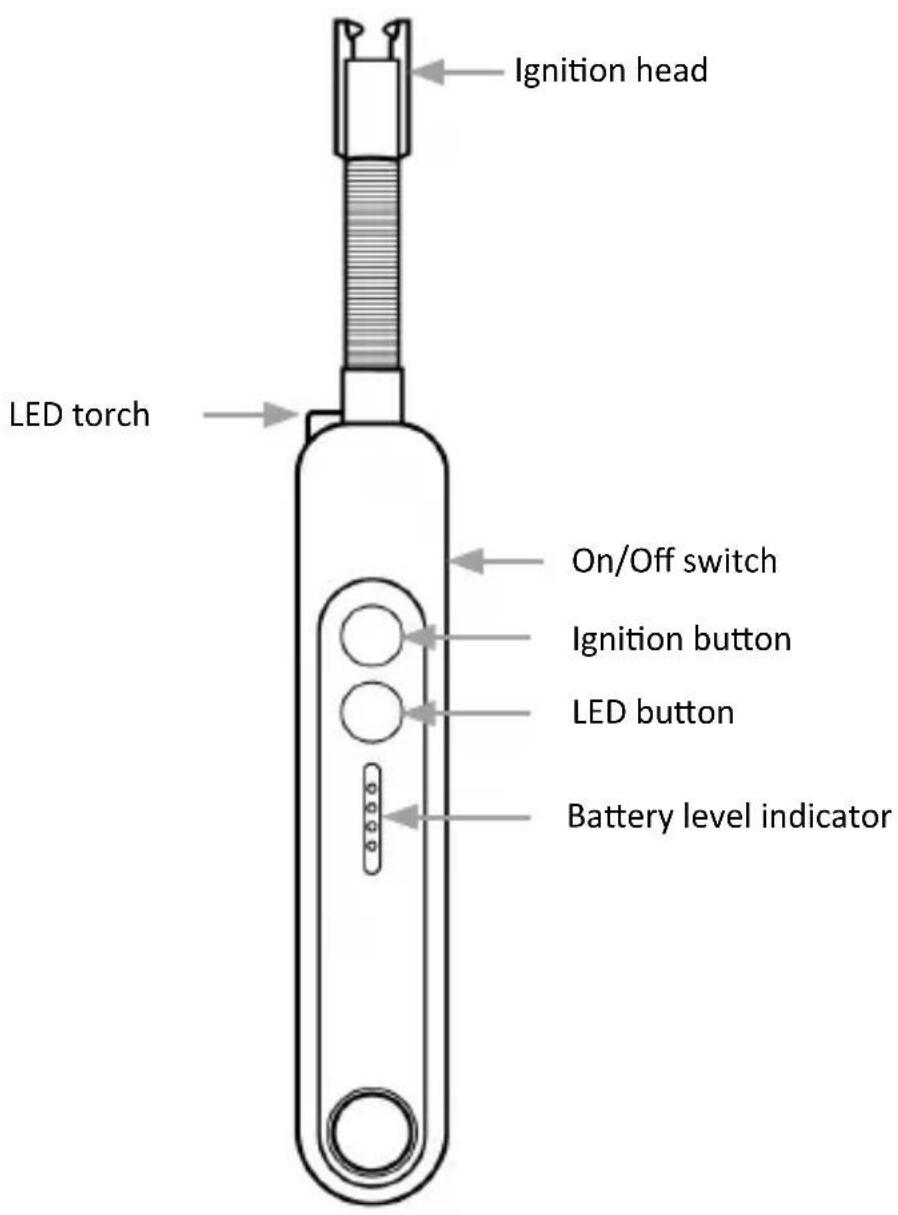

9. Product details

5. Safety information

When you press the ignition button, the electric arc is only ignited for 7 seconds and then switched off in order to preserve battery life. The flexible neck allows access to hard-to-reach places and keeps your hands at a safe distance from the igniter.

6. Charging

No gas or liquid is needed. You can charge the device's battery with the charging cable provided. To do this, connect the charging cable to a 5V DC power source (e.g. a smartphone charger) and to the microUSB port of the lighter. The product can be connected to any charger with an output voltage of 5V DC and an output current of 1.0 A. A full charge takes about 1.5-2 hours. During the charging process, the blue indicator light flashes. After a complete charge, it can be used approx. 80 to 100 times.

7. LED torch

Please switch on the device via the “On/Off switch”. Press and hold the “LED button” to switch on the LED light. Press the “LED button” again to switch off the light.

8. Handling

Switch on the device via the “on/off switch”. Press and hold the “ignition button” to switch on the igniter. Release the button as soon as the ignition has occurred. Switch the unit off via the “On/Off switch”. The LED lighting and the igniter can be used simultaneously.

9. Safety instructions and disclaimer

Never try to repair or modify the device by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. The device is not approved for outdoor use. Therefore, please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please follow the national regulations and restrictions.

Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The specifications of the device may be changed without any special prior notification.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.

According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH hereby declares that the device 305374 / 305916 / 306744 / 306745 is in compliance with the essential requirements and the other relevant provisions. A complete declaration of conformity is available at: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
