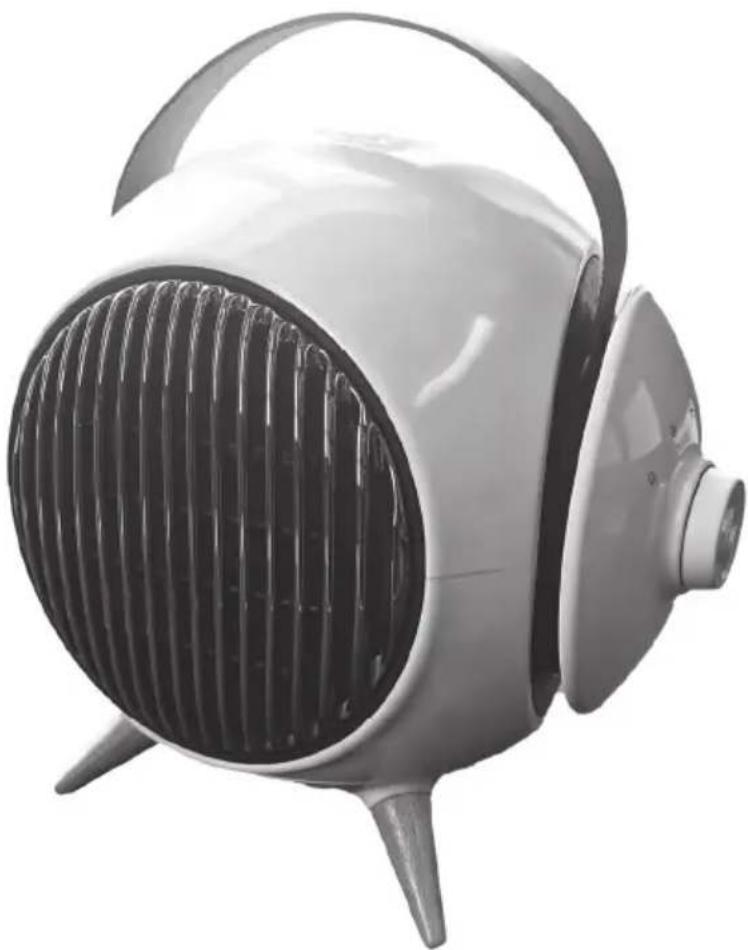

CERAMIC HEATER

User's manual

Modern electric heating fan with heat sink and three legs (no text or symbols visible)

1 Safety instructions ....43
2 Part description ....45
3 Usage 45
4 Cleaning and maintenance....46
5 Properties ....46
6 Warranty / disposal / technical change 47

1 Safety instructions

Please read before first commissioning the safety instructions carefully and observe the safety instructions to prevent damage due to misuse, improper operation, and improper environmental conditions to be avoided. Keep these for later reference.

Check the device after removing the packaging for damage. Do not put the unit in case of suspected corruption in operation and consult a specialist. The recyclable packaging material must not be stored or disposed accessible for young children, but must be disposed of properly.

This appliance is only for the purpose for which it was explicitly developed. Any other use is regarded as improper and therefore dangerous. The supplier is not liable for damage to persons and / or property damage due to an improper or incorrect use.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Repairs to electrical appliances must only be carried out by trained personnel only. Improperly performed repairs and alterations to the equipment can have dangerous consequences for the user according to what the warranty will be rejected.

• To avoid electric shock, fire or injury, please read the user manual carefully before using the appliance and keep it for future reference.
• This appliance is for household use only. Please use a suitable power source (230 V \~ 50 Hz).
• Never immerse the appliance in water or other liquids.
• Do not use the appliance in direct sunlight.
• Please turn off the appliance when not in use as it may otherwise be dangerous.
• Please turn off the appliance and unplug the socket when unattended as it may otherwise be dangerous.
• Keep the appliance away from children.
• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children under the age of 3 should be kept away unless they are continuously supervised.
• Children aged between 3 and 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children aged between 3 and 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

- With any indication of damage or malfunction, please stop using the appliance immediately to avoid hazards. Take it to an authorized service centre for repair. Do not attempt to repair or change any parts yourself.

- If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazards.

- Please turn off and unplug the appliance before cleaning or maintenance.

- Clean the surface of the appliance with a dry cloth. Do not use any corrosive detergent or solvent to clean. Do not splash water on the appliance.

- Please turn off and unplug the appliance when not in use. Make sure the power is off before pulling out the plug. Do not pull on the cord.

- When the appliance is not in use for a prolonged period, please turn it off, unplug it, pack it well and store it in a dry and cool place.

- It is forbidden to put flammable and explosive objects near the appliance. Do not use the appliance in an environment full of flammable gas or powder. Keep away from any fire and heat sources.

- Please put the power cord in the right place in order to avoid tripping over the appliance.

- Do not put any objects on the appliance and do not place the appliance directly under a socket outlet.

- Do not touch the air outlet when operating.

- Please keep the air inlet and the air outlet unblocked to minimize the risk of fire or malfunction.

- Do not let the power cord touch the air outlet or be near it. It will damage the insulation layer of the wires.

- Please operate the appliance on a firm and level desk or floor. Do not use the appliance in the immediate surroundings of a bath, a shower or a swimming pool.

- Ensure no water or raindrop leaks into the appliance in order to avoid electric shock. Do not put flammable objects or wet clothes on the air outlet in order to avoid short circuit or fire.

- Please do not place the air inlet or the air outlet near curtains or walls when operating as it will block the air current and cause fire. The appliance should be installed at a minimum distance of 10 cm from the wall or other obstacles.

- Please do not insert any objects into the air inlet or the air outlet in order to avoid electric shock.

- After a period of operation, unusual noise and uneven air volume may appear because of dust blocking the airflow. It will disappear after cleaning the back net.

- In order to avoid overheating, do not cover the appliance with anything, especially flammable materials, such as clothes or paper.

- This appliance is not equipped with a device to control the room temperature. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

- In order to avoid hazards due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as timers, programmers, a separate remote control system or connected to a circuit that is regularly switched on and off by the utility.

- Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

2 Part description

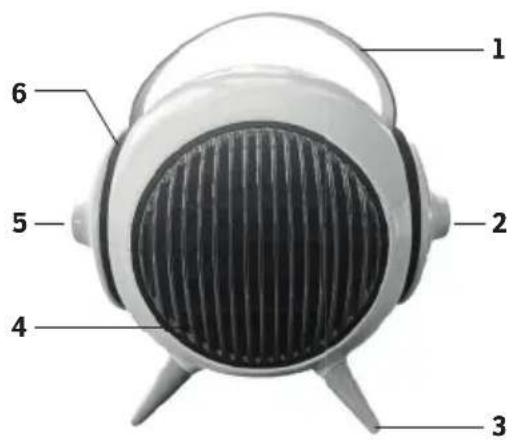

1 2 3 4 5 6

1. Handle
2. Controlbutton
3. Feet
4. Protective mesh
5. Swing Button
6. Air-inlet

EN

3 Usage

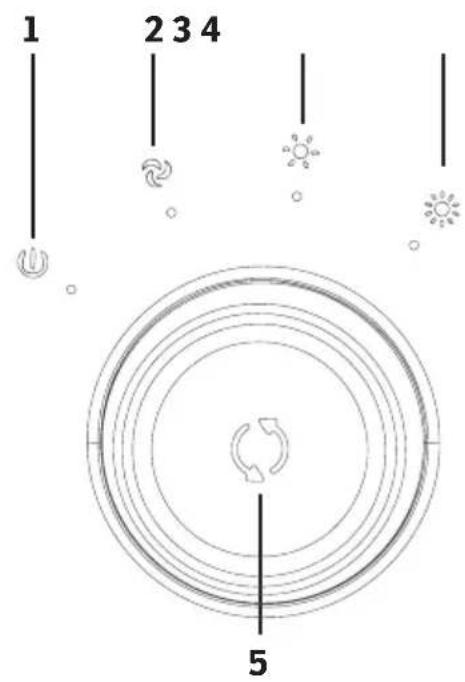

1 2 3 4 5

Line drawing of a portable air heater with mesh grille and three legs (no text or symbols)

Operation

Use the rotary knob for switching on and adjusting the steps.

1-3 ventilation & heating stages

Turn the knob clockwise to activate the device. Keep turning until the ventilation LED lights up (2). Continue turning the knob to activate fi rst the fi rst heating level and then the second heating level.

5 Horizontal oscillation (Auto)

Press the rotary knob to activate the horizontal oscillation. The instrument now starts to rotate evenly from left to right.

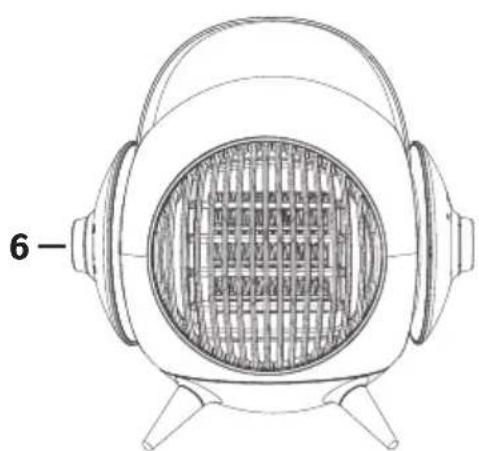

6 Vertical oscillation

To adjust the angle at which the air is distributed, turn the knob on the opposite side of the knob. The fins inside the unit should now be adjustable.

5 Cleaning and maintenance

EN

Minor discoloration of the protective grating due to intensive operation is normal and does not constitute a defect.

Ensure that the device is switched off before cleaning or maintaining it.

• Before maintaining, please pull out the plug, and make sure the heater has become cool.
• Please use a soft cloth to wipe dust off the surface of the heater. If the surface is too dirty, it is better to wipe it with water which is colder than 50^ C and mixed with a neutral detergent.
• Do not use gasoline, thinner or any other liquids which can easily damage the surface.
• Please let the heater cool and dry before packing it. Place it in a dry and ventilated place.

5 Properties

Model ....LIMA

Tension....230 V

Frequency....50 Hz

Power 1200 Watt

Dimensions.... 24.6 x 21.4 x 20 cm

6 Warranty / Disposal / Technical change

Warranty

The Products are controlled just before delivery. If despite a lack of your product, try trustfully your seller. Please bring your receipt, as this is to be submitted for each warranty. The guarantee period is 24 months from date of purchase.

Disposal

The device must be disposed of properly. The device can be distributed free of charge for disposal at each dealer.

Technical changes

Subject to changes in technology and design. We shall not be liable for technical or editorial changes or omissions in this document.

Please save the packaging materials of the unit.

CE Declaration of Conformity

This device complies with the following standards

LVD EN 60335-1:2012+A11:2014+A13:2017

EN 60335-2-30:2009+A11:2012

EN 62233:2008

EMC EN 55014-1:2017

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013

ROHS 2015/863/EU

LVD 2014/35/EU

EMC 2014/30/EU

DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCT

In accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management.

The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.

DISPOSAL OF BATTERIES AND ACCUMULATORS

In accordance with Legislative Decree 188 of 20 November 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the symbol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.

Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipality or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protected. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.

MODEL: LIMA
Item Symbol Value Unit
HEAT OUTPUT
Nominal heat output P	nom	1.2. kW
Minimum heat output (indicative) P	min	0.7 kW
Maximum continuous heat output P	max.c	1.2 kW
AUXILIARY ELECTRICITY CONSUMPTION
At nominal heat output el	max	10 W
At minimum heat output el	min	5 W
In standby mode el	SB	<1 W
Item			Unit
Type of heat input, for electric storage local space heaters only (select one)
manual heat charge control, with integrated thermostat			[no]
manual heat charge control with room and/or outdoor temperature feedback			[no]
electronic heat charge control with room and/or outdoor temperature feedback			[no]
fan assisted heat output			[no]
Type of heat output/room temperature control (select one)
single stage heat output and no room temperature control			[no]
Two or more manual stages, no room temperature control			[no]
with mechanic thermostat room temperature control			[no]
with electronic room temperature control			[no]
electronic room temperature control plus day timer			[no]
electronic room temperature control plus week timer			[no]
Other control options (multiple selections possible)
room temperature control, with presence detection			[no]
room temperature control, with open window detection			[no]
with distance control option			[no]
with adaptive start control			[no]
with working time limitation			[yes]
with black bulb sensor			[no]
