USER MANUAL Max Mixer BL-5HW.011A Haeger

Max Mixer * BL-5HW.011A

QR code image containing encoded data, no visible human-readable text

Download Multi-language file

White HEGER brand electric mixer with a metal handle, isolated on white background (no text or symbols visible)

CE RoHS

User instructions / Instruções de uso Instrucciones de uso / Mode d'emploi Οδηγίες χρήστη

English

Dear customer

Thank you for having chosen a HÆGER product.

The HÆGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.

We assume that the user is familiar with the common procedures of handling household appliances.

Before using the appliance for the first time please read carefully and thoroughly through these operating instructions and the safety advice, completely familiarising yourself with the appliance. Retain these instructions for future reference and pass them on to whoever might acquire the appliance at a future date.

Intended use

This Hand mixer is intended for kneading dough, mixing liquids (e.g., fruit juices) and whipping cream. It is only suitable for foodstuffs. All other usages or modifications are regarded as contrary to the operating instructions and contain a great risk of accidents.

The manufacturer declines to accept responsibility for damage(s) arising out of usage contrary to the instructions specified below. Not for commercial use.

This appliance is designed for HOME USE ONLY and may not be used for commercial or industrial purposes.

General Safety Instructions

When using electrical appliance, basic safety precautions should always be followed, including the following:

• Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room, you should always turn the device off. Remove the plug from the socket.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following Special Safety Instructions....

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
• Do not allow small children to play with the foil as there is a danger of suffocation!
• The appliance may be used by children 8 years or older and by persons with reduced physical or mental capabilities, if they are under supervision or if they have been instructed in the use of the appliance in a safe manner and understand the potential risks. Children must not carry out cleaning and maintenance of the appliance, unless they are 8 years or older and under supervision. Children younger than 8 years have to be kept away from the appliance and its power supply.
• Children should be supervised to ensure that they do not play with the appliance.

Special safety instructions

• Make sure that the voltage on the appliance rating plate corresponds to that of the mains electricity.
• Never leave the appliance unattended when connected to the power supply; unplug it after every use.
• Never place the appliance on or close to sources of heat.
  • Always place the appliance on a flat, level surface during use.
• Never leave the appliance exposed to the elements (rain, sun, etc.,).
  • Make sure that the power cord does not come into contact with hot surfaces.

• NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER OR OTHER LIQUIDS.
  • ALWAYS WIPE CLEAN WITH A DAMP CLOTH.
• ALWAYS UNPLUG THE POWER CORD FROM THE ELECTRICITY MAINS BEFORE FITTING OR REMOVING SINGLE ATTACHMENTS OR BEFORE CLEANING THE APPLIANCE.
  • NEVER TOUCH MOVING PARTS.

- Always make sure that your hands are thoroughly dry before using or adjusting the switches on the appliance, or before touching the power plug or power connections.

• Make sure that the appliance has been perfectly assembled before switching on.
• Under no circumstance should you use receptacles made of glass or other very fragile/easily breakable materials. These containers can be damaged and then cause potentially serious injuries.

SAVE THESE INSTRUCTIONS FOR HOUSEHOLD USE ONLY

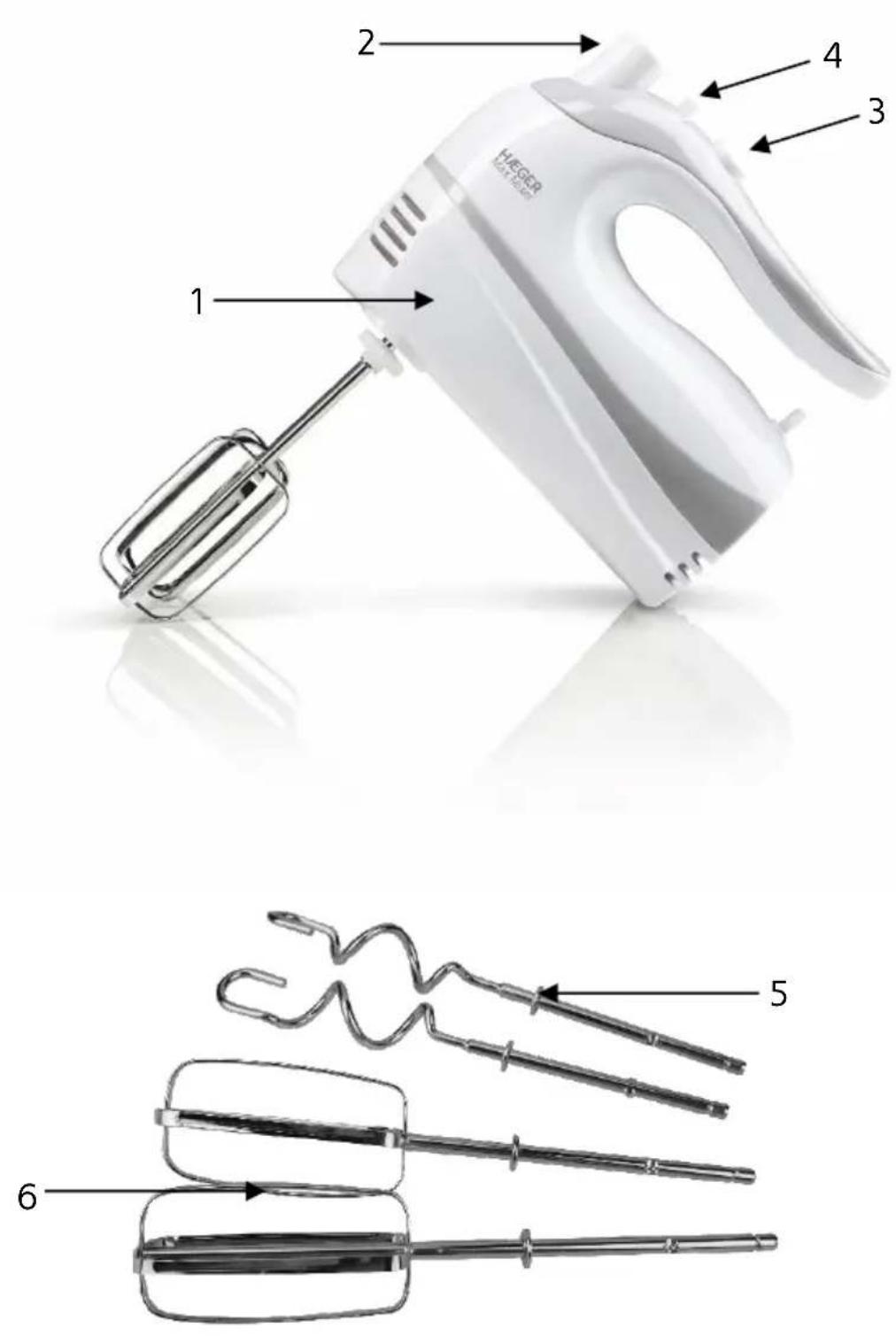

Description of the appliance

1. Motor body
2. Eject button
3. Turbo button
4. Multistage speed switch
5. Kneading dough hooks
6. Beaters (Mixing) hooks

Instructions for use

General Information

• Before the appliance is used for the first time, all attachments and accessory parts must be cleaned.
• Fit the beaters or kneading hooks into the drive opening of the mixer unit. The beaters with the geared ring must be fitted into the smaller opening.
• Use your thumb to switch on the unit.
• When you have finished mixing or if you wish to interrupt the operation, switch off first before lifting the attachments out of the mixture.

Beaters

For light and liquid mixtures such as crèmes, mashed potatoes, egg white or cream, insert one or both beaters into the openings on the underside of the blender and push them gently upwards until they lock into place.

Kneading hooks

For kneading dough, the dough hooks must be used. The hook with the integrated plate must be inserted into the larger opening.

Ejecting the attachments

The beaters or dough hooks are automatically detached when pressing the eject button.

Short-time operation

The appliance is designed to process average domestic quantities of food. When using the high-speed level, the unit should not be operated continuously for more than 3 minutes. Switch off the appliance afterwards and allow the motor to cool down.

Multistage switch

The unit is equipped with a multistage switch. The following settings are available:

0 - The unit is switched off
1 - Very low speed, good starting speed for mixing "soft" ingredients such as flour, butter, etc
2 - Low speed, best speed for blending liquid ingredients.
3 - Medium speed, optimum speed for mixing cake and bread dough.
4 - Medium high speed, for whipping butter to form fine foam, sugar, for desserts etc.
5 - High speed, for beating meringue, cake jelly, whipped cream etc.

Turbo - This button allows you to have the full power of your appliance immediately at your disposal.

How to use

IMPORTANT: MAKE SURE THAT THE ATTACHMENTS ARE FITTED CORRECTLY BEFORE USING THE APPLIANCE.

1. Push the beaters or the kneading hooks into the insertion slots until they are safely and audibly engaged.
2. Insert the power plug into a wall power socket.
3. To set the mixer to work, push the speed switch to the desired speed setting. You can select between 5 speed settings and, additionally, the turbo button.
4. Press the eject button to unfasten the beaters or the kneading hooks.

IMPORTANT: To prevent the motor from overheating, do not operate the appliance continuously for more than 3 minutes, first stop it for at least 5 minutes, leaving it to cool down to room temperature.

NOTE: Start mixing at the slowest speed, gradually increasing to the required level. For kneading, we recommend using the higher speed settings.

Cleaning and Care

• Before cleaning any part on the hand mixer, set the speed selector to the 0 position. Then unplug the mains cable from the wall socket and release the rods. Make sure to dry all of the parts before reusing them.
• The rods can be washed in hot soapy water or in the dishwasher. The hand mixer motor housing and the mains cable should be wiped clean with a damp cloth.
• To remove stubborn stains, clean with a cloth slightly dampened with soapy water or a mild, non-abrasive, cleaning agent. Finish off with a clean damp cloth.
• Do not use abrasive cleaning products.
  • DO NOT IMMERSE THE HAND MIXER OR CABLE IN WATER OR ANY OTHER LIQUID.

Technical Data

Model	BL-5HW.011A
Rating Voltage, Frequency	220-240V~, 50/60Hz
Rated Power	300 - 500W
Continuous operation time	3 min

Conformity CE

This product has been tested and produced according to all relevant current CE guidelines, such as:

• Electromagnetic compatibility Directive 2014/30/EU,
• Low voltage Directive (LVD) Directive 2014/35/EU,
• RoHS with its amendments Directive EU 2015/863,

and has been constructed in accordance with the latest safety regulations.

The CE mark attests this product with all relevant directives.

Disposal – Environment policy

Packing

The packaging material is entirely recyclable and marked with the recycling symbol. Follow local regulations for scrapping. Keep the packaging materials (plastic bags, polystyrene parts, etc.) out of reach of children, as they are potentially dangerous.

Disposal

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

This symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead, it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Warranty

Warranty Terms and Conditions

1. The product is guaranteed for the period stipulated by the legislation where it is placed on the market, starting from the date of purchase, against manufacturing defects and/or workmanship. The lack of conformity manifested in this period is presumed to exist at the date of purchase. After this period, it is for the customer to prove that the lack of conformity already existed at the time of delivery.
2. If, during the warranty period, the product is defective in normal use, the buyer should contact the selling establishment and send the appliance to the place indicated by the seller.
3. The warranty is only valid upon presentation of the invoice proving the purchase and the completed warranty certificate (indicating the date of purchase, the name of the dealer, the reference of the model, and it is also recommended to indicate the serial number and lot number).
4. The importer/seller reserves the right to refuse warranty assistance in the event that such information has been deleted or altered after the original purchase of the product.
5. The responsibility of the importer/seller includes in particular the costs of repairing and/or replacing the unit covered by the warranty with the reservation of the right to replace it with an equivalent product, in cases where it is not possible to repair it.
6. The warranty does not apply to problems that are not directly related to defects in material, design or workmanship.
7. This product is an appliance and is intended for home use only. The warranty will be void if the product is used for professional purposes.
8. The warranty does not cover damage caused by misuse, improper installation, spillage, external factors, or intentional damage.
9. The warranty does not cover damage resulting from falls, use of excessive force, blows, exposure to extreme environmental conditions or deterioration caused by the normal use of plastic parts or keyboards, as well as the use of batteries other than those specified in this manual.
10. The warranty does not cover installation and programming by the dealer. In particular, no claim for installation and free programming by the reseller may be accepted.
11. The warranty does not cover deficiencies that insignificantly impair the operation of the appliance. Other costs, such as installation, transportation and travel of the technician are expressly excluded from the warranty.
12. The applicability of the warranty presupposes that the appliance is sent to the seller or place indicated by him, complete and in well-protected packaging (if possible, in its original packaging) and accompanied by its sheet or warranty card duly filled out and proof of purchase.
13. If after verification, it is found that there are no reasons for the claim, or that the product is not defective, the inherent costs will be imputed to the customer, and the dealer is authorized to charge those costs to the customer.
14. The warranty will be void when it shows signs that an unauthorized person has attempted to carry out repairs, modifications or replacement of parts on the appliance.
15. Repairs carried out after the end of the warranty period are subject to costs.

16. This warranty does not affect your legal rights that you may have as a consumer under applicable national law governing the purchase of products where the product is sold.

17. Warranty Period:

European Union countries - European Directives (EU) 2019/771 and (EU) 2019/770 apply on certain aspects of contracts for the purchase and sale of movable property and transposed into the national laws of their countries.

Other countries - national legislation on consumer rights in their country applies. In the case of no official legislation, the guarantee shall be applied at the discretion of the importer placing the product on the market or the seller establishment.
