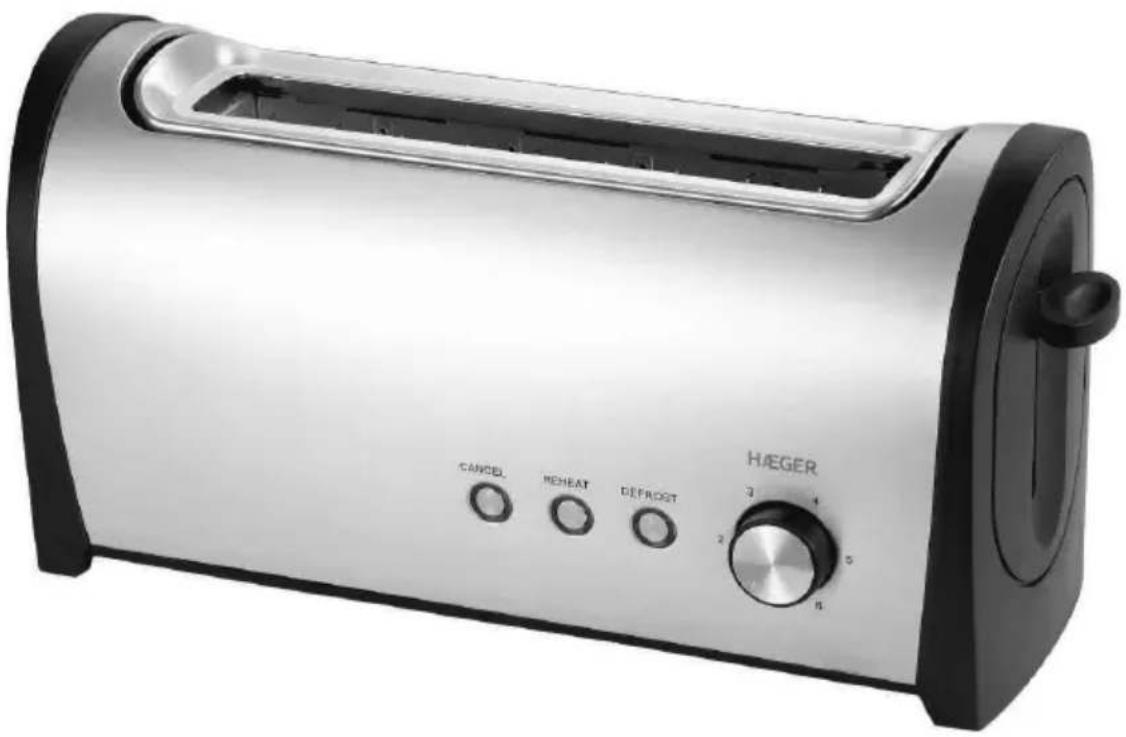

Desayuno TO-100.009A - Toaster Haeger - Free user manual and instructions

Brand	Haeger
Model	Desayuno TO-100.009A
Product type	Toaster
Number of slots	2
Main functions	Toasting, reheating (Reheat), defrosting (Defrost), stop (Cancel)
Browning control	6 levels (1 to 6)
Auto shut-off	Yes, at the end of cycle
Lift function	Yes, to easily remove the toasts
Crumb tray	Removable, empty regularly
Cord storage	Under the appliance
Usage	Household use only
Safety	Do not immerse in water
Safety	Do not insert metal utensils
Safety	Do not cover during use
Cleaning	Dry or slightly damp cloth, no abrasive products
Warranty	24 months (European Union)

Frequently Asked Questions - Desayuno TO-100.009A Haeger

How to use the defrost function (Defrost)?

Insert the bread into the slots and lower the carriage. Then press the Defrost button. The indicator light turns on. The toaster defrosts and toasts the bread according to the selected browning setting. The appliance turns off automatically at the end of the cycle.

What to do if the toaster does not turn on?

Check that the plug is properly inserted and that the power outlet is working. Make sure the carriage is pushed down completely (it only locks if the appliance is powered). If the problem persists, contact customer service.

How to clean the toaster?

Always unplug the appliance and let it cool down before cleaning. Clean the housing with a dry or slightly damp cloth. Never use abrasive products. Empty the crumb tray regularly by removing it from the side. Never immerse the appliance in water.

Why does the bread burn even at the lowest setting?

The browning degree depends on the type of bread (whole wheat or white) and its freshness. If you are toasting a single slice, reduce the setting compared to two slices. Dry or stale bread toasts faster. Adjust the control between 1 and 2 for a lighter result.

Can I toast rolls or croissants?

This appliance is designed for bread slices and toasts. For rolls, use a suitable toasting accessory (not included). Do not toast foods high in sugar or fat, as they may catch fire.

What to do if a slice of bread is stuck in the toaster?

Unplug the appliance immediately and let it cool down. Use a blunt wooden stick (like a brush handle) to gently dislodge the bread. Never touch the heating elements and do not use metal objects.

How to empty the crumb tray?

The crumb tray is located under the toaster. Pull it out from the side to remove it. Empty the crumbs and replace it. Do this regularly to avoid any fire risk.

The toaster emits a burning smell during first use, is this normal?

Yes, it is normal. During first use, manufacturing residues may burn and produce a smell or slight smoke. Run the appliance empty at least 5 times at maximum setting in a ventilated area before toasting bread.

Can I use the toaster unattended?

No, never leave the appliance unattended while it is operating. Although it has an auto shut-off, bread can catch fire if it is overcooked or if the appliance is covered.

How to wrap the power cord for storage?

After use and cooling, clean the appliance. Wrap the power cord around the storage underneath the toaster. Make sure not to pinch it and store the appliance in a dry place.

USER MANUAL Desayuno TO-100.009A Haeger

Extra Large Slot Toaster
Torradeira de ranhura extra larga
Tostador de ranura extra larga
Grille-pain d'extra large slot

Desayuno *TO-100.009A

CERoHS

Instructions Manual Manual de Instruções Manual de Instrucciones Notice d'Utilisation

Operating elements EN

1. Operating handle
2. Cancel button
3. Button Reheat
4. Button Defrost
5. Toasting Control
6. Toaster slot
7. Crumb tray

Thank you for having chosen a HAEGER product.

The HAEGER products have been produced to think about the welfare of the consumer privileging the most raised standards of quality, functionality and assign. We are sure you will be happy with this appliance.

We assume that the user is familiar with the common procedures of handling household appliances.

Before you start using your appliance for the first time, read the operating instructions carefully and preserve this booklet for later reference. Pass the manual on to whosoever might acquire the appliance at a future date.

KEEP THESE INSTRUCTIONS IN A SAFE PLACE AT ALL TIMES

Intended Usage

This appliance is intended for the toasting of slices of bread, rolls and waffles in domestic environments. It is not intended for use with other foodstuffs, other materials or for use in commercial or industrial applications. All other usages or modifications are regarded as being contrary to the operating instructions and carry with them a real risk of serious accidents.

Important Safety instructions

When using electrical appliance, basic safety precautions should always be followed, including the following:

• Read these instructions carefully.
• The appliance has been designed for home use only and must not be used for commercial or industrial purposes.

To avoid potentially fatal electric shocks

• Never insert cutlery or other metallic objects into the toaster slots.
• Ensure that the appliance never comes into contact with water when the power plug is inserted into a wall socket, especially if it is being used in a kitchen and close to the sink.
• Ensure that the power cable never becomes wet or damp during operation. Lay the cable such that it does not get clamped or otherwise damaged.

• Arrange for defective power plugs and/or cables to be replaced at once by qualified technicians or our Customer Service Department.

• After use, always remove the power plug from the wall socket, this prevents the unintentional switching on of the appliance.

To avoid the risks of fire or injury:

• The appliance can become hot when it is in use. Therefore, only touch the operating elements.
• Bakery products can bum! You should therefore never locate the appliance close to or underneath inflammable objects, especially not under curtains or suspended cupboards.
  The appliance may not be used in close vicinity to flammable material.
• Never cover the toaster when it is in use.
• This appliance can be used by children aged 8 years and above and persons with reduced physical or mental capabilities, if they are under supervision or if they have been instructed in the use of the appliance in a safe manner and understand the potential risks. Children must not carry out cleaning and maintenance of the appliance, unless they are 8 years or older and under supervision. Children younger than 8 years have to be kept away from the appliance and its power supply.
• Children should be supervised to ensure that they do not play with the appliance.
• Operate the appliance only on a stable, non slippery and level surface.
• Do not use an external timing switch or a separate remote control system to operate the appliance.
• Unwind the power cable completely from the cable winder before using the appliance

Instructions for Use

Placing

• Unwind the power cable from the cable winder in the underside of the appliance.
• Pass the cable through one of the two cable guide on the underside of the appliance. This will prevent jamming during usage.
• Place the toaster on a dry and level surface.

Before taking into use

Heat the appliance up at least five times at the maximum setting without the insertion of bread slices.

2 Instruction Manual

Please take note:

• The operating button only engages when the power cable is connected to a power socket.
• With the first usage a slight smell can arise (minimal smoke development is also possible). This is normal and dissipates after a short time. Provide for sufficient ventilation.

Adjusting the browning level

The desired level of browning, from "light" (1) to "dark" (6) can be adjusted infinitely with the browning regulator of theasting time electronics.

Take note that, subject to the demand made on the toaster, the level of browning can vary somewhat with an unvarying adjustment of the browning regulator! The less the number of slices inserted, the higher is the browning level. Thus, if you are not intending to toast many slices, always adjust the browning regulator a little lower.

Tips on usage

• Toast mixed-flour breads at higher browning levels than white bread. Matured, dry bread browns faster than fresh bread.
• In the event of a malfunction and when cleaning the appliance, remove the power plug from the wall socket. Risk of electric shock!
• Loosen jammed slices of bread with a blunt wooden object (e.g. a wooden spatula or spoon). Do NOT touch the heater elements.
• Differences in bread sorts, moisture and the thickness of individual slices influence the browning of the toast. Therefore the bread for toasting should be kept in sealed packaging until required.

Toasting

• NEVER cover the toaster slots when operating the toaster! There is a danger of fire! The appliance could be irreparably damaged!
  After setting the desired browning level, insert the bread into the toaster slots.
• Press the operating button downwards. The control lamp integrated into the Cancel button glows.
• When the desired level of browning has been reached the toaster switches itself off automatically and the slices are ejected to the top.
• This appliance has a lifting function, which makes it easier and safer for you to take the hot slices of toast from the toaster slots. For this, slide the operator handle upwards.

Interrupting the toasting process (Cancel button)

If you wish to interrupt the toasting process, press the Cancel button. The toaster switches itself off.

Warming Function (Reheat button)

The warming function makes it possible for you to warm bread without browning it. For example toast that has gone cold. The bread is only briefly warmed.

• Insert the bread and press the operating handle down.
• Activate the button for the warming function. The control lamp integrated into the button for the warming function glows.
• The toaster switches itself off automatically, the control lamp extinguishes and the bread slices are ejected.

Defrost Function (Defrost button)

Through activation of the defrost function frozen bread can also be thawed. With this, the toaster slowly warms the bread.

• Insert the bread and press the operating handle down.
• Activate the button for the defrost function. The control lamp integrated into the button for the defrost function glows.
• The toaster switches itself off automatically, the control lamp extinguishes and the bread slices are ejected.
• Dependent on the setting of the browning level, the bread is either thawed or browned.

Crumb tray

When toasting, crumbs that fall from the bread are collected in the crumb tray. To empty it, simply pull the crumb tray out to the side.

Cleaning and care

Before cleaning, remove the power plug from the wall socket and allow the toaster to cool down.

Never submerse the appliance in water or other liquids. The device could also be irreparably damaged!

4 Instruction Manual

Warning in regard to damage to the appliance!

Do not use aggressive or abrasive cleaning agents. These can damage the upper surfaces of the appliance.

Clean the appliance housing only with a dry or lightly moistened cloth.
In the case of stubborn soiling, use a mild detergent on the cloth.
- To avoid the risk of fire, empty the crumb tray at regular intervals.

Storage

• Store the toaster at a cool and dry location.
• Clean the appliance as described in the previous chapter.
• Wrap the power cable around the cable retainer on the underside of the toaster.

Technical Specifications:

Power Supply: 230V~/50Hz Class I

Power consumption: 1000W

Conformity CE

This product has been tested and produced according to all relevant current CE guidelines, such as:

• electromagnetic compatibility Directive 2014/30/EU,
• Low voltage Directive (LVD) Directive 2014/35/EU,
• RoHS with its amendments Directive 2011/65/EU,

and has been constructed in accordance with the latest safety regulations.

The CE mark attests this product with all relevant directives.

Disposal

Please consider our environment

Do not dispose of the appliance in your normal domestic waste. This product is subject to the European guideline 2012/19/EU.

Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre.

Dispose of all packaging materials in an environmentally responsible manner.

When you wish to dispose of the appliance, remove the cable and dispose it in an environmentally friendly way (e.g. recycling plant).

Guarantee

This unit is covered by a 24 months (*) warranty, from the purchase date, and covers the repair free of charges of the damaged due to the manufacturer fault or defected components. The distributor reserves the right to change the unit for an equivalent model.

The warranty does not cover any damaged caused by incorrect use, lightning, incorrect installation, external factors or any intentional damaged. The warranty does not cover damage thus attributable to falls, blows, spill, exposure to extreme environmental conditions or deterioration caused by normal use of plastic parts or keyboards, as well as by the use of batteries other than those specified in this manual.

For the repairing, during the warranty period, the unit shall be sent to the distributor or reseller, or to the address indicated by them, and must be jointed the warranty certificated and the respective original invoice or selling ticket, where the buying date is expressed indicated.

The consumer is protected by the guarantee provided by Directive 1999/44/CE of European Parliament and Council of 25 May.

(*) Only for European Union countries

Estimado CLIENTE

Characteristicas techniques

Tension nominal: 230V~/50Hz Class I

Puisance absorbee: 1000W

Conformité CE
