USER MANUAL Royal Line II 24 MEGASAT

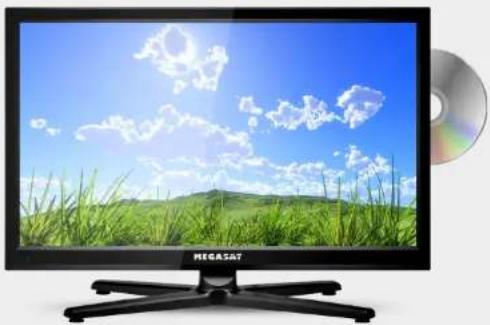

Black MEGASAT TV monitor displaying a green grassy landscape under a blue sky with clouds, next to a CD (no text or symbols on the screen)

Royal Line II (19 / 22 / 24)

Bedienungsanleitung

Inhaltsverzeichnis

Technical diagram of a computer monitor with labeled ports and an arrow indicating orientation or assembly.

Diagram of a mechanical assembly with four bolts and a central cross-shaped component (no text or symbols)

1. WARNUNG


Diagram of a mechanical or electrical component with symmetrical arms and central hub, shown with red arrows indicating rotation (no text or symbols)

DVB-S Manual Tuning Satellite (L/59Ku_EUTELSAT W1) TransPonder (0/0)0 H 0 Unicable On Network Scan Off Scan Mode Scramble Service Type All Search Quality Strength Select Adjust Return

7. Das Hauptmenü

Tune Type ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Select Search Return

Tune Type		ATV
Portugal	Serbia	Sweden
Romania	Slovenia	Switzerland
Russian	Spain	UK

Hand inserting a H0+ Modul into a computer case (no visible text or symbols)

Hinweis:

Modern flat-screen TV displaying a scenic landscape with green grass and blue sky, next to a CD (no text or symbols visible on screen)

Royal Line II (19 / 22 / 24)

User manual

ContentContent

1. Safety instructions....03

2. Delivery 03

3. Stand assembly 04

4. Designations

4.1 Front and side view 06

4.2 Connections....07

4.3 Remote control....08

1. First installation 09

6. Basic functions

6.1 Select input source....10

6.2 Navigation in the main menu....10

7. The Main Menu

7.1 Channel....11

7.1.1 Auto search (Satellite) 11

7.1.2 Manual Search (Satellite) 11

7.1.3 ATV manual search (analogue channel search) 12

7.1.4 Edit channels 13

7.1.5 Edit Satellite 14

7.1.6 Signal informations....15

7.1.7 CI Informations....16

7.1.8 5V antenna power 16

7.1.9 Software-Update (USB) 16

7.1.10 Automatic Search (Terrestrial) 17

7.1.11 Manual Search (Terrestrial) 17

7.1.12 Automatic Serach (Cable) 18

7.1.13 Manual Search (Cable) 18

7.2 Picture 19

7.3 Sound 20

7.4 Clock 21

7.5 Protection 22

7.6 Configuration....23

8. Multimedia operation (USB)

8.1 Photos....24

8.2 Music 25

8.3 Movies 26

1. EPG Menu (Programm Guide) 27

2. Cl+ slot for pay TV expansion 28

3. Troubleshooting 29

4. Specifications....30

1. Safety instructions

Please read the manual thoroughly before operating the equipment. In case of incorrect or improper handling, the warranty becomes void.

Power supply: Before start please check the correct operation voltage of the power point. The operating voltage of this device is AC 100\~240 V, 50/60Hz, DC 9\~36 V.

Overload: Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.

Liquid: The device shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.

Ventilation: Keep the slots on top of the device uncover to allow sufficient airflow to the unit. Do not expose the device to direct light or do not place it near a heater or in humid conditions.

Risk of suffocation: Do not let children play with films or other packaging components, there is a risk of suffocation.

Cleaning: Plug out the device from the wall outlet before cleaning. Clean the device by a soft cloth or mild solution of washing-up liquid (no solvents).

Location: Put the device indoor in order to avoid lightening, raining or sunlight.

Uncover: Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the device, or contact your dealer.

2. Delivery

Please check whether the following items are included in the package. If any items are missing or damaged, please contact your dealer.

1. TV
2. AV adapter
3. Stand incl. screw 6. YUV adapter
4. Remote Control 7. User manual
5. Batteries

3. Stand assembly

1. For the assembly you need the following parts


Television 4x Screws Stand

Note:

Before installing the stand, please check that you have all of the parts and that there is no visible damage. If a part is missing or appears damaged, please contact customer service.

2. How to mount the stand

Place the TV face down on a soft and flat surface (blanket, foam, cloth, etc.) to prevent any damage to the TV.

Technical diagram of a computer monitor with labeled ports and an arrow indicating orientation or assembly.

Insert the stand as shown on the TV.

Note:

1. Before you put on the stand, please make sure the direction is correct as shown below.
2. When you are putting on the stand, please make sure the neck of the TV set is in the correct position and attached tightly.

3. Stand assembly

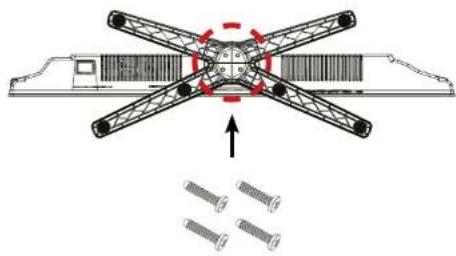

Use a suitable screwdriver and attach the base with the screws provided. Make sure that the screws are properly tightened.

Technical diagram of a mechanical assembly with four cross-shaped components and three screws below (no text or labels)

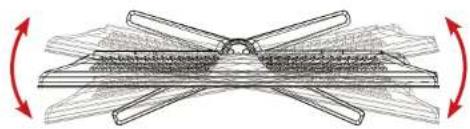

1. WARNING


It can not be tilted to the front or back as shown below. Doing so may damage the stand. It can not be tilted to the left or right as shown below. Doing so may damage the stand.

Diagram of a mechanical or electrical component with symmetrical arms and central hub, shown with red arrows indicating rotation (no text or symbols)

4.1 Front view and view from above

Front view Side view

Infrared sensor Receiver for the remote control signals. LED light Press the power button to switch on or off the TV. RED - Standby / BLUE - Power on Power switch

The functions of the buttons on the housing side:

INPUT: Press to display the input source menu.

MENU: Press to display the OSD menu, press again to exit the menu.

CH +/-: Press to scan through channels.

VOL +/-: Press to adjust the volume.

PLAY: Play/Pause the programm.

EJECT: Eject the disc.

POWER: Turn on/off the TV set.

Note:

Press INPUT repeatedly to select the desired source. After a short wait, the TV switches to the desired signal source.

4. Designations 4. Designations

4.2 Connections

Bottom view

POWER DC 0-36 Volt Ω COAX HDMI1 HDMI2 VGA SCART

POWER Connection for 230 Volt power supply (DC 9\~36 Volt)

Headphones Output for Headphones with 3.5 mm jack

COAX Digital Audio output (coaxial)

HDMI 1 HDMI input

HDMI 2 HDMI input

VGA Video input for VGA from PC

SCART Scarl port

Side view

ANTIN 1 ANTIN 2 MAX. 350mA DC 65V Common Interface min/VPbPr min AV PC Audio in USB/VI/SR2 FV:208mA

ANT IN 1 Input for Satellite antenne (13/18V max. 500 mA)

ANT IN 2 Port for DVB-T antenna or Cable TV

Common Interface Slot for CI/CI+ module

Mini YPbPr Component input with adapter cable

Mini AV AV input (FBAS/Audio) with adapter cable

PC Audio in Audio input for sound from PC

USB 1 / USB 2 USB 2.0 port for media playback or to

record / timeshift function (optional)

4. Designations

4.3 Remote control

MEGASAT

POWER turn the V on / off (Standby)

MUTE Muting the sound

PICTURE Switch to picture presets

ASPHC1 Switch aspect ratio

S1 HFP Setting Automatic shutdown

SOUND Switch to Sound preferences

FAV Show favorites

NUMMERC BUTTONS Enter numbers

RETURN Returns to the last channel position

INFO Show informations

INPUT Select source

MHNU Opens the main menu

EXI: the respective menu

ARROW KEYS for navigation in the main menu and DVD menu.

for program changes and volume control

To confirm a selection / program list

Volume control

C1+/- Change channels

EPC Electronic Program Guide

IV/RADIO Switch between IV and radio stations

CJLIST Opens the channel list

TV/TXT

ELECT Elects the DVD (only in DVD mode on v)

REC Starts recording (optional):

RECLUST Displays the recording list (optional)

SUBTITLE /D.PRO Show/ hide subtles (if available)

DPRO edit the play list in DVD mode

CANCEL / DREP Switch between Teletext / TV

D.REP repeat mode in DVD mode

REVAL/D.GOTO Displays hidden information in Teletext

D.GOTO playing your favorite title/ chapters

NICAM/A2 / D.SLOW Switch to Nicam/A2

DSLOW plays DVDs in slow motion

INDEX Cets the index page in the DVD menu

HOLD Holds the bottom change in teletext

SIZE / D.ZOOM Zoom in on the top and bottom of the teletext

D.ZOOM selects an image in the DVD mode

SUBPAGE/DITLE Subpages in teletext Call up/Cancel

D. TITLE shows the DVD title in DVD menu

◀◀/▶▶

Forward / Fewind backward

◀/▶

Start / Pause

▶||

Stop

■

DSET: DVD System settings

DIMENU Show DVD menu

D.SUB: Show DVD-subtitles

D.LAN: Switch languages / audio tracks in DVD mode

5. First installation

1. Connect the TV to the power supply and turn on the power switch at the bottom of the housing. The TV is now in standby mode (LED is RED).
2. Then press the Power button on the remote control (LED is BLUE).

3. After the TV is started, the First Installation menu appears. You can now make the following settings:

4. OSD language: Choose your language. To change, use the ◀▶ buttons.

5. Country: Choose the country. To change, use the ◀▶ buttons.

Press OK to confirm the entries or MENU to cancel.

• TV connection: Use the ◀▶ buttons to choose the type of reception (satellite, antenna or cable)
- Tuner mode: Choose between DTV (Digital) or ATV (Analog)

Press OK to confirm the entries or MLNU to cancel.

Example in satellite mode

Note: If you are using the TV in satellite mode, you can confirm all setting points with OK during the initial installation!

• Load standard program list: The preinstalled channel list is loaded.
• Fast Scan Mode: Searches the satellite for predefined programs (selectable by provider).
• Standard program search: In satellite mode, the preinstalled channel list is loaded. Here are other settings e.g. Unicable can be set.

Confirm your chosen search function with OK. Now press the ▶ button (Yes) to start the search. Use the ▶ button (No) to cancel the search.

6. Basic Functions

6.1 Select input source 7.1 Channel

Press the INPUT button on the remote control to select the input source. Use the ▲/▼ buttons or the buttons on the TV to select a source. Press OK to confirm, or wait a few seconds.

Note:

Before you select the source, make sure that the source is ready, otherwise no signal is transmitted.

SIGNALQUELLE Antenna Kabel Satellite AT V SCART YRbPr DVD PC HDMI 3 HDMI 2 OK

6.2 Navigation in Main Menu

Press the MENU button to enter the main menu. It consists of further submenus:

• Channel
• Image
• Sound
• Clock
• Options
• Lock

Navigate through the individual submenus using the ◀▶ keys. Press the OK key to enter the respective submenu. Press MENU to go back one step, or press EXIT to exit the menu completely.

7. The Main Menu

In the menu Channel you can search for new channels, edit channels or set configurations at your reception mode.

Note:

The submenu of Channel Search differ depending on what kind of a reception mode you have set during the first installation (satellite, cable or terrestrial).

7.1.1 Auto search (Satellite)

Before you start a channel search make sure you are on the correct input source. Press the INPUT button on the remote control and select "Satellite".

Note: The automatic station search contains the same search functions as with the first installation (see page 9).

Satellite

Select the desired Satellites for receiving

Channel Type

Choose between all channels or FTA (free to air only, that are not encrypted)

Service Type

Choose between All, DTV (TV programs) or Radio (only radio)

Search mode

Choose between standard, Blind search or network search

Unicable

If you operate your satellite system with Unicable, you can configure the settings

for the reception here. Check these according to the specifications of the Unicable system or Unicable LNB.

Search

Press OK to start the auto search.

Select the desired Satellites for receiving.

Transponder

Select the transponder you want to search.

Unicable

If you operate your satellite system with Unicable, you can configure the settings for the reception here. Check these according to the specifications of the Unicable system or Unicable LNB.

Network Scan

Choose between On (full search on the satellite) or Off (Search on the programmed transponder list)

Channel Type

Choose between free, encrypted or all channels.

Service Type

Choose between All, DTV (TV programs) or Radio (only radio)

Search

Press OK to start the manual search.

DVB-S Manual Tuning Satellite (L/59Ku_EUTELSAT W1) TransFonder (0/0)0 H 0 Unicable On Network Scan Off Scan Mode Scramble Service Type All Search Quality Strength Select Adjust WM Return

7.1.3 ATV manual search (analogue channel search)

In this menu item you switch to the manual search of the analogue channels for DVB-T and DVB-C.

7. The Main Menu

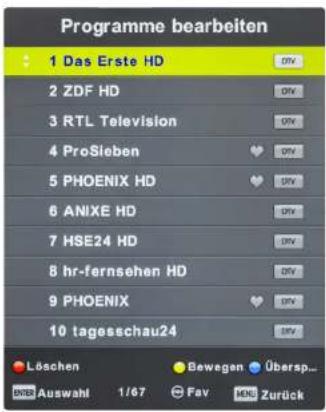

7.1.4 Edit channels

Delete (RED button)

Use the arrow keys to choose a channel, then press to RED button to delete it.

Move (YELLOW button)

Use the arrow buttons to select a program and press the YELLOW button to highlight it. Use the arrow keys to move the program to the desired program location. Press Enter or YELLOW key to confirm.

If you have selected a program and press a number on the remote control, the respective programs will be exchanged.

Skip (BLUE button)

Use the arrow keys to choose a channel, then press the BLUE button to highlight it. When you "scroll" the channel list, this program will be skipped in the future.

Favorites (FAV button)

Use the arrow keys to choose a channel, then press the FAV button to highlight it as a favorite (identified by a heart symbol). If you press from now on in normal TV mode the FAV button on the remote control, only the programs you see that you have marked as favorite.

In this menu, you can make fundamental changes to your satellite system, edit or add transponders and satellites.

Add / Delete Satellite

Delete (RED button)

Deletes the selected satellite. This process is irrevocable.

Add (YELLOW button)

Add a new satellite. Enter the name and orbit position of the new satellite.

Satellite
(01/59) Ku_ASTRA 1M,1KR,1L,6hIL	019.2 E
(02/59) Ku_ASTRA 2A,2B,2D	028.2 E
(03/59) Ku_ASTRA 1E,1G,3A	023.5 E
(04/59) Ku_NLESAT 101, 10	007.0 W
(05/59) Ku_EUTELSAT W3A	007.0 E
(06/59) Ku_EUTELSAT W1	010.0 E
(07/59) Ku_BADR-2,3,4/EURO	026.0 E
(08/59) Ku_EUTELSAT SESAT	036.0 E
(09/59) Ku_EUTELSAT W2	016.0 E
(10/59) Ku_EXPRESS AML	040.0 E
Delete Satellite Add Satellite Select OK Return

Edit Satellite

Select a satellite and press the OK button to make further settings.

You can make the following settings here:

LNB Type

Change the LNB type here

DiSEqC 1.0

Choose between None, LNB 1 to LNB 4

DiSEqC 1.1

Choose between None, LNB 1 to LNB 16

22 KHz

Set the 22 KHz setting to On or Off.

Transponder

Opens the transponder list. Use the RED button to delete the selected transponder. Use the YELLOW button to add a transponder.

Satellite
Satellite Name	ASTRA 1H1KR...
Orbit Position	019.2 E
LNB Type	Universal
DSEqC1.0	Off
DSEqC1.1	Off
Tone 22K+R	AUTO
TransPonder
Unicable Setting	On
Mxtor	DISEqC1.2

7. The Main Menu

Note:

As new Channels are available, but these are not located in your TV list, proceed as follows:

1. Find out the frequency of the new channel (e.g. on, www.satindex.de").
2. Go to the main menu Channel -> Edit Satellite.
3. Select the satellite (e.g. Astra 19.2E) and confirm with OK.
4. Now open the transponder list.
5. Press the YELLOW button to add a transponder.
6. Enter the appropriate data (eg: 12.188 H 27.500)
7. Press the MENU button to save the new transponder.
8. Search manually for new channels.
9. See point 7.1.2 Manual search (satellite)

Unicable settings

If you are using the TV with a Unicable system, you can enter the corresponding data here.

Motor

Choose between Off, DiSEqC 1.2 or 1.3 (USALS)

Band

Choose between KU and C band.

Note: Usually you have to make no changes in the antenna settings. It is recommended that only experienced users change settings.

7.1.6 Signal informations

In this menu you can see various information about the respective transponder or channel. Signal quality and level can be read here.

Signalinformation ASTRA 1H,1KR,1L,1M 11494 H 22000 Qualität 47 Signal 100

7. The Main Menu

7.1.7 CI Informations

This menu provides information about the inserted CI module, or about the smart card (if available).

The CI information is only active when a CI module is plugged in.

7.1.8 5V antenna power

If you use a DVB-T antenna, you can switch the 5V voltage on or off here.

ON = If you are using an active DVB-T antenna without a separate power supply. OFF = If you have an active DVB-T antenna with its own power supply or use a passive DVB-T antenna.

7.1.9 Software-Update (USB)

If there is a new firmware for the TV, you can this update here. You can find the latest firmware always on our homepage www.megasat.tv

1. Copy the firmware to the root directory to a formatted USB drive (without subfolders).
2. Plug the USB drive into the USB slot of the TV.
3. Now press the OK button on Software Update (USB). You will be asked whether you really want to update. Select "Yes" or "No" to cancel.
4. Once the firmware has been updated, the TV restarts and starts the initial installation. Note: If the TV does not restart automatically, please turn it off and on at the power switch.

7. The Main Menu

7.1.10 Automatic Search (Terrestrial)

Before starting a station search, make sure you are on the correct input source. To do this, press the INPUT button on the remote control and select the item "Antenna".

Note:

Make sure that a suitable DVB-T antenna is connected.

Tune Type ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Select Search Return

1. Select the country you are in (eg Germany) and press the OK button.
2. Subsequently, the automatic transmitter starts.

Channel Tuning TV : 0 Program(s) DTV : 0 Program(s) Radio : 0 Program(s) Data : 0 Program(s) 6 % Freq: 93.25 MHz (TV)

7.1.11 Manual Search (Terrestrial)

With the manual DVB-T search, you can search each frequency (channel) individually. Use the ◀▶ buttons to select the desired channel and press the OK button to start the search.

DTV Manual Tuning VHF CH 5 NO SIGNAL Bed 177 500Mbz Good

7. The Main Menu

7.1.12 Automatic Serach (Cable)

Before starting a station search, make sure you are on the correct input source. To do this, press the INPUT button on the remote control and select the item „Cable“.

DVB-C Scan Menu
Scan Mode	Network Scan
Frequency	770000
Network ID	65535
Symbol(ks/s)	6900

In the search mode, choose between "Full" or "Network Scan". When "Full" the default search is used, with "Network Scan" you can u.a. set the frequency or network ID.

Then press OK and select the country you are in (eg Germany).

Subsequently, the automatic transmitter starts.

Tune Type		ATV
Portugal	Serbia	Sweden
Romania	Slovenia	Switzerland
Russoin	Spain	UK

7.1.13 Manual Search (Cable)

With the manual DVB-C search you can search each frequency (channel) individually. Select the desired frequency with the ◀▶ buttons. Press the OK button to search to start the search.

Frequency	770000
Symbol(k/s)	6900
OAM Type	OAM 16
Search

7. The Main Menu

7.2 Picture

In this menu you can set up basic settings for the TV picture. Use default settings or set your own values.

Image Mode Select a preset image setting

Contrast Adjust the contrast value

Brightness Adjust the Brightness value

Color Adjust the Color value

Color tone Adjust the Color tone value

Sharpness Adjust the Sharpness value

Color temp. Adjust the Color Temperature value

Image format Set the appropriate picture format.

Noise reduction Adjust the Noise reduction value

Dynamic CR Set the dynamic contrast ratio on or off.

Note:

The settings such as contrast, brightness, etc. can be edited only if you are in the picture mode „Personal“.

7. The Main Menu

In this menu you can set up basic settings for the TV sound. Use default settings or set your own values.

Sound mode Select a preset sound profile

120 Hz - 10 KHz Adjust the treble and bass.

Balance Adjust the balance between right and left channel

Auto. volume Set to ON to automatically adjust the volume during a quiet channels

Surround Sound Enable surround sound if you have connected the TV to an external surround system.

SPDIF Mode Activate the digital audio output.

AD switch This option is for visually impaired persons. When activated, scenes without sound are described by a speaker. (Depending on the transmitter or transmission)

Hearing imp. This option is only enabled if the AD selection has been turned on and controls the speaker's volume.

Note:

The settings such as Treble, Bass, etc. can be edited only if you are in the sound mode „Personal”.

7. The Main Menu

7.4 Clock7.3 Sound

In this menu you can set the time of the TV as well as various other automatic functions.

Clock Set the current time and date.

Switch-off time Set the time when the TV should turn off automatically.

Switch-on time Set the time when the TV should turn on automatically. Use the arrow keys to select when it should be: once, daily, Mon-Fri, Mon-Sat, Sat-Sun, Sunday

Sleep timer Set the minutes when the TV should turn off automatically. Choose between Off, 10, 20, 30, 60, 90, 120, 180 or 240 minutes. You can also access this function via the SLEEP button on the remote control (press the SLEEP button repeatedly to switch between times).

Auto standby Adjust the hours after the TV should switch off automatic table when no operation on the unit or on the remote control is carried out. Select between OFF, 3, 4 or 5 hours.

Time zone Select the time zone you are in.

OSD timer Adjust in seconds how long you want to displayed the on-screen menu. Select between OFF or 10-60 seconds.

7. The Main Menu

In the menu configuration, you can set up basic settings of the TV.

OSD language Select the language of the screen menus

Audio language Select the preferred audio language of TV channels

Subtitle lang. Select the preferred subtitle language of the TV channels

Hearing imp. This option is only enabled if the AD selection has been turned on and controls the speaker's volume.

Reset Sets the TV back in the factory setting. All data you have made will be lost.

First installation Start the first installation of the TV (see page 9)

ECO Mode Choose between Home Mode (low energy mode) or Shop Mode (higher power consumption)

Blue Screen Displays a blue screen background color

Software-Update If there is a new firmware for the TV, you can this update here. You can find the latest firmware always on our homepage

www.megasat.tv

1. Copy the firmware to the root directory to a formatted USB drive (without subfolders).
2. Plug the USB drive into the USB slot of the TV.
3. Now press the OK button on Software Update (USB). You will be asked whether you really want to update. Select "Yes" or "No" to cancel.
4. Once the firmware has been updated, the TV restarts and starts the initial installation.

7. The Main Menu

7.6 Lock7.5 Options

In this menu passwords can be assigned to Channel Lock, add a youth protection or configure a hotel mode.

System lock Select ON to enable the password lock. The default password is: 0000

Set password Change the default password. First enter the current password, then a new one. This must be repeated again.

Lock channels Select the channels you want to lock. Navigate with the arrow keys on the current channel and press the GREEN button to select a channel to lock.

Youth protection Select the age level from 4 to 18 years. If a program exceeding the age group, the password is needed to unlock the channel. Note: This feature is dependent on the broadcaster.

Keylock Enable or disable the key lock.

Hotel settings In the hotel setting you can configure the TV so that unauthorized persons do not have access to certain functions.

Source lock: Locks any input sources.

Start source: Select the source, with which the TV is to start.

Start channel: Select the channel, with which the TV is to start.

Volume: Select the volume level at which the TV is to start.

Max volume: Select the maximum adjustable volume.

Database import: Import a preset database.

Database export: Export the current database.

Reset lock: Deletes all Hotel settings.

8. Multimedia operation (USB)

With your TV you can play back multi-media files such as, photos, music, movies and eBooks. Insert a suitable USB drive or external hard drive into the USB port. Press INPUT on the remote control and switch to using the arrow keys on MEDIA.

USB 2.0 MUSIC FILM TEXT

8.1 Photos

Change to the menu "Photos", then the picture menu appears with the folder structure. Navigate with the OK button to the main folder

C, then displays all the photos from the USB drive. Navigate with the arrow keys to a desired photo. A small preview, and various data of the photos will be displayed directly in the center of the screen. To start a

slideshow, highlight with the OK button all images that you want to view. Do not mark any photos, all photos are played. Start the slide show with the ▶■ button.

Description of symbols in the playback mode

II	Pauses the current playback.
	Previous photo in the playlist.
	Next photo in the playlist.
	Stop the slideshow.
	Repeats the slideshow.
	Plays music to the slide show (provided that music on the USB stick is located).
	Displays the current playlist.
	Displays the play list.
	Rotates the image clockwise by 90°.
	Rotates the image anti clockwise by 90°.
	Enlarges the image.
	Reduces the image.
	Moves the image. Use the arrow keys on the remote control.

8. Multimedia operation (USB)

8.2 Music

Change to the menu „Music“, then the music menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the music from the USB drive.

Navigate with the arrow keys to a desired music file. A small preview as title or artist are displayed on the screen.

To start the playlist, highlight with the OK button all music files you want to hear. Do not mark any music files, all music files are played. Start the playlist with ▶■ button.

Description of symbols in the playback mode

||	Pauses the current playback.
◀◀	Rewinds the current track.
▶▶	Fast forwards the current track.
◀◀◀	Previous track in the playlist.
▶◀◀	Next track to the playlist.
■	Stops playback.
	Repeats the playlist.
	Turns the volume on mute.
	Displays the current playlist.
	Displays information about the current song.
	Switch to a specific time of the current title.

8. Multimedia operation (USB)

8.3 Movies

Change to the menu „Movies“, then the Movie menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the movies from the USB drive.

Navigate with the arrow keys to a desired movie file. A small preview as well as information to be displayed on the screen.

To start the playlist, highlight with the OK button all movie files you want to hear. Do not mark any movie files, all movie files are played. Start the playlist with ▶■ button.

Description of symbols in the playback mode

II	Pauses the current playback.
	Rewinds the current movie.
	Fast forwards the current movie.
	Play previous movie in the playlist.
	Play next movie in the playlist.
	Stops playback.
Aa	Change the font.
	Repeats the playlist.
	Set the A-B repeat.
	Displays the current playlist.
	Displays information about the current video.
	Plays the video in slow motion.
	Play the movie frame by frame (a keystroke = forward one frame).
	Switch to a specific time of the current video.
	Enlarges the video.
	Shrinks the video.
	Changes the video format.
	Moves the video. Use the arrow keys on the remote control.

II	Pauses the current playback.
	Rewinds the current movie.
	Fast forwards the current movie.
	Play previous movie in the playlist.
	Play next movie in the playlist.
	Stops playback.
Aa	Change the font.
	Repeats the playlist.
	Set the A-B repeat.
	Displays the current playlist.
	Displays information about the current video.
	Plays the video in slow motion.
	Play the movie frame by frame (a keystroke = forward one frame).
	Switch to a specific time of the current video.
	Enlarges the video.
	Shrinks the video.
	Changes the video format.
	Moves the video. Use the arrow keys on the remote control.

9. EPG menu (program guide)

In Electronic Programme Guide, you can see a 7-day preview of all channels (where the respective stations so provides). Use the arrow keys on the remote control to navigate between programs and broadcasts.

Press the INFO button on the remote control to get more information on the broadcast.

Declaration of color buttons

Programs a recording (optional)
● Shows more information about the currently selected program
- Shows the current schedule
Reminds of a program

Reminds a TV show

If you do not want to miss a broadcast, this feature is very helpful. Use the arrow keys to select the desired station and the program you want to be reminded of. Pressing the BLUE button opens another window with preset data. You can adjust these as you like. In addition, select whether you would like to be reminded once a day, daily or weekly.

Note:

It may happen that the program guide provides no or only partial information. It may take several minutes until the data has been updated.

10. Cl+ slot for pay-TV expansion

You can receive not only free to air (Free to Air) channels on the TV, but also encrypted channels unless you are in possession of a smart card and a CI module of the respective provider.

1. Inserting the smart card into the CI module:

Insert the smart card into the CI module. Make sure that the golden chip of the Smart Card is facing upward.

C1 module: Rule, Make sure d

2. Inserting the CI module:

The module must insert only 2-3 cm in the Cl+ slot. In order to the CAM module is properly seated, you need to press it a little harder at the end. You feel a slight resistance.

Hand inserting a H0+ MODUL into a computer case (no visible text or symbols on the device itself)

Note:

• The broadcaster can forfeit or limit recording/Time Shift with a CI+ module.
• Recordings of programs using CI+ are saved encrypted on the USB devices. The recordings could not be viewed with another device.
• The limitation are designated by the broadcasters. The manufacturer does not have influence on this matter.
• A CI/CI+ module can generate screen messages. Please refer to the manual of your module.

11. Troubleshooting

Please read the following information to find out the possible cause of a problem before contacting customer service.

No power • Check if the power	cord is fully plugged into the electrical outlet and the power adapter.• Check if the cable of the power adapter is properly connected to the TV unit.• The electronic circuit was possibly reset. Disconnect the power supply from the power source, wait 1 minute, and then connect the electrical connector.
No picture • Check if the antenna cable is properly connected.• Verify that the correct input is selected; Use the INPUT button.• Check the brightness and contrast settings in the Picture settings.
No sound • Check if the sound is turned off or Mute is activated.• Carefully increase the volume.• Check if the audio cables are connected to the correct inputs.
Bad picture quality • Check whether the correct input is selected; Use the INPUT button.• Check the connection to the TV.• Check the video settings.
Image too large/small or distorted	• Use the ASPECT button to change the appearance of the image.
Remote control does not respond	• Change the batteries.• Use the remote control in the specified range (max. 5 meters and 30°)• Avoid direct exposure to light in the infrared sensor.

12. Specifications Conformity information

	Royal Line II 19 Royal Line II 22 Royal Line II 24
Display LED Display (pixel class I)
Screen size 18,5 inch (47 cm) 2	5 inch (≤4,6 cm) 23,6 inch (59,9 cm)
Resolution 1366 x 768 1970 x 10	90 1970 x 1080
Contrast ratio 1000 : 1 1000 : 1	1000 : 1
Brightness value	200 cd/m2
Viewing angle	178° (horizontal) / 178° (vertical)
lunar	DVB S / S7 / C / C7 / I / I7 (-HP65/-HVC)
Antenna impedance	75 Ω
C + Slot (HD+ ready)	yes
Play formats Photos	JPG, JFHG, BMP, PNG
Play formats music	MP3, WMA, M4A, AAC
Play formats movies	MPG, AVI, TS, MOV, MKV, DAT, MP4, VOD, RM, RIV3
DVD-Player	yes
Play formats DVD DVD / DVD-HR	HRW/DVD-R/RW/VCD/CD/CD-R/RW
PC port (10 Sub)	1x
USB port	2x
Audio output (S/PDIT)	1x
Headphone output (3.5 mm jack)	1x
PC audio input (3.5 mm jack)	1x
HDMI port	2x
Scart port	1x
Video/Audio(3.5 mm jack)	1x
YUV (3.5 mm jack)	1x
Mechanical power switch	1x
Speaker	1x
VESA standard	100 x 100 mm
Power supply	AC 100 - 240 Volt, 50/60 Hz / DC 12 Volt, 3 A(9~36 Volt stabilized)
Power in use	17W	21W	24W
Power in standby	<0,5W
Energy efficiency class	A
Dimensions without stand(W/H/D)	443 x 315 x 180 mm	517 x 360 x 180 mm	560 x 385 x 190 mm
Dimensions with stand (WH/D)	443 x 276 x 45,5 mm	517 x 320 x 48,5 mm	560 x 345 x 46,5 mm
Weight (net/gross)	3,0kg	3,3kg	4,2kg

Note:

Weight and dimensions are not absolutely exact values. Technical details can be changed at any time without prior notice.

Hereby declare the company Megasat Werke GmbH that the following devices is in compliance with the essential requirements and other relevant provisions of Directive 2014/30/EU and 2014/35/EU and Radio Equipment Directive 2014/53/EU:

Megasat Royal Line II 19 (Art.-No. 240076)

Megasat Royal Line II 22 (Art.-No. 240077)

Megasat Royal Line II 24 (Art.-No. 2400/8)

The Declaration of Conformity for this product is located at the company: Megasat Werke GmbH, Industriestraße 4a, D-97618 Niederlauer

The declaration of conformity can be downloaded from our homepage: www.megasat.tv/downloads

ENERG ENERG, ENERG MEGASAT Royal Line 1.19 € A** A** A* A B C D A ENERGIA - ENERGIA ENERITIA - ENERGIA ENERGIO - ENERGIA ENERG 17 Watt 25 kWh/annum 47 cm 18.5 inch 2010/10/02 2020

ENERG ENERGY ENERG MEGASAT Energen 11.22 cm A*** A** A- B C D ENERGIA - ENERGIA ENERGIA - ENERGIA ENERGIE - ENERGIE ENERGI 21 Watt 31 kWh/annum 54,6 cm 21.5 inch 2020/10/02 - 2020

ENERG ENERGEN ENERG MEGASAT A*** 24 A** A* B C D A ENERGIA - ENERGIA ENERGIA - ENERGIA ENERGY ENERGIE ENERGI 24 Watt 36 kWh/annum 59.9 cm 23.6 inch 2018/10/02 - 2020

PRODUCT REGISTRATION

Registering your Megasat product gives you access to our automatic e-mail notifications. If your product requires new firmware, you will be notified by e-mail.

For registration please visit our homepage www.megasat.tv

You can find the form in Support Product registration

Version 1.3 (February 2020) // Technical changes, misprints and errors reserved.

Megasat Werke GmbH | Industriestraße 4a D-976 8 Niederlauer | www.megasattv | info@megasattv

MEGASAT

Black MEGA SAT monitor displaying a scenic landscape with green grass and blue sky (no text or symbols visible on screen)

Royal Line II (19 / 22 / 24)

Mode d'emploi

Sommaire

4.2 Raccordements....07

4.3 Télécommande 08

Technical diagram of a computer monitor with labeled ports and an arrow indicating orientation or assembly.

Technical diagram of a mechanical assembly with four arms and three screws, no visible text or symbols

1. ATTENTION


Diagram of a mechanical component with multiple blades and a central hub, shown with red curved arrows indicating rotation (no text or symbols)

N.CAM/A2/D.SLOW Passer au Nicam/A2

DVB-S Manual Tuning Satellite (L/59Ku_EUTELSAT W1) TransPonder (0/0)0 H 0 Unicable On Network Scan Off Scan Mode Scramble Service Type All Search Quality Strength Select Adjust Return

Type de chaînes

Tune Type ATV Portugal Serbia Sweden Romania Slovenia Switzerland Russian Spain UK Select Search Return

Tune Type		ATV
Portugal	Serbia	Sweden
Romania	Slovenia	Switzerland
Russia	Spain	UK

Hand inserting a H0+ Modul into a computer case (no visible text or symbols)

Remarque:
