USER MANUAL CCE4T618ESU CANDY
Discover extra contents andcreate your inventory list
EN 1
BG 10
CS 20
DA 29
DE 38
EL 47
ES 56
FI 65
FR 74
HR 83
HU 92
IT 101
NL 110
NO 119
PL 128
PT 137
RO 146
RU 155
SK 165
SL 174
SR 183
SV 192
UK 201
AR 210
ET 219
LT 228
LV 237
Summary
PRODUCT DESCRIPTION 2
Space requirements 2
USE 3
Use 3
Customized temperature 3
Fine Tuning 4
Super Cool function 4
Super Freeze function 4
Eco mode. 5
Holiday function 5
Defrosting. 5
Demo mode 5
Error codes 5
APP CONNECTION 6
IN APP PAIRING PROCEDURE 6
Step 1. 6
Step 2. 6
Step 3. 6
WiFi Use 7
DOOR REVERSIBILITY 8
TROUBLESHOOTING

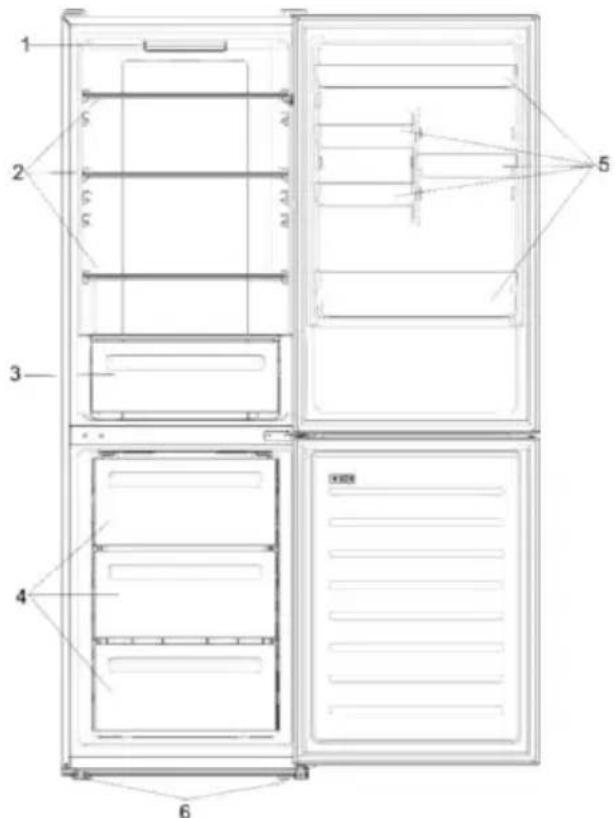

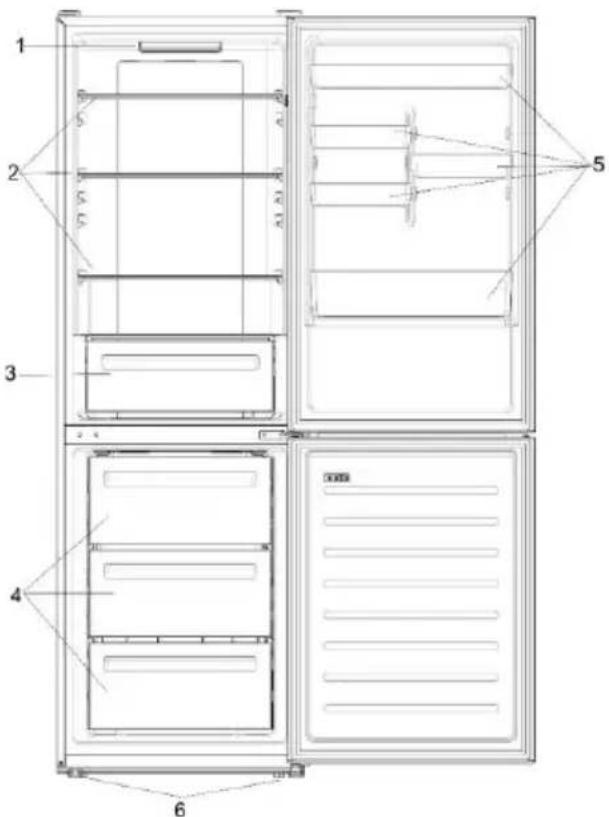

PRODUCT DESCRIPTION
- Control panel and light
- Movable Shelves
- Crisper
- Freezer drawers
- Balconies
-
Levelling feet
-
The most energy-saving configuration requires drawers, food box and shelves to be positioned in the product, please refer to the above pictures.
** The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

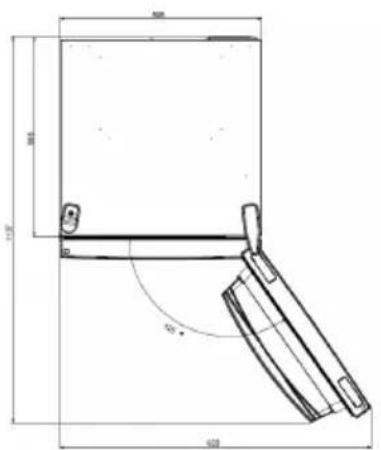

Space requirements
The unit's door must be able to fully open as shown. Spare enough space for convenient opening of the doors and drawers.
Keep a distance of at least 50mm between the side walls of the product and adjacent parts.
Width: min. 920 mm
Depth: min. 1137 mm

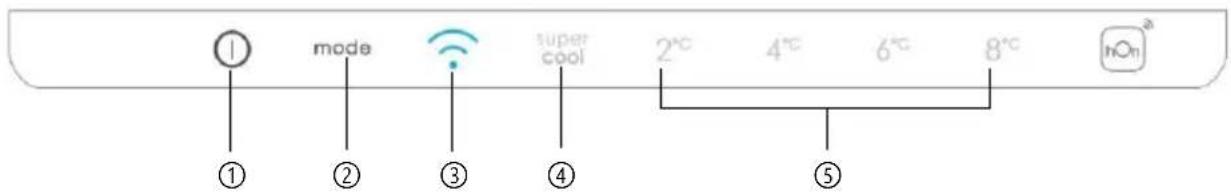

USE
① ON/OFF key, used to switch on/off the appliance.
② Mode key, used to select the fridge temperature or the special functions like.
③ WiFi Icon, shows if the appliance is connected to the app.
Super Cool Icon, shows if the function is activated.
⑤ Temperature levels, show which is the selected temperature.
Use
- Plug on the appliance. The appliance will turn on automatically.
The temperature will automatically set at 4^ in the fridge and -18^ in the freezer. - To change the temperature, with the fridge door open, press the mode key. When the setting increases, the corresponding LED light will turn on. An acoustic signal is made every time the mode key is pressed and the temperature is changed.
In case of power loss, the last cooling level set will be restored. - To restore the default setting, at the screen lit, keep pressed the TEMP button, and then press ON/OFF button 5 times in 5 seconds.
- Under the normal operating condition (in spring and autumn), it is recommended to set the temperature at 4^ . In summer when the ambient temperature is high, it is recommended to set temperature at 6 8^ , so as to guarantee the fridge and freezer temperatures and reduce the refrigerator continuous running time; and in winter when the ambient temperature is low, it is recommended to set temperature at 2 4^ to avoid frequent start/stop of the refrigerator.
Customized temperature
From the app, it is possible to customize the temperature of the fridge compartment. The temperature can be set with 1^ sensitivity and it is possible to select a temperature from 2^ to 8^ in the fridge. An acoustic signal is made every time the temperature is changed. When the temperature is selected by the app, there is no indication on the control panel, all the temperature LED lights are turned off, while only the WiFi icon is turned on.
Fine Tuning
The fine tuning selection mode gives to possibility to set the temperatures by sublevels; each temperature level has three sublevels.
How to use the fine tuning function:
- Press the mode key for 8 seconds to enter fine tuning selection mode. When the appliance enters the mode, an acoustic signal is made and the LED of currently selected cooling level blinks.
- By short pressing the mode key within 5 seconds, the fine tuning setting increases and, at each pressing, an acoustic signal is made.
- During fine tuning, the LED of the selected cooling level is fixed, while the LED of the selected sublevel blinks.
- If no key is pressed for 5 seconds, the system automatically exits from fine tuning selection mode. The fine tuning setting is saved and the LED of the selected fridge temperature is fixed.
If the fine tuning is activated again, the setting will start from the previously stored level.
Super Cool function
It is suggested to switch on the Super Cool function if a large quantity of food should be stored (for example after the purchase). The Super-Cool function accelerates the cooling of fresh food and protects the goods already stored from undesirable warming. When the function is activated, the temperature of the fridge is automatically set at 2^ .
How to use the Super Cool function:
- The function can be activated by pressing many times the mode key until the Super Cool LED is turned ON or by selecting it from the app. If the function is activated, the corresponding icon on the control panel will be turned on.
- To exit the Super Cool function, press the mode key again.
The Super Cool function automatically ends after 30 hours running. - When the Super Cool ends, the corresponding icon of the control panel turns off and the previously set cooling level is restored.
Super Freeze function
The super freezing function accelerates the freezing of fresh food and protects the goods already stored from undesirable warming. If a large amount of food has to be freeze, it is recommended to set the Super Freeze function on 24h before the usage. When the function is activated, the temperature is automatically set at -25 °C.
How to use the Super Freeze function:
The function can be launched only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
- To exit the Super Freeze function, turn it off from the app.
- The Super Freeze function automatically ends when the function has lasted for more than 50 hours.
Eco mode
The Eco mode can be activated to optimize the performance of the appliance, whereas obtaining the best food storage. When the function is activated, the temperature is automatically set at 5^ in the fridge, and at -18^ in the freezer.
How to use the Eco mode:
- The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
- To exit the Eco mode, turn it off from the app; the previously selected temperature will be restored.
The Eco mode automatically ends when another function is chosen from the control panel.
Holiday function
The Holiday function can be used to reduce the energy consumption of the appliance, when it is not used regularly. The function will turn off the LED lights (even if the door is open) and the fridge will work on low power consumption mode), whereas the freezer will keep working normally.
How to use the Holiday function:
The function can be activated only by selecting it from the app. If the function is activated, it will be shown by the app; there is no indication on the control panel.
- To exit the Holiday function, turn it off from the app; the previously selected temperature will be restored.
The Holiday function automatically ends when another function is chosen from the control panel.
Defrosting
The defrosting of the refrigerator and freezer compartment are done automatically: no manual operation is needed.
Slider
Near the vegetable basket there is a slider that allows you to adjust the humidity inside it: moving it to the right decreases the humidity, moving it to the left increases the humidity.
Demo mode
Keep the refrigerated door open, press and hold the on / off key, and click the set key five times. The refrigerator will enter the Demo mode. To exit the mode, keep pressed the door switch and press again the SET key for 5s.
Error codes
If - 6 °C LED light is flashing, it means there has been a fan error. Please, contact the technical assistance to help solve the problem
APP CONNECTION
IN APP PAIRING PROCEDURE
Step 1
Download the hOn app on the stores
GET IT ON
Google Play
Download on the
App Store
EXPLORE IT ON
AppGallery

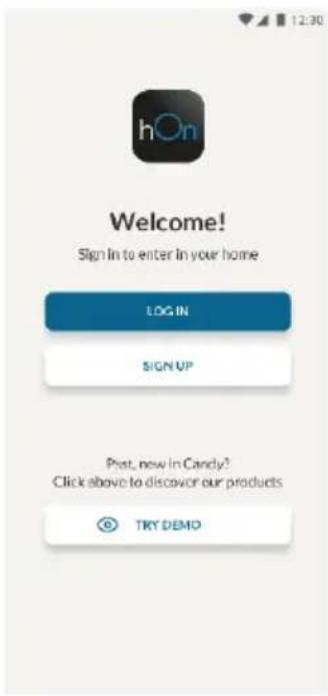

Step 2
Create your account on the hOn App or log in if you already have an account
Step 3
- Follow pairing instructions in the hOn App
WiFi Use
To activate the Wi-Fi, long press the mode key for 2 seconds, the Wi-Fi icon will turn on and an acoustic signal is made.
If the Wi-Fi has not been configured yet, when the refrigerator turns on, it will automatically enter the configuration mode and keep this status for 30 minutes. To use the configuration mode:
- Press the mode key for 2s but less than 8s, the refrigerator enters the Wi-Fi configuration mode and an acoustic signal is made. The Wi-Fi icon starts blinking.
- Follow in app instructions to configure the Wi-Fi (see above).
- Once the Wi-Fi is configured and the connection established, the Wi-Fi icon is on and fixed.
After 30 minutes without performing any operation, the Wi-Fi will automatically exit the configuration mode. - If the Wi-Fi has already been configured, it will automatically reconnect according to the configuration information.
Radio-module - Technical data
| Frequency rate (OFR) | 2400 MHz-2843.5 MHz |
| Channel frequencies | 2412...2472 MHz(step size 5 MHz) |
| Maximum power(EIRP) | 100 mW |
Radio equipment type is in compliance with Directive 2014/53/EU.

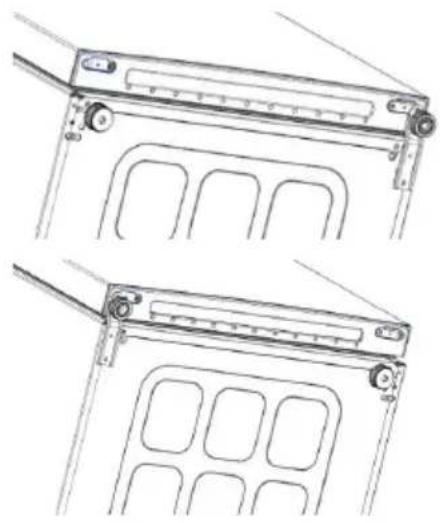

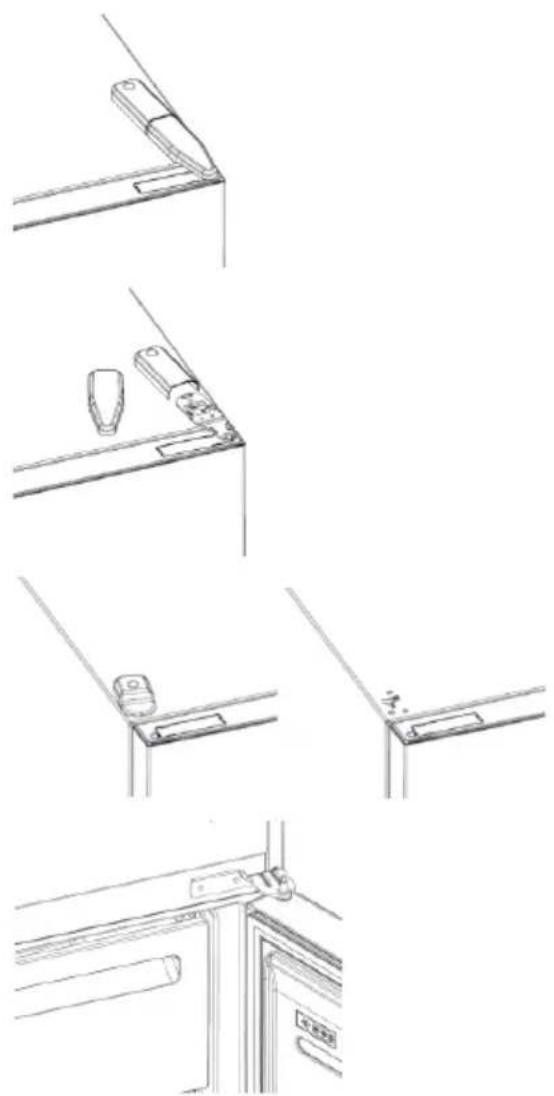

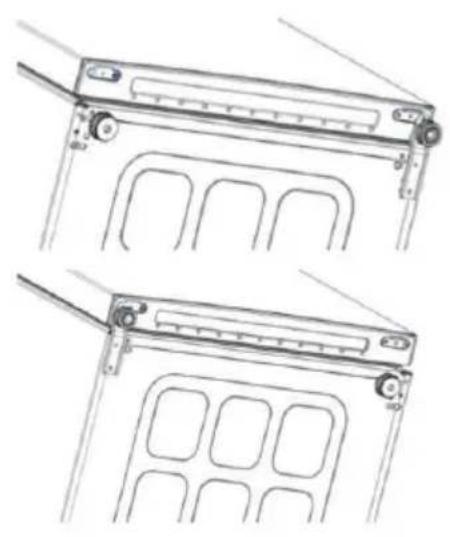

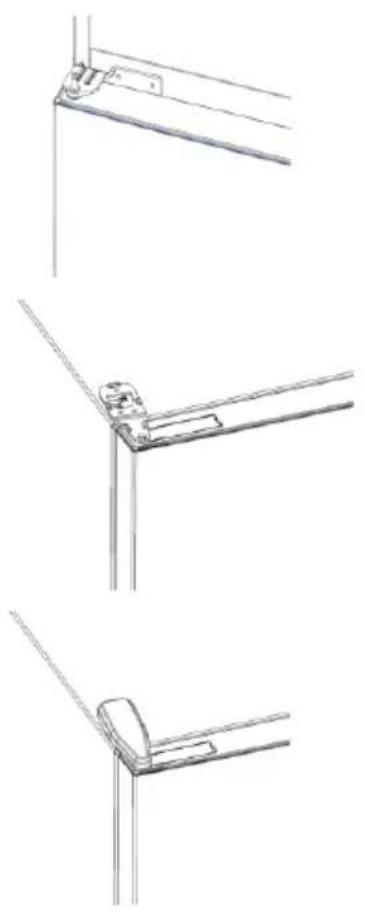

DOOR REVERSIBILITY
Tools needed: Electric screwdriver
- Remove the top hinge cover
- Unscrew the top hinge
- Remove the top hinge cover (left)
- Remove middle hinge
- Remove lower hinge
- Mount hinge foot
- Mount middle hinge
- Mount the upper hinge plate
- Mount the upper hinge cover
TROUBLESHOOTING
| The inside light bulb does not turn on. | ·No electricity. | ·The power cable is not properly plugged in. ·Check if the appliance is switched off (see Temperature Adjustment). ·Check the power socket is working correctly (e.g. with another electric device). |
| ·Holiday Mode is activated. | ·Doactivate Holiday mode. | |
| The internal temperature of the refrigerator and/or freezer is not cold enough. | ·The doors are not closed. | ·Check that the door and gaskets close properly. |
| ·The doors are frequently opened. | ·Avoid opening the doors unnecessarily for some time. | |
| ·Incorrect temperature setting. | ·Check the temperature setting and, if possible, set a lower temperature (see Temperature Adjustment). | |
| ·The refrigerator and/or freezer are too full. | ·Wait for the temperature of the refrigerator/frezer to stabilise. ·Avoid filling the refrigerator and freezer excessively. | |
| ·The surrounding temperature is too low. | ·Move the unit to a warmer place or heat the current room. | |
| ·Warm items have been stored. | ·Always allow items to cool before storing them. | |
| The food in the refrigerator freezes. | ·Incorrect temperature setting. | ·Check the temperature setting and, if possible, increase the temperature. |
| ·Food in contact with the back wall. | ·Keep the food away from the refrigerator's back wall. | |
| The bottom of the refrigerator compartment is wet or water droplets are present. | ·The drain hose could be clogged. | ·Clean the drain hose with a stick or similar item to allow the water to drain. |
| Presence of drops of water or frost on the rear wall of the refrigerator. | ·Depending on the function, drops of water or frost form on the rear wall of the refrigerator during operation. | ·It is not a defect. |
| ·Warm items have been stored. | ·Always allow items to cool before storing them. | |
| ·There are open food containers or liquids. | ·Always cover food and liquids. | |
| ·The doors are not closed. | ·Check that the door and gaskets close properly. | |
| ·The doors are frequently opened. | ·Avoid opening the doors unnecessarily for some time. | |
| Presence of water in the vegetable drawer. | ·Lack of air circulation. | ·Verify that your appliance is not too full. |
| ·Vegetables and fruit with too much moisture. | ·Wrap the fruit and vegetables in plastic materials, e.g. cling film, bags or containers. | |
| The motor runs continuously. | ·The doors are not closed. | ·Make sure the doors are closed and check the seals close properly. |
| ·The doors are opened frequently. | ·Avoid opening the doors unnecessarily for some time. | |
| ·Ambient temperature is very high. | ·Verify that the ambient temperature is in the range set out in the specifications on the appliance tag. ·Set the display screen/thermostat to a warmer temperature. | |
| ·The appliance has been off (no power) for some time. | ·It normally takes the appliance 8-12h to cool completely. | |
| The frozen food is thawing. | ·Surrounding temperature is too low. | ·Move the unit to a warmer place or heat the current room. |
| ·The freezer door is not closed. | ·Make sure the door is closed and that the gasket is sealing proper. | |
| Fridge door alarm. | ·Fridge door alarm (acoustic beep) activates whenever the door is left open for more than 3 minutes. | ·Avoid leaving the door open when not needed. The beep ceases when the door is closed. |
| The appliance makes noises such as gurgling, buzzing, clicking, creaking. | ·No breakdowns. An engine is running, e.g. refrigeration unit, fan. The refrigerant flows into the pipes. Motor, switches and solenoid valves are switched on or off. | ·No action needed. |
| ·The appliance is not located on level ground. | ·Adjust the feet to level the appliance. | |
| ·The appliance touches an object around it. | ·Remove objects around the appliance. | |
| The appliance does not cool, the temperature and lighting indicators are on. | ·Demo mode is activated. | ·Deactivate DEMO mode. |
| Strong ice and frost in the freezer compartment. | ·The items were not adequately packaged. | ·Always pack the items well. |
| ·A door/drawer of the appliance is not tightly closed. | ·Close the door/drawer. | |
| ·The door/drawer has been opened too frequently or for too long. | ·Do not open the door/drawer too frequently. | |
| ·The door/drawer gasket is dirty, worn, cracked or mismatched. | ·Clean the door/drawer gasket or replace it with a new one. | |
| ·Something on the inside prevents the door/drawer from closing properly. | ·Reposition the shelves, door racks or internal containers to allow the door/drawer to close. | |
| The sides of the appliance are warm. | ·This is normal. |
Pe3Home
ONICAHNE HA IPOJYKTA. 11
I3nckBaHna 3a npocTpaHCTBO. 11
yNOTPEBA. 12
YnoTe6a 12
PepcoHaJIu3IpaHa TeMpePaTypa. 12
Φина Habtroika. 13
Функця Super Cool" 13
Функця Super Freeze" 13
PexnM ,Eco" 14
Функця „Holiday" 14
Pa3mpa3BaHe 14
Демонстрацноен реким. 14
KoIOBe 3a rpeuKn 15
Bp3KA C PnIOXeHNETo 16
ПОUCEДУРА 3A СДВОЯBAHE В ПИЛОЖЕНETO......16
Ctbnka 1. 16
CTbIka 2. 16
Ctbnka 3. 16
I3noJ3BaHe Ha Wi-Fi 17
OBpbuaHE HA BPATNE. 18
OTCTPAHЯBAHE HA HEN3ПРABHOCTN
Опиcaне HA порукta
- KoHTpOJen naHEn n CBETJIInHa
2.ПоДвИЖи paФTOBE
3.YeKMeJKe 3a no- DJIroTpaHa CBExeCT - YeKMeIxKeTa Ha ФрИЗЕРа
- PaoTobe
-
HnBeJInpaun KpaueTa
-
Han-eheproceTBAaata KOHfrypaunn N3NCKBa YekMeJKeTa, KyTna 3a xpaHa n paToBete da 6bDat No3uHnpaHn B npOyKta, MoJr, BxKTe rOpHnte CHIMKN.
** N3o6paXeHnra Tno-rope ca cmo 3a cnpaBka. DeiCTBnTeJHaTa KOHfNpyaunr Iue 3aBnCn OT fN3nueckn npOdyKT nI IN dEknapaunrTa Ha nIcTpNbyTopa.

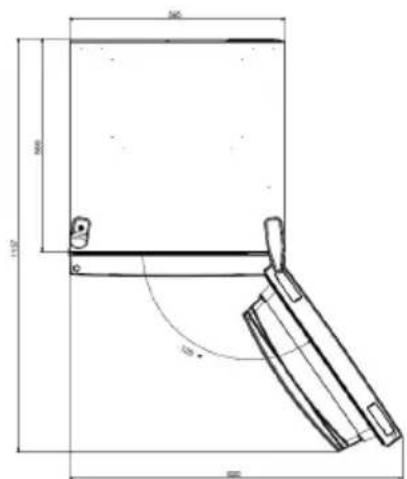

N3nCKBaHna 3a npocTpaHCTBO
BpaTata Ha ypeDa Tp6Ba Da MoKe Da ce OTbapr DOKpa, KaKTo e Noka3aHo. OCTaBeTe DOCTaTBuHO MAcTO 3a YDo6Ho OTbaprHe Ha BpaTHe N YeKMeJxetata.Cna3BaIte pa3cTOrHnE OT Hau-Majko 50 MM MeJy CTpaHnUHTe CTeHn Ha npOdykTa N CbCeHNTe Yaactn.
ShinpouHnHa:MnH.920MM
Дьлбочина: МИH. 1137 MM

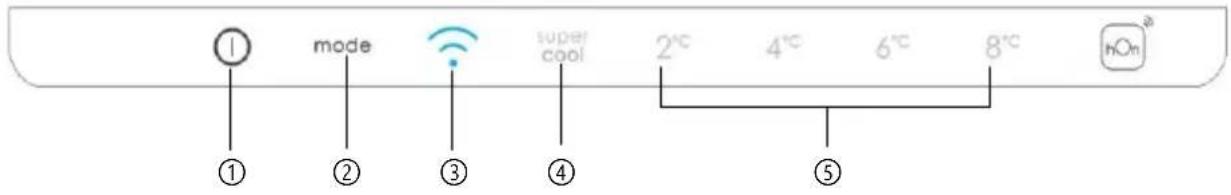

YNOTPEBA
① ByToHbT,ON/OFF" ce n3noJ3Ba 3a BkIIOUbaHe/n3KIOUbaHe Ha ypeDa.
② ByToHbT „Mode" ce n3noJ3Ba 3a n36op Ha Tempepatypata Ha XJaIJIHHka nnn cneuaJIHnTe φyHKuN.
③ IkoHata Wi-Fi noka3Ba daH ypeBt e Cbbp3aH KbM npnIOxHeHneTo.
④ IkoHata „Super Cool" noka3Ba daIII ΦyHKcIraTa e aKTHBnPaHa.
⑤ TemnepatypHn HnBa noka3Bat kOe n36paHaTa Temnepatypa.
Ynotpe6a
BknHouTe ypeBa KOnTaKT. YpeBt 1e Ce BKnIOuN aBTOMaTHUHO.
- Temnepaypata ha xlaadinHnka aBtOMaTnH0 ue ce 3aJaHe Ha 4^
3a da npomeHnte Tempepatpata,doKATO BpaTATA e OTBopeHa,HaTnCHete 6yToHa ,Mode". Korato hactpoiKaTa ce yBeNUn, cBoTBeTHata LED CBETInHa ce BkIIOUbA. Ppi BCsKO HATnCKaHe Ha 6yToHa ,Mode" ce noDaBa 3ByKOB CnIHAn I Tempepatpata ce npomeHa.
B cnyuah Ha 3ary6a Ha MouHoc TnOcneHaTa HAcTpoiKa Ha HNBOTo Ha oxnaJdane He 6bDe Bb3CTaHOBeHa.
3a Da Bb3CTaHOBIne HAcTpoNkata No NpOpa36npaHe, npn CBeTeU ekpaH, HATNCHEte 3aApBxTe 6yToHa ,TEMP" u cnei TOBa HATNCHEte 6yToHa ,ON/OFF" 5 nbTu B pAmKIne Ha 5 cekyHdN.
- Пи Нормалн pa6obTN yCIOBn (пpe3 npoJIeTTa n eCeNTa) ce npenopbUba da 3a4aTe TeMnepatypata Ha 4^ .Пpe3ЯTOTo, KOrato TemnepaTpyata Ha OKONHaTa CpeDa e BUCOKa, e npenOpbYHTeHNo Da 3a4aTeTe MtnepaTpyata Ha 6 8^ , 3a Da ce rapaHTnpat TemnepaTpynte Ha XlaIINHka iФpIn3epa n Da ce HamaN pOdoJIxKITeHOTo BpeMe Ha pa6oTa Ha XlaIINHka. Пpe3 3IMATA, KOrato TemnepaTpyata Ha OKONHaTa CpeDa e HnCKa, e npenOpbYHTeHNo Da 3a4aTe TeMnepaTpyata Ha 2 4^ , 3a Da ce N36BerHe YecTOTO BKIIouBaHe/N3KIIouBaHe Ha XlaIINHka.
Персаннирана Temперараза
OT npnloxehno e Bb3MOxHO da ce nepcoHaJIH3npa TemnepaTypaHa xnaIHHOT OTeJeHne. TemnepaTypaMoXe Da ce HAcTPOC CyVBCTBNTeJIHOcT ot 1 ^ C n e Bb3MOxHO da ce n36pe TemnepaTypa ot 2 ^ C do 8 ^ C B xnaIINHa. BCEKn PbT KOrato TemnepaTypa Ce npomEn, ce noDaBa 3BykoB cnHaN. Korato TemnepaTypa e n36paHa OT npnloxehno, HMa INDkaun Ha KOHTpOHNn paHei, BCnuKN LED cBeTNIHn 3a TemnepaTypa ca n3KnIOueHn n camo NKoHaTa 3a Wi-Fi e BkIIOUeHa.
Фина Настponka
PeximbT 3a n36op Ha fHa HAcTpoKa DaBa Bb3MOxHocT 3a 3aDaBaHe Ha TempepatypTe Upe3 NODnBA; BCaKO TempepatypHO HnBO mA TpN NOHNBA. KaK ce n3noJ3Ba fYHKcIyTa 3a fHa HAcTpoKa:
3aIpbjXte 6yToHa ,Mode" 3a 8 cekyHn, 3a da Bne3eTe B pexHM Ha fHa HacTpoiKa. Korato ypeBbT Bne3e B pexMma, ue ce noJaDe 3ByKOB CnHn i LED cbetJInHaTa Ha TekyuOTo n36paHO HnBO Ha OxnaJdaHe Ie Mira.
C KpaTko HaTnCKaHe Ha 6yToHa „Mode" B pamKnte Ha 5 cekyHnФиHaTa HacTpoIka Ce yBeJInuAba I npN BCraKO HaTnCKaHe Ce NODaBa 3ByKOB CnHaJ.
- По Врeme Ha Фина Т haCTpoиka LED CBeTлнaТа Ha n36paHOTo HnBO Ha oxJaXdAne e ФиксИраHa, a LED CBeTлнaHata Ha n36paHOTo nOДнIBO Mnra.
- Ako HnTo eDnH OT 6yToHnTe He e HaTnCHaB npoDbJxKeHne Ha 3 cekyHdN, CnCTeMaTa aBTOMaTnUHO n3n3a OT pexm Ha ΦnHa HacTpOiKa. ΦnHaTa HacTpOiKa ce 3ana3Ba n LED cbetnnHaTa Ha n36paHaTa TempePaTypa Ha XnaDnHnKa eΦnkCupaHa.
- Ako Фината Настpoшka 6ьде akтувира на OTHOBO, Настpoшka Тцл Започе OT предховото здаэно Инв.
Функця „Super Cool"
IpenopbunTeHNO e da BkIIOUHTe yHKnraTa ,Super Cool" ako Tp6Ba da cxbxaHBAte rOJMO KOJIueCTBO xpaHa (HaNPmep cJeD nokynka).yHKnraTa "Super Cool" ycKOpRA OXJaKaHeTo Ha npcHata xpaHa n npedna3Ba Beue cbxpanHeHTE npOdyKTn OT HeKeJahO 3aTOnJIHe. Korato yHKnraTa e aktINBupaHa, TeMnepaTypata Ha XnaIINHka ce 3aJaBa abTomatNHO Ha 2 °C. KaK ce n3no3Ba yHKnraTa ,Super Cool":
- Φункцятможеда ceakTNBnpa,kaTO haTucheTe MHOKpTaHO 6yToHa „Mode“,doKaTo super Cool LED He ce BKnIOuH,IIIN KaTo ro n36epeTe OT npInIOxKeHneTo.AkoФункцятaeakTNBnpaHa,CbOTBeTHaTa NKOHa Ha KOHTPOHnnaHeI ige 6bDe BKnIOUeHa.
3a da n3ne3eTe OT yHKuYra "Super Cool", OTHOBO HaTnchete 6yToHa "Mode". - Φυήκησητα „Super Cool" αντόματηνύθους 3αββριδας πελει 30 εγας παδοτα.
Korato "Super Cool" 3aBbpyu, cboTBeTHaTa IKOHa Ha KOHTpONHnaHeJI Ce n3KnIOUyBa I npEduHOTo 3aIaDeHO HnBO Ha OXJaXdaHe ce Bb3CTaHOBra.
Download on the App Store
EXPLORE IT ON AppGallery
Étape 2
- DotpmyTeCBA3iBOK i3 noEHaHHB doaTky hOn
BvnkopncTaHHaWi-Fi
Ioo6 aKTHByBaTu 0 Wi-Fi, HATNCHTb Ta yTpmyTe KhoNky Mode npotraom 2 cekyH, nicra Yoro BBIMKHeTbcn iKTorpama Wi-Fi i 6ynde nodaHO 3BykoBn cnHaJ.
JaKuo Wi-Fi ige He hanaTobHo, nicJy BBIMKHeHHxOJIoNJIbHnK aBTOMaTNUHO BBiJe y pexm KOHcIpyBaHHi 3aIIuNTbcB CbOmy cTaHi Ha 30 XbUInH. Ioo6 CKOpNCtTaTcR peXmOM KOHcIpyBaHHr:
HaTnCKaIe KhoNky Mode npotrrom 2 cekyHd, aJe MeHwe 8 cekyHd; XoIOAnbHk yBiIe B peKIM HaJaTuBaHHa Wi-Fi i BnDaCTb 3ByKOBn cnHaJ. NIKTORpama Wi-Fi noUHe 6JImMaTn.
- IToPmUyTeC8 Bka3iBOK ydoataKy, 0o6 hanaTuBaTn Wi-Fi (DnB. BnSe).
-Пися налштуваима Wi-Fi Ta BCtaHOBJIeHHЯ 3'edsHaHHЯ niktorpama Wi-Fi BBIMKHeTbcra Ta CBITNTIMetbca HeNEpepeBHO.
- Upe3 30 xBnHH 6e3iJIbHocTi yHKciJ Wi-Fi aBTOMaTuHo BnIe 3 peKIMy HaNaSTyBaHH.
- YKuo Wi-Fi Bxe HanaSToBaHo, 3'eHaHHaBtOMaTmHbABIOHOBNTbcBIDNOiDHO Do daHnx KOHphiIrypBuHHa.
Padiomodylb - TexHiNy daHi
LLED 100000000000000000000000000000000000000000000
- all 23. will
15 5 5 5
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
- 48.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
a a jzai all s gannn no slalll 1234567890123456789012345678901234567890123456789012345678901234567890123456789012345678901234567890123456789
" Super Cool
Super Cool
Jzjzjjlll 100000000000000000000000000000000000000000000000
jie jiai jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia jia
Super-Freeze 1
-25 1e lal a rall buaa yabaaie .laaill Jae 24 1e
Super Freeze
abw y 1e e paaa aalb
a
Super Freeze Super Freeze
50 50 Super Freeze
" ECOg
a a a a a a a a a a a a a a a a a a a a a a a a a a a a
aill a j 10
j111
J 1
Jaaal Jaaal
S OBC = S COD + S_ BOC
a a a a a a a a a a a a a a a a a a a a a a a a a
a 1
.
1
y 1
Jai 1
aJy j y Jylll a C 4 Jy Jy Ls a b J
4
- a ball a lai
- a + b = 1
- 4.
5
6
7
8
9
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres' |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres' |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres |
| H Holidays and holidays | Holiday | Jahres' |
Sisukord
TOOTE ULEVAADE 220
KASUTAMINE 221
Ruuminouded 220
Kasutamine 221
Temperatuuri kohandamine 221
Tappisreguleerimine 222
Kiirjahutusfunktsioon Super Cool 222
Kiirkulmutusfunktsoon Super Freeze 222
Ökorežiim Eco 223
Energiasäastufunktsion Holiday 223
Sulatamine 223
Demorežiim 223
Törkekoodid 223
RAKENDUSEGA UHENDUSE LOOMINE 224
RAKENDUSES SEADME SIDUMINE 224
1.toiming 224
2.toiming 224
3.toiming 224
WiFi-uhenduse loomine 225
UKSE POOLSUSE MUUTMINE 226
VEAOTSING
TOOTE ÜLEVAADE
