Congratulations on your new Interstuhl HUB, the most versatile modular system for individual office design. Exclusive quality has been combined with German engineering and high standards of design. Here we will show you how to make sure that your products bring you joy for years to come.

TABLE OF CONTENTS

1. GENERAL INFORMATION
   2.SAFETY
   2.1. SYMBOL EXPLANATIONS
   2.2.SAFETYINSTRUCTIONS
2. TECHNICAL INFORMATION
3. ASSEMBLY AND USE
4. CLEANING AND CARE

5.1. FABRIC AND LEATHER
5.2. ALUMINIUM PARTS
5.3. ELECTRICAL COMPONENTS
6. MAINTENANCE OF ELECTRICAL COMPONENTS
7.DISPOSAL
8. WARRANTY INFORMATION

1. GENERAL INFORMATION

Please follow all safety instructions. These operating instructions have been compiled by the manufacturer and are part of the product. The information contained therein is intended for the purchaser or user of the products. Carefully read through the operating instructions in their entirety. Sensible and careful use of the product shall ensure the safety of the users as well as the cost-effectiveness and long service life of the product. The manufacturer shall not be liable for any damage caused by failure to comply with the operating instructions or any unauthorised modification to the product.
You can find additional information about the Casambi Xpress remote control and Vogel's 405 ExtraThin wall mount in the accompanying operating instructions from each respective manufacturer.
Only use HUB products for non-residential seating and office spaces.
Refer to any warnings, safety instructions or other labelling attached to HUB products.
The user shall be solely responsible for any damage caused by improper use or failure to comply with these operating instructions and the manufacturer shall assume no liability.
The user is not permitted to make any safety-related modifications to the upholstered furniture. Interstuhl continuously works on further developing its models and the technology used. We therefore reserve the right to make any changes on the basis of technological progress without prior notice. Please understand that changes to the scope of delivery with respect to equipment and technology are possible at any time.
Please only position the products on level surfaces to prevent them from tipping.
Only remove the packaging when at the final installation location.
Do not open the packaging using sharp or pointed objects.
When the HUB products are put into operation, the electrical system must be connected to a power supply which has a protective conductor.
To find a suitable installation location for your upholstered furniture, please ensure that the upholstered furniture is installed according to its intended use and is protected against direct exposure to direct light and sunlight, as well as the effect of intense heat in order to minimise fading of the cover material.
For workplaces in long-term use, the selected materials must not exceed or fall below a reflectance of between 0.15 and 0.75 in order to prevent glare due to glossy or excessively bright or dark surfaces.

2. SAFETY

2.1 SYMBOL EXPLANATIONS

Risk of tripping:

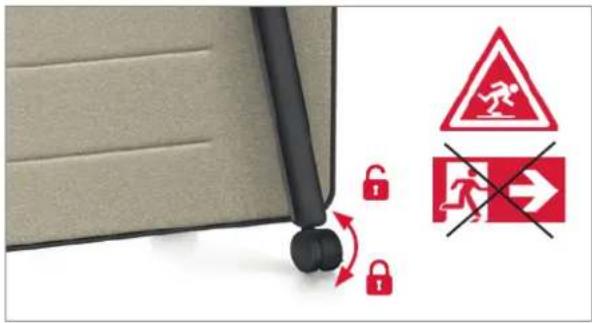

Warns of obstacles on the ground, such as the base of the HUB board and HUB board media.

Do not obstruct emergency exits or routes:

Prior to positioning your products, review where the emergency exits and routes are situated at your company premises or in your surrounding area. Remove any obstacles to them. Unobstructed evacuation via the emergency exits must always be possible.

Risk of tipping:

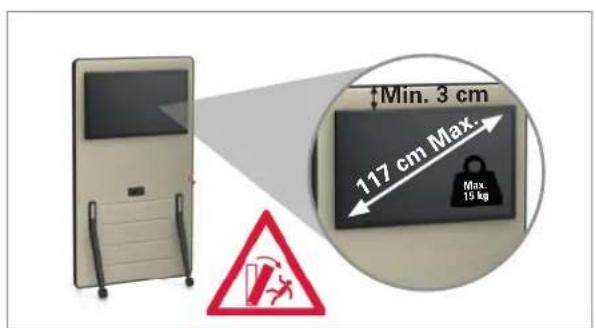

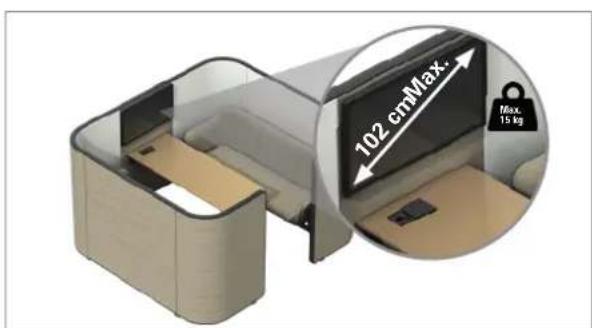

Do not attach any display screens weighing more than 15kg to the media board, otherwise there is the risk that the entire media wall may tip.

SELV (safety extra low voltage) (protection class III): Maximum 50 V.

The device is suitable for assembly on or in furniture made from materials with unknown flammability properties.

Safety transformer - short-circuit-proof. Output voltage up to a maximum of 50V

Independent operating device, for use outside of lights and without additional covering

Temperature-protected devices. The temperature value indicates the maximum surface temperature in the event of a fault

_Operating instructions: Follow the operating instructions

Data is transferred between devices over a short distance via wireless technology.

2.2 SAFETY INSTRUCTIONS

Only suitable for indoor use.
Keep the electrical components away from rain and moisture. If water enters electrical components, there is an increased risk of an electric shock and damage to the components affected.
Check the cable and plug before each use. Should you notice any damage to the cables or plugs, please do not use the device any longer.
Prior to adjusting or transporting the device, the mains plug must be removed. Prior to cleaning the electrical components, make sure that the power connection is disconnected.
Any furniture with electrical installation must be checked in accordance with the accident prevention regulations and the generally acknowledged technical rules at the time intervals specified.
If an external, flexible cable of an electrical component or light is damaged, this must only be replaced by an Interstuhl service technician or an equally qualified service technician commissioned by Interstuhl.
Only devices such as mini PCs, media players or similar may be connected to the row of expansion slots inside a "media board" product due to heat generation/fire risk.
Ensure that you do not trip over any exposed power cables.

3. TECHNICAL INFORMATION

All Interstuhl upholstered furniture with electrical equipment complies with the relevant

European directives (see Declaration of Conformity, page 1)

Name Interstuhl	product range	Product name of electronic device	Nominal values Power consumption
Sockets HUB pod; HUB board media; HUB sofa; HUB bench		Netbox 16 A/250 V Max. 3500 W
Socket (table) HUB pod Netbox POINT 16 A/250 V Max. 3500 W
LED modules HUB pod - 24 V -
LED remote control	HUB pod	Casambi Xpress	3 V	-
Transformers	HUB pod Mean Well	HLG-185H-24	100-240 V/50-60 Hz	Max. 2.1 A
Power controller	HUB pod Power controller	V2 Control Unit Casambi	10 A/12-30 V	Max. 300 W

For your protection, only the components listed above may be used.

No liability shall be assumed if other components are used.

Casambi Xpress

Button cell battery for Casambi Xpress "CR2430" LED remote control

_HUB pod LED modules

The light source/LED modules are a light source which cannot be replaced by a user. They must only be replaced by an Interstuhl service technician or a service technician commissioned by Interstuhl.

The HUB LED system is indirect lighting which is not suitable for lighting up rooms

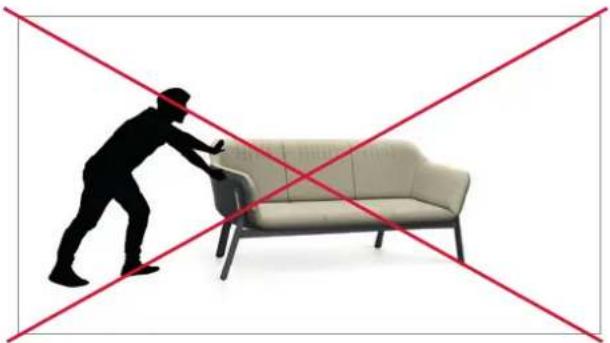

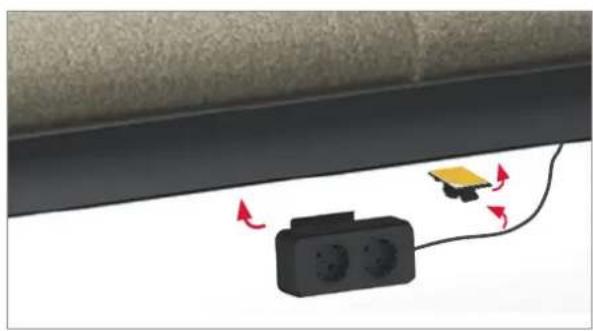

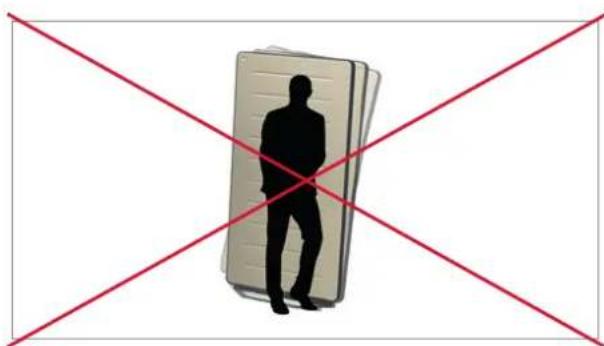

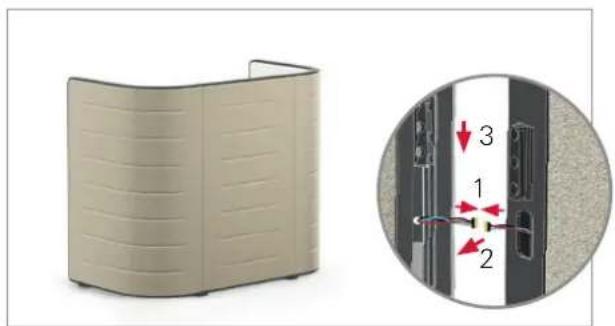

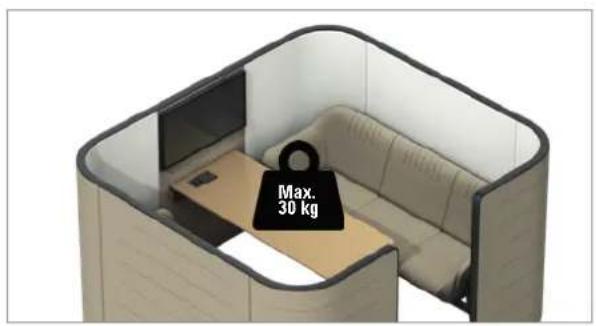

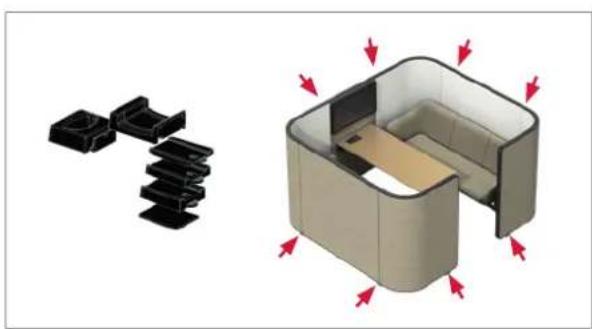

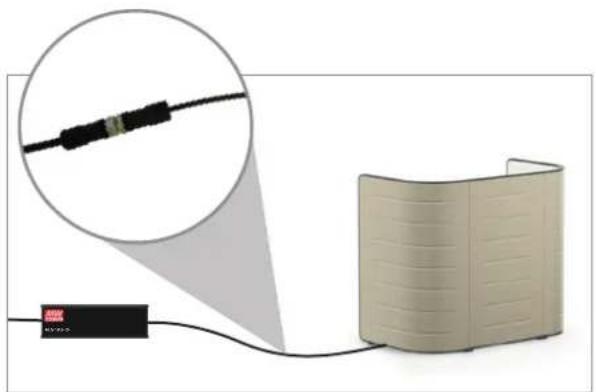

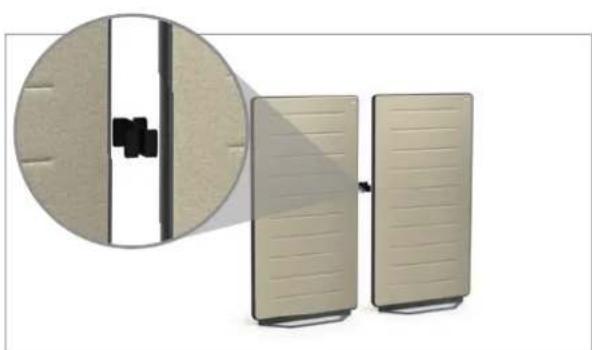

4. ASSEMBLY AND USE

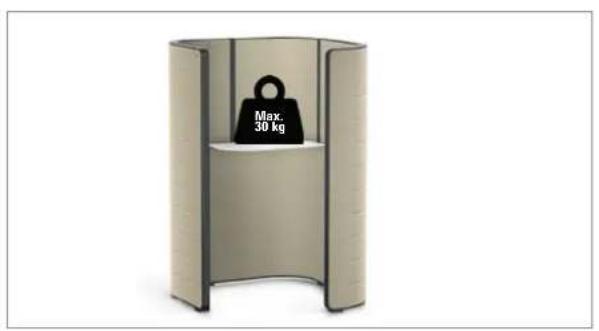

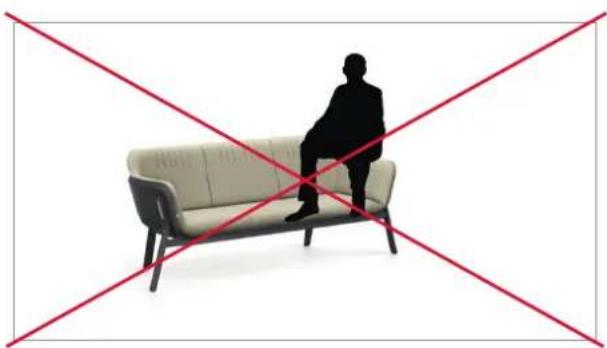

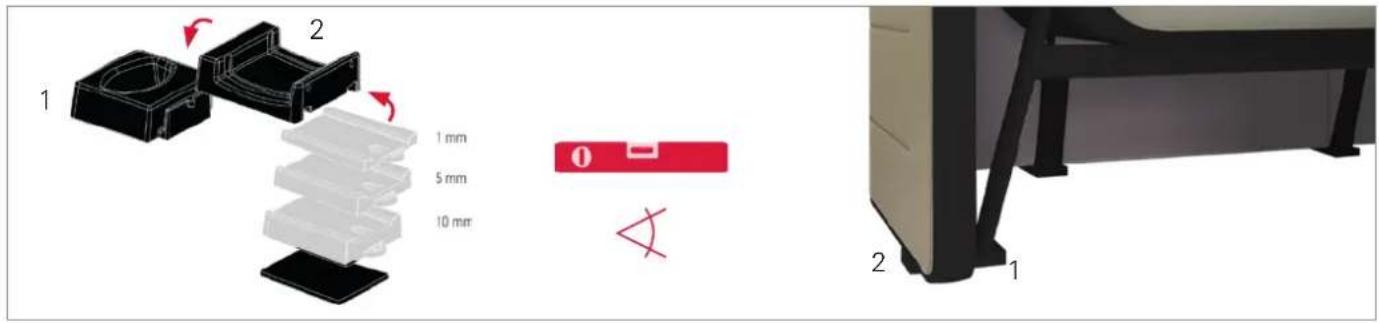

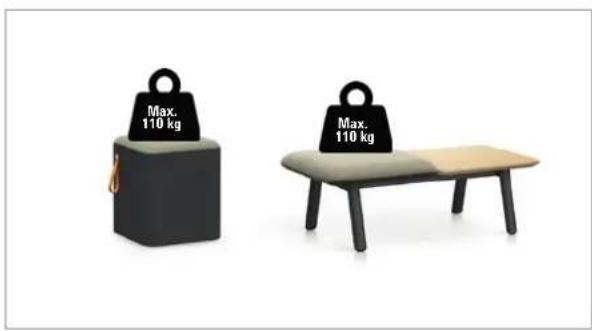

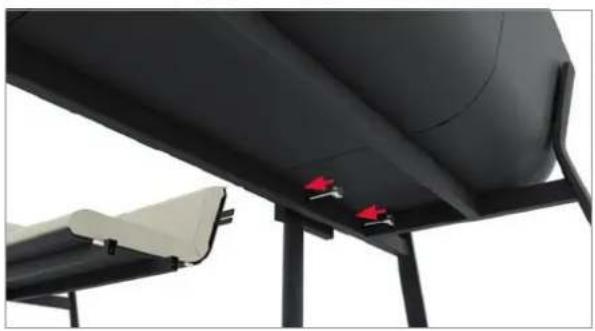

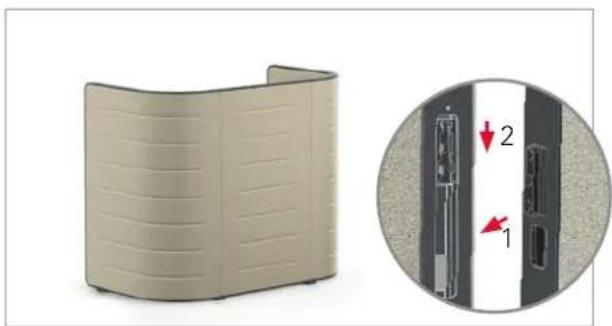

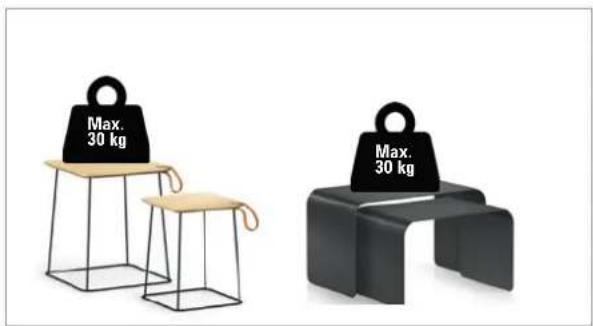

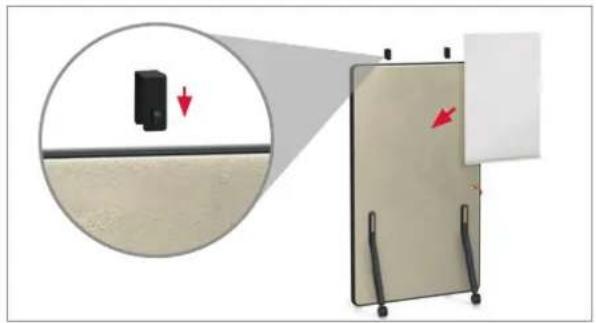

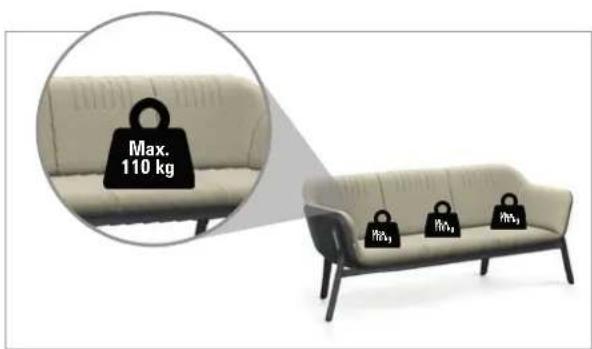

Videos with assembly instructions

5. CLEANING AND CARE

5.1. FABRIC AND LEATHER

Clean your product regularly, taking into consideration the composition of the material covering your furniture. Remove liquids from your furniture as quickly as possible. Dab away the liquid. Never use conventional stain removers, solvents or other unsuitable cleaning agents. Use the blunt nozzle of a vacuum cleaner for crumbs and sand. Important: Set the vacuum cleaner to the lowest possible wattage when doing this. Pressed-in upholstery elements or displaced seams can quickly be restored to the required shape and look by tapping and gently pulling them. We recommend our Interstuhl textile care set for professional cleaning: interstuhl.com/care

5.2 ALUMINIUM PARTS

Do not use acids or alkaline cleaning agents. Do not use abrasive cleaners, steel wool, scouring pads or similar materials. Using pointed or sharp objects, for example blades or knives, may damage the surface (scratches). Use a soft, moist cloth and a neutral household cleaner to remove light marks. Then rub the surface with a dry cloth to achieve an even finish without streaks. Use solvent-free cleaning agents for stubborn dirt. Please test such cleaning agents on an inconspicuous area first.

5.3 ELECTRICAL PARTS

Remove the mains plug from the socket prior to cleaning. Do not use aggressive cleaning agents, cleaning sprays or glass cleaners. Objects or liquids must not get inside the electrical components.

6. MAINTENANCE OF ELECTRICAL COMPONENTS

Any repairs or other changes must be carried out by an Interstuhl service technician or a service technician commissioned by Interstuhl. In the event of repairs made by third parties, no costs will be reimbursed. Always remove the mains plug before starting repair work.

7. DISPOSAL

Interstuhl upholstered furniture is designed for many years of sustainable use. Interstuhl adhere's to the highest environmental obligations and asks that you properly dispose of your furniture after its usage stage. Please dispose of special waste (e.g actuators, electronic parts) in their intended collection system (please enquire with the local authorities about this). The packaging material used for delivery is also recyclable. Give this material to the deliverer or dispose of the materials in the intended collection systems, having properly separated them. Interstuhl upholstered furniture which falls under the German Electrical and Electronic Equipment Act (ElektroG) is labelled accordingly. Registration is found under WEEE-Reg-No. DE 32839315. FOR FINAL INCLUSION-Labelled upholstered furniture can be disposed of free of charge at the local collection points.

Old appliances must not be disposed of in municipal waste bins.

8. WARRANTY

The 10-year warranty applies to all Interstuhl products and all spare parts. Electronic or digital products are not covered by the 10-year warranty. You can find our the detailed warranty conditions at www.interstuhl.com.
