USER MANUAL HUB HU312 Interstuhl

Modern minimalist interior with teal and white furniture, featuring a window with windows and a smiling woman in the foreground (no text or symbols)

Isometric line drawing of a two-story office or living space with furniture and furniture layout (no text or symbols)

INHALTSVERZEICHNIS

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

Diagram showing a wall-mounted power outlet connected to a small yellow component, with red arrows indicating rotation or movement (no text or symbols present)

max. 30 kg max. 30 kg

Silhouette of a person standing beside a closed book, crossed by red diagonal lines (no text or symbols)

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

max. 110 kg n3n3 n3n2 n3n3

max. 110 kg max. 110 kg

max. 30 kg

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

Diagram showing a device with red arrow pointing to a panel, alongside an inset magnified view of its edge (no text or symbols)

Safety warning sign showing hazard symbols for running and crossing a vehicle door, with red arrows indicating correct and incorrect actions.

min. 3 cm 117 cm max. max. 15 kg

102cm max. max. 15 kg

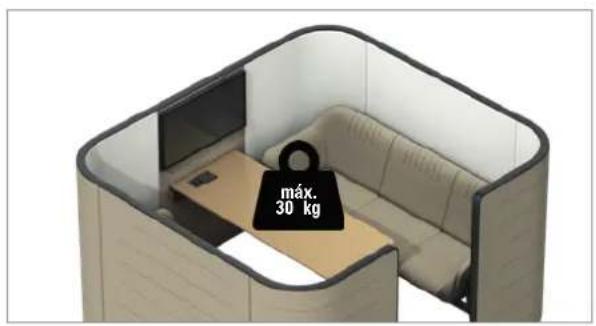

max. 30 kg

Close-up of a mechanical component with a lever and arrow indicator (no text or symbols)

Close-up of a curved metallic bracket with a vertical line and small protrusion (no text or symbols visible)

Close-up of a curved black metal bracket with a small circular component above it (no text or symbols visible)

Close-up of a curved black metal bracket or panel edge against white background (no text or symbols)

Partial view of a curved black metal bracket or panel edge against white background (no text or symbols)

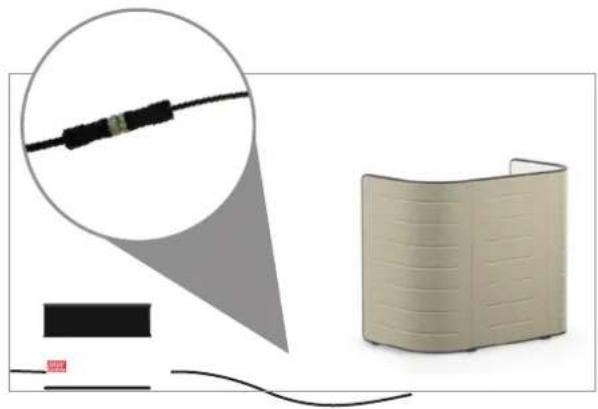

Product display showing a close-up of a black cable connector with a magnified inset, alongside a beige cylindrical device with visible wiring and a red stamp (no text or symbols)

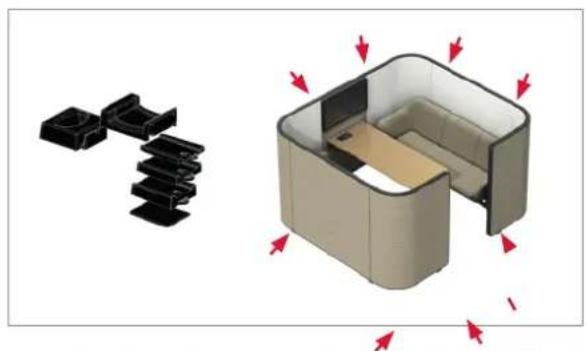

3D diagram of a compact office space with black plastic components and red directional arrows indicating flow or movement (no text or symbols)

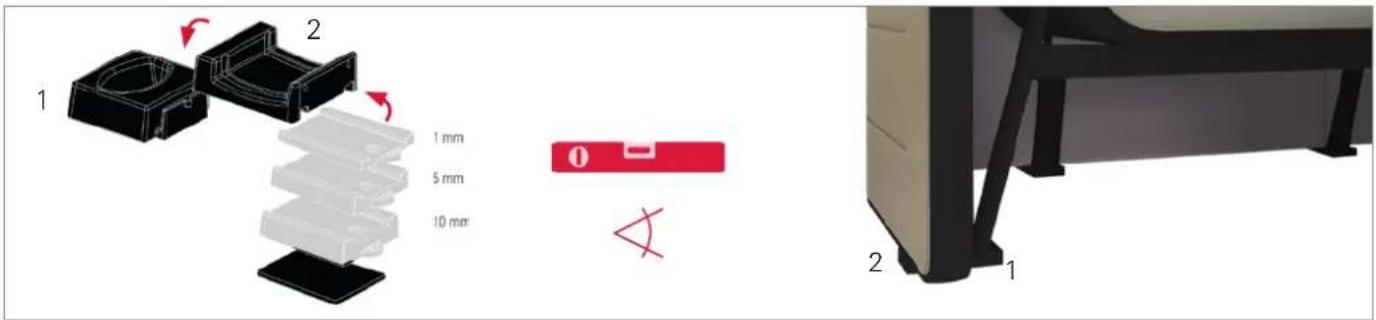

1 2 1 mm 5 mm 10 mm 0 2 1

Illustration of a beige cylindrical device with a black tag labeled 'MAX. 30 kg' on its side (no other text or symbols)

Close-up of a black and beige abstract structure with red connectors, no visible text or symbols

Modern minimalist interior with blue and teal furniture, featuring a window with windows and a smiling woman in the foreground (no text or symbols)

\_EN - OPERATING INSTRUCTIONS

Congratulations on your new Interstuhl HUB, the most versatile modular system for individual office design. Exclusive quality has been combined with German engineering and high standards of design. Here we will show you how to make sure that your products bring you joy for years to come.

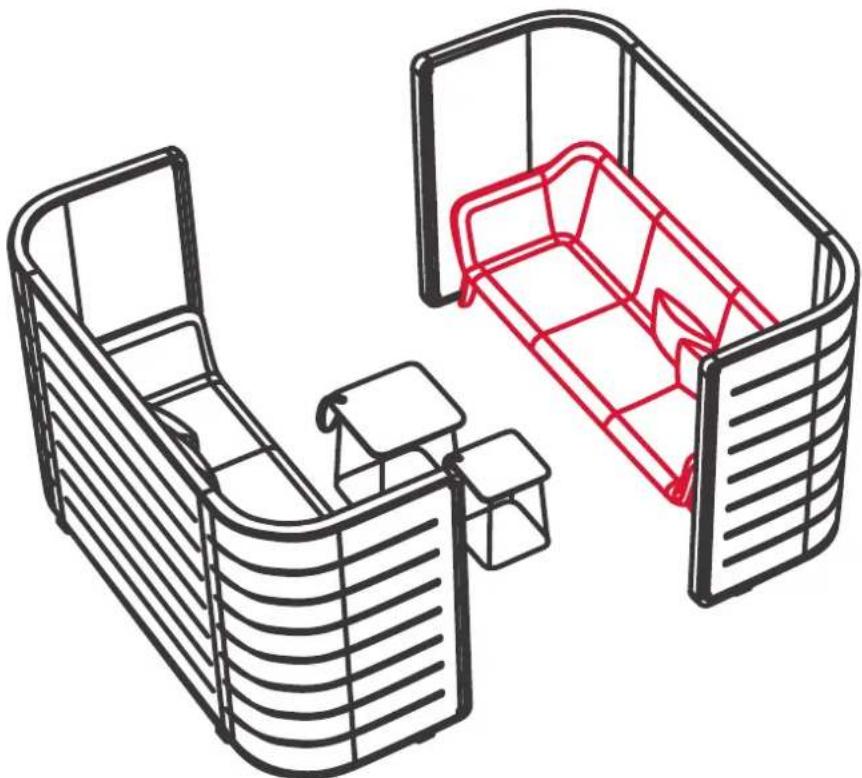

Isometric line drawing of two furniture compartments with red wireframe outlines, no text or symbols present

TABLE OF CONTENTS

1. GENERAL INFORMATION
2. SAFETY
   2.1. SYMBOL EXPLANATIONS
   2.2. SAFETY INSTRUCTIONS
3. TECHNICAL INFORMATION
4. ASSEMBLY AND USE
5. CLEANING AND CARE

5.1. FABRIC AND LEATHER
5.2. ALUMINIUM PARTS
5.3. ELECTRICAL COMPONENTS
6. MAINTENANCE OF ELECTRICAL COMPONENTS
7. DISPOSAL
8. WARRANTY INFORMATION

1. GENERAL INFORMATION

Please follow all safety instructions. These operating instructions have been compiled by the manufacturer and are part of the product. The information contained therein is intended for the purchaser or user of the products. Carefully read through the operating instructions in their entirety. Sensible and careful use of the product shall ensure the safety of the users as well as the cost-effectiveness and long service life of the product. The manufacturer shall not be liable for any damage caused by failure to comply with the operating instructions or any unauthorised modification to the product.

_You can find additional information about the Casambi Xpress remote control and Vogel's 405 ExtraThin wall mount in the accompanying operating instructions from each respective manufacturer.

Only use HUB products for non-residential seating and office spaces.

Refer to any warnings, safety instructions or other labelling attached to HUB products.

The user shall be solely responsible for any damage caused by improper use or failure to comply with these operating instructions and the manufacturer shall assume no liability.

The user is not permitted to make any safety-related modifications to the upholstered furniture.

Interstuhl continuously works on further developing its models and the technology used. We therefore reserve the right to make any changes on the basis of technological progress without prior notice. Please understand that changes to the scope of delivery with respect to equipment and technology are possible at any time.

Please only position the products on level surfaces to prevent them from tipping.

Only remove the packaging when at the final installation location.

Do not open the packaging using sharp or pointed objects.

When the HUB products are put into operation, the electrical system must be connected to a power supply which has a protective conductor.

To find a suitable installation location for your upholstered furniture, please ensure that the upholstered furniture is installed according to its intended use and is protected against direct exposure to direct light and sunlight, as well as the effect of intense heat in order to minimise fading of the cover material.

For workplaces in long-term use, the selected materials must not exceed or fall below a reflectance of between 0.15 and 0.75 in order to prevent glare due to glossy or excessively bright or dark surfaces.

2. SAFETY

2.1 SYMBOL EXPLANATIONS

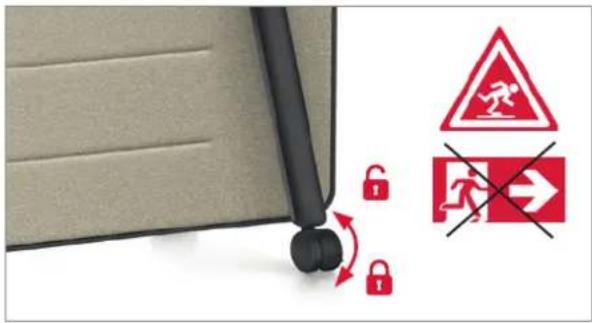

Risk of tripping:

Warns of obstacles on the ground, such as the base of the HUB board and HUB board media.

Do not obstruct emergency exits or routes:

Prior to positioning your products, review where the emergency exits and routes are situated at your company premises or in your surrounding area. Remove any obstacles to them. Unobstructed evacuation via the emergency exits must always be possible.

Risk of tipping:

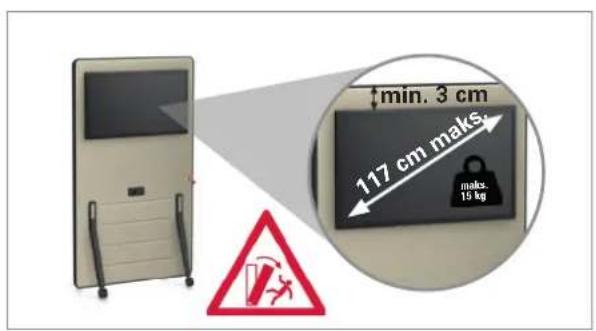

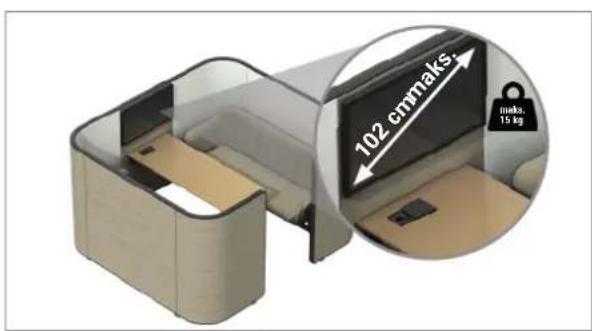

Do not attach any display screens weighing more than 15 kg to the media board, otherwise there is the risk that the entire media wall may tip.

SELV (safety extra low voltage) (protection class III): Maximum 50 V.

The device is suitable for assembly on or in furniture made from materials with unknown flammability properties.

Safety transformer – short-circuit-proof. Output voltage up to a maximum of 50 V

Independent operating device, for use outside of lights and without additional covering

Temperature-protected devices. The temperature value indicates the maximum surface temperature in the event of a fault

Operating instructions: _Follow the operating instructions

Data is transferred between devices over a short distance via wireless technology.

2.2 SAFETY INSTRUCTIONS

Only suitable for indoor use.

Keep the electrical components away from rain and moisture. If water enters electrical components, there is an increased risk of an electric shock and damage to the components affected.

Check the cable and plug before each use. Should you notice any damage to the cables or plugs, please do not use the device any longer.

Prior to adjusting or transporting the device, the mains plug must be removed. Prior to cleaning the electrical components, make sure that the power connection is disconnected.

Any furniture with electrical installation must be checked in accordance with the accident prevention regulations and the generally acknowledged technical rules at the time intervals specified.

If an external, flexible cable of an electrical component or light is damaged, this must only be replaced by an Interstuhl service technician or an equally qualified service technician commissioned by Interstuhl.

Only devices such as mini PCs, media players or similar may be connected to the row of expansion slots inside a "media board" product due to heat generation/fire risk.

Ensure that you do not trip over any exposed power cables.

3. TECHNICAL INFORMATION

All Interstuhl upholstered furniture with electrical equipment complies with the relevant

European directives (see Declaration of Conformity, page 1)

Name Interstuhl	product range	Product name of electronic device	Nominal values Power consumption
Sockets HUB pod; HUB board media; HUB sofa; HUB bench		Netbox 16 A/250 V Max. 3500 W
Socket (table) HUB pod Netbox POINT 16 A/250 V Max. 3500 W
LED modules HUB pod - 24 V -
LED remote control	HUB pod	Casambi Xpress	3 V	-
Transformers	HUB pod Mean Well	HLG-185H-24	100–240 V/50–60 Hz	Max. 2.1 A
Power controller	HUB pod Power controller	V2 Control Unit Casambi	10 A/12–30 V	Max. 300 W

For your protection, only the components listed above may be used.

No liability shall be assumed if other components are used.

Casambi Xpress

Button cell battery for Casambi Xpress "CR2430" LED remote control

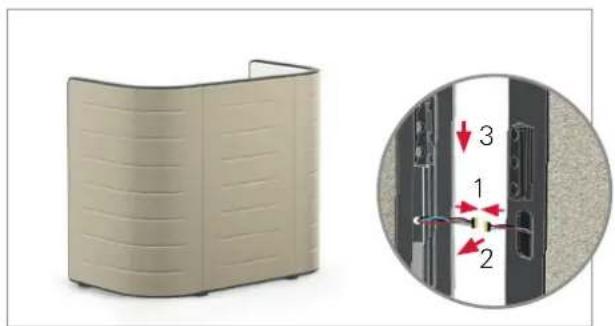

HUB pod LED modules

The light source/LED modules are a light source which cannot be replaced by a user. They must only be replaced by an Interstuhl service technician or a service technician commissioned by Interstuhl.

The HUB LED system is indirect lighting which is not suitable for lighting up rooms

4. ASSEMBLY AND USE

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

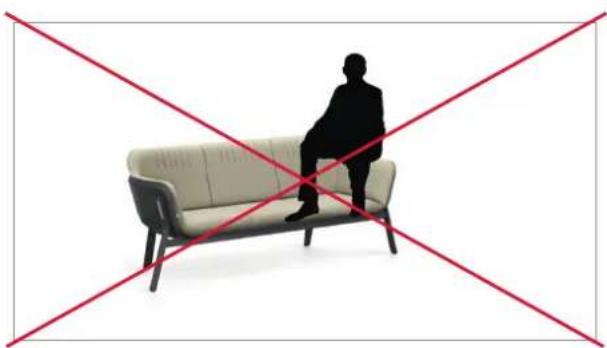

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

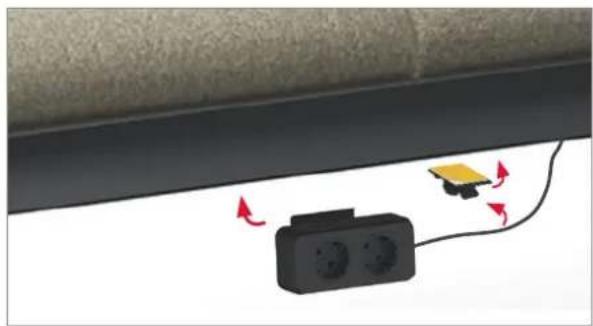

Diagram showing a wall-mounted power outlet connected to a small yellow component with red arrows indicating rotation (no text or symbols present)

Max. 30 kg Max. 30 kg

Silhouette of a person standing beside a closed book, crossed by red diagonal lines (no text or symbols)

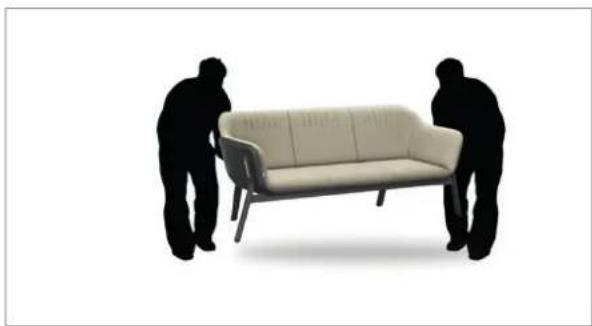

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

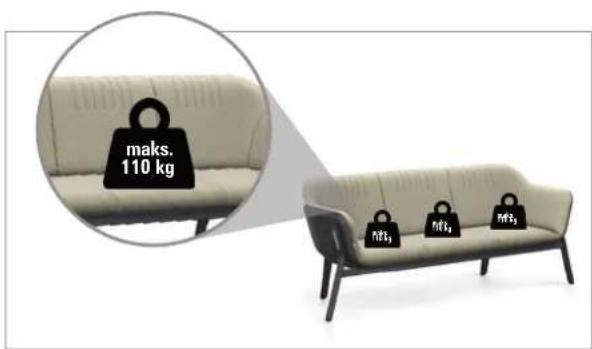

Max. 110 kg Pn3 Pn4 Pn3

Max. 110 kg Max. 110 kg

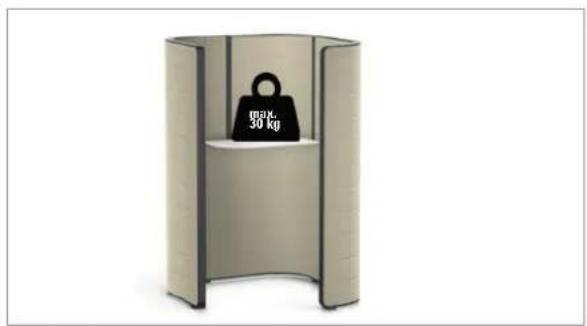

Max. 30 kg

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

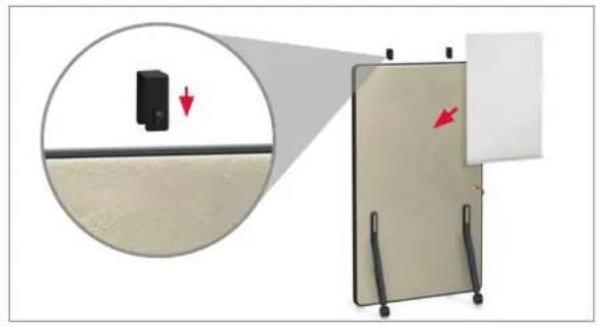

Diagram showing a device with red arrow pointing to a panel, alongside an inset magnified view of its edge (no text or symbols)

Safety warning sign showing hazard symbols for running and walking, with red arrows indicating correct and incorrect actions.

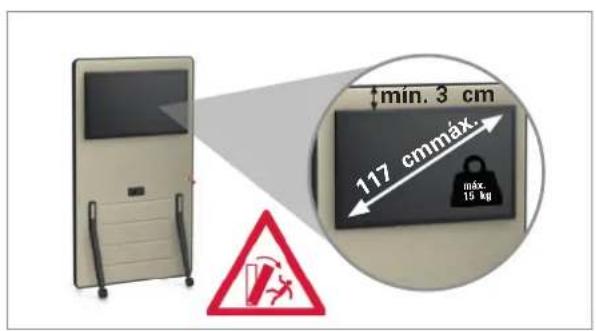

Min. 3 cm 117 cm Max. Max. 15 kg

102 cm Max. Max. 15 kg

Max. 30 kg

Close-up of a mechanical component with a lever and arrow indicator (no text or symbols visible)

Exterior view of a beige fire extinguisher with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Exterior view of a beige office chair with ventilation grilles and a close-up inset showing internal components (no text or symbols)

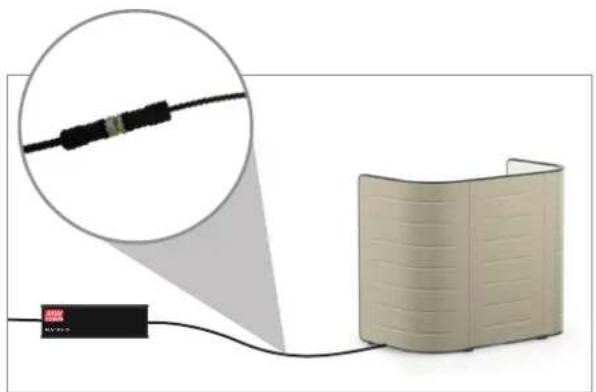

Diagram showing a device connected to a cylindrical device with an inset close-up of its cable (no text or symbols visible)

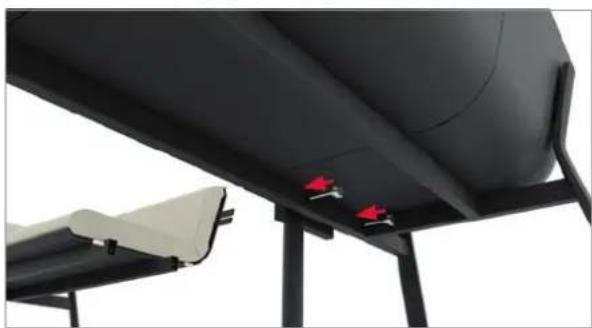

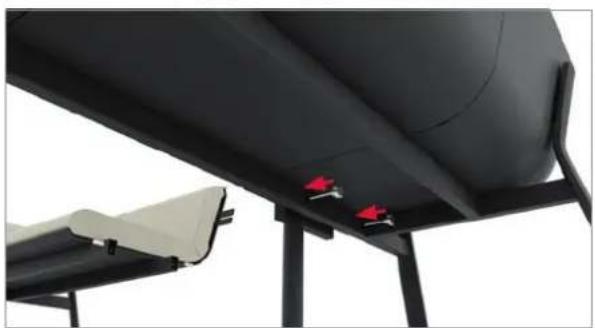

3D diagram showing a mechanical component with red arrows indicating force or movement, alongside a separate black-and-white assembly (no text or symbols)

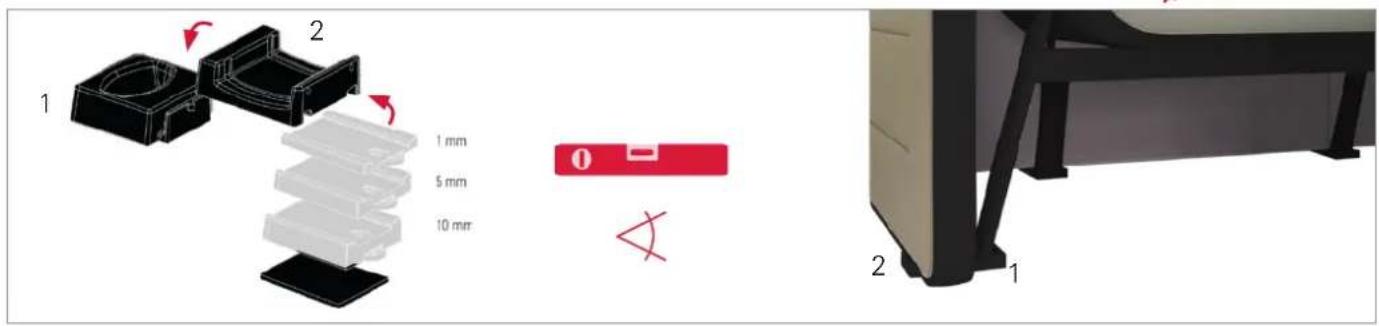

1 2 1 mm 5 mm 10 mm 0 2 1

Illustration of a portable device with a black padlock labeled 'Max. 30 kg' on its side (no additional text or symbols)

Exterior view of a modern building roof structure with black panels and support beams (no signage or text visible)

Videos with assembly instructions

5. CLEANING AND CARE

5.1. FABRIC AND LEATHER

Clean your product regularly, taking into consideration the composition of the material covering your furniture. Remove liquids from your furniture as quickly as possible. Dab away the liquid. Never use conventional stain removers, solvents or other unsuitable cleaning agents. Use the blunt nozzle of a vacuum cleaner for crumbs and sand. Important: Set the vacuum cleaner to the lowest possible wattage when doing this. Pressed-in upholstery elements or displaced seams can quickly be restored to the required shape and look by tapping and gently pulling them. We recommend our Interstuhl textile care set for professional cleaning: interstuhl.com/care

5.2 ALUMINIUM PARTS

Do not use acids or alkaline cleaning agents. Do not use abrasive cleaners, steel wool, scouring pads or similar materials. Using pointed or sharp objects, for example blades or knives, may damage the surface (scratches). Use a soft, moist cloth and a neutral household cleaner to remove light marks. Then rub the surface with a dry cloth to achieve an even finish without streaks. Use solvent-free cleaning agents for stubborn dirt. Please test such cleaning agents on an inconspicuous area first.

\_5.3 ELECTRICAL PARTS

Remove the mains plug from the socket prior to cleaning. Do not use aggressive cleaning agents, cleaning sprays or glass cleaners. Objects or liquids must not get inside the electrical components.

6. MAINTENANCE OF ELECTRICAL COMPONENTS

Any repairs or other changes must be carried out by an Interstuhl service technician or a service technician commissioned by Interstuhl. In the event of repairs made by third parties, no costs will be reimbursed. Always remove the mains plug before starting repair work.

7. DISPOSAL

Interstuhl upholstered furniture is designed for many years of sustainable use. Interstuhl adhere's to the highest environmental obligations and asks that you properly dispose of your furniture after its usage stage. Please dispose of special waste (e.g actuators, electronic parts) in their intended collection system (please enquire with the local authorities about this). The packaging material used for delivery is also recyclable. Give this material to the deliverer or dispose of the materials in the intended collection systems, having properly separated them. Interstuhl upholstered furniture which falls under the German Electrical and Electronic Equipment Act (ElektroG) is labelled accordingly. Registration is found under WEEE-Reg-No. DE 32839315. FOR FINAL INCLUSION-Labelled upholstered furniture can be disposed of free of charge at the local collection points.

Old appliances must not be disposed of in municipal waste bins.

8. WARRANTY

The 10-year warranty applies to all Interstuhl products and all spare parts. Electronic or digital products are not covered by the 10-year warranty. You can find our the detailed warranty conditions at www.interstuhl.com.

Interstuhl

Modern minimalist interior with teal and white furniture, featuring a window with windows and a smiling woman in the foreground (no text or symbols on main objects)

\_ FR - MODE D'EMPLOI

Isometric line drawing of two curved furniture compartments with internal structural elements (no text or symbols)

TABLE DES MATIÈRES

1. INFORMATIONS GÉNÉRALES
2. SÉCURITÉ
   2.1. EXPLICATION DES SYMBOLES
   2.2. CONSIGNES DE SÉCURITÉ
3. NOTES TECHNIQUES
4. MONTAGE ET UTILISATION
5. NETTOYAGE ET ENTRETIEN

5.1. TISSUS ET CUIRS
5.2. PIÈCES EN ALUMINIUM
5.3. COMPOSANTS ÉLECTRONIQUES
6. ENTRETIEN DES COMPOSANTS ÉLECTRONIQUES
7. MISE AU REBUT
8. INFORMATIONS DE GARANTIE

1. INFORMATIONS GÉNÉRALES

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

Diagram showing a wall-mounted power outlet connected to a small yellow component, with red arrows indicating rotation or movement (no text or symbols present)

max. 30 kg max. 30 kg

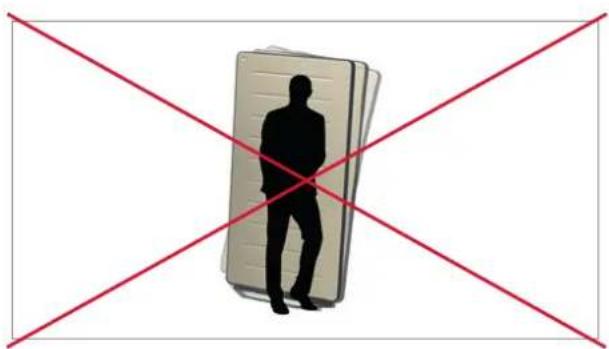

Silhouette of a person standing beside a closed book, crossed by red diagonal lines (no text or symbols)

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

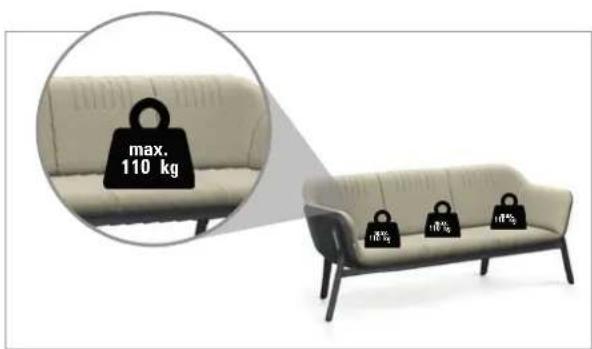

max. 110 kg n=2% n=3% n=4%

max. 110 kg max. 110 kg

max. 30 kg

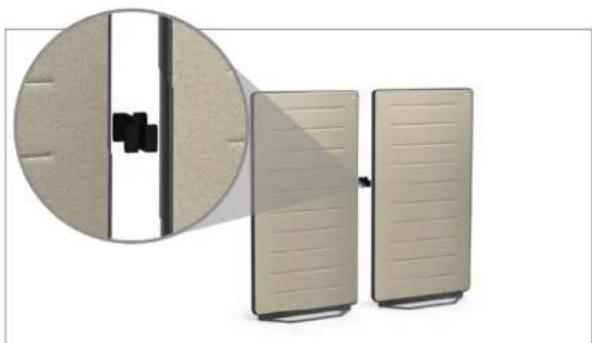

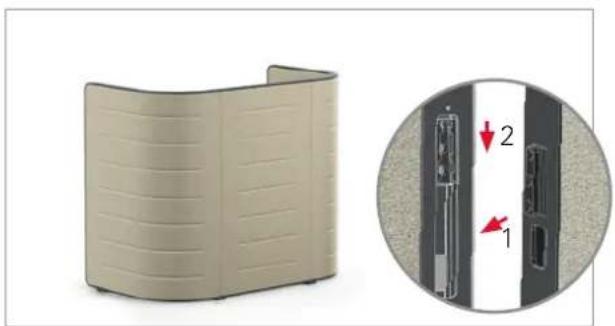

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

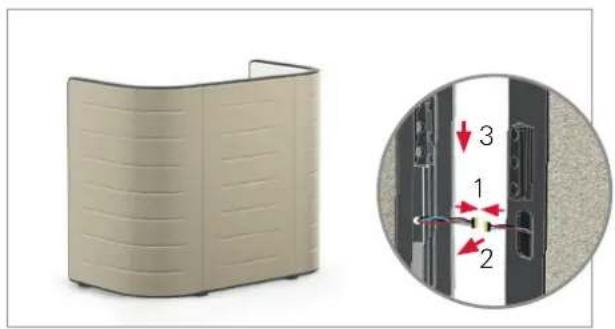

Diagram showing a device with red arrow indicating direction, alongside an open panel with white paper and black connectors (no text or symbols)

Safety warning sign showing hazard symbols for running and walking, with red arrows indicating correct and incorrect actions.

min. 3 cm 117 cmax. max. 15 kg

102 cm tax. MAX 15 kg

max. 30 kg

Close-up of a mechanical component with a lever and arrow indicator (no text or symbols visible)

Exterior view of a beige fire extinguisher with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Exterior view of a beige office chair with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Diagram showing a device connected to a cylindrical device with an inset close-up of its cable (no text or symbols visible)

3D diagram showing a mechanical component with red arrows indicating force or movement, alongside a separate black-and-white assembly (no text or symbols)

1 2 1 mm 5 mm 10 mm 0 2 1

Illustration of a portable storage cabinet with a black padlock labeled 'max. 30 kg' on the side (no additional text or symbols)

Close-up of a black structural frame with red and beige clamps, no visible text or symbols

Modern minimalist interior with blue and teal furniture, featuring a window with windows and a smiling woman in the foreground (no text or symbols)

\_ NL - GEBRUIKERSHANDLEIDING

Isometric line drawing of two curved furniture compartments with internal structural elements (no text or symbols)

INHOUD

1. ALGEMENE INFORMATIE
2. VEILIGHEID
   2.1. BETEKENIS VAN SYMBOLEN
   2.2. VEILIGHEIDSVOORSCHRIFTEN
3. TECHNISCHE INFORMATIE
4. MONTAGE EN GEBRUIK
5. REINIGING EN ONDERHOUD

5.1. STOFFEN EN LEDEREN MATERIALEN
5.2. ALUMINIUM DELEN
5.3. ELEKTRISCHE ONDERDELEN
6. ONDERHOUD VAN ELEKTRISCHE ONDERDELEN
7. VERWIJDERING VAN AFGEDANKTE PRODUCTEN
8. GARANTIE

1. ALGEMENE INFORMATIE

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

Diagram showing a wall-mounted power outlet connected to a small yellow component, with red arrows indicating rotation or movement (no text or symbols present)

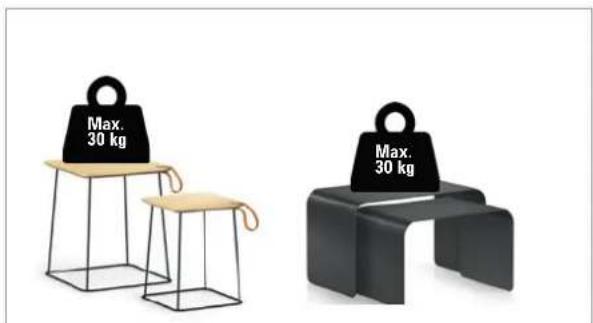

Max. 30 kg Max. 30 kg

Silhouette of a person standing beside a closed book, crossed by red diagonal lines (no text or symbols)

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

Max. 110 kg Pb3 Pb4 Pb5

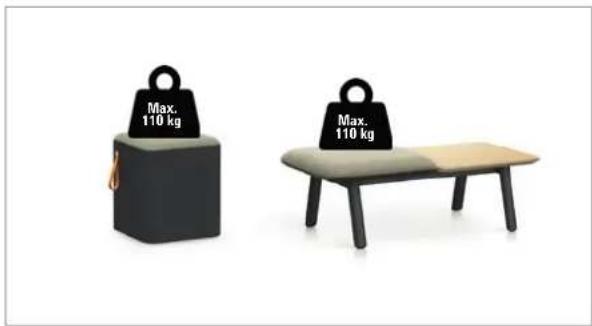

Max. 110 kg Max. 110 kg

Max. 30 kg

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

Diagram showing a device with red arrow pointing to a panel, alongside an inset magnified view of its edge (no text or symbols)

Safety warning sign showing hazard symbols for running and walking, with red arrows indicating correct and incorrect actions.

Min. 3 cm 117 cm Max. Max. 15 kg

102 cm Max. Max. 15 kg

Max. 30 kg

Close-up of a mechanical component with a lever and arrow indicator (no text or symbols visible)

Exterior view of a beige fire extinguisher with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Exterior view of a beige office chair with ventilation grilles and an inset close-up showing internal components (no text or symbols)

Diagram showing a device connected to a cylindrical device with an inset close-up of its cable (no text or symbols visible)

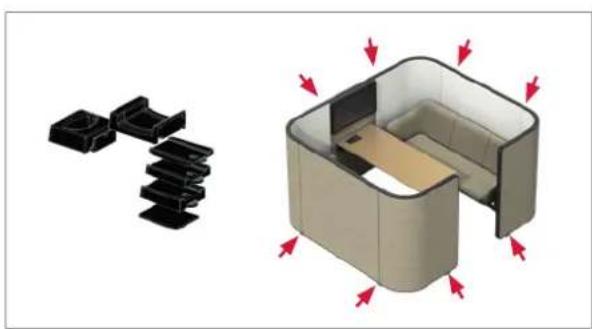

3D diagram showing a mechanical component with red arrows indicating force or movement, alongside a separate black-and-white assembly (no text or symbols)

1 2 1 mm 5 mm 10 mm 0 2 1

Illustration of a portable device with a black padlock labeled 'Max. 30 kg' on its side (no additional text or symbols)

Exterior view of a modern building roof structure with black panels and support beams (no signage or text visible)

Modern minimalist interior with teal and white furniture, featuring a window with windows and a smiling woman in the foreground (no text or symbols visible)

\_ ES - MANUAL DE INSTRUCCIONES

Isometric line drawing of two furniture compartments with red wireframe outlines, no text or symbols present

TABLA DE CONTENIDOS

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

Diagram showing a wall-mounted power outlet connected to a small yellow component with red arrows indicating rotation (no text or symbols present)

Silhouette of a person standing beside a closed book, crossed by red diagonal lines (no text or symbols)

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

máx. 110 kg n/N %s n/N %s n/N %s

máx. 110 kg máx. 110 kg

máx. 30 kg

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

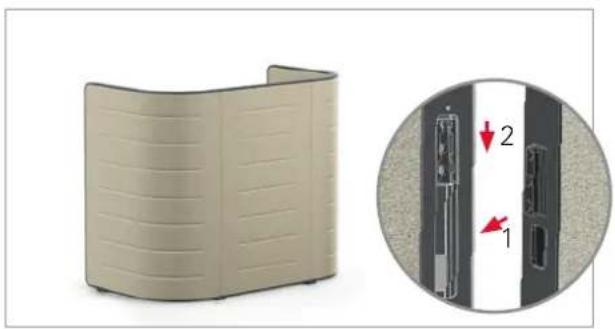

Diagram showing a device with red arrow indicating direction, alongside an open panel with white paper and black connectors (no text or symbols)

Safety warning sign showing hazard symbols for running and walking, with red arrows indicating correct and incorrect actions.

min. 3 cm 117 cmmáx. max. 15 kg

102 cm max. max. 15 kg

máx. 30 kg

Close-up of a mechanical component with a lever and mounting holes, no visible text or symbols

Exterior view of a beige fire extinguisher with ventilation grilles and an inset close-up showing internal components (no text or symbols)

Exterior view of a beige office chair with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Diagram showing a device connected to a cylindrical device with an inset close-up of its cable (no text or symbols visible)

3D diagram showing a mechanical component with red arrows indicating force or movement, alongside a separate black-and-white assembly (no text or symbols)

1 2 1 mm 5 mm 10 mm 0 2 1

Illustration of a portable storage cabinet with a black padlock labeled 'máx. 30 kg' on the side (no additional text or symbols)

Exterior view of a modern building roof structure with black panels and support beams (no signage or text visible)

Modern minimalist living space with teal and white furniture, featuring a window, bookshelves, and a smiling woman's portrait (no text or symbols visible)

\_ IT - ISTRUZIONI D'USO

Line drawing of two furniture compartments with red wireframe outlines, no text or symbols present

INDICE

\_Moduli LED HUB pod

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

Diagram showing a wall-mounted power outlet connected to a small yellow component, with red arrows indicating rotation or movement (no text or symbols present)

max. 30 kg max. 30 kg

Silhouette of a person standing beside a closed notebook with red diagonal lines (no text or symbols)

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

max. 110 kg n3n3 n3n2 n3n3

max. 110 kg max. 110 kg

max. 30 kg

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

Diagram showing a device with red arrow indicating direction, alongside an open panel with white paper and black connectors (no text or symbols)

Safety warning sign showing hazard symbols for running and walking, with red arrows indicating correct/incorrect actions.

min. 3 cm 117 cm max. max. 15 kg

102 cm max. max. 15 kg

max. 30 kg

Close-up of a mechanical component with a lever and mounting holes, no visible text or symbols

Exterior view of a beige rectangular device with ventilation grilles and an inset close-up showing internal components (no text or symbols)

Exterior view of a beige office chair with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Diagram showing a device connected to a cylindrical device with an inset close-up of its cable (no text or symbols visible)

3D diagram showing a mechanical component with red arrows indicating force or movement, alongside a separate black-and-white assembly (no text or symbols)

1 2 1 mm 5 mm 10 mm 0 2 1

Illustration of a beige cabinet with a black padlock labeled 'max. 30 kg' on the lid (no additional text or symbols)

Exterior view of a modern building roof structure with black panels and support beams (no signage or text visible)

Modern minimalist interior with blue and teal furniture, featuring a window with windows and a smiling woman in the foreground (no text or symbols)

\_DA-BRUGERVEJLEDNING

Isometric line drawing of two furniture compartments with red wireframe outlines, no text or symbols present

INDHOLDSFORTEGNELSE

1. GENEREL INFORMATION
2. SIKKERHED
   2.1. SYMBOLFORKLARING
   2.2. SIKKERHEDSANVISNINGER
3. TEKNISKE HENVISNINGER
4. MONTERING OG ANVENDELSE
5. RENG∅RING OG PLEJE

5.1. STOF OG LÆDER
5.2. ALUMINIUMSDELE
5.3. ELEKTRISKE KOMPONENTER
6. VEDLIGEHOLDELSE AF ELEKTRISKE KOMPONENTER
7. BORTSKAFFELSE
8. GARANTI

1. GENEREL INFORMATION

2.1 SYMBOLFORKLARING

Fare for at snuble:

Silhouette of a person pushing a sofa with red diagonal lines (no text or symbols)

Silhouette of a person sitting on a beige sofa with red diagonal lines crossing the sides (no text or symbols)

Diagram showing a wall-mounted power outlet connected to a small yellow component, with red arrows indicating rotation or movement (no text or symbols present)

maks. 30 kg maks. 30 kg

Silhouette of a person standing beside a closed book, crossed by red diagonal lines (no text or symbols)

Silhouettes of two people adjusting a beige sofa against a white background (no text or symbols)

maks. 110 kg nbs₁ nbs₂ nbs₃

maks. 110 kg maks. 110 kg

maks. 30 kg

Two beige rectangular panels with ventilation grilles, one showing a close-up of a black connector (no text or symbols visible)

Diagram showing a device with red arrow indicating direction, alongside an open panel with white paper and black connectors (no text or symbols)

Safety warning sign showing hazard symbols for running and walking, with red arrows indicating correct and incorrect actions.

min. 3 cm 117 cm maks. maks. 15 kg

102 cmmaks maks 15 kg

maks. 30 kg

Close-up of a mechanical component with a lever and arrow indicator (no text or symbols visible)

Exterior view of a beige fire extinguisher with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Exterior view of a beige office chair with ventilation grilles and a close-up inset showing internal components (no text or symbols)

Diagram showing a device connected to a cylindrical device with an inset close-up of its cable (no text or symbols visible)

3D diagram showing a mechanical component with red arrows indicating force or movement, alongside a separate black-and-white assembly (no text or symbols)

1 2 1 mm 5 mm 10 mm 0 2 1

maks. 30 kg

Exterior view of a modern building roof structure with black panels and support beams (no signage or text visible)
