VIGI C220I - Surveillance Camera TP-LINK - Free user manual and instructions

Product Type	Network Surveillance Camera
Brand	TP-Link
Model	VIGI C220I
Power Supply	12 V DC or PoE (802.3af/at)
Management Methods	VIGI App, Web Browser, VIGI Security Manager (Windows)
NVR Compatibility	VIGI NVR and other brands
Installation	Wall or ceiling mount according to quick start guide
Security	Password activation, instant alerts via app
Operating Environment	Indoor or outdoor (depending on model)
Maintenance	Clean with a dry cloth, avoid liquids
Warranty	TP-Link limited warranty, duration according to packaging
Compliance	Directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU, (EU)2015/863
Initial Setup	Via VIGI Security Manager, VIGI app, or web browser
Remote Access	Yes, via VIGI app with TP-Link ID
Voice Assistant	Not compatible

Frequently Asked Questions - VIGI C220I TP-LINK

How to activate the TP-Link VIGI C220I camera?

To activate the camera, use the VIGI app, VIGI Security Manager, or a web browser. Set a password to secure the device.

How to connect the camera to an NVR?

Connect the camera to the same network as the NVR, power it on via PoE or external power supply, then add it from the NVR interface.

What are the power options?

The camera can be powered via PoE (802.3af/at) or a 12 V DC power supply. Ensure the source complies with PS2 or LPS class.

How to view the camera remotely?

Download the VIGI app, log in with your TP-Link account, then add the camera by scanning or entering its ID.

Is the camera compatible with other NVR brands?

Yes, you can use the camera with an NVR from another brand. First activate it via VIGI Security Manager or the app, then follow the NVR instructions.

How to reset the camera?

The manual does not mention a hardware reset. Contact TP-Link support for the specific procedure.

What are the network requirements?

The camera must be connected to a local network via an Ethernet cable. A router or switch is required for network access.

Can I use the camera without an NVR?

Yes, you can manage the camera directly via the VIGI app, a web browser, or VIGI Security Manager without needing an NVR.

How to install the camera outdoors?

Follow the quick start guide for mounting. Ensure the installation is sheltered from weather and the power supply is protected.

What to do if the camera does not connect?

Check the network connection, power supply, and that the camera is powered on. Use VIGI Security Manager to detect the device and reset if necessary.

USER MANUAL VIGI C220I TP-LINK

For technical support, the user guide and more information, please visit https://www.tp-link.com/support.

7106509961 REV1.4.0@2022 TP Link

Images may differ from your actual products.

CONTENTS

01 / English
05 / Deutsch
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Nederlands

33 / 日本語
37 / 한국어
41 / 繁體中文
45 / ไทย
49 / Tiếng Việt
53 /

Mount Your Camera

Mount your camera according to the diagrams in the Quick Start Guide included in the package.

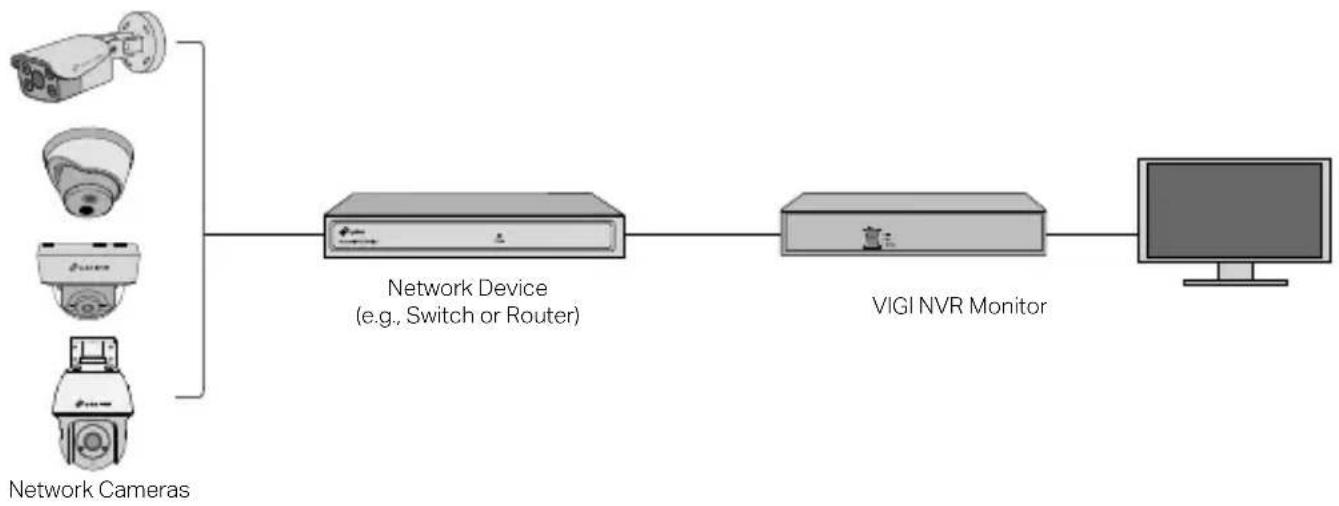

Use Your Camera with an NVR

The camera works with an NVR for easier batch access and management. Here we use a VIGI NVR as an example.

1 Connect your cameras to the same network as your NVR (as shown above).

English

2 Power on your cameras with the PoE power supply or an external power supply.

Note: The camera's standard power supply is 12V DC or PoE (802.3af/at). The power source should comply with Power Source Class 2 (PS2) or Limited Power Source(LPS) of IEC 62368-1. Some models do not support DC power supply. You can check the detailed specifications on the product page at https://www.tp-link.com/.

3 Add your cameras with the NVR.

Before you start, make sure the NVR is working properly. Then add your camera with the NVR.

1) Go to the NVR management page, right click on the screen, and click Add Camera.

2) Select your camera and click + to add your camera directly. If you have disabled Plug & Play on your NVR, create a password or use a preset password for your camera.

Done! You can now view live video and manage cameras.

Using your cameras with other NVR brands

1 Power on your cameras and connect them to the network.
2 Activate the camera using the VIGI Security Manager or VIGI app (refer to the next section).
3 Refer to the NVR's User Manual to add cameras.

More Management Methods

You can also access and manage your cameras via any of the methods below.

Method 1: Via the VIGI App

Remotely view live video, manage cameras, and get instant alerts.

1 Download and install the VIGI app.

2 Open the VIGI app and log in with your TP-Link ID. If you don't have an account, sign up first.
3 Tap the + button on the top right and follow the app instructions to activate and add your cameras.

Method 2: Via a Web Browser

Note: Some models do not support web management. You can check the detailed specifications on the product page at https://www.tp-link.com/.

View live video and modify camera settings via a web browser.

1. Find the camera's IP address on your router's client page.
2. On your local computer, open a web browser and enter https://camera's IP address

English

(https://192.168.0.60 by default).

1. Select your Country/Region and Time Zone.
2. Set a password to activate the camera.

Done. You can view the live video on the Preview page, and go to the Settings page to change camera settings.

Method 3: Via the VIGI Security Manager (Windows only)

View live video and modify camera settings on your computer.

1 Download the VIGI Security Manager on your computer at https://www.tp-link.com/download-center/
2 Install the VIGI Security Manager and open it.
3 Cameras on the same network as your computer can be automatically discovered. Go to Settings > Discovered Devices, click + Add to activate your discovered cameras by setting passwords, and follow the instructions to add your cameras.

For frequently asked questions, please refer to https://www.tp-link.com/support/faq/2850/

./https://www.tp-link.com

.הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכלההוּרָה,הכchia

./https://www.tp-link.com

.הכלההוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָהוּרָה

(Windows) VIGI:3

https://www.tp-link.com/download-center/

English: Safety Information

• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• Do not use damaged charger or USB cable to charge the device.
• Do not use any other chargers than those recommended.

For indoor camera

• Keep the device away from water, fire, humidity or hot environments.
• Adapter shall be installed near the equipment and shall be easily accessible.

For outdoor camera

• Keep the device away from fire or hot environments. DO NOT immerse in water or any other liquid.
• Adapter shall be easily accessible.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

單元Unit	限用物質及其化學符號Restricted substances and its chemical symbols
	鉛Lead(Pb)	汞Mercury(Hg)	銅Cadmium(Cd)	六價鉻Hexavalent chromium( Cr^6 )	多溴聯苯Polybrominated biphenyls(PBB)	多溴二苯醚Polybrominated diphenylethers (PBDE)
PCB ○○	○○○○
外殼 ○○	○○○○
電源供應器	-○○○○○
其他及其配件	-○○○○○
備考1. “超出0.1 wt %”及“超出0.01 wt %”係指限用物質之百分比含量超出百分比含量基準值Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of presence condition.備考2. “○”係指該項限用物質之百分比含量未超出百分比含量基準值。Note 2: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence.備考3. “—”係指該項限用物質為排除項目。Note 3: The “—” indicates that the restricted substance corresponds to the exemption.

English:

TP-Link hereby declares that this device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2009/125/EC, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce.

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of the

Electromagnetic Compatibility Regulations 2016 and Electrical Equipment (Safety) Regulations 2016.

The original UK declaration of conformity may be found at https://www.tp-link.com/support/ukca/

Deutsch:

For TP-Link Branded Products Only. For more information about warranty, please visit https://www.tp-link.com/en/support THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the

date of original retail purchase by the end-user purchaser.
