READ AND SAVE THESE INSTRUCTIONS

INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.

HOMEOWNER: USE AND CARE INFORMATION ON PAGE 10.

Register your range hood online at www.nutone.com

⚠ WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.
2. Before servicing or cleaning unit, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
3. Installation work and electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards, including fire-rated construction codes and standards.
4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer's guidelines and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
6. Ducted fans must always be vented to the outdoors.
7. Do not use this unit with any solid-state speed control device.
8. To reduce the risk of fire, use only metal ductwork.
9. This unit must be grounded.
10. To provide protection against electric shock, connect to properly grounded outlet only.
11. When applicable local regulations comprise more restrictive installation and/or certification requirements, the aforementioned requirements prevail on those of this document and the installer agrees to conform to these at his own expense.

TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambeing food (i.e.: Crêpes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan, filters or in exhaust ducts.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

⚠ WARNING

TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING\*:

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet or metal tray, then turn off the burner. BE CAREFUL TO PREVENT BURNS. IF THE FLAMES DO NOT GO OUT IMMEDIATELY, EVACUATE AND CALL THE FIRE DEPARTMENT.
2. NEVER PICK UP A FLAMING PAN — You may be burned.
3. DO NOT USE WATER, including wet dishcloths or towels — This could cause a violent steam explosion.
4. Use an extinguisher ONLY if:

A. You own a Class ABC extinguisher and you know how to operate it.
B. The fire is small and contained in the area where it started.
C. The fire department has been called.
D. You can fight the fire with your back to an exit.

* Based on "Kitchen Fire Safety Tips" published by NFPA.

CAUTION

1. For indoor use only.
2. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
3. To avoid motor bearing damage and noisy and/or unbalanced impeller, keep drywall spray, construction dust, etc. off power unit.
4. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down. If the motor continues to shut off and restart, have the hood serviced.
5. The minimum hood distance above cooktop must not be less than 26". For best capture of cooking impurities, the bottom of the hood should be at a maximum of 30" above cooking surface. For a gas range, the bottom of the hood MUST NOT BE LESS than 30" above cooktop.
6. Two installers are recommended because of the large size and weight of this unit.
7. To reduce the risk of fire and to properly exhaust air, be sure to duct air outside — Do not exhaust air into spaces within walls or ceiling or into attics, crawl space or garage.
8. Because of the high exhausting capacity of this unit, you should make sure enough air is entering the house to replace exhausted air by opening a window close to or in the kitchen.
9. To reduce the risk of fire and electrical shock, the NuTone NW8 Series models should only be installed with their own built-in blower.
10. When used in recirculation mode, to reduce the risk of fire and shock, use only conversion kit model RK58.
11. Please read specification label on product for further information and requirements.

TABLE OF CONTENTS

1. PREPARE INSTALLATION....3
2. SELECT INSTALLATION TYPE....3
3. WIRING INSTALLATION....4
4. INSTALL HOOD MOUNTING BRACKET 4
5. INSTALL UPPER FLUE MOUNTING BRACKET.....5
6. REMOVE GREASE FILTERS....5
7. INSTALL 6" ROUND ADAPTER/DAMPER....5

8. INSTALL THE HOOD....5

9. DUCT CONNECTION 6-7

10. PREPARE THE DECORATIVE FLUE....8
11. INSTALL THE DECORATIVE FLUE.... 8-9
12. REINSTALL GREASE FILTERS....9
13. OPERATION 10
14. CARE 10
15. REPLACEMENT PARTS.... 11
16. WARRANTY 12

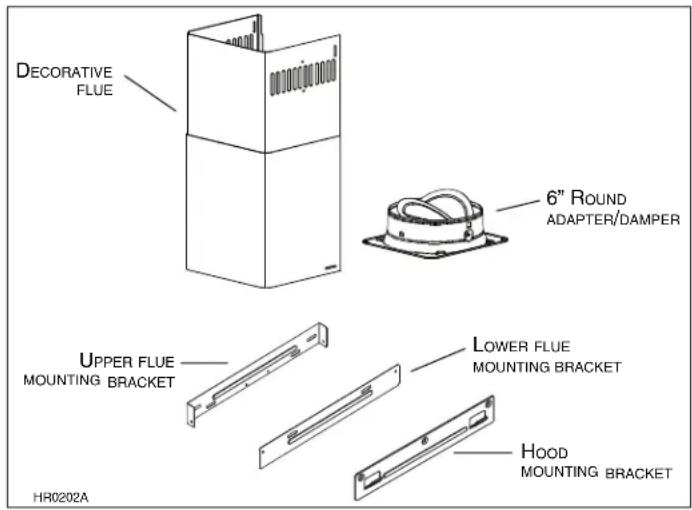

1. PREPARE INSTALLATION

NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the retailer.

Make sure that the following items are included:

• Hood
• Decorative flue assembly (lower and upper flues)
• Hood mounting bracket
• Lower flue mounting bracket
• Upper flue mounting bracket
• 2 Aluminum grease filters
• 6" Round adapter/damper
• Installation instructions
• Parts bag: 10 no. 8 x 5/16" mounting screws,
  7 no. 8 x 1½" mounting screws,
  7 drywall anchors, 2 washers

Parts sold separately:

• Ducts, elbows, wall and roof caps.
• Optional flue extension for 10-ft. ceilings model FXN58SS.
• Non-duct kit model RK58, mandatory for non-ducted installation.

NOTE: During installation, protect countertop and/or cooktop.

DECORATIVE FLUE 6" ROUND ADAPTER/DAMPER UPPER FLUE MOUNTING BRACKET LOWER FLUE MOUNTING BRACKET HOOD MOUNTING BRACKET HR0202A

2. SELECT INSTALLATION TYPE

WARNING

When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves.

2.1 NON-DUCTED INSTALLATION

The RK58 non-duct kit is required for a non-ducted installation.

2.2 DUCTED INSTALLATION

Plan where and how the ductwork will be installed.

A straight, short duct run will allow the hood to perform most efficiently. Long duct runs, elbows and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for longer duct runs. Install wall or roof cap. Connect 6" round metal ductwork to cap and work back towards the hood location. Use 2" metal foil duct tape to seal the joints.

2.3 ALL INSTALLATIONS

The minimum hood distance above cooktop is 26" (30" over a gas range). A maximum of 30" above cooktop is recommended for best capture of cooking impurities.

Distances over 30" are at the installer and users discretion providing that ceiling height and decorative flue length allow it.

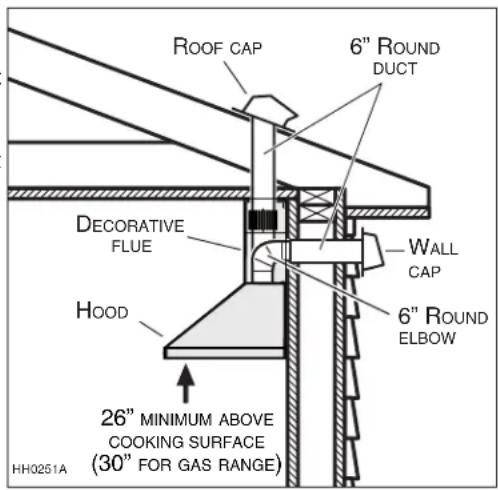

ROOF CAP 6" ROUND DUCT DECORATIVE FLUE WALL CAP HOOD 6" ROUND ELBOW 26" MINIMUM ABOVE COOKING SURFACE (30" FOR GAS RANGE) HH0251A

3. WIRING INSTALLATION

WARNING

Electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards. This range hood must be properly grounded. Turn off electrical power at service entrance before wiring.

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Set the electrical power supply within the space covered by the decorative flue.

WARNING

Improper grounding can result in a risk of electric shock. Consult a qualified electrician if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualified electrician install an outlet near the appliance.

Position the outlet offset so that the power cord will not interfere with the round duct. Place the outlet at a maximum distance of 33^7/_16 " from where the cord exits from the hood (see illustration at right). Make sure this does not interfere with a mounting bracket fastening area or with the decorative flue (where the flue touches the wall).

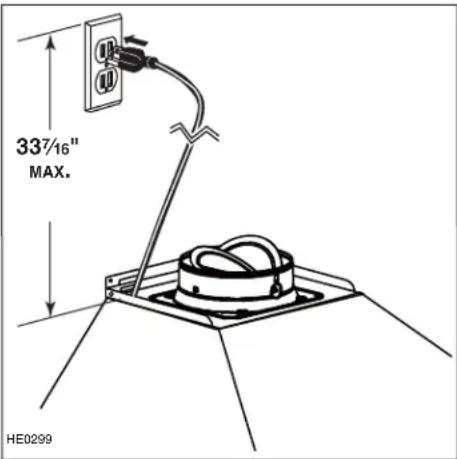

337/16" MAX. HE0299

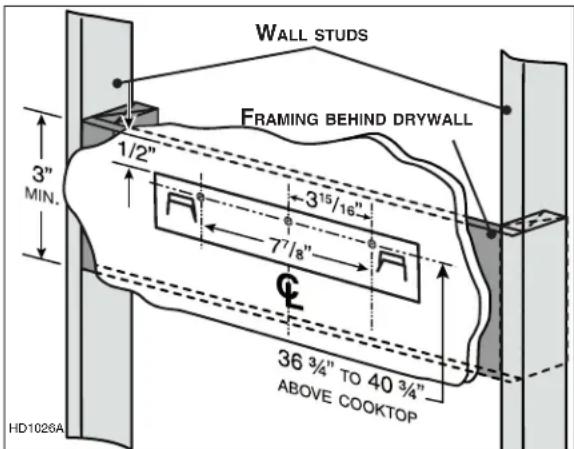

4. INSTALL HOOD MOUNTING BRACKET

WARNING

• When cutting or drilling into wall, do not damage electrical wiring and other hidden utilities.
• When building framework, always follow all applicable construction codes and standards.

Construct wood wall framing that is even with the surface of wall studs.
Wood wall framing must be at least 1/2" thick and 3" high. Fasten wood wall framing to wall studs for a solid installation.
Make sure that the height of the framing will allow the mounting bracket to be secured to the framing within the dimensions shown.
After wall surface is finished, carefully center and level the hood mounting bracket over installation location. Secure it to wall framing using 3 no. 8 x 1½" screws.
Using a level, draw a vertical line up to the ceiling starting from the mounting bracket center.

WALL STUDS FRAMING BEHIND DRYWALL 1/2" 3" MIN. 7"/8" 36 ¾" TO 40 ¾" ABOVE COOKTOP HD1026A

36 3/4" = BOTTOM OF HOOD 26" ABOVE COOKTOP
40 ^3/4 " = BOTTOM OF HOOD 30" ABOVE COOKTOP

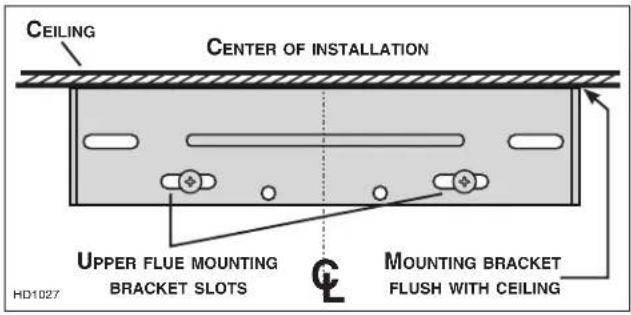

5. INSTALL UPPER FLUE MOUNTING BRACKET

Center the upper flue mounting bracket with the center line previously drawn in step 4 and place it flush with the ceiling. Make sure that the slots of the upper flue bracket point down. Use the upper flue mounting bracket as a template to mark the position of its screws.

Drill both screw holes using a 5/16" drill bit. Insert the included drywall anchors into the drilled holes (one per hole).

Secure the upper flue bracket to the wall using 2 no. 8 x 1½" mounting screws. Make sure that the bracket is tight against the wall.

CEILING CENTER OF INSTALLATION HD1027 UPPER FLUE MOUNTING BRACKET SLOTS MOUNTING BRACKET FLUSH WITH CEILING

6. REMOVE GREASE FILTERS

Lay the back side of the hood flat on a table. Use a piece of cardboard to avoid damaging the table or the hood.

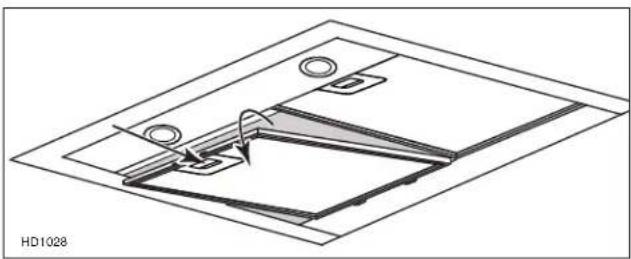

To remove the grease filters, pull down on the metal latch tab and tilt each filter downward. Set filters aside.

Technical line drawing of a mechanical assembly with no visible text or symbols

7. INSTALL 6" ROUND ADAPTER/DAMPER

Mount the 6" round adapter/damper (included) using 4 no. 8 x 5/16" screws (included). Seal the adapter/damper to the hood using metal foil duct tape.

NON-DUCTED INSTALLATION: Remove both damper flaps.

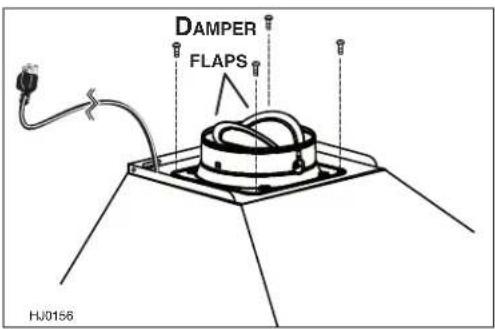

DAMPER FLAPS HJ0156

8. INSTALL THE HOOD

WARNING

BE CAREFUL when installing the decorative flue and hood, they may have sharp edges.

CAUTION

DO NOT REMOVE the protective plastic film covering the decorative flue (upper & lower) yet.

1. Align the hood and center it above the hood mounting bracket. Gently lower the hood until it securely engages the bracket.
2. Level the hood.
3. With the hood hanging in place, drill through both holes located in the inside lower back of hood using a 5/16" drill bit (see illustration at right).
4. Insert the included drywall anchors into the drilled holes (one for each hole).
5. Verify that the hood is still centered and leveled.
6. Secure the hood to the wall using 2 no. 8 x 1½" screws and 2 washers. Tighten both screws completely.

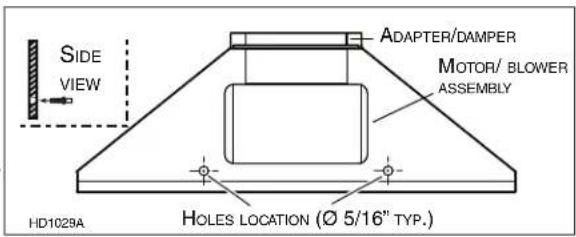

SIDE VIEW ADAPTER/DAMPER MOTOR/ BLOWER ASSEMBLY HOLES LOCATION (∅ 5/16" TYP.) HD1029A

9. DUCT CONNECTION

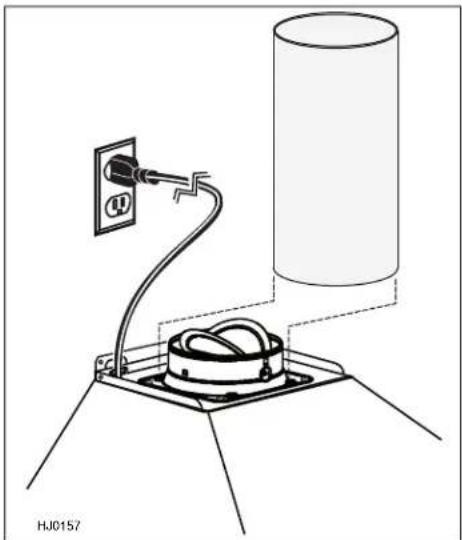

VERTICALLY DUCTED INSTALLATION:

Plug hood power cord into the outlet. Slide a 6" round metal duct section over the adapter/damper on the hood. Use metal foil duct tape to seal the joint.

Diagram of a wall-mounted electrical outlet connected to a cylindrical tank, with no visible text or symbols.

HORIZONTALLY DUCTED INSTALLATION:

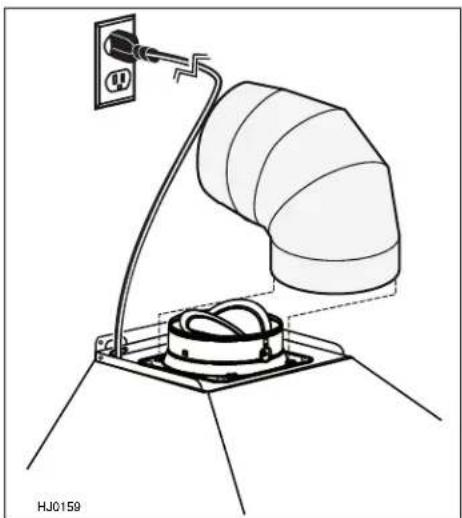

Plug hood power cord into the outlet. Measure and install 6" round metal ductwork to wall cap and 90° elbow over duct collar over the adapter/damper on the hood. Use metal foil duct tape to seal the joints.

Technical line drawing of a pipe installation with a power outlet and support structure (no text or symbols)

NOTE: To make sure there will be adequate clearance between top of hood and lower flue mounting bracket for ductwork, elbow must be located below the lower flue mounting bracket.

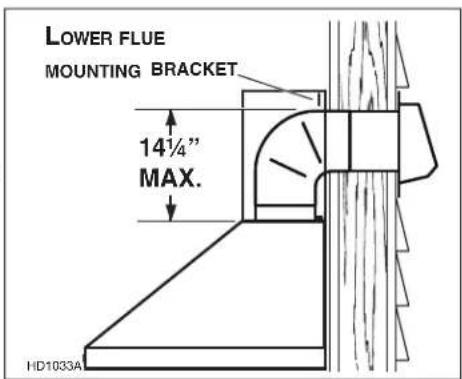

LOWER FLUE MOUNTING BRACKET 14¼" MAX. HD1033A

9. DUCT CONNECTION (CONTINUED)

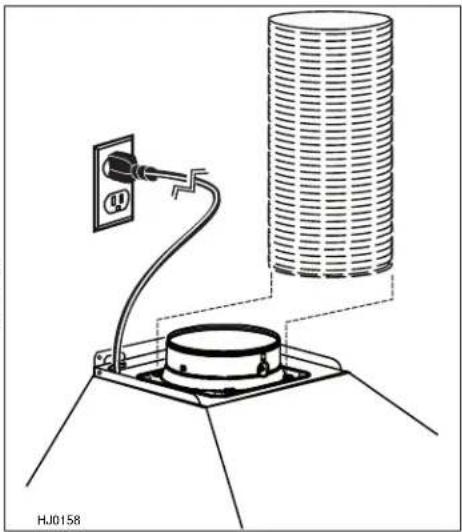

NON-DUCTED INSTALLATION:

Plug hood power cord into the outlet.

Measure the length of 6" round flexible duct (included in the non-duct kit) required from the top of the hood to the ceiling. Slide the 6" round flexible metal duct over the adapter (whitout damper flaps) on the hood; attach with one included tie-wrap. Use metal foil duct tape to seal the joint.

Technical diagram of a wall-mounted electrical fixture with a cylindrical component and power outlet (no text or symbols)

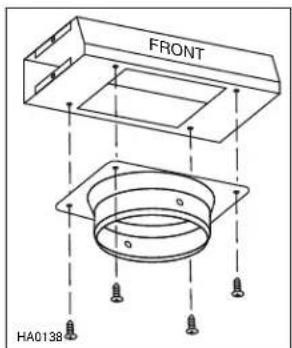

Using 4 ST4 x 8 provided screws, assemble the 6" round adapter to the plenum.

FRONT HA0138

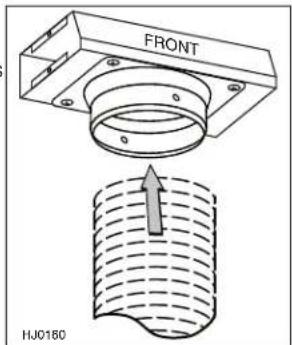

Attach the aluminum flexible duct to the non-duct plenum collar. Make sure non-duct plenum "FRONT" is facing front of hood. Secure with tie wrap and seal with metal foil duct tape.

FRONT HJ0160

10. PREPARE THE DECORATIVE FLUE

Remove the upper flue from inside the lower flue. Remove protective plastic film covering the lower flue only. Install the lower flue bracket to its flue using 2 no. 8 x 5/16" mounting screws, ensure that the slots point up.

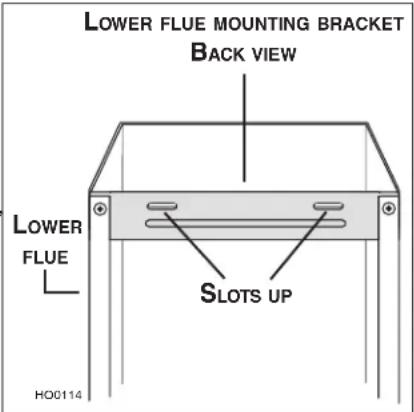

LOWER FLUE MOUNTING BRACKET BACK VIEW LOWER FLUE SLOTS UP HO0114

Both lower and upper flues are included with the hood, but for a 10-foot ceiling, discard the provided upper flue and use the optional flue extension, part no. FXN58SS (sold separately).

Peel off both corners at the top of the upper flue.

NOTE: For non-ducted installation only, remove enough plastic film to clear the louvers.

Position the lower flue rear notches down.

Gently slide upper flue inside lower flue, louvers end up.

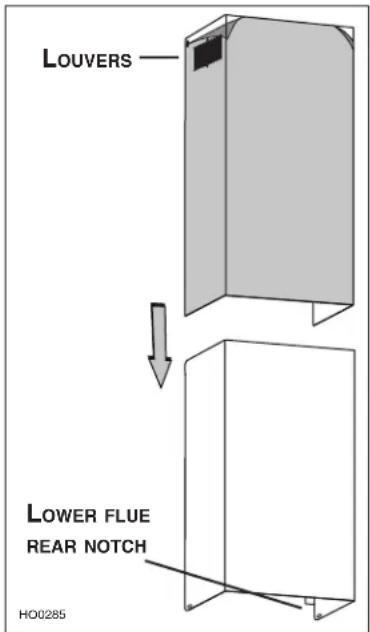

LOUVERS LOWER FLUE REAR NOTCH HO0285

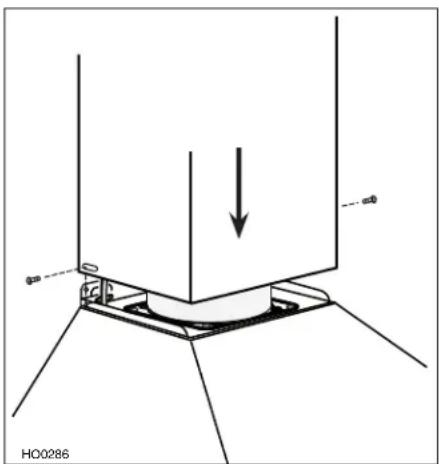

11. INSTALL THE DECORATIVE FLUE

Carefully slide in place decorative flue base (notches end first) in the groove on the top of the hood. Slightly slide up the upper flue to avoid any damage while installing the lower flue to the top of the hood using 2 no. 8 x 5/16" screws through the lower flue side slots.

Technical diagram showing a mechanical assembly with a downward arrow and base plate (no text or symbols)

11. INSTALL THE DECORATIVE FLUE (CONTINUED)

DUCTED INSTALLATION:

Attach the 6" round duct section to the rest of the ducting. Use metal foil duct tape to seal the joint.

NON-DUCTED INSTALLATION:

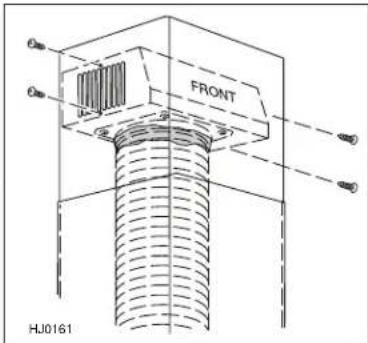

Pull the upper flue up and attach the non-duct plenum with collar to the upper flue using 4 ST4 x 8 provided screws.

FRONT HJ0161

ALL INSTALLATIONS:

Slide up the upper flue until it is aligned with its mounting bracket. The bracket must be inside the flue. Secure the upper flue to its bracket using 2 no. 8 x 5/16" mounting screws. NOTE: Duct (or non-duct plenum) not shown in illustration to ease understanding. Remove protective plastic film covering the upper flue and the hood.

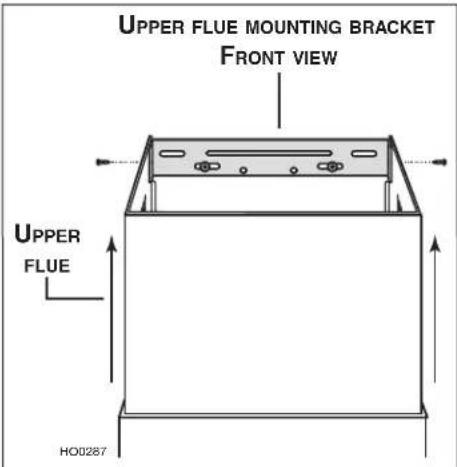

UPPER FLUE MOUNTING BRACKET FRONT VIEW UPPER FLUE HO0267

12. REINSTALL GREASE FILTERS

NON-DUCTED INSTALLATION:

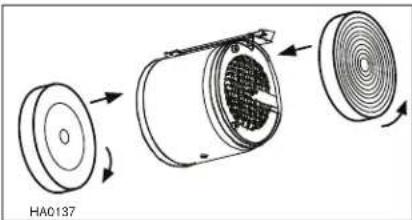

Attach two non-duct recirculation filters to sides of blower by aligning key lock slot and rotating until filters lock into place.

Diagram of a mechanical device with three views showing internal components and directional arrows (no text or symbols)

ALL INSTALLATIONS:

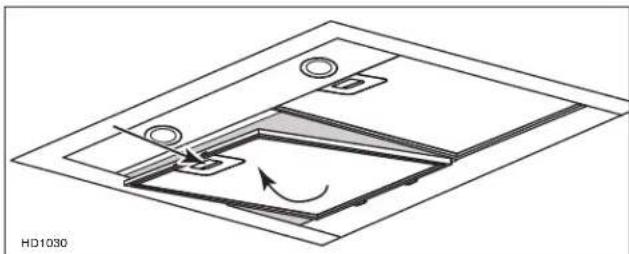

To reinstall the grease filters, align rear filter tabs with slots in the hood. Pull down the metal latch tab, push each filter into position and release. Make sure filters are securely engaged after installation.

Technical diagram of a mechanical assembly with a rotating component and mounting holes (no text or symbols)

13. OPERATION

Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. This will help keep the whole kitchen cleaner and brighter.

NOTE: When pressed, the chosen push button beeps and its indicator lights up blue.

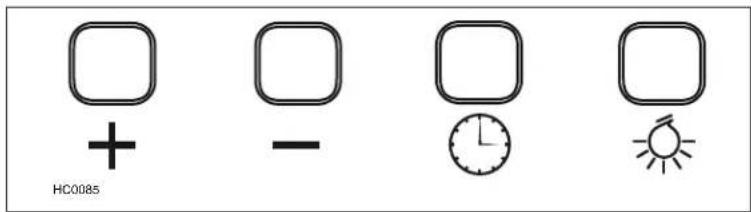

HC0085

Press one time on this push button to activate the blower at low speed, a second time for medium speed and a third time for high speed.

NOTE: When blower is turned on, 100% of power level is activated during 1 to 2 seconds acting as a "kick-start". It will then operate at the desired setting.

Press on this push button to lower the blower speed. If need be, press until the blower stops.

DELAY SETTING PUSH BUTTON:

To set delay, press this push button when blower and/or lights are in use. Blower and/or lights will continue to operate for 10 minutes and then will stop automatically (the delay setting push button indicator will blink during the 10 minutes to indicate that the delay has been activated). To cancel delay function, press on this push button again, the blower and/or lights will continue to operate and won't stop until Blower OFF / Speed decrease push button and/or Lighting push button is pressed.

LIGHTING PUSH BUTTON:

Press once on this push button to turn the lights on. Press once more to turn the lights off.

14. CARE

Grease Filters

Grease filters should be cleaned frequently. Use a warm dishwashing detergent solution to clean the filters.

Clean all-metal filters using a non-phosphate detergent. Discoloration of the filters may occur if using phosphate detergents, or as a result of local water conditions - but this will not affect filter performance. This discoloration is not covered by the warranty. To minimize or prevent discoloration, hand wash filters using a mild detergent.

Non-ducted Filters

Change the non-duct recirculation filters every 6 months. Rotate the filters to remove them from the blower and replace; purchase S97018030 or ROUNDFILTER.

Hood Cleaning

Stainless Steel Cleaning:

Do:Regularly wash with clean cloth or rag soaked with warm water and mild soap or liquid dish detergent.Always clean in the direction of original polish lines.Always rinse well with clear water (2 or 3 times) after cleaning.Wipe dry completely.You may also use a specialized household stainless steel cleaner.

Don't:Use any steel or stainless steel wool or any other scrapers to remove stubborn dirt.Use any harsh or abrasive cleansers.Allow dirt to accumulate.Let plaster dust or any other construction residues reach the hood. During construction/renovation, cover the hood to make sure no dust sticks to stainless steel surface.

Avoid when choosing a detergent:

• Any cleaners that contain bleach will attack stainless steel.
• Any products containing: chloride, fluoride, iodide, bromide will deteriorate surfaces rapidly.
• Any combustible products used for cleaning such as acetone, alcohol, ether, benzol, etc., are highly explosive and should never be used close to a range.

15. REPLACEMENT PARTS

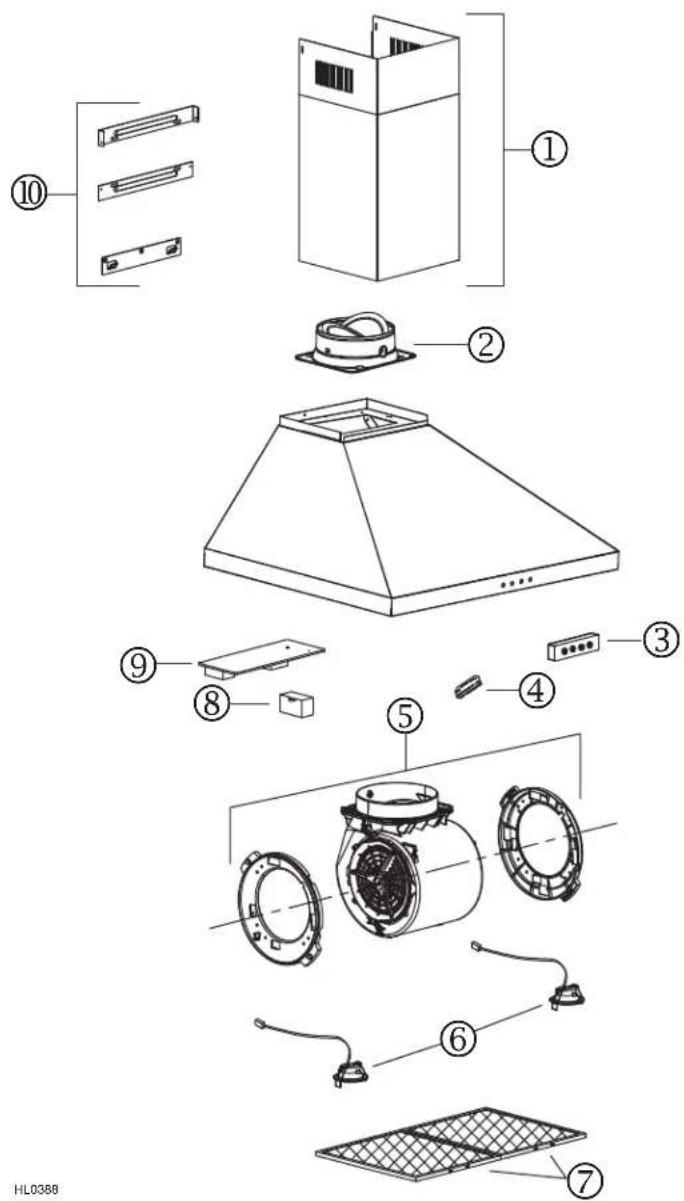

Exploded view diagram of a kitchen appliance with numbered parts for identification

REPLACEMENT PARTS AND REPAIRS

In order to ensure your unit remains in good working condition, you must use Broan-NuTone LLC genuine replacement parts only. Broan-NuTone LLC genuine replacement parts are specially designed for each unit and are manufactured to comply with all the applicable certification standards and maintain a high standard of safety. Any third party replacement part used may cause serious damage and drastically reduce the performance level of your unit, which will result in premature failing. Broan-NuTone LLC recommends to contact a certified service depot for all replacement parts and repairs.

HL0388

KEYNO.	PART NO.	DESCRIPTION	QUANTITY
1	S99526972	DECORATIVE UPPER AND LOWER FLUES	1
2 S99526983 AD	APTER/DAMPER 1
3 S99528925 CO	NTRL ASS'Y 1
4 S99528926 LED	DRIVER 1
5 S99528361 M	OTOR AND BLOWER ASSEMBLY	1
6 S99528927 LED	LIGHTS (SET OF 2) 1
7	S97018027	ALUMINUM GREASE FILTERS (SET OF 2)	1
8 S99527662 C	APACITOR	1
9		S99528928
10	S99528929	BRACKET KIT (SET OF 3)	1
*	S99526993	PARTS BAG INCLUDING: 10 NO. 8 x 5/16" MOUNTING SCREWS,7 NO. 8 x 11⁄2" MOUNTING SCREWS, 7 DRYWALL ANCHORS, 2 WASHERS.	1

* NOT SHOWN.

Limited Warranty

Warranty Period and Exclusions: Broan-NuTone LLC (the "Company") warrants to the original consumer purchaser of its product ("you") that the product (the "Product") will be free from material defects in the Product or its workmanship for a period of one (1) year from the date of original purchase (or such longer period as may be required by applicable law). The limited warranty period for any replacement parts provided by the Company and for any Products repaired or replaced under this limited warranty shall be the remainder of the original warranty period (or such longer period as may be required by applicable law).

This warranty does not cover fluorescent lamp starters, tubes, halogen and incandescent bulbs, fuses, filters, ducts, roof caps, wall caps and other accessories for ducting that may be purchased separately and installed with the Product. This warranty also does not cover (a) normal maintenance and service, (b) normal wear and tear, (c) any Products or parts which have been subject to misuse, abuse, abnormal usage, negligence, accident, improper or insufficient maintenance, storage or repair (other than repair by the Company), (d) damage caused by faulty installation, or installation or use contrary to recommendations or instructions, (e) any Product that has been moved from its original point of installation, (f) damage caused by environmental or natural elements, (g) damage in transit, (h) natural wear of finish, (i) Products in commercial or nonresidential use, or (j) damage caused by fire, flood or other act of God or (k) Products with altered, defaced or removed serial numbers. This warranty covers only Products sold to original consumers in the United States by the Company or its U.S. distributors authorized by the Company. This warranty supersedes all prior warranties and, subject to applicable law, is not transferable from the original consumer purchaser.

No Other Warranties: This Limited Warranty contains the Company's sole obligation and your sole remedy for defective products. The foregoing warranties are exclusive and in lieu of any other warranties and conditions, express or implied. THE COMPANY DISCLAIMS AND EXCLUDES ALL OTHER EXPRESS WARRANTIES AND CONDITIONS, AND DISCLAIMS AND EXCLUDES ALL WARRANTIES AND CONDITIONS IMPLIED BY LAW, INCLUDING WITHOUT LIMITATION THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

To the extent that applicable law prohibits the exclusion of implied warranties or conditions, the duration of any applicable implied warranty or condition is limited to the period specified for the express warranty above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Any oral or written description of the Product is for the sole purpose of identifying it and shall not be construed as an express warranty.

Whenever possible, each provision of this Limited Warranty shall be interpreted in such manner as to be effective and valid under applicable law, but if any provision is held to be prohibited or invalid, such provision shall be ineffective only to the extent of such prohibition or invalidity, without invalidating the remainder of such provision or the other remaining provisions of the Limited Warranty.

Remedy: During the applicable limited warranty period, the Company will, at its option, provide replacement parts for, or repair or replace, without charge, any Product or part thereof, to the extent the Company finds it to be covered by and in breach of this limited warranty under normal use and service. The Company will ship the repaired or replaced Product or replacement parts to you at no charge. You are responsible for all costs for removal, reinstallation and shipping, insurance or other freight charges incurred in the shipment of the Product or part to the Company. If you must send the Product or part to the Company, as instructed by the Company, you must properly pack the Product or part—the Company is not responsible for damage in transit. The Company reserves the right to utilize reconditioned, refurbished, repaired or remanufactured Products or parts in the warranty repair or replacement process. Such Products and parts will be comparable in function and performance to an original Product or part and warranted for the remainder of the original warranty period (or such longer period as may be required by applicable law).

Company reserves the right, in its sole discretion, to refund the money actually paid by you for the Product in lieu of repair or replacement. If the Product or component is no longer available, replacement may be made with a similar product of equal or greater value, at Company's sole discretion. This is your sole and exclusive remedy for breach of this limited warranty.

Exclusion of Damages: THE COMPANY'S OBLIGATION TO PROVIDE REPLACEMENT PARTS, OR REPAIR, REPLACE OR REFUND, AT THE COMPANY'S OPTION, SHALL BE YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY AND THE COMPANY'S SOLE AND EXCLUSIVE OBLIGATION. THE COMPANY SHALL NOT BE LIABLE FOR INCIDENTAL, INDIRECT, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE PRODUCT, ITS USE OR PERFORMANCE. Incidental damages include but are not limited to such damages as loss of time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing other property which was damaged if the Product does not work properly.

THE COMPANY SHALL NOT BE LIABLE TO YOU, OR TO ANYONE CLAIMING UNDER YOU, FOR ANY OTHER OBLIGATIONS OR LIABILITIES, INCLUDING, BUT NOT LIMITED TO, OBLIGATIONS OR LIABILITIES ARISING OUT OF BREACH OF CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT OR ANY THEORY OF STRICT LIABILITY, WITH RESPECT TO THE PRODUCT OR THE COMPANY'S ACTS OR OMISSIONS OR OTHERWISE.

Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from jurisdiction to jurisdiction. The disclaimers, exclusions, and limitations of liability under this warranty will not apply to the extent prohibited by applicable law.

This warranty covers only replacement or repair of defective Products or parts thereof at the Company's main facility and does not include the cost of field service travel and living expenses.

Any assistance the Company provides to or procures for you outside the terms, limitations or exclusions of this limited warranty will not constitute a waiver of such terms, limitations or exclusions, nor will such assistance extend or revive the warranty.

The Company will not reimburse you for any expenses incurred by you in repairing or replacing any defective Product, except for those incurred with the Company's prior written permission.

How to Obtain Warranty Service: To qualify for warranty service, you must (a) notify the Company at the address or telephone number stated below within seven (7) days of discovering the covered defect, (b) give the model number and part identification and (c) describe the nature of any defect in the Product or part. At the time of requesting warranty service, you must present evidence of the original purchase date. If you cannot provide a copy of the original written limited warranty, then the terms of the Company's most current written limited warranty for your particular product will control. The most current limited written warranties for the Company's products can be found at www.nutone.com.

Broan-NuTone LLC 926 West State Street, Hartford, WI 53027 www.nutone.com 1-888-336-3948

HOTTE

CHEMINÉE

NW830SS

MANUEL D'INSTALLATION, D'UTILISATION ET D'ENTRETIEN

Line drawing of a standard 3D kitchen chimney (no text or symbols)

Numéro de série :

99046155 rév. A

INSTALLATEUR : LAISSER CE GUIDE AU PROPRIÉTAIRE.

PROPRIÉTAIRE : DIRECTIVES D'UTILISATION ET D'ENTRETIEN EN PAGE 10.

2.2 INSTALLATION AVEC CONDUITS

Technical diagram of a mechanical assembly with no visible text or symbols

7. INSTALLER L'ADAPTATEUR/VOLET DE 6 PO ROND

VOLETS HJ0156

8. INSTALLER LA HOTTE

⚠ AVERTISSEMENT

Diagram of a wall-mounted electrical outlet connected to a cylindrical tank, with a cable and socket base (no text or symbols)

INSTALLATION EN ÉVACUATION HORIZONTALE :

Technical line drawing of a mechanical device with a power outlet and attached housing (no text or symbols)

Technical diagram of a wall-mounted electrical fixture with a cylindrical component and power outlet (no text or symbols)

Technical diagram showing a mechanical assembly with a downward arrow and base plate (no text or symbols)

11. INSTALLER LE CONDUIT DÉCORATIF (SUITE)

INSTALLATION AVEC CONDUITS :

Diagram of a mechanical device with three views showing internal components and directional arrows (no text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

13. FONCTIONNEMENT

Exploded view diagram of an air conditioner unit with numbered parts for identification

PIÈCES DE REMPLACEMENT ET SERVICE

Broan-NuTone LLC 926 West State Street, Hartford, WI. 53027 www.nutone.com 1 888 336-3948
