GCG2000M - Grill plate GORENJE - Free user manual and instructions

USER MANUAL GCG2000M GORENJE

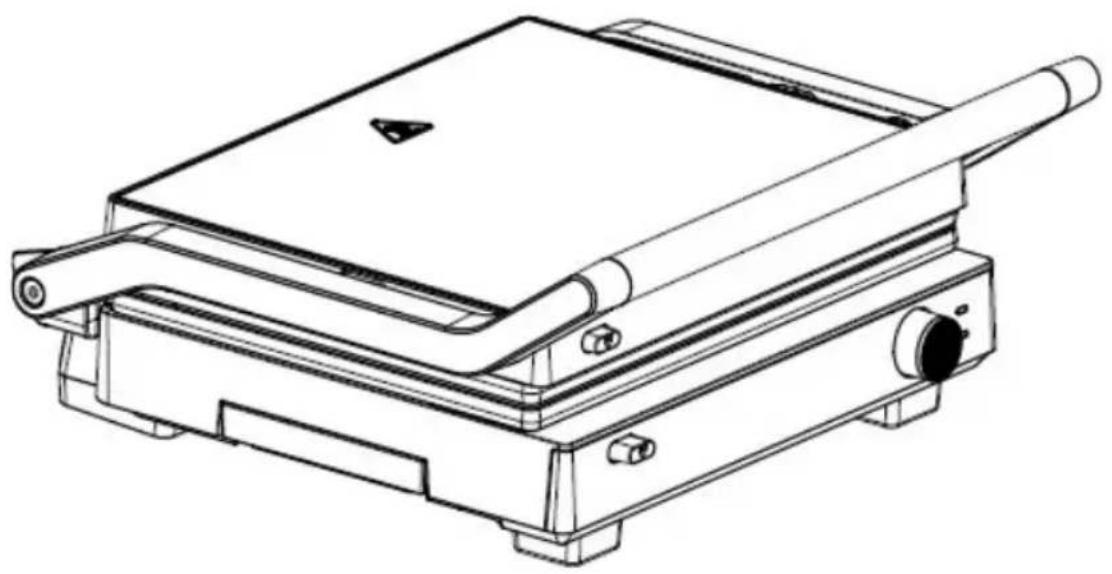

Line drawing of a flat-screen flatboard device with a cylindrical roller and mounting base (no text or symbols)

USER MANUALS

GCG2000M

User manual / Contact Grill

EN....3

We sincerely thank you for your purchase. We believe you will soon find ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the first time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will find the telephone number on the receipt or delivery report.

We wish you a lot of pleasure with your new household appliance.

INSTRUCTIONS FOR USE

These instructions are intended for the user.

They describe the grill and how to use it. They also apply to different types of appliances, therefore you may find some descriptions of functions that may not apply to your appliance.

Never touch the surfaces of heating or cooking appliances. They will become hot during operation. Keep children at a safe distance. There is a risk of burning!

WARNING!

This product does not apply to persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge (including children under the age of 8), unless they are under the supervision of an adult with civil conduct;

• This product is a household appliance and is only suitable for indoor use at home; any outdoor use is prohibited;
• To prevent electric shock, do not immerse wires, plugs or electrical appliances in water or other liquids, and do not operate electrical appliances with wet hands;
• When the power cord or appliance fails or is damaged in any way, do not use it and return the appliance to the nearest authorized service agency for inspection or repair;
• When using electrical appliances or connecting electrical appliances to the power supply, it is necessary to prevent children from touching them, so as to avoid personal injury caused by electric shock or burns;
• Accessories not provided by our company should not be used in this appliance, so as not to cause unnecessary personal injury, electric shock and fire;
• Do not disassemble, repair, or refit the appliance without authorization;

WARNING!

• Before using the product, if the package is found to be damaged, do not use it; return it to the retailer or dealer for disposal;
• Before using the product, carefully check the nameplate on the bottom of the appliance to confirm that the voltage of the appliance is consistent with your household voltage;
• This product is not a movable electrical appliance. When in use, it should be placed on a level and stable table;
• Do not place the appliance on or near flammable materials, such as tablecloths or curtains. Pay attention to the surrounding operating environment, and keep away from explosive materials;
• Do not place the product near high-temperature gas and electric stoves, and cannot be placed in a working oven;
• Do not use the product under the electrical cabinet or closet to avoid fire;
• Don’t put the product against the wall or other products, leave at least 10cm space on the back and side, leave at least 10cm space above the product, and don’t put other products on the product;
• Do not use this product for any purpose other than those specified in this manual.
• Do not use the product for unintended purposes;
• Do not leave the product running unattended;
• Do not put any of the following materials on the grill plate: paper, cardboard, clothing and plastic, etc.;
• When using the product, pay attention to the high-temperature surface of the grill plate and surrounding areas, and avoid being burned by touching bare fingers;

WARNING!

• When using the product, do not touch the power cord, control panel and other live parts with wet body parts;
• When using the product, do not let the power cord hang on the edge of the table or counter, touch sharp objects or high-temperature surfaces, etc., to avoid electrical accidents;
• Do not connect this product to an external timer switch or a separate remote control system to avoid dangerous situations;
• Unplug the power plug in time when you finish using the product.
• After using the product, perform necessary cleaning first, store in a dry, ventilated environment, and avoid direct sunlight;
  • This product is for home use only.

PRODUCT SPECIFICATIONS

Product number :	GCG2000M
Rated voltage/frequency:	220~240 V, 50/60 HZ
Upper plate rated power:	1000 W
Lower plate rated power :	1000 W
Grill plate size:	290 x 230 mm
Product size:	350 x 160 x 340 mm
Package size:	382 x 182 x 371 mm
Net weight:	3,9 Kg
Gross weight:	4,3 Kg

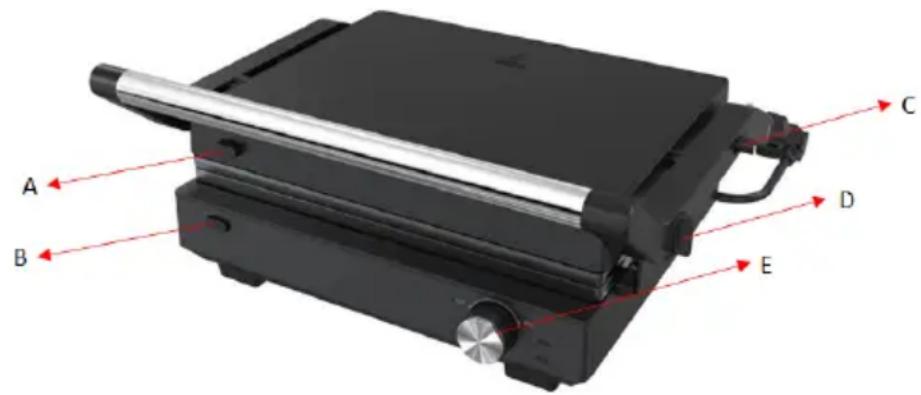

GRILL COMPONENTS

A B C D E

A. Upper grill plate release button
B. Lower grill plate release button
C. Full open release button
D. Grill lock button
E. Temperature knob

USING GRILL

Once you connected Grill to correct power socket based on product specifications, Power light will be ON. Turn temperature knob to desire position (0 - 210 degrees celzious) and Ready light will start blinking. Once desired temperature is ready, Ready light will glow constantly.

When you are done with grilling, set temperature knob to 0 and plug off power cord!

WARNING

Before cleaning, the power cord must be unplugged; stand by and cool the plate completely to avoid burns.

Do not immerse the power cord, plug or the entire appliance in water or other liquids.

When cleaning, do not use metal cleaning objects, such as cleaning balls and scouring pads.

When cleaning, do not use metal spatulas and scrapers to clean the grill plate.

After each use, wipe the inner and outer surfaces with a damp cloth or sponge; there is a charged body inside, so it cannot be soaked in water.

The plates can be immersed in water for cleaning; it can also be cleaned in the dishwasher.

When cleaning, you can add an appropriate amount of alkaline cleaning solution.

After all parts are cleaned, dry them with a clean rag to prevent oxidation and rust.

Finally, according to the correct steps, put the plates into the body for the next use.

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center

THANK YOU AND ENJOY GRILLING WITH

gorenje

gorenje

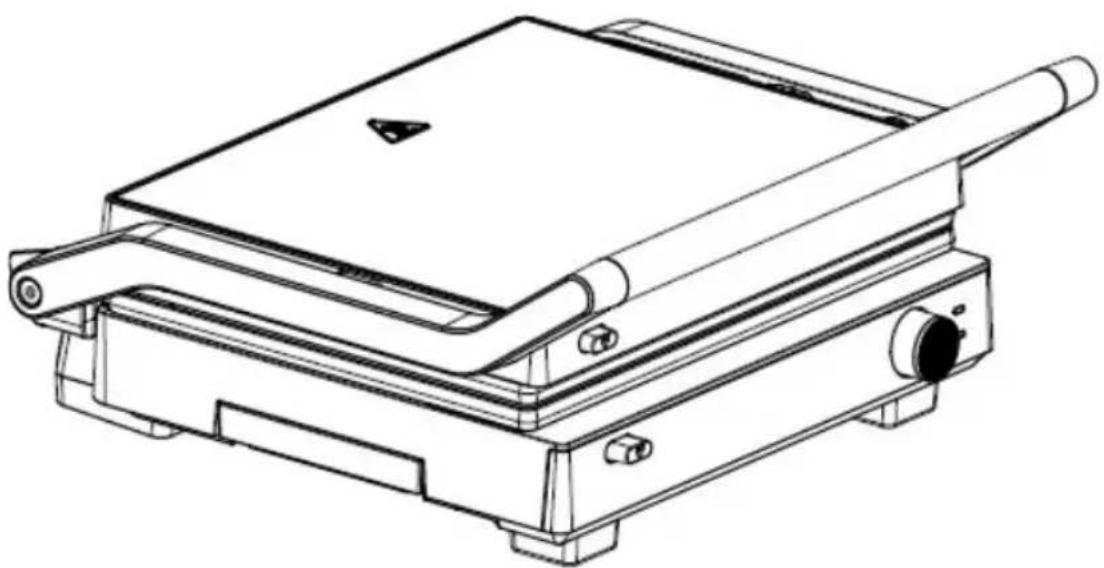

Line drawing of a flat-screen flatboard device with a cylindrical handle and mounting base (no text or symbols)

NAVODILA ZA

UPORABO

GCG2000M

SPOŠTOVANI KUPEC

Technical line drawing of a flat-screen grating or flatbed device with no visible text or symbols

Uživatelská

příručka

GCG2000M

VÁŽENÝ ZÁKAZNÍKU

Technical line drawing of a flatbed electrical heating element with cylindrical housing and mounting base (no text or symbols)

HASZNÁLATI

ÚTMUTATÓ

GCG2000M

KEDVES VÁSÁRLÓNK!

Line drawing of a flat-screen flatboard device with a cylindrical roller and mounting base (no text or symbols)

ИНСТРУКЦИЯ ПО

ЭКСПЛУАТАЦИИ

GCG2000M

Line drawing of a flat-screen flatboard device with a cylindrical handle and mounting base (no text or symbols)

POUŽÍVATEL'SK

Á PRÍRUČKA

GCG2000M

VÁŽENÝ ZÁKAZNÍK

Line drawing of a flat-screen flatboard device with cylindrical roller and mounting base (no text or symbols)

РЪКОВОДСТВО

ЗА УПОТРЕБА

GCG2000M

УВАЖАЕМИ КЛИЕНТИ,

Technical line drawing of a flatbed electrical heating element with cylindrical housing and mounting base (no text or symbols)

УПАТСТВО ЗА УПОТРЕБА GCG2000M

ПОЧИТУВАН КОРИСНИКУ

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Line drawing of a flat-screen flatboard device with a cylindrical handle and mounting base (no text or symbols)

INSTRUKCJA

OBSŁUGI

GCG2000M

SZANOWNY KLIENCIE

Line drawing of a flat-screen flatboard device with a cylindrical roller and mounting base (no text or symbols)

MANUAL DE UTILIZARE GCG2000M

STIMATE CLIENT

Line drawing of a flat-screen flatboard device with a cylindrical roller and mounting base (no text or symbols)

KORISNIČKI PRIRUČNICI GCG2000M

POŠTOVANI KUPČE

HVALA VAM I UŽIVAJTE U ROŠTILJANJU UZ

gorenje

gorenje

Line drawing of a flat-screen grating or flatboard device with a handle and mounting base (no text or symbols)

BEDIENUNGSAN

LEITUNGEN

GCG2000M

Line drawing of a flat-screen grating or flatboard device with a handle and mounting base (no text or symbols)

MANUALES DE

USUARIO

GCG2000M

ESTIMADO CLIENTE

Line drawing of a flat-screen grating or flatboard device with a handle and mounting base (no text or symbols)

MANUELS D'UTILISATION

GCG2000M

CHÈR(E) CLIENT(E)

SPÉCIFICATIONS DU PRODUIT

Line drawing of a flat-screen flatboard device with a cylindrical roller and mounting base (no text or symbols)

KORISNIČKI PRIRUČNICI GCG2000M

POŠTOVANI KUPCI

HVALA VAM I UŽIVAJTE U ROŠTILJANJU UZ

gorenje

gorenje

Technical line drawing of a flat-screen flatboard device with a cylindrical roller and mounting base (no text or symbols)

MANUALI UTENTE

GCG2000M

GENTILE CLIENTE

Line drawing of a flat-screen grating or flatboard device with a handle and mounting base (no text or symbols)

MANUALET E

PËRDORIMIT

GCG2000M

I DASHUR KLIENT

Line drawing of a flat-screen flatboard device with a cylindrical handle and mounting base (no text or symbols)

UPUTSTVA ZA

UPOTREBU

GCG2000M

DRAGI KUPČE

HVALA VAM I UŽIVAJTE U GRILOVANJU UZ

gorenje

gorenje

Line drawing of a flat-screen grating or flatboard device with a handle and mounting base (no text or symbols)
