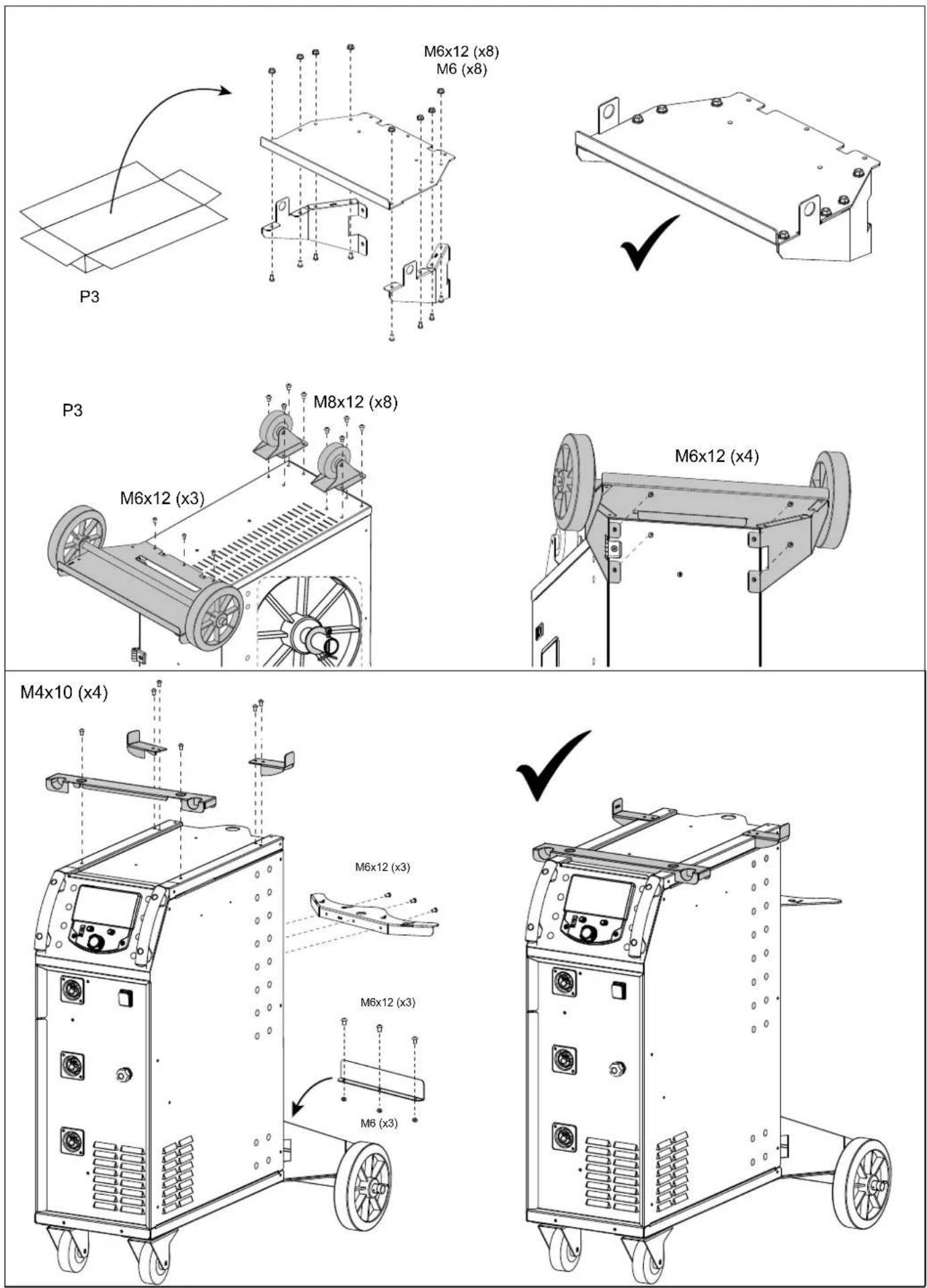

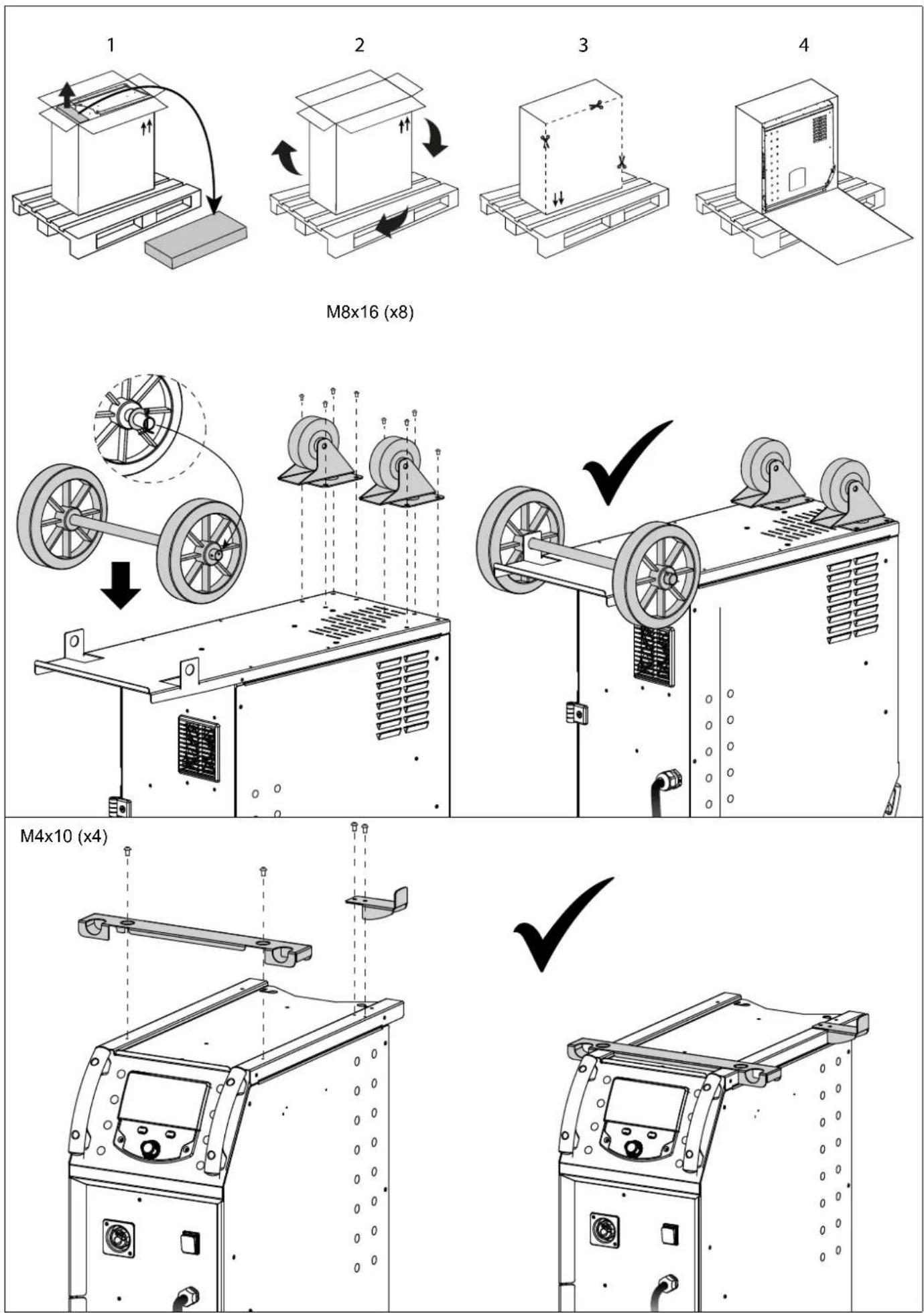

P1 / P3 GYS AUTO

Générateur MIG/MAG MIG/MAG - welding machine Schweissgerät für MIG/MAG Equipo de soldadura MIG/MAG Сварочный аппарат МИГ/МАГ MIG/MAG lasapparaat Dispositivo saldatura MIG/MAG

P1 GYS AUTO

P3 GYS AUTO

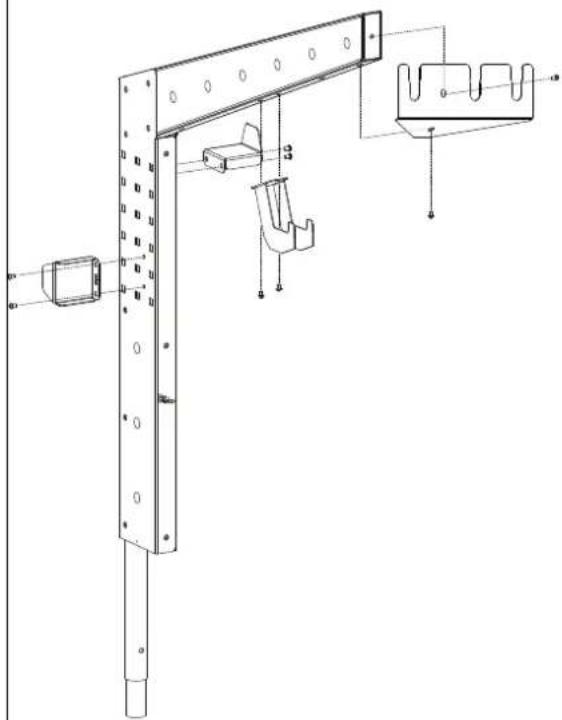

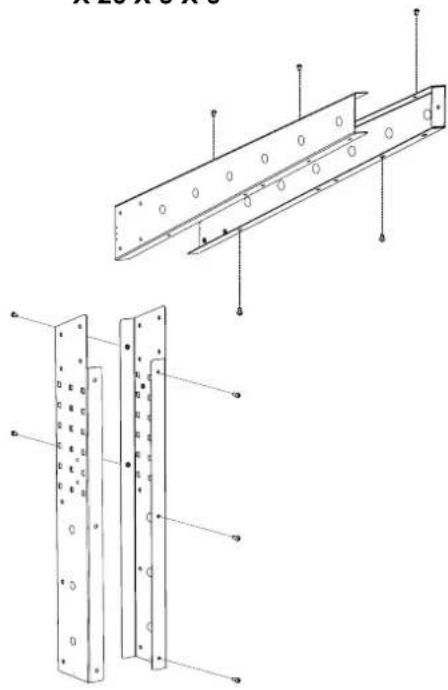

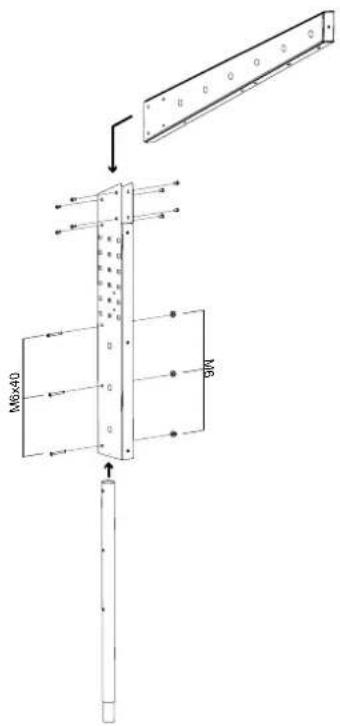

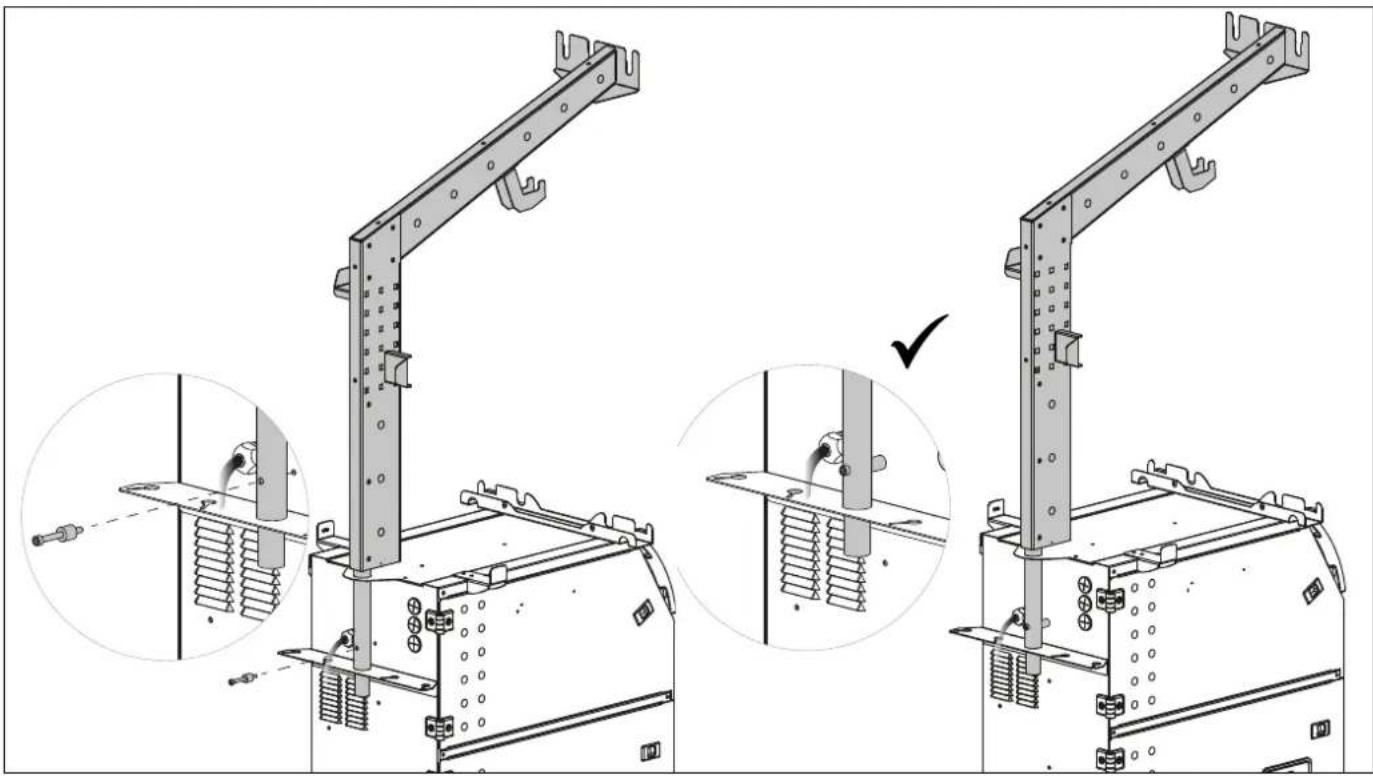

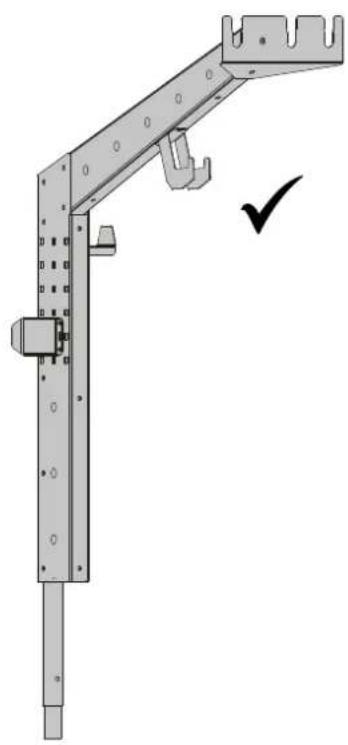

POTENCE SEULE / BALANCING ARM ONLY / AUSLEGER / SOPORTE SOLO / КРОНШТЕЙН / STEUN ALLEEN / BRACCIO DI SOSTEGNO SINGOLO | 059276

M6X12 M6X40 M6

X 26 X 3 X 3

Technical line drawing of a structural panel assembly with mounting holes and mounting holes (no text or symbols)

M6×4D M6×4D

Technical line drawing of a mechanical bracket assembly with mounting holes and support components (no text or symbols)

Mechanical support bracket assembly with mounting holes and a checkmark indicating selection (no text or symbols present)

Technical line drawing of a mechanical assembly with three views showing structural components (no text or symbols)

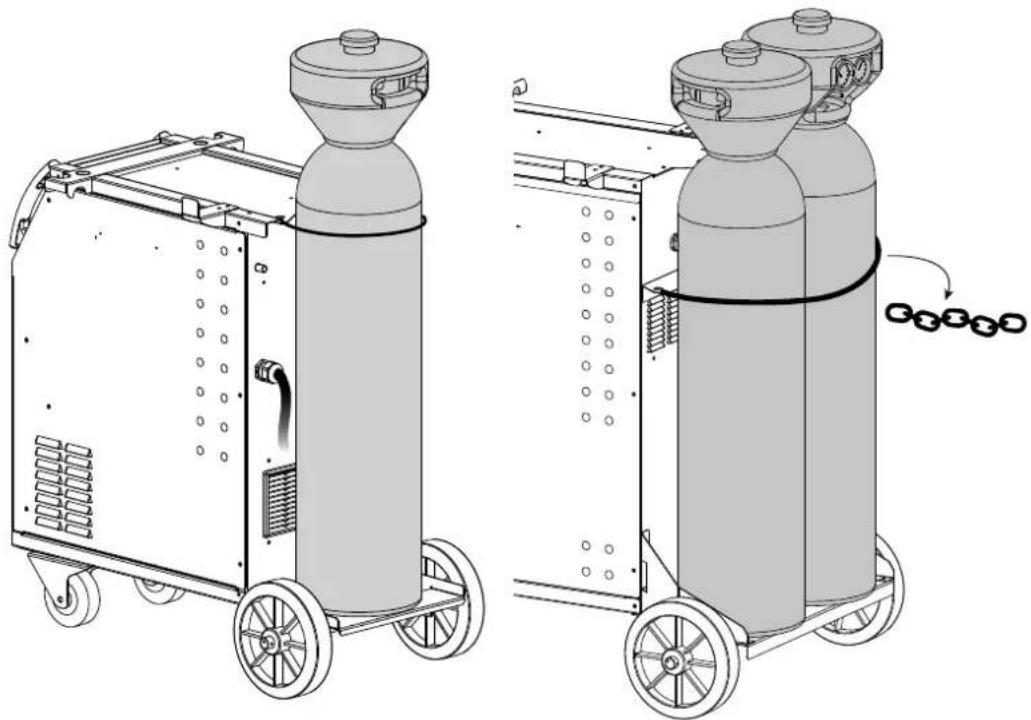

SUPPORT BOUTEILLE / BOTTLE SUPPORT / FLASCHENHALTER / PORTABOTELLAS / FLESSENHOU-DER / PORTABOTTIGLIE

Technical line drawings of two cylindrical industrial machines with wheels, showing internal components and a rotation arrow (no text or symbols)

P1 GYS AUTO 4 m³ max P3 GYS AUTO 2 x 4 m
^3 max

PROCÉDURE DE MISE À JOUR / UPDATE PROCEDURE

Clé USB non fournie / USB key not included.

1 2 STOP K1145 A 3 4 5 START System Update - V1.02 Please Wait ... AutoCorrected_Full.sgf Check File Integrity K1145 A

RACCORD GAZ / GAS FITTINGS / GASANSCHLUSS / CONEXIÓN DE GAS / ГАЗОВОЕ СОЕДИНЕНИЕ / GAS AANSLUITING / COLLEGAMENTO GAS

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical device with numbered components and labeled parts

P3

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

AVERTISSEMENTS - RÈGLES DE SÉCURITÉ

CONSIGNE GÉNÉRALE

INSTALLATION - FONCTIONNEMENT PRODUIT

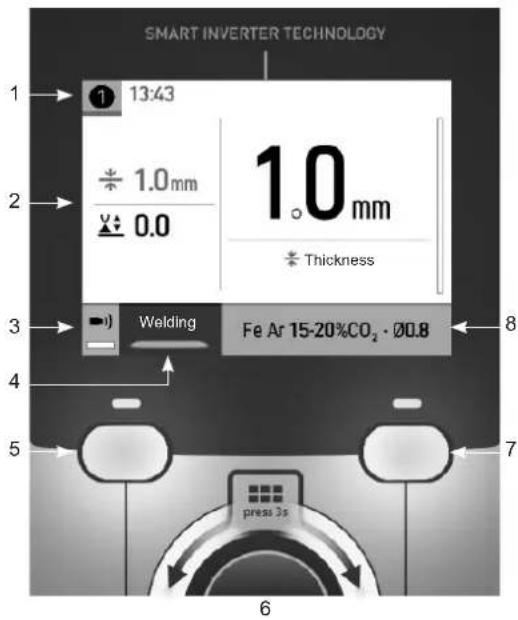

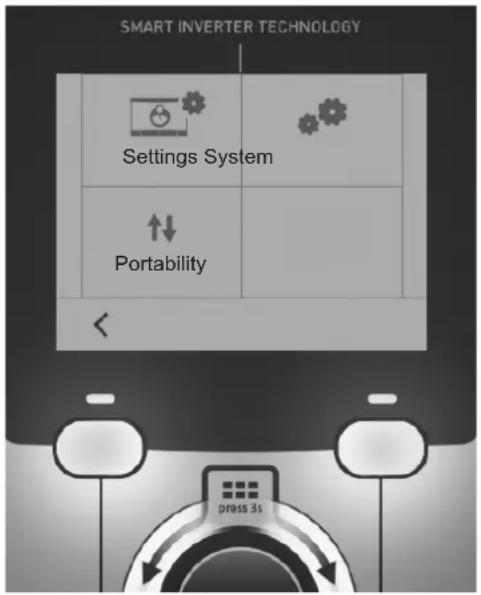

INTERFACE HOMME-MACHINE (IHM)

IHM

Technical line drawing of a mechanical component with no visible text or symbols

ANOMALIES, CAUSES, REMÈDES

CONDITIONS DE GARANTIE

These instructions must be read and understood before any operation.

Any modification or maintenance not indicated in the manual must not be undertaken.

The manufacturer will not be held responsible for any damage to persons or property resulting from use which does not comply with the instructions in this manual.

In the event of any problem or uncertainty, please consult a qualified person in order to handle the installation correctly.

ENVIRONMENT

This equipment must only be used for welding operations within the limits indicated on the nameplate and/or in the manual. Safety instructions must be observed. In the event of inappropriate or dangerous use, the manufacturer cannot be held responsible.

The installation must be used in a room free from dust, acids, flammable gases or other corrosive substances. The same applies to storage. Ensure air circulation during use.

Temperature range:

Use between -10 and +40°C (+14 and +104°F).

Storage between -20 and +55°C (-4 and 131°F).

Air humidity:

Less than or equal to 50% at 40°C (104°F).

Less than or equal to 90% at 20°C (68°F).

Altitude:

Up to 1000m above sea level (3280 feet)

PERSONAL AND PERSONAL PROTECTION INDIVIDUAL AND OTHER

Arc welding can be dangerous and cause serious or even fatal injuries.

Welding exposes people to a dangerous source of heat, radiation from the arc, electromagnetic fields (beware of pacemaker wearers), risk of electrocution, noise and gaseous fumes.

To protect yourself and others, observe the following safety instructions:

To protect yourself from burns and radiation, wear clothing that is cuffless, insulating, dry, fireproof and in good condition, and that covers the whole body.

Use gloves that guarantee electrical and thermal insulation.

Use welding protection and/or a welding bonnet with a sufficient level of protection (depending on the application). Protect your eyes during cleaning operations. Contact lenses in particular are not recommended.

It is sometimes necessary to delimit areas with fireproof curtains to protect the welding zone from the rays of the arc, projections and incandescent waste.

Inform people in the welding zone not to stare at the rays of the arc or molten parts and to wear appropriate clothing to protect themselves.

Use noise-cancelling headphones if the welding process produces a noise level in excess of the authorised limit (the same applies to anyone in the welding area).

Keep hands, hair and clothing away from moving parts (fan).

Never remove the cooling unit housing protectors when the welding current source is live, as the manufacturer cannot be held responsible in the event of an accident.

Parts that have just been welded are hot and can cause burns when handled. When servicing the torch or electrode holder, ensure that it is sufficiently cold by waiting at least 10 minutes before servicing. The cooling unit must be switched on when using a water-cooled torch to ensure that the liquid cannot cause burns.

It is important to secure the work area before leaving it in order to protect people and property.

WELDING FUMES AND GASES

The fumes, gases and dusts emitted by welding are hazardous to health. Sufficient ventilation must be provided, and an air supply is sometimes necessary. A fresh-air mask can be a solution if ventilation is inadequate.

Check that the extraction system is effective by checking it against safety standards.

Warning: welding in small spaces requires supervision from a safe distance. In addition, soldering certain materials containing lead, cadmium, zinc or mercury, or even beryllium, can be particularly harmful.

Cylinders must be stored in open or well-ventilated premises. They should be in an upright position and held on a support or trolley.

Welding should not be carried out near grease or paint.

RISK OF FIRE AND EXPLOSION

Fully protect the welding area; flammable materials must be at least 11 metres away. Fire-fighting equipment must be available in the vicinity of welding operations.

Beware of hot material or sparks, as even through cracks they can be a source of fire or explosion.

Keep people, flammable objects and pressurised containers at a safe distance.

Do not weld in closed containers or tubes, and if they are open, empty them of all flammable or explosive materials (oil, fuel, gas residues, etc.).

Do not grind in the direction of the welding current source or flammable materials.

GAS CYLINDERS

The gas coming out of the cylinders can be a source of suffocation if concentrated in the welding area (ventilate well).

Cylinders must be transported in complete safety, with the cylinders closed and the welding current source switched off. They must be stored vertically and held by a support to limit the risk of falling.

Close the cylinder between uses. Beware of temperature variations and exposure to sunlight.

The cylinder must not come into contact with a flame, electric arc, torch, earth clamp or any other source of heat or incandescence.

Keep away from electrical and welding circuits and never weld a cylinder under pressure.

When opening the cylinder valve, keep the head away from the fittings and ensure that the gas used is suitable for the welding process.

ELECTRICAL SAFETY

The electrical network used must be earthed. Use the fuse size recommended on the rating plate.

An electric shock can be a source of serious direct or indirect accident, or even death.

Never touch live parts inside or outside the live current source (torches, clamps, cables, electrodes) as these are connected to the welding circuit.

Before opening the welding current source, disconnect it from the mains and wait 2 minutes. so that all the capacitors are discharged.

Do not touch the torch or electrode holder and the earth clamp at the same time.

If the cables or torches are damaged, they should be replaced by qualified and authorised personnel. Size the cable cross-section to suit the application. Always use dry clothing in good condition to insulate yourself from the welding circuit. Wear insulating footwear in all working environments.

CEM CLASSIFICATION OF EQUIPMENT

This Class A equipment is not intended for use in a residential site where the electrical current is supplied by the public low-voltage supply network. There may be potential difficulties in ensuring electromagnetic compatibility in such sites, due to conducted, as well as radiated, radio frequency interference.

Provided that the impedance of the public low voltage supply network at the point of common coupling is less than Zmax = 0.450 Ohms, this equipment complies with IEC 61000-3-11 and may be connected to the public low voltage supply networks. It is the responsibility of the installer or user of the equipment to ensure, by consulting the distribution network operator if necessary, that the network impedance complies with the impedance restrictions.

This equipment complies with IEC 61000-3-12.

ELECTRO-MAGNETICS

Electric current passing through any conductor produces localised electric and magnetic fields (EMF). Welding current produces an electromagnetic field around the welding circuit and welding equipment.

Electromagnetic EMF fields can interfere with certain medical implants, such as pacemakers. Protective measures must be taken for people with medical implants. For example, access restrictions for bystanders or an individual risk assessment for welders.

All welders should use the following procedures to minimise exposure to electromagnetic fields from the welding circuit:

• position the welding cables together - secure them with a clamp, if possible;
  •position themselves (torso and head) as far away from the welding circuit as possible;
• never wrap the welding cables around the body;
  •do not position the body between the welding cables. Hold both welding cables on the same side of the body;
• connect the return cable to the workpiece as close as possible to the area to be welded;
• do not work next to the welding power source, do not sit on it or lean against it;
• do not weld when transporting the welding power source or the wire feeder.

Pacemaker wearers should consult a physician before using this equipment.

Exposure to electromagnetic fields during welding may have other health effects that are not yet known.

RECOMMENDATIONS FOR ASSESSING THE WELDING AREA AND INSTALLATION

General

The user is responsible for installing and using the arc welding equipment in accordance with the manufacturer's instructions. If electromagnetic interference is detected, it must be the responsibility of the user of the arc welding equipment to resolve the situation with the manufacturer's technical assistance. In some cases, this corrective action may be as simple as earthing the welding circuit. In other cases, it may be necessary to construct an electromagnetic shield around the welding current source and the entire workpiece, with input filters fitted. In all cases, electromagnetic interference should be reduced until it is no longer a nuisance.

Assessment of the welding area

Before installing any arc welding equipment, the user should assess the potential electromagnetic problems in the surrounding area. The following should be considered:

a) the presence above, below and adjacent to the arc welding equipment of other power, control, signalling and telephone cables;
b) radio and television receivers and transmitters;
c) computers and other control equipment;
d) safety-critical equipment, e.g. protection of industrial equipment;
e) the health of neighbouring persons, e.g. use of pacemakers or hearing aids;
f) equipment used for calibration or measurement;
g) the immunity of other equipment in the environment.
The user must ensure that other equipment used in the environment is compatible. This may require additional protective measures;
h) the time of day when welding or other activities are to be carried out.

The size of the surrounding area to be taken into account depends on the structure of the building and other activities taking place within it. The surrounding area may extend beyond the boundaries of the facilities.

Welding facility assessment

In addition to the area assessment, the arc welding facility assessment can be used to identify and resolve cases of disturbance. The assessment of emissions should include in situ measurements as specified in Article 10 of CISPR 11. In situ measurements can also be used to confirm the effectiveness of mitigation measures.

RECOMMENDATIONS ON METHODS OF REDUCING ELECTROMAGNETIC EMISSIONS

a. Public mains supply: Arc welding equipment should be connected to the public mains supply in accordance with the manufacturer's recommendations. If interference occurs, it may be necessary to take additional preventive measures such as filtering the public power supply. It is advisable to envisage shielding of the supply cable in metal conduit or equivalent from permanently installed arc welding equipment. The electrical continuity of the shielding must be ensured along its entire length. The shield should be connected to the welding power source to ensure good electrical contact between the conduit and the enclosure of the welding power source.
b. Maintenance of arc welding equipment: Arc welding equipment should be subject to routine maintenance in accordance with the manufacturer's recommendations. All accesses, service doors and covers should be closed and properly locked when the arc welding equipment is in use. Arc welding equipment should not be modified in any way other than those modifications and adjustments specified in the manufacturer's instructions. In particular, the arc splitter of arc starting and stabilising devices should be adjusted and maintained in accordance with the manufacturer's recommendations.
c. Welding cables: Cables should be as short as possible, laid close together near the floor or on the floor.
d. Equipotential bonding: Consideration should be given to bonding all metal objects in the surrounding area. However, metal objects connected to the part to be welded increase the risk of electric shock to the operator if he touches both these metal elements and the electrode. The operator should be isolated from such metal objects.
e. Earthing the workpiece: Where the workpiece to be welded is not earthed for electrical safety or because of its size and location, for example ship hulls or structural steel in buildings, an earthed connection to the workpiece may, in some but not all cases, reduce emissions. Care should be taken to avoid earthing parts which could increase the risk of injury to users or damage to other electrical equipment. If necessary, the connection of the part to be welded to earth should be made directly, but in some countries where this direct connection is not permitted, the connection should be made with an appropriate capacitor chosen in accordance with national regulations.
f. Protection and shielding: Selective protection and shielding of other cables and equipment in the surrounding area can limit interference problems. Protection of the entire welding area may be considered for special applications.

TRANSPORT AND TRANSIT OF WELDING CURRENT SOURCE

Do not use the cables or torch to move the welding current source. It must be moved in a vertical position. Do not run the current source over people or objects.

Never lift a gas cylinder and the welding current source at the same time. Their transport standards are different. It is preferable to remove the wire spool before lifting or transporting the welding power source.

INSTALLATION OF EQUIPMENT

• Place the welding power source on a floor with a maximum gradient of 10^ .
• Provide sufficient space to ventilate the welding power source and access the controls.
• Do not use in an environment containing conductive metal dust.
• The welding power source must be protected from driving rain and must not be exposed to direct sunlight.
  •The equipment has an IP23S degree of protection, meaning:
• protection against access to dangerous parts of solid bodies with a diameter >12.5 mm and,
• protection against rain directed at 60° to the vertical when its moving parts (fan) are stationary.
  This equipment can therefore be stored outdoors in accordance with the IP23S degree of protection.

Stray welding currents can destroy earth conductors, damage electrical equipment and devices and cause components to overheat, leading to fire.

• All welding connections must be firmly connected and checked regularly!
• Ensure that the workpiece is securely fastened and free from electrical problems!
• Attach or suspend all electrically conductive parts of the welding source such as the chassis, trolley and lifting systems so that they are insulated!
• Do not place other equipment such as drills, grinding devices, etc. on the welding source, trolley or lifting systems unless they are insulated!
• Always place welding torches or electrode holders on an insulated surface when not in use!

Power supply, extension and welding cables must be completely unwound to avoid overheating.

The manufacturer accepts no responsibility for damage to persons or property caused by incorrect and dangerous use of this equipment.

• Maintenance must only be carried out by a qualified person. Annual maintenance is recommended.
• Switch off the power supply by pulling the plug and wait two minutes before working on the equipment. The voltages and currents inside are high and dangerous.

•Regularly remove the cover and blow off the dust. Take the opportunity to have the electrical connections checked with an insulated tool by qualified personnel.
- Regularly check the condition of the power cord. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service or a similarly qualified person, to avoid any danger.
- Leave the welding power source vents free for air intake and exhaust.
- Do not use this welding current source to defrost pipes, recharge batteries/accumulators or start motors.

INSTALLATION - OPERATION PRODUCT

Only experienced personnel authorised by the manufacturer may carry out the installation. During installation, make sure that the generator is disconnected from the mains. Do not connect the generator in series or in parallel. It is recommended to use the welding cables supplied with the equipment in order to obtain optimum product settings.

DESCRIPTION

This equipment is a single-phase power source for semi-automatic "synergic" welding (MIG or MAG). The P1 GYS AUTO accepts ∅ 200 and 300 mm wire reels. The P3 accepts ∅ 200 wire reels.

DESCRIPTION OF EQUIPMENT (II)

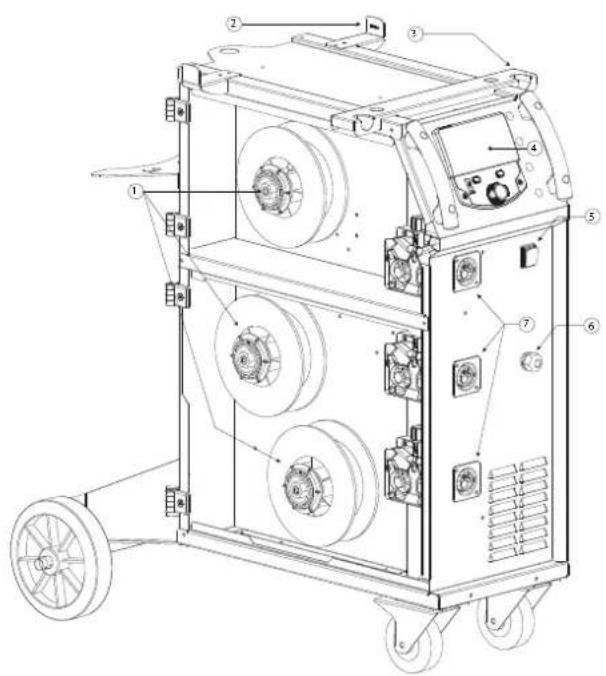

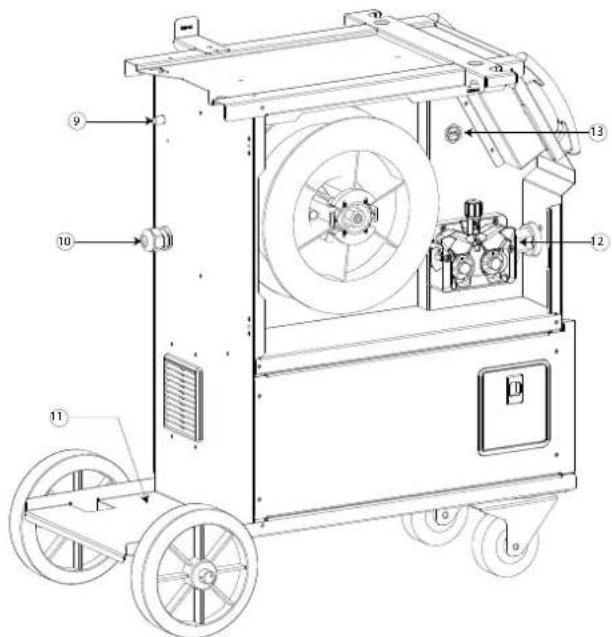

P1

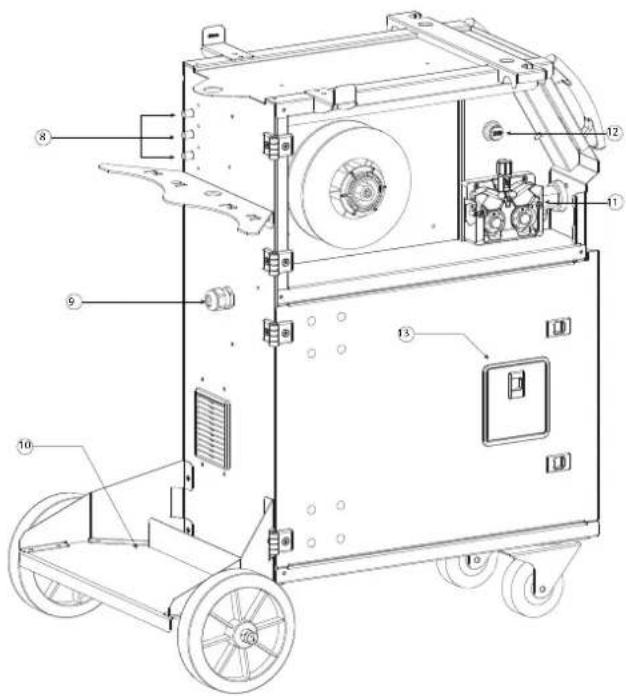

1- Reel support ∅ 200/300 mm 9- Gas connector
2- Accessory box hatch 10- Mains connection
3- Cable support 11-4m
4- Torch support 12- Motor hose reel
5- HMI (Human Machine Interface) 13- USB connection
6- START/STOP switch
7- Ground cable (-) 3.5 m
8- Euro connector (torch X1)

P3

1- Reel support ∅ 200 mm 9- Gas connector
2- Accessory box hatch 10- Mains connection
3- Cable support 11- bottle support 2x4m
4- Torch support 12- Motor hose reel
5- HMI (Human Machine Interface) 13- USB connection
6- START/STOP switch
7- Ground cable (-) 3.5 m
8- Euro connector (torch X3)

MAN-MACHINE (IHM)

IHM

Please read the user manual for the interface (HMI), which is part of the complete equipment documentation.

^3 bottle support

3

POWER SUPPLY-START-UP

- The 230 V model is supplied with a 16 A CEE7/7 type plug and must only be used on a 230 V (50 - 60 Hz) single-phase, three-wire electrical installation with an earthed neutral conductor.

•The 208/240 V model is supplied without a plug and must only be used on a single-phase 208-240 V (50-60 Hz) three-wire electrical installation with an earthed neutral conductor.

The effective absorbed current (I1eff) is indicated on the appliance for maximum operating conditions. Check that the power supply and its protection (fuse and/or circuit breaker) are compatible with the current required during use. In some countries, it may be necessary to change the plug to enable use under maximum conditions.

• The power source is designed to operate on an electrical voltage of 230 V -20% +15%. It goes into protection if the supply voltage is less than 185 Vrms or more than 265 Vrms (a fault code will appear on the display).

- It starts by pressing the START/STOP switch (ON) and stops by pressing the same switch (OFF). Warning! Never switch off the power supply when the unit is under load.

CONNECTION TO GENERATOR

This equipment can operate with generators provided that the auxiliary power meets the following requirements:

- The voltage must be alternating, with an RMS value of 230 V -20% +15%, and a peak voltage of less than 400 V,

- The frequency must be between 50 and 60 Hz.

It is essential to check these conditions, as many generators produce high voltage peaks which can damage the equipment.

USE OF EXTENSION LEAD

All extension leads must be of a length and cross-section appropriate for the voltage of the equipment. Use an extension lead which complies with national regulations.

Input voltage Length - Section of extension lead (Length < 45m)
230 V 2.5 mm ^2
208/240 V 4 mm	^2 (AWG 12)

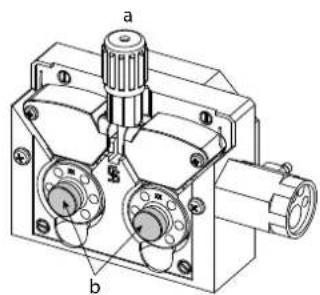

INSTALLATION OF COIL

a b a b c

- Remove the nozzle (a) and contact tube (b) from your MIG/MAG torch.

• Open the generator hatch.
• Position the coil on its support.
• Take note of the drive pin (c) on the coil support. To fit a 200 mm coil, tighten the plastic coil holder (a) as far as it will go.
• Adjust the brake knob (b) to prevent the inertia of the spool tangling the wire when the weld is stopped. As a general rule, do not overtighten, as this will cause the motor to overheat.

LOADING OF FILLER WIRE

a b

To change the rollers, proceed as follows:

• Loosen the knob (a) as far as it will go and lower it.
• Unlock the rollers by unscrewing the retaining screws (b).
• Fit the correct motor rollers for your application and screw the retaining screws back in.

Pure diagram of a vertical cylindrical structure with directional arrows indicating flow or movement (no text or symbols)

• Check the marking on the roller to ensure that the rollers are suitable for the wire diameter and the wire material (for a ∅ 1.0 wire, use the ∅ 1.0 groove).
• Use V-grooved rollers for steel and other hard wires.
• Use U-grooved rollers for aluminium and other soft alloy wires.

For example: 10 = ∅ 1.0) →: groove to be used

φ 10

Technical line drawing of a mechanical component with no visible text or symbols

To install the filler metal wire, proceed as follows:

• Loosen the knob as far as it will go and lower it.
• Insert the wire, then close the motorised winder and tighten the knob as indicated.
• Press the torch trigger to activate the motor, a procedure will be displayed on the screen.

Notes:

•A sheath that is too narrow can cause unwinding problems and overheating of the motor.

•The torch connector must also be tight to avoid overheating.
•Make sure that neither the wire nor the spool touches the mechanics of the device, otherwise there is a risk of short-circuit.

RISK OF INJURY FROM MOVING PARTS

Wire feeders have moving parts that can catch hands, hair, clothes or tools and cause injury!

• Do not touch rotating or moving components or drive parts!
• Ensure that housing covers or protective covers remain closed during operation!
• Do not wear gloves when threading the filler wire or changing the filler wire spool.

SEMI- AUTOMATIC WELDING IN STEEL/STEEL (MIG MODE) AUTOMATIC WELDING IN STEEL/STAINLESS STEEL (MAG MODE)

The equipment can weld steel and stainless steel wire from ∅ 0.6 to 1.0 mm (I-A).

Use in steel requires a specific welding gas (Ar+CO2). The proportion of CO2 may vary according to the type of gas used. For stainless steel, use a 2% CO2 mixture. When welding with pure CO2, it is necessary to connect agas preheater to the gas cylinder. For specific gas requirements, please contact your gas distributor. The gas flow rate for steel is between 8 and 15 litres / minute, depending on the environment. To check the gas flow rate on the manometer without unwinding the filler wire, press and hold the n°1 push-button and follow the procedure on the screen. This check should be carried out periodically to ensure optimum welding performance. Refer to the HMI manual.

• Use specific rollers for steel/stainless steel welding.
• Use the capillary tube (designed to guide the wire between the wire feeder rollers and the EURO connector) only for steel/stainless steel welding (I-B).
• Use a special steel/stainless steel torch.
• Contact tube: use a SPECIAL steel/stainless steel contact tube corresponding to the diameter of the wire.

SEMI-AUTOMATIC WELDING IN ALUMINIUM (MIG MODE)

The equipment can weld aluminium wire from ∅ 0.8 to 1.2 mm (I-B).

Use with aluminium requires a specific pure argon gas (Ar). The contact tube, roller groove and torch sheath are designed for this application. Ask your gas distributor for advice on the choice of gas. The gas flow rate for aluminium is between 15 and 20 l/min, depending on the environment and the welder's experience.

When using red or blue sheath (aluminium welding), we recommend using accessory 90950 (I-C). This stainless steel sheath guide improves sheath centring and facilitates wire flow.

Video

• Use specific rollers for aluminium welding.
• Apply minimum pressure to the motorised winder pressure rollers to avoid crushing the wire.
• Use a special aluminium torch. This torch has a Teflon sheath to reduce friction. DO NOT cut the sheath at the edge of the fitting! This sheath is used to guide the wire from the rollers.
• Contact tube: use a SPÉCIAL alu contact tube corresponding to the diameter of the wire.

SEMI-AUTOMATIC WELDING IN CUSI AND CUAL (BRASHING MODE)

The equipment can weld CuSi and CuAl wire of ∅ 0.8 and 1.0 mm.

In the same way as for steel, the capillary tube must be fitted and a torch with a steel sheath must be used. When brazing, pure argon (Ar) must be used.

GAS CONNECTION

• Fit a suitable pressure reducer to the gas cylinder. Connect it to the welding unit using the hose supplied. Fit the clamps to prevent leaks.
• Make sure the gas cylinder is securely held in place by securing the chain to the generator.
• Adjust the gas flow rate by turning the knob on the pressure regulator.
  NB: to make it easier to adjust the gas flow rate, activate the motorised reel rollers by pressing the torch trigger (loosen the motorised reel brake knob to avoid dragging the wire). Maximum gas pressure: 0.5 MPa (5 bar).

This procedure does not apply to welding in "No Gas" mode.

RECOMMENDED COMBINATIONS

	(mm)	Current (A) ∅ Wire (mm) ∅ Nozzle (mm) Flow rate (L/min)
MIG	0.8 > 2 20 > 100	0.8 12 10-12
	2 > 4 100 > 200	1.0 12-15 12-15
	4 > 8 200 > 300	1.0/1.2 15-16 15-18
	8 > 15 300 > 500	1.2/1.6	16 18-25
MAG	0.6 > 1.5 15 > 80	0.6 12	8-10
	1.5 > 3 80 > 150	0.8 12-15 10-12
	3 > 8 150 > 300	1.0/1.2	15-16 12-15
	8 > 20 300 > 500	1.2/1.6	16 15-18

MIG / MAG WELDING MODE (GMAW/FCAW)

		Welding processes
Parameters	Settings	Manual	Synergic
Torque material/gas	- Fe Ar 15% CO2- ...	-	✓	Choice of material to be welded.Synergic welding parameters
Wire diameter	∅ 0.6 > ∅ 1.2 mm	-	✓	Choice of wire diameter
Trigger behaviour	2T, 4T	✓	✓	Choice of trigger weld management mode
Tacking mode	Spot, Spot-Delay			Choice of aiming mode
1^st Setting	ThicknessCurrentSpeed	-	✓	Choice of main setting to be displayed (Thickness of the part to be welded, average welding current or wire speed).

Access to certain welding parameters depends on the display mode selected: Parameters/Display mode: Easy or Expert. Refer to the HMI manual.

WELDING PROCESSES

For more information on GYS synergies and welding processes, scan the QR code :

EASY

2 WELDING MODES

•Welding (continuous)

- Chain-stitch

This welding mode is used to join very thin sheet metal, limiting the risk of piercing and distorting the sheet. Chain-stitch welding is performed manually using the trigger.

EXPERT

TACKING MODE

- Spot

This welding mode is used to pre-assemble parts before welding. Tacking can be manual using the trigger or timed with a predefined tacking delay. This tacking time ensures better reproducibility and non-oxidised points.

- Spot-Delay

This is a tacking mode similar to Spot, but with a sequence of tacks and a defined stop time as long as the trigger is held down. This function can be used to weld very thin steel or aluminium sheets, limiting the risk of drilling and deformation of the sheet (especially for aluminium welding).

WELDING MODE

• 2T or 4T

SETTING THE PARAMETERS

	Unit
Burnback -		Function preventing the risk of wire sticking at the end of the bead. This time corresponds to a rise of the wire out of the molten bath.
Crater Filler %/s		This stop current is a phase after the current descent ramp.It is adjusted in intensity (% of the welding current) and in time (seconds).
Delay s Time between the end of a spot (excluding Post-gas) and the start of a new spot (including Pre-gas).
Thickness mm		Synergy allows fully automatic parameter setting. Action on the thickness automatically sets the appropriate voltage and wire speed.
Fogging s Current descent ramp.
Hot Start %/s		Hot Start is an overcurrent at start-up to prevent the wire sticking to the workpiece. It is set in intensity (% of the welding current) and time (seconds).
Intensity A The welding current is set according to the type of wire used and the material to be welded.
I Start - Adjustment of the starting current.
Arc length - Used to adjust the distance between the end of the wire and the molten pool (tension adjustment).
Pre-gas s Time for purging the torch and creating the gas protection before striking.
Point s Defined duration.
Post-gas s		Time for maintaining the gas protection after the arc is extinguished. This protects the workpiece and electrode against oxidation.
Self	-	Dampens the welding current to a greater or lesser extent. To be set according to the welding position.
Spot	s Defined duration.
Voltage	V Influence on the width of the bead.
Upslope	s Gradual ramping up of the current.
Approach speed	-	Progressive wire speed. Before priming, the wire arrives slowly to create the first contact without causing jolts.
Wire speed	m/min	Quantity of filler metal deposited and indirectly the welding intensity and penetration.

Access to certain welding and tacking parameters depends on the welding process (Manual, Synergic) and the display mode selected (Easy or Expert). Refer to the HMI manual.

CHECKING THE GAS FLOW

To check the gas flow on the pressure gauge without unwinding the welding wire, press and hold the n°1 push-button and follow the procedure on the screen. This check should be carried out periodically to ensure optimum welding performance. Refer to the HMI manual.

FAULTS, CAUSES, REMEDIES

SYMPTOMS	POSSIBLE CAUSES	REMEDIES
The flow of welding wire is not constant.	Spatter is obstructing the orifice	Clean the contact tube or replace it.
	The wire is slipping in the rollers.	Replace the anti-adhesion product.
	One of the rollers is slipping.	Check that the roller screw is tight.
	The torch cable is twisted.	The torch cable must be as straight as possible.
The unwinding motor does not work.	Coil brake or roller too tight.	Loosen brake and rollers
Poor wire feed.	Wire guide sheath dirty or damaged.	Clean or replace.
	Roller shaft key missing	Reposition the key in its seat
	Spool brake too tight.	Release the brake.
No current or wrong welding current.	Wrong mains plug connection.	Check the plug connection and check that there is power to the plug.
	Poor earth connection.	Check the earth cable (connection and condition of the clamp).
	No power.	Check the torch trigger.
Wire clogs after the rollers.	Wire guide sheath crushed.	Check the sheath and torch body.
	Wire jammed in the torch.	Replace or clean.
	No capillary tube.	Check presence of capillary tube.
	Wire speed too high.	Reduce wire speed.
Welding bead porous.	Gas flow insufficient.	Adjustment range 15 to 20 L / min.Clean the base metal.
	Empty gas cylinder. Replace it.
	Unsatisfactory gas quality. Replace it.
	Air circulation or influence of wind. Prevent draughts, protect the welding area.
	Gas nozzle too dirty. Clean the gas nozzle or replace it.
	Poor quality of wire. Use a wire suitable for MIG-MAG welding.
	Poor quality of the surface to be welded (rust, etc.)	Clean the workpiece before welding
	Gas not connected	Check that the gas is connected to the generator inlet.
Very large spark particles.	Arc voltage too low or too high. See welding parameters.
	Incorrect earth connection.	Check and position the earth clamp as close as possible to the area to be welded.
	Insufficient shielding gas. Adjust the gas flow.
No gas at torch outlet Incorrect gas connection		Check the gas inlet connection
		Check that the solenoid valve is working
Error when downloading	The data on the USB key is incorrect or corrupted.	Check your data.
Backup problem	You have exceeded the maximum number of backups.	You need to delete programs.The number of backups is limited to 200.
Automatic deletion of JOBS.	Some of your jobs have been deleted because they were no longer valid with the new synergies.	-
USB key problem	No JOB is detected on the USB key -
	More memory space in the product Free up space on the USB key.
File problem	The "..." file does not match the synergies downloaded to the product	The file was created with synergies that are not present on the machine.
Update problem	The USB key does not seem to be recognised. The display for step 5 of the update procedure does not appear on the screen.	1- Insert the USB key into its slot.2- Switch on the generator.3- Press and hold down the HMI wheel to force the update.

WARRANTY CONDITIONS

The warranty covers all manufacturing defects or faults for 2 years from the date of purchase (parts and labour).

The warranty does not cover:

• Any other damage due to transport.
•Normal wear and tear of parts (e.g. cables, clamps, etc.).
- Incidents due to incorrect use (incorrect power supply, dropping, dismantling).
•Environment-related faults (pollution, rust, dust).

In the event of a fault, return the appliance to your distributor, enclosing:

• dated proof of purchase (till receipt, invoice, etc.)
• a note explaining the fault.

Technical line drawing of a mechanical assembly with labeled parts (a and b), no readable text or symbols present.

Technical line drawing of a mechanical device with ports and housing (no text or symbols)

Technical line drawing of a mechanical assembly with labeled parts (a and b), no readable text or symbols present.

Pure diagram of a vertical cylindrical structure with directional arrows indicating flow or movement (no text or symbols)

Technical line drawing of a mechanical component with labeled parts (a, 1-5), no readable text or symbols beyond labels

Technical line drawing of a mechanical component with labeled parts (a, b, c) and no readable text or symbols.

WAARSCHUWINGEN - VEILIGHEIDSINSTRUCTIES

ALGEMENE INSTRUCTIES

Technical line drawing of a mechanical assembly with labeled parts (a and b), no readable text or symbols present.

Pure diagram of a vertical cylindrical structure with internal channels and directional arrows, no text or symbols present.

Technical line drawing of a mechanical component with no visible text or symbols

Pure diagram of a vertical cylindrical vessel with internal flow arrows, no text or symbols present

Technical line drawing of a mechanical component with labeled parts (a, b, c) and no readable text or symbols.

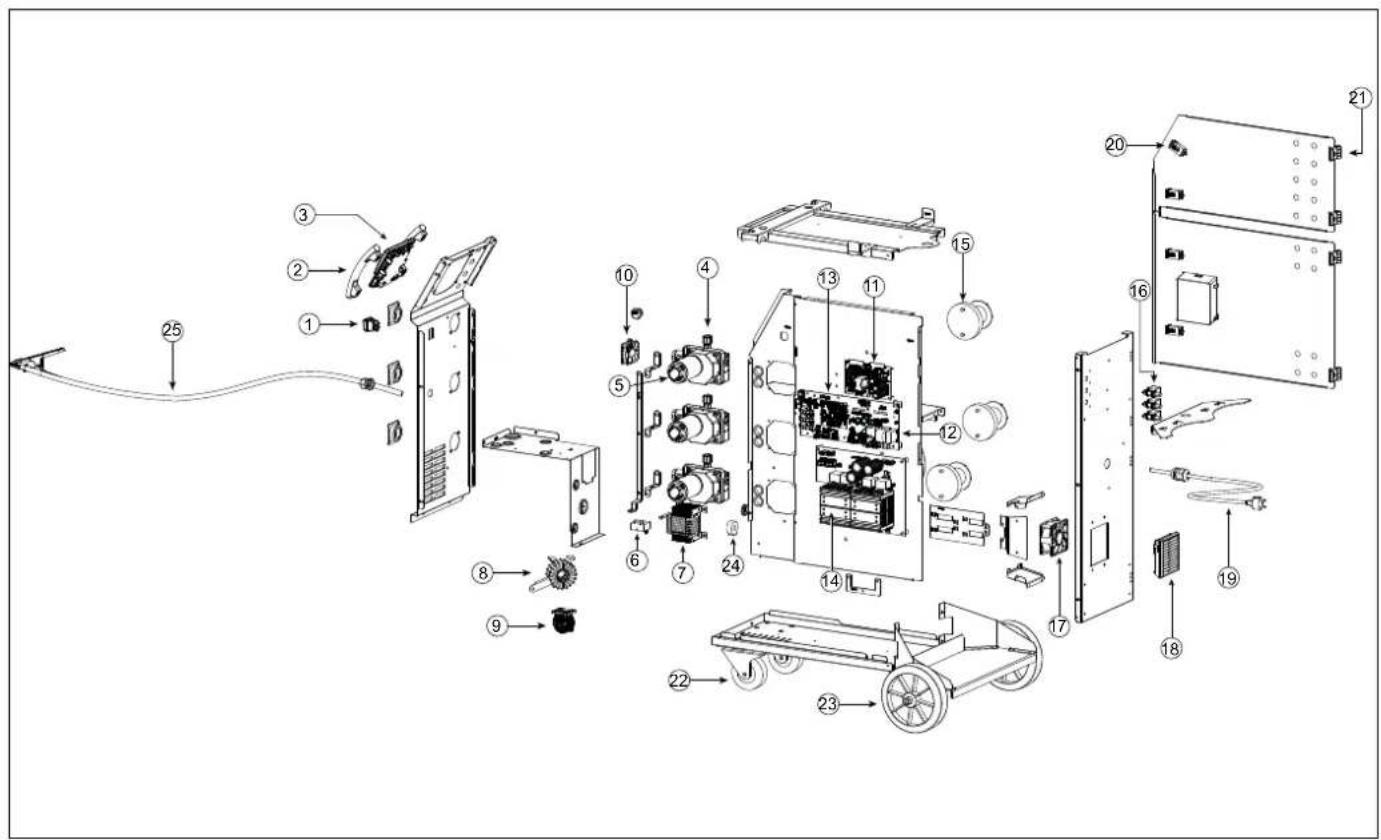

Exploded view diagram of a device assembly with numbered parts for identification

P3

Exploded view diagram of a mechanical assembly with numbered components and labeled parts

		P1 GYS AUTO P3 GYS AUTO
		230 V 208/240 V 230 V 208		240 V
1	Interrupteur bipolaire / Two-pole switch / Zweipoliger Schalter / Interruptor bipolar /Двухполюсный переключатель / Tweepolige schakelaar / Interruttore bipolare	52472 52472
2	Poignée plastique / Plastic handle / Kunststoffgriff / Asa de plástico / Пластиковая ручка /Plastic handvat / Maniglia in plastica	56047 56047
3 IHM / HMI E0217C E0217C
4 Motodévidoir / Wire feeder motor / 51207 51207
5	Carte tachymétrie / Tachometer board / Tachymeterkarte / Tarjeta de taquimetría / Плататахометра / Tachometerbord / Scheda tachimetrica	E0153C E0153C
6	Capteur de courant / Current sensor / Stromsensor / Sensor de corriente / Датчик тока /Huidige sensor / Sensore di corrente	64463 64463
7	Self de sortie / Output self / Ausgangsdrossel / Inductancia de salida / Вывести себя /Induttanza di uscita	63739 63739
8	Transformateur torique / Toroidal transformer / Ringkerntransformator / Transformadortoroidal / Тороидальный трансформатор / Ringkerntransformator / Trasformatore toroidale	63561 63561
9 Self PFC 63691 63691
10	Ventilateur 60x60x20 / Fan 60x60x20 / Ventilator 60x60x20 / Ventilador 60x60x20 /Вентилятор 60x60x20 / Ventilator 60x60x20 / Ventilatore 60x60x20	51018 51018
11	Carte alimentation / Power supply board / Stromversorgungsplatine / Tarjeta de alimentación / Плата питания / Voedingskaart / Scheda di alimentazione	E0169C E0169C
12	Circuit principal / Main circuit / Hauptstromkreis / Circuito principal / Главная цепь / Hoo-fdcircuit / Circuito principale	E0201C E0202C
13	Circuit contrôle / Control circuit / Kontrollkreis / Circuito de control / Схема управления /Besturingscircuit / Circuito di controllo	E0215C E0215C
14	Carte de puissance / Power board / Power-Karte / Tarjeta de alimentación / Силоваяплата	E0223C E0223C
15	Support bobine / Reel Holder / Spulenhalter / Portabobinas / Поддержка бобины / Spoelhouder / Supporto per bobine	71613 71602
16	Electrovanne / Solenoid valve / Magnetventil / Electroválvula / Электромагнитныйклапан / Magneetventiel / Valvola a solenoide	70991 70991
17	Ventilateur 92x92x38 / Fan 92x92x38 / Ventilator 92x92x38 / Ventilador 92x92x38 /Вентилятор 92x92x38 / Ventilator 92x92x38 / Ventilatore 92x92x38	50999 50999
18	Grille plastique ventilateur / Plastic fan grill / Ventilator mit Kunststoffgitter / Rejilla deplástico del ventilador / Пластиковая решетка вентилятора / Plastic ventilatorrooster /Griglia della ventola in plastica	51011 51011
19	Cordon secteur / Mains cable / Netzkabel / Cable de red / Сетевой кабель / Netkabel /Cavo di rete	21588 F10	18 21588 F10	18
20	Verrou affleurant / Lock / Sperren / Cerradura / Замок / Slot / Blocco	71003		71003
21	Charnière / Hinge / Scharnier / Bisagra / петля / Scharnier / Cerniera	56239		56239
22	Roue pivotante / Castor whell / Schwenkbares Rad / Rueda giratoria / Кастор желл /Zwenkwiel / Ruota girevole	71360 71360
23	Roue de diamètre 200 / Wheel diameter 200 / Rad mit einem Durchmesser von 200 /Rueda de 200 mm de diámetro / Диаметр колеса 200 / Diameter wiel 200 / Ruota da 200mm di diametro	71375 71375
24	Transformateur de courant / Current transformer / Stromtransformator / Transformador decorriente / Трансформатор тока / Stroomtransformator / Trasformatore di corrente	63832 63832
25	Câble de masse / Earth cable / Erdungskabel / Cable de tierra / Земляной кабель /Aardkabel / Cavo di terra	A0216ST		A0216ST

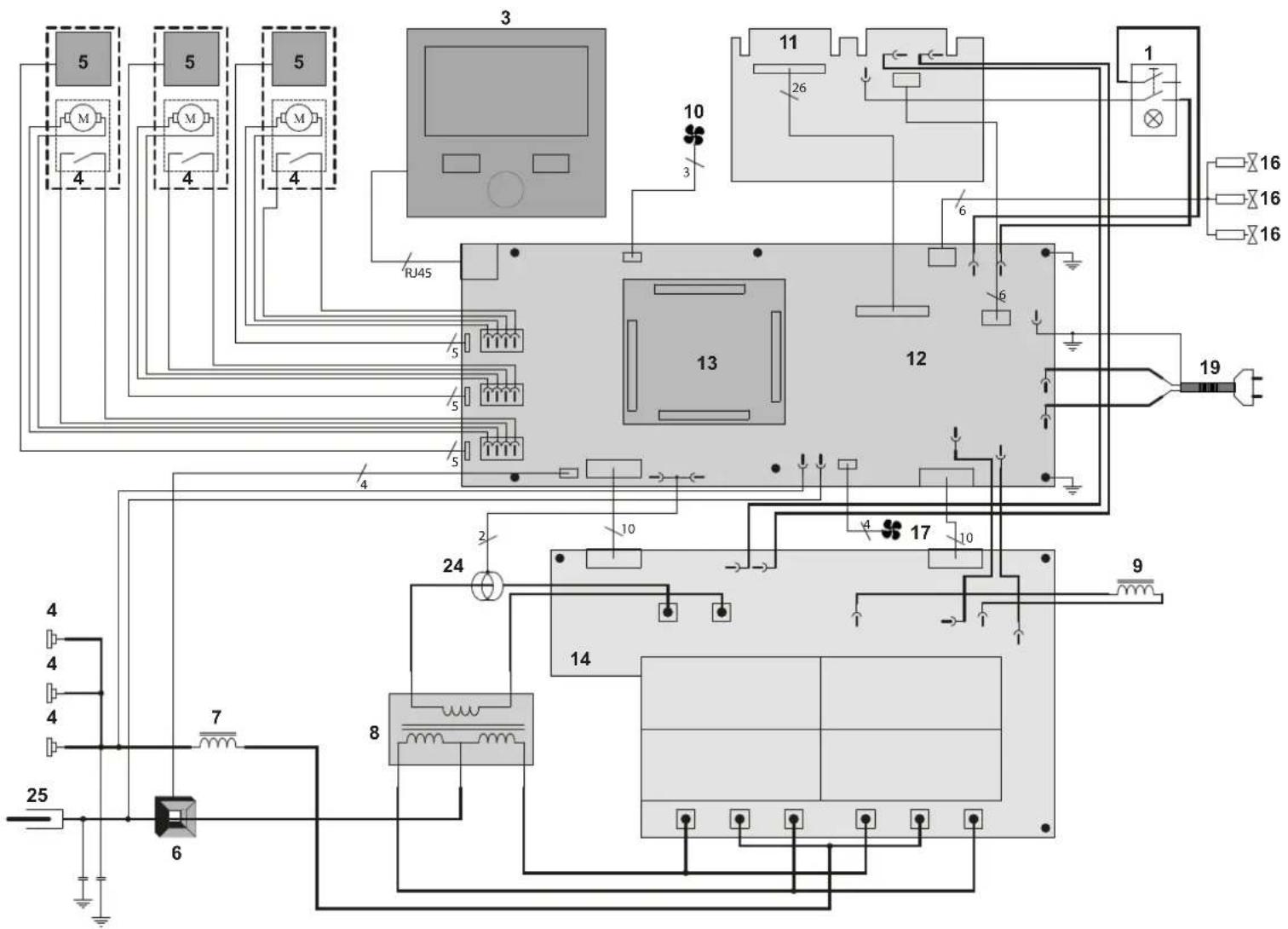

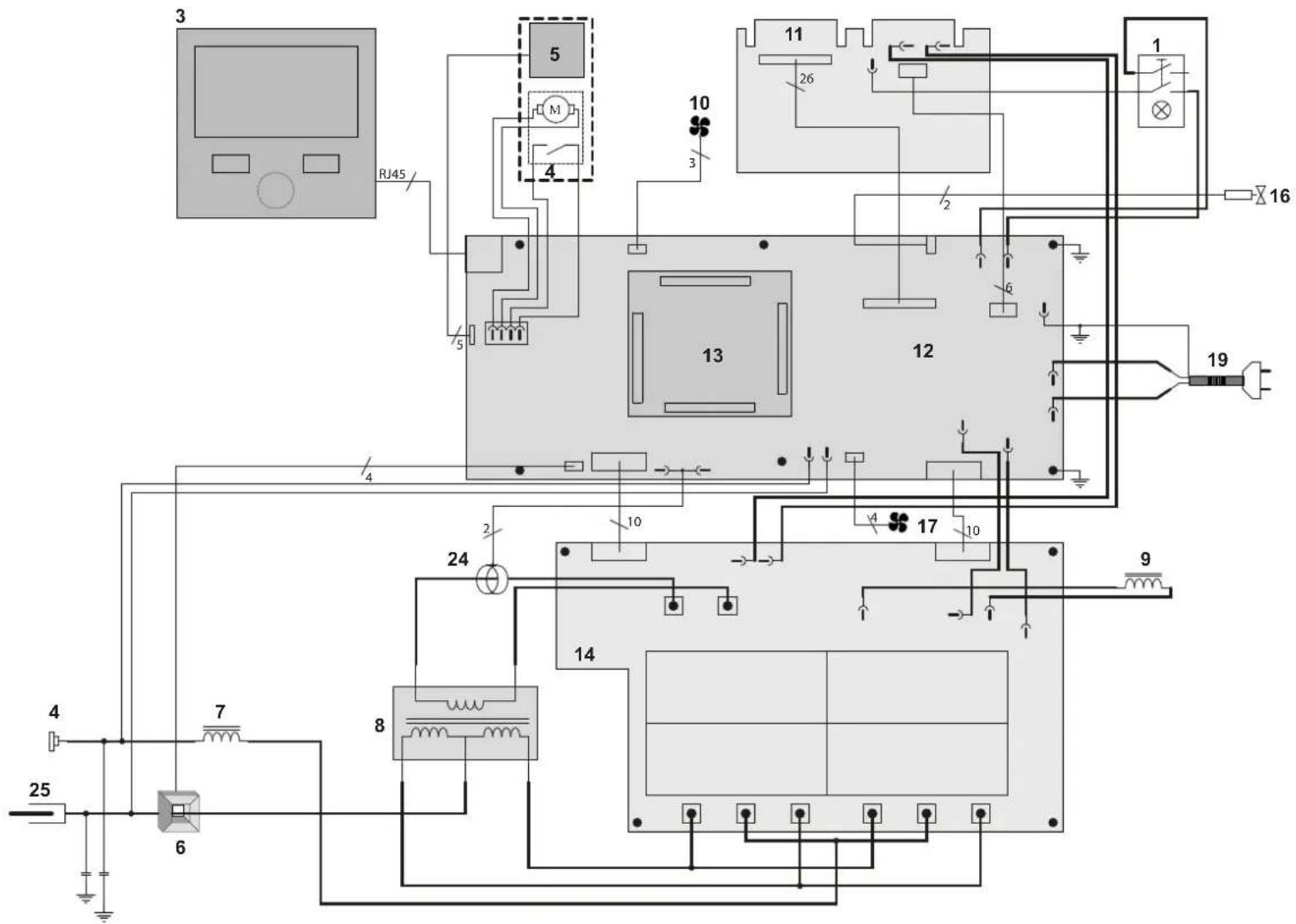

CIRCUIT DIAGRAM / SCHALTPLAN / DIAGRAMA ELECTRICO / ЭЛЕКТРИЧЕСКАЯ СХЕМА / ELEKTRISCHE SCHEMA / SCEMA ELETTRICO

P1 230V & 208/240V

Electrical circuit diagram with numbered components and wiring connections, including a monitor, meters, switches, and power supply.

CIRCUIT DIAGRAM / SCHALTPLAN / DIAGRAMA ELECTRICO / ЭЛЕКТРИЧЕСКАЯ СХЕМА / ELEKTRISCHE SCHEMA / SCEMA ELETTRICO

P3 230V & 208/240V

Electrical schematic diagram with labeled components and wiring connections, including meters, switches, resistors, and power supply connections.

TECHNICAL SPECIFICATIONS / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / ТЕХНИЧЕСКИЕ СПЕЦИФИКАЦИИ / TECHNISCHE GEGEVENS / SPECIFICHE TECNICHE

		P1 GYS AUTO P3 GYS AUTO
		230 V 208/240 V 230 V 208/240 V
Tension d'alimentation / Power supply voltage / Versorgungsspannung / Tensión de red eléctrica / Напряжение питания / Voedingsspanning / Tensione di alimentazione	U1	230 V 208/240 V 230 V 208/240 V
Fréquence secteur / Mains frequency / Netzfrequenz / Frecuencia / Частота сети / Frequentie sector / Frequenza settore		50 / 60 Hz
Nombre de phases / Number of phases / Anzahl der Phasen / Número de fases / Количество фаз / Aantal fasen / Numero di fase		1
Fusible disjoncteur / Fuse / Sicherung / Fusible disyuntor / Плавкий предохранитель прерывателя / Zekering hoofdschakelaar / Fusibile disgiuntore		16 A
Courant d'alimentation effectif maximal / Maximum effective supply current / Corriente de alimentación efectiva máxima / Maximale effectieve voedingsstroom / Corrente di alimentazione effettiva massima / Maksymalny efektywny prąd zasiliania	I1eff	13.8 A 15.7 A	13.8 A 15.7 A
Courant d'alimentation maximal / Maximum supply current / Corriente de alimentación máxima / Maximale voedingsstroom / Corrente di alimentazione massima / Maksymalny prąd zasiliania	I1max	30.4 A 33.6 A	30.4 A 33.6 A
Section du cordon secteur / Mains cable section / Sectie netsnoer / Sección del cable de alimentación / Sezione del cavo di alimentazione / Odcinek przewodu zasilającego		3 x 2.5 mm2 3 x AWG 12 3 x 2.5 mm2 3 x AWG 12
Puissance active maximale consommée / Maximum active power consumed / Consumo máximo de energía activa / Maximale acteve verbruikte vermogen / Potenza attiva massima consumata / Maksymalny pobór mocy czynnej		6550 W
Consommation au ralenti / Idle consumption / Consumo en ralentizado / Stationair verbruik / Consumo al minimo / Zużycie na biegu jakowym		15.9 W
Rendement à I2max / Efficiency at I2max / Eficiencia a I2max / Rendement bij I2max / Efficienza a I2max / Sprawność przy I2max		84 %
Facteur de puissance à I2max / Power factor at I2max / Factor de potencia a I2max / Inschakelduur bij I2max / Ciclo di potenza a I2max / Współczynnik mocy przy I2max	λ	0.995
Classe CEM / EMC class / Classe CEM / Klasse CEM / Classe CEM / Klasa EMC A
Secondaire / Secondary / Sekundär / Secundario / Вторичка / Secondair / Secondario		MIG-MAG(GMAW-FCAW)
Tension à vide / No load voltage / Leerlaufspannung / Tensión al vacío / Напряжение холостого хода / Nullastspanning / Tensione a vuoto (TCO)		67 V
Nature du courant de soudage / Type of welding current / Tipo de corriente de soldadura / Type lasstroom / Tipo di corrente di saldatura / Rodzaj prądu spawania		DC
Modes de soudage / Welding modes / Modos de soldadura / Lasmodules / Modalità di saldatura / Tryby spawania MIG-MAG
Courant de soudage minimal / Minimum welding current / Corriente mínima de soldadura / Minimale lasstroom / Corrente minima di saldatura / Minimalny prąd spawania		10 A
Courant de sortie nominal / Rate current output / nominaler Arbeitsstrom / Corriente de salida nominal / Номинальный выходной ток / Nominale uitgangsstroom / Corrente di uscita nominale	I2	10 → 220 A
Tension de sortie conventionnelle / Conventional voltage output / entsprechende Arbeitsspannung / Условное выходные напряжения / Tensión de salida convencional / Conventionelle uitgangsspanning / Tensione di uscita convenzionale	U2	14.5 → 25 V
Facteur de marche à 40°C (10 min), Nome EN60974-1 / Duty cycle at 40°C (10 min), Standard EN60974-1. Einschaltdauer @ 40°C (10 min), EN60974-1-Norm / Ciclo de trabajo a 40°C (10 min), Norma EN60974-1/ ПВ% при 40°C (10 мин), Норма EN60974-1. / Inschakelduur bij 40°C (10 min), Norm EN60974-1, Ciclo di lavoro a 40°C (10 min), Norma EN60974-1.	Imax 20 %
	60 % 150 A
	100 % 130 A
Diamètre minimal et maximal du fil d'apport / Minimum and maximum diameter of filler wire / Minimaler und maximaler Durchmesser des Schweißfülldrahtes / Diámetro mínimo y máximo del hilo de soldadura / Минимальный и максимальный диаметр присадочной проволоки / Minimale en maximale diameter van het lasdraad / Diametro mínimo e massimo del filo d'apporto	Acier / Steel	0.6 → 1.0 mm
	Inox / Stainless	0.8 → 1.0 mm
	Aluminium	0.8 → 1.2 mm
	CuSi / CuA	0.8 → 1.0 mm
Diamètre minimal et maximal du fil d'apport/ Minimum and maximum diameter of filler wire / Minimaler und maximaler Durchmesser des Schweißfülldrahtes / Diámetro mínimo y máximo del hilo de soldadura / Минимальный и максимальный диаметр присадочной проволоки / Minimale en maximale diameter van het lasdraad / Diametro mínimo e massimo del filo d'apporto		0.6 → 1.2 mm
Connectique de torche / Torch connector / Brenneranschluss / Conexiones de antorcha / Соединения горелки / Aansluiting toorts / Connettori della torcia		Euro
Type de galet / Drive roller type / Drahtführungsrolle-Typ / Tipo de rodillo / Тип ролика / Type draadaanvcerroli / Tipo di rullo		B
Vitesse de dévidage / Motor speed / Motor-Drehzahl / Velocidad de motor / Скорость двигателя / Snelheid motor / Velocità del motore		1.0 → 20 m/min
Puissance du moteur / Motor power / Leistung des Motors / Potencia del motor / Vermogen van de motor / Potenza del motore		50 W
Diamètre maximal de la bobine d'apport / Maximum diameter of the supply reel / Maximaler Durchmesser der Schweißfülldrahtspule / Diámetro máximo de la bobina de alambre / Максимальный диаметр проволочной бобины / Maximale diameter van de spoel / Diametro massimo della bobina d'apporto		∅ 300 mm ∅ 300 mm ∅ 200 mm ∅ 200 mm
Poids maximal de la bobine de fil d'apport / Maximum weight of the filler wire reel / Maximales Gewicht der Schweißfülldrahtspule / Peso máximo de la bobina de alambre / Максимальный вес проволочной бобины / Maximale gewicht van de spoel / Peso massimo della bobina del filo d'apporto		18 kg	18 kg	5 kg	5 kg

Pression maximale de gaz / Maximum gas pressure / Maximaler Gasdruck / Presión máxima del gas / Максимальное давление газа / Maximale gasdruk / Pressione massima del gas	0.5 MPa (5 bar)
Température de fonctionnement / Functionning temperature / Betriebstemperatur / Temperatura de funcionamiento / Рабочая температура / Gebruikstemperatuur / Temperatura di funzionamento	-10°C → +40°C
Température de stockage / Storage temperature / Lagertemperatur / Temperatura de almacenaje / Температура хранения / Bewaartemperatuur / Temperatura di stoccaggio	-20°C → +55°C
Degré de protection / Protection level / Schutzart / Grado de protección / Степень защиты / Beschemingsklasse / Grado di protezione	IP23S
Classe d'isolation minimale des enroulements / Minimum coil insulation class / Clase mínima de aislamiento del bobinado / Minimale isolatieklasse omwikkelingen / Classe minima di isolamento degli avvolgimenti / Minimalna klasa izolacji okablowania	B
Dimensions (Lxlxh) / Dimensions (LxWxH) / Abmessungen (Lxbxt) / Dimensiones (Lxlxh) / Размеры (ДхШхВ) / Afmetingen (Lxlxh) / Dimensioni (Lxlxh)	78 x 45 x 80 cm 86 x 63 x 93 cm
Poids / Weight / Gewicht / Bec / Peso / Gewicht / Peso 45 kg 62 kg

*Les facteurs de marche sont réalisés selon la norme EN80974-1 à 40°C et sur un cycle de 10 min. Lors d'utilisation intensive (supérieur au facteur de marche) la protection thermique peut s'enclencher, dans ce cas, l'arc s'éteint et le témoin s'allume. Laissez l'appareil alimenté pour permettre son refroidissement jusqu'à annulation de la protection. La source de courant décrit une caractéristique de sortie de type tombante. La source de courant décrit une caractéristique de sortie de type plate. Dans certains pays, U0 est appelé TCO.
*The duty cycles are measured according to standard EN60974-1 à 40°C and on a 10 min cycle. While under intensive use (> to duty cycle) the thermal protection can turn on, in that case, the arc switches off and the indicator switches on. Keep the machine's power supply on to enable cooling until thermal protection cancellation. The welding power source describes an external drooping characteristic. The power supply shows a flat output pattern.. In some countries, UO is called TCO.
* Einschaltdauer gemäß EN62974-1 (10 Minuten - 40°C). Bei sehr intensivem Gebrauch, (>Einschaltdauer) kann der Thermoschutz ausgelöst werden. In diesem Fall wird der Lichtbogen abgeschallst und die entsprechende Warnung l erscheint auf der Anzege. Das Gerät zum Abkühlen nicht ausschatten und laufen lassen bis das Gerät wieder bereit ist. Das Gerät entspricht in seiner Charakteristik einer Spannungssquelle mit fallender Kennlinic. Die Stromquelle hat eine flache Kennliniencharakteristik. In einigen Ländern wird U0 als TCO bezelchnet.
Los ciclos de trabajo están realizados en acuerdo con la norma EN80974-1 a 40°C y sobre un ciclo de diez minutos. Durante un uso intensivo (superior al ciclo de trabajo), se puede activar la protección térmica. En este caso, el arco se apaga y el indicador | se enciende. Deje el aparato conectado para permitir que se enfire hasta que se anule la protección. La fuente de corriente de solidadura posee una salida de tipo corriente constante. La fuente de corriente describe una característica de salida de tipo plano. En algunos países, UO se llama TCO.
*ПВ% указаны по норме EN60974-1 при 40°C и для 10-минутного цикле. При интенсивном использовании (> ПВ%) может включиться тепловая защита. В этом случае дуга погаснет и загорится индикатор ↓. Оставьте аппарат подключенными питанию, чтобы он осталу погной отмены защиты. Аппарат описывает падающую характеристики на выходе. Источник тока имеет выходную характеристику типа «плоская характеристика». В некоторых странах 10 называется ТСО.
*De inschakkeluur is gemeten volgers de norm EN60974-1 bij een temperatuur van 42°C en bij een cyclus van '10 minuten. Bij internsef gebruik (superieur aan de inschakkeluur) kan de thermische beveliging zich in werking stellen. In dat geval gaat de boog uit en gaat het beveligingslampje 'gaat branden. Laat het apparaat aan de netspanning staan om het te laten afkoelen, totdat de beveliging aflaat. Het apparaat heeft een uitgaande dalende egenschap. De stroombron heeft een vlaskie uitgangskarakterstiek. In sommige landen wordt U0 TCO genoemd.
"I cidi di lavoro sono realizzati secondo la norma EN60974-1 a 40°C e su un ciclo di 10 min. Durante l'uso intensivo (> al ciclo di lavoro) la protezione termica può attivarsi, in questo caso, l'acco si spiegne e la spia (si illumina. Lasciate il dispositivo collegato per permetterne i raffreddamento fino all'annullamento della protezione. La fonte di corrente di saldatura presenta una caratteristica di uscile spicvento. La fonte di corrente descrive una caratteristica di uscile di tipo piatto. In alcuni Paesi, UO viene chiamata TCO.

This interface (HMI) manual forms part of the complete item documentation. A general manual is included with the product. Read and follow the general manual's instructions, particularly the safety instructions!

For use and application to the following products only

P1 GYS AUTO	√
P2 GYS AUTO	√
P3 GYS AUTO	√

Software version

This manual covers the following software versions:

1.0

The software version of the interface is displayed in the general menu: Système / Information

Control of the power source

The main screen displays all the information needed before, during, and after welding.

The interface is adjustable with 2 different display modes: Easy or Expert.

Easy Expert

SMART INVERTER TECHNOLOGY 1 13:43 ÷ 1.0mm ÷ 0.0 1.0 mm Thickness Welding Fe Ar 15-20%CO₂ · Ø0.8 8 7 6

1 Torch used (P2 / P3) Schedule

2 Current settings

3 Long press BP1 Gas flow control

4 Welding mode choice: Welding/Stitch Welding

5 Push-button no. 1 (BP1)

Navigation thumbwheel 6 Short press to confirm Long press = General menu

7 Push-button no. 2 (BP2)

8 Current process settings

SMART INVERTER TECHNOLOGY 1 13.50 ÷ 1.0 mm ÷ 0.0 m 0.0 3.2 mm 51A 14.6V 1.0 mm Thickness Fe M21 Ø0.8 2T ÷ m ← JOB 9 8 7 press 3s 6

1 Torch used (P2 / P3) Schedule
2 Current settings
3 Long press BP1 Gas flow control
4 Current process settings
5 Push-button no. 1 (BP1)

Navigation thumbwheel

6 Short press to confirm Long press = General menu
7 Push-button no. 2 (BP2)
8 Advanced settings
9 Long press BP2 Access to JOB

Easy Mode:

This streamlined display mode is ideal for achieving optimum weld quality.

• 2 welding modes: Welding and Stitch Welding
• 4 settings : Choice of welding material (synergies), filler wire diameter, thickness, and arc length.

Expert Mode :

This more extensive display mode is designed for more experienced welders.
- Welding modes: Standard & Pulse
- Trigger behaviour: 2T or 4T
- Spot modes: Spot and Spot-Delay
- Selection of the main setting to be presented on the display
- Full adjustment of the welding cycle: Arc length, inductance, Pre-gas, Hot Start, Burn Back, Post gas, etc

General menu

The navigation between the different sections is done with the thumbwheel.

From the home screen, a long press on the thumbwheel takes you to the main menu. Briefly pressing button no. 1 (◀ returns to the previous menu or accesses the main screen.

SMART INVERTER TECHNOLOGY Settings System ↑↓ Portability DRESS 3s

Settings

Display mode

• Easy: simplified display suitable for the vast majority of users.
• Expert: comprehensive display suitable for more experienced welders. Allows you to adjust the durations of the different phases in the welding cycle.

Language

Choice of the interface language (French, English, German, etc).

Units of measurement

Choice of measurement units: International (SI) or Imperial (USA).

Name of materials

European standard (EN) or American standard (AWS).

Luminosity

Adjusts the brightness of the interface screen (setting from 1 (dark) to 10 (very bright)).

System

Device name:

Device name information and customisation options.

Clock:

Setting the time, date and format (AM/PM).

Information

Configuration data of the system components:

• Model
• Serial number
• Device name
• Software version

Press push-button no. 2 :

Exporting the machine configuration to the USB stick (not supplied)

Reset

Resets product settings:

• Partial: defaults the values of the current welding process.
• Total: all the machine's configuration will be reset to the factory settings.

Portability

Import Config.

Loading the configuration from the USB stick (directory: Removable disk\Portability\Config) to the machine. Holding down on the push-button no. 1 (deletes the configurations on the USB stick.

Export Config.

Export the machine configuration to the USB stick (directory : Removable disk\Portability\Config).

Import Job

Importing Jobs to the machine according to the processes available in the USB key's Removable Disk directory.

Export Job

Exporting Jobs from the machine to the USB stick procedure (directory : Removable disk\Portability\Job).

Caution, old jobs on the USB stick may be deleted..

To prevent data loss during data import or export, do not remove the USB flash drive or turn off the machine. The file name is linked to the machine name and serial number.

The USB stick is not included.

Gas flow control

In the main screen, a long press on button N°1 allows you to adjust the gas flow on the manometer without unwinding the supply wire. Once started, the procedure is illustrated with an animation on the screen. The gas flow setting should be checked periodically to ensure optimal welding.

Wire loading

To unwind the wire in the MIG/MAG torch without using gas, please follow the procedure below:

1- In the non-welding position, hold the trigger down without releasing it.
2- A procedure is shown automatically on the display.
3- The wire starts to feed. 3m of wire feeds at a speed of 5m/min by default. You can change these values with the thumbwheel.

Job memory and recalls

Accessible through the «JOB» icon on the main screen.

The settings in use are automatically saved and remembered the next time you turn on the machine.

In addition to the active settings, it is possible to save and recall «JOB» configurations.

There are 200 JOBS. The storage is based on the current process parameters, and the current settings.

Job

This JOB mode allows you to create, save, recall and delete JOBs.

1- Save As - Creating a Job

Customise the job name by pressing the thumbwheel. Confirm by pressing push-button no. 2.

Display the current job

At the bottom right of the screen, the job number is displayed.

Stop the current job

To close the current job, the user must return to the Job menu and select «Close».

2- Open - Jobs Management

The screen lists previously created Jobs.

Holding down push-button no. 1 deletes the active job or all jobs.

Short pressing push-button no. 1 returns to the previous menu

Short pressing push-button no. 2 allows you to see the details of each of the previously created jobs..

Error codes

The following table shows a non-exhaustive list of messages and error codes that may appear. Carry out these checks and inspections before calling in an authorised GYS technician.

If the user needs to open the product, they must turn off the power supply by disconnecting the electrical plug from the socket, and wait two minutes for safety.

Codes Error	Messages Solutions
001	OVER-VOLTAGE FAULTCheck the electrical installation	Have your mains supply checked by an authorised person.
002	UNDER-VOLTAGE FAULTCheck the electrical installation
005 Earth current fault		Presence of a stray current. Check the cabling of the welding accessories (torch, ground clamp, etc.)
010	POWER SOURCEThermal protection	Wait a few minutes for the power source to cool down.Ensure that the recommended duty cycle for the selected welding current used is not exceeded.Ensure that air inlets and outlets are not obstructed.
011	FanFan default.	Switch off the power supply by unplugging the mains connector, and check that the fan is not blocked.
012	TRIGGERA trigger is being pressed	Check that the trigger on the MIG/MAG torch is not blocked or stuck.
015	MOTORUnable to reach the required speed	Check the pressure settings on the wire-feeding rollers.Check that the welding wire is not blocked in the torch liner.
019	Overload, please check your settingsPress and release the trigger to erase	Check the power source settings and installation (welding wire, rol-lers, gas, torch, etc.)If the problem persists, update the software (via Planet GYS).
020	Problem with welding start-upPlease check your welding parametersPress and release the trigger to erase	Check the power source settings and installation (welding wire, rol-lers, gas, torch, etc.)If the problem persists, update the software (via Planet GYS).
024	USB overloadDisconnect your USB	Change the USB stick.
-	An internal system error has occurred.Please restart your product	Turn the product off and on again.If the problem persists, update the software (via Planet GYS)
- The product's memory space is full. Delete Jobs to free up internal storage space.
-	File %s not supportedErr %dContinue anyway?	The data on the USB stick is corrupted. Check your data.
- Unable to write to USB stick		Free up some space on the USB key.If the problem persists, change the USB stick..

If an error code which is not listed appears or your problems persist, contact your distributor.

GYS

Export Job (Export von Jobs)
