USER MANUAL Essential Auto RBLP-1200S WILFA

Black Wilfa blender with water level indicator and control buttons (no text or symbols on body)

ESSENTIAL AUTO

BLENDER RBLP-120 0S / RBLP-150 0B

EN · Instruction manual

NO · Bruksanvisning

SE · Bruksanvisning

IMPORTANT SAFETY INSTRUCTIONS

• Please read this manual carefully before operation and save it for future reference.
• Never leave the appliance unattended when it is connected to the mains.
• Never immerse the appliance in water.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Is there damage to the device or that it does not work, it must be serviced only by authorized personnel.
• Connect the appliance only to a properly installed wall socket with a voltage matching the technical data of the appliance.
• Do not let the cord hang over edge of the table or counter or touch hot surface.

• The motor must not come into contact with water or any other liquid, as there is the danger of an electric shock. Therefore, do not use the appliance near to a wash Basin, not with wet hands or while standing on a wet ground. If the appliance has turned wet, pull the mains plug immediately out of the socket before touching the appliance.

• Do not use the appliance outdoors.

• This product is intended for household use and not for commercial use.
• Use the appliance only for the purpose it was designed for.
• Do not use appliance, if it or parts of it show visible damage or if the appliance was dropped.
• Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.
• Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• This appliance shall not be used by children.
• Keep the appliance and its cord out of reach of children.
  • Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

EN

CAUTION

We are very safety conscious when designing and manufacturing consumer products, but it is essential that the product user also exercise care when using an electrical appliance. Listed below are precautions which are essential for the safe use of an electrical appliance:

• There is a potential injury from misuse. The care shall be taken when handling the sharp cutting blades, emptying the bowl and during cleaning.
• To reduce the risk of injury, never place cutter-assembly blades on base without jar properly attached.
• Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Be careful is hot liquid is poured into the blender as it can be ejected out of the appliance due to a sudden steaming.

EN

SAFETY PRECAUTIONS FOR YOUR TABLE BLENDER

• Operate the blender with lid closed
• Blades are very sharp. Handle with care.
• Only remove the jar while motor is off.
• Avoid overwork of motor.
• Handle carefully with glass jar.
• Never place your hands into the glass jar while the motor is on.
• Avoid contact with moving parts.

EN

INSTRUCTION MANUAL - ESSENTIAL 1500/1200 AUTO

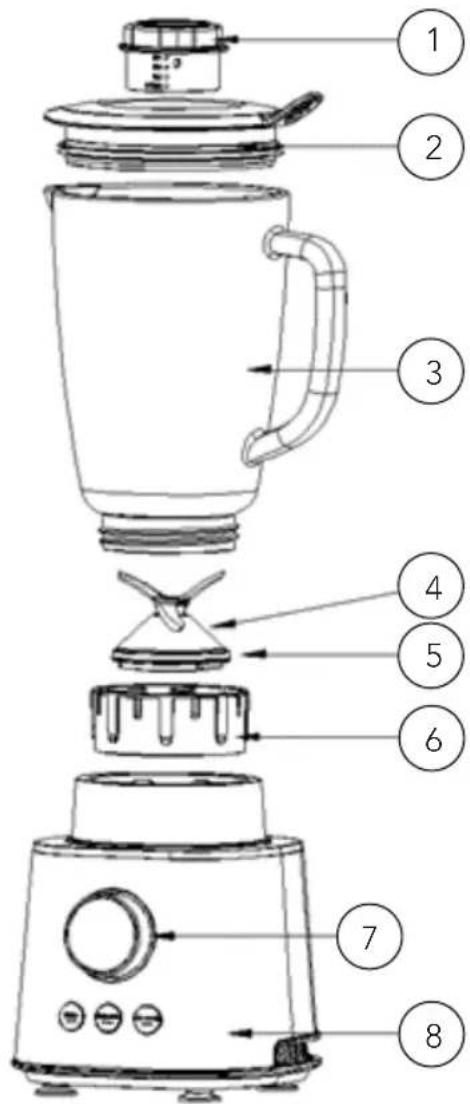

PRODUCT OVERVIEW

Labeled diagram of a blender with numbered parts for identification

1. Measuring cup
2. Lid
3. Glass jug
4. Blade holder
5. Sealing ring
6. Jug base
7. Knob
8. Main unit

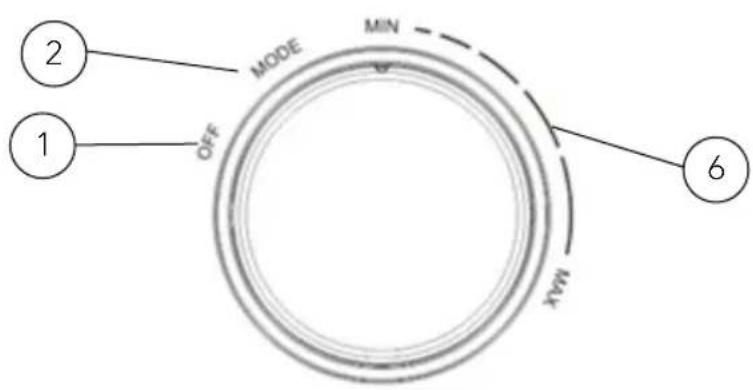

PRODUCT OVERVIEW - CONTROL PANEL

2 1 OFF MODE MIN MAX 6

Pulse Smoothie Ice crush ③ 4 5

1. Off
2. Mode
3. Pulse
4. Smoothie

5. Ice crush

6. Speed control

BUILT-IN SAFETY LOCK

This function ensures that user can only switch the appliance on when the accessories have been placed on the unit in correct position. When the accessories have been fixed properly, the unit can only be switched on. (i.e. Built-in safety lock function is disabled at this moment).

Note that the blender has a protection device: The thermostat will be activated when the motor is overheated. The device will be re-set by unplug and re-plug the power plug to the socket around 30 minutes.

BEFORE FIRST USE

Clean the unit and parts thoroughly before you use the appliance for the first time.

EN

USING THE APPLIANCE

• There is a jar sensor on the blender base. When blender jar is placed on the unit, all the functions and time controls can be selected.
• Make sure the indicator is set to off when you start the blender.
• Put the desired ingredients into the jug.
• Mount the lid onto the jug and insert the lid cap or tamper.
• Select the desired pre-set by turning the knob clockwise to mode, and press your preferred program. The product will run the selected program automatically, after program is completed, the blender will enter standby mode.
• Select speed manually by turning the knob clockwise.
• Manual Pulse: Press and hold Pulse. The motor will increase to full speed, and stops when you release. When releasing, the product will return to standby mode.

Note: It is recommended to cut the meat or other food into smaller pieces before putting them in the jar. Do not operate with large quantities of food at one time.

CLEANING

Note: Always clean the removable parts immediately after use.

Note: Be careful when cleaning the parts. Avoid touching the sharp blades!

• Disconnect the power from main supply.
• Disassemble all removable parts before cleaning.
• Clean all removable parts in lukewarm water with dishwashing liquid.
• The blender jug can be rinsed with water. It can also be cleaned by pouring warm water into the jug with a few drops of dishwashing liquid, and press the pulse button until it looks clean. Pour out the water, rinse and dry with a soft cloth.
• Use dry cloth to clean the main body.

EN

BEYOND EXPECTATIONS 5 SINCE 1948 YEAR GUARANTEE

GUARANTEE

Wilfa issues a 5 year guarantee on this product from the day of purchase is done. The guarantee covers production failure or defects that arise during the guarantee period. Your purchase receipt works as proof towards retailer if claiming your guarantee.

The guarantee is valid only for products that are bought and used in private households. The guarantee is not valid if the product is used commercially. The guarantee is not valid if the product is misused, used by negligence, if not following instructions given by Wilfa, if modified or if unauthorized reparation is done. The guarantee is also not valid for normal wear of the product, misuse, lack of maintenance, use of wrong electrical voltage or:

• Overloading of product
- Damage on glass
- Parts which are normally worn down

PRODUCT SPECIFICATIONS

RBLP-1500B: 220-240V\~50/60Hz, 1500 W

RBLP-1200S: 220-240V\~50/60Hz, 1200 W

SUPPORT AND SPARE PARTS

For support please visit us at wilfa.com, and see our customer service/support page. Here you will find frequently asked questions, spare parts, tips and tricks and all our contact information.

RECYCLABILITY

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and

collection systems or contact the retailer where the product was purchased.

They can take this product for environmentally safe recycling free of charge.

NO

NO

INNHOLD

16 VIKTIGE SIKKERHETSINSTRUKSJONER

18 FORSIKTIG

19 FORHOLDSREGLER FOR BLENDEREN

20 PRODUKTOVERSIKT

21 PRODUKTOVERSIKT - KONTROLLPANEL

21 INNEBYGD SIKKERHETSLÅS

21 F∅R F∅RSTE GANGS BRUK

22 BRUK

22 RENGJ∅RING

24 GARANTI

25 PRODUKTSPESIFIKASJONER

25 SUPPORT OG RESERVEDELER

25 GJENVINNING

VIKTIGE SIKKERHETSINSTRUKSJONER

NO

Labeled diagram of a blender with numbered parts for identification

INNEBYGD SIKKERHETSLÅS

QR code image containing encoded data, no visible human-readable text

GJENVINNING

Labeled diagram of a blender with numbered parts for identification

Labeled diagram of a blender with numbered parts for identification

1. Målekop
2. Låg
3. Glaskandemed
   indholdsindikator
4. Knivholder
5. Forseglingsring

6. Kandebund

7. Kontrolpanel

8. Motorenhed

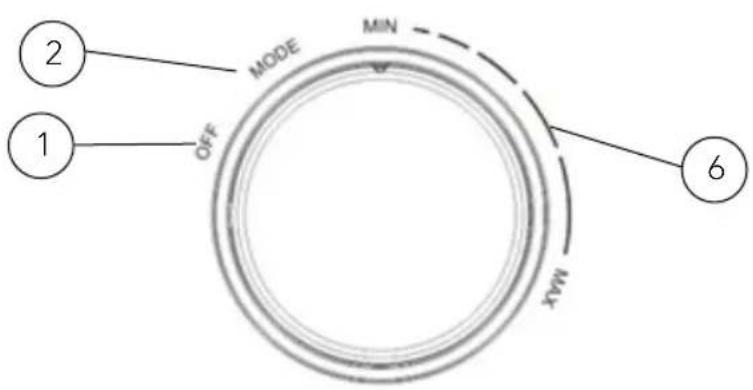

PRODUKTOVERSIGT - KONTROLPANEL

2 1 OFF MODE MIN MAX 6

Labeled diagram of a blender with numbered parts for identification

Labeled diagram of a blender with numbered parts for identification

DE

Labeled diagram of a blender with numbered parts for identification

NL

Labeled diagram of a blender with numbered parts for identification

PL

Labeled diagram of a blender with numbered parts for identification

FR

CARACTÉRISTIQUES DU PRODUIT

RBLP-1500B: 220-240V\~50/60Hz, 1500 W

RBLP-1200S: 220-240V\~50/60Hz, 1200 W

ASSISTANCE ET PIÈCES DÉTACHÉES

Labeled diagram of a blender with numbered parts for identification

IT

Labeled diagram of a blender with numbered parts for identification

FSC www.fsc.org 100% From well- managed forests FSC® C000000

RBLP-1500B_RBLP-1200S_20_01
