USER MANUAL DOM501 LIVOO

Black livoo solar heating device with control knobs and a digital display (no visible text or symbols on body)

1 2 3 4 5 6

Figure 1

Technical line drawing of a server rack with screwdriver and plastic housing (no text or symbols)

Figure 2

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Thank you for choosing a Livoo product!

EN

Your blender, your barbecue, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer barbecue. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day.

That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en.

Livoo, your daily companion till social networks

@Livoo

@livoo_officiel

@Livoo

Safety Instructions

Please, take time to read well the instruction sheet before the first use and keep them for a future use.

A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

This product is only suitable for well insulated spaces or occasional use

1. In order to avoid overheating, do not cover the heater.

1. Check that the mains voltage corresponds with the rating of the appliances before use.
2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

1. Children of less than 3 years should be kept away unless continuously supervised.

2. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

3. The heater must not be located immediately below a socket outlet.

4. Follow the installation instructions given in this manual to know how the rollers or feet have to be fixed to the heater.
5. Use this heater on a horizontal and stable surface.
6. To avoid the appliance's damage do not insert any items into the appliance.
7. Never put the front side of the appliance (grill) closer than 1 meter to the wall, furniture and other objects in the room as to avoid fire.
8. Never insert pens, pencils or any other objects through the grill when the appliance is turning on.
9. Never immerse the appliance or power cord into water.
10. Never use the appliance with wet hands.
11. Do not use the heater in the immediate surroundings of a bath, a shower or a swimming pool.
12. Never use the appliance on a damp surface/floor.

13. Never let the turned on appliance be unattended.

14. Never use the appliance with over tightened cord.

15. Never use the appliance with an extension cord.
16. The appliance is not intended to be operated by means of external timer or separate remote control system.
17. Always unplug the appliance when not in use or before cleaning.
18. To disconnect the plug from outlet, do pull out by the cord.
19. Do not use any abrasive, chemical or alcohol-contained cleaners for cleaning the appliance.
20. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard. (*)
21. Never use the appliance with the damaged wall outlet.
22. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched

on and off by the utility.

1. Never use the appliance near or on the hot surfaces.
2. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.
3. Do not use this heater if it has been dropped. Do not use if there are visible signs of damage to the heater.
4. Do not repair the appliance by yourself.
5. Incorrect operation and improper handling can lead to malfunction of the appliance and injuries to the user.
6. Prevent overheating of the appliance by keeping the air inlets and outlets clean and free of anything that may cause blockage. Check all inlets and outlets from time to time for accumulated dust.
7. WARNING: Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.
8. WARNING: To reduce the risk of fire, keep textiles, curtains, or any other flammable

material a minimum distance of 1 m from the air outlet.

1. This appliance is intended to be used in household and similar applications such as:

2. staff kitchen areas in shops, offices and other working environments

3. farm houses
4. by clients in hotels, motels and other residential type environments
5. bed and breakfast type environments

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Technical Specifications

AC 220-240V 50-60Hz 1800-2000W

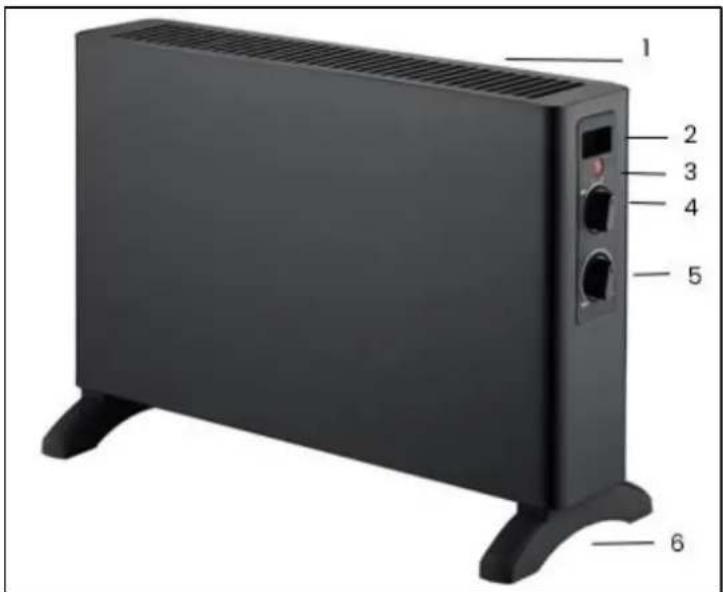

Drawing of the device

1	Grid	4	on/off switch
2	Handle	5	Thermostat
3	Light indicator	6	Feet

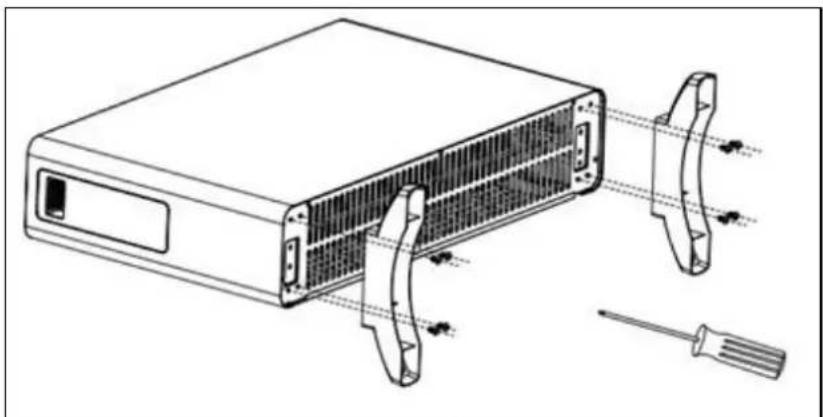

Assembly:

Attach the feet to the radiator using the screws supplied and a screwdriver.

It is normal for your heater to give off odours and/or fumes when it is switched on for the first time or when it has not been used for a long time. These odours disappear quickly.

Use of the device

Place the convector away from any damp environment and any flammable objects.

Plug in the convector and switch it on by turning the on/off switch. Set the thermostat to the maximum temperature. Turn the on/off switch anti-clockwise from the OFF position to select the heating level: moderate = 1 or strong = 11.

Set the thermostat to the maximum temperature then, when the desired temperature is reached, turn it down until the indicator light goes out.

Your appliance is fitted with protection against tilting and overheating. If the convector starts to overheat or tilt, the safety system will be triggered automatically and the convector will no longer operate. Switch it off, then unplug it and leave it to cool for about 15 minutes before use it again.

Cleaning and maintenance

Always switch off and unplug the appliance before cleaning.

Use a damp cloth to wipe the outside of the appliance. Use a hoover to remove dust from the grid.

Table	DOM501
Model number:	Electric convector heater
Item		Symbol	Value	Unit
Heat output
Nominal heat out-put		Pnom	2	kW
Minimum heat output (indicative)		Pmin	1.2	kW
Maximum continuous heat output		Pmax,c	1.8	kW
Auxiliary electricity consumption
At nominal heat output		elmax	N/A	kW
At minimum heat output		elmin	N/A	kW
In standby mode		elsb	0	kW
Type of heat input, for electric storage local space heaters only (single select)
manual heat charge control, with integrated thermostat				□ Yes □ No
manual heat charge control with room and/or outdoor temperature feedback				□ Yes □ No
electronic heat charge control with room and/or outdoor temperature feedback				□ Yes □ No
fan assisted heat output				□ Yes □ No
Type of heat output/room temperature control (single select)
single stage heat output and no room temperature control				□ Yes □ No
Two or more manual stages, no room temperature control				□ Yes □ No
with mechanic thermostat room temperature control				✕ Yes □ No
with electronic room temperature control				□ Yes □ No
electronic room temperature control plus day timer				□ Yes □ No
electronic room temperature control plus week timer				□ Yes □ No
Other control options (multiple selections possible)

room temperature control, with presence detection		□ Yes □ No
room temperature control, with open window detection		□ Yes □ No
with distance control option		□ Yes □ No
with adaptive start control		□ Yes □ No
with working time limitation		□ Yes □ No
with black bulb sensor		□ Yes □ No
Contact details	DELTA, 1 rue Foch, 67540 Mundolsheim, FRANCE

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Correct disposal of the unit (Electrical and Electronic Equipment).

(Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration
- Product information is subject to change without prior notice.
