USER MANUAL 306639 Arendo

QR code image containing encoded data, no visible human-readable text

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

⚠️ Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. It is not intended for commercial use.

- Do not use the appliance outdoors and keep it away from heat sources (e.g., electric stove) and direct sunlight. Please do not keep the product close to water sources (e.g., washbasin).

- Do not use the ice cube maker with wet hands.

- Keep it on an suitable surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Operate the appliance only with the voltage indicated on the appliance label.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and the cable out of the reach of children aged less than 8 years.

- In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around. Danger of suffocation!

- WARNING: fill with potable water only.

- Do not move the appliance when it is being operated.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Children should use or clean the appliance only under supervision or guidance.

- This appliance is designed exclusively for making ice cubes using drinking water! Any improper use can result in property damage and physical injury!

- The water level should not exceed the maximum mark!

- WARNING! Do not damage the coolant circuit.

- Do not block or close the ventilation openings of the appliance.

- After transporting and before using it for the first time, switch off the appliance and place it at the desired location and leave it for 24 hours so that the coolant can sink down to the correct place.

The compressor can be damaged if you do not do this.

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- Catering and similar non-retail applications.

- At the end of its service life, dispose of the appliance in accordance with local regulations because it uses flammable gases and coolants.

- Children aged 3 to 8 years are allowed to load and unload cooling units.

- The insulation blowing agent used for this appliance is flammable. In order to prevent any damage to the environment or user health from uncontrolled waste disposal, you have to properly dispose of this product to ensure sustainable reuse of raw materials and proper handling of the flammable insulation blowing agent. You should dispose of this product only by handing it over to a recycling facility. Please contact your local authorities or the nearest recycling facility for detailed information regarding the correct disposal of this appliance.

- WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Please do not keep any flammable objects such as aerosol sprays with flammable gas in the appliance.

- Warning: Fire hazard! Flammable material!

- WARNING – Do not damage the refrigerant circuit.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- To avoid contamination of food, please note the following:

- Opening the cover for a long time can significantly increase the temperature in the compartments of the appliance.

- Please clean the surfaces that may come in contact with food regularly and any accessible drainage systems.

- Clean the water tanks if they have not been used for 48 hours.

- Switch off the appliance if the freezer is not being used. Then defrost, clean, dry the appliance and leave the door open to prevent mould formation in the unit.

- Before using the appliance, open the cover and take the accessories out of the appliance.

- It is advisable to place the appliance about 30 cm away from a wall or other appliances as it generates heat.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance

- Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

Warning! Fire hazard! Flammable material!

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Ice cube maker
• Ice cube scoop
• User manual

2. Technical data

Power supply 220-240 V AC, 50/60 Hz; 0.85A
Power consumption 105 W
Water filling capacity Max. about 1.4 l
Daily production about 13-14 kg
Features Automatic warning if tank is empty
Ambient temperature 10-32°C
Climate class / Refrigeant SN/N/ST	/ R600a/26g

3. Product details

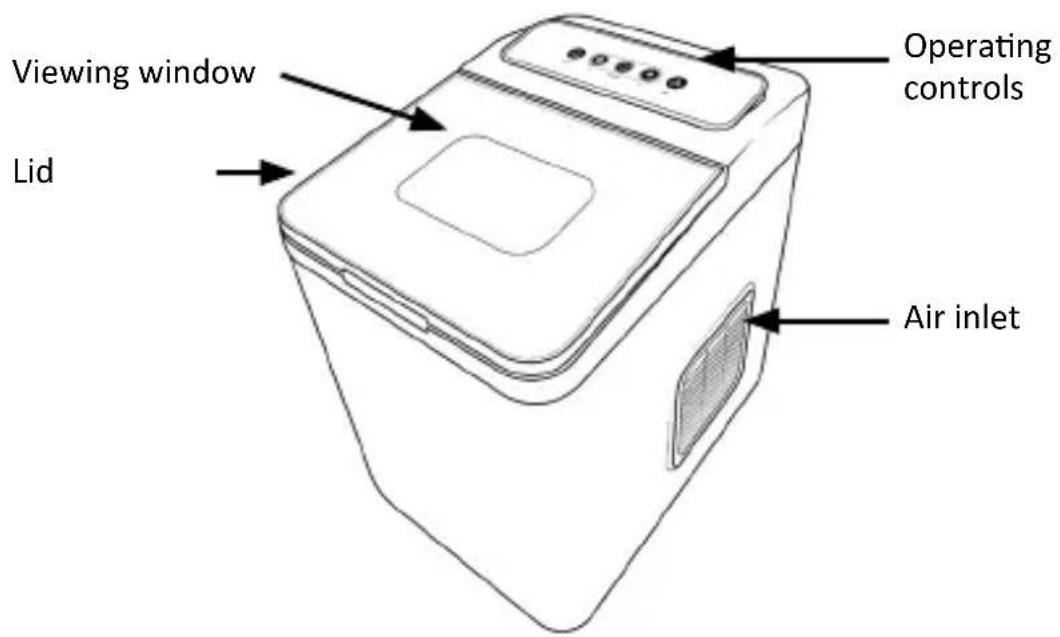

Viewing window Lid Operating controls Air inlet

Freezer unit Ice collector

Line drawing of a food organizer with an open lid and internal compartments, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Water drain (is located under the appliance)

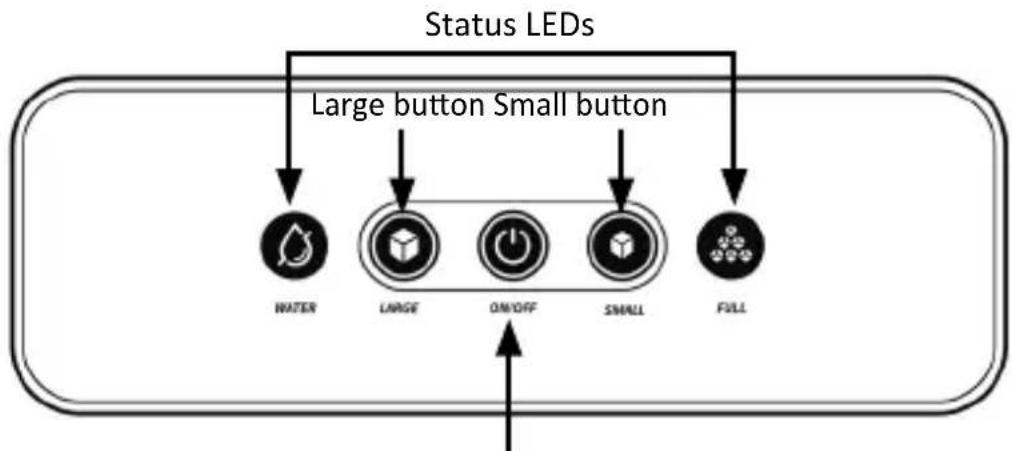

Operating controls

ON / OFF button

Status LEDs

LED Meaning
	Lights up when the water tank is empty
	Lights up when the ice cube collector is full or the light barrier is blocked
	Ice cube size "Small (S)"
	Ice cube size "Large (L)"

5. Initial use

Check if the product and the components are intact and if the appliance is working properly when using it for the first time. Remove the appliance out of the packaging and connect it to a properly installed earthed socket. Please remove all residual packaging.

Wipe the surface of the appliance using a slightly dampened cloth. To remove any manufacturing residues, wipe the water tank once thoroughly before using it for the first time.

Do not operate the appliance unattended and check it for damage and proper assembly before using it each time.

After transporting and before using it for the first time, switch off the appliance and place it at the desired location and leave it for 24 hours so that the coolant can sink down to the correct place.

For short distance transports, wait about 30 minutes before restarting the appliance.

6. Usage

Making ice cubes

- Open the lid of the appliance and remove the ice-collector.

- Fill the ice cube maker with water. Ensure that you do not exceed the maximum mark. Use only drinking water without additives for making ice cubes.

Note: As far as possible, use water with a temperature of 8^ C to 25^ C.

Then replace the ice collector and close the lid of the appliance.

- Then press the "ON/OFF" button to start the appliance. The freezing process takes approximately 7 to 15 minutes. Initially, the ice cubes may still be slightly small.

Note: Due to the rapid freezing process, it may happen that the ice cubes appear slightly milky. The air trapped in the water can get into the ice cube. However, the air does not affect the quality of the ice cube.

The appliance pauses automatically when the collector is full

(the LED "Starts glowing). The process continues if enough ice cubes are taken out or they melt. The ice cube maker stops when there is no water in the water

tank. The LED " " then starts glowing. You can stop the appliance manually by pressing the "ON/OFF" button. The "ON/OFF" LED display stops glowing.

7. Cleaning and Care

To retain the fresh taste, we recommend you to clean the ice cube maker once a week if you are using it regularly.

- Stop the ice making cycle by pressing the "ON/OFF" button. Then disconnect the plug from the socket and allow the appliance to return to room temperature.

arendo

• If water is still left in the freezer unit, press the ice tray back carefully so that all the water flows back into the water tank.
• To drain excess water, place the appliance with the front side on an edge and place a bucket underneath, or place the appliance over a sink. Now pull out the drain plug on the bottom of the appliance. Caution! Please note: Once the plug is removed, water flows out of the water tank!
• Remove the ice collector.
• Clean the inside of the appliance using a soft cloth dipped in warm water and vinegar. Then rinse it with clean water and allow it to dry completely.
• Replace the drain plug in the correct position. Wash the ice collector in warm, soapy water. Rinse and dry it afterwards.
• Clean the outside of the appliance with a soft, slightly moist cloth. Use a mild dish washing detergent if necessary.

NOTE: Do not use any organic solvents, boiling water, cleaning agents, strong acids and bases, etc., for cleaning.

- Please empty the water tank and dry it for storage if the ice maker is not used for long durations.

8. Troubleshooting

Error Cause Troubleshooting
" lights up	Low water levelInlet is blocked or cloggedPump is faulty	Fill the water tankClean the inletPlease contact our Customer service department
" " LEDlights upError Cause Troubleshooting	Ice collector is full and the light barrier is blockedLight barrier is faulty	Empty the collectorCheck the light barrierClean the infrared LEDs of the light barrier
Ice cubes are sticking to each other	·Water temperature is too low	·Fill the water tank with water at a temperature of between 8°C and 25°C
The ice-making process seems to function normally, but ice is not produced	·Water temperature is too high·Ambient temperature is too high·Cooling system is not working	·Fill the water tank with water at a temperature of between 8°C and 25°C·Make sure that you operate the appliance only in an ambient temperature between 10°C and 32°C·Please contact our Customer service department

ATTENTION!

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings. Protect it from high humidity, water and snow. Never expose the appliance to high outside temperatures. Do not expose the product to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Get in touch with our customer service department in such cases.

Please follow the local regulations and restrictions. Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repair or modification to the product, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The product should only be used by those who have read and understood this user manual. The specifications of the product may be changed without any special prior notification. This appliance is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the appliance from any such authorised person.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic products should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life.

The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used products, you make an important contribution towards protecting our environment.

11 Warranty and guarantee

Notwithstanding the statutory warranty claims, the manufacturer grants a warranty in accordance with the laws of your country, but at least 1 year (2 years in Germany). The warranty begins on the date of sale of the appliance to the end user. The warranty covers only defects that are due to material or manufacturing faults.

Warranty repairs may only be carried out by an authorised customer service centre. To make a warranty claim, please enclose the original sales receipt (with date of sale). Excluded from the warranty are:

• Normal wear and tear
- Improper use, e.g. overloading of the unit, non-approved accessories

• Damage caused by external influences, use of force or foreign objects
• Damage caused by non-observance of the operating instructions, e.g. connection to an incorrect mains voltage or non-observance of the installation instructions
  • Completely or partially dismantled units

WEEE directive 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the product 305868 / 306639 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover

- nei bed and breakfast

Line drawing of a food processor with an open lid and internal compartments, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a food processor with an open lid and internal compartments, showing no text or symbols.

Technical line drawing of a mechanical assembly with no visible text or symbols
