USER MANUAL Aesthet 304895 Arendo

Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. This appliance is not intended for commercial use.

- Do not immerse the appliance in water.

- Do not use the appliance outdoors and keep it away from heat sources (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

- Do not use this appliance with wet hands.

• Keep it on an appropriate surface so that the product does not tip over.
• Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.
• Operate the appliance in accordance with the voltage that is indicated on the appliance label.
• This appliance is not intended to be used, cleaned or maintained by people (including children) with reduced physical, sensory or mental abilities or lack of experience and/or knowledge. Unless they are supervised by a person who is responsible for their safety or have received

instructions from this person about how the appliance is to be used.

- Children should be supervised to ensure that they do not play with the appliance.

- In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Fill the water tank only with cold water and do not boil the remaining water a second time.

- Do not move the appliance when it is being operated.

- Do not open the lid during operation, it could cause burns!

- Steam escapes from the top of

the appliance during the operation. Stay away from the escaping steam.

- The heating element remains hot for some time even after the appliance is switched off. Ensure that nobody touches the inside of the container. There is a risk of burns!

- Use the device only with the supplied shut-off device.

- Provide clearance to other objects and walls so that the air can circulate freely. Do not cover the appliance.

- Do not boil any liquids other than water.

- The housing of the kettle becomes hot during operation.

Therefore hold the kettle only using the handle provided for this purpose.

• If the power cable is damaged, then it should be replaced by the manufacturer, his specialist dealer or an equally qualified person, so as to prevent any risk.
• In the process, children should use or clean the appliance only under supervision or guidance.
• Do not overfill the kettle, otherwise water may spurt out.

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Kettle
• Baseplate with connection cable
• User manual

2. Technical data

Power supply 220-240 V AC, 50/60 Hz
Power consumption 2200 W
Water filling capacity max.	1.5 l
Temperature settings	M1: 40°C M2: 80°C M3: 90°C Boil: 100°C
Features • Automatic and manual shut-off audible signal Keep-warm function Automatic display shut-off Body LED display on the side

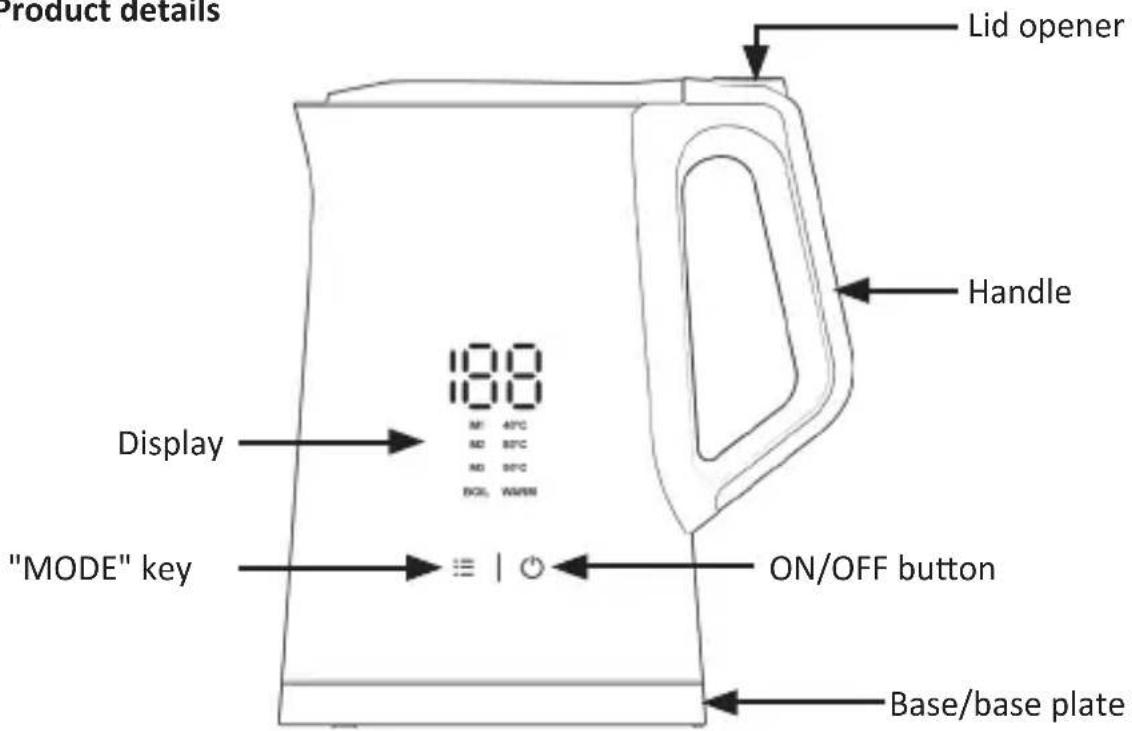

1. Product details


Product details Lid opener Handle Display 188 M: 40°C M2 80°C M3 90°C BOL W/NW "MODE" key ON/OFF button Base/base plate

4. Initial use

Check that the product and the components are intact and that the appliance is working properly when using it for the first time Remove the kettle and the base plate out of the packaging and connect the base plate to a properly installed earthed socket.

Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time. Boil the water by pressing the "ON/OFF" button and then pour it out.

This appliance is intended for domestic use and other similar applications such as: in the staff kitchen in shops, offices and other business areas, in agricultural properties, by customers in hotels, motels and other residential facilities, as well as in B&Bs. Do not operate the appliance unattended and check it for damage before using it each time.

5. Usage

Press the lid opener to open the tiltable lid. Fill the kettle with cold water and press the lid down until it locks into place.

Note: A scale is provided on the inside. Do not fill the container above the maximum mark. The boiling water may spurt out if the kettle is overfilled.

Then, place the kettle on the base plate.

5.1 Boiling water directly

If you want to boil the water directly to 100^ C, then press the "ON/OFF" button. The "BOIL" icon flashes for about 4 seconds in the display. The kettle then indicates the start of boiling by beeping 2 times.

Important! Boiling can be cancelled at any time by pressing the ON/OFF button again!

Once the water reaches the target temperature, the kettle indicates it by beeping 3 times. The heating element switches off automatically and the boiling process is stopped. The appliance can now be lifted and the water can be used.

5.2 Heating water based on target temperature (40/80/90°C)

To heat the water to the desired target temperature, press the "Mode" button (≡).

The kettle flashes the currently selected temperature and the "BOIL" mode on the display. The following temperatures are available for selection: M1 - 40°C, M2 - 80°C and M3 - 90°C.

As long as the temperature display is flashing, another temperature can be changed/selected. The heating process starts automatically after 4 seconds of inactivity or if no other button is pressed. Alternatively, it can be started immediately by pressing the "ON/OFF" button.

If the process was started, the currently measured temperature is shown at the top of the display. This means that you can always keep track of the progress.

Important: If you find that the heating element is switching off even though the target temperature has not been reached, then this is not an error. The kettle carries out intermediate measurements and can better control the temperature profile.

5.3 Keep warm function – Heat the water and keep it warm for 30 minutes (40/80/90°C).

The Keep warm function keeps the water warm at the previously set target temperature (40/80/90 °C) for 30 minutes.

Note: The keep warm function is not provided at 100^ C for technical reasons.

To put the kettle into the keep warm mode, the display must be active first (large temperature display is visible). Press the "MODE" button once briefly.

The kettle flashes the currently selected temperature and shows the "BOIL" mode on the display. To now activate the keep warm mode, press and hold the "MODE" button again.

The display changes from "BOIL" to "WARM". The kettle has now been successfully changed to the keep warm function.

The following temperatures are available for selection: M1 - 40°C, M2 - 80°C and M3 - 90°C.

As long as the temperature display is flashing, another temperature can be changed/selected using the "MODE" button. The heating process starts automatically after 4 seconds of inactivity or if no other button is pressed. Alternatively, it can be started immediately by pressing the "ON/OFF" button. If the process was started, the currently measured temperature is shown at the top of the display.

This means that you can always keep track of the progress. The set temperature is maintained for 30 minutes by occasional warming. Afterwards, the kettle switches off automatically.

6. Body LED display on the side/display

• Shows the currently measured temperature and the mode.
- Is automatically deactivated after 5 minutes in sleep mode (standby).
- Can be deactivated immediately by pressing and holding the "ON/OFF" button in sleep mode (standby).
- Can be reactivated by pressing any button.

7. Switching the beep sounds on/off

When the display is active (large temperature display is visible), the number of beeps can be reduced to the legally required minimum by simultaneously pressing the "MODE" and "ON/OFF" buttons (beeps for starting and final switch off are always active). Reactivating is performed by repeatedly and simultaneously pressing the "MODE" and "ON/OFF" buttons.

8. Descaling and cleaning

It is advisable to descale the kettle at regular intervals depending upon the intensity of use. Before cleaning, pull out the power plug and wait until the appliance cools down completely. Please use only commercially available descaling agents based on citric acid to descale the water container. For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent. The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate. Use only a damp cloth for cleaning the kettle externally. Do not use any abrasive items like wire brush or steel sponge for cleaning. Never use any cleaning agents which may corrode the surface or present a health risk if consumed! Never immerse the appliance, the power cable or the plug in water or in any other liquid to prevent risk of electric shock.

CAUTION!

9. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings.

Protect it from high humidity, water and snow. Never expose the appliance to high outdoor temperatures. Do not expose the appliance to sudden changes in temperature or heavy vibrations, as this could damage the electronic components. Check the appliance for any damage before using it. The appliance should not be used if it has been subject to impact or has been damaged in any other way. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the base plate supplied. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims.

The appliance should be used only by persons who have read and understood this user manual. The specifications of the appliance may be changed without prior intimation. The appliance should be used only by persons who have read and understood this user manual.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304895 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover

DANGER ! ATTENTION !
