Solid 303650 - Kettle Arendo - Free user manual and instructions

USER MANUAL Solid 303650 Arendo

Glass water heater with black handle and silver lid, no visible text or symbols on the device itself.

Table of contents

1. Deutsch .... 3
2. Italiano 14
3. Espanol....24
4. Francais 34
   5 English 45

Important safety instructions

• This device may only be used in accordance with its intended purpose and for private use.
• It is not for commercial application.
• This device is only designed for indoor use. Keep it away from heat sources (e.g. electric stove), high temperatures and direct sunlight.
• Do not place the kettle near waters sources like basins.
• Do not tough the kettle with wet hands.
• Do prevent the unit from dropping over, make sure that the support surface is stable.

- Pull out the main plug from the socket when the machine is not in use or during cleaning.

- Do not operate the device with other than specified power supplies. Voltage can be found on the type plate under the bottom heating element and listed in this quick guide under the chapter ‘2 technical data’.

- Keep packaging items (plastic bags, carton, styrofoam, etc.) out of reach of children, as they represent a potential source of danger.

- Only fill the water tank with fresh cold water and do not cook remaining water a second time.

- Do not move the machine while

it is operating.

• Never open the cover during brewing process, this could lead to burns.
• Keep away from emitting water vapour during brewing process. Otherwise it can cause burns.
  • After brewing the heating element stays hot for a while. Make sure that nobody touches the inside of the kettle to avoid burns!
• The unit may only be operated by using the provided parking device.
• Allow sufficient space between this unit and other devices and walls to ensure proper ventilation. Do not cover the device.
• Do not cook any other liquids

than water.

- Never operate this unit without inserted filter, otherwise hot water may spurt out.

- During operation the housing becomes hot. Therefore only touch the unit by its intended handle.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard

- Do not overfill the kettle in order to avoid water leakage. Children may only use the product under supervision and guidance concerning the use and cleaning of the product.

- Appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Cleaning and user maintenance shall not be made by children unless they are older than 8 and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

- This appliance is intended to be used in household and similar applications such as: staff kitch-

en areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.

Thank you for having chosen this product from Arendo and for placing your trust in our company. Before using the product for the first time, please read this manual carefully to ensure your ong-term enjoyment of this product. For future reference, please keep this manual. Before using the delivered product, check that it is complete, faultless and undamaged.

1. Scope of delivery

• Electric water kettle
• Heating element with integrated connection cable
- User manual

2. Technical data

Power supply 220-240V AC, 50/60Hz
Power consumption 1850-2200W
Quality of water max. 1,7l
Features • stainless steel and glas design	• automatic switch-off

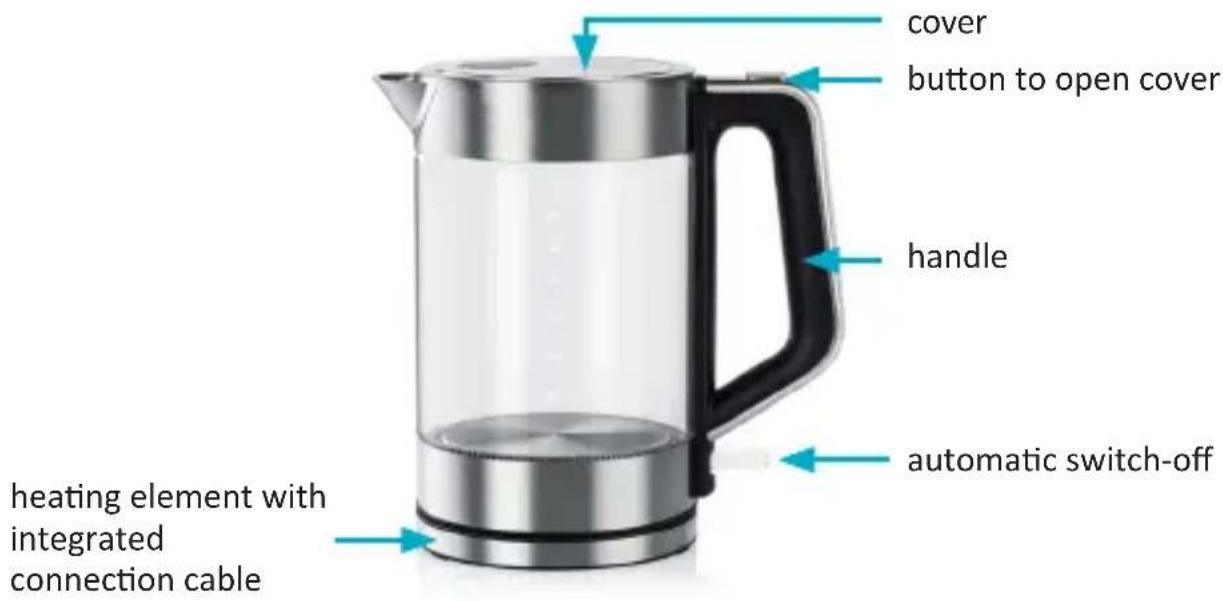

3. Product details

cover button to open cover handle automatic switch-off heating element with integrated connection cable

4. Initial start-up

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Please remove the kettle and the heating element from the packing and clean the unit with a damp cloth. Afterwards connect the kettle only to a properly installed grounded socket. Before regular use, fill the water reservoir with cold water to its maximum level and boil according the following instructions. Thereafter discard the water in order to remove any residues of the production process.

5. Handling

Press the opening button to open the cover. Then fill the Arendo kettle with cold water and close the cover by pressing down the cover until it locks.

Important note: Please make sure not to fill in more than the maximum level of 1,7 l as marked on the scale, which is located on the right inner side. Place the kettle on to the bottom heating and set the On/Off button downwards to heat the water. As soon as the target temperature has been reached, the kettle will automatically turn off.

6. Decaling and cleaning

We recommend decalcifying the kettle in regular intervals, depending on the intensity of use. Before cleaning, it is essential to remove the power plug from the socket and wait until the device is completely cooled down. Only use conventional decaling agents based on citric acid. Please follow the manufacturer's instructions for dosing the respective product you have chosen. The heating element must not be cleaned and never be processed with sharp or hard objects. For cleaning the outer surface of the kettle, only use a damp cloth. Never use hard or abrasive objects like a wire brush or a steel-sponge for cleaning. Please do not use any aggressive cleaning agents which could be harmful for human consumption or damage the surface. To avoid the risk of electric shock, never immerse the device, the power cord or the plug in water or other liquids.

7. Safety instructions and disclaimer

Do not attempt to service this product by yourself as opening or removing covers may result in fire, electric shock or equipment damage. The kettle is only disconnected from the voltage system when the plug has been removed from the socket. Please avoid any contact to the electric current. Pull out the plug before lightning storms or if you do not regularly use this product, to prevent a short-circuit. This device is only licensed for indoor use and dry areas. Please protect it from water, rain, snow or high humidity and keep it away from high temperatures and direct sunlight.

Do not expose this product to extreme and sudden changes of temperature or heavy vibrations; this may lead to damage of the internal electronic part of this unit. Check kettle for signs of damage before putting it in operation. In case the device received any damage, it should not be used. Please contact our customer support. Please observe the relevant national provisions and legal restrictions. Do not use the device for anything other than intended and as described in the manual. Any attempt of repairs or alterations by someone other than the original supplier will invalidate the guarantee and result in refusal of warranty claims.

The machine may only be used by persons who are familiar with the operating manual and the applicable regulations concerning working safety and accident prevention. This device is not intended to be used by persons (including children) with limited physical, sensory or mental aptitude or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions as to how the device is used properly. The technical specifications of this product may change without prior notice.

8. Disposal Instructions

The European Directive (WEEE) requires that old electrical and electronic appliances shall be disposed of separately from normal household garbage for optimal recycling. The component parts must be separated, collected and sent for recycling or disposal in an environment-friendly manner. Otherwise, toxic and dangerous substances could cause enduring damage to the environment if disposed of incorrectly. As a consumer you are legally obligated (Electrical and Electronic Equipment Act-ElektroG) to return electronic equipment at the end of its lifetime to their manufacturer, point of sale, public collection points or import-

er free of charge. The relevant local laws apply here. The symbol on the product, in the instructions or on its packing indicates these regulations. The reuse or recycling of materials and old units makes an important contribution towards protecting the environment.

WEEE guideline: 2012/19/EU WEEE register number.: DE 67896761

WD Plus GmbH herewith declares that this product 303650 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Confirmity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
