Steam 304906 - Kettle Arendo - Free user manual and instructions

USER MANUAL Steam 304906 Arendo

⚠️ Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. It is not intended for commercial use.

- Do not use the appliance outdoors and keep it away from sources of heat (e.g., electric stove) and direct sunlight. Please do not keep the appliance in immediate proximity to water sources (e.g., washbasin).

- Do not use this appliance with wet hands.

- Keep it on an suitable surface so that it does not tip over.

- Disconnect the power plug from the mains socket when the appliance is not being used or for cleaning.

- Operate the appliance only with the voltage indicated on the appliance label.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance may be operated by children from 8 years of age and above, as well as by people with reduced physical, sensory or mental capacities or who lack knowledge or experience, if they have been supervised or instructed regarding safe use of

the appliance, and understand the resultant dangers.

- Cleaning and user maintenance must not be carried out by children unless they are older than 8 years and supervised.

- Keep the appliance and the cable out of the reach of children aged less than 8 years.

- In the interest of child safety, please do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

- Fill the water tank only with cold water and do not boil the remaining water a second time.

• Do not move the appliance when it is being operated.
• Do not open the cover during operation. This may cause burns!

- Steam escapes from the top of the appliance during the operation. Stay away from the escaping steam. There is a risk of burns!

- The heating element remains hot for some time even after the appliance is switched off. Ensure that nobody touches the inside of the container. There is a risk of burns!

- Use the appliance only with the supplied shut-off device.

• Provide clearance to other objects and walls so that the air can circulate freely. Do not cover the appliance.
• Do not boil any liquids other than water.
• As fas as possible, do not operate the appliance without the anti-scale filter, otherwise boiling water may spurt out.
• The housing of the kettle becomes hot during operation. Hold the kettle only using the handle provided for this purpose.
• If the mains power cable of this appliance is damaged, it should

be replaced by the manufacturer, his after-sales service personnel or by an equally qualified person, so as to prevent any risk.

- Children should use or clean the appliance only under supervision or guidance.

- Do not overfill the kettle, otherwise water may spurt out.

- The water level should be between the maximum and minimum marks!

Thank you for choosing an Arendo product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Kettle
• Baseplate with connection cable
• User manual

2. Technical data

Power supply 220-240 V AC, 50/60 Hz
Power consumption 1500-1800 W
Water filling capacity	max. 1.5 l
Features • Automatic switch off• Anti-scale filter• Analogue temperature indicator

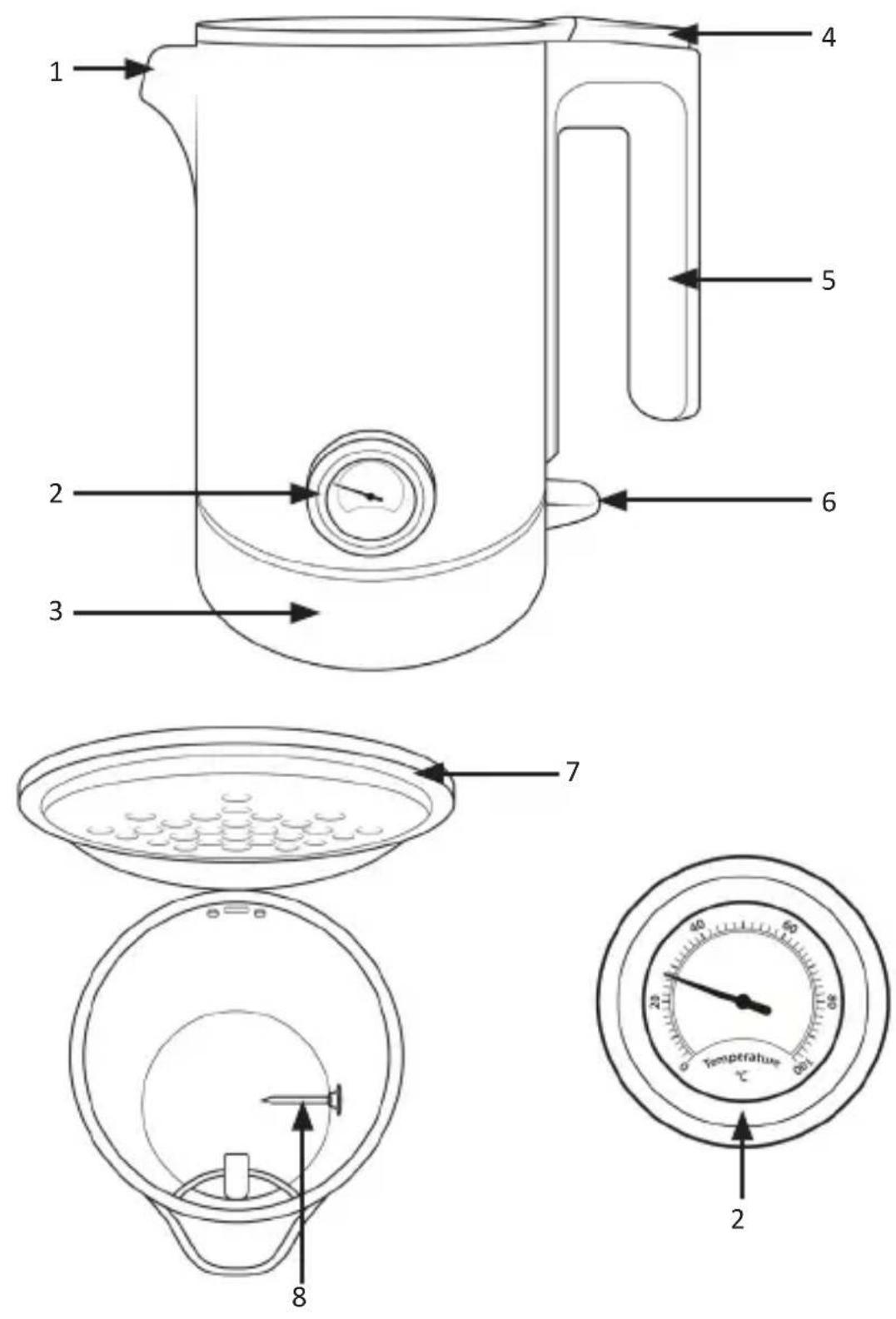

1. Product details


Number Name
1 Water outlet
2 Thermometer
3	Base station with connection cable
4 Lid opener
5 Handle
6 ON/OFF button
7 Lid
8 Temperature gauge

4. Initial use

Check if the product and the components are intact and if the appliance is working properly when using it for the first time Remove the kettle and the base station out of the packaging and connect the base to a properly installed earthed socket.

Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time. Boil the water by pressing the "ON/OFF" button (6) down in the direction of "ON". The power indicator in the "ON/OFF" button (6) starts glowing. The kettle then boils the water. Discard the water after the initial boiling.

This appliance is intended for domestic use and similar applications such as: In staff kitchens, in shops, offices and other business areas, in agricultural properties, by customers in hotels, motels and other residential facilities as well as B&Bs. Do not operate the appliance unattended and check it for damage and proper assembly before using it each time.

5. Usage

Press the Lid-opener (4). The tilting lid opens. Fill the kettle with cold water and press the lid down until it locks into place.

Note: A scale is provided on the inside. Do not fill the container above the maximum mark. The boiling water may spurt out if the kettle is overfilled. Then, place the kettle on the base plate. Press the "ON/OFF" button (6). The boiling process starts and the button starts to glow. As soon as the water reaches the set temperature, the kettle switches off. The heating element switches off automatically and the boiling process is stopped. The appliance can now be lifted and the water can be used.

6. Descaling and cleaning

We recommend to descale the kettle at regular intervals depending upon the intensity of use. Before cleaning, pull out the power plug and wait until the appliance cools down completely. The anti-scale filter is located in front of the spout opening. Open the lid and press the plastic tab of the anti-scale filter down to remove the filter. Rinse the filter thoroughly using warm water and then replace it back into its position. When replacing, ensure that the anti-scale filter sits properly in the guide rail. Please use only commercially available descaling agents based on citric acid to descale the water container. For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent. The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate. Use only a damp cloth for cleaning the kettle externally. Do not use any abrasive items like wire brush or steel sponge for cleaning. Never use any cleaning agents which may corrode the surface or present a health risk if consumed! Never immerse the appliance, the power cable or the plug in water or in any other liquid to prevent risk of electric shock.

! CAUTION!

7. Safety instructions and disclaimer

Please do not try to open the appliance to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The appliance does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the appliance is not being used or during thunderstorms. The appliance is not approved for outdoor use. Please use it only in dry surroundings.

Protect it from high humidity, water and snow. Never expose the appliance to high outside temperatures. Do not expose the appliance to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the appliance for any damages before using it. The appliance should not be used if it has been subject to impact or has been damaged in some other way. Get in touch with our customer service department in such cases. Please follow the local regulations and restrictions.

Do not use the appliance for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Use the appliance only with the supplied base plate. Any repairs or modifications to the appliance not carried out by the original supplier will void any warranty and guarantee claims. The appliance should only be used by those who have read and understood this user manual. The specifications of the appliance may be changed without any special prior notification.

This appliance is not intended to be used by individuals (including children) with reduced physical, sensory, or mental capabilities or lack of experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the appliance from any such authorised person.

8. Disposal instructions

In line with the European WEEE directive, electrical and electronic appliances should not be disposed of along with domestic waste. Their components must be sent for recycling or disposal separately, as improper disposal of toxic and dangerous components could permanently damage the environment. According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic appliances to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used appliances, you make an important contribution towards protecting our environment.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the appliance 304906 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
