USER MANUAL Class Control 305567 Arendo

Error-Code Meaning
E1 Sensor open circuit
E2 Sensor short circuit
E3 Over temperature (over 120°C)
E4 Zero crossing signal is abnormal
E7 Sensor temperature abnormality

ENG: Latest information, drivers, user manuals and data sheets can be found at www.ganzeinfach.de in our download area.

Important safety guidelines for this appliance

- This appliance is meant exclusively for personal use and for the intended purpose. This appliance is not intended for commercial use.

- Do not immerse it in water.

- Do not use the appliance outdoors and keep it away from sources of heat (e.g. electric stove) and direct sunlight. Please do not keep the appliance in the immediate vicinity of water sources (e.g. washbasin).

- Do not use this device with wet hands.

• Keep it on an appropriate surface so that it does not tip over.
• Unplug the power plug when the appliance is not in use or during cleaning.
• Operate the device in accordance with the voltage that is indicated on the appliance label.
• Children should be supervised to ensure that they do not play with the appliance.
• In the interest of child safety, do not leave any packaging material (plastic bags, cardboard, polystyrene, etc.) lying around.

• Fill the water tank only with cold water and do not boil the remaining water for a second time.

• Do not move the appliance when it is being operated.

• Do not open the lid during operation, it could cause burns!
• Steam escapes from the top of the appliance during operation, maintain distance from the escaping steam.
• The heating element remains hot for some time even after the appliance is switched off. Ensure that nobody touches the inside of the container. There is a risk of burns!
• Use the appliance only with the supplied shut-off device.
• Provide clearance to other objects and walls so that the air can circulate freely.

Do not cover the appliance.

• Do not boil any liquids other than water.
• Do not operate the appliance without the anti-scale filter, otherwise boiling water may spurt out.
• The housing of the kettle becomes hot during operation. Therefore hold the kettle only using the handle provided for this purpose.
• If the power cable is damaged, then it should be replaced by the manufacturer, his specialist dealer or an equally qualified person, so as to prevent any risk.

- In the process, children should only use or clean the appliance under supervision or guidance.

- Do not overfill the kettle, otherwise water can spray out.

- This device is intended for domestic use and other similar applications like: in the staff kitchen in shops, offices and other business areas, in agricultural properties, by customers in hotels, motels and other residential facilities as well as in B&Bs.

- Keep children away from the device. Make sure that you do not play near the device.

- This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Attention! Avoid liquids near the plug.
• The kettle may only be used with the base supplied.

• Keep it on an appropriate surface so that it does not tip over.

• Unplug the power plug when the appliance is not in use or during cleaning.

• Operate the device in accordance with the voltage that is indicated on the appliance label.

Thank you for choosing an Arendo product. Please read the following user manual carefully so as to get the most from the product you have purchased. When the device is put into operation for the first time, check the intactness of the product or components and their function again.

1. Scope of delivery

• Kettle
• Baseplate with connection cable
• User manual

2. Technical data

Power supply 220-240 V AC, 50/60 Hz
Power consumption 1850-2200 W
Water filling capacity max.	1.7l
Temperature settings	· selectable 40-100°C in 5°C steps or· via direct menu with “SET” key: 40°C/ 60°C/ 80°C/ 100°C
Features · Automatic shutdown	· acoustic signal (partly switchable)· Keep-warm function· white LED display (with 5 min. auto-off function) and ACTUAL temperature display (min. 0°C)· intermediate measurements for more accurate target temperatures
Operating temperature / relative humidity	0°C~45°C / 0-80%
Storage temperature / relative humidity	-10°C~60°C / 0-95%

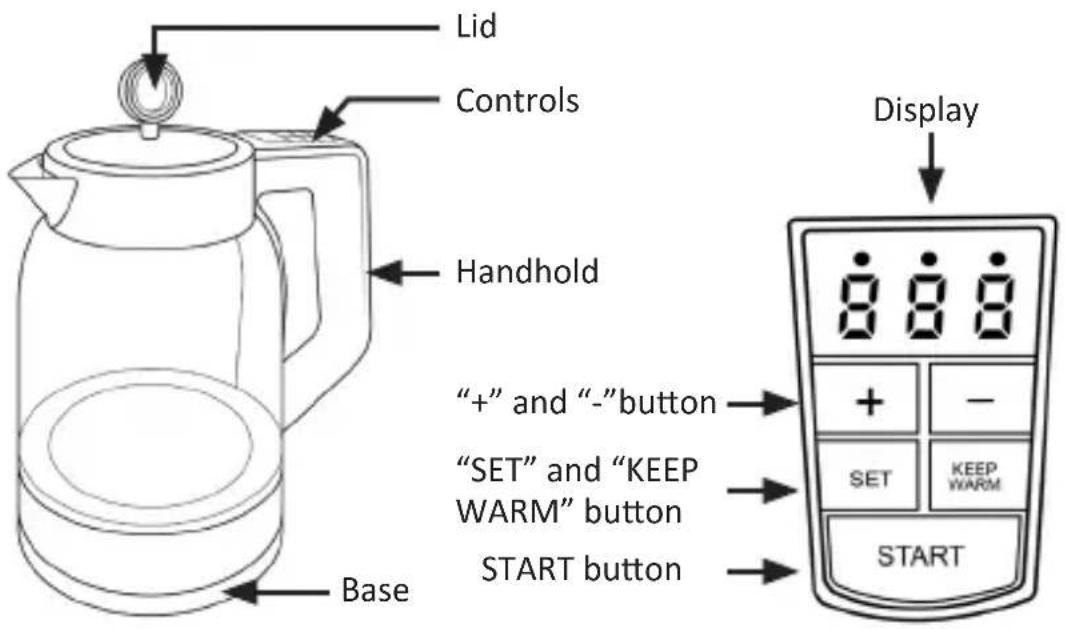

3. Product details

Lid Controls Display Handhold “+” and “-” button “SET” and “KEEP WARM” button START button BASE

4. Initial use

Remove the kettle and the base plate out of the packaging and connect the base plate to a properly installed earthed socket. Wipe the surface of the kettle using a slightly dampened cloth. To remove any manufacturing residues, fill the water container once with cold water up to the maximum mark before using it for the first time. Boil the water by setting the target temperature to 100°C using the “+” and “-” buttons or the “SET” button and pressing the “Start” button on the top of the handle to switch on the device. Finally pour the water away.

5. Usage

Open the lid. Fill the kettle with cold water and replace the lid.

Note: On the outside is a scale. Do not fill the container above the maximum mark. The boiling water may spurt out if the kettle is overfilled.

If you place the kettle on the base plate, the LED display now shows the current ACTUAL temperature of the water in the kettle (display min. >= 0°C). If the device is not used for 5 minutes, the display switches off automatically. The display can be reactivated by pressing any key, or by simply lifting and placing the kettle from the base. A control panel is located at the top of the handle. Press the „+“ and „-“ buttons and select your desired temperature. Alternatively, you can directly select the temperatures 40/60/80/100°C with the „SET“ button and correct it with the „+“ and „-“ buttons. Press the „Start“ button in order to start up the device (a short beep will sound) and it is indicated by the dot above the temperature display on the display. Once the water reaches the set temperature, you will hear a long beep signal. The heating element switches off automatically and the boiling process is stopped. The appliance can now be lifted and the water can be used. If you want to stop the boiling process early on, you can press the "start" button at any time.

Before reaching the target temperature, the kettle interrupts the heating process in order to carry out an intermediate measurement. Please wait until the boiling process has been completed. An acoustic signal sounds at the end if the signal tones are activated.

Note: If you press the „START“ button directly when the display is switched on, the device is started with the last set temperature!

5.1 Keep-warm function

The "KEEP WARM" function is intended to keep the boiled water warm for a long period of time. Set your desired temperature with the "+" and "-" buttons. Press the "KEEP WARM" button in order to start. The kettle activates the keep-warm function for 30 minutes and maintains the set temperature. It is indicated by the three dots above the temperature display on the display. Please note that the kettle temperature heats up to temperatures above 90^ , but that it can not keep temperatures above 90^ while in keep-warm function.

5.2 Switching key signals on and off

You have the possibility to switch off the signal tones off the device or to reduce them to the most necessary key tones. To do this, press the “Keep warm” and “Set” buttons together. A short beep appears and means that the beeps are switched on. If a long beep appears when the “keep warm” and “set” buttons are pressed, the beeps of the device are switched off.

Press the "Keep warm" and "Set" buttons together, to switch the key signals on and off.

Attention! For safety reasons the key signal of the "START" key cannot be switched off!

6. Descaling and cleaning

• We recommend to descale the kettle at regular intervals depending upon the intensity of use.

- Before cleaning, pull out the power plug and wait until the appliance cools down completely.

- The anti-scale filter is located in front of the spout opening. Open the lid and press the plastic tab of the anti-scale filter down to remove the filter.

- Rinse the filter thoroughly using warm water and then replace it back into its position.

- When replacing, ensure that the anti-scale filter sits properly in the guide rail.

- Please use only commercially available descaling agents based on citric acid to descale the water container.

- For the appropriate dosage, please refer to the specifications on the package or insert of the descaling agent.

- The heating plate should not be specifically cleaned. Do not use any hard objects on the heating plate.

- Use only a damp cloth for cleaning the kettle externally.

- Do not use any abrasive items like wire brush or steel sponge for cleaning.

- Never use any cleaning agents which may corrode the surface or present a health risk if consumed!

- Never immerse the device, the power cable or the plug in water or in any other liquid to prevent risk of electric shock.

- For devices with a limescale filter in front of the spout opening, please proceed as follows: Open the lid and push the plastic tab of the limescale filter downwards to remove the filter. Rinse the filter thoroughly with warm water and reinsert it into the posture. When inserting, make sure that the lime filter is seated in the slide rail.

Use a rapid descaler if limescale is particularly stubborn or there are signs of flash rust. Once limescale has accumulated, iron and oxidized iron particles settle into the limescale layer. This often results in the reddish coloration that gives the appearance that the actual material is rusting. However, if this is not done promptly, the rust created by the oxidized iron particles in the lime can actually attack the material of the kettle

Please note!

7. Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

8. Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE guideline: 2012/19/EU

WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 305567 conforms to the principle requirements and other relevant stipulations. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
