USER MANUAL KRQC736RPS KITCHENAID

FRENCH DOOR BOTTOM MOUNT REFRIGERATOR OWNER'S MANUAL

MANUEL D'UTILISATION DU RÉFRIGÉRATEUR À PORTE À DOUBLE BATTANT ET CONGÉLATEUR EN BAS MANUAL DE INSTRUCCIONES DEL REFRIGERADOR CON PUERTA INFERIOR ESTILO FRANCÉS

Table of Contents/Table des matières/Índice

REFRIGERATOR SAFETY....2

Refrigerator Safety....2

Proper Disposal of Your Old

Refrigerator 6

PARTS AND FEATURES ....7

INSTALLATION INSTRUCTIONS .....8

Getting Started....8

Water Filter Installation 8

Unpack the Refrigerator 9

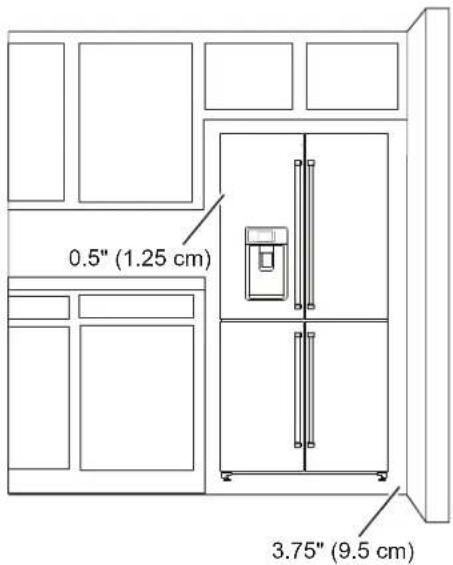

Location Requirements 9

Electrical Requirements 10

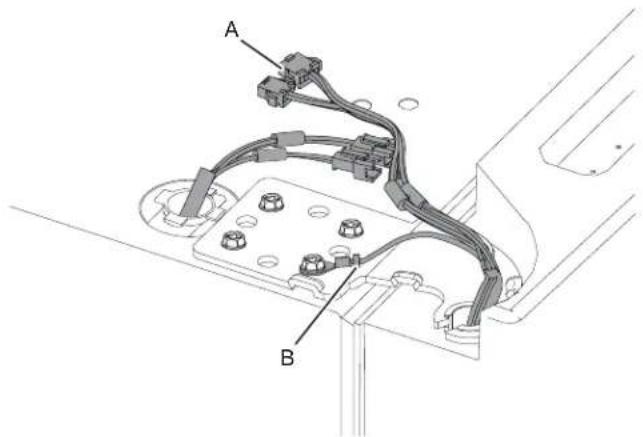

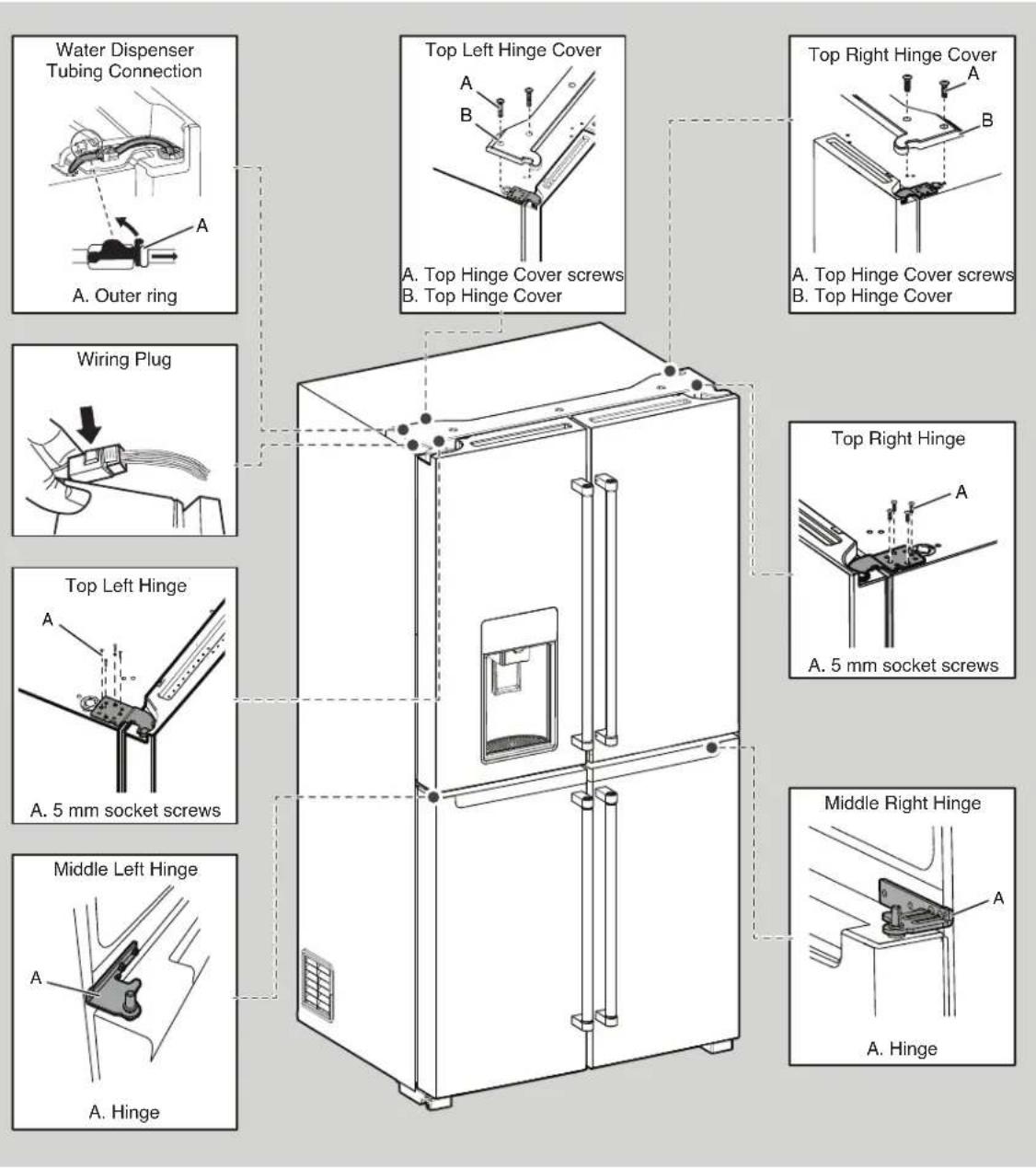

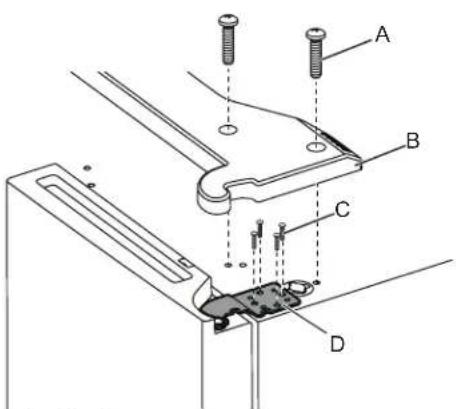

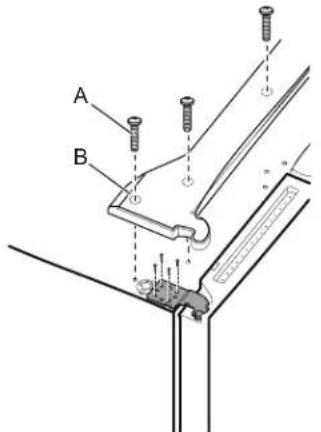

Remove And Replace Refrigerator

Doors.... 11

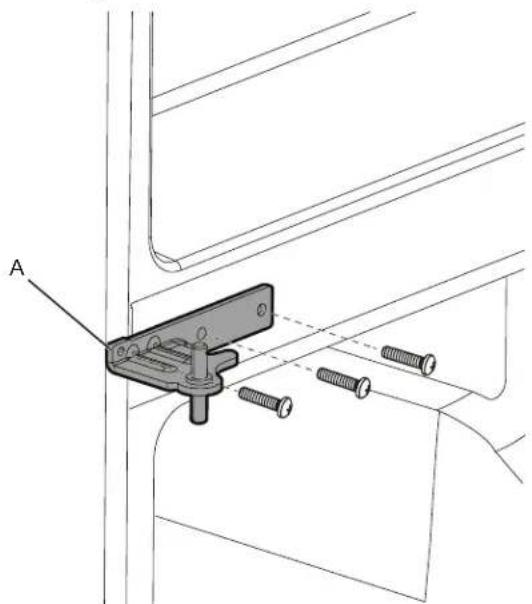

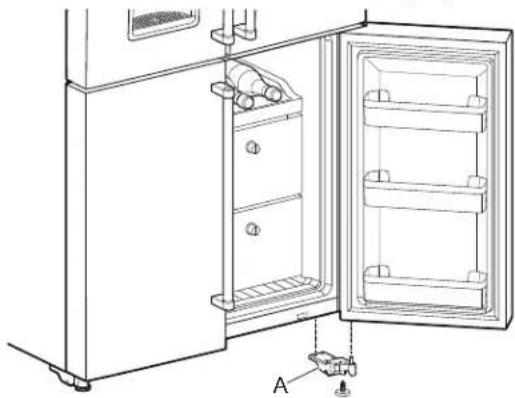

Remove and Replace Freezer/

Flexible Temperature Zone Door ..... 13

Refrigerator Levelling 14

Water Supply Requirements...... 14

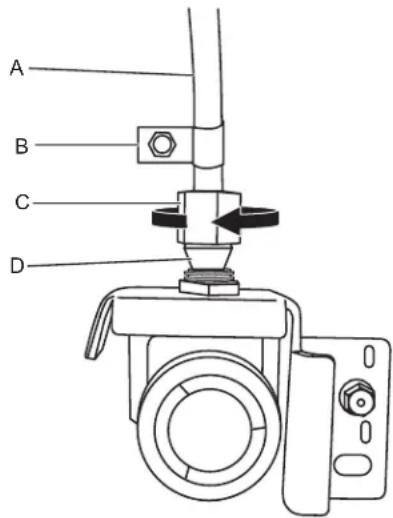

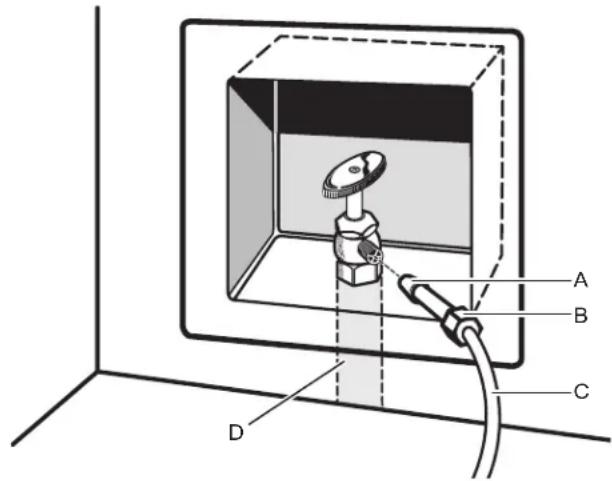

Connect the Water Supply 14

Handle Installation and Removal ..... 15

FILTERS AND ACCESSORIES.... 15

Water Filtration System 15

Accessories.... 17

REFRIGERATOR USE 17

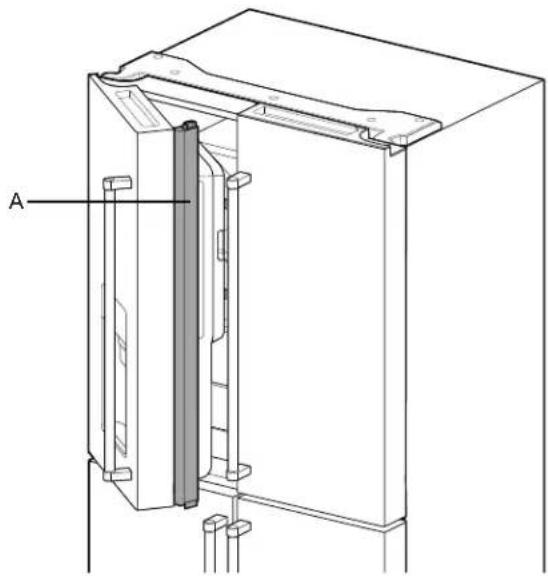

Opening and Closing Doors 17

Using the Controls 18

Touch Panel 19

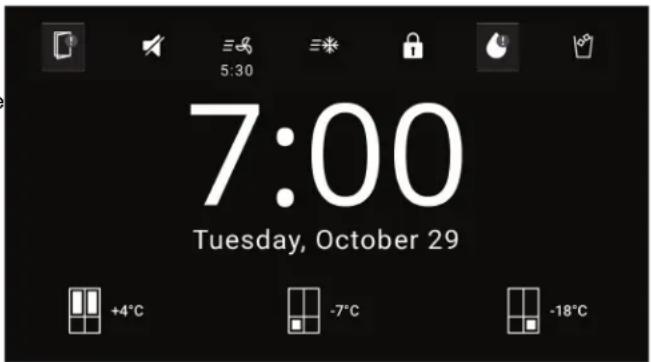

Display 19

Demo Mode.... 19

Tools.... 19

More Modes 20

Lighting the Refrigerator.... 21

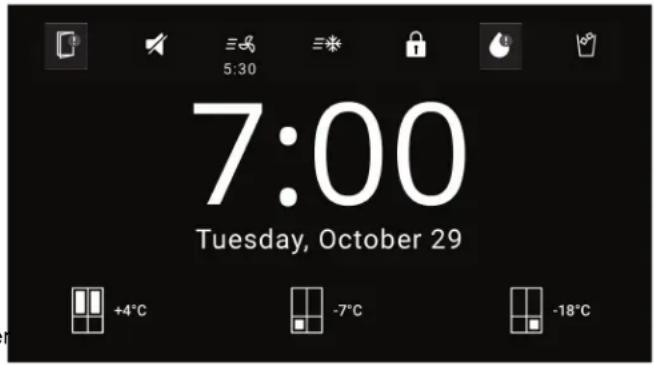

Icons.... 21

Water and Ice Dispensers.... 22

Ice Maker and Storage Bin.... 23

SHELVES, BINS, AND DRAWERS ..... 23

Shelves, Bins, And Drawers 23

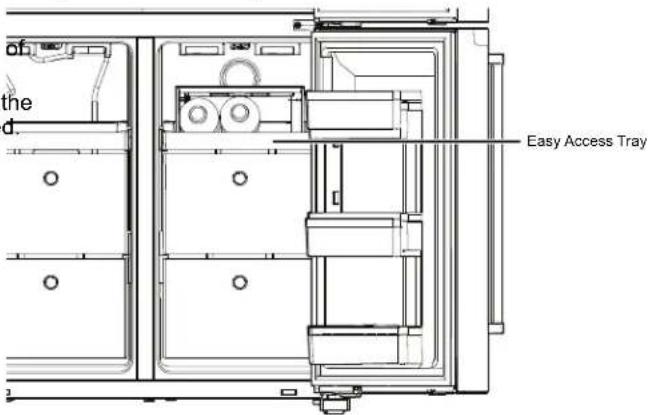

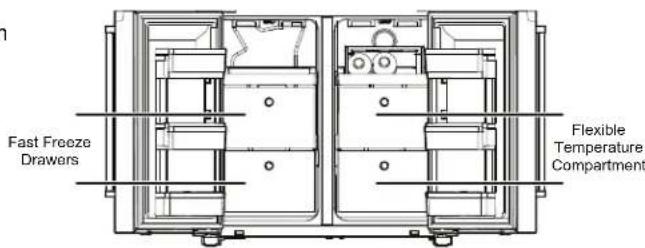

Freezer Storage Compartments..... 24

REFRIGERATOR CARE 25

Cleaning 25

Lights.... 26

Holiday and Moving Care 26

PERFORMANCE DATA SHEET ..... 27

SÉCURITÉ DU RÉFRIGÉRATEUR ..... 29

TABLETTES, BALCONNETS ET

TIROIRS 53

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING." These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

■ Children should be supervised to ensure that they do not play with the appliance.
■ This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
■ Do not use an extension cord.
If power supply cord is damaged, it must be replaced by manufacturer, its service agent, or a similarly qualified person in order to avoid a hazard.
■ Connect to potable water supply only.
■ This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices, and other working environments; farm houses and by clients in hotels, motels, and other residential-type environments; bed and breakfast-type environments; and catering and similar non-retail applications.
■ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

■ Do not use replacement parts that have not been recommended by the manufacturer (e.g., parts made at home using a 3D printer).
■ Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
■ Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
■ Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
■ Ice maker kit can be added to some models. See serial tag inside the food compartment of appliance for ice maker kit model information.
■ A qualified service technician must install the water line and ice maker. See installation instructions supplied with ice maker kit for complete details.

SAVE THESE INSTRUCTIONS

SAFETY INSTRUCTIONS

IMPORTANT TO BE READ AND OBSERVED

Before using the appliance, read these safety instructions. Keep them nearby for future reference. These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

⚠️Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

PERMITTED USE

⚠️ CAUTION: The appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
This appliance is intended to be used in household and similar applications such as:

■ Staff kitchen areas in shops, offices, and other working environments;
■ Farm house and by clients in hotels, motels, and other residential-type environments;
■ Bend and breakfast-type environments;
■ Catering and similar non-retail applications.

This appliance is not for professional use. Do not use the appliance outdoors, in garage or in basement.

The appliance is designed for operation in places where the ambient temperature comes within the following ranges, according to the climatic class given on the rating plate. The appliance may not work properly if it is left for a long time at a temperature outside the specified range.

Climatic Class Amb. T. (°C)

SN: From 10 to 32 °C; N: From 16 to 32 °C

ST: From 16 to 38 °C; T: From 16 to 43 °C

This appliance does not contain CFCs. The refrigerant circuit contains R600a (HC). Appliances with Isobutane (R600a): isobutane is a natural gas without environmental impact, but is flammable. Therefore, make sure the refrigerant circuit pipes are not damaged, especially when emptying the refrigerant circuit.

⚠ WARNING: Do not damage the appliance refrigerant circuit pipes.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

⚠ WARNING: Do not use mechanical, electric or chemical means other than those recommended by the Manufacturer to speed up the defrost process.

⚠ WARNING: Do not use or place electrical devices inside the appliance compartments if they are not of the type expressly authorized by the Manufacturer.

⚠ WARNING: Ice makers and/or water dispensers not directly connected to the water supply must be filled with potable water only.

WARNING: Automatic ice-makers and/or water dispensers must be connected to a water supply that delivers potable water only, with mains water pressure between 0.14Mpa and 1.0Mpa (1.4 bar and 10 bar).

⚠ WARNING: Use the new hose-sets supplied with the appliance, and the old hose-sets should not be reused.

⚠ Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

⚠️ Do not swallow the contents (non-toxic) of the ice packs (provided with some models). Do not eat ice cubes or ice lollies immediately after taking them out of the freezer since they may cause cold burns.

⚠ For products designed to use an air filter inside an accessible fan cover, the filter must always be in position when the refrigerator is in function.

Do not store glass containers with liquids in the freezer compartment since they may break. Do not obstruct the fan (if included) with food items. After placing the food check that the door of the compartments closes properly, especially the freezer door.

⚠ Damaged gaskets must be replaced as soon as possible.

⚠ Use the refrigerator compartment only for storing fresh food and the freezer compartment only for storing frozen food, freezing fresh food and making ice cubes.

Avoid storing unwrapped food in direct contact with internal surfaces of the fresh food or freezer compartments. Appliances could have special compartments(Fresh Food Compartment, Zero Degree Box, etc.). Unless specified in the specific booklet of product, they can be removed, maintaining equivalent performances.

Avoid a direct contact between the fresh food and the food that is already frozen. To optimize the freezing speed, drawers can be removed and the food can be placed directly on the bottom or top of the compartment.

Warning: Risk of fire/flammable materials. The most appropriate compartments of the appliance where specific types of food are to be stored, taking into account different temperature distribution in different compartments in the appliance, are as follows:

- Refrigerator compartment: Store tropical fruit,

cans, drinks, eggs, sauces, pickles, butter, jam, cheese, milk, dairy food, yoghurt. You may also store cold cuts, desserts, meat and fish, cheesecake, fresh pasta, sour cream, pudding and cream cheese.

Fruit & vegetable drawer at the bottom of the refrigerator compartment: Store vegetables and fruits (excluding tropical fruits).

Chiller compartment: Only store meat and fish in the coldest drawer

- Freezer compartment:

is suitable for freezing foodstuffs from ambient temperature and for storing frozen food as the temperature is evenly distributed throughout the entire compartment. Purchased frozen food has the storage expiration date stated on the packaging. This date takes into account the type of food being stored and therefore this date should be respected. Fresh food should be stored for the following time periods: 1-3 months for cheese, shellfish, ice cream, ham/sausage, milk, fresh liquids; 4 months for steak or chops (beef, lamb, pork); 6 months for butter or margarine, poultry (chicken, turkey); 8-12 months for fruits (except citrus), roast meat (beef, pork, lamb), vegetables. Expiration dates on the packaging of foods must be respected. Please store foodstuffs according to above paragraphs for best preservation over the longest period, to avoid food waste.

To avoid food contamination, please observe the following:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Regularly clean surfaces that may come into contact with food and accessible drainage systems.

– Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Store raw meat and fish in suitable containers in the refrigerator, so that it does not come into contact with or drip onto other food.

theln

shouldstorage

+10°C: store white wine

+4°C: store vegetables and fruits (excluding tropical fruits)

0°C: only store meat and fish

All set points below zero: store frozen foodstuff as for freezer cavity

- Two-star frozen food compartments are suitable for storing pre-frozen food, storing or making ice cream and ice cubes.

- Do not freeze fresh food in one, two or three-star compartments.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing inside the appliance.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

⚠️ Installation, including water supply (if any) and electrical connections, and repairs must be carried out by a qualified technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site.

After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

⚠ Be careful not to damage the floors (e.g. parquet) when moving the appliance. Install the appliance on a floor or support strong enough to take its weight and in a place suitable for its size and use. Make sure the appliance is not near a heat source and that the four feet are stable and resting on the floor, adjusting them as required, and check that the appliance is perfectly level using a spirit level. Wait at least two hours before switching the appliance on, to ensure that the refrigerant circuit is fully efficient.

⚠ WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

⚠ WARNING: To avoid a hazard due to instability, positioning or fixing of the appliance must be done in accordance with the manufacturer instructions. It is forbidden to place the refrigerator in such way that the metal hose of gas stove, metal gas or water pipes, or electrical wires are in contact with the refrigerator back wall (condenser coil).

To guarantee adequate ventilation, leave a airspace followed: sides and above the appliance. The distance between the rear of the appliance and the wall behind the appliance should be 50mm, to avoid access to hot surfaces. A reduction of this space will increase the Energy consumption of product.

⚠️ If it is necessary to replace the doors, please contact the Technical Assistance Center.

ELECTRICAL WARNINGS

⚠ It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.

⚠ Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.

⚠️ If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard-risk of electric shock.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

CLEANING AND MAINTENANCE

⚠ WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.

Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches or cleansers containing petroleum products on plastic parts, interior and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is recyclable and is marked with the recycle symbol 📁.

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health. The symbol ☒ on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Install the appliance in a dry, well ventilated room far away from any heat source (eg. radiator, cooker, etc.) and in a place not exposed directly to the sun. If required, use an insulating plate. To guarantee adequate ventilation follow installation instructions.

Insufficient ventilation at the back of the product increases energy consumption and decreases cooling efficiency. Frequent door opening might cause an increase in Energy Consumption. The internal temperature of the appliance and the Energy Consumption may be affected also by the ambient temperature, as well as location of the appliance. Temperature setting should take into consideration these factors.

Reduce door opening to a minimum.

When thawing frozen food, place in the refrigerator. The low temperature of the frozen products cools the food in the refrigerator. Allow warm food and drinks to cool down before placing in the appliance. Positioning of the shelves in the refrigerator has no impact on the efficient usage of energy. Food should be placed on the shelves in such way to ensure proper air circulation (food should not touch each other and distance between food and rear wall should be kept).

You can increase storage capacity of frozen food by removing baskets and, if present, Stop Frost shelf.

Do not worry about noises coming from the compressor which are described as normal noises in this product's Quick Guide.

Proper Disposal of Your Old Refrigerator

WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

■ Take off the doors.
■ Leave the shelves in place so that children may not easily climb

WARNING

Suffocation Hazard

Remove doors or lid from your old appliance.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers or refrigerators, are still dangerous, even if they will sit for "just a few days." If you are getting rid of your old refrigerator or freezer, please follow these instructions to help prevent accidents.

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

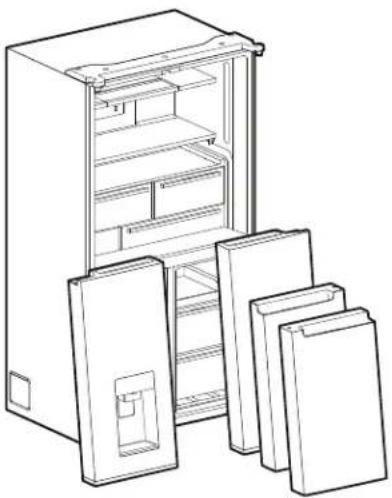

Line drawing of a refrigerator with open doors and stacked panels (no text or symbols)

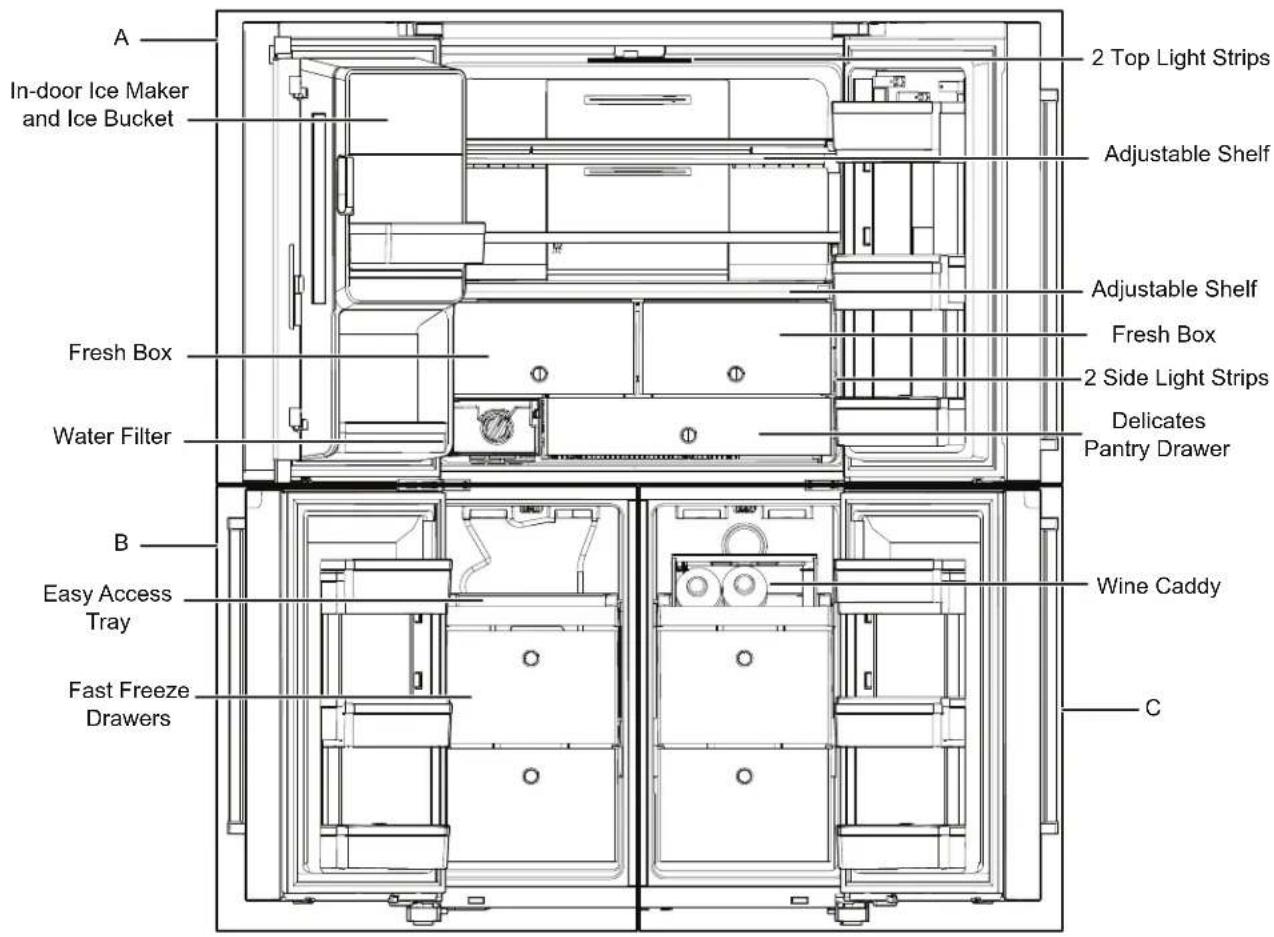

PARTS AND FEATURES

A In-door Ice Maker and Ice Bucket Fresh Box Water Filter B Easy Access Tray Fast Freeze Drawers 2 Top Light Strips Adjustable Shelf Adjustable Shelf Fresh Box 2 Side Light Strips Delicates Pantry Drawer C Wine Caddy

A. Refrigerator
B. Freezer
C. Flexible Temperature Zone

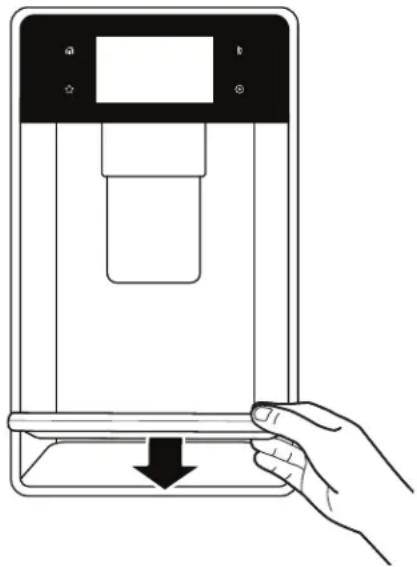

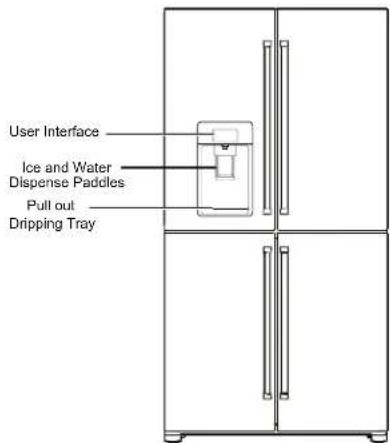

User Interface Ice and Water Dispense Paddles Pull out Dripping Tray

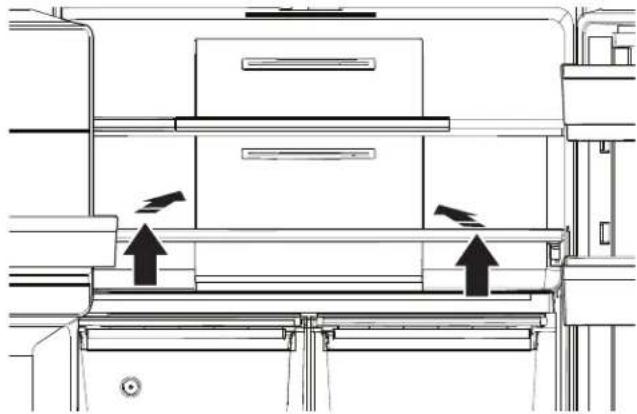

NOTE:

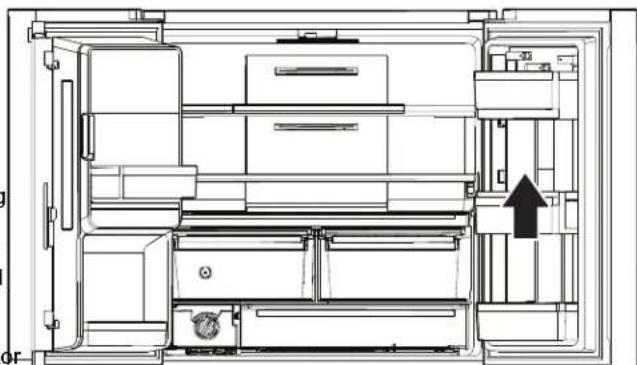

■ The drawers, baskets and shelves shall remain in the position like the above picture. This is the best condition for energy consumption. This refrigerating appliance is not intended to be used as a built-in appliance.
■ When you first install your refrigerator, make sure that the controls are still set to the recommended set points. The factory recommended set points are 3°C (37.4°F) for the refrigerator and -18°C (-0.4°F) for the freezer. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

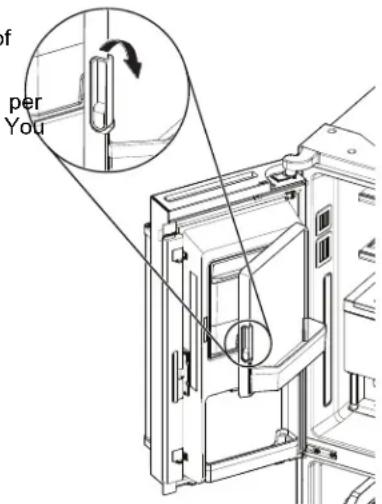

In-Door-Ice® Storage Bin

The ice maker and ice storage bin are located in the door for access to filtered ice while freeing up valuable shelf space inside and adding additional door bins for more usable space.

Freeze Shield

This feature minimizes moisture migration in the frozen food and reduces the freezer burn occurrence.

Pull out Platter

This full-width side-out shelf tucked between the crispers and the lowest shelf is perfect for leftover family-sized casserole dishes, pizza boxes, and large party platters.

Delicates Pantry Drawers

To store things like meat, deli items, and drinks to keep in their ideal cooling environment.

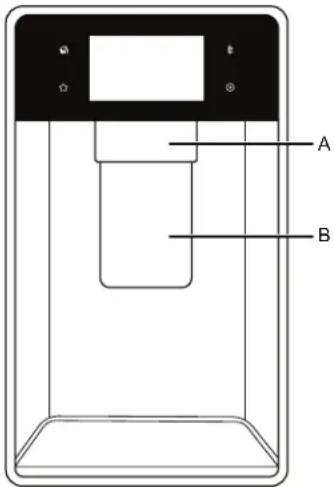

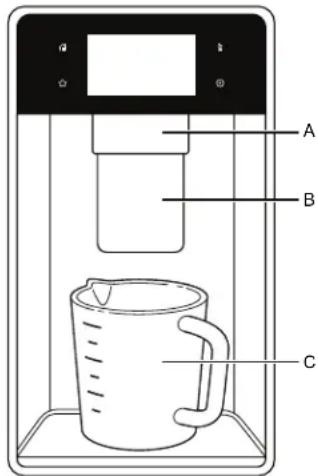

Water Dispenser with Measured Fill

The Measured Fill feature allows you to dispense a desired amount of filtered water in handy increments like 6.8 Oz (0.2 liter, 16.9 Oz (0.5 liter), and 33.8 Oz (1.0 liter).

Panoramic LED lighting

Multiple strips of LED lights inside the refrigerator compartment, freezer compartment, and interior drawers minimize shadows and evenly distribute light throughout the refrigerator.

FreshChill Flexible Zone

Switch from freezer to fridge in one touch by selecting among the 6+ preset temperatures and create the space you want according to your evolving needs.

LCD

The high definition displays with touchscreen provide personalized recommendations and allow to interact with the fridge quickly and effortlessly.

INSTALLATION INSTRUCTIONS

Getting Started

Installation Checklist

easy Electrical Power

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

■ Plug refrigerator into a earthed socket.

Doors

If doors need to be removed during installation, see the "Remove and Replace Refrigerator Doors" and "Remove and Replace Freezer Door Fronts" sections.
■ Doors seal completely.

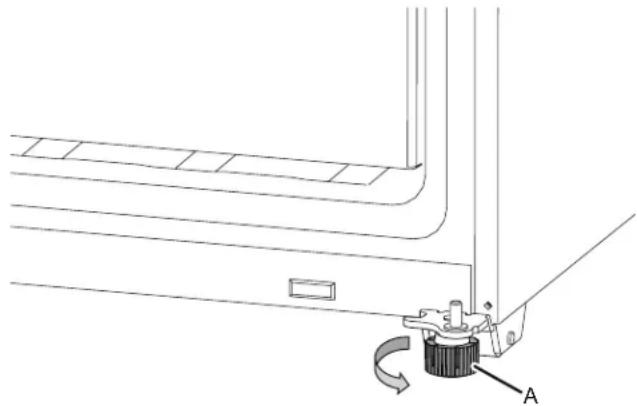

■ Refrigerator is level. Adjust leveling feet so they are snug against the floor.
■ Doors are even across the top. (Use door alignment feature if necessary).

Final Checks

■ Remove all shipping material.
■ Set temperature controls to the recommended setting.
■ Save instructions and other literature.
■ In order to receive a more complete assistance, please register your product on www.whirlpool.com.

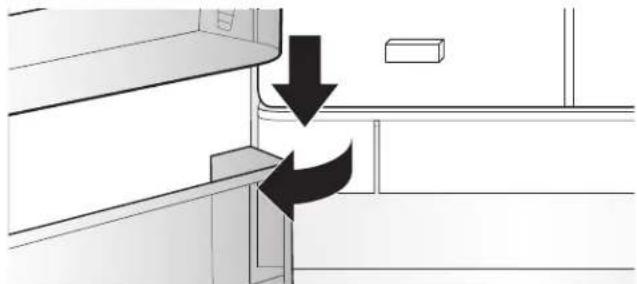

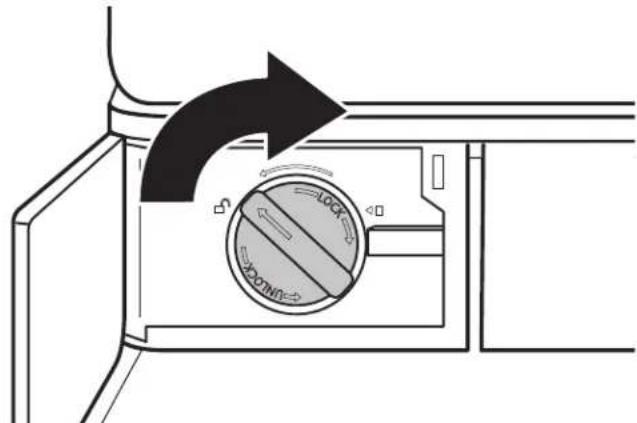

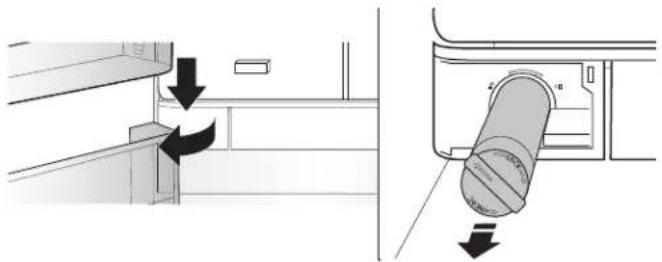

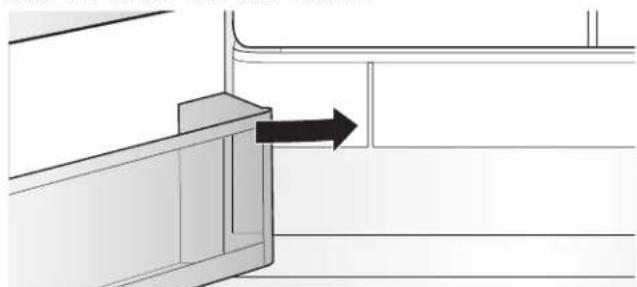

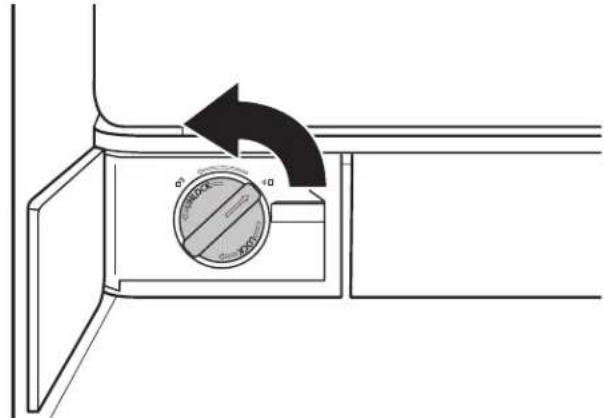

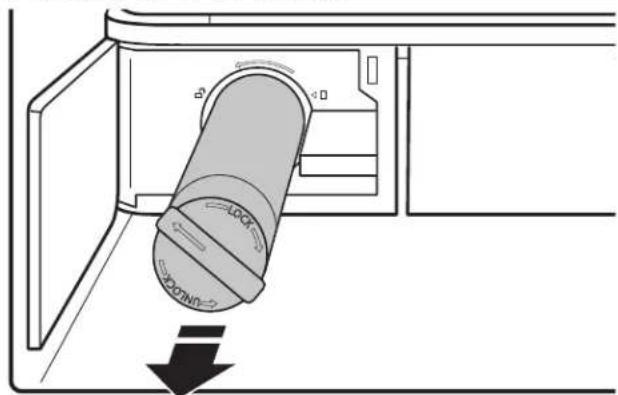

Water Filter Installation

• Locate the water filter compartment in the lower left-hand side of the refrigerator compartment. Push on the right side of the filter door to open.

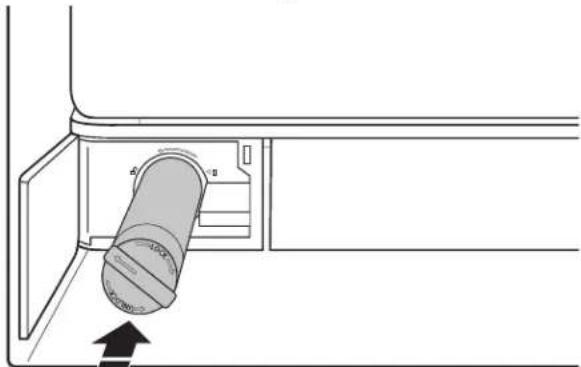

  ■ Align the arrow on the water filter cap with the cutout notch in the filter housing and insert filter.
  ■ Once the filter is inserted, turn the filter clockwise 90° (1/4 turn) until it locks into the housing.
  ■ Push water filter door closed to latch.
  ■ Flush 3 gallons (11.4 L) of water through the water system to clear air from the water line and to keep the dispenser from dripping and/or avoiding decreased dispenser flow.
  ■ Reset the filter counter via user interface. See the procedure to reset the filter in the User Controls section.

Technical diagram showing a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

NOTE: If the filter is not installed correctly, water may dispense a lower flow rate and there will be slower ice production. Improp filter installation may also cause the water filter housing to leak.

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install or uninstall appliance.

Failure to do so can result in back or other injury.

Refrigerator Delivery

A minimum door opening of 33" (838 mm) is required. If opening is 36" (914 mm) or less, then removal of doors, drawer, and hinges is required.
■ Cart the refrigerator from the side for all door openings.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or "walk" the refrigerator when trying to move it, as floor damage could occur.

Remove the Packaging

■ Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
■ Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information, see "Refrigerator Safety."
■ Dispose of/recycle all packaging materials.

Clean Before Using

After you remove all of the packaging materials, clean the inside of your refrigerator before using it. See the cleaning instructions in "Refrigerator Care."

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from appliance.

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

To ensure proper ventilation for your refrigerator, allow for a 0.5" (1.25 cm) space on each side and at the top. Allow for a 2" (5 cm) space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a 3.75" (9.5 cm) minimum space between the refrigerator and wall to allow the door to swing open.

NOTE: This refrigerator is intended for use in a location where the ^2 temperature ranges from a minimum of 10^ C ( 50^ F) to a maximum of 43^ C ( 109^ F). The preferred room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between 15^ C ( 59^ F) and 32^ C ( 90^ F). It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.

0.5" (1.25 cm) 3.75" (9.5 cm)

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

IMPORTANT: Installation and electrical connection must be carried out by a qualified technician according to the manufacturer's instructions and in compliance with the local safety regulations.

■ The refrigerator is designed to operate on a separate 115 V, 60 Hz circuit.
■ Make sure the voltage specified on the rating plate corresponds to that of your home.
It must be possible to disconnect the appliance from the post supply by unplugging it or by means of a main two pole s installed upstream of the socket.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons order to avoid a hazard.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connect

Recommended Earthing Method

A 115 V, 60 Hz AC only 15 A or 20 A fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator and approved accessories be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

Type B

IMPORTANT: If this product is connected to a GFCI (Ground Fault Circuit Interrupter) protected outlet, nuisance tripping of the power supply may occur, resulting in loss of cooling. Food quality and flavor may be affected. If nuisance tripping has occurred, and if over the condition of the food appears poor, dispose of the food.

NOTE: Before performing any type of installation or cleaning, or removing a light bulb, turn cooling off or turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to Off. On models with a digital temperature control, press the minus sign touch pads repeatedly until a dash (-) appears in both the freezer and refrigerator displays. Disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and turn cooling on or reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See the "Quick Start Guide".

Remove And Replace Refrigerator Doors

NOTE: Measure the width of your door opening to see whether or not you need to remove refrigerator doors to move refrigerator into your home. If door removal is necessary, see the following instructions.

IMPORTANT: If refrigerator was previously installed and you are moving it out of the home, turn refrigerator control off before you begin removing the doors. Unplug refrigerator or disconnect power. Remove food and adjustable door or utility bins from doors.

TOOLS NEEDED: 6 mm socket wrench, 5 mm socket wrench and #2 Phillips screwdriver.

WARNING

Electrical Shock Hazard

Disconnect power before removing doors.

Failure to do so could result in death or electrical shock.

Water Dispenser Tubing Connection A. Outer ring Top Left Hinge Cover A. Top Hinge Cover screws B. Top Hinge Cover Top Right Hinge Cover A. Top Hinge Cover screws B. Top Hinge Cover Wiring Plug Top Left Hinge A. 5 mm socket screws Top Right Hinge A. 5 mm socket screws Middle Left Hinge A. Hinge Middle Right Hinge A. Hinge

WARNING

Excessive Weight Hazard

Use two or more people to lift the appliance door.

Failure to do so can result in back or other injury.

Remove Refrigerator Doors

WARNING

Electrical Shock Hazard

Disconnect power before removing doors.

Failure to do so could result in death or electrical shock.

Remove Right-Hand Door

1. Unplug refrigerator or disconnect power.
2. Keep refrigerator doors closed until you are ready to lift them free from the cabinet.
   NOTE: Provide additional support for refrigerator door while the hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.
3. Using a Phillips screwdriver, remove cover from top hinge.
4. Using 5 mm socket wrench, remove four screws from top hinge and set aside.

Technical diagram showing labeled mechanical components with annotations A, B, C, and D

A. Top hinge cover screw
B. Top hinge cover
C. 5 mm socket screws
D. Top hinge

1. Lift refrigerator door from the middle hinge pin. The top hinge will come away with the door.

Remove Left-Hand Door

IMPORTANT: The wiring for UI run through left-hand door hinge, so they must be disconnected before removing the door.

1. Using a Phillips screwdriver, remove cover from top hinge.

A B

A. Top hinge cover screw
B. Top hinge cover

1. Disconnect two wiring plugs located on top of the door hinge.

■ Grasp each side of wiring plugs. With your left thumb, press down to release the catch and pull the sections of the plugs apart.

A B

A. Wiring Plug
B. Ground (earth) connector

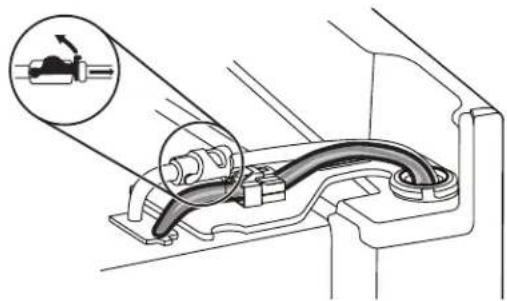

1. Disconnect the water dispenser tubing located on top of the door hinge. Firmly pull up on the clasp. Then, pull the tubing out of the fitting.

NOTE: The water dispenser tubing remains attached to the left-hand refrigerator door.

Technical diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

1. Using 5 mm socket wrench, remove four internal screws from top hinge and set aside.

A B

A. 5 mm socket screws

B. Top Hinge

NOTE: Provide additional support for refrigerator door while hinges are being removed. Do not depend on the door gasket magnets to hold the door in place while you are working.

1. Lift refrigerator door from bottom hinge pin. The top hinge will come away with door.

NOTE: It may not be necessary to remove bottom hinges and brake feet assemblies to move the refrigerator through a doorway.

■ Only if necessary, use 6 mm socket wrench and #2 Phillips screwdriver to remove middle hinge.

Replace Right-Hand Refrigerator Door

1. Set right-hand door onto middle hinge pin.
2. Insert top hinge pin into open hole in top of refrigerator door.
3. Using four 5 mm socket screws, fasten hinge to cabinet. Do not tighten screws completely.

Replace Left-Hand Refrigerator Door

1. Set left-hand door onto middle hinge pin.
2. Using four 5 mm socket screws, fasten hinge to cabinet. Do not tighten screws completely.
3. Reconnect electrical wiring.

■ Push together two sections of wiring plug.
■ Reconnect earth wire to hinge screw.

Final Steps

1. Completely tighten eight 5 mm socket screws.
2. Replace top hinge covers.

Remove and Replace Freezer/ Flexible Temperature Zone Door

1. Keep freezer doors closed until you are ready to lift them free from cabinet.

NOTE: Provide additional support for freezer door while hinges are being removed. Do not depend on door gasket magnets to hold door in place while you are working.

■ Using a #2 Phillips screwdriver and 6 mm socket wrench to remove middle hinge from cabinet.

Technical line drawing of a mechanical clamp or bracket assembly with screws and a labeled component (no text or symbols present)

A. Middle hinge

■ Lift freezer door from the bottom hinge pin.

Line drawing of an open refrigerator with doors and shelves, showing internal components (no text or symbols)

A. Bottom hinge

Final Steps

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into an grounded (earthed) socket.
2. Return all removable parts and food to the drawers.

Refrigerator Levelling

1. Move refrigerator to its final location.
2. Using hand, rotate the brake feet. Turn them counterclockwis until the rollers are off the floor and both brake feet are sn against the floor. This keeps refrigerator from rolling forward when opening the doors.

Technical line drawing of a mechanical assembly with a labeled component 'A' (no text or symbols beyond label)

A. Brake feet

IMPORTANT: If you need to make further adjustments involving brake feet, you must turn both brake feet same amount to keep the refrigerator level.

1. Use a level to make sure refrigerator is level from side to and front to back.

Water Supply Requirements

A cold water supply with water pressure between

20 psi and 145 psi (138 kPa and 1,000 kPa) is required to operate the water dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

NOTE: If the water pressure is less than what is required, the of water from the water dispenser could decrease or ice cubes could be hollow or irregular shaped.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system and supplying the water inlet valve of the refrigerator needs to be between 20 psi and 145 psi (138 kPa and 1,000 kPa).

If a reverse osmosis water filtration system is connected to your home cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 psi to 60 psi (276 kPa to 414 kPa).

• Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.
• Allow the storage tank on the reverse osmosis system to refill after heavy use. The tank capacity could be too small to keep up with the requirements of the refrigerator.

NOTE: Faucet-mounted reverse osmosis systems are not recommended.

If your refrigerator has a water filter, it may further reduce the water pressure when used in conjunction with a reverse osmosis system. Remove the water filter. See the "Water Filtration System" section.

If you have questions about your water pressure, call a licensed, qualified plumber.

Connect the Water Supply

Read all directions before you begin.

IMPORTANT:

Connect to a potable water supply only.

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

■ Plumbing shall be installed in accordance with the International Plumbing Code and any local codes and ordinances.
■ Copper and PEX tubing connections from the household water line to the refrigerator are acceptable and will help avoid off-taste or odor in your ice or water. Check for leaks. If PEX tubing is used instead of copper, we recommend the following Part Numbers: W10505928 (7 ft [2.14 m] jacketed PEX), 8212547 (5 ft [1.52 m] PEX), or W10267701 (25 ft [7.62 m] PEX).
■ Install tubing only in areas where temperatures will remain above freezing.

Tools Needed:

Gather the required tools and parts before starting installation.

■ Flat-blade screwdriver
■ 7/16" and 1/2" open-end wrenches or 2 adjustable wrenches
■ 1/4" nut driver

NOTE: Do not use a piercing-type or 3/16" (4.76 mm) saddle valve, which reduces water flow and clogs easier.

Connect to Water Line

IMPORTANT: If you have turned the refrigerator on before the water was connected, turn off the ice maker.

t1. Unplug refrigerator or disconnect power.
2. Turn off main water supply. Turn on nearest faucet long flow enough to reduce water pressure in the water line.

1. Use a 3/4"-14" shut-off valve or equivalent. The refrigerator provided with a household supply line with the installation that connects to the shut-off valve and to the refrigerator. NOTE: Appliance is equipped with a water installation kit. assure proper connection to your water supply, use proper sealing material in the connection. Check if connection is sealed properly after some hours of operation.

A B C D

A. Sleeve
B. Nut
C. Copper tubing (to
refrigerator)
D. Household supply line

1. Now you are ready to connect the copper or PEX tubing to the shutoff valve. Use 1/4" (6.35 mm) O.D. (outside diameter) soft copper or PEX tubing to connect the shutoff valve and the refrigerator.

■ Ensure that you have the proper length needed for the j Be sure both ends of the copper tubing are cut square.
- Slip compression sleeve and compression nut onto copper tubing as shown. (PEX tubing has compression sleeves and compression nuts preinstalled.) Insert end of tubing into outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

A B C

A. Compression sleeve
B. Compression nut
C. Copper tubing

isConnect to Refrigerator

kitFollow the connection instructions specific to your model.

1. Remove plastic cap from water valve inlet port. Attach the copper tubing to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten. Confirm copper tubing is secure by pulling on copper tubing.
2. Create a service loop with the copper tubing. Avoid kinks when coiling the copper tubing. Secure copper tubing to refrigerator cabinet with a "P" clamp.

A B C D

A. Copper tubing
B. "P" clamp
C. Compression nut
D. Compression sleeve

1. Turn on water supply to refrigerator and check for leaks. Correct any leaks.
2. If ice is desired, turn on the ice maker.

NOTE: Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Allow three days to completely fill the ice storage bin.

Handle Installation and Removal

Parts Included: refrigerator door handles (2), freezer drawer handle (2), 1/8" (3.18 mm) and 3/32" hex key, spare setscrew(s)

NOTE: The freezer drawer handle is shorter than the refrigerator door handles. Handle style may vary by model.

Install Handles

NOTE: The handle kit is provided with instructions to install the handles in the doors. Please follow it carefully.

FILTERS AND ACCESSORIES

Water Filtration System

Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts.

NOTE: Always drain the water line before making the final connection to the inlet of the water valve, to avoid possible water valve malfunction.
6. Bend the copper tubing to meet the water line inlet, located on the back of the refrigerator cabinet as shown. Leave a coil of copper tubing to allow the refrigerator to be pulled out of the cabinet or away from the wall for service.

Replace and Install the Water Filter

The water filter should be replaced every 6 months based on a flow rate of 0.50 gpm-0.60 gpm (1.89 lpm-2.27 lpm) that filters 200 gallons (757 L) of water.

To order a replacement filter, contact us. See the "Accessories" section in the Use and Care Guide for information on ordering.

1. Push the water filter door to open, located bottom left of refrigerator compartment.

Diagram showing a mechanical or architectural component with two directional arrows indicating movement or force (no text or symbols present)

1. Twist the water filter and turn 90° counterclockwise to unlock.

Diagram of a door handle with a circular dial indicator and directional arrow (no text or symbols)

1. Pull the filter out of the housing.

Diagram of a door handle with a cylindrical component and directional arrow indicating motion (no text or symbols)

1. Remove the water filter cap from the water filter being replaced.

Diagram showing a device being inserted into a cylindrical component (no text or symbols present)

1. Install the water filter cap onto the new filter. Be sure to align the arrows so the grooves in the filter align with ribs in the filter cap.

Diagram of a device being inserted into a cylindrical component (no text or symbols)

1. Insert the filter into the housing.

Diagram of a mechanical component with a cylindrical shaft inserted into a housing, showing an arrow indicating direction (no text or symbols present)

1. Twist the water filter and turn 90^ clockwise until it locks into place and the arrows are aligned.

Diagram showing a directional arrow pointing to a circular component with 'LOCK' and 'MINI' labels, indicating a process or state.

1. Push the water filter door closed.

Technical diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

1. Reset the filter counter via user interface. See the procedure to reset the filter in the User Control section.

The Water Filter Status Lights

The Water Filter status lights will help you know when to change your water filter.

■ ORDER FILTER (yellow) - It is almost time to change the water filter. "Order Filter" display is ON all of the time but OFF in Showroom mode.
■ REPLACE FILTER (red) - Replace the water filter. While you are dispensing water, "Replace Filter" will blink 7 times and an alert tone will sound 3 times.
NOTE: "REPLACE FILTER" will remain illuminated if the filter is not reset on the user interface (UI).
■ RESET FILTER - Touch "Filter Reset" button for 3 seconds to reset water filter. The display will do a 3-second countdown, then flash the icon and play a tone.

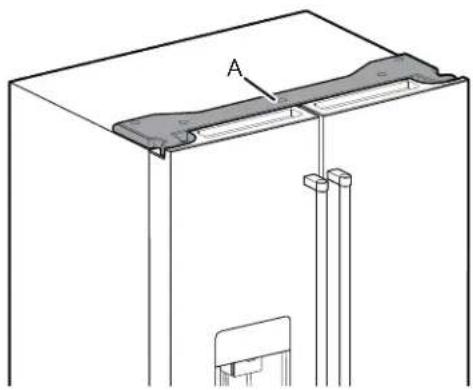

Technical diagram of a mechanical or electrical component with labeled section A, showing internal structure and mounting points (no text or symbols beyond label)

A. Hinge cover

Accessories

See your Quick Start Guide for Online Ordering Information.

REFRIGERATOR USE

Opening and Closing Doors

There are two fresh food compartment doors. The doors can be opened and closed either separately or together. There is a vertically hinged seal on left refrigerator door.

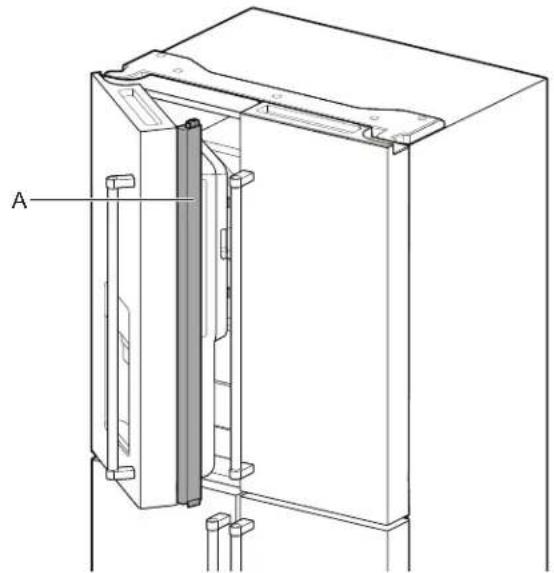

■ When left-side door is opened, hinged seal automatically folds inward so that it is out of the way.
■ When both doors are closed, the hinged seal automatically forms a seal between two doors.

NOTE: When closing the door, the hinged seal should be in correct position (be bent inside). Otherwise it will hit the right door or the fixing shaft.

Technical line drawing of a refrigerator internal structure with labeled component A (no text or symbols beyond label)

A. Hinged seal

The fresh food compartment door switch is located in top left and right hinge cover.

■ For Freezer and Convertible Space, door switch is located in the bottom mullion.
■ The door switch uses magnet to sense door opening/closing.
■ Ensure there are no magnet or electronic devices (Speaker, Coolvox® etc.) within 7.62 cm of the hinge cap.

NOTE: The light will not turn on if door opening is not detected.

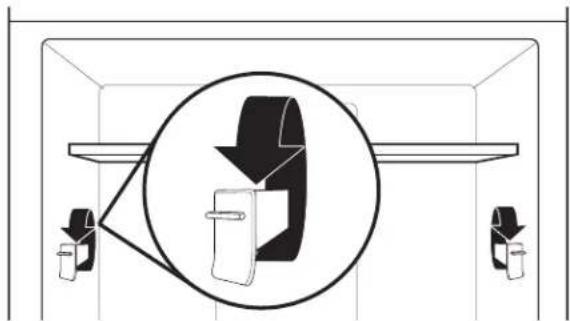

Shelf Height Adjustment

Shelf height can be adjusted by changing its location from bottom support to upper support and vice versa.

If the ice cubes are hollow or have an irregular shape, it could be because of low water pressure. See the "Water Supply Requirements" section.
■ Ice travels from the ice storage bin through the dispenser chute to the dispenser. To turn off the ice maker, see the "Ice Maker and Storage Bin" section.
■ The dispenser may continue to make noise and ice may continue to dispense for several seconds after releasing the dispenser button or paddle.

To Clean the Ice Dispenser Chute:

Humidity causes ice to naturally clump together. Ice particles can build up until the ice dispenser chute becomes blocked.

If ice is not dispensed regularly, it may be necessary to empty the ice storage bin and clean the ice delivery chute, the ice storage bin, and the area beneath the storage bin every 2 weeks.

If necessary, remove the ice clogging the storage bin and delivery chute using a plastic utensil.

■ Clean the ice delivery chute and the bottom of the ice storage bin using a warm, damp cloth, and then dry thoroughly.

To Dispense Ice - Paddle Dispensing

1. Select the desired type of ice by pressing CUBED ICE or CRUSHED ICE.

WARNING

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

1. Press a sturdy glass against the dispenser paddle. Hold the glass close to the dispenser opening, so ice does not fall outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to paddle to activate the ice dispenser. Pressing hard will not make the ice dispense faster or in greater quantities.

1. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for several seconds after removing the glass from the dispenser paddle. The dispenser may continue to make noise for a few seconds after dispensing.

The Dispenser Drip Tray

The drip tray can be removed for cleaning. Start the following steps from the pulled in position.

■ Lift up on the front edge of the tray and pull forward to remove.

Line drawing of a hand pressing a button on a device (no text or symbols)

■ Pull the tray out angled to the top front direction.

Line drawing of a hand pressing down on a digital device with a downward arrow (no text or symbols)

To install it back follow the two steps below.

■ Position the tray horizontally on the rails with some space at the rear part.
■ Push downward and pull towards you to engage to the rail.

The drip tray can be pulled out to accommodate larger containers for measured fill.

The Dispenser Light

1. When you use the dispenser, the light will automatically turn on.

Using the Controls

This manual covers several models. Your model may have some or all of the items listed.

Black rectangular device with white space and small icons (no text or symbols)

Keypad Feature Instructions
a [0338]ove.	Refrigerator Use Functions	Enables you to personalize the audible tones and refrigeration operation to suit your needs. See the “Tools” and “More Modes” sections.
Home [IMAGE]	Home Screen If pressed once, it enables the user to return to the Home screen. The Home screen will time out after 2 minutes and display the Clock.
Favorites [IMAGE]	Favorites The Favorites key allows the user to save the water amount that they use on a frequent basis. The user can also access the their Favorites saved based on time of day.
Ice [IMAGE]	Ice Function Toggle	between crushed ice and cubed ice.

Line drawing of a hand pressing down on a digital device with a downward arrow (no text or symbols)

NOTE: The user may notice brighter areas of the LCD backlight toward the bottom of the LCD User Interface. This is normal, and shall only be visible during the first 30 seconds of the product start up.

Touch Panel

The touch panel houses the control menu and function controls. The touch keypads are very sensitive and require only a light touch to activate. Scroll up, down, left, or right to explore the different options and features.

For more information about the individual controls, see their respective sections in this manual.

Display

The display is for both the menu and refrigerator function controls. The touchscreen allows you to scroll through the refrigerator menus. The display is very sensitive and requires only a light touch to activate and control.

After approximately 2 minutes of inactivity, the display will go into sleep mode and the display will dim. When the refrigerator is in operation, the display will remain bright.

During use, the display will show menus and the appropriate selections for the options being chosen.

Demo Mode

To Enter Demo Mode, go to the Info section under Settings and select Demo. The user will be asked to confirm entry into Demo Mode. Once in Demo, the HMI will start to display marketing videos.

WARNING: While in Demo Mode, the product will not cool.

To Exit Demo Mode, touch the Screen to stop the video playing. The user will then be given the option to Try the Product or Watch the Video.

The User shall then Select Try the Product, after which the screen shall navigate to the Home Screen. The user should then navigate the Info section under Settings and select Demo. The user will be asked to confirm exit from Demo Mode. The User Interface shall then navigate back to the Home Screen.

Tools

The Tools keypad allows you access to functions and customization options for your refrigerator. These tools allow you to set the clock, change the temperature between Fahrenheit and Celsius, turn the audible signals and prompts on and off, change the language, and more.

Select the Tools keypad to view the Tools features:

■ Kitchen Timer
■ Water Filter
■ Pure Control
■ Control Lock
■ Mute
Light

See the "More Modes" section for more information.

Tool Notes
Kitchen Timer	Set a kitchen timer by manually entering the desired time into the keypad.1. Select KITCHEN TIMER.2. Manually input the time to the desired timer length.3. Select START.4. Select CANCEL to end the Kitchen Timer.
Water Filter to	Displays the status of the filter.To Reset Filter:1. Select INSTALL NEW, and follow instructions on screen to reset.2. Follow instructions in the “Filter” menu to purchase filter.
Control Lock and o	The Control Lock shuts down the control panel keypads to avoid unintended use of the refrigerator. The Control Lock will remain set after a power failure. When the control is locked, the user shall be unable to use any buttons or dispenser paddles.To Lock or Unlock Control:To Lock the user interface, navigate toControl Locksection under the Settings.To Unlock, follow the instructions on the screen by “Scrolling up to unlock.”
g.
Mute	Select MUTE to mute or unmute the refrigerator sounds.
Light	Select LIGHT to turn the dispenser light on and off.

Preferences

Times and Dates

Set time and date preferences.

NOTE: If user is connected to Wi-Fi, time and date will be set automatically.

Sound Volume

Set sound volume preferences.

■ Timers and Alerts
■ Buttons and Effects

Display Settings

■ Display Brightness
The user shall have the option to set the screen brightness.
■ Eco Mode:

The user shall also have the option to set their preferred display mode option while the user interface is in standby mode. The user can set the display mode under the Eco Mode section in Display Settings.

NOTE: If Eco Mode is selected, the display screen shall turn off completely. The screen can be woken up by touching any location on the display, or pressing the water or ice paddle.

Favorites

The Favorites feature stores your favorite amounts of water dispensed.

Regional

Set regional preferences.

■ Language: The user shall have the option between 21 languages.

■ Temperature Units: Fahrenheit and Celsius.

Info

■ Service and Support: Displays model number, Customer Support contact info, and Diagnostics.

■ Demo Mode: Select Store Demo Mode to toggle Demo mode off and on.

See the "Using the Controls" section for more information.

Viewing and Adjusting Temperature Set Points

For your convenience, your refrigerator and freezer controls are preset at the factory.

When you first install your refrigerator, make sure that the controls are still set to the recommended set points. The factory recommended set points are 37^ F ( 3^ C) for the refrigerator and 0^ F (-18°C) for the freezer as well as 0^ F (-18°C) for the convertible compartment.

IMPORTANT:

■ Wait 24 hours before you put food into the refrigerator. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the set points to a colder-than recommended setting will not cool the compartments any faster.

If the temperature is too warm or too cold in the refrigerator freezer, first check the air vents to be sure they are not blood before adjusting the controls.

■ The recommended settings should be correct for normal household use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

NOTE: Areas such as a garage, basement, or porch may have higher humidity or extreme temperatures. You may need to adjust the temperature away from the recommended settings to accommodate for these conditions.

■ Wait at least 24 hours between adjustments. Recheck the temperatures before other adjustments are made.

View and Change Temperature Set Points

1. Temperature adjustment is available under Cooling Functions >Temperatures.
2. You will be able to view or adjust: Refrigerator, Freezer, and convertible compartment.

Recommended Refrigerator Temperature

Recommended Freezer Temperature

Adjust Temperature Set Points

Refrigerator set point range: 33°F to 42°F (0.5°C to 5.5°C)

Freezer set point range: -5°F to 5°F (-21°C to -15°C)

When adjusting temperature set points, use the following chart as a guide:

CONDITION: TEMPERATURE ADJUSTMENT:
Refrigerator too cold	Refrigerator, 1 set point higher
Refrigerator too warm	Refrigerator, 1 set point lower
Freezer too cold Freezer, 1 set point higher
Freezer too warm Freezer, 1 set point lower

More Modes

Fast Freeze

The Fast Freeze feature increases the cooling for approximately 50 hours. The duration varies for different models.

To enable Fast Freeze, navigate to the Fast Freeze section under Cooling Functions. When turned on, the freezer compartment will cool down faster than normal.

When enabled, the Fast Freeze icon shall be displayed on the clock screen, and shall show how much time is remaining before Fast Freeze is disabled. Pressing the icon shall navigate to the Fast Freeze screen where you can disable the feature.

To disable Fast Freeze, navigate to the Fast Freeze section under Cooling Functions. Adjusting the Freezer temperature shall automatically turn off the Fast Freeze feature.

NOTE: Setting the freezer to a colder temperature may make some foods, such as ice cream, harder.

Fast Cool

The Fast Cool feature assists with periods of high refrigerator use, full grocery loads, or temporarily warm room temperatures. This feature will be enabled for approximately 2 hours. The duration varies for different models.

■ To enable Fast Cool navigate to the Fast Cool section under Cooling Functions. When turned on, the refrigerator compartment will cool down faster than normal.
■ When enabled, the Fast Cool icon shall be displayed on the clock screen, and shall show how much time is remaining before Fast Freeze is disabled.
- Pressing the icon shall navigate to the Fast Cool screen where you can disable the feature.
■ To disable Fast Cool, navigate to the Fast Cool section under Cooling Functions. Adjusting the Refrigerator temperature shall automatically turn off the Fast Cool feature.

NOTE: Setting the refrigerator to a colder temperature may make some foods, such as ice cream, harder.

Water Filter Reset

Displays the status of the water filter.

NOTE: During dispensing, the user interface shall let the user know when it is time to change the water filter.

To change the filter, go to Tools > Water Filter.

To Reset Filter:

1. Select INSTALL NEW, and follow instructions on screen to reset.
2. Follow instructions in the "Filters and Accessories" section to purchase filter.

No Freezer Burn Feature

This feature minimizes moisture migration from frozen food. This feature will sub-cool the freezer compartment prior to defrost in order to reduce temperature variation. This feature will be enabled for a maximum of 2 hours prior to defrost.

Vacation Mode

While in Vacation mode, the Refrigerator compartment will run more efficiently in order to save energy while you are away. Adjusting the Refrigerator temperature shall automatically turn off the Vacation Mode feature. By selecting this function the temperature of the fresh food compartment will automatically be set to a colder temperature. This feature is not applicable to the Freezer and variable temperature compartments.

A door ajar alert shall automatically turn off the Holiday Mode feature.

IMPORTANT: When Vacation Mode is enabled, water and ice dispensing are disabled.

NOTE: The user can choose to turn off cooling by putting the refrigerator in Demo mode.

See the "Using the Controls" section for more information.

Door Ajar Alarm

The Door Ajar Alarm feature sounds an alarm when the refrigerator door(s) or freezer drawer is open for 5 minutes and cooling is turned on. The alarm will repeat every two minutes. Close all doors to turn it off.

Special Occasions

Will temporarily turn on Fast Cool to lower your refrigerators temperature and quickly chill new food.

Having a Party

Will temporarily turn on Fast Freeze and Fast Cool to help lower your refrigerators during frequent door openings.

Marinating Some Meat

Allows the user to start a timer to track the meat marinating. User will be able to select timer based on recommendation given on screen.

Chilling Beverage In Freezer

Set a timer of 25 minutes so that user does not forget beverage in the freezer.

Clean Inside the Fridge

Temporarily turns off Cooling and Door Ajar for 30 minutes to allow the user to clean their fridge.

Lighting the Refrigerator

The refrigerator has an interior light that comes on any time the door is opened.

NOTE: If the LED does not illuminate when the door is opened, call Service to replace the light.

Icons

Clock screen also displays status icons. Touching these icons also navigates to respective setting.

To adjust the Display Mode, the user shall navigate to the Display Settings section under Preferences.

Display Mode: Eco Mode

Black rectangular device with white symbols on both sides, no text or labels present

Display Mode: Clock Screen

7:00 Tuesday, October 29 +4°C -7°C -18°C

Control Lock

Mute

Door Open Crushed Ice/

Cubed Ice

Fast Cool Enabled

Water Filter Overdue

Fast Ice Enabled

Convertible compartment

Refrigerator compartment

Freezer compartment

Water and Ice Dispensers

IMPORTANT:

■ Allow 3 hours for the refrigerator to cool down and chill water.
- Allow 24 hours to produce the first batch of ice. Discard the first 3 batches of ice produced.
■ The dispensing system will not operate if the left-hand refrigerator door is open.

A B

A. Water dispenser paddle
B. Ice dispenser paddle

Flush the Water System

Air in the water dispensing system can cause the water dispenser to drip. After connecting the refrigerator to a water source or replacing the water filter, flush the water system.

Flushing the water dispensing system forces air from the water line and filter and prepares the water filter for use. Additional flushing may be required in some households.

NOTE: As air is cleared from the system, water may spurt out the dispenser.

1. Using a sturdy container, depress and hold the water dispenser paddle for 5 seconds.
2. Release the dispenser paddle for 5 seconds. Repeat steps 1 and 2 until water begins to flow.
3. Once water begins to flow, continue depressing and releasing the dispenser pad (5 seconds on, 5 seconds off) until a total 3 gallons (12 L) has been dispensed.

Dispensing Calibration

Household water pressure may affect the accuracy of the Measured Fill feature. So, for optimum performance of your water dispenser, you must first calibrate Measured Fill.

IMPORTANT:

■ Flush the water system before calibrating Measured Fill.
■ For best results, calibration should be performed when water is not being used in the house.

1. Place a sturdy measuring cup (1-cup [0.2 L] size) on the dispenser tray centered in front of the ice/water dispenser paddle.

NOTE: Depending on your model, a measuring cup may be provided.

A B C

A. Water dispenser paddle
B. Ice dispenser paddle
C. Measuring cup (1 cup)

Ensure that you do not have any Measured Fill preset selected.

1. To Calibrate your water, navigate to the Dispensing Calibration section under Tools/Setup. Calibration can also be accessed by the user during the unboxing sequence when the product is first powered on.
2. Press and hold the water dispenser paddle, as needed, to dispense water to the 1-cup fill line in the measuring cup. NOTE: If overfilling or spilling occurs, discard the water and restart the calibration process.
3. When 1 cup of water has been correctly dispensed into the measuring cup, touch OK to confirm the calibration.

Dispensing

Touch CUBED ICE or CRUSHED ICE for your ice selection.

NOTES:

For crushed ice, cubes are crushed before being dispensed. This may cause a slight delay when dispensing crushed ice. Noise from the ice crusher is normal and pieces of ice may vary in size.
■ When changing from crushed to cubed, a few ounces of crushed ice will be dispensed along with the first cubes.

Dispensing Water

IMPORTANT:

■ Dispense at least 1 quart (1 L) of water every week to maintain a fresh supply.
If the flow of water from the dispenser decreases, it could be caused by low water pressure.

■ With the water filter removed, dispense 1 cup (0.2 L) of water. If 1 cup (0.2 L) of water is dispensed in 8 seconds or less, the water pressure to the refrigerator meets the minimum requirement.

If it takes longer than 8 seconds to dispense 1 cup (0.2 L) of water, the water pressure to the refrigerator is lower than recommended. See the "Water Supply Requirements" and "Troubleshooting" sections for suggestions.

To Dispense Water - Standard:

1. Press a sturdy glass against the water dispenser paddle.
2. Remove the glass to stop dispensing.

To Dispense Water - Measured Fill:

Measured Fill allows you to dispense a specified amount of water with the touch of a few buttons.

1. Put a sturdy glass under water spout. Touch MEASURED FILL to activate.

NOTE: The amount of water you select will be dispensed. Make sure the container can hold the entire volume. If ice the container, you may need to adjust your selection.

1. Touch DISPENSE or press paddle and the selected amount of water will be dispensed.

NOTE: Most coffee cups (commonly 4 to 6 oz [118 to 177 mL] cup) are not the same size as a measuring cup (8 oz [0.2 L]). may need to recalibrate Measured Fill to underfill or to avoid unintentionally overfilling coffee cups.

1. Dispense water.

NOTE: While dispensing water, the flow of water will automatically stop once the desired volume has been dispensed.

■ Press a sturdy glass against the dispenser paddle below the water spout.

OR

■ Place the glass below the water spout and touch DISPENSE WATER for hands-free dispensing.

1. To pause dispensing before the selected volume has been dispensed, press pause button on screen.

NOTE: If you stop dispensing before the desired volume has been dispensed, the display will turn off after 1 minute. If you have not resumed by then, it will reset back to the original amount.

Ice Maker and Storage Bin

IMPORTANT: To avoid low ice production and poor quality ice, flush the water system before turning on the ice maker. See the "Water Dispenser" section.

■ Following installation, allow 24 hours to produce the first batch of ice. Discard the first 3 batches of ice produced. Allow 2 to 3 days to fill the ice storage bin.

■ The quality of your ice will be only as good as the quality of water supplied to your ice maker. Avoid connecting the ice maker to a softened water supply. Water softener chemicals

(such as salt) can damage parts of the ice maker lead to po quality ice. If a softened water supply cannot be avoided, make sure the water softener is operating properly and is well maintained.

If the ice in the storage bin clumps together, break up ice use a plastic utensil and discard. Do not use anything sharp to break up the ice. This can cause damage to the ice bin and dispenser mechanism.

■ Do not store anything in the ice storage bin.

Style 1 - Ice Maker in the Refrigerator

The ice maker is located on the left door behind the bins. Ice cubes are ejected into the ice storage bin located on the left-hand refrigerator door.

Remove and Replace the Ice Storage Bin

To open the Ice Maker box, pull the ice maker door lever until the idqar releases.

if per You

■ Remove the ice storage bin by inserting your fingers into the hole at the base of the bin and pulling the latch to release the bin from the compartment. Lift the storage bin up and pull it straight out.
■ Replace the storage bin inside the ice compartment and push down to make sure it is firmly in place.

Ice Production Rate

■ Your ice maker should produce approximately 3.5 lbs (1.6 kg) of ice per day under normal operation.

Turn the Ice Maker On/Off

■ To Turn on your Ice Maker, navigate to the Ice maker section under Tools/Setup.
■To Turn off your Ice Maker, navigate to the Ice maker section of the under Tools/Setup.

NOTE:

pdrYour ice maker has an automatic shutoff. The sensor will make automatically stop ice production if the storage bin is full or the door is open. The control will remain in the On position.

SHELVES, BINS, AND DRAWERS

Shelves and Shelf Frames

The shelves in your refrigerator are adjustable to meet your individual storage needs.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make finding the exact item you want easier. It will also reduce the amount of time the refrigerator door is open and save energy.

Shelf Height Adjustment

Shelf height can be adjusted by changing the adjustable shelf mounts between their vertical and horizontal positions.

1. Carefully lift the shelf off the shelf mounts and turn the flipper to the desired orientation.

2. Repeat for remaining shelf mounts.

3. Apply pressure to the top of the shelf to ensure the shelf is Refrigerator Door Bins

properly seated on the shelf mounts.

Diagram of a ceiling-mounted device with a circular component and directional arrows, no text or symbols present.

NOTE:

■ You will need to remove middle shelf first before removing top shelf.

1. Remove the bottom shelf by lifting it up and out of the shelf supports. Then pull the shelf forward and tilt up to a vertical position. Turn the shelf at an angle and pull out of the refrigerator.
2. Replace the bottom shelf by putting the shelf in the refrigerator at an angle with the shelf up. Lift the front of the shelf down and in until rear shelf drops into the shelf supports. Lower the front of the shelf and make sure that the shelf is in position.

Some shelves will tuck away to create room for taller objects.

1. To retract the front section of the shelf, push the adjustable portion of the shelf as far back as needed toward the rear the refrigerator.
2. Extend the front glass and front trim of the shelf by pulling the retracted portion of the shelf outward until it is fully extended.

Technical line drawing of a mechanical assembly with two upward-pointing arrows indicating motion or force directions (no text or symbols present)

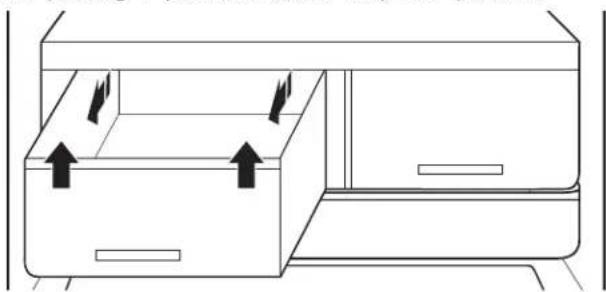

Crisper Drawers

To remove and replace the drawers:

1. Grasp the handle at the bottom of the drawer and slide the drawer straight out to the stop. Lift the drawer off the bottom guide.
2. Replace the drawer by placing it on the bottom drawer guide and pushing it past the drawer stop into position.

Line drawing of a cabinet with arrows indicating movement or force (no text or symbols)

The bins on your refrigerator door are adjustable to meet your individual storage needs. The bins make it easy to customize door storage to hold gallon containers.

Door Bin Divider (on some models)

This divider fits in the door bin to divide the bin and elevate smaller items at the back of the bin.

Architectural floor plan of a refrigerator showing internal compartments and doorways (no text or labels)

Freezer Storage Compartments Easy Access Tray

of the d. Easy Access Tray

Easy Access tray is useful to easily access frequently used products, freeze or simply store leftovers or small items.

Freezer Drawers

The bins on your freezer door are removable to meet your individual storage needs.

Fast Freeze Drawers Flexible Temperature Compartment

For maximum freezer capacity, you may remove the freezer drawer to expose the freezer shelf.

To remove the upper drawer:

1. Grasp handle of the drawer and slide drawer straight out to the stop. Lift drawer off the bottom guide.
2. Replace/putting back drawer stop into position.

Fast Freeze compartment

■ Use this drawers to freeze a bigger amount of fresh or cooked food (in the best or in the fastest way).
■ Fast Freeze option allows you to store all your frozen food safely and transparently.

NOTE: Freezer temperature might be cooled down to be same Flexible Freezer Compartment temperature, when Freezer set to warmer than Flexible Freezer compartment.

Flexible Temperature Compartment

■ Use this drawers to freeze a bigger amount of fresh or cook food (in the best or in the fastest way).
■ Use Flexible Temperature Compartment to store all kinds of food in the ideal preservation environment. Adjusting the settings it can be used to store wine (41°F), standard refrigerator (37°F), meat and fish (32°F), soft Freeze (19°F), and traditional Freezer (-15°F and less).

Wine Caddy

■ Use these shelves to store and keep wine chilled.
■ Adjust the temperature to store wine in the ideal preservation environment (41°F).

REFRIGERATOR CARE

Cleaning

WARNING

Explosion Hazard

Risk of Fire or Explosion.

Flammable Refrigerant Used.

Do Not Use Mechanical Devices to Defrost Refrigerator.

Do Not Puncture Refrigerant Tubing.

Exterior Cleaning

Please see the exterior cleaning information specific to your model.

Fingerprint-Resistant Stainless

IMPORTANT:

Avoid exposing stainless steel appliances to caustic or corrosive elements such as high-salt, high-moisture, or high humidity environments. Damage due to exposure to these elements is not covered under the warranty.

as DO USE DO NOT USE
■ Soft, clean cloth ■ Abrasive clothsed	■ Paper towels or newsprint■ Steel-wool pads
■ Warm, soapy water with a mild detergent	■ Abrasive powders or liquids■ Window sprays■ Ammonia■ Acidic or vinegar-based cleaners■ Oven cleaners■ Flammable fluids

NOTES:

If unintentional contact does occur, clean plastic part with a sponge and mild detergent in warm water. Dry thoroughly with a soft cloth.
■ Avoid exposing stainless steel appliances to caustic or corrosive elements such as high-salt, high-moisture, or high-humidity environments. Damage due to exposure to these elements is not covered under the warranty.
■ Just because a cleaner is a liquid does not mean it is nonabrasive. Many liquid cleansers formulated to be gentle on tile and smooth surfaces still damage stainless steel.
■ When cleaning stainless steel, always wipe in the direction of the grain to avoid cross-grain scratching.
- Citric acid permanently discolors stainless steel. To avoid damaging the finish of your stainless steel refrigerator:

Do not allow these substances to remain on the finish:

• Mustard
• Citrus-based sauces
• Tomato juice
• Citrus-based products
• Marinara sauce

Interior Cleaning

IMPORTANT: Refrigerator shelves with under-shelf, LED lighting are not dishwasher safe.

All of the Refrigerator, Freezer and Convertible Space sections are defrost automatically. However, clean all the sections about once a month to avoid build-up of odours. Wipe up spills immediately.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water.

NOTE: Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on plastic parts, interior and door liners, or gaskets.

1. Plug in refrigerator or reconnect power.

Condenser

This refrigerator has skin condenser on both sides of refrigerator. It is normal to feel warm on the sides.

Condenser Cleaning

WARNING

Explosion Hazard

Risk of Fire or Explosion due to Puncture of Refrigerant Tubing.

Follow Handling Instructions Carefully.

Flammable Refrigerant Used.

There is no need for routine condenser cleaning in normal home operating environment. If the environment is particularly greasy or dusty or there is significant pet traffic in the home, the condense should be cleaned every 6 months to ensure maximum efficiency.

1. Unplug refrigerator or disconnect power.
2. Remove the base grille.
3. Use a vacuum cleaner with a soft brush to clean the grille, open areas behind the grille, and the front surface area of condenser.
4. Replace the base grille when finished.
5. Plug in refrigerator or reconnect power.

NOTE: If you are unable to clean the condenser, please call for service.

Lights

The lights in both the fresh food and freezer compartments are LEDs. If the lights do not illuminate when the door is opened, contact the dealer from whom you purchased your refrigerator.

Holiday and Moving Care

Holidays

If You Choose to Leave the Refrigerator On While You're Away:

1. Use up any perishables and freeze other items.
2. If your refrigerator has an automatic ice maker, and is connected to the household water supply, turn off the water supply to the refrigerator. Property damage can occur if the water supply is not turned off.
3. If you have an automatic ice maker, turn off the ice maker.

■ Press the switch to Off (O) for the door ice maker.

1. Empty the ice bin.

If You Choose to Turn Off the Refrigerator Before You Leave:

NOTE: Put refrigerator in Demo Mode while on Holiday. See the "Using the Controls" section.

1. Remove all food from the refrigerator.
2. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day ahead of time.
■ When last load of ice drops, press the switch to Off (O) for display to be unlit on the top inside of the refrigerator, depending on your model.

1. Empty the ice bin.

2. Turn off temperature controls. See the "Using the Controls" section.

3. Clean refrigerator, wipe it, and dry well.

4. Tape rubber or wood blocks to the tops of both doors to prop them open far enough for air to get in. This stops odor and mold from building up.

Moving

When you are moving your refrigerator to a new home, follow these steps to prepare it for the move.

1. If your refrigerator has an automatic ice maker:

■ Turn off the water supply to the ice maker at least one day ahead of time.
■ Disconnect the water line from the back of the refrigerator.
■ When the last load of ice drops, raise the wire shutoff arm to the Off (up) position or press the switch to Off, depending on your model.

1. Remove all food from the refrigerator and pack all frozen food in dry ice.

2. Empty the ice bin.

3. Unplug refrigerator
4. Clean, wipe, and dry thoroughly.
   Take out all removable parts, wrap them well, and tape them together so they don't shift and rattle during the move.
5. Depending on the model, raise the front of the refrigerator so it rolls more easily or raise the levelling screws so they do not scrape the floor. See the "Adjust the Doors" or "Refrigerator Levelling and Door Closing" sections.
6. Tape the doors closed and tape the power cord to the back of the refrigerator.

When you get to your new home, put everything back and refer to the "Installation Instructions" section for preparation instructions.

Also, if your refrigerator has an automatic ice maker, remember to reconnect the water supply to the refrigerator.

PERFORMANCE DATA SHEET

Water Filtration System

Model P9WB2L/P9RFWB2L/EDR2RXD1 Capacity 200 Gallons (757 Liters)

System tested and certified by NSF International against NSF/ANSI Standard 42, Standard 53, Standard 401, and CSA B483.1 for the reduction of contaminants specified on the Performance Data Sheet.

This system has been tested according to NSF/ANSI Standards 42, 53, 401, and CSA B483.1 for the reduction of the substances listed below. The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42, 53, 401, and CSA B483.1. This system has been tested according to Ministerial Decree No 174, article 9 of legislative decree n 31 of 2001, Regulations (EC) no 1935/2004, WRAS BS6920 and ACS Circulaire 2002/571.

Substance Reduction Aesthetic Effects	Influent Challenge Concentration	Maximum Permissible Product Water Concentration	Average % Reduction
Chlorine Taste/Odor Particulate Class I*	2.0 mg/L ± 10% At least 10,000 particles/mL	50% reduction 85% reduction	>97.4% 99.3%
Contaminant Reduction Influent Challenge Concentration		Maximum Permissible Product Water Concentration	Average % Reduction
Lead: @ pH 6.5/@ pH 8.5 0.	150 mg/L ± 10% 0.010 mg/L	>99.3%/98.6%
Benzene 0.015 mg/L ± 10% 0	0.005 mg/L 96.0%
P-Dichlorobenzene 0.225 mg/L	± 10% 0.075 mg/L >99.8%
Carbofuran 0.080 mg/L ± 10%	0.040 mg/L 91.9%
Toxaphene 0.015 mg/L ± 10%	0.003 mg/L 93.3%
Atrazine	0.009 mg/L ± 10% 0.003 mg/L	92.4%
Asbestos	107 to 10 fibers/L††	>99%	>99%
Asbestos	50,000/L minimun	99.95%	>99.99%
Live Cysts†	11 NTU ± 10%	0.5 NTU	99.0%
Lindane	0.002 mg/L ± 10% 0.0002 mg/L	>98.9%
Tetrachloroethylene	0.015 mg/L ± 10% 0.005 mg/L	>96.6%
o-Dichlorobenzene	1.8 mg/L ± 10%	0.6 mg/L	>99.9%
Ethylbenzene	2.1 mg/L ± 10%	0.7 mg/L	99.4%
1,2,4-Trichlorobenzene	0.210 mg/L ± 10% 0.07 mg/L	>99.8%
2,4 - D	0.210 mg/L ± 10% 0.07 mg/L	93.8%
Styrene	2.0 mg/L ± 10%	0.1 mg/L	99.8%
Toluene	3.0 mg/L ± 10%	1.0 mg/L	87.9%
Endrin	0.006 mg/L ± 10% 0.002 mg/L	>96.6%
Atenolol	200 ± 20%	30 ng/L	>95.9%
Trimethoprim	140 ± 20%	20 ng/L	>96.9%
Linuron	140 ± 20%	20 ng/L	>96.4%
Estrone	140 ± 20%	20 ng/L	>97.0%
Nonylphenol	1400 ± 20%	200 ng/L	>97.4%
Carbamazepine	1400 ± 20%	200 ng/L	>97.9%
Phenytoin	200 ± 20%	30 ng/L	93.8%
Contaminant Reduction Influent Challenge Concentration		Maximum Permissible Product Water Concentration	Average % Reduction
Naproxen 140 ± 20% 20 ng/L	96.1%
Bisphenol A 2000 ± 20% 300	ng/L >99.2%

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.6 gpm (2.27 Lpm). Pressure = 60 psig (413.7 kPa). Temperature = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

The compounds certified under NSF 401 have been deemed as “emerging compounds/incidental contaminants.” Emerging compounds/incidental contaminants compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance/perception of drinking water quality.

■ It is essential that operational, maintenance, and filter replacement requirements be carried out for the product to perform as advertised. Property damage can occur if all instructions are not followed.
■ The disposable cartridge must be changed at least every 6 months.
■ Use replacement filter Part # EDR4RXD1/EDR4RXD1B. 2015 Water Temperature suggested retail price of \49.99 U.S.A./\49.99 Canada. Prices are subject to change without notice. Service Flow Rate
■ The filter monitor system measures the amount of water that passes through the filter and alerts you when it is time to replace water filtration system will withstand up to 120 pounds per the filter. Refer to the "Using the Controls" or "Water Filtration square inch (psi) water pressure. If your water supply is higher System" section (in the User Instructions or User Guide) to leathan 80 psi, install a pressure reducing valve before installing how to check the water filter status.
■ After changing the water filter, flush the water system. See "Water and Ice Dispensers" or "Water Dispenser" in the User Instructions or User Guide.
■ These contaminants are not necessarily in your water supply. While testing was performed under standard laboratory conditions, actual performance may vary.
■ The product is for cold water use only.
■ The water system must be installed in compliance with state and local laws and regulations.
■ Do not use with water that is microbiologically unsafe or of unknown quality without adequate disinfection before or after the system. Systems certified for cyst reduction may be used on disinfected waters that may contain filterable cysts. EPA Est. No. 082047-TWN-001
■ Refer to the "Warranty" section (in the User Instructions or User Guide) for the Manufacturer's limited warranty, name and telephone number.
■ The refrigerator when dispensing water acts as drinking water treatment equipment.
■ This equipment requires regular periodic maintenance in order to guarantee the drinking water treatment requirements and the maintenance of the improvements every 6 months.

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

Diagram showing a mechanical assembly with directional arrows indicating motion or force, alongside a 3D cylindrical component (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Technical diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with screws and a labeled component (no text or symbols present)

Line drawing of an open refrigerator with doors and shelves, showing internal components (no text or symbols)

Technical line drawing of a mechanical assembly with a labeled component 'A' (no text or symbols beyond label)

Diagram showing a mechanical or architectural component with directional arrows indicating movement or force (no text or symbols present)

Diagram of a door handle with a circular dial indicator and directional arrow (no text or symbols)

Diagram of a door handle with a cylindrical component and directional arrow indicating motion (no text or symbols)

Diagram showing a device being inserted into a cylindrical component (no text or symbols present)

Diagram showing a device being inserted into a cylindrical component (no text or symbols present)

Diagram of a cylindrical device with labeled parts and an arrow indicating direction (no text or symbols present)

Diagram showing a directional arrow labeled 'LOCK' pointing to a circular component with checkmark indicators and arrows.

Technical diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

Technical diagram of a mechanical or electrical component with labeled section A and internal structure (no text or symbols beyond label)

A. Couvre-charnière

Technical line drawing of a mechanical or electrical component with labeled section A (no text or symbols beyond label)

Line drawing of a hand pressing a device into a container with an upward arrow (no text or symbols)

Line drawing of a hand pressing down on a digital water dispenser device (no text or symbols)

Black and white image of a device casing with four small icons on the sides (no text or symbols)

Fast Freeze (Congélation Rapide)

Black and white image of a device panel with four small icons on the sides (no text or symbols)

5:30 7:00 Tuesday, October 29 +4°C -7°C -18°C

Convertible compartment (Compartiment convertible)

Refrigerator compartment (Compartiment de réfrigération)

Technical line drawing of a mechanical device with an inset showing a component being inserted (no text or symbols present)

Diagram of a device with a circular component and directional arrows, no text or symbols present

REMARQUE :

Technical line drawing of a mechanical assembly with two upward-pointing arrows indicating motion or force directions (no text or symbols present)

Bacs à Légumes

Line drawing of a cabinet with arrows indicating movement or force (no text or symbols)

Architectural cross-section diagram of a refrigerator showing internal compartments and doorways (no text or labels)

Line drawing of a mechanical component with no visible text or symbols

Line drawing of a refrigerator with open doors and stacked boxes (no text or symbols)

Diagram showing a mechanical assembly with directional arrows indicating motion or force, alongside a close-up of a cylindrical component (no text or symbols present)

Technical diagram of a mechanical assembly with labeled parts A, B, C, and D

Technical diagram showing labeled components A and B in a mechanical assembly with connectors and wiring

Technical diagram of a mechanical assembly with a magnified inset showing a component (no text or symbols present)

Technical line drawing of a mechanical clamp or bracket assembly with screws and a labeled component (no text or symbols present)

A. Bisagra central

Line drawing of an open refrigerator with doors and shelves, showing internal components (no text or symbols)

A. Bisagra inferior

Pasos finales

ADVERTENCIA

Technical line drawing of a mechanical assembly with a labeled component 'A' (no text or symbols beyond label)

A. Pies de freno

Diagram showing a mechanical component with two directional arrows indicating movement or force (no text or symbols present)

Diagram of a door handle with a circular dial indicator and directional arrow (no text or symbols)

Diagram showing a door lock mechanism with labeled parts and directional arrow indicating motion or movement

Diagram showing a device being inserted into a cylindrical component (no text or symbols present)

Diagram showing a device being inserted into a cylindrical component (no text or symbols present)

Diagram of a cylindrical device inside a door, showing internal components and an upward arrow (no text or symbols)

Diagram of a door handle assembly with an arrow indicating direction (no text or symbols present)

Technical line drawing of a mechanical device with labeled component A (no text or symbols beyond label)

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

135° 135°

Line drawing of a hand pressing down on a digital device with an upward arrow (no text or symbols)

Line drawing of a hand pressing down on a digital water dispenser device (no text or symbols)

Black rectangular device with white space and small icons on sides (no text or symbols)

Black and white image of a device panel with four corner icons: home, star, lock, and gear (no text or symbols)

5:30 7:00 Tuesday, October 29 +4°C -7°C -18°C

Control Lock (Bloqueo de Controles)

Door Open (Puerta Abierta)

Convertible compartment (Compartimento Convertible)

Technical line drawing of a door frame assembly with an inset showing a component being inserted (no text or symbols present)

Diagram of a mechanical device with a circular component and directional arrows, no text or symbols present

NOTA:

Technical line drawing of a mechanical assembly with two upward-pointing arrows indicating motion or force directions (no text or symbols present)

Cajones para Verduras

Simple line drawing of a cabinet with arrows indicating direction (no text or symbols)

Technical line drawing of a refrigerator interior showing internal compartments and doorways (no text or labels)

Line drawing of a mechanical component with no visible text or symbols
