Product type	LED construction spotlight
Brand	Brandson
Model	304412
Power supply	220-240 V AC~, 50-60 Hz, 100 W
Beam angle	Approx. 120°
Color temperature	6,500 K (daylight)
Luminous flux	9,500 lm
Protection rating	IP65 (dust-tight and protected against water jets)
Operating temperature	-30°C to +50°C
Dimensions	400 x 400 x 70 mm
Housing material	Die-cast aluminum with electrostatic coating
Protective glass	Safety glass
Number of LEDs	140 SMD LEDs
Power	100 W
Carrying handle	Yes, integrated
Mounting	Base with locking screw (To Lock / To Unlock)
Application	Indoor and outdoor (tunnels, pathways, gardens)
Minimum distance to objects	0.5 m
Package contents	Spotlight, instruction manual
Safety	Hot surface, do not look into LEDs, do not use without glass
Maintenance and cleaning	Check connections regularly, clean with a dry cloth
Warranty	Void if unauthorized repair
Disposal	Compliant with WEEE, do not dispose of with household waste

Frequently Asked Questions - 304412 Brandson

How to turn on the spotlight?

Plug the power cable into a properly installed mains socket. The device turns on automatically as soon as it is connected.

Can I use the spotlight in the rain?

Yes, thanks to the IP65 protection rating, it is resistant to water jets and dust. It is suitable for outdoor use.

What is the color temperature of the LEDs?

The LEDs emit a cool white light with a color temperature of 6,500 K (daylight).

How to fix the base?

Turn the screw on the foot in the "To Lock" direction to lock the base. To unlock, turn in the "To Unlock" direction.

Can I replace the LEDs myself?

No, the LEDs are permanently integrated. Never attempt to open the device, as this will void the warranty and pose electrical risks.

What to do if the protective glass is broken?

Do not use the device anymore. Broken glass exposes to electrical and burn risks. Contact the manufacturer for replacement.

What distance should I maintain between the spotlight and objects?

Keep a distance of at least 0.5 meters between the spotlight and any object to avoid risk of overheating or fire.

Can I leave the spotlight on continuously?

Yes, within the operating temperature range of -30°C to +50°C. However, monitor the heat output and do not cover the device.

How to clean the spotlight?

Unplug the device and clean it with a dry cloth. Never use water or abrasive cleaners, as they could damage the sealing.

Where can I find spare parts?

Spare parts are not offered directly. For any questions, contact the manufacturer WD Plus GmbH via the contact details provided in the manual.

USER MANUAL 304412 Brandson

Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy your device for a long time. When starting up the device for the first time, check the integrity of the product or components and its function again.

1. Scope of Delivery

• LED Work lamp
• User manual

2. Technical Data

Voltage supply 220-240V AC~ / 50-60Hz, 100 W
Viewing angle	approx. 120°
Colour temperature 6500 K
Lumen intensity 9500 lm
Protection class IP65
Working temperature -30°C up to +50°C
Dimensions (mm) 400 mm x 400 mm x 70 mm
Product features • Sturdy metal housing	• 140 x SMD LEDs• With carrying handle• safety glass

3. Special safety instructions for this device

• Attention! Hot surface! Never touch hot surfaces with your hand. There is a danger of burning due to the hot surfaces!
• Keep the device away from combustible and flammable materials!
• Never point the LEDs at people or animals. Do not look directly at LED light!
• Never use the device without a protective glass or stand!

- Keep a distance of at least 0.5m between the work light and other objects!

• If a protective cover is shattered, any further use of the device is prohibited!
- Suitable for indoor and outdoor use such as tunnel, alley, garden, etc.!
- Aluminum die-cast housing with safety glass: The surface is equipped with an electrostatic coating. It is in accordance with IP65 waterproof and dust-free!

4. Start-up

When the device is put into operation for the first time, check the intactness of the product or components and their function again. Remove the device from its packaging and remove any packaging material. Plug the power cable into a correctly protected socket. As soon as the device is connected to the socket, it is switched on.

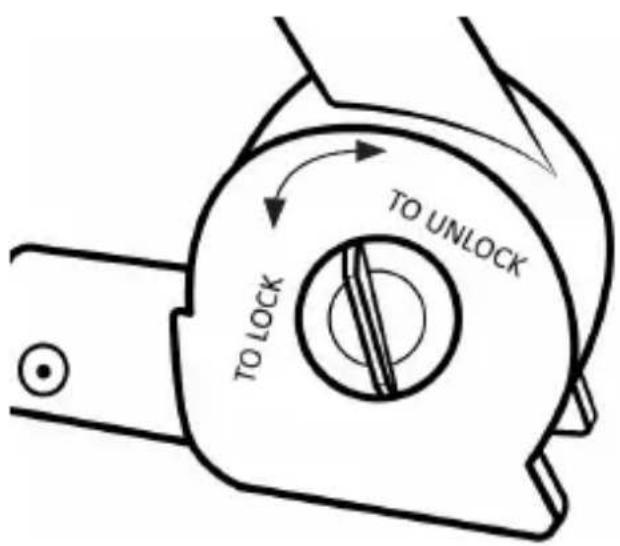

To fix the base, turn the screw on the base in the "To Lock" direction. To unlock the stand, turn it in the "To Unlock" direction.

With the screws on the left and right side of the device you can fix the work lamp.

5. Safety Instructions and Liability Disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

6. Disposal Instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

WEEE Directive: 2012/19/EU WEEE Register No: DE 67896761

WD Plus GmbH hereby declares that the device 304412/20200323NB098 complies with the essential requirements and other relevant regulations. A complete declaration of conformity is enclosed: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, Germany
