305571 - Lighting Brandson - Free user manual and instructions

Product type	LED construction spotlight
Brand	Brandson
Model	305571
Power supply	240 V AC ~ / 50 Hz, 60 W
LED type	84 SMD LEDs
Luminous flux	100 lm
Color temperature	5000 K (daylight)
Beam angle	Approx. 120°
Protection rating	IP65 (water and dust tight)
Operating temperature	-30°C to +50°C
Dimensions	300 mm x 300 mm x 185 mm
Weight	Approx. 1.5 kg
Housing material	Die-cast aluminum with electrostatic coating
Protective glass	Tempered safety glass
Carrying handle	Yes, included
Adjustable stand	Yes, included
Use	Indoor and outdoor (tunnels, walkways, gardens)
Commissioning	Plug into mains socket, automatic startup
Maintenance and cleaning	Clean with a dry, soft cloth; do not use abrasive products
Safety	Do not look directly at the LEDs, keep at least 0.5 m distance from objects, hot surface
Spare parts and repairability	Not provided; repair only by the manufacturer
Warranty	Statutory 2-year warranty
Package contents	Spotlight, stand, carrying handle, instruction manual

Frequently Asked Questions - 305571 Brandson

How to install the Brandson 305571 spotlight?

Mount the carrying handle and stand on the housing as shown in the manual. Then plug the power cable into a mains socket. The unit turns on automatically.

Can I use this spotlight outdoors?

Yes, thanks to its IP65 protection rating, it is water and dust tight. It is suitable for outdoor use (tunnels, walkways, gardens).

How to clean the spotlight?

Unplug the unit and clean it with a dry, soft cloth. Do not use abrasive products or liquid cleaners.

What to do if the spotlight does not turn on?

Check that the power cable is properly connected and the socket works. If the problem persists, contact customer service.

Is the spotlight waterproof?

Yes, it has the IP65 protection rating, which means it is protected against water jets and dust.

Can I replace the LEDs myself?

No, the LEDs are not individually replaceable. In case of failure, the unit must be replaced or repaired by a professional.

What type of power cable is required?

The spotlight comes with a standard mains power cable (European plug). It operates at 240 V AC / 50 Hz.

What safety distance should I observe?

Keep a distance of at least 0.5 meters between the spotlight and any flammable object or surface.

What is the power consumption of the spotlight?

The power consumption is 60 watts at 240 V AC.

What is the weight of the spotlight?

The weight is approx. 1.5 kg.

USER MANUAL 305571 Brandson

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Check that the product and the components are intact and that the device is working properly when using it for the first time.

1. Scope of delivery

• LED working lamp
• User manual

2. Technical data

Power supply 240 V AC~ / 50 Hz, 60 W
Beam angle	Approx. 120°
Colour temperature 5000 K
Light intensity 100 lm/W
Protection category IP65
Operating temperature -30°C to +50°C
Dimensions 300 mm x 300 mm x 185 mm
Product features • Stable metal housing	• 84 SMD LEDs• With carrying handle• Safety glass

3. Important safety guidelines for this device

• Caution! Hot surface! Do not touch hot surfaces with your hand. There is a risk of burns!
• Keep the device away from easily flammable or highly flammable objects!
• Never point the LEDs at persons or animals. Do not look directly at the LEDs!
• Do not use the device without protective glass and stand!

• Always maintain a distance of at least 0.5m between the site light and the other objects!

• Do not use the device if the protective cover is broken!
• Suitable for indoor and outdoor use such as in tunnels, alleys, gardens, etc.!
• Aluminium die-cast housing with safety glass: The surface is provided with an electrostatic coating and is waterproof and dust-proof in accordance with IP65!

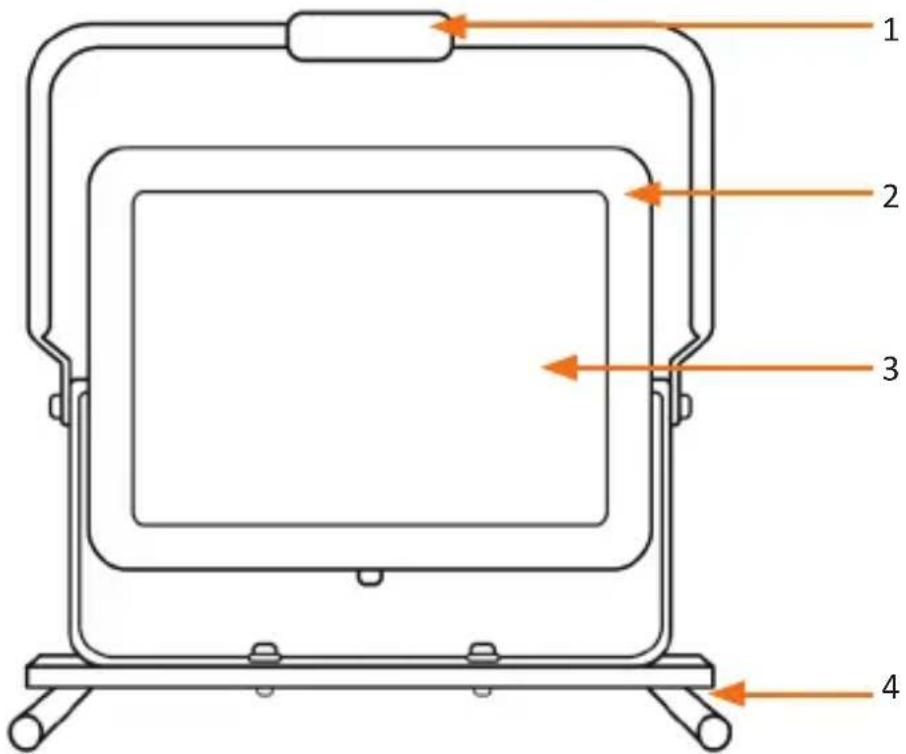

4. Product details

No. Description
1	Carrying handle
2 Housing
3 LED Panel
4 Stand

5. Initial use

Check that the product and the components are intact and that the device is working properly when using it for the first time Take the device out of the package and remove all the packaging material.

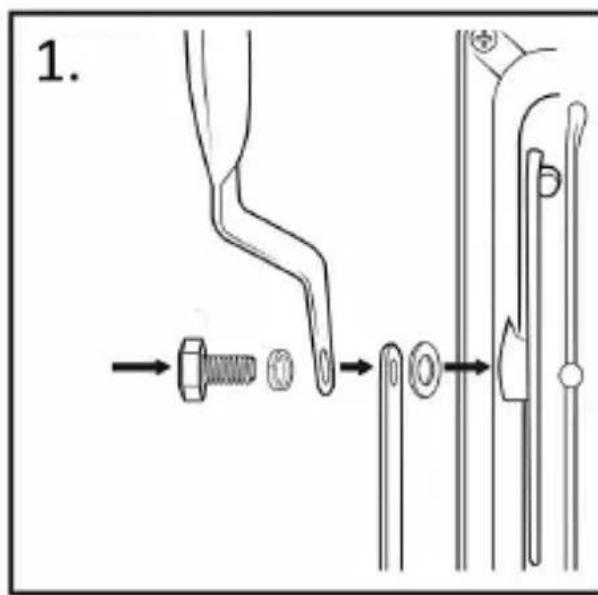

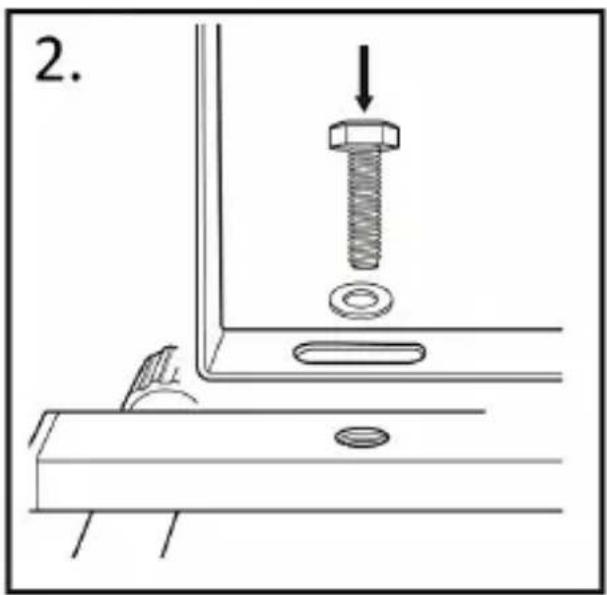

Mount the handle and stand to the housing as shown in the images below. Connect the power cable of the site light to a properly installed socket. As soon as the device is connected to the socket, it is switched on.

6. Safety instructions and disclaimer

Check all the connections and wirings regularly for damage. Do not operate the device if it is damaged. Keep it away from sharp objects and other potential dangers. Please do not try to open the device to carry out repairs or modifications by yourself. Avoid contact with the mains supply. The device does not carry current only when disconnected. Please do not short-circuit the product. Do not forget to disconnect the power cord when the device is not being used or during thunderstorms. Therefore, please use it only in dry surroundings. Protect it from continuous exposure to high humidity, water and snow.

Do not expose the device to high outdoor temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it has been subject to impact or has been damaged in any other way. Please follow the local regulations and restrictions. Do not use the device for purposes other than those described in this manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.

The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior intimation. The device should only be used by those who have read and understood this user manual.

7. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment.

According to the Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305571 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
