305626 - Lighting Brandson - Free user manual and instructions

Product type	LED monitor lamp
Brand	Brandson
Model	305626
Power supply	5 V DC / 1 A via USB-C
Maximum power	4.5 W
Standby power	0 W
Lighting colors	Warm white, cool white, natural light
Brightness adjustment	Capacitive touch dimmer (increment/decrement)
Color temperature	Switchable by cycles (3 modes)
Tilt angle	Up to 35°
Mounting	Bracket with clip for monitor
Approximate length	45 cm
Approximate weight	200 g
Material	Plastic and metal
Included cable	USB cable (type C)
Main functions	Screen lighting, 3 temperatures, dimmer, adjustable angle
Maintenance and cleaning	Clean with a soft dry cloth; do not use abrasive products
Safety	Do not open, avoid moisture, do not use if damaged
Spare parts and repairability	Not user repairable; warranty void if modified
General information	Compliant with WEEE directive 2012/19/EU; registration number DE: 67896761

Frequently Asked Questions - 305626 Brandson

How to install the lamp on my monitor?

Open the swivel cover under the lamp and place it on the top edge of the screen. Tighten the clip to stabilize. Then connect the USB cable to the lamp's power input and to a USB source (computer or power adapter).

How to turn the lamp on and off?

Briefly press the On/Off button (button 1) on the lamp to turn it on or off.

How to adjust the brightness?

Use the brightness dimmer (button 2): press "+" to increase brightness and "-" to decrease.

How to change the color temperature?

Briefly press the color temperature button (button 3) to cycle through three modes: natural light → cool white → warm white.

Can I tilt the lamp?

Yes, hold the bracket firmly and pinch the lamp arm to tilt it up or down. The maximum angle is 35°.

What is the required power supply?

The lamp operates on 5 V DC / 1 A via a USB-C cable. You can plug it into a computer USB port, a USB power adapter, or a power bank.

Is the lamp compatible with all monitors?

Yes, the clamp bracket fits most flat screens. Check that the top edge of the monitor is thick enough to accommodate the clip.

What to do if the lamp does not turn on?

Check that the USB cable is properly connected and that the power source is providing current. Try another USB port or power adapter. If the problem persists, contact support.

Can I use the lamp with a power adapter?

Yes, you can use a standard USB power adapter (5 V, 1 A minimum). Make sure it is certified and suitable for your region.

How to maintain the lamp?

Clean it with a soft dry cloth. Do not use chemical or abrasive products. Avoid moisture and high temperatures. Do not attempt to repair it yourself.

USER MANUAL 305626 Brandson

ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.

Diagram of a tripod-mounted device with bidirectional arrows indicating rotational motion (no text or symbols)

Pure line drawing of a mechanical bracket or lever (no text or symbols)

Thank you for choosing a CSL product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Monitor lamp
• USB cable
• User manual

2. Technical data

Power supply 5V DC / 1A (using USB Type C port)
Power consumption • Standby : 0 W• Maximum consumption: 4.5 W
Light colours	• natural• cool white• warm white
Dimmable Yes - via capacitive touch switch (dimmer switch)
Features • Dimmable	• 3 light modes• Can be placed on monitors using bracket and clamp

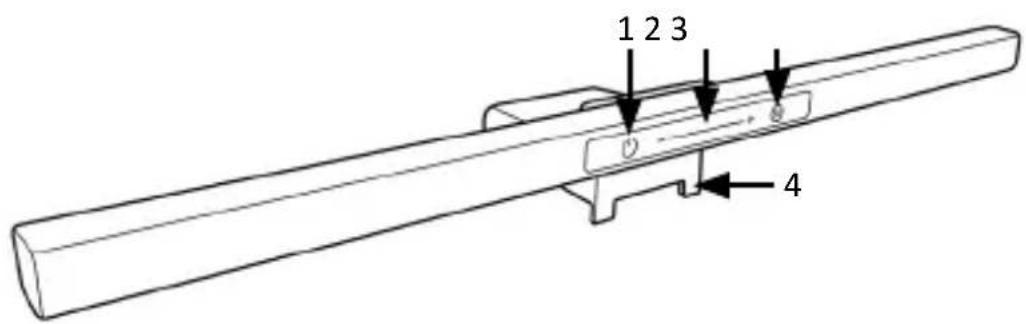

3. Product details

Diagram of a tripod-mounted device with bidirectional arrows indicating rotational motion (no text or symbols)

1 ON/OFF button
2 Brightness switch
3 Colour temperature button
4 Bracket

4. Initial use

Hold the lamp rod and open the rotary cover at the bottom. Place the product firmly on the computer screen.

Pure technical line drawing of a mechanical bracket or lever (no text or symbols)

Connect the end of the USB cable to the power input interface and the other end to the power output. You can also use a USB 5V output device to ensure the power supply.

• (1) ON / OFF button:
Brief touch: Lamp ON/OFF

• (2) Brightness switch:

Touch the slider to adjust the brightness. Press "+" to increase the brightness. Press "-" to decrease the brightness.

• (3) Colour temperature button:

Brief press: The colour temperature of the different lamps can be changed cyclically (natural light → cold white light → warm white light).

Adjusting the angle

Hold the bracket firmly, press the lamp rod slightly and move it up and down to adjust to the desired angle. The maximum angle is 35^ .

Caution!

5. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.

Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notification.

6. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305626 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, https://model.ganzeinfach.de/305626

Diagram of a tripod-mounted device with bidirectional arrows indicating rotational motion (no text or symbols)

Pure line drawing of a mechanical bracket or lever (no text or symbols)
