USER MANUAL 304474 Brandson
ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.
Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.
1. Scope of delivery
- Projection alarm clock
- User manual
2. Technical data
| Power supply | 5V DC (via microUSB)3V DC (1 backup "CR2032" battery) |
| Transmitting power 0 dBm |
| Frequency range 76 MHz - 108 MHz |
| Ambien temperature + | 0-3°C until 35-40°C |
| Features | USB charging port12/24-hour displayTwo alarm settings (beep and radio)Different alarm modesSnooze function180° flip projection display |
3. Functions
The projection alarm clock allows you to project the current time, for example, onto a wall or room ceiling. You can adjust two different alarm settings using the dual alarm.
The projection alarm clock can wake you up with a beeping sound or, optionally, with your favourite radio stations. Using the movable projector, the projection can be displayed on any desired surface.
12 English

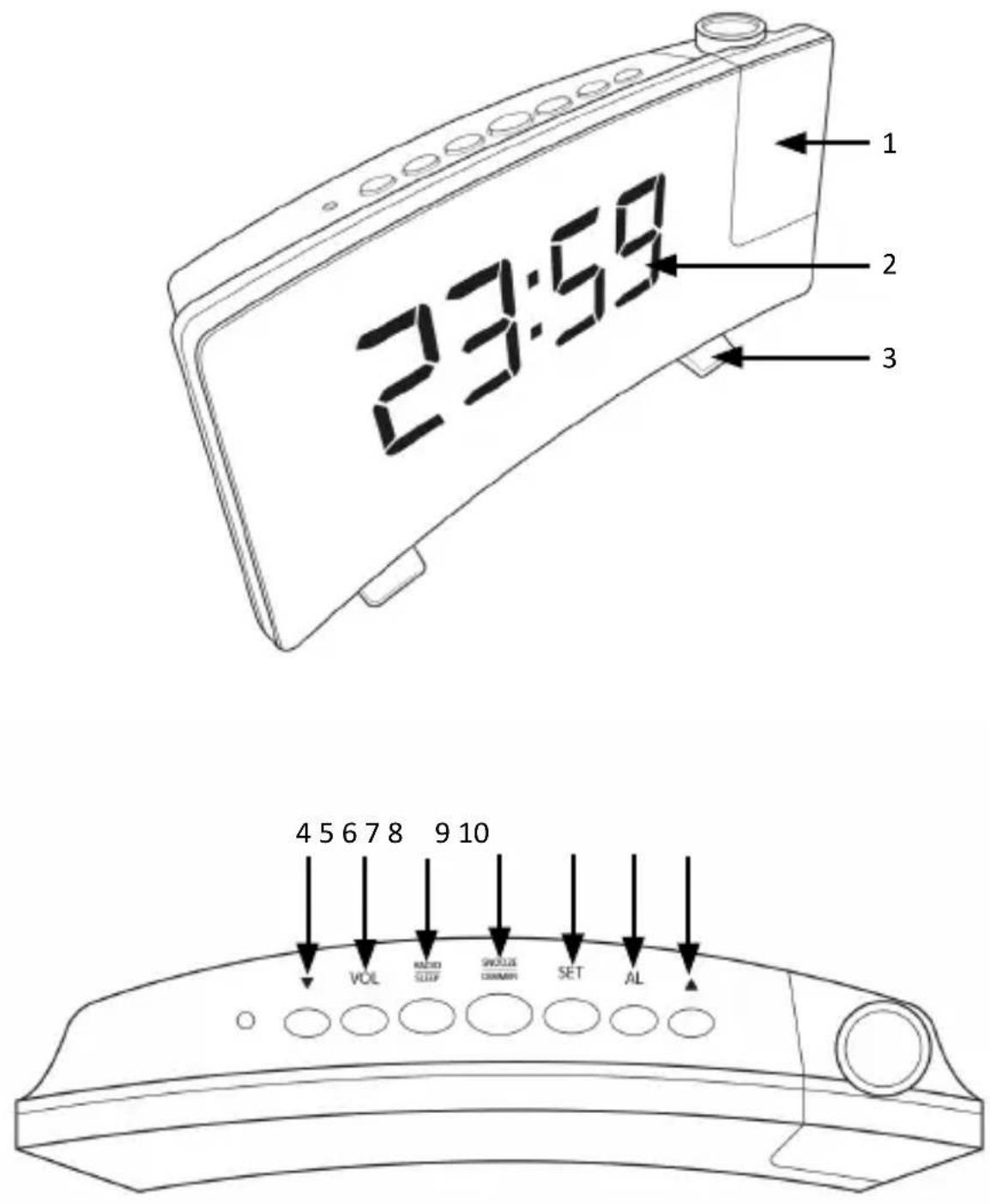

- Product details
| Number Name | |
| 1 Projector | |
| 2 Time display | |
| 3 Stand | |
| 4 "DOWN" button | |
| 5 "VOL" button | |
| 6 "RADIO/SLEEP" button | |
| 7 "SNOOZE/DIMMER" button | |
| 8 "SET" button | |
| 9 "AL" button | |
| 10 "UP" button | |
5. Initial use
Take the device out of the package and remove all the packaging material. Insert a "CR2032" battery (not included in the scope of supply) into the battery compartment at the back, which is located at the bottom. Pay attention to the correct polarity of the contacts. This battery is used for saving a backup of the time and alarm.
6. Setting the time
Once the device is connected to a properly installed socket, press and hold the "SET" button for about 3 seconds to adjust the time. Use the "UP" and "DOWN" buttons to increase or decrease the values. Press "SET" once again to continue with the settings. The setting cycle is as follows:
- Hour
- Minute
- 12/24 Hours
- Snooze time (select a snooze time from 5 minutes to 60 minutes)
Press the "SET" button to complete the settings, or wait for about 20 seconds.
Note: If you have selected the 12-hour display, the "PM" LED is displayed at the corresponding times.
7. Setting the alarm
Press the "AL" button. The alarm time 1 is shown on the display and the hour display flashes. To do this, once again press the "UP" and "DOWN" buttons to set the alarm. Confirm your entry using the "AL" button. The setting cycle is as follows:
- Hour
- Minute
- Alarm function (OFF rd, bu; OFF = alarm switched off; rd = Radio alarm; bu = Beep alarm)
After Alarm 1, you can set the Alarm time 2. Proceed with the setting as described above.
8. Activating the alarm
If you have not selected the alarm function "OFF" in the alarm settings, then the respective alarm is active. When the desired alarm is activated or deactivated, this is shown on the display.
When Alarm 1 or Alarm 2 is set off, the corresponding LED flashes in the display.
Caution! The alarm will be completely switched off if you press the "Radio On/Off" button or the "AL" button. The alarm will go off again on the next day.
Note: When the second alarm time is activated during the first alarm time or the alarm time 1 in snooze mode, then the second alarm time overrides the first one.
9. Snooze function
As soon as the alarm goes off, press the "SNOOZE/DIMMER" button to defer the alarm to a later time. The alarm sound or radio alarm then does off again later.
The duration of the snooze function is set using the time setting. The default value is 9 minutes. However, you can select between 5 and 60 minutes.
10. Projection
Press the "UP" button in the time mode to switch the projection on/off. To rotate the projected display by 180°, press and hold the "UP" button until the projection rotates.
11. Radio function
Press the “RADIO/SLEEP” key to switch on the radio function. Briefly press the “SET” key to start the automatic station search. The radio will automatically tune in and store the next available station.
Note: For an optimum radio reception, it is recommended that the cable antenna is completely rolled out.
By pressing the "SNOOZE/DIMMER" button, you can switch off the radio function and return back to the time display.
11.1 Volume
Press the "VOL" button to access the volume settings. With the "UP" and "DOWN" buttons, you can select the volume from "L00" (minimum volume) to L15 (maximum volume).
12. Accessing and changing the radio station presetting
Press the "RADIO/ SLEEP" button to activate the radio function. You can switch between the different radio frequencies using the "UP" and "DOWN" buttons.
Briefly press the “SET” key, the FM radio automatically searches and stores the frequency of up to 15 stations. The unit remains on the first station as soon as the search is completed.
Press "UP" or "DOWN" to select between the stored stations.
To adjust the volume, briefly press "VOL", the display shows "L10". Press "UP" or "DOWN" to adjust the volume from L00 (minimum) to L15 (maximum).
Press "SNOOZE/DIMMER" to switch off the radio.
The memory is limited. Press “SET” again to overwrite the previous settings and restart the scan to overwrite the current stations.
Note: Keep your radio away from sources of interference or other electronic devices that may cause interference to the radio.
13. Radio sleep function
Press the "RADIO/SLEEP" button twice to enter the sleep function. "SL" appears at the bottom right of the display. Press the "RADIO/SLEEP" button repeatedly to select between a sleep timer ranging from 5 minutes to 90 minutes. If the timer is activated, the radio will switch off automatically after a set period of time.
If you select the option "OFF", then the sleep function is turned off.
14. Dimming the display
Press and hold the "SNOOZE/DIMMER" button for about 2 seconds in time mode. "AU" (automatic mode) or "OFF" (manual mode) is shown in the display.
To activate automatic dimming, press and hold the "SNOOZE/DIMMER" button for about 2 seconds until "AU" appears in the display. The automatic dimming mode is now activated.
To dim the clock display, press and hold the "SNOOZE/DIMMER" button for about 2 seconds. "OFF" appears in the display. Press the "SNOOZE/DIMMER" button repeatedly to select between the different dimming levels.
Note: If you want to activate this function, then you should not be in the radio mode.
15. Charging port
A Type-A USB charging port is provided at the back of the clock next to the microUSB port.
You can use this charging port, for example, to connect the charging cable of your smartphone and charge it.
Please note that only the Type-A USB port is intended as a charging port and the microUSB port is used only to supply power to the clock.
16. Additional safety guidelines for this device
- Do not place any open flames such as candles on the device.
- Do not place the product in a closed bookshelf without adequate ventilation.
- The ventilation slits should not be obstructed or blocked by objects.
- The device should neither be exposed to dripping or splashing water nor to other fluids and never immersed.
- The product should not be exposed to direct sunlight.
- Do not use any aggressive cleaning agents or solvents for cleaning. Wipe the device using a clean and soft cloth.
- Please pull out the mains plug before cleaning.
- Never try to insert wires, pins or other similar objects into the venting slits or openings of the device.
17. Safety instructions and disclaimer
Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.
Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims.
The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without any special prior notification.
18. Disposal instructions
In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components must be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment.
According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.
19. Instructions for battery disposal
In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.
The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.
WEEE directive 2012/19/EU
WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the device 304474 complies with the fundamental requirements and all other relevant stipulations of the directive 2014/53/EU. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover; https://model.ganzeinfach.de/304474
