USER MANUAL 305569 Brandson

BRANDSON - EQUIPMENT -

Table of contents

1. Deutsch....3
2. English....10
3. Français....17
4. Italiano....24
5. Español....31

Line drawing of a mechanical device with a lever and handle, showing a rotating component (no text or symbols)

Line drawings of two identical handheld devices with a handle and control knob, shown from top and side views (no text or symbols)

Line drawing of a hairbrush with a funnel and handle, showing a drop in the handle (no text or symbols)

Line drawing of a hairdryer with a funnel and handle, showing no text or symbols

Thank you for choosing a Brandon product. Please read the following user manual carefully so as to get the most from the product you have purchased.

1. Scope of delivery

• Window vacuum cleaner
- Power adapter
- Suction attachment
- Spray bottle incl. mop covers
- User manual

2. Technical data

Power supply	Window vacuum cleaner: 5.5 V 0.6 APower adapter: 100 - 240 V ~, 50 / 60 Hz, 0.2 A
Charging time 2-3 hours
Output voltage (power adapter)	5.5 V DC, 0.6 A
Battery type Type 18650; 3.7V	2200mAh
Dimensions (H x W x L) 350 mm	x 280 mm x 190 mm
Tank capacity max. 150 ml

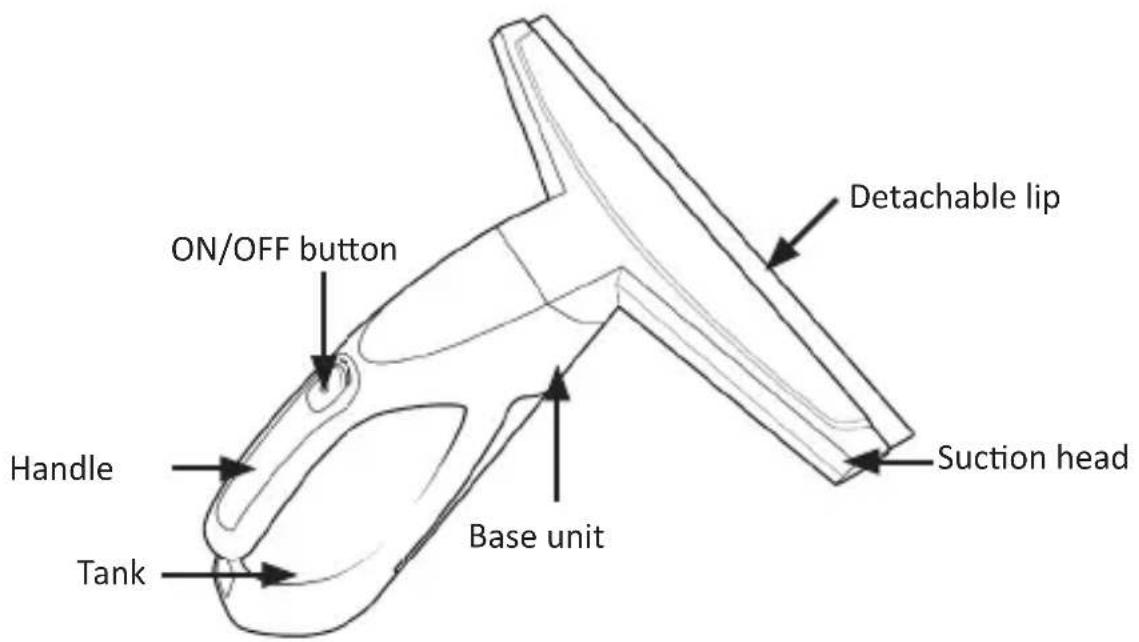

3. Product details

ON/OFF button Handle Tank Base unit Suction head Detachable lip

4. Intended use

1. Please note that this product is only approved for domestic use.
2. Use the device only for cleaning wet and even surfaces such as windows or mirrors.
3. Do not vacuum dust or dirt.
4. Do not use this device on rough surfaces, to avoid damaging the detachable lip.
5. The device should only vacuum a maximum of 150 ml of liquid.
6. Use the device only in combination with commonly available window cleaning products (not foam cleaner etc.).
7. Only use genuine spare parts or accessories which are approved by the manufacturer.
8. Ensure that you empty the dirty water from the tank after cleaning.

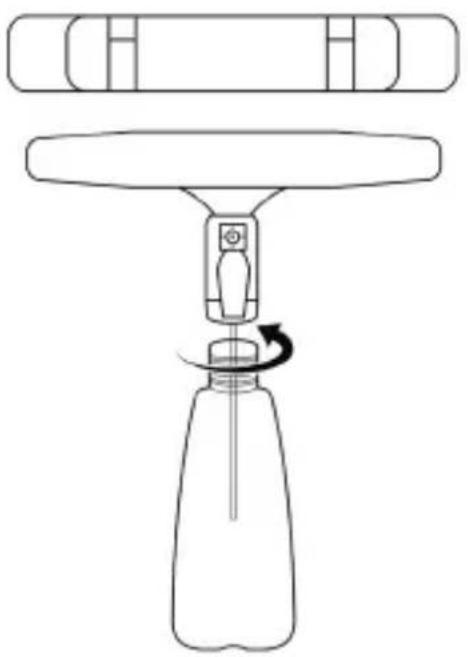

5. Assembling the spray bottle

Line drawing of a mechanical device with a handle and lever mechanism, no text or symbols present

1. Mount the microfibre mop cover on the head of the spray bottle.

2. Fill the spray bottle with the cleaning agent.

3. Install the nozzle of the spray bottle and screw it tight.

4. Assembly and using the window vacuum cleaner

Caution! The window vacuum cleaner is not supplied with the battery fully charged. Charge the battery fully before using the device.

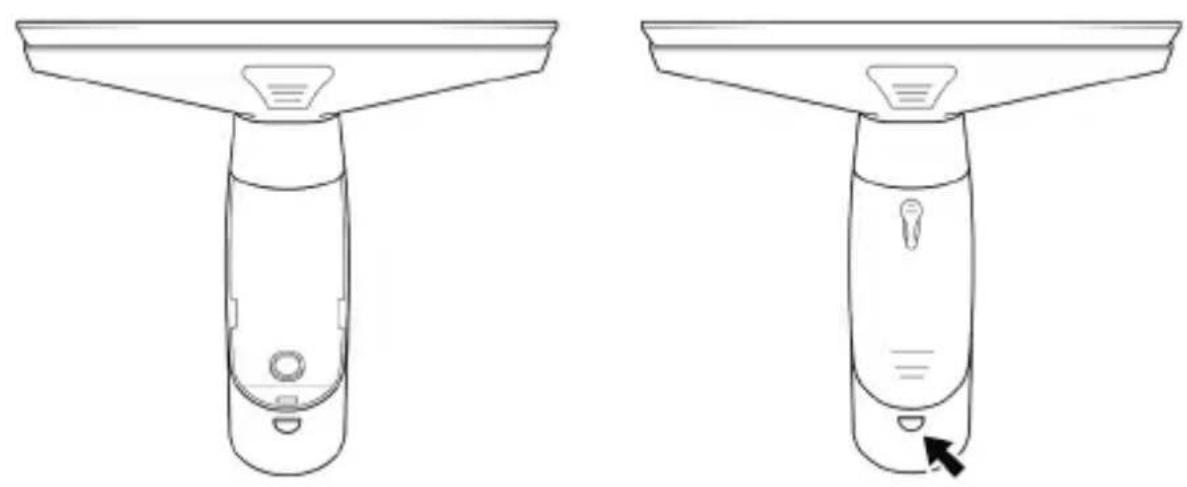

1. Insert the water tank into the device. Make sure that the tank locks into place and sits properly. Press the lock to remove the tank again.

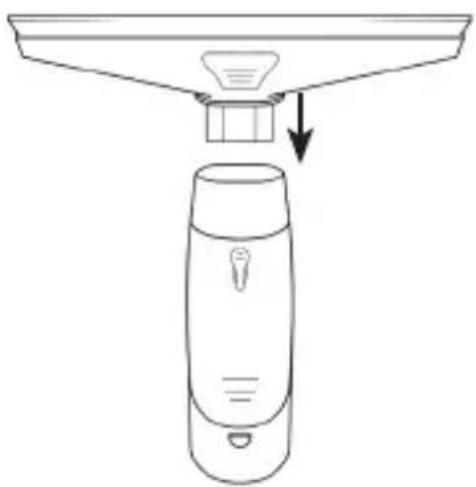

1. Mount the detachable lip to the tank till it engages properly.

Line drawing of a hairbrush with a funnel and handle, showing a downward arrow indicating process (no text or symbols)

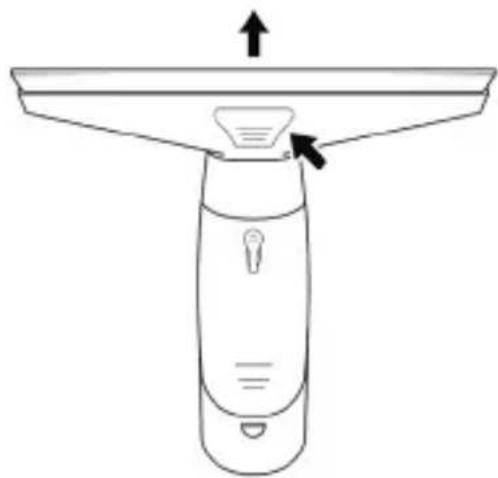

1. To remove the detachable lip, press the lock and remove the lip.

Line drawing of a hairbrush with a handle and control knob, showing no text or symbols

1. Before charging the device, ensure that the product is turned off during charging.

2. Connect the power adapter to a properly installed socket and to the charging port of the window vacuum cleaner. Ensure that you charge the device using the original power adapter.

3. The status LED glows red during the charging process.

4. Use the provided power adapter only to charge the window vacuum cleaner.

5. Use the device only in combination with commonly available window cleaning products (not foam cleaner etc.).

6. Only use genuine spare parts or accessories which are approved by the manufacturer.

7. Ensure that you empty the dirty water from the tank after cleaning.

8. Charge the device fully after using it. Store the device after charging it fully.

7. Usage

Select the surface to be cleaned and clean it using the cleaning agent as usual with a conventional window wiper. Alternatively, you can use the provided spray bottle with cleaning attachment to clean the window. To wipe the window subsequently, take the window vacuum cleaner and turn it on using the "on/off" button.

Now clean the window using the window vacuum cleaner. Ensure that you do not exceed the maximum filling level.

Once you finish cleaning, turn off the device again by pressing the "On/off" button. Afterwards, clean the window vacuum cleaner thoroughly, as described in Chapter 9 "Cleaning and care".

Caution! Ensure that water enters the device only through the suction opening! Prevent water from entering the motor openings!

Ensure that you do not tilt the device forwards so that the liquid from the tank flows back.

8. Battery

The device has an inbuilt battery. Ensure that you fully charge the device once you receive it. Plug the power adapter into a properly installed socket and then connect it to the window vacuum cleaner. Always charge the device fully after using it.

9. Cleaning and Care

Clean the device after using it. For this purpose, remove the suction head with detachable lip. You can clean the tank and the detachable lip under running water (E.g. under a water tap). Use only a dry cloth to clean the base unit.

Ensure that you do not immerse the device under water! The motor unit should not come into contact with water under any circumstances. There is a risk of electric shock!

10. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not approved for outdoor use. Therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components.

Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner.

Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void the warranty or warranty claims. The device should only be used by those who have read and understood this manual. The specifications of the device may be changed without any special prior notification.

11. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be sent separately for recycling or disposal, as improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

12. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer:

The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery should not be disposed of in household waste.

WEEE directive: 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 305569 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover
