USER MANUAL SHC 40 SANITAS

Black-and-white illustration of a Sanitras iron grating with a curved tip and attached cable (no text or symbols on the device itself)

Service-Adresse: Hans Dinslage GmbH D-88524 Uttenweiler, GERMANY Tel.: [phone] E-Mail: [e-mail]

CE

DeutScH

Inhalt

EC – WEEE (Waste Electrical and Electronic Equipment).

1 About the unit....9
2 Signs and symbols....9
3 Intended use....9
4 Safety instructions for your health......10

5 Unit description....11
6 Operation....11
7 Cleaning and care of the unit .....12
8 Technical specifications ....13
9 Disposal....13

Included in delivery

• Straightener
  • This instruction manual

WARNING

• The unit is only intended for domestic/private use, not for commercial use.
• This device may be used by children over the age of 8 and by people with reduced physical, sensory or mental skills or a lack of experience or knowledge, provided that they are supervised or have been instructed on how to use the device safely, and are fully aware of the consequent risks of use.
  • Children must not play with the device.
• Cleaning and user maintenance must not be performed by children unless supervised.
• The mains connection cable of this device cannot be replaced. The device must be scrapped in the event of damage to the cable.
• Never use the unit in the vicinity of bathtubs, washbasins, showers or other vessels containing water or other liquids – risk of electric shock!

1. About the unit

With this unit you can straighten your hair quickly and gently and shape it as you wish.

The 360^ rotatable joint on the mains cable makes for flexible use of the straightener.

The ceramic-coated heating plates and make it especially easy for the straightener to glide through your hair.

The straightener has a short warm-up phase and is ready for use after only a few seconds.

An automatic shutoff protects the unit from overheating.

The unit is intended only for the purposes described in this instruction manual.

The manufacturer cannot be held liable for any damages that are caused through improper or careless use.

2. Signs and symbols

The following symbols appear in these instructions or on the unit.

	Danger The	unit must not be used in the vicinity of water or in water (e.g. washbasin, shower, bathtub) – risk of electric shock!
	Warning Warning	warning instruction indicating a risk of injury or damage to health.
	Important Safety	safety note indicating possible damage to the unit/accessories.
	Note Important	important information to be noted.

3. Intended use

The straightener must be used only for individual, private straightening and shaping of hair!

Warning

Use the unit only:

• For external use
• For the purpose for which it was developed and in the manner specified in these instructions for use.

Any improper use can be dangerous!

The unit carries the CE mark and complies with the following EU directives:

• 2006/95/EC the Low Voltage Directive
• 2004/108/EC the EMC Directive

4. Safety instructions for your health

Warning

To prevent harm to your health, we urgently recommend that you not use the unit in the following situations:

- If the unit, mains cable/plug or accessories are visibly damaged. When in doubt, do not use the unit and contact your dealer or the customer service address provided.

To avoid harm to your health, observe the following points:

• Pull the cord out of the socket by the mains plug only.
• For additional protection, we recommend installing a residual-current device (RCD) with a rated current of no more than 30 mA in the electrical circuit of the bathroom. More information can be obtained from your local electrical supply store.
• Do not use any add-on parts that are not recommended by the manufacturer or offered as an accessory.
• Ensure that there are no highly flammable liquids in the vicinity of the unit.
• Place the unit only on a fireproof surface.
• Do not use the unit on artificial hair – fire hazard!
• The straightener must not be covered – fire hazard!
• Never open or attempt to repair the unit yourself, as otherwise proper function is no longer guaranteed. Failure to observe this regulation shall void the warranty.
• If the unit malfunctions or is damaged, have it repaired by a qualified specialised workshop.
• Do not use the unit if it has fallen or been dropped on the floor or is otherwise damaged.

• Do not use an extension cord in the bathroom, so that you can quickly reach the mains plug in an emergency.

• Never leave the unit unsupervised during operation.

• Do not use the unit in the open air.
• If you give the unit to a third party, you must include these instructions for use.

Danger

• If the unit falls into water despite all safety precautions, remove the plug from the socket immediately! Do not reach into the water!
• Before using the unit again, have it checked by an authorised specialised workshop! Risk of fatal injury from electric shock!
• Never immerse the unit in water or another liquid!

Before using the unit for the first time

Warning

• Keep children away from packaging materials – risk of suffocation!
• Before you use the unit for the first time, remove all packaging materials.
• Plug the unit into a socket with the voltage specified on the identification plate only.

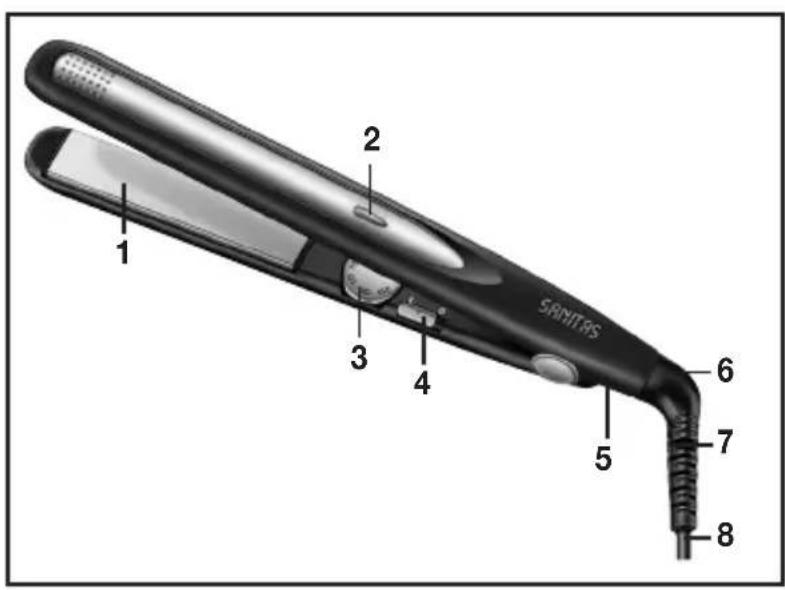

5. Unit description

SANITAS 1 2 3 4 5 6 7 8

1 Ceramic-coated heating plates

2 Operating display

3 The continuously adjustable temperature regulation from 150 - 230°C

4 On/off switch

5 Lock

6 360° rotatable joint

7 Bend protection

8 Mains cable

6. Operation

Important

• Straighten the mains cable [8] if it becomes twisted.
• Do not pull, twist or kink the mains cable [8]; do not pull or lay it across/on sharp, pointy objects or hot surfaces.
• Do not jam the mains cable [8] e.g. in a drawer or door.

Warning

• Stand on a dry, electrically non-conductive surface.
• Ensure that your hands are dry!
• Your hair must be dry!
• Depending on the temperature setting and duration of use, the unit can become very hot. If the unit is hot, touch it only by its handle – burn and fire hazard!!

• Do not touch the heating plates [1].

• Switch the unit off immediately if it is defective or malfunctioning.

• Unlock the straightener's lock [5].
• Set the On/Off switch to On [4].
• After about 30 seconds, the straightener is ready for use.
• The operating display lights up when the device is switched on.

Adjusting the temperature

- The continuously adjustable temperature regulation can be used to increase or reduce the temperature. To increase the temperature, turn clockwise. To reduce the temperature, turn anti-clockwise.

We recommend the following temperature settings:

• 150 °C to 180 °C:
• 180 °C to 200 °C:
• Normal hair
• 200 °C to 230 °C:
• Strong and resistant hair

- Fine, fragile, coloured or bleached hair

Note

• The higher the selected temperature, the more quickly you get the desired result.
• If you work with the maximum temperature, do not work on the same strands more than once.

Straightening/shaping hair

• Dry your hair completely before using the straightener.
• Your hair should be clean and free of styling products. Exceptions to this are special products that aid straightening of the hair.
• Comb your hair with a wide-toothed comb to untangle it.

• Divide your hair into individual strands with a width of about 3 to 4 cm. Hold the strands taut and place them between the heating plates [1] at the roots.

• Move the straightener slowly and smoothly from the roots to the ends. Do not keep the straightener at any one place for longer than two seconds. This way you will obtain the best results without overstraining or damaging your hair.

• You can shape the ends by twisting the straightener either outward or inward before you pull it out over the ends.

Note

- Automatic shutoff:

For your safety, the straightener shuts off automatically after 60 minutes.

After use

• When you have finished the treatment, switch off the device using the ON/OFF button [4].
• Place the straightener on a non-combustible surface.
• Remove the plug from the socket after each use.
• Let the unit cool down.
• Do not wind the mains cable around the unit!
• Store the unit in a dry place that is out of reach of children.

7. Cleaning and care of the unit

Notes

• Your unit is maintenance-free.
• Protect the unit from dust, dirt and moisture.

Cleaning

Important

- Always remove the plug from the socket before cleaning.

• Ensure that no water enters the inside of the unit!
• Do not wash the unit in a dishwasher!
• Do not use any strong, sharp, abrasive, corrosive cleaning agents or hard brushes!
• Do not clean it with any highly flammable liquids!
• The housing of the straightener can be cleaned with a soft cloth that has been moistened with warm water.

8. Technical specifications

Weight Approx. 400 g
Power supply 120-240 V ~, 50/60 Hz
Power consumption 45-50 W
Temperature range 150-230 °C
Safety class II
Ambient conditions Only approved for indoor use
Allowable temperature range -10 to +40 °C

Subject to technical modifications.

9. Disposal

In the interest of protecting the environment, the unit must not be thrown out with the household waste at the end of its service life.

Dispose of the unit at a suitable local collection or recycling point.

Observe the local regulations for material disposal.

Dispose of the unit in accordance with EC Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment).

If you have any questions, please contact the local authorities responsible for waste disposal. You can find out about collection points for your old units e.g. from the local municipal government, the local waste disposal company or your dealer.
