FLY 3, FLY 103

ACOUSTIC

Owner's Manual

the sound in your head

Blackstar Amplification Ltd. Beckett House, 14 Billing Road, Northampton, NN1 5AW, UK

For the latest information go to: www.blackstaramps.com

Whilst the information contained herein is correct at the time of publication, due to our policy of constant improvement and development, Blackstar Amplification Ltd reserves the right to alter specifications without prior notice.

Designed and Engineered by Biocistar Amplification UK

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

"TO COMPLETELY DISCONNECT THIS APPARATUS FROM THE AC MAINS, DISCONNECT THE POWER SUPPLY CORD PLUG FROM THE AC RECEPTACLE".

"WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE. THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL NOT BE PLACED ON APPARATUS". This apparatus is for professional use only!

Warning!

Important safety information!

READ THE FOLLOWING INFORMATION CAREFULLY. SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE!

Follow all warnings and instructions marked on the product!

Do not open the equipment case. There are no user serviceable parts in this equipment. Refer all servicing to qualified service personnel.

Clean only with a dry cloth.

Condensation can form on the inside of an amplifier if it is moved from a cold environment to a warmer location. Before switching the unit on, it is recommended that the unit be allowed to reach room temperature.

Unauthorised modification of this equipment is expressly forbidden by Blackstar Amplification Ltd.

Never push objects of any kind into ventilation slots on the equipment casing.

Do not expose this apparatus to rain, liquids or moisture of any type.

Do not place this product on an unstable trolley, stand or table. The product may fall, causing serious damage to the product or to persons!

Do not cover or block ventilation slots or openings. This unit must only be used in a well ventilated area and never switched on when it is within a poorly ventilated space, such as a bookcase.

This product should not be placed near a source of heat such as a stove, radiator, or another heat producing amplifier.

Use only the supplied power cord which is compatible with the mains voltage supply in your area.

Power supply cords should always be handled carefully and should be replaced if damaged in any way.

Never break off the earth (ground) pin on the power supply cord.

The power supply cord should be unplugged when the unit is to be unused for long periods of time.

An apparatus with Class 1 construction should be connected to a mains socket outlet with a protective earthing connection.

The mains plug of the power supply cord should remain readily accessible.

Never disconnect the protective mains earth connection.

A warning that batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Attention should be drawn to the environmental aspects of battery disposal.

Only use the approved Blackstar AC/DC power supply.

High loudspeaker levels can cause permanent hearing damage. You should therefore avoid the direct vicinity of loudspeakers operating at high levels. Wear hearing protection if continuously exposed to high levels.

If the product does not operate normally when the operating instructions are followed, then refer the product to a qualified service engineer.

The U.S. Government's Occupational Safety and Health Administration (OSHA) has specified the following permissible noise level exposures:

Duration Per Day In Hours Sound Level dBA, Slow Response

8	90
6	92
4	95
3	97
2	100
1 12	102
1		105
1/2		110

14 or less 115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing loss.

Ear plug protectors in the ear canals or over the ears must be worn when operating this amplification system in order to prevent a permanent hearing loss if exposure is in excess of the limits as set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is recommended that all persons exposed to equipment capable of producing high sound pressure levels such as this amplification system be protected by hearing protectors while this unit is in operation.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Introduction

Thank you for purchasing this Blackstar FLY Series amplifier.

The FLY 3 Acoustic is an innovative mini amp which combines our vast design experience with our years of research and development into acoustic guitar amplifiers, into one compact, portable amplifier - perfect for practice when on the FLY. You can also plug in your phone, MP3 player, laptop or tablet into the FLY 3 Acoustic and jam along to your favourite songs.

The FLY 103 Acoustic is a mini cabinet which, when connected to the FLY 3 Acoustic, creates a stereo setup for your acoustic guitar playing and music; a perfect combination for creating big sound and great tone whilst jamming, it also gives great output when used with other devices via the MP3 / LINE IN socket.

Like all Blackstar products, the FLY 3 Acoustic/FLY 103 Acoustic is the result of countless hours of painstaking research and development by our world-class design team; based in Northampton (UK), the Blackstar team are all experienced musicians themselves, and the sole aim of the development process when creating our products is to provide guitarists with ultimate tools for self-expression.

All Blackstar products are subjected to extensive laboratory and road testing to ensure that they are truly uncompromising in terms of quality, reliability and above all - TONE!

If you like what you hear and want to find out more about the Blackstar range of products, please visit our website at www.blackstaramps.com.

Thanks!

The Blackstar Team

Features

The FLY 3 Acoustic is a compact mini amp with big TONE. Combining two preset acoustic EQ shapes and a built-in ECHO - it's the perfect take-anywhere acoustic amp.

Designed for use with any acoustic instrument with a pickup, the FLY 3 Acoustic has a multitude of use cases; amplifying your acoustic guitar, recording your ukulele or oven busking your electric violin or mandolin. The FLY 3 Acoustic is your go-to acoustic mini amp.

The MP3 / Line In jack allows you to connect your FLY 3 Acoustic to a music device and jam along to your favourite tunes; it's great as a speaker for your phone, tablet or PC / laptop.

A 3.5mm Line Out allows you to record your acoustic tones, or send your output to a PA for live performances. You can also connect headphones to this output for home use.

Capable of being powered by batteries, you can take your FLY 3 Acoustic with you wherever you go and always get 'the sound in your head'!

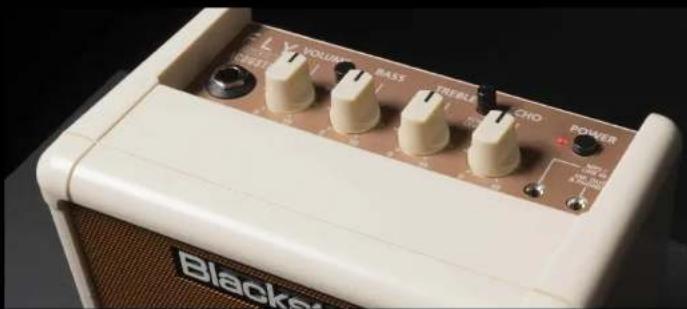

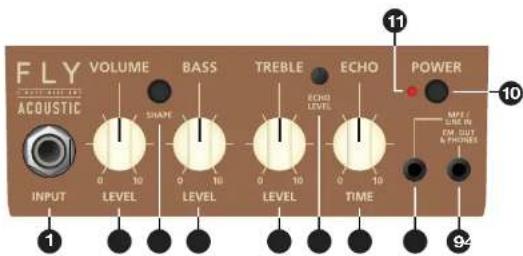

Front Panel

1. Input

Plug your acoustic instrument in here. Always use a good quality screened guitar lead.

2. Volume

This controls the volume of the amplifier. Turning it clockwise increases the volume.

3. Shape Select

Press this switch to choose between two EQ shapes. When the switch is in the 'out' position, a flat EQ response is applied. This is a good natural sound for most instruments. When the switch is in the 'in' position, a mid cut, as well as some low and high boost is applied for an alternative sound.

4. Bass

The Bass control adjusts the amount of low-end frequencies in your tone. Turning it clockwise increases the amount of low-end frequencies, and counter-clockwise will reduce the amount of low-end frequencies.

5. Treble

The Treble control adjusts the amount of high-end frequencies in your tone. Turning it clockwise increases the amount of high-end frequencies, and counter-clockwise will reduce the amount of high-end frequencies.

6. ECHO LEVEL

Adjust the ECHO LEVEL knob to change the mix ratio of echo signal to dry signal. The higher the ECHO LEVEL setting, the greater the level of echoed signal.

7. ECHO TIME

Toggle this knob to change the amount of time for the ECHO TIME effect – turn the control clockwise to increase the delay, and counter-clockwise to decrease the delay. Short delays give a "slapback" effect, whilst longer delays are suited to more ambient effects.

8. MP3 / Line In

Play audio from your phone, MP3 player, tablet or laptop through the FLY 3 Acoustic using an AUX cable (sold separately). Adjust the player's volume to match that of your guitar to enable you to play along.

Note: this connection is stereo.

9. Line Out

This output provides the natural tone of your amplifier for connection to headphones, a recording device, mixing desk or PA.

Note: when a lead is connected here, the combo's internal speaker is disconnected.

10. Power

This switch is used to turn the FLY 3 Acoustic on and off; when using batteries, the FLY 3 Acoustic's power light will dim as the power in the batteries runs out.

11. Power Indicator Light

The power indicator will light when the amplifier is switched on.

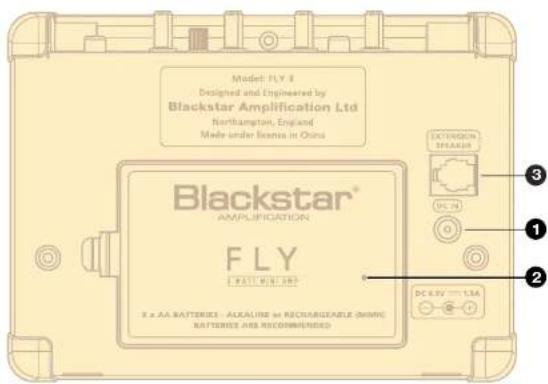

Rear Panel

1. DC Input (PSU-1)

Connect external Power supply here.

WARNING: Only use a Blackstar approved power supply. (PSU-1, 6.5V 1.5A min.)

2. Battery Compartment

Insert batteries here for portable use. We recommend using rechargeable (NIMH) or Alkaline batteries in your FLY 3 Acoustic to get the most out of using it on the go.

6 x AA batteries (rechargeable).

3. Extension Cabinet (FLY 103 Acoustic)

Connect your FLY 3 Acoustic to a FLY 103 Acoustic using the FLY 103 Acoustic's built-in cable, to create a 6W stereo set-up.

(Extension cabinet sold separately)

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Einleitung

3. Extension Cabinet (FLY 103 Acoustic)

6 piles (batteries rechargeables) AA.

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

Introducción

3. Extension Cabinet (FLY 103 Acoustic)

All electrical and electronic products should be disposed of separately from the municipal waste stream via designated collection facilities appointed by the government or the local authorities.

BLACK ★

介绍

1. Battery Compartment 电池仓

Technical Specification

FLY 3 Acoustic

Power (RMS): 3 Watt

Weight (kg):

Dimensions (mm): 170 (W) × 128 (H) × 102 (D)

Batteries: 6 x AA batteries

Speaker Size: 3"

FLY 103 Acoustic

Power (RMS): 3 Watt

Weight (kg): 1

Dimensions (mm): 170 (W) x 128 (H) x 102 (D)

Speaker Size: 3"

Technische Daten

FLY 3 Acoustic

FLY 3 Acoustic Front Panel

FLY VOLUME BASS TREBLE ECHO POWER AQUOSTIC 0 10 0 10 0 10 0 10 TIME 94 MPZ/LUE IN LEVEL LEVEL LEVEL LEVEL 1 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 10 INPUT LEVEL LEVEL LEVEL TIME

FLY 3 Acoustic Rear Panel

Model: FLY II Designed and Engineered by Blackstar Amplification Ltd Northampton, England Made under license in China Blackstar® AMPLIFICATION FLY RATI MEAT 3 x AS BATTERIES - ALKALINE OF RECHARGEABLE (NMM) BATTERIES ARE RECOMMENDED EXTENSION SPRING FLA DC 6.1V ~ 1.5A ① ② ③
