USER MANUAL AU83ETWBR1RCM MIDEA

Arctic™ King

Instruction Manual

Upright Freezer

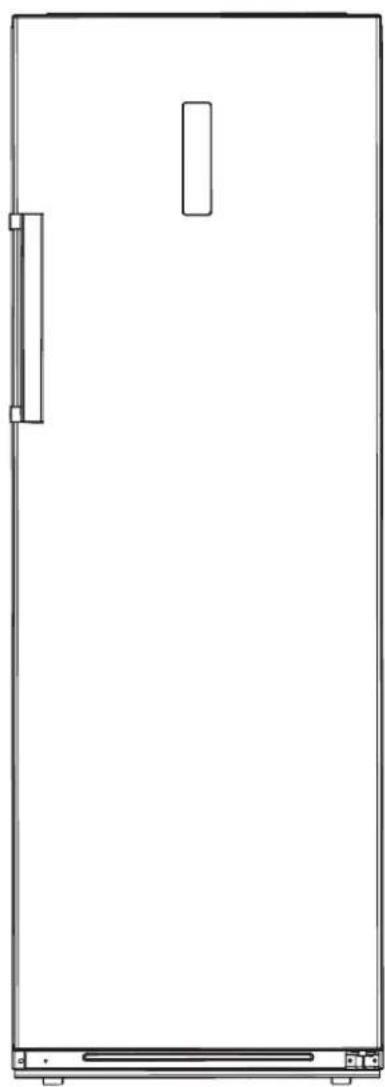

Model: AU83ETWBR1RCM

Front view of a simple rectangular refrigerator with a vertical handle and side panel (no text or symbols)

CONTENTS

1 Safety warnings

2 Proper use of the refrigerator

3 Structure and functions

4 Maintenance and care of the refrigerator

4.1 Overall cleaning 15

.2 Defosting 15

Warning sign depicting a flame symbol in yellow and black on white background

WARNING: Risk of fire / flammable materials

- This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- WARNING: Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- WARNING: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

- Take off the doors.

- Leave the shelves in place so that children may not easily climb inside.

- WARNING: To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.

- Do not use extension cords or ungrounded(two prong)adapters.

• The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

- Refrigerant and cyclopentane foaming material used for the appliance are flammable. Therefore, when the appliance is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

• Children should be supervised to ensure that they do not play with the appliance.

1.2 Meaning of safety warning symbols

Prohibition symbol

This is a prohibition symbol.

Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.

Warning symbol

This is a warning symbol.

It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.

Note symbol

This is a cautioning symbol.

Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Diagram showing hand gesture with checkmark and finger pointing at a cartoon character, likely indicating verification or approval.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

• Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.
• To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Simple line drawing of a room with a monitor and equipment, no text or symbols present

- Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances.

The power plug should be firmly contacted with the socket or else fires might be caused.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

- Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Simple line drawing of a refrigerator with a mounted appliance and a 'no' symbol (no text or labels)

- Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4Warnings for using

Simple line drawing of a box with a sad face, broken down by a pencil and wrench (no text or symbols)

• Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist
• Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

Hand holding a book with a starburst effect and an exclamation mark (no text or symbols on the book or background)

• The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent squeezing the finger. Please be gentle when close the refrigerator door to avoid falling articles.
• Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Simple line drawing of a child inside a refrigerator with no text or symbols

- Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Simple line drawing of a distressed trash can with a warning symbol (no text or labels)

- Do not place heavy objects on the top of the refrigerator considering that objectives may fall when close or open the door, and accidental injuries might be caused.

- Please pull out the plug in case of power failure or cleaning. Do not connect the refrigerator to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Ergentery Bottle of Water

- Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

- Do not place flammable items near the refrigerator to avoid fires.

Blood Drugs Bacterial process

- The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber Beer

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 War nings for energy

1) Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2) The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3) The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4) The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper. 5) The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.
6) The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable.

Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scraped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Correct Disposal of this product:

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

2 Proper use of refrigerators

2.1 Placement

Simple line drawing of a person pushing a large box (no text or symbols)

- Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun and an 'X' symbol (no text or labels)

- Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

- Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a door (no text or symbols)

- The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat, and sturdy (rotate left or right to adjust the wheel for levelling if unstable).

50mm 50mm 50mm

- The top space of the refrigerator shall be greater than 30cm, and The refrigerator should be placed against a wall with a free distance more than 10cm to facilitate heat dissipation.

! Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

Precautions shall be taken to prevent fall of the handle from causing any personal injury.

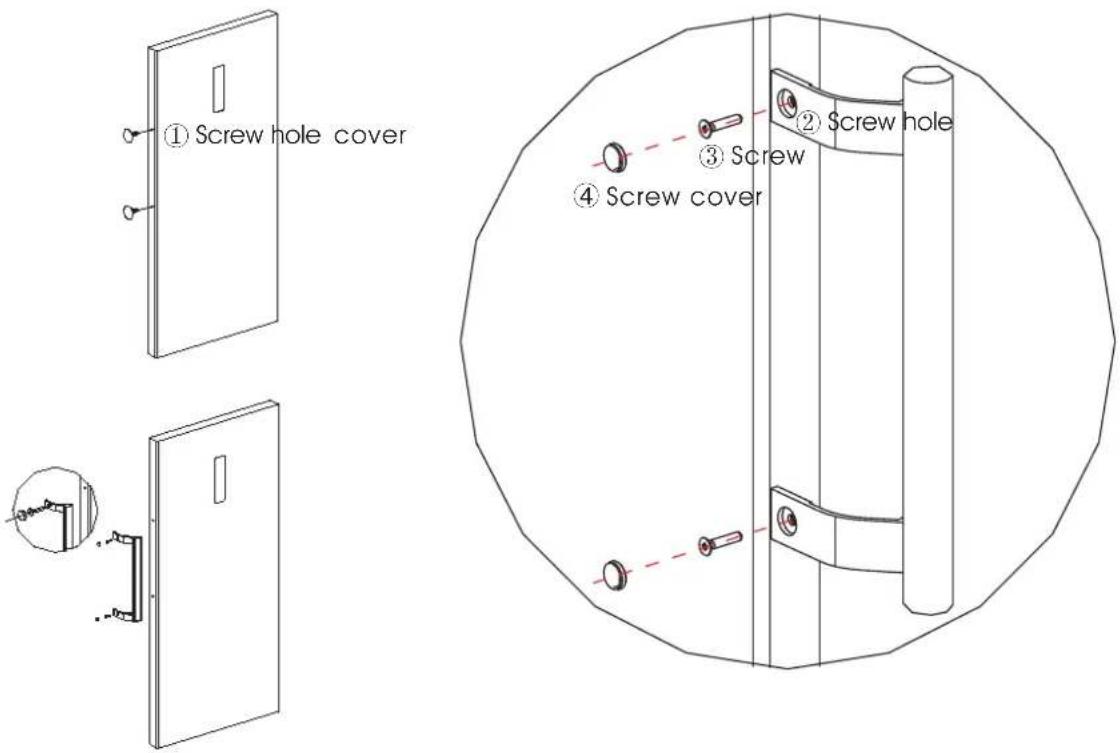

2.2 Door handle installation

precautions shall be taken to prevent fall of the handle from causing any personal injury.

List of tools to be provided by the user
	Cross screwdriver

① Screw hole cover ② Screw hole ③ Screw ④ Screw cover

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

Assembly steps

a. Remove the screw hole caps ① from the door, and use cross screwdriver to fix screws ③ into the screw hole slightly.
b. Assemble the screw hole caps④ on the screw hole of handle.
c. The reverse operation is for disassembly.

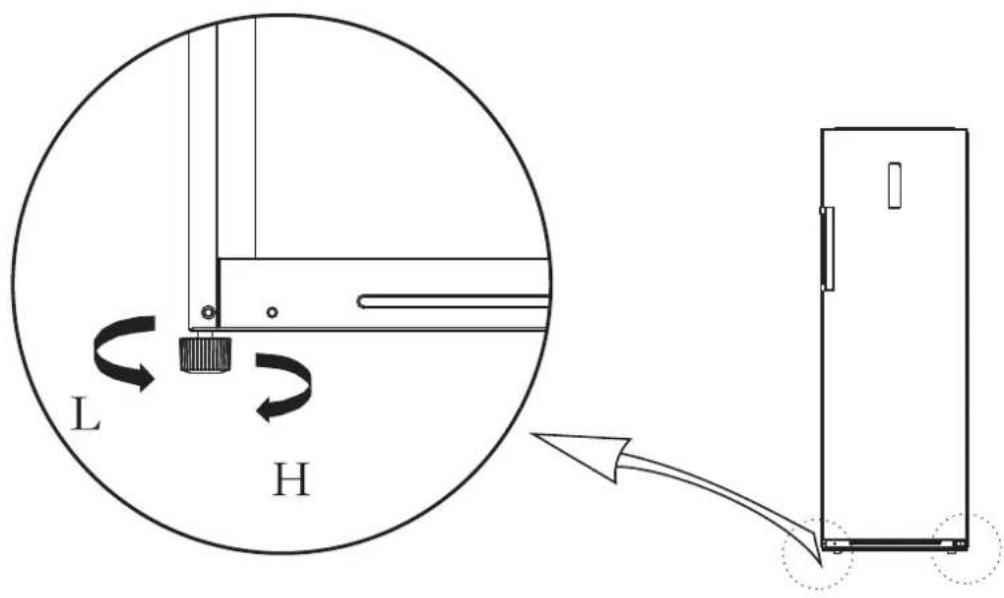

2.3 Levelling feet

Schematic diagram of the levelling feet

L H

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

Adjusting procedures:

a. Turn the feet clockwise to a ishe refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.4 Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knifethin-blade screwdriver
	5/16"socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.
2) Dismantle the screw hole caps, screws and handle, and remove the plastic screw hole caps from the other side. please refer to chapter 2.2

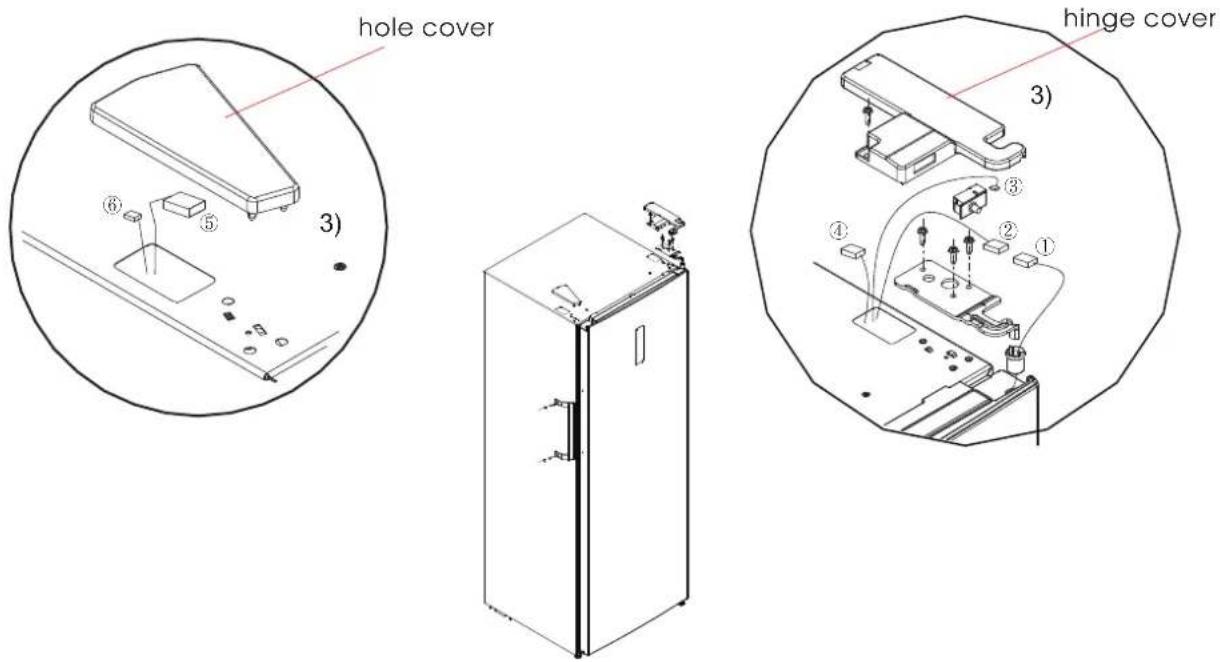

3) Dismantle the upper hinge cover, screws and upper hinge, and remove the hole cover from the other side. unplug the wiring connector on the right side of refrigerator top (①,②,③ wiring connector).

hole cover hinge cover ③) ④ ② ①

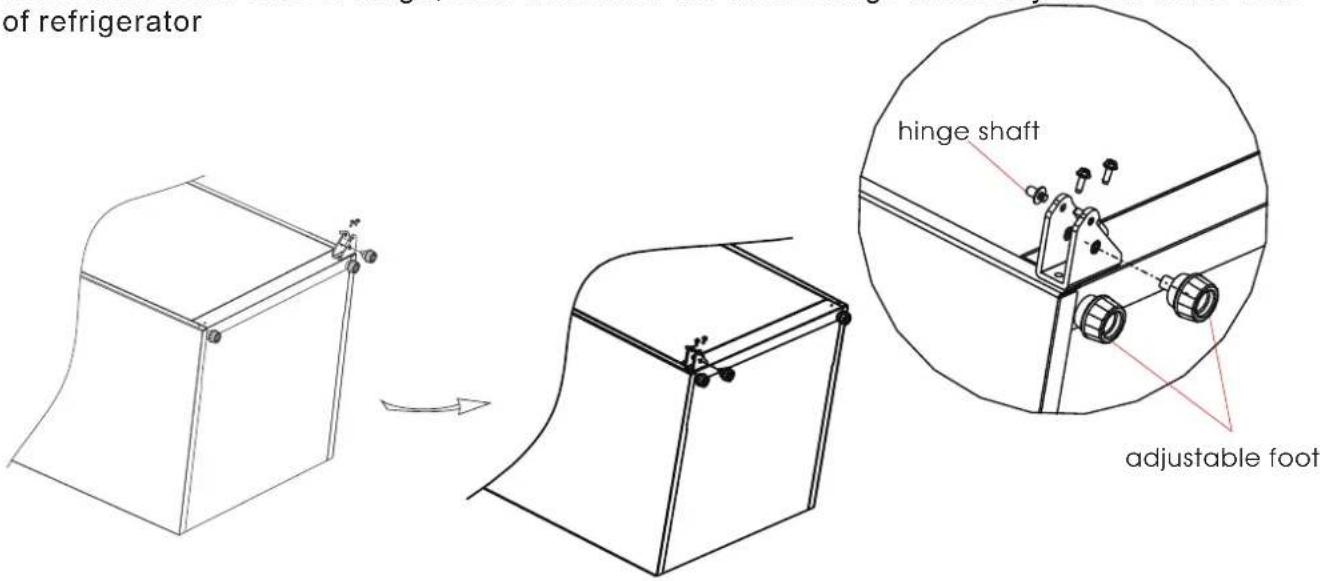

4) Dismantle the door and right bottom hinge assembly (hinge shaft & adjustable foot & hinge), disassemble the right bottom hinge assembly, and assemble the hinge shaft and adjustable foot on the other side of hinge, then assemble the whole hinge assembly on the other side of refrigerator

of refrigerator hinge shaft adjustable foot

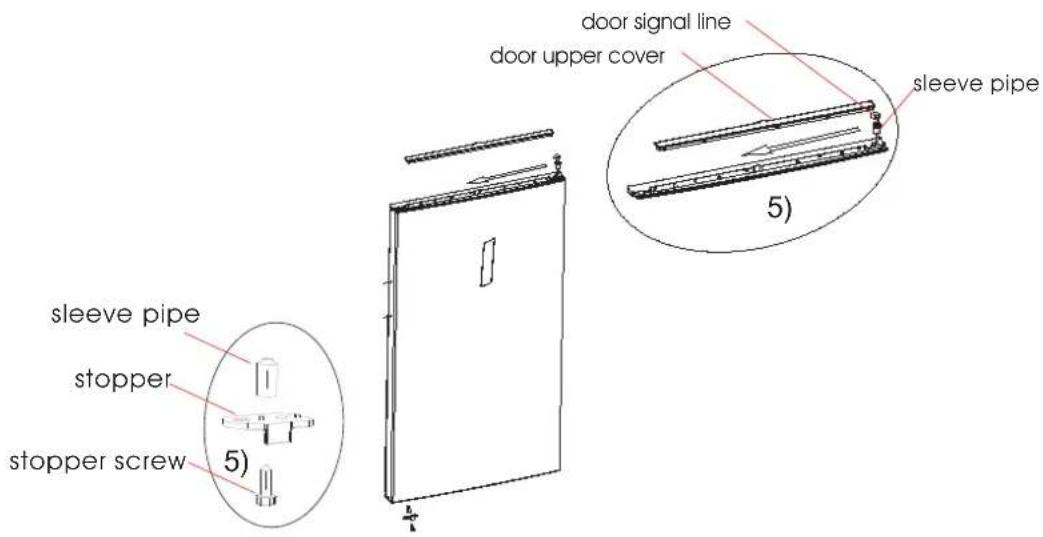

5) Remove the door upper cover, install the upper hinge sleeve, door signal line to the other side and install the door upper cover.

Dismantle the right door stopper, sleeve pipe from the right bottom of door, insert the sleeve pipe into hinge hole of left bottom of door, and take out left door stopper from the accessory bag, and assemble it on left bottom of door, the right door stopper could be reserved for future use

door signal line door upper cover sleeve pipe stopper stopper screw 5) 5)

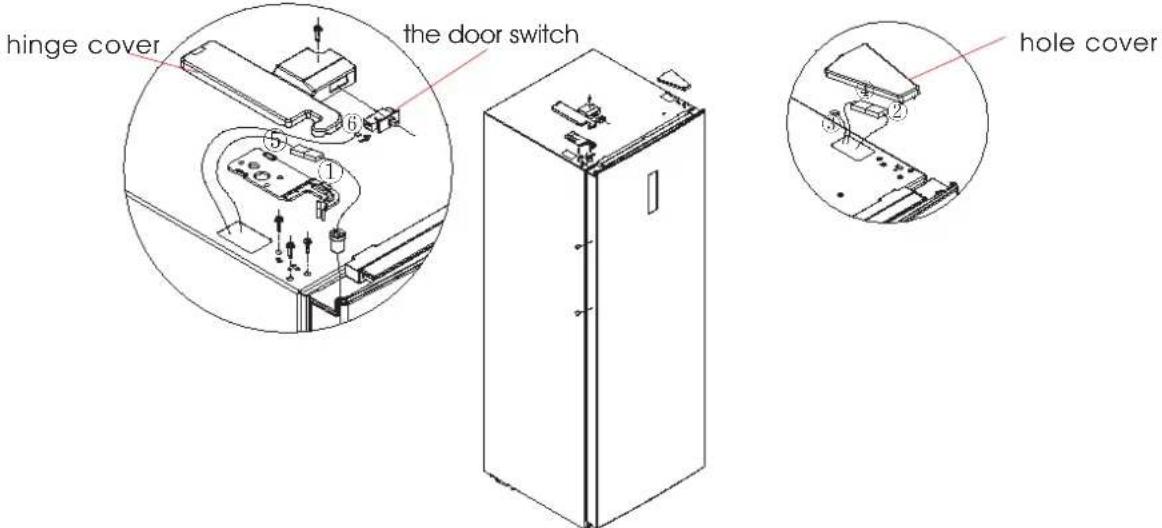

6) Take out the left top hinge, left top hinge cover from accessories package;

Place the door on bottom hinge, and mount left top hinge.

Connect signal line tesigma all with signal line terminal①, connect

connect signal line tsigna@with terminal④;

Mount top hinge cover and hole cover.

terminal ⑥ to the door switch

hinge cover the door switch hole cover

7) For the assembly of handle, please refer to chapter 2.2.

Line drawing of a refrigerator with door and side door (no text or symbols)

2.5 Starting

Simple line drawing of a smiling rectangular box with a small electrical outlet connected to its side (no text or symbols)

• Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.
• Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

595mm 560mm 135° 1042mm 1015mm

• Spare enough space for convenient opening of the doors and drawers.
• The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

2.6 Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.
• Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3 Structure and functions

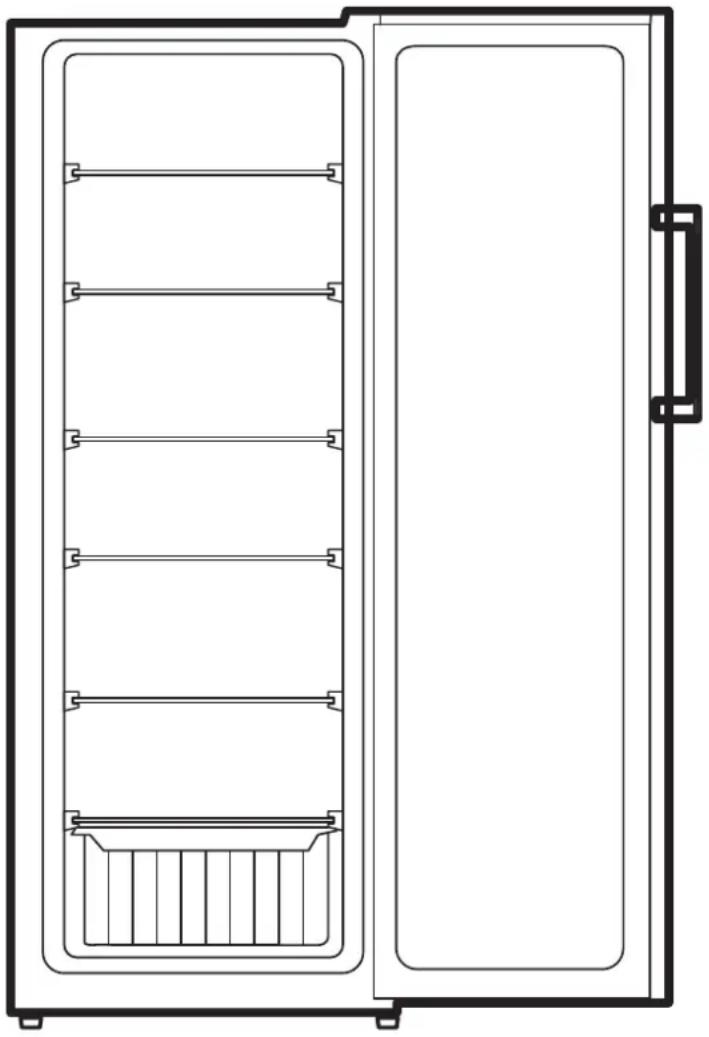

3.1 Key components

Technical line drawing of a door frame with internal compartments and ventilation slots (no text or symbols)

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

Refrigerator

• The refrigerator is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.

Freezer

• The freezer may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

The appliance has the function of refrigerator -freezer transition, by operating on display panel, end-consumers could select refrigerator or freezer in accordance with their requirement.

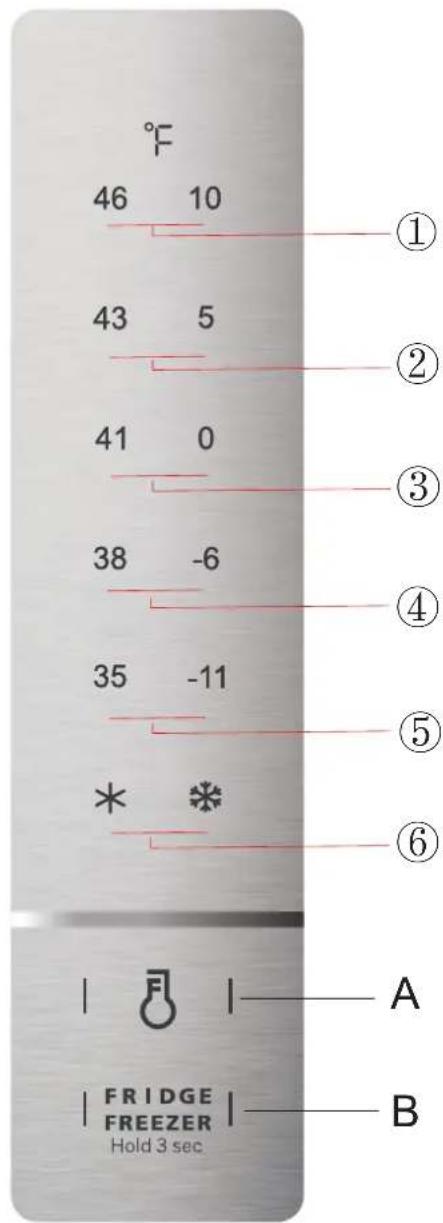

3.2 Functions

46 10 43 5 41 0 38 -6 35 -11 * A FRIDGE FREEZER Hold 3 sec ① ② ③ ④ ⑤ ⑥ B FRIDGE FREEZER

( The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor )

1) Key

A.temperature setting button

B.Fridge/Freezer switch button

2) Temperature icons

①Setting 1: the setting temperature is 46 or 10°F
②Setting 2: the setting temperature is 43 or 5°F
③Setting 3: the setting temperature is 41 or 0°F
④Setting 4: the setting temperature is 38 or -6°F
⑤Setting 5: the setting temperature is 35 or -11°F
⑥setting 6: quick cooling or quick freezing

3) When the fridge power is on:

All temperature icons shine within 3s after power on, for power on at the first time, the default set temperature is 0°F After that, every time you start the fridge, it will run in accordance with the set temperature before last power off.

Display of normal running

On the occurrence of a failure, the corresponding icons will give a combined blink: the error codes and types are shown as follows:

Refrigerator:

Error Code	Error Description Display
E1 Temperature sensor of Refrigerator room fail		Icon " * " & Icon"35" shine at same time
E5 Defrosting Refrigerator room fail		Icon " * " & Icon"38" shine at same time
E6 Communication error		Icon "35" & Icon"41" shine at same time
E7 Ambient temperature sensor fail		Icon " * " & Icon"41" shine at same time
E10	Sticking problem with Button	Icon "35" & Icon"38" shine at same time

Freezer:

Error Code	Error Description Display
E1 Temperature sensor of Freezer room fail		Icon " * " & Icon"2" shine at same time
E5 Defrosting sensor of Freezer room fail		Icon " * " & Icon"3" shine at same time
E6 Communication error		Icon "2" & Icon"4" shine at same time
E7 Ambient temperature sensor fail		Icon " * " & Icon"4" shine at same time
E10	Sticking problem with Button	Icon "2" & Icon"3" shine at same time

If no failure, the screen displays the setting temperature of the refrigerator room.

Fridge/Freezer conversion

Press the botton | FRIDGE FREEZER | for 3 seconds to achieve Fridge/Freezer conversion, the corresponding temperature icons shine.

Temperature setting

The temperature setting will be changed once you press button(). Then, the refrigerator

will run according to the new temperature setting after 15s

Quick cooling mode

Enter: under refrigerator mode, press the button( | 📄 | ) until the icon ✱ lighten

During quick cooling mode, the refrigerator runs according to the temperatures set at 35^ F, and it will exit this mode automatically after running for 150 minutes or temperature setting or mode setting.

Quick freezing mode

Enter: press the button() until the icon lighten under freezer mode,

During mode, quick freeze the freezer runs according to the temperature set at -11°F, it will exit this mode automatically after running for 24 hours or temperature setting or mode setting.

4. Maintenance and care of the appliance

4.1 Overall cleaning

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving. The interior of the refrigerator should be cleaned regularly to avoid odor. Soft towels or sponge dipped in water and non-corrosive neutral detergents are suggested for cleaning. The freezer of shall be finally cleaned with clean water and dry cloth. Open the door for natural drying before the power is turned on.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior.
• Do not rinse with water so as not to affect the electrical insulation properties.

Please unplug the refrigerator for defrost and cleaning,

Hand-drawn sketch showing various chemical products including gas, alcohol, and a kettle with labels

• Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.
• The interior of the refrigerator should be cleaned regularly to avoid odor.
• Check the door gasket regularly to make sure there are no debris.
• Please turn off the power before cleaning, remove all food, shelves, drawers, etc.
• Clean the door gasket with mild soap and water.
• Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean, and open the door and dry it naturally before the power is turned on.
• For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminant accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator.
• Clean the bottle frame, shelves and drawers with a mild detergent and dry with a soft cloth.
• Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, clean steel balls, wire brushes, abrasives, such as toothpastes, organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items clean refrigerator considering that this may damage the fridge surface and interior. Boiling water and benzene may deform or damage plastic parts.
• Do not rinse with water so as not to affect the electrical insulation properties.

4.2 Defrosting

- The refrigerator is made based on the air-cooling principle and thus has automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel.

4.3 Out of operation

• Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.
• Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.
• Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and fix them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45°.

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired

5 Trouble shooting

5.1 You may try to solve the following simple problems by yourself.

If them cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Odor	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summerwhen the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Doors cannot be properly closed	The door is stuck by food packages Too much food is placedThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stablyCheck whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration(or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrostingThe doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normalWhen housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

ArcticKing Upright Freezer Warranty

Your product is protected by this warranty:

Warranty service must be obtained from Classic Consumer Services or an authorized Midea servicer.

Warranty

• One year full warranty from original purchase date.

ArcticKing, through its authorized servicers will:

• Pay all costs for repairing or replacing parts of this appliance which prove to be defective in materials or workmanship.

Consumer will be responsible for:

• Diagnostics, removal, transportation and reinstallation cost required because of service.

• Costs of service calls that are a result of items listed under NORMAL RESPONSIBILITIES OF THE CONSUMER**

ArcticKing replacement parts shall be used and will be warranted only for the period remaining on the original warranty.

NORMAL RESPONSIBILITIES OF THE CONSUMER\*\*

This warranty applies only to products in ordinary household use, and the consumer is responsible for the items listed below:

1. Proper use of the appliance in accordance with instructions provided with the product.
2. Routine maintenance and cleaning necessary to keep the good working condition.
3. Proper installation by an authorized service professional in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and / or gas codes.
4. Proper connection to a grounded power supply of sufficient voltage, replacement of blown fuses, repair of loosened connections or defects in house wiring.
5. Expenses for making the appliance accessible for servicing.
6. Damages to finish after installation.

EXCLUSIONS

This warranty does not cover the following:

1) Failure caused by damage to the unit while in your possession (other than damage caused by defect or malfunction), by its improper installation, or by unreasonable use of the product, including without limitation, failure to provide reasonable and necessary maintenance or to follow the written Installation and Operating Instructions.
2) Products purchased "as-is" or refurbished are not covered by this warranty.
3) Food loss caused by refrigerator or freezer failure.
4) Service calls to repair or replace consumables such as water filters, light bulbs air filters etc., or handles, knobs and other cosmetic parts.
5) Product that has been transferred from its original owner.
6) Interior or exterior rust on the unit.
7) Damages caused by services performed by persons other than authorized Midea servicers; use of parts other than Midea replacement parts; obtained from persons other than such Midea customer service; or external causes such as abuse, misuse, inadequate power supply or acts of God.
8) Service calls resulting from improper installation of your product.
9) Service calls to instruct you on the use of your product.
10) Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.
11) If the unit is put to commercial, business, rental, or other use or application other than for consumer use, we make no warranties, express or implied, including but not limited to, any implied warranty of merchantability or fitness for particular use or purpose.
12) Product that has been removed outside the USA or Canada.
13) Products without original serial numbers or products that have serial numbers which have been altered or cannot be readily determined.

Note: Some states do not allow the exclusion or limitation of incidental or consequential damages. So this limitation or exclusion may not apply to you.

IF YOU NEED SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record.

The date on the bill established the warranty period should service be required.

If service is performed, it is in your best interest to obtain and keep all receipts.

This written warranty gives you specific legal rights. You may also have other rights that vary from state to state.

Service under this warranty must be obtained by following these steps, in order:

1. Contact Classic Consumer Services or an authorized ArcticKing servicer at 1-866-646 4332.
2. If there is a question as to where to obtain service, contact our consumer relations Department.

Arctic™ King

Front view of a simple rectangular door or cabinet with a vertical slot and side-mounted base (no text or symbols)

Contenu

Warning sign depicting a flame symbol in yellow and black on white background

Simple line drawing of a hand holding a pen and a checkmark next to a cartoon character with a smiling face (no text or symbols)

Simple line drawing of a plug with a bulb and a warning symbol (no text or labels)

Simple line drawing of a room with a computer monitor and a wall-mounted screen (no text or symbols)

Simple line drawing of a refrigerator with a door and handle, no text or symbols present

Simple line drawing of a cabinet with a smiling face, accompanied by tools and a crossed-out cross symbol (no text or labels)

Simple line drawing of a hand holding a vertical object with a starburst effect, no text or symbols present.

Simple line drawing of a child climbing a ladder inside a refrigerator (no text or symbols)

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

Illustration of hands holding a tray with a bottle, food items, and a warning symbol (no text or labels)

Pile of Pile of mixed

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Simple line drawing of a person lifting a box next to a rectangular box (no text or symbols)

Simple line drawing of a refrigerator with a sad face and a potted plant, next to a sun symbol (no text or labels)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a 3D cube with dimensions labeled (no text or symbols beyond measurement annotations)

Line drawing of a 3D refrigerator with door and side panel (no text or symbols)

2.5 Démarrer

Simple line drawing of a smiling rectangular box with a small electrical outlet connected to its side (no text or symbols)

Technical line drawing of a door with internal compartments and grilles (no text or symbols)

Illustration of various household items including a gas stove, alcohol lamp, and water dispenser (no text or symbols)
