USER MANUAL EBG666 CFH

Instructions for use

Labeled diagram of a mechanical device with numbered parts for identification

Einleitung

Pure diagram of a dome-shaped object partially submerged in parallel lines, no text or symbols present

ENGLISH - Instructions for use

Labeled diagram of a mechanical device with numbered parts for identification

Introduction

User manuals contain important information on the use and handling of your new product. They make it possible for you to make use of all the functions and help you avoid misunderstandings and prevent damage.

Please take the time to read through this manual carefully and keep it in a safe place for future reference. The device has not been designed for commercial use. Any other use or any modification made to the device will be considered to be improper use, and it will involve a considerable risk of accidents. The manufacturer will not accept liability for any damage resulting from improper use.

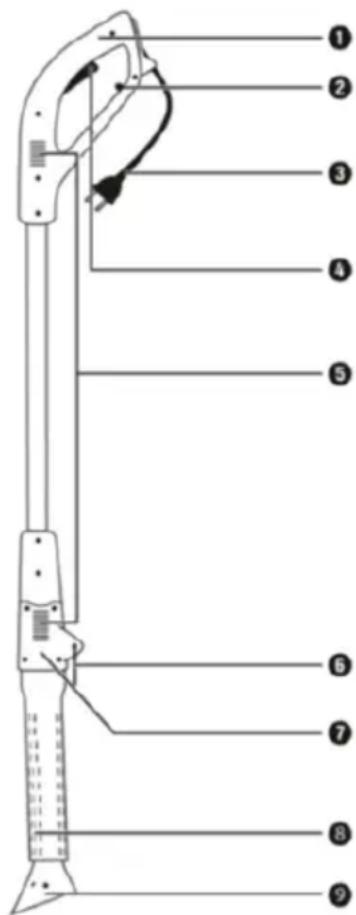

Names of parts

1. Ergonomic handle
2. Strain reliver
3. Power cable
4. ON/OFF switch
5. Air intake
6. Stand
7. Housing with heating element and fan
8. Heat shield
9. Conical nozzle

Scope of delivery

1 × E-Organic Gardener EBG 666
1 × conical nozzle (pre-installed)
1 × user manual

Symbol explanations

Failure to follow the safety instructions in this manual may cause risk of injury or death and damage to the device. WARNING: Packaging material is not a toy! Children must never be allowed to play with the plastic bags! Danger of suffocation!

Protect from rain and moisture!

Disconnect the plug from the mains immediately if the cable is broken or damaged.

Attention: hot surface, risk of burns due to hot surfaces! Do not touch!

Indicates the presence of electrical voltage. Always check that the mains voltage matches the voltage indicated on the nameplate.

Appliance of protection class II – insulated – no earth connection required.

Technical specifications

Mains voltage: 230 – 240 V \~, 50 Hz

Rated power: 2,000 W

Air flow: 550 litres/minute

Temperature (nozzle outlet): 650 °C

Protection class: II/

General safety instructions

WARNING! Read all the safety instructions – general instructions, illustrations and technical data – provided with this power tool. If you do not abide by the safety instructions, this might cause an electric shock, fire and/or serious injuries.

WARNING: Turn off the power when not in use.

WARNING: Always unplug the power cable from the wall socket when not using the unit, when you change the nozzles, or when doing maintenance.

The term “power tool” used in the safety instructions refers to mains-operated power tools (with power cable) and to battery-powered power tools (without power cable).

When using electric tools, the safety precautions should always be followed to reduce the risk of fire, electric shock or injury.

This device operates at a temperature of 600 degrees with no visible signs of this temperature (no flames); however, there is still a risk of fire. Watch out for the hot air stream leaving the nozzle. The hot air stream can cause burns.

This device can be used by children aged 8 years or older as well as by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge provided that they are being supervised or have been trained in the safe use of the device and understand the

hazards that might occur. Children must never be allowed to play with the device. Cleaning and maintenance is not to be undertaken by children without adult supervision.

Keep these safety instructions in a safe place!

1. Work area

a) Keep your working area clean and well-lit. An untidy or unlit work area can lead to accidents.
b) Never use the power tool in a potentially explosive atmosphere where there are flammable liquids, gases or dust. Power tools generate sparks that can ignite the dust or vapours.
c) Keep children and other people well away when using the power tool. Any distraction may cause you to lose control of the device.

2. Electrical safety

a) The plug of the power tool must fit in the socket. The plug must not be modified in any way. Do not use adapter plugs together with electrically grounded power tools. Using unmodified plugs and appropriate sockets will reduce the risk of electric shock.
b) Avoid bodily contact with earthed surfaces such as pipes, radiators, cookers and refrigerators. There is an increased risk of electrical shock when your body is earthed.
c) Do not leave the unit out in the rain or in wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not use the connecting cable to carry the power tool, hanging it up or for unplugging the power tool from the socket. Keep the connecting cable well away from heat, oil, sharp edges or moving parts. Damaged or entangled cables increase the risk of electric shock.
e) Only use extension cables that are suitable for outdoor use if you intend to use a power tool outdoors. Using an extension cord suitable for outdoor use reduces the risk of electric shock.
f) If using the power tool in a damp location becomes unavoidable, use an RCD (Residual Current Device) circuit breaker. Using an RCD circuit breaker reduces the risk of an electric shock.

3. Safety of persons

a) Be careful, ensure that you know what you are doing and use common sense when working with a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using the power tool can cause serious injury.
b) Always wear personal protective equipment as well as safety goggles. Wearing personal protective equipment such as a dust mask, non-slip safety shoes, hard hat or ear protectors, depending on the type and use of the power tool, reduces the risk of injury.

c) Prevent an unintentional start-up. Make sure that the power tool is off before connecting it to the power supply and/or the battery pack, picking it up or carrying it. If you have your finger on the switch when using the power tool or if you plug the tool into the mains while it is on, this may cause an accident.
d) Remove the adjusting key or wrench before turning the power tool on. A tool or key inserted in a rotating part of the power tool can cause injuries.
e) Avoid an abnormal posture. Ensure that you are standing firm and keep your balance at all times. This means you can control the power tool better in unexpected situations.
f) Always wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair may get caught in the moving parts.
g) If dust extraction and collection units can also be attached, they must be connected and used correctly. Using a dust extractor can reduce dust hazards.
h) Do not be lulled into a false sense of safety and do not ignore the safety rules for power tools, even if you are familiar with the power tool after using it many times. Careless handling can cause serious injuries within a fraction of a second.

4. Careful handling and use of power tools

a) Do not overload the power tool. Use the appropriate power tool for your work. With the appropriate power tool you work better and safer in the specified power range.
b) Never use a power tool that has a defective switch. A power tool that cannot be turned on or off is dangerous and must be repaired.
c) Pull the plug out of the socket and/or remove the battery before you change the device's settings, replace parts or store the tool. This precaution prevents the unintentional start-up of the power tool.
d) Store power tools that are not in use well out of the reach of children. Do not allow people who are unfamiliar with these instructions or who have not read them to use the power tool. Power tools are dangerous when used by inexperienced people.
e) Maintain the power tool and operating tools with care. Check that the tool's moving parts are working properly and do not jam, that no parts are broken or damaged in such a way that the power tool cannot be used correctly. Have the damaged parts repaired before using the power tool. Many accidents are caused by badly-maintained power tools.
f) Use the power tool, its accessories and attachments, etc. according to these instructions. Take into account the working conditions and the work to be done. Use of the power tool for purposes other than those intended can result in hazardous situations.

h) Keep handles and gripping surfaces dry, clean and free of any oil or grease. Slippery handles and gripping surfaces will not allow safe operation or controlling the power tool in unforeseen situations.

5. Service

a) Have your power tool repaired by specialist personnel and only use original spare parts. This is to ensure the safety of the power tool.

Additional safety instructions

• ATTENTION! This tool must be placed on its stand when it is not being used.
• A fire might occur if the device is not handled carefully.
• Do not aim the tool at the same point for a long period of time.
• Pay close attention to the immediate working area and the area around it. The heat can reach flammable materials that are not in the field of view.
• Be careful when using the device in the vicinity of flammable materials.
• Do not aim at the same point for a long period of time.
• Do not use this product in extremely dry places to prevent the risk of fire during its operation.
• Do not use it in an explosive atmosphere.
• Heat can be conducted to flammable materials that are covered up.
• Place the device on its stand after use, and allow it to cool down before you put it away.
• Never look into the hot air nozzle.
• Do not point the tool at people or animals when it is switched on.
• Do not hold the nozzle too close to the surface to be treated. This might cause the tool to overheat.
• The connecting cable or other flammable materials must not come into contact with the hot parts of the tool
• Do not leave the machine unattended when it is switched on.
• The unit should be always clean, dry and free from grease and oil.
• Always unplug the power cable from the wall socket when not using the unit, when you change the nozzles or when doing maintenance.
• Do not use the tool for purposes other than those for which it is intended.

Before starting

Assembling the tool:

- The tool is delivered as a pre-assembled unit.

If the device is not used with care, there is a risk of fire! Please note the following:

• Remove all flammable objects, liquids and gases from the working area around the device before use. Keep the working area clean to prevent accidents.
• Never leave the device unattended whilst it is operating.

During use of the device

• During use of the machine, vapours and gases may be released for a short time. This can be dangerous to your health. This can be problematic especially for asthmatics.
  • Always keep the power cable away from the nozzle.
• During use, keep children and pets away from this product at all times.
• Keep all parts of your body away from the heating element and heat shield (including the nozzle). Do not touch the hot surface before it has cooled down completely. There is a risk of scalding!
• Hold the power tool by the insulated gripping surfaces only, because otherwise the heat shield (including nozzle) may come into contact with hidden power lines or the tool's own power cable.

Switch off the device immediately in the following cases:

• If the plug or cable are damaged.
• If the switch is damaged.
• If smoke is coming from the machine due to burned insulation or if you can smell burning.

Replacing cables or plugs

If the connection cable is damaged, it must be replaced by the manufacturer or his service agent or a similarly qualified person in order to avoid hazards.

Use of extension cords

Only use an approved extension cable that is suitable for the machine rating. The wires must have a minimum cross section of 1.5 mm2. If the cable is on a reel it must be completely unrolled.

Unsuitable extension cords can be dangerous. If an extension cable is used, it must be suitable for outdoor use and must be dry and above the floor.

Connecting to the power supply

Pure diagram of a dome-shaped object partially submerged in a horizontal line, with no text or symbols present.

This unit is equipped with a cable holder to prevent the extension cord from being pulled out during use.

NOTE: Always use the cable holder to properly attach the extension cord to the unit. Not using the cable holder could result in damage to the unit and/or the extension cable.

• Form a loop with the end of the extension cord.
  • Pass the loop portion of the extension cable through the opening and place it over the cable holder.
• Slowly pull the strap against the cable holder until the slack is gone.
• Plug the extension cord into the machine.

NOTE: If the excess cable slack is not removed from the extension cable holder, it may cause the plug to be unplugged from the socket.

Operation

Using the tool

Use with caution! Do not cover the vent openings during use.

There is a risk of burns! Never touch the hot nozzle!

Switch the device on:

- Switch on the tool by pressing the ON/OFF switch (4).

Switch the device off:

- Switch off the machine by releasing the ON/OFF switch (4).

Fitting the nozzle:

The conical nozzle (9) can be easily slid over the hot air nozzle. Never touch the hot air nozzle directly after using the device. The hot air nozzle gets very hot.

Starting-up

First use:

• Always ensure that the tool is switched off.
- Slide a loop of the extension cable into the strain reliever in the handle, and secure it in the support provided.
• Fit the conical nozzle (9) to kill weeds.
- Use an extension cable to connect the tool to a power socket.
- Check that the nozzle is not blocked before you turn on the power.
- Switch on the tool by pressing the ON/OFF switch (4).
- Wait about 1 minute for the power tool to warm up.
- Kill the weeds by holding the nozzle (9) over the weeds for about 5 seconds. The cell structure of the weeds is destroyed during these 5 seconds. This will result in the weeds dying within a few days.
- It is not necessary to burn the weeds completely, a few seconds are enough.
- For an efficient treatment, the nozzle should be kept 0 – 5 cm above the weeds.
• In addition, we point out that as a weed killer the E-Bio-gardener cannot achieve an immediately visible effect, but a so-called long-term effect.

Warning! Ensure that the connecting cable does not come into contact with heat, oil or sharp edges. Damaged leads can cause fires, short circuits and electrical shock.

Switching off:

• Release the ON/OFF switch (4).
  • After use, always position the tool so that its stand (6) is on a flat, fireproof surface and allow the hot parts to cool down completely.

Cleaning

WARNING! RISK OF INJURY!

Disconnect the power cable from the power socket, and wait for the device to cool down before you clean the tool.

Wipe the machine casing using a soft cloth regularly, preferably after each use. Ensure that the ventilation holes are free from dirt and dust. To remove stubborn dirt, use a soft cloth dampened with soapy water. Do not use solvents such as petrol, alcohol, ammonia, etc., as these will affect the plastic parts.

Storage:

Ensure that the unit has cooled down completely before storing.

Disposal

Dear customer, please help to avoid waste. If you ever want to dispose of the product, please keep in mind that many of its components are made from valuable raw materials and can be recycled. Therefore, do not dispose of it in the rubbish bin, but take it to your recycling collection point.

Guarantee

Always keep the original receipt in a safe place. This document is needed as proof of purchase. Contact us via e-mail at: [e-mail] if you have a guarantee claim. We will contact you immediately.
