USER MANUAL 1253LDN SIGNATURE

Exterior view of a modern flat-screen electric stove with control knobs and a black tray (no visible text or symbols)

SIGNATURE®

PLANCHA GAZ

1253LDN

TABLE DES MATIÈRES

Prohibition sign for a gas cylinder with red prohibition symbol

≤60cm ≤Ø 31cm

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Exterior view of a gas stove with control knobs and a black tray (no visible text or symbols)

SIGNATURE®

GAS PLANCHA

1253LDN

TABLE OF CONTENTS

Important safety instruction - 20 -

Mounting tips -22-

Assembly instruction -23-

Technical data -24-

Preparation -25-

Installation -26-

Lighting instructions -29-

Storage -30-

Cleaning instructions -30-

Trouble shooting -31-

Gas grill safety hints -34-

Correct disposal of this product - 34 -

Use outdoors only

Read the instructions before using the appliance

WARNING: accessible parts may be very hot. Keep young children away

This appliance must be kept away from flammable materials during use

Do not move the appliance during use

Turn off the gas supply at the gas cylinder after use

Do not modify the appliance

IMPORTANT SAFETY INSTRUCTION

IMPORTANT: READ ALL INSTRUCTIONS AND OPERATIONS BEFORE OPERATING THIS UNIT.

FOLLOW ALL STEPS IN ORDER. NEVER ALLOW CHILDREN TO OPERATE THIS UNIT.

ATTENTION :

Some parts of this appliance become very hot,

take special care when children or elderly are present.

For your safety:

Do not store or use gasoline or mentholated fuels or any other flammable vapors and liquids in the vicinity of this or any other appliance.

Never light a gas grill with gasoline or comparable fluids!

Suggestion: user should not change the assembly that the manufacturer packaged.

Yellow triangular warning sign with black smoke symbol indicating hot weather

Caution, hot surface!

Prohibition sign for a gas cylinder with red prohibition symbol

Do not place gas cylinders in the grill.

Please read the following points before using your gas grill:

1 Read the instructions before using the appliance. If instructions are not followed it may cause problems in use.
2 This gas grill accessible parts maybe very hot when being used. Keep young children away. Use protective when handling particularly hot components.
3 In the event of a gas leak, Turn off the gas supply at the gas bottle, extinguish any open flames, open lid and if leak continues, check for damages, poor connections etc.
4 Do not move Gas grill during use.
5 Do not use or store any liquids, vapors or other flammable materials in the vicinity when operating the gas grill.
6 This gas grill only to be used outdoors.
7 Do not use a naked flame to check for gas leaks.
8 Do not operate gas grill if there is a gas leak. Turn off the gas supply.
9 Do not attempt to disconnect any gas fitting part if your gas grill is being used, on the gas grill or the gas regulator / bottle.
10 Care is advised when operating your gas grill, you should never leave unattended when in use. Turn off the gas supply at the gas container after use.
11 The gas grill should be cleaned after use. Don't obstruct the fire opening of the container compartment. If the fire opening is obstructed, please use 1.6mm round stick to dredge. Take care not to enlarge burner ports or orifice/nozzle openings when cleaning the burner or valves.
12 Do not attempt to use this appliance in a garage or any enclosed area. Also this appliance must be keep away from flammable materials, etc. We recommend keeping a distance of at least 0.5 to 1.0 meter clear of any flammable materials.
13 We would recommend that this gas grill should be serviced by your local gas retail outlet at least once a year by a competent engineer. Do not attempt to service this appliance yourself.

14 Any modification of the appliance may be dangerous. Do not attempt any unauthorized interference of the main controls on this gas grill, i.e. gas taps, injectors, valves etc.
15 Always test gas line for leaks at connector with soapy water after making connections.
16 The top lid must always be open when lighting the burner.
17 Use oven gloves and sturdy, long handled gas grill tools when cooking on the grill.
18 Be prepared if an accident or fire should occur. Know where the first aid kit and fire extinguishers are and know how to use them.
19 Keep any electrical supply cord and the fuel supply hose away from any heated surfaces.
20 Always cook with great care.
21 Do not heat any unopened glass or metal container of food on the grill. Pressure may build up and cause the container to burst, possibly resulting in serious personal injury or damage to the grill.

SIGNATURE WARNING: • Use outdoors only • Read the instructions before using the appliance • Accessible parts may be vary hot • Keep young children away • Do not move the appliance during use CE 0063-24 OFF OFF OFF LIGHTING INSTRUCTIONS Open the hood of the barbecue before stempting to light the burners. Turn all the control knots stockwise to "OFF" position. Connect the regulator to the gas bottle. Turn on the gas supply at the regulator at the gas bottle valve. Push down the control knob and keep pressing white turning and stockwise in the high • Position . Then push and hold ** button until the burner lights. If the burner has not lit turn knob off, wait 5 minutes and repeat step 4 Repeat step 4 in 8 for other burners.

MOUNTING TI

Make sure your grill is assembled properly. Detailed assembly instructions are packed with each grill giving specific assembly procedures for each model. Follow these instructions carefully to ensure the correct and safe assembly of the grill.

CAUTION:

Although we take every effort to ensure that the assembly process is as easy as possible, it is inherent with fabricated steel parts that corners and edged can cause cuts if improperly handled during assembly procedures. Be careful while handling any parts during assembly. It is strongly recommended that you protect hands with a pair of work gloves.

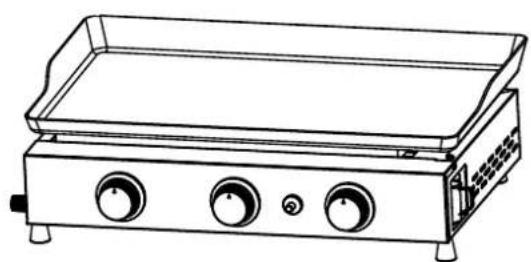

ASSEMBLY INSTRUCTION

Line drawing of a portable electric stove with control knobs and a flat top (no text or symbols)

Illustration of a human figure, screwdriver, and wrench (no text or symbols)

③

②

④

①

① *4

④ * 1

②

⑤ * 1

③ *2

⑥ * 1

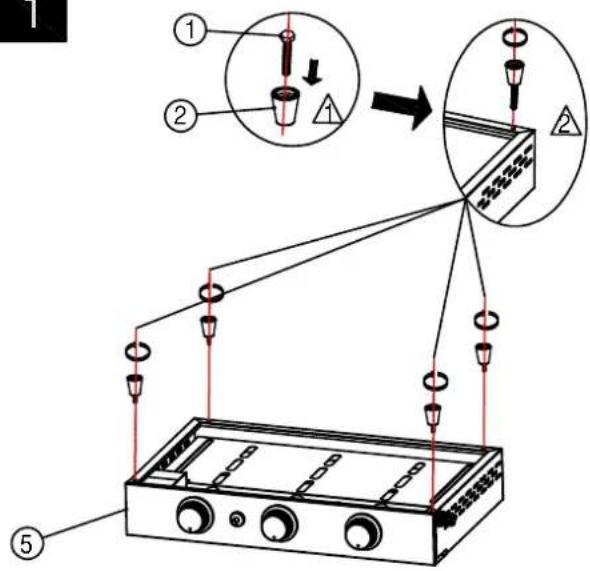

1

Diagram showing a device setup with labeled components and a magnified view of the component being connected to a rack.

2

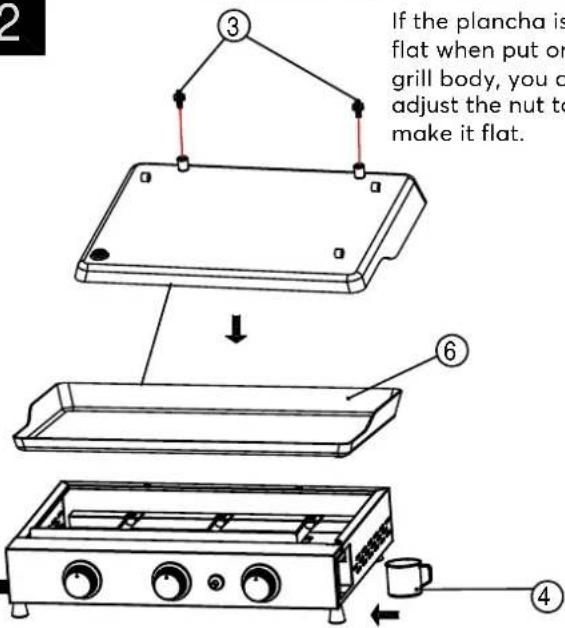

2 If the plancha is flat when put on grill body, you can adjust the nut to make it flat. 3 6 4

3

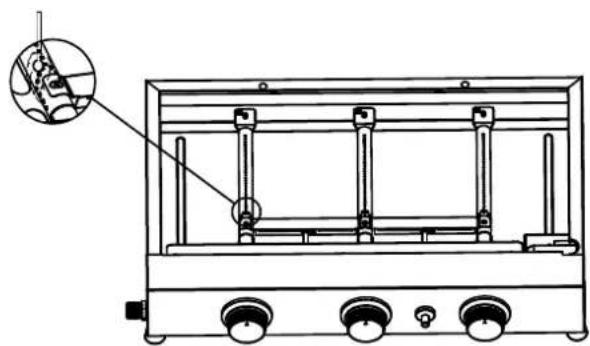

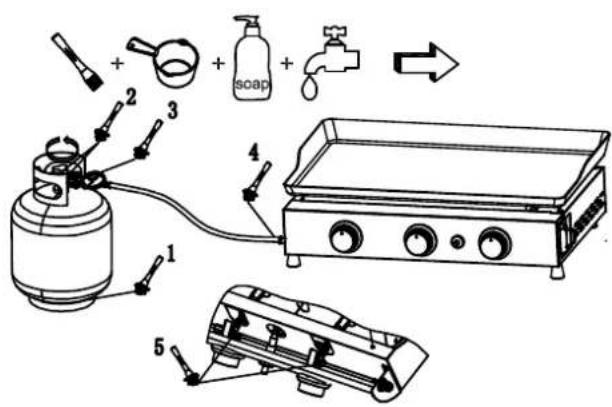

This is for gas leakage test. Apply test solution by following details in page 28-29 to below 1 to 5 positions.

Diagram of a gas stove setup with labeled components including a gas cylinder, soap dispenser, and heating unit

4

Technical line drawing of a laboratory apparatus with control panel and labeled component (no text or symbols)

SIGNATURE® Product name: Gas plancha Pin number: 0063DM7544 CE 0063-24
Country of Destination	Appliance Category	Gas and Supply Pressure	Main Burner	Model Number
				1253LDN
			Injector Size∅	Total Nominal Heat Inputs(Hs)
FR	I_3+(28-30/37)	Butane(G30)28-30 mbar	0.73mm	7.2 kW 523g/h
		Propane(G31)37 mbar	0.73mm	7.2 kW 514g/h
Use Outdoors Only. The appliance must be kept away form flammable materials during use. BUT International Read the instructions before using the appliance. 1 Avenue Spinoza, 77184 The gas cylinder should not be placed inside BBQ. Emerainville,France Warning: Accessible parts may be very hot. Keep young children away. made in China

a) Choose the proper regulator according to appliance category and gas pressure in the table above, for example, Use 37 mbar regulator with appliance category I3+ for propane gas.

b) Marking on injector, for example, 0.73 indicates that the size of the injector is 0.73 ~mm .

Model corresponding table

Model No.(s)	Main Burner No.	Side Burner No.	Back Burner No.	Total Nominal Heat Inputs (Hs) 13+(28-30/37) mbar
1253LDN	3	0	0	7.2 kW 523g/h7.2 kW 514g/h

PREPARATION

You will need LPG gas bottle and proper regulators under the gas pressure to operate this gas grill. The regulators should be comply with EN16129 with current version and national regulation.

Energy saving tips:

a) Turn the grill off as soon as cooking is completed.

b) Preheat the gas grill for 10 to 15 minutes only. (Except for the first use)

c) Do not preheat longer than recommended.

d) Do not use a higher setting than required.

e) Connect the hose and regulator to the gas container at the left side of the gas grill. Keeping in mind that the gas container must be kept away from heat and in a safe position. The hose dimension is 8-10mm diameter. The Length of hose recommended shall not exceed 1.5m.

INSTALLATION

After purchasing your gas cylinder you will then be ready to set it up with your gas grill.

a) When changing the gas cylinder which shall be carried out away from any source of ignition. Position the gas cylinder at left side of your BBQ, keeping in mind that the bottle must be kept away from heat and in a safe position.
b) When ready to use your gas grill insert the regulator into the gas bottle valve and tighten firmly.

WARNING:

Before attempting to light your gas grill you must refer to your lighting instructions and warning / safety points.

Check the hose before each use, searching for cracking, cuts or any abrasions. If the hose is found to be faulty in any way do not attempt to use your gas grill.

When changing your gas bottle ensure that there are no sources of ignition close by i.e. fires, cigarettes, naked flames etc. Make sure that the appliance is switched off.

Ensure that the hose is not subjected to twisting which will affect the gas flow when installing your gas grill. Also the hose must not have undue tension and must not touch any part of the gas grill which may be hot.

Please choose flexible hose whose heatproof higher than 80°C Flexible tube should be changed every 2 years; It's necessary to change the flexible tube when the national conditions require it.

Change your cylinder note

Turn off the switch of gas cylinder (No spanner is required) Put the gas cylinder outside the grill, The height of the gas cylinder is below the 80cm, and the width is within 35cm

How to connect a gas bottle

ATTENTION:

Exclusively use a regulator and flexible hose approved by national authorities and current standards, for example, the regulator should comply with EN16129:2013, The flexible hose should comply with EN16436-1:2014+A3:2020.

WARNING: you may find regulators sold on the market that do not deliver the recommended pressure.

In this case, the tightness test described must also be performed. Verify that the expiry date of the supply hose has not been exceeded and, in any event, replace it if it displays any signs of deterioration. Ensure that the hose is not subject to twisting and that it is visible over its entire length. Any modification to the device may prove to be dangerous. The parts protected by the manufacturer or its retailer must not be handled by the user. Hose shall not be exceeded 1.5m.

WARNING:

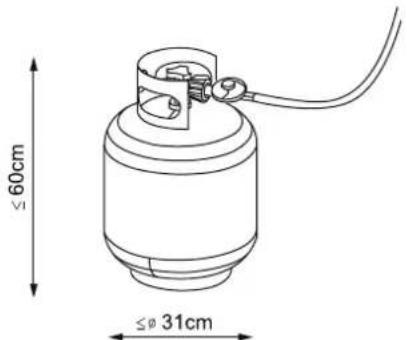

The appliance can be used with any gas cylinder of weights between 4.5 kg to 15 kg butane and 3.9 kg to 13 kg propane. The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance.

≤60cm ≤Ø 31cm

Never position the gas container unit under the firebox. It must be positioned on a level surface away from the most hot parts of the barbecue

CONNECTING STEPS

a) Turn the orange cap so that the arrow is pointing to the gap in the shroud.
b) Remove the orange safety cap by pulling the lanyard out, then out. Do not use tools. Leave the cap hanging.
c) Check that the black sealing washer is fitted inside the cylinder valve. Connect the regulator to the valve.

d) Turn the switch clockwise on gas bottle-then turn on the gas grill as instructed.

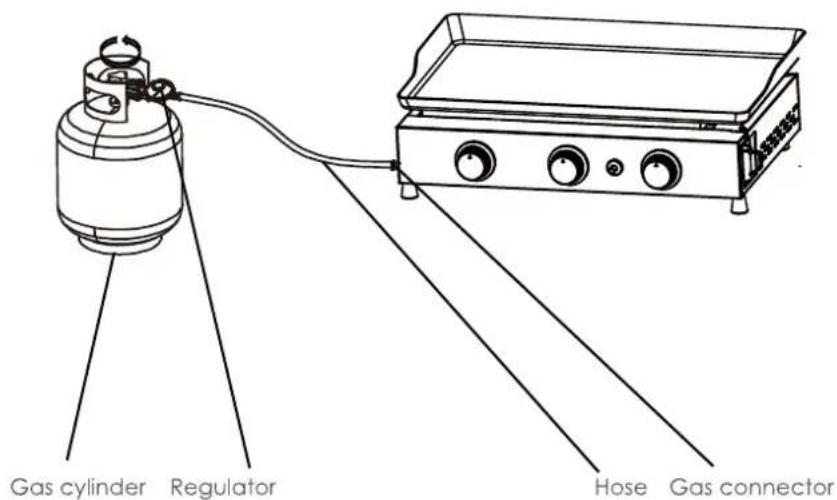

Gas cylinder Regulator Hose Gas connector

Illustration for the connection of Gas Cylinder, Regulator and Hose

Illustration for the connection of Plancha and Hose

WARNING:

Always test gas line for leaks at connector with soap water finishing all connections.

How to disconnect a gas bottle

a) Except for twin-cylinder installations with a changeover valve, turn off the gas tap if fitted to the appliance. Wait until the burner and pilot light have gone out. For installations with a changeover valve, it is only necessary to switch off the empty cylinder.
b) Replace the orange safety cap onto the empty cylinder.

Leak testing the regulator, valves, hoses, and connections

1. Ensure the LP cylinder valve and all burners are "OFF".
2. Ensure the LP cylinder is connected to the regulator.
3. If the information above is not followed exactly, a fire causing death or serious injury may occur.

4. Mix a solution of 80% water and 20% liquid dish soap. Do not use any household cleaner solution.

5. Turn the cylinder valve counterclockwise. If you hear a rushing sound, turn the gas off immediately. In that case, there could be a leak at the connection. Reconnect the cylinder to the regulator.

6. Spray or brush on the solution covering the following areas: Cylinder welds, regulator and cylinder connection, gas hose connections to the regulator, all gas hose, all gas hose connections to the burners.

7. Growing bubbles on any of the parts and connections listed above indicate a gas leak. Immediately shut off the LP tank valve by turning the valve clockwise. Continue to test as necessary until no leaks are detected. If the gas leakage cannot be solved, stop to use it immediately, and close the valve and gas cylinder. Contact the after-sales department or professional personnel to deal with it.

8. Close the LP tank valve by turning the hand wheel clockwise.

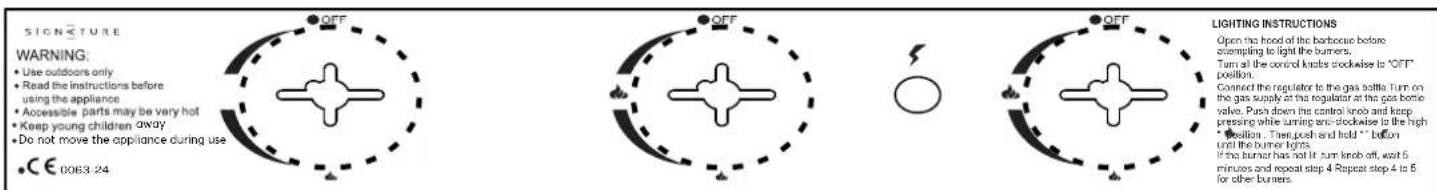

LIGHTING INSTRUCTIONS

CAUTION:

Do not stand with your face directly over the gas grill when lighting it. Your gas grill will have following method of ignition:

1. Connect the gas cylinder to the barbecue following the instructions supplied with the regulator.
2. Turn all the control knobs to the 'OFF' position.
3. Turn 'ON' the gas supply at the cylinder or regulator switch following the regulator connection and operating instructions. Check the cylinder to regulator connection and hose to barbecue hose inlet connection for leakage by using soapy water. Any leakage will show as bubbles in the area of leak. If leak is found, do not use the barbecue and turn off the gas supply. Consult your gas or barbecue supplier for advice.
4. Before ignition, open the lid if there is. To light the left hand burner, push down and turn the left burner control knob anticlockwise to the 90° position (Full rate position) and then push down the igniter. An audible click will be heard, this should light the burner. Check that the burner is alight. If the burner has not lit, repeat this process.
5. If the burner has not lit after two attempts, turn 'OFF' the gas tap and wait 5 minutes before retrying the ignition sequence.

6. When the burner has lit, the burner rate can be adjusted by turning the knob anticlockwise to any position between the full and low rate positions.

7. Light the remaining burners from left to right in sequence:

Push down and turn the burner control knobs anticlockwise to the 90° position (Full rate position). Never attempt to light a burner that does not have burner assembly directly adjacent to it. This could cause a hazardous situation to occur.

1. After use, turn all the control knobs to the 'OFF' position.

STORAGE

Your Gas Bottle must be stored outdoors in a well ventilated area and must be disconnected from your gas grill when not being used. Ensure that you are outdoors and away from any sources of ignition before attempting to disconnect your gas bottle from your gas grill.

When you are using your gas grill after a period of storage, please ensure to check for gas leaks and check for any obstructions in the burner etc. before using. Also follow the cleaning instructions to ensure gas grill is safe. If gas grill is stored outdoors ensure to check that all areas under the front panel are free from any obstructions (insects etc.) This area must be kept free as this may affect the flow of combustion or ventilation air.

CLEANING INSTRUCTIONS

Maintenance is recommended that every 90 days for your gas grill, but it is absolutely necessary to perform maintenance at least once a year. By doing so, you will extend the life of your gas grill.

Your gas grill is easy to clean with minimum effort, just follow these helpful hints for cleaning convenience.

a) Turn the burner off for 15 to 20 minutes. Ensure appliance is cold before continuing.
b) Plancha should be cleaned periodically by soaking and washing in soapy water. (Note: do not use strong acid, strong alkali and strong corrosion cleaning liquid, do not use hard and sharp cleaning appliances)
c) The interior surfaces of the grill housing cover should also be washed with hot, soapy water. Use a wire brush, steel wool or a scouring pad to remove stubborn spots.
d) Periodically check the burner to see that it is free from insects and spiders which may clog the gas system, deflecting gas flow. Ensure to clean venturi pipes on burner very carefully, make sure that there are no obstructions. We recommend that you use a pipe cleaner to clean the venturi pipe area.
e) Any modifications of this appliance may be dangerous and are not permitted.

TROUBLE SHOOTING

Emergencies	Possible cause	Prevention/ Solution
Gas leaking from cracked/cut/burned hose	Damaged hose	Turn off gas at LP tank, if hoes is cut or cracked, replace hose. See LP tank lead test and connection regulator to the LP tank
Gas leaking between LP tank and regulator connection	Improper installation, connection not tight, failure of rubber seal	Turn off LP tank valve, remove regulator from cylinder and visually inspect rubber seal for damage, see LP tank test and connection regulator to the LP tank
Fire coming through control panel	Fire in burner tube section of burner due to partial blockage	Turn off control knobs and LP tank valve. After fire is out and grill is cold, remove burner and inspect for spider nests or rust. see natural hazard and cleaning the burner assembly pages.

Troubleshooting: Problem	Possible cause	Prevention/ Solution
Grease fire or continuous excessive flames above cooking surface	Too much grease buildup in burner area	Turn off LP Tank. Leave lid open to allow flames to die down. After cooling, clean food particles and excess grease from inside firebox area, grease cup/pan/tray, and other surfaces
Burner will not light using ignitor	Gas issues1. Trying to light wrong burner2. Burner not engaged with control valve3. Obstruction in burner4. No gas flow5. Vapor lock at coupling nut to LPtank6. Coupling nut ad LP tank valve not fully connected.	1. See instructions on control panel and section in the Use and Care.2. Make sure valve are positioned inside of burner tubes.3. Ensure burner tubes are not obstructed with spider webs or other matted, see cleaning section of use and care4. Make sure LP tank is not empty. If LP tank is not empty, refer to “sudden drop in gas flow.5. Turn off knobs and disconnect coupling nut from LP tank. Reconnect and retry.6. Turn the coupling nut approximately one-half to three-quarters

Burner will not light using ignitor	Electrical issues:1. Electrode cracked or broken;" sparks at crack."2. Electrode tip not in proper position3. Wire and/or electrode covered with cooking residue.4. Wires are loose or disconnected5. Wires are shorting (sparking) between ignitor and electrode.6. push button sticks at bottom sparking between ignitor and electrode	1. Replace electrode.2. Tip of electrode should be pointing toward port hole in burner. The distance should be 1/8" to 3/16". Adjust if necessary.3. Clean wire and or electrode with rubbing alcohol and clean swab.4. Reconnect wires or replace electrode/wire assembly.5. Replace ignitor wire6. Replace ignitor7. Inspect wire insulation and proper connection. Replace wires if insulation is broken.
Burner will not mach light	See "gas issues;" on previous page.2. Improper method of match-lighting	1. See “Pilot Gas Control Ignition” section of use and care.
Sudden drop in gas flow or low flame	1. Grease buildup.2. Excessive fat in meat.3. Excessive cooking temperature	1. Clean burners and inside of grill/ firebox2. Trim fat from meat before grilling.
Flames blow out	High or gusting winds. Low on LP gas.Excess flow valve tripped.	Turn front of grill to face wind or increase flame height.Refill LP tank.Refer to “sudden drop in gas flow” above.
Persistent grease fire	Grease trapped by food buildup around burner system.	Turn knobs to OFF. Turn gas off at LP tank. Leave lid in position and let fire burn out. After grill cools, remove and clean all parts
Flashback...(fire in burner tube(s))	Burner and burner tubes are blocked	Turn knobs to OFF. clean burner and/or burner tubes.See burner cleaning section of use and care manual
Flare-up	1. Grease buildup.2. Excessive fat in meat.3. Excessive cooking temperature	1. Clean burners and inside of grill/ firebox2. Trim fat from meat before grilling.3. Adjust (lower) temperature
One burner does not light from other burner(s)	Grease buildup or food particles in end of carryover tube	Clean carry-over tube with wire brush

If your problem is not resolved from the information above, please Contact your local gas dealer.

Gas grill Safety Hints

Stand your gas grill on a safe level surface, away from inflammable items such as wooden fences or overhanging tree branches.

Never use your gas grill indoors!

Once lit do not move your gas grill or leave it unattended.

Keep children and pets at a safe distance from the gas grill.

Keep a fire extinguisher handy.

The gas grill will become hot when in use, so handle lids etc. with the help of gloves.

Ensure that the appliance has completely cooled down before storing.

Turn off the gas supply to the cylinder after using the appliance.

Any modifications of the appliance may be dangerous and are not permitted.

SERVICING:

Your barbecue should be serviced annually by a competent registered person.

Note:

In accordance with Article L. 217 of the Consumer Code, your product benefits from a legal guarantee of conformity of 2 years.

To contact our AfterSales Service, before going to your BUT store, call 09 78 97 97 97,

From Monday to Friday from 9:00 to 19:00, Saturday from 9:00 to 18:00 (local call price).

CORRECT DISPOSAL OF THIS PRODUCT

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

European directive 2012/19/EU on Waste from Electrical and Electronic Equipment (WEEE), requires that used household appliances are not thrown into the normal municipal waste stream. Used appliances must be collected separately in order to optimize the rate of recovery and recycling of materials that compose them, and to reduce the impact on human health and on the environment. The crossed bin symbol is affixed to all the products to remind you of the obligations of separated collection.

We decline liability for any damage or accident derived from any use of this product which is not in conformity with the instructions contained in this booklet.
