USER MANUAL DN161620X BEKO

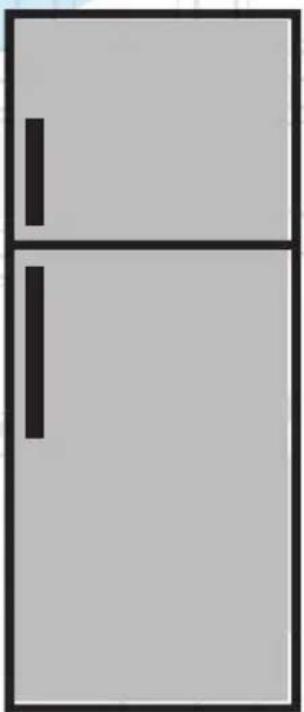

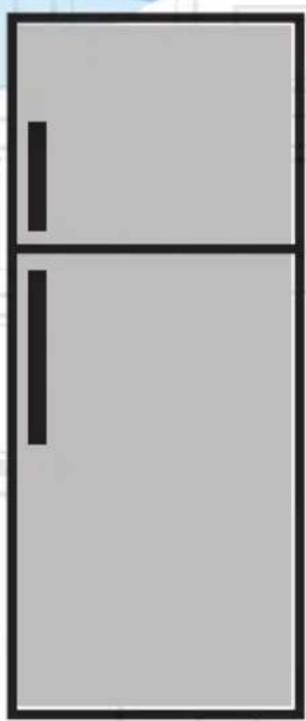

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

DN 156720 D

DN 156720 DS

DN 156720 DX

DN 156720 X

DN 156721 X

DN 156720 H

DN 156720 DH

DN 156721 DH

DN 160103

DN 160103 X

DN 161620 C

DN 161620

DN 161620 X

DN 161600 C

DN163720DH

ENFR |HU|

beko

Please read this manual first!

Dear Customer,

We hope that your product, which has been produced in modern plants and checked under the most meticulous quality control procedures, will provide you an effective service.

For this, we recommend you to carefully read the entire manual of your product before using it and keep it at hand for future references.

This manual

• Will help you use your appliance in a fast and safe way.
• Read the manual before installing and operating your product.
• Follow the instructions, especially those for safety.
• Keep the manual in an easily accessible place as you may need it later.
• Besides, read also the other documents provided with your product.
  Please note that this manual may be valid for other models as well.

Symbols and their descriptions

This instruction manual contains the following symbols:

i Important information or useful usage tips.

Warning against dangerous conditions for life and property.

⚠ Warning against electric voltage.

1 The refrigerator 3

2 Important Safety Warnings 4

Intended use ....4

General safety 4

For products with a 8

water dispenser; 8

Child safety 9

Compliance with WEEE Directive and Disposing of the Waste Product: .....9

Package information 9

HC warning 9

Things to be done for energy saving ..9

Recommendations for the fresh food compartment ....10

3 Installation 11

Points to be paid attention to when the relocation of the refrigerator .....11

Electrical connection .....11

Disposing of the packaging .....12

Disposing of your old refrigerator .....12

Placing and Installation .....12

Adjusting the legs 13

Changing the illumination lamp .....13

4 Preparation 14

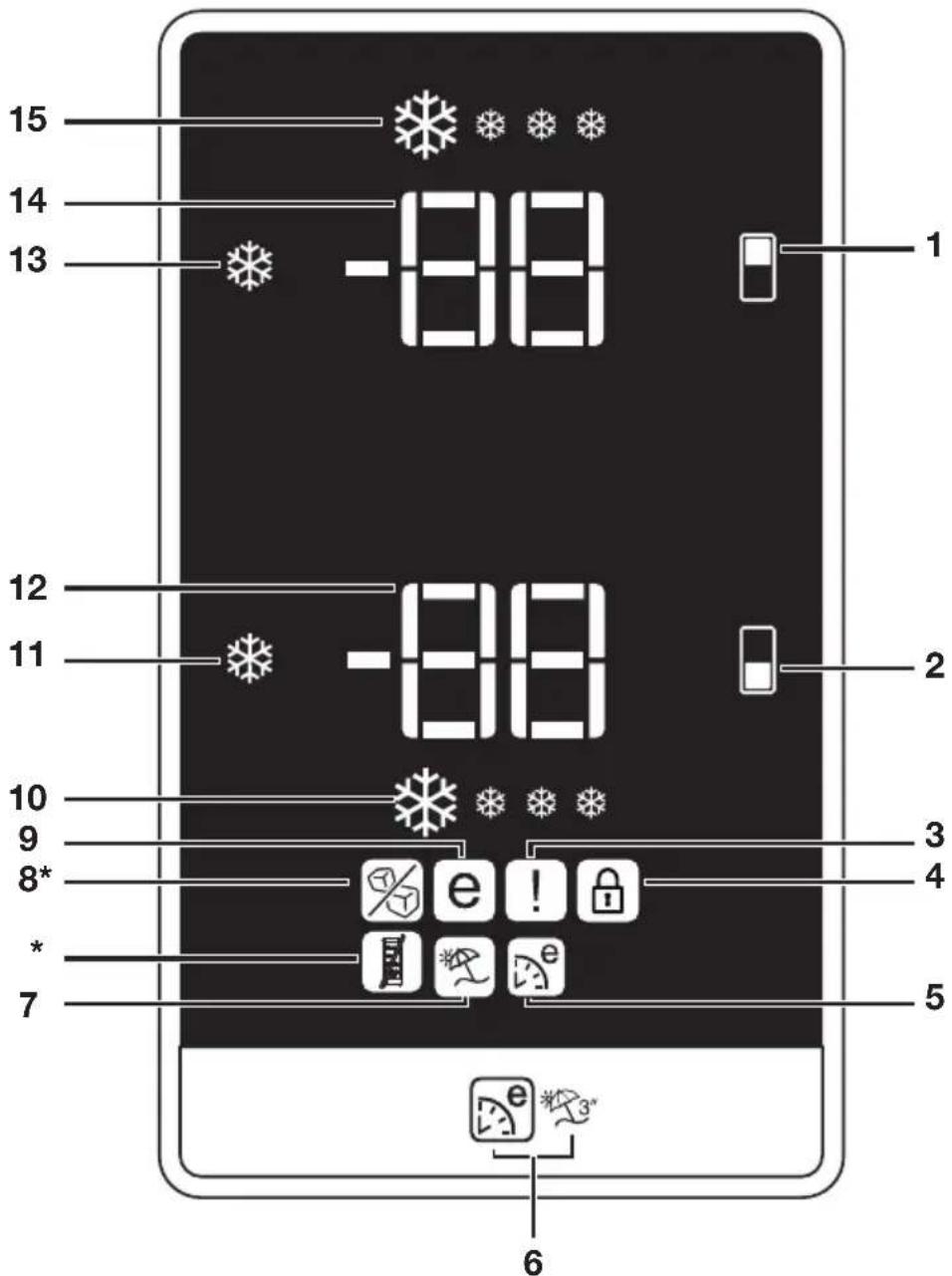

5 Using your refrigerator Indicator Panel 15

Door Open Warning 18

Freezing fresh food ....19

Recommendations for preservation of frozen food ....20

Placing the food 20

Deep-freeze information .....21

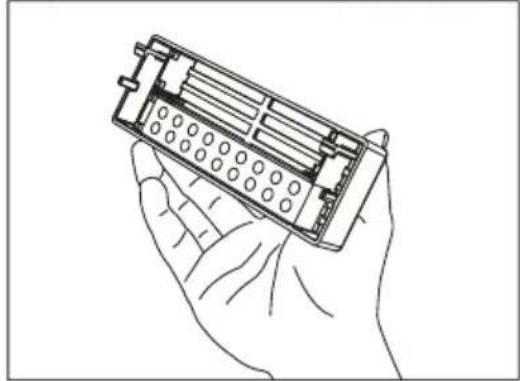

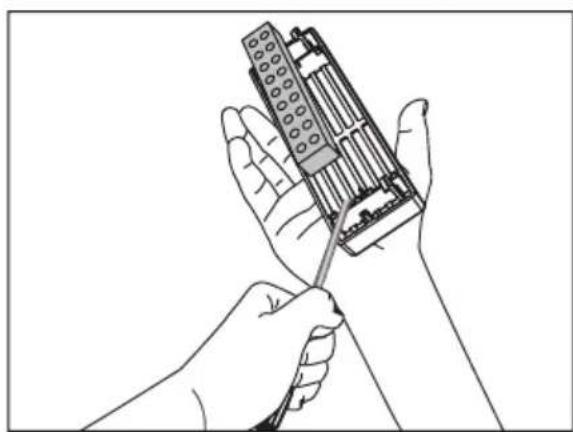

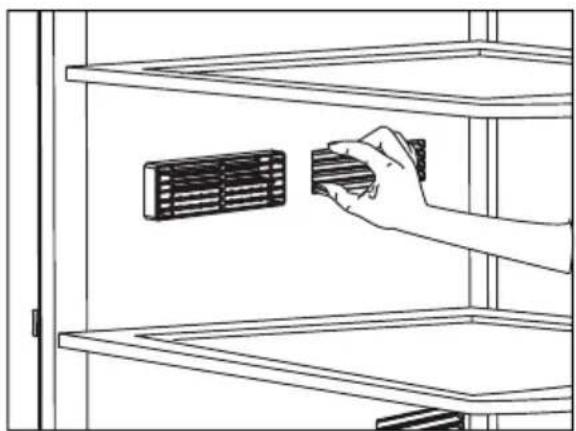

Description and cleaning of odor filter: 22

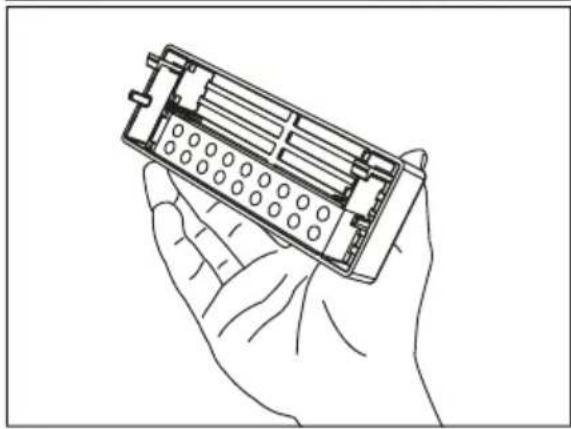

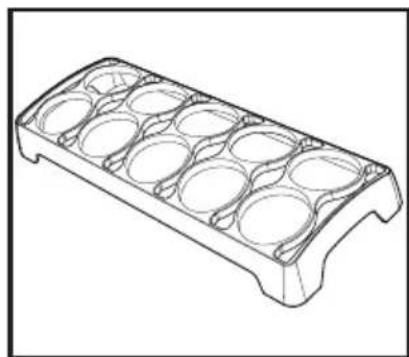

Egg holder 22

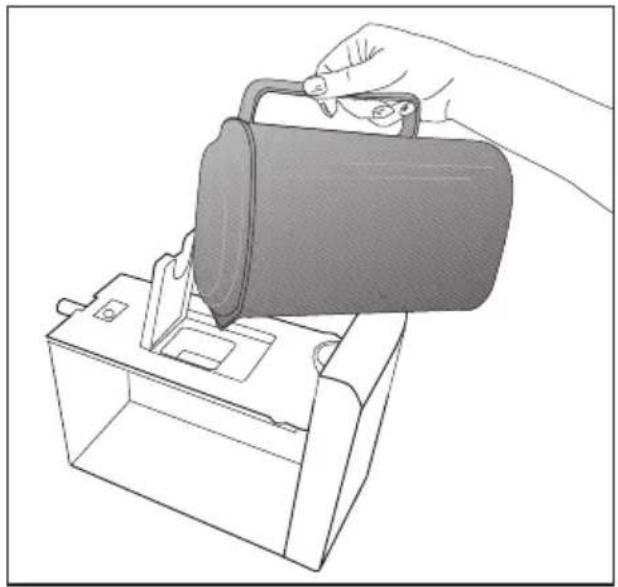

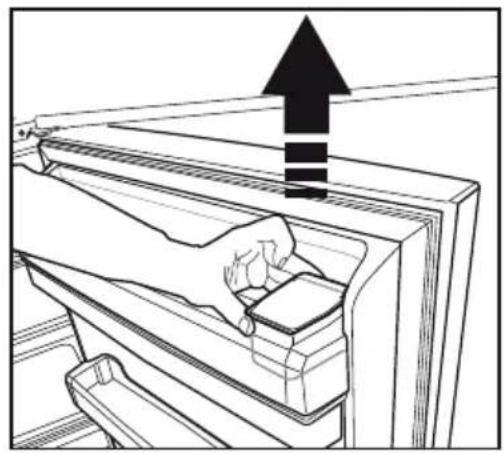

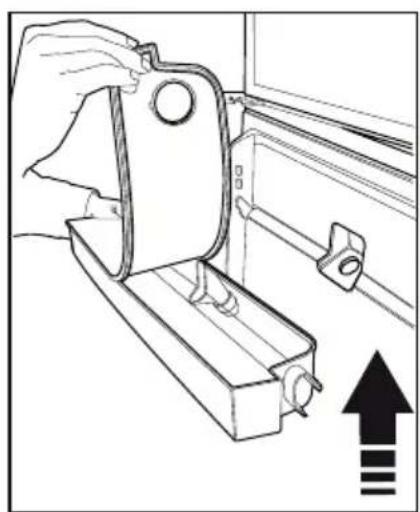

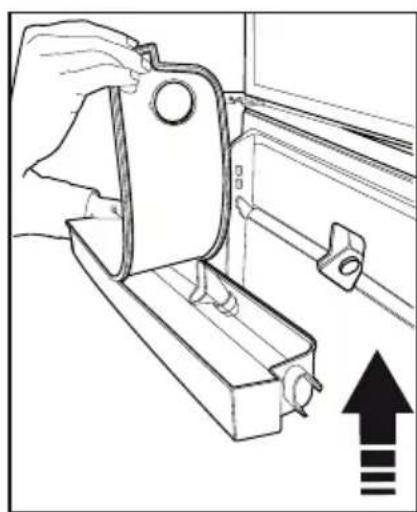

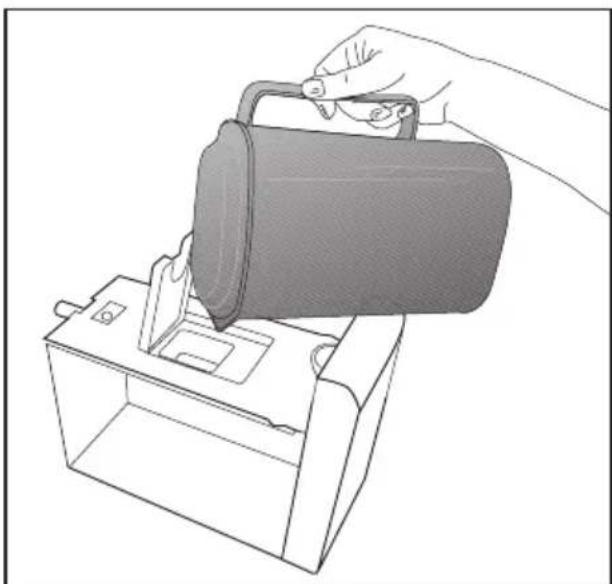

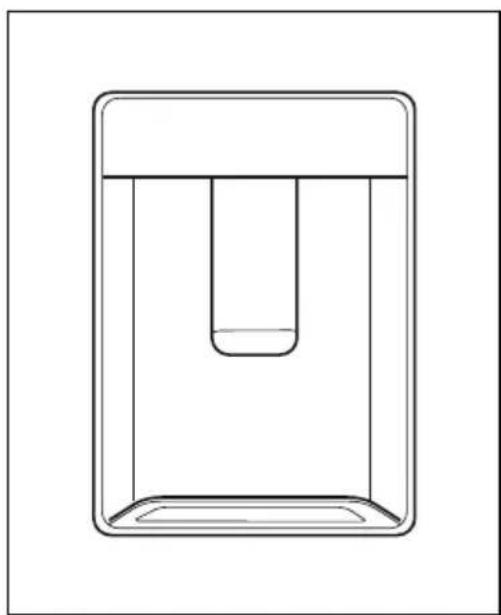

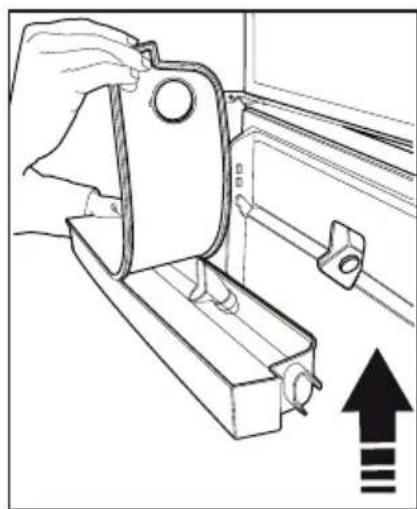

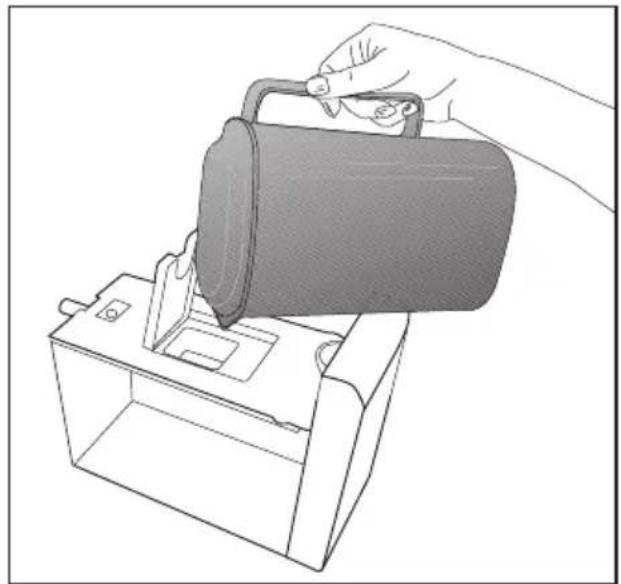

Water Dispenser 23

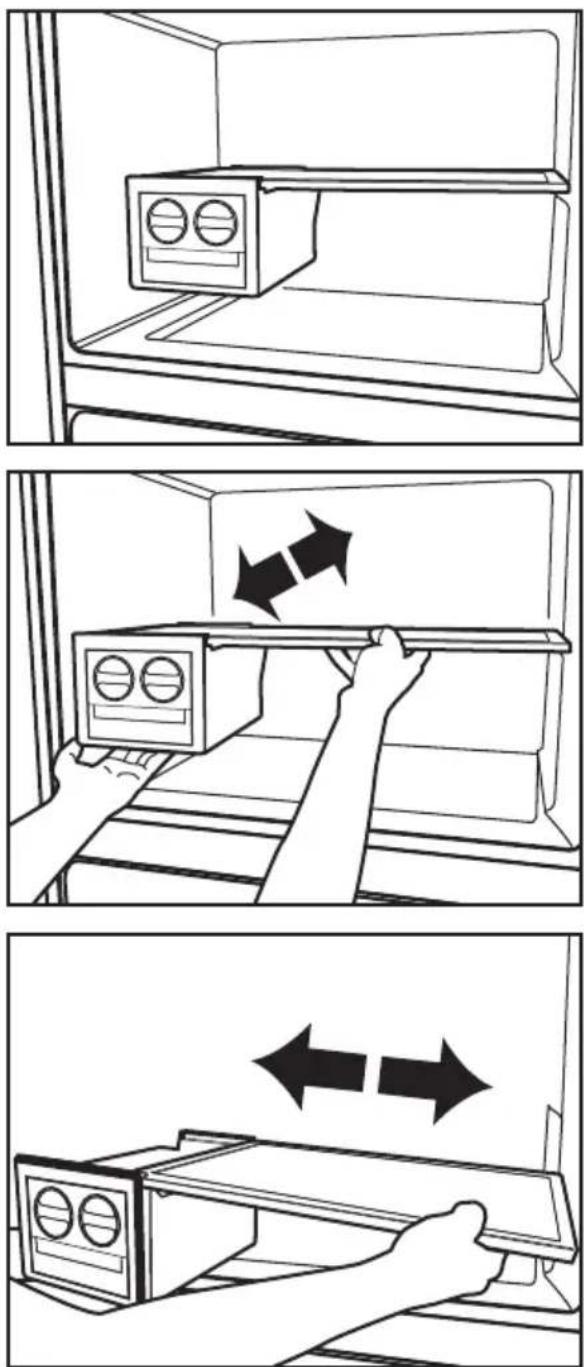

Rotary storage container .....25

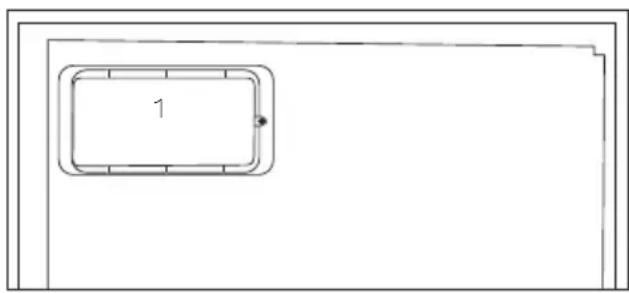

Blue light 26

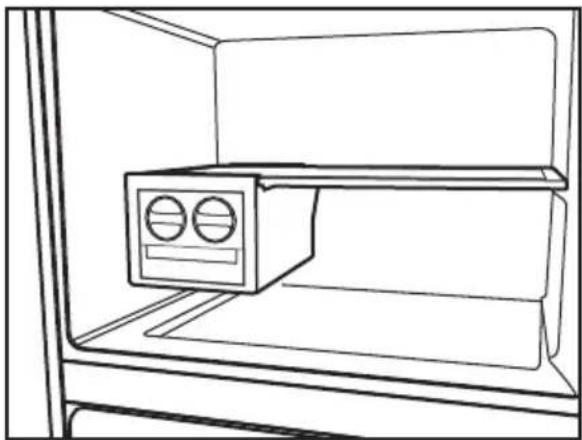

Auto I cematic 26

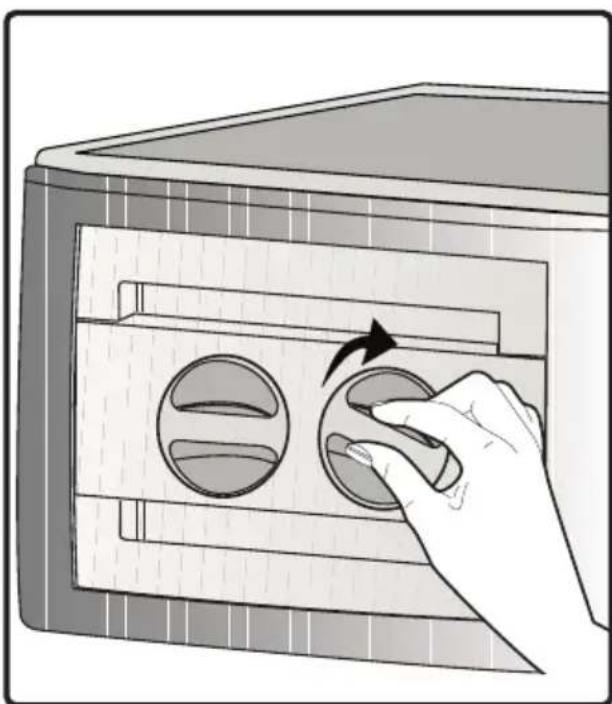

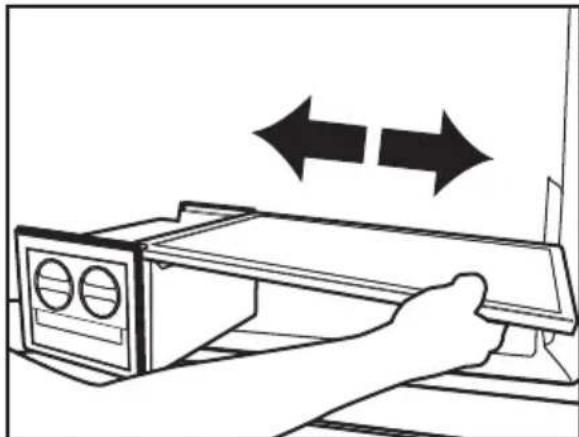

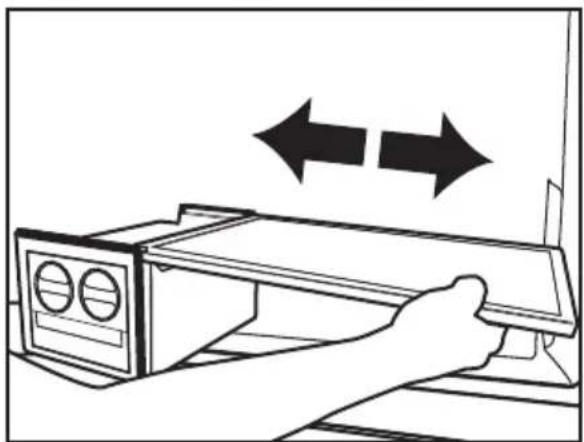

Icematic and ice storage container ..27

6 Maintenance and cleaning 28

Protection of plastic surfaces .....28

7 Troubleshooting 29

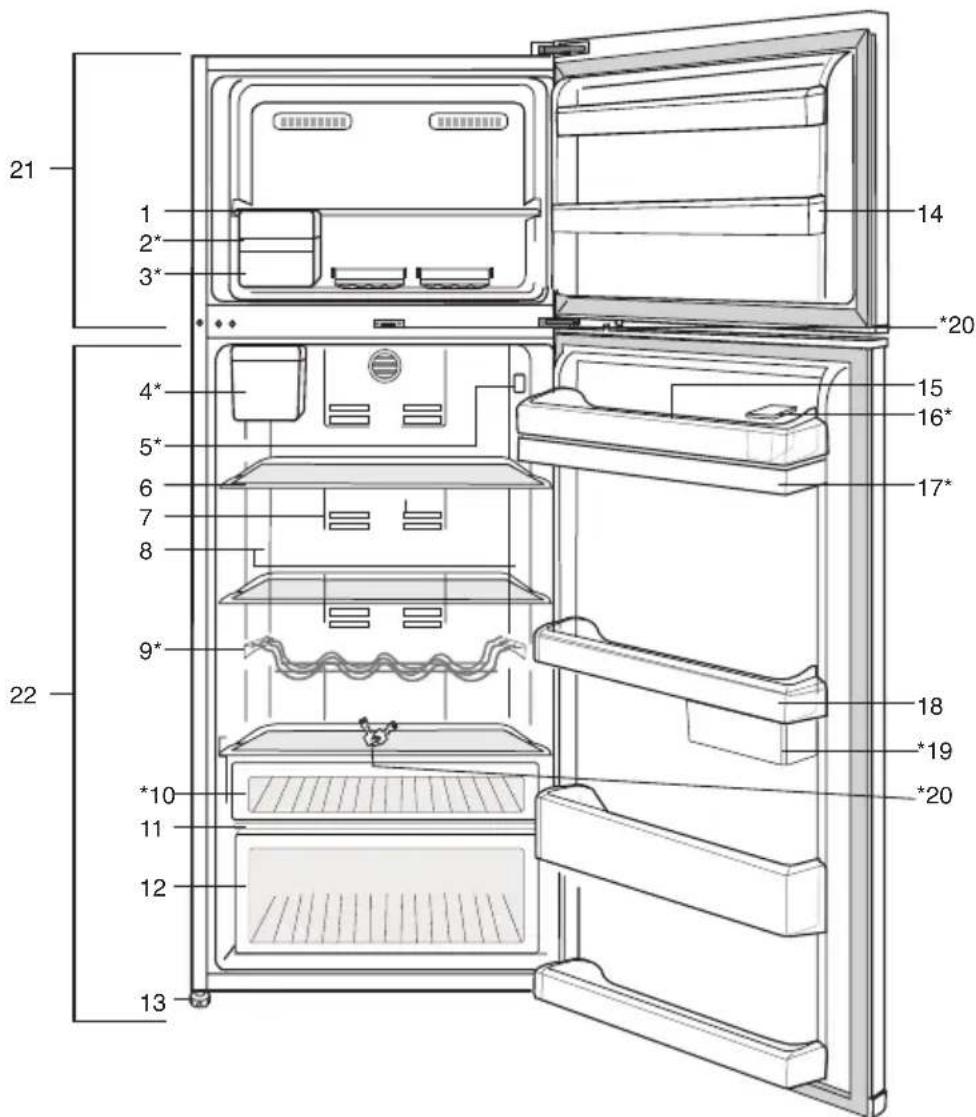

1 The refrigerator

21 1 2* 3* 4* 5* 6 7 8 9* 22 *10 11 12 13 14 *20 15 16* 17* 18 *19 *20

1. Freezer compartment shelf
2. Auto Icematic
3. Ice storage container
4. Auto Icematic water tank
5. Temperature setting indicator
6. Adjustable glass shelves
7. Odor filter
8. Illumination lens
9. Bottle shelf
10. Snack compartment
11. Crisper cover

12. Crisper

13. Adjustable legs

14. Freezer compartment door racks
15. Egg holder
16. Water dispenser filling container
17. Water dispenser tank
18. Fridge compartment door shelves
19. Sliding and rotary storage containers
20. Key
21. Freezer compartment
22. Fridge compartment

\*OPTIONAL

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then i is valid for other models.

2 Important Safety Warnings

Please review the following information. Failure to observe this information may cause injuries or material damage. Otherwise, all warranty and reliability commitments will become invalid.

Original spare parts will be provided for 10 years, following the product purchasing date.

Intended use

This product is intended to be used

• indoors and in closed areas such as homes;
- in closed working environments such as stores and offices;
- in closed accommodation areas such as farm houses, hotels, pensions.
- It should not be used outdoors.

General safety

- When you want to dispose/scrap the product, we recommend you to consult the authorized service in order to learn the

required information and authorized bodies.

• Consult your authorized service for all your questions and problems related to the refrigerator. Do not intervene or let someone intervene to the refrigerator without notifying the authorised services.
• For products with a freezer compartment; Do not eat cone ice cream and ice cubes immediately after you take them out of the freezer compartment! (This may cause frostbite in your mouth.)
• For products with a freezer compartment; Do not put bottled and canned liquid beverages in the freezer compartment. Otherwise, these may burst.
• Do not touch frozen food by hand; they may stick to your hand.

• Unplug your refrigerator before cleaning or defrosting.

• Vapor and vaporized cleaning materials should never be used in cleaning and defrosting processes of your refrigerator. In such cases, the vapor may get in contact with the electrical parts and cause short circuit or electric shock.

• Never use the parts on your refrigerator such as the door as a means of support or step.
• Do not use electrical devices inside the refrigerator.
• Do not damage the parts, where the refrigerant is circulating, with drilling or cutting tools. The refrigerant that might blow out when the gas channels of the evaporator, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries.

• Do not cover or block the ventilation holes on your refrigerator with any material.

• Electrical devices must be repaired by only authorised persons. Repairs performed by incompetent persons create a risk for the user.

• In case of any failure or during a maintenance or repair work, disconnect your refrigerator's mains supply by either turning off the relevant fuse or unplugging your appliance.
• Do not pull by the cable when pulling off the plug.
• Ensure highly alcoholic beverages are stored securely with the lid fastened and placed upright.
• Never store spray cans containing flammable and explosive substances in the refrigerator.

• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• This product is not intended to be used by persons with physical, sensory or mental disorders or unlearned or inexperienced people (including children) unless they are attended by a person who will be responsible for their safety or who will instruct them accordingly for use of the product

• Do not operate a damaged refrigerator. Consult with the service agent if you have any concerns.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• Exposing the product to rain, snow, sun and wind is dangerous with respect to electrical safety.

• Contact authorized service when there is a power cable damage to avoid danger.

• Never plug the refrigerator into the wall outlet during installation. Otherwise, risk of death or serious injury may arise.

• This refrigerator is intended for only storing food items. It must not be used for any other purpose.
• Label of technical specifications is located on the left wall inside the refrigerator.
• Never connect your refrigerator to electricity-saving systems; they may damage the refrigerator.

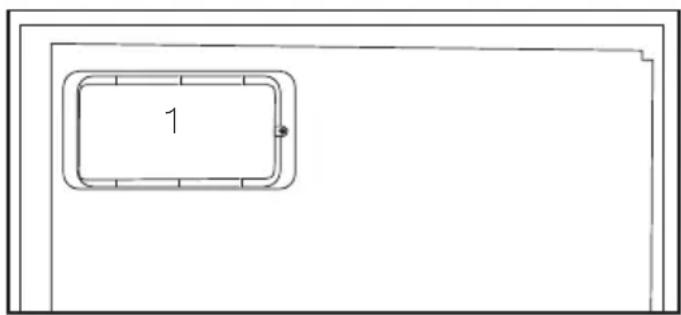

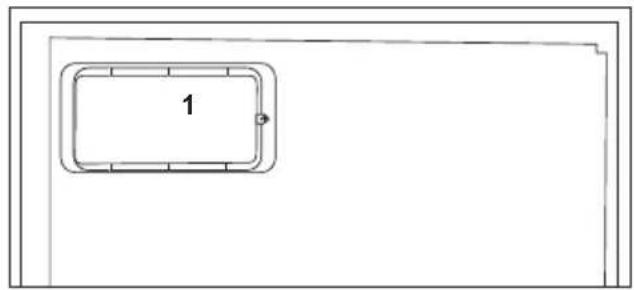

• If there is a blue light on the refrigerator, do not look at the blue light with optical tools.
• For manually controlled refrigerators, wait for at least 5 minutes to start the refrigerator after power failure.
• This operation manual should be handed in to the new owner of the product when it is given to others.

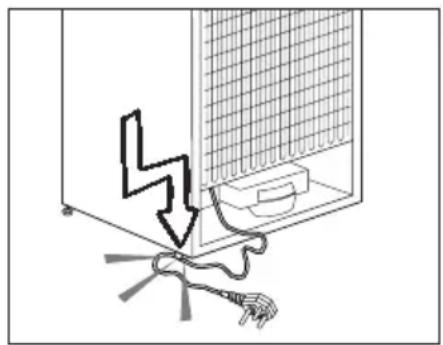

- Avoid causing damage on power cable when transporting the refrigerator. Bending cable may cause fire. Never place heavy objects on power cable. Do not touch the plug with wet hands when plugging the product

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

• Do not plug the refrigerator if the wall outlet is loose.
• Water should not be sprayed on inner or outer parts of the product for safety purposes.
• Do not spray substances containing inflammable gases such as propane gas near the refrigerator to avoid fire and explosion risk.
• Never place containers filled with water on top of the refrigerator; in the

event of spillages, this may cause electric shock or fire.

• Do not overload the refrigerator with food. If overloaded, the food items may fall down and hurt you and damage refrigerator when you open the door.
• Never place objects on top of the refrigerator; otherwise, these objects may fall down when you open or close the refrigerator's door.
• As they require a precise temperature, vaccines, heat-sensitive medicine and scientific materials and etc. should not be kept in the refrigerator.
• If not to be used for a long time, refrigerator should be unplugged. A possible problem in power cable may cause fire.

• Refrigerator may move if adjustable legs are not properly secured on the floor. Properly securing adjustable legs on the floor can prevent the

• When carrying the refrigerator, do not hold it from door handle. Otherwise, it may be snapped.

• When you have to place your product next to another refrigerator or freezer, the distance between devices should be at least 8cm. Otherwise, adjacent side walls may be humidified.
• The product shall never be used while the compartment which is located at the top or back of your product and in which electronic boards are available (electronic board box cover) (1) is open.

Technical line drawing of a mechanical component with a base and housing (no text or symbols)

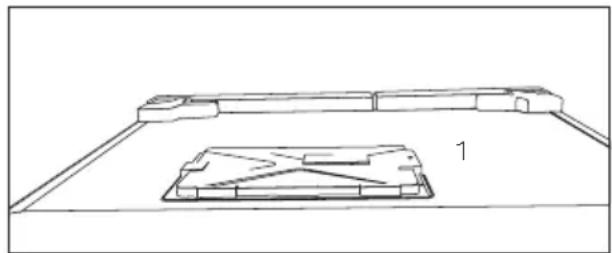

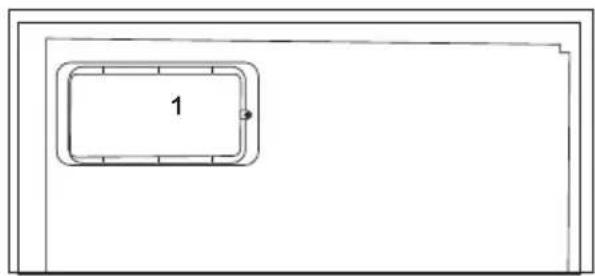

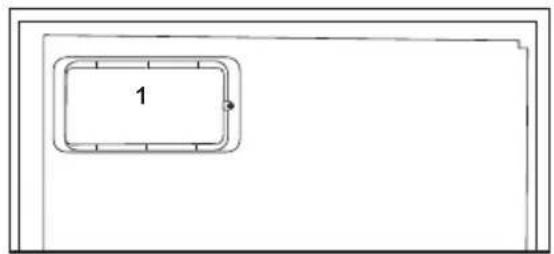

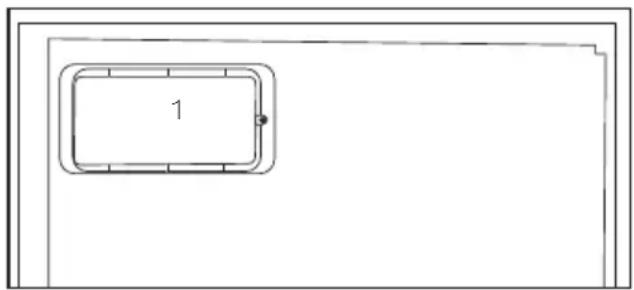

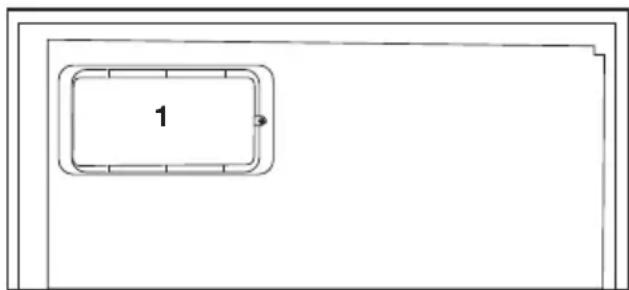

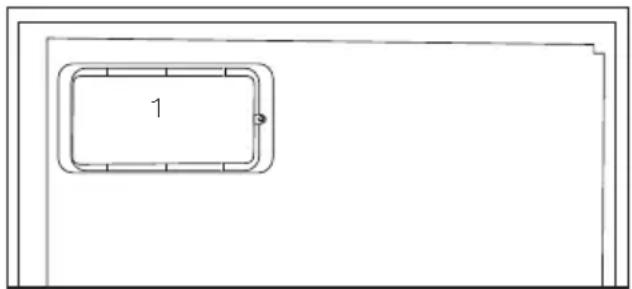

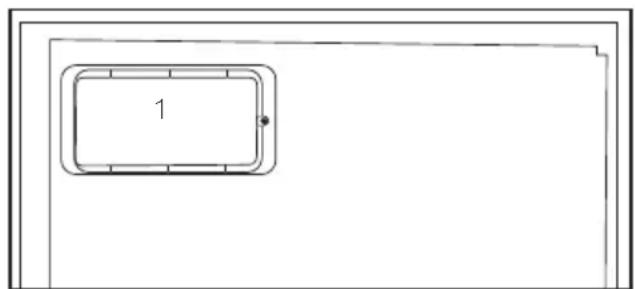

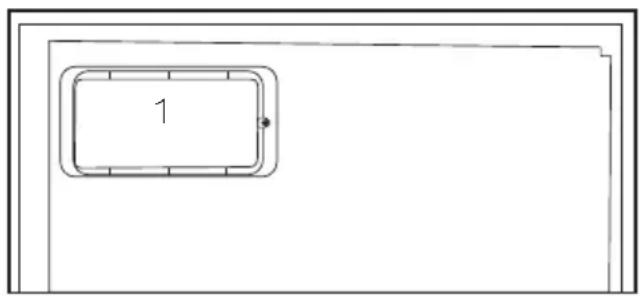

Simple line drawing of a rectangular frame with a numbered label '1' on the left side (no other text or symbols)

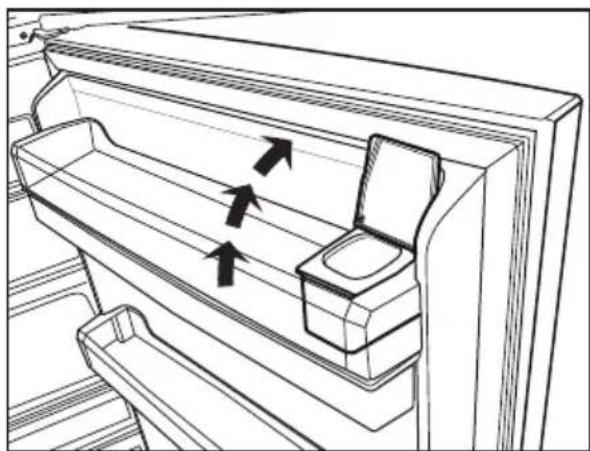

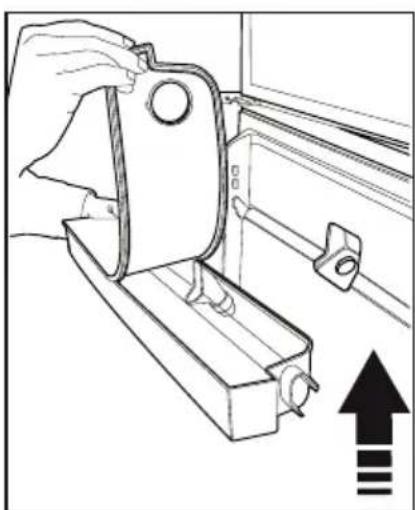

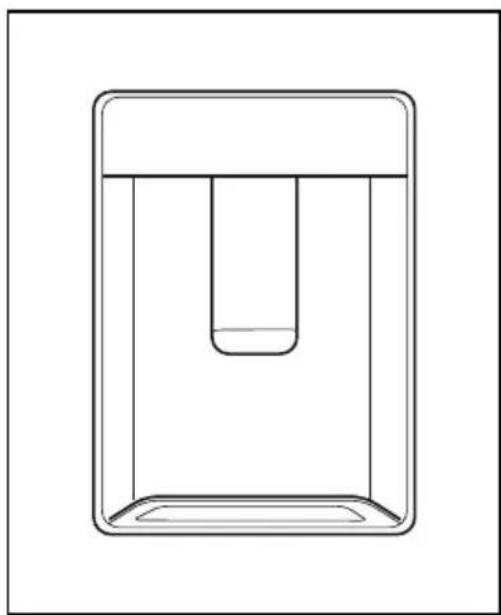

For products with a water dispenser;

• Pressure for cold water inlet shall be maximum 90 psi (6.2 bar). If your water pressure exceeds 80 psi (5.5 bar), use a pressure limiting valve in your mains system. If you do not know how to check your water pressure, ask for the help of a professional plumber.
• If there is risk of water hammer effect in your installation, always use a water hammer prevention equipment in your installation. Consult Professional plumbers is you are not sure that there is no water hammer effect in your installation.
• Do not install on the hot water inlet. Take precautions against of the risk of freezing of the hoses. Water temperature operating interval shall be 33°F (0.6°C) minimum

and 100°F (38°C) maximum.

- Use only potable water.

Child safety

• If the door has a lock, the key should be kept away from reach of children.
  • Children must be supervised to prevent them from tampering with the product.

Compliance with WEEE Directive and Disposing of the Waste Product:

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been

manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. For children's safety, cut the power cable and break the locking mechanism of the door, if any, so that it will be non-functional before disposing of the product.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Do not forget...

Any recycled substance is an indispensable matter for nature and our national asset wealth.

If you want to contribute to the re-evaluation of the packaging materials, you can consult to your environmentalist organizations or the municipalities where you are located.

HC warning

If your product's cooling system contains R600a:

This gas is flammable. Therefore, pay attention to not damaging the cooling system and piping during usage and transportation. In the event of damage, keep your product away from potential fire sources that can cause the product catch a fire and ventilate the room in which the unit is placed.

Ignore this warning if your product's cooling system contains R134a.

Type of gas used in the product is stated in the type label which is on the left wall inside the refrigerator.

Never throw the product in fire for disposal.

Things to be done for energy saving

• Do not leave the doors of your refrigerator open for a long time.
• Do not put hot food or drinks in your refrigerator.

Recommendations for the fresh food compartment

\*optional

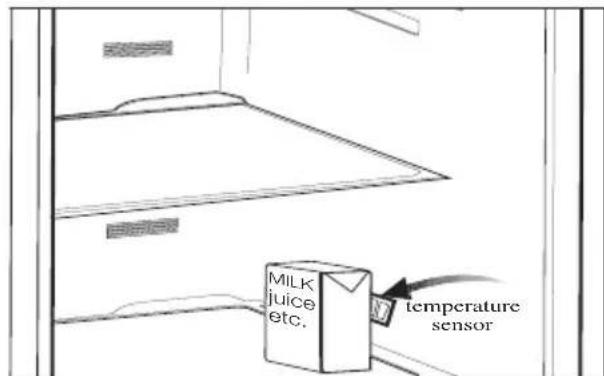

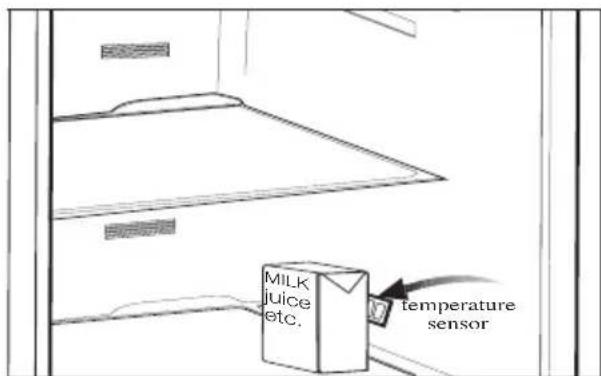

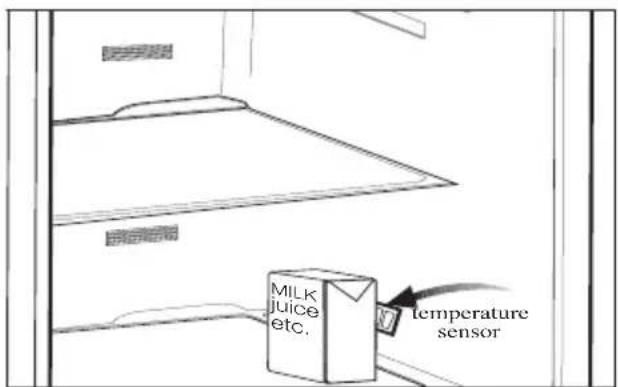

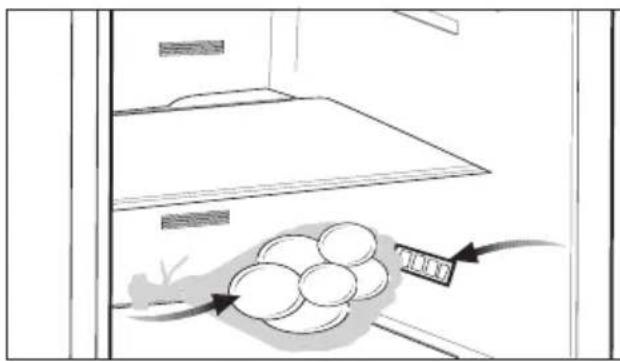

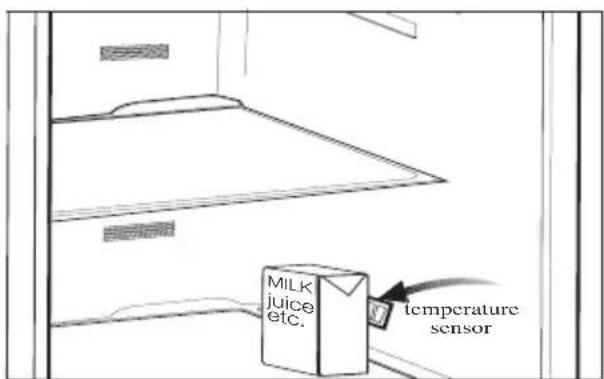

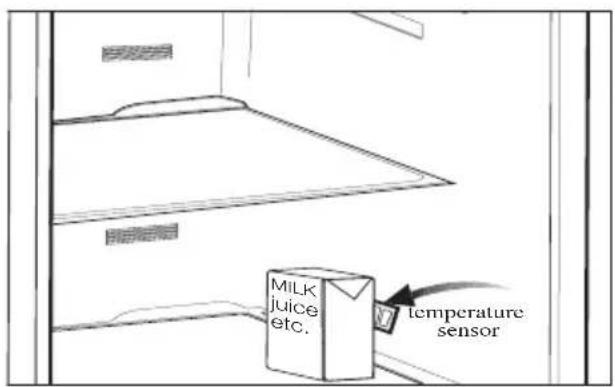

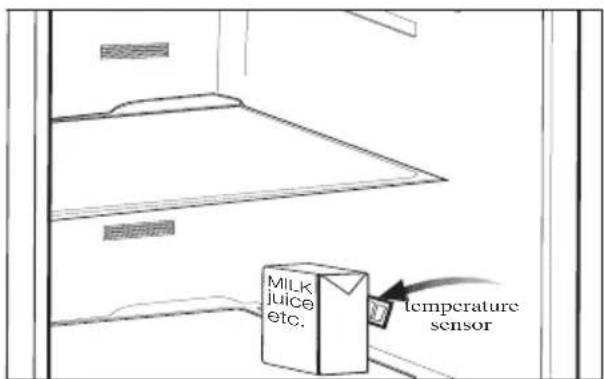

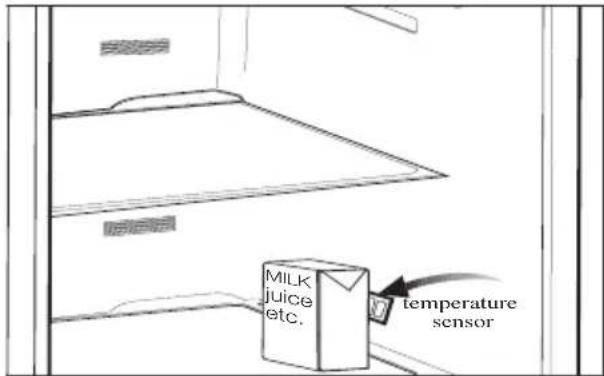

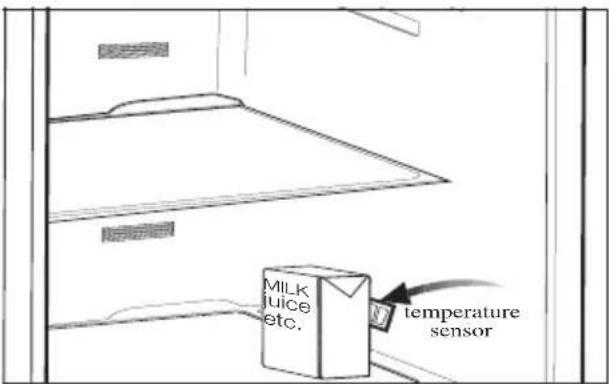

Do not allow the food to touch the temperature sensor in fresh food compartment. To allow the fresh food compartment keep its ideal storage temperature, sensor must not be hindered by food.

Do not place hot foods in the product.

Diagram of a kitchen interior showing a tray with food and a bag with arrows indicating flow (no text or symbols)

MILK juice etc. temperature sensor

- Do not overload your refrigerator so that the air circulation inside of it is not prevented. - Do not install your refrigerator under direct sunlight or near heat emitting appliances such as ovens, dishwashers or radiators. Keep your refrigerator at least 30cm away from heat emitting sources and at least 5cm from electrical ovens.

- Pay attention to keep your food in closed containers.

- For products with a freezer compartment; You can store maximum amount of food items in the freezer when you remove the shelf or drawer of the freezer. Energy consumption value stated for your refrigerator has been determined by removing freezer shelf or drawer and under maximum load. There is no harm to use a shelf or drawer according to the shapes and size of food to be frozen.

- Thawing frozen food in fridge compartment will both provide energy saving and preserve the food quality.

3 Installation

In case the information which are given in the user manual are not taken into account, manufacturer will not assume any liability for this.

Points to be paid attention to when the relocation of the refrigerator

1. Your refrigerator should be unplugged. Before transportation of your refrigerator, it should be emptied and cleaned.
2. Before it is re-packaged, shelves, accessories, crisper, etc. inside your refrigerator should be fixed with adhesive tape and secured against impacts. Package should be bound with a thick tape or sound ropes and the transportation rules on the package should be strictly observed.
3. Original packaging and foam materials should be kept for future transportations or moving.

Before you start the refrigerator, Check the following before you start to use your refrigerator:

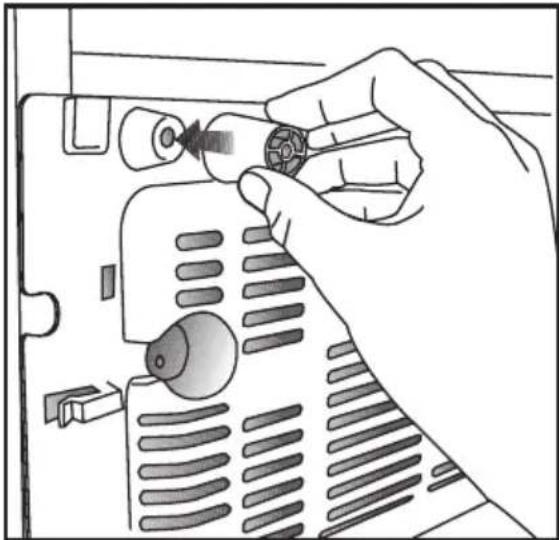

1. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.)

Illustration of a hand inserting a screw into a device component (no text or symbols visible)

1. Clean the interior of the refrigerator as recommended in the "Maintenance and cleaning" section.
2. Connect the plug of the refrigerator to the wall socket. When the fridge door is opened, fridge internal lamp will turn on.
3. When the compressor starts to operate, a sound will be heard. The liquid and gases sealed within the refrigeration system may also give rise to noise, even if the compressor is not running and this is quite normal.
4. Front edges of the refrigerator may feel warm. This is normal. These areas are designed to be warm to avoid condensation.

Electrical connection

Connect your product to a grounded socket which is being protected by a fuse with the appropriate capacity.

Important:

The connection must be in compliance with national regulations.

• The power plug must be easily accessible after installation.
• Electrical safety of your refrigerator shall be guaranteed only if the earth system in your house complies with standards.
• The voltage stated on the label located at left inner side of your product should be equal to your network voltage.
• Extension cables and multi plugs must not be used for connection.

A damaged power cable must be replaced by a qualified electrician.

⚠️ Product must not be operated before it is repaired! There is the risk of electric shock!

Disposing of the packaging

The packing materials may be dangerous for children. Keep the packing materials out of the reach of children or dispose of them by classifying them in accordance with the waste instructions stated by your local authorities. Do not throw away with regular house waste, throw away on packaging pick up spots designated by the local authorities.

The packing of your refrigerator is produced from recyclable materials.

Disposing of your old refrigerator

Dispose of your old refrigerator without giving any harm to the environment.

- You may consult your authorized dealer or waste collection center of your municipality about the disposal of your refrigerator.

Before disposing of your refrigerator, cut out the electric plug and, if there are any locks on the door, make them inoperable in order to protect children against any danger.

Placing and Installation

⚠️ If the entrance door of the room where the refrigerator will be installed is not wide enough for the refrigerator to pass through, then call the authorized service to have them remove the doors of your refrigerator and pass it sideways through the door.

1. Install your refrigerator to a place that allows ease of use.
2. Keep your refrigerator away from heat sources, humid places and direct sunlight.
3. There must be appropriate air ventilation around your refrigerator in order to achieve an efficient operation. If the refrigerator is to be placed in a recess in the wall, there must be at least 5 cm distance with the ceiling and at least 5 cm with the wall. Do not place your product on the materials such as rug or carpet.
4. Place your refrigerator on an even floor surface to prevent jolts.

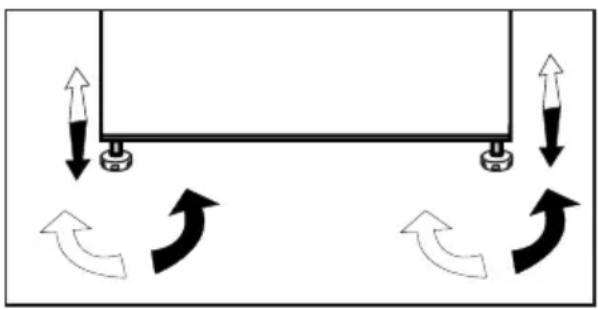

Adjusting the legs

If your refrigerator is unbalanced;

You can balance your refrigerator by turning the front legs of it as illustrated in the figure. The corner where the leg exists is lowered when you turn in the direction of black arrow and raised when you turn in the opposite direction. Taking help from someone to slightly lift the refrigerator will facilitate this process.

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

Changing the illumination lamp

To change the Bulb/LED used for illumination of your refrigerator, call your AuthorisedService.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place foodstuffs in the refrigerator/freezer in a safe and comfortable way. The lamps used in this appliance have to withstand extreme physical conditions such as temperatures below -20 °C. (only chest and upright freezer)

4 Preparation

• Your refrigerator should be installed at least 30 cm away from heat sources such as hobs, ovens, central heater and stoves and at least 5 cm away from electrical ovens and should not be located under direct sunlight.
• The ambient temperature of the room where you install your refrigerator should at least be 10^ C. Operating your refrigerator under cooler conditions is not recommended with regard to its efficiency.
• Please make sure that the interior of your refrigerator is cleaned thoroughly.
• If two refrigerators are to be installed side by side, there should be at least 2 cm distance between them.
• When you operate your refrigerator for the first time, please observe the following instructions during the initial six hours.
• The door should not be opened frequently.
• It must be operated empty without any food in it.
• Do not unplug your refrigerator. If a power failure occurs out of your control, please see the warnings in the “Recommended solutions for the problems” section.
• Original packaging and foam materials should be kept for future transportations or moving.

• The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions.

• Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided.

• In some models, the instrument panel automatically turns off 5 minutes after the door has closed. It will be reactivated when the door has opened or pressed on any key.
• Due to temperature change as a result of opening/closing the product door during operation, condensation on the door/body shelves and the glass containers is normal

5 Using your refrigerator

Indicator Panel

Indicator panels may vary depending on your product's model.

-88 173 ! ION e 8 45*62

Indicator panel aids in using your refrigerator indicator provides information about the with its audio and visual functions. error to the service personnel.

1. Freezer Compartment Temperature Indicator
2. Error Status Indicator
3. Fridge Compartment Temperature Indicato
4. Fridge Compartment Temperature Setting Button
5. Economy Mode Indicator
6. Ioniser Indicator
7. Freezer Compartment Temperature Setting Button

1. Freezer Compartment Temperature Indicator

It indicates the temperature set for Freezer compartment.

2. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "e" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3...". These numbers on the

3. Fridge Compartment Temperature Indicator

Indicates the temperature set for Fridge compartment.

4. Fridge Compartment Temperature Setting Button

Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2, 8... respectively. Press this button to set the desired temperature for the fridge compartment.

5. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode.

6. Ioniser Indicator

Indicator light lights up continuously. This light indicates that your refrigerator is protected against the bacteria.

7. Freezer Compartment Temperature Setting Button

Press this button to set the temperature of the freezer compartment to -18, -20, -22, -24, -18... respectively. Press this button to set the desired temperature for the freezer compartment.

15 14 13 -88 1 12 11 -88 2 10 9 8* * 7 3 4 5 6

1. Freezer compartment setting / Icematic on-off button
2. Fridge compartment setting button
3. Error status indicator
4. Key lock indicator
5. Eco Extra Function indicator
6. Eco Extra/Vacation Button
7. Vacation function indicator

8. Icematic off indicator (*in some models)

9. Economic usage indicator

10. Quick fridge function indicator
11. Quick fridge function button
12. Fridge compartment temperature setting indicator
13. Quick freeze function button
14. Freezer compartment temperature setting indicator
15. Quick freeze function indicator

Figures that take place in this instruction manual are schematic and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then is valid for other models.

1. Freezer Compartment Setting / Icematic On-Off Button

This function allows you to make the freezer compartment temperature setting. Press this button to set the temperature of the freezer compartment to -18, -20, -22 and -24 respectively.

To stop ice formation, press Icematic on-off button for 3 seconds. Water flow from water tank will stop when this function is selected. However, ice made previously can be taken from the Icematic. To restart ice formation, press Icematic on-off button for 3 seconds.

2. Fridge Compartment Setting Button

This function allows you to make the fridge compartment temperature setting. Press this button to set the temperature of the fridge compartment to 8, 6, 4, 2 respectively.

3. Error Status Indicator

If your refrigerator does not cool adequately or if there is a sensor failure, this indicator will be activated. When this indicator is active, Freezer Compartment Temperature indicator will display "E" and Fridge Compartment Temperature Indicator will display numbers such as "1,2,3...". These numbers on the indicator provides information about the error to the service personnel.

When you place hot food into the freezer compartment or if you leave the door open for a long time, exclamation mark can illuminate for some time. This is not a failure; this warning will disappear when the food cools down.

4. Key Lock Indicator

Use this function if you do not want your refrigerator temperature setting changed. Press Fridge compartment setting button and Freezer compartment setting button simultaneously for a long time (3 sec) to activate this function.

5. Eco Extra Function Indicator

It indicates that the Eco-Extra function is active.

If this function is active, your refrigerator will automatically detect the least usage periods and energy-efficient cooling will be performed during those times. Economy indicator will be active while energy-efficient cooling is performed.

Press the relevant button again to deactivate this function.

6. Eco Extra/Vacation Button

Press this button briefly to activate the Eco Extra function. Press and hold this button for 3 sec. to activate the Vacation function. Press this button again to deactivate the selected function.

7. Vacation Function Indicator

Indicates that the vacation function is active. If this function is active, "-" appears on the indicator of the fridge compartment and no cooling is performed in the fridge compartment. Other compartments will be cooled in accordance with the temperature set for them.

Press the relevant button again to deactivate this function.

8. Ice Off indicator

Icematic will not run when the indicator of this function is active. See Item 1 to enable the Icematic.

9. Economy Mode Indicator

Indicates that the refrigerator is running in energy-efficient mode. Freezer Compartment temperature

This indicator will be active if the function is set to -18 or the energy efficient cooling is being performed due to Eco-Extra function.

10. Quick Fridge Indicator

This icon flashes in an animated style when the Quick Fridge function is active.

11. Quick Fridge Function

When you press the Quick Fridge button, the temperature of the compartment will be colder than the adjusted values.

This function can be used for food placed in the fridge compartment and required to be cooled down rapidly.

If you want to cool large amounts of fresh food, it is recommended to active this feature before putting the food into the fridge.

Quick Fridge indicator turns on when the Quick Fridge function is on. To cancel this function press Quick Fridge button again.

If you do not cancel it, Quick Fridge will cancel itself automatically after 4 hours or when the fridge compartment reaches to the required temperature.

This function is not recalled when power restores after a power failure.

12. Fridge Compartment Temperature Setting Indicator

Indicates the temperature set for the Fridge Compartment.

13. Freezer Compartment Temperature Setting Indicator

Indicates the temperature set for the Freezer Compartment.

14. Quick Freeze Function

Quick Freeze indicator turns on when the Quick Freeze function is active. To cancel this function press Quick Freeze button again. Quick Freeze indicator will turn off and return to its normal settings. If you do not cancel it, Quick Freeze will cancel itself automatically after 8 hours or when the freezer compartment reaches to the required temperature.

If you want to freeze large amounts of fresh food, press the Quick Freeze button before putting the food into the freezer compartment.

If you press the Quick Freeze button repeatedly with short intervals, the electronic circuit protection will be activated and the compressor will not start up immediately.

This function is not recalled when power restores after a power failure.

15. Quick Freeze Indicator

This icon flashes in an animated style when the Quick Freeze function is active.

Door Open Warning

(This feature may vary depending on the door of the product and may not exist in some models.)

A audio warning signal will be given when the door of your product is left open for at least 1 minute. This warning will be muted when the door is closed or any of the display buttons (if any) are pressed.

Freezing fresh food

• Wrap or cover the food before placing them in the refrigerator.
• Hot food must cool down to the room temperature before putting them in the refrigerator.
• The foodstuff that you want to freeze must be fresh and in good quality.
• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• The foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

• Materials to be used for packaging must be tear-proof and resistant to cold, humidity, odor, oils and acids and they must also be airtight. Moreover, they must be well closed and they must be made from easy-to-use materials that are suitable for deep freeze usage.

• Frozen food must be used immediately after they are thawed and they should never be re-frozen.

• Please observe the following instructions to obtain the best results.

• Do not freeze too large quantities of food at one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.

• Placing warm food into the freezer compartment causes the cooling system to operate continuously until the food is frozen solid.
• Take special care not to mix already frozen food and fresh food.

Freezer Compartment Setting	Fridge Compartment Setting	Explanations
-18°C 4°C This is the normal recommended setting.
-20,-22 or -24°C 4°C These settings are recommended when the ambient temperature exceeds 30°C.
Quick Freeze 4°C		Use when you wish to freeze your food in a short time. Your refrigerator will return to its previous mode when the process is over.
-18°C or colder 2°C		If you think that your fridge compartment is not cold enough because of the hot conditions or frequent opening and closing of the door.
-18°C or colder Quick Fridge		You can use it when your fridge compartment is overloaded or if you wish to cool down your food rapidly. It is recommended that you activate quick fridge function 4-8 hours before placing the food.

Recommendations for preservation of frozen food

• Prepacked commercially frozen food should be stored in accordance with the frozen food manufacturer's instructions for a (star) frozen food storage compartment.
• To ensure that the high quality achieved by the frozen food manufacturer and the food retailer is maintained, the following should be remembered:
• Put packages in the freezer as quickly as possible after purchase.
• Ensure that contents are labeled and dated.
• Do not exceed "Use By", "Best Before" dates on the packaging.

Defrosting

The freezer compartment defrosts automatically.

Placing the food

Freezer compartment shelves	Various frozen food such as meat, fish, ice cream, vegetables and etc.
Egg holder Egg
Fridge compartment shelves	Food in pans, covered plates and closed containers
Fridge compartment door shelves	Small and packaged food or drinks (such as milk, fruit juice and beer)
Crisper Vegetables and fruits
Freshzone compartment	Delicatessen products (cheese, butter, salami and etc.)

Deep-freeze information

Food must be frozen as rapidly as possible when they are put in a refrigerator in order to keep them in good quality.

It is possible to keep the food for a long time only at -18^ C or lower temperatures.

You can keep the freshness of food for many months (at -18^ C or lower temperatures in the deep freeze).

WARNING!

• Foodstuff must be divided into portions according to the family's daily or meal based consumption needs.
• Foodstuff must be packaged in an airtight manner to prevent them from drying even if they are going to be kept for a short time.

Materials necessary for packaging:

• Cold resistant adhesive tape
• Self adhesive label
• Rubber rings
• Pen

Materials to be used for packaging the foodstuff must be tear-proof and resistant to cold, humidity, odor, oils and acids.

Foodstuff to be frozen should not be allowed to come in contact with the previously frozen items to prevent their partial thawing.

Frozen food must be used immediately after they are thawed and they should never be re-frozen.

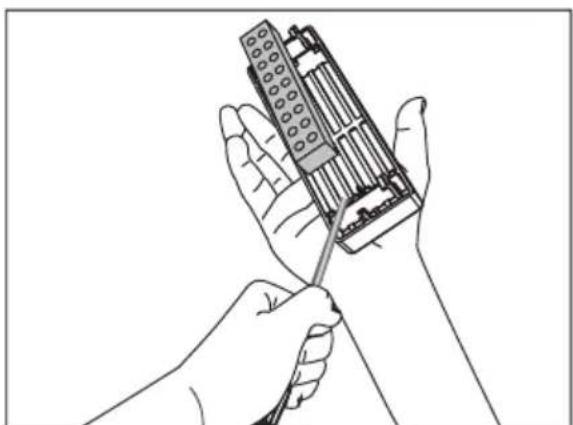

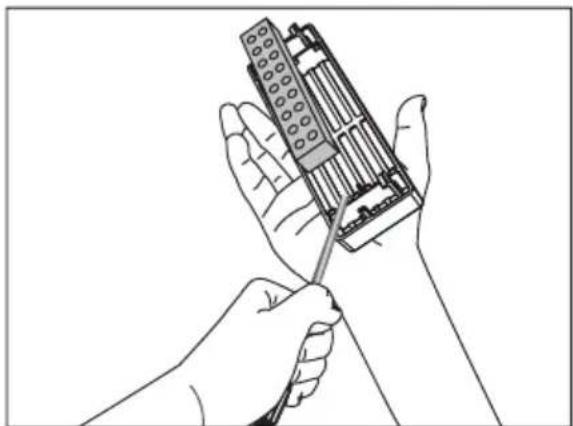

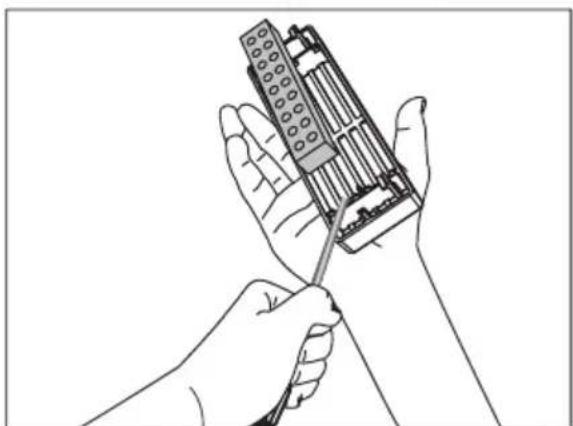

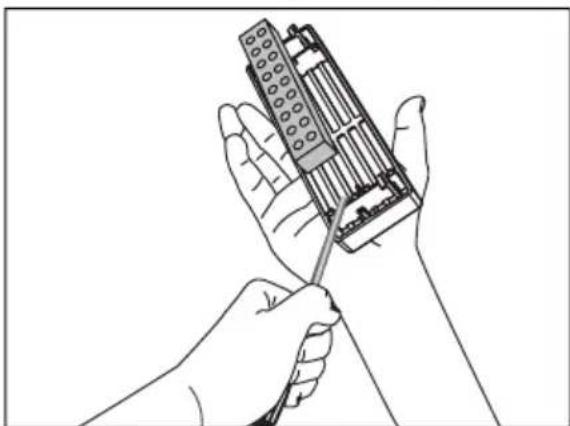

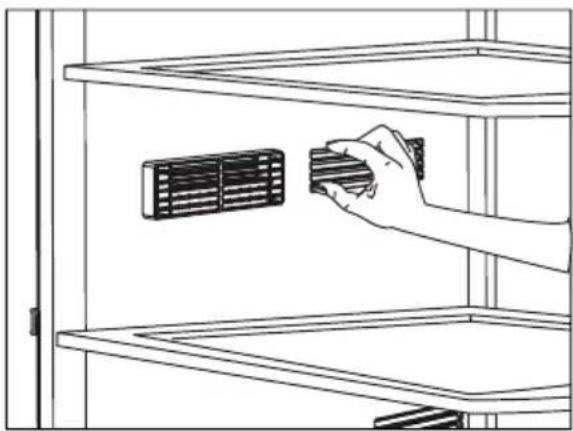

Description and cleaning of odor filter:

Odor filter prevents unpleasant odor build-up in your refrigerator.

Pull the cover, into which the odor filter is installed, downwards and remove as illustrated. Leave the filter under sunlight for one day. Filter will be cleaned during this time. Install the filter back to its place.

Odor filter must be cleaned once in a year.

Line drawing of a hand inserting a component into a storage cabinet (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned casing (no text or symbols)

Line drawing of a hand holding a mechanical device with a screwdriver inserted (no text or symbols)

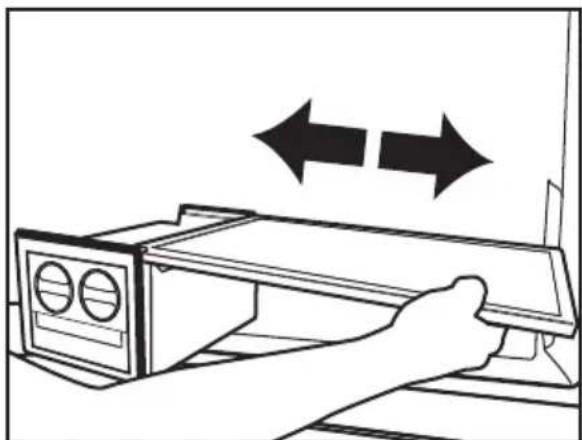

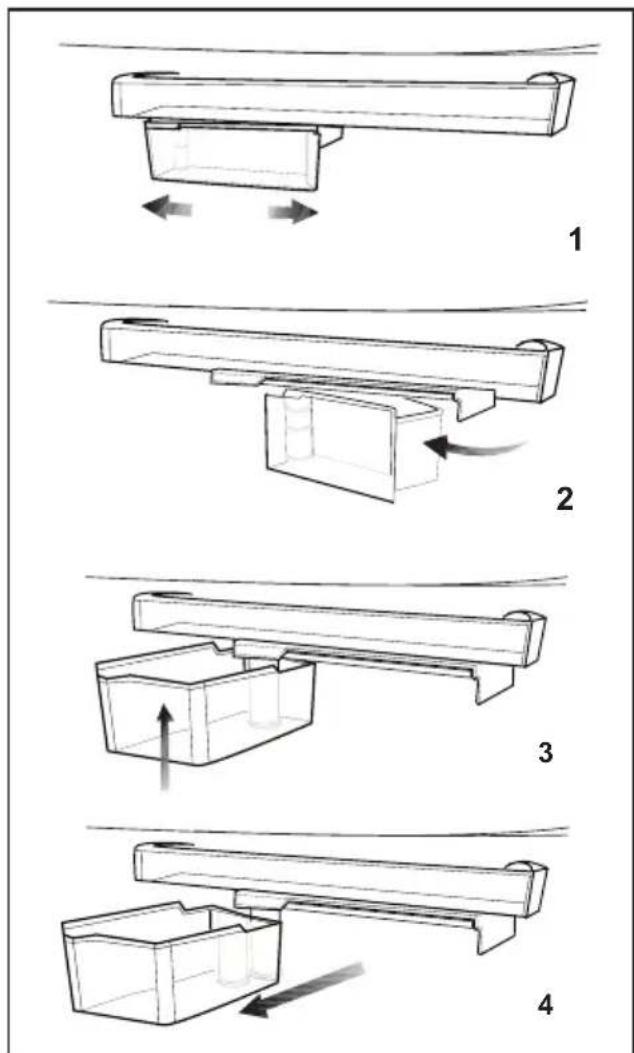

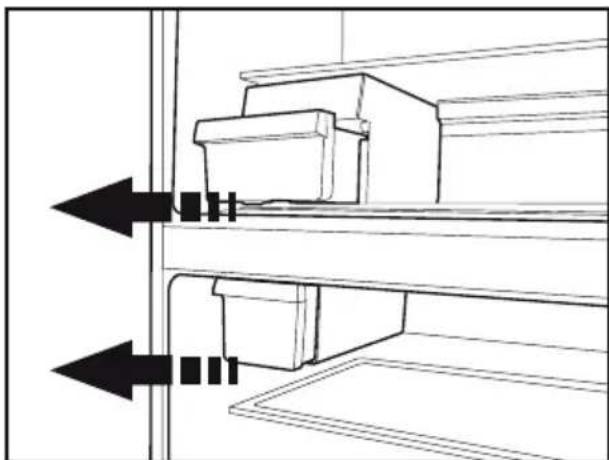

Snack compartments

Use these compartments for your food which you want store at a temperature a few degrees below the fridge compartment.

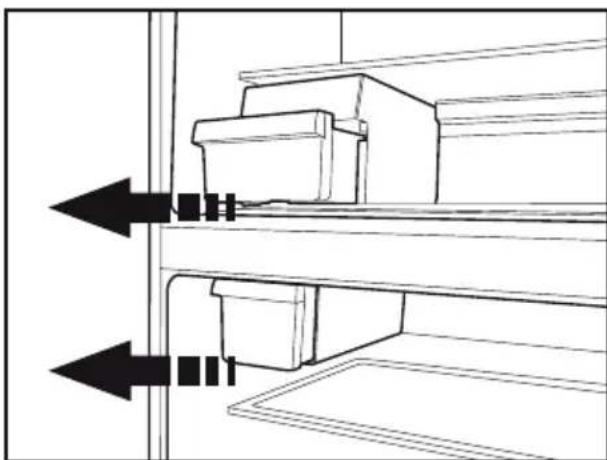

You can increase the inner volume of your refrigerator by removing any of the snack compartments.

1. Pull the compartment towards yourself until it rests and stops against the stopper.
2. Lift the front section and pull towards yourself to remove the compartment from its seating.

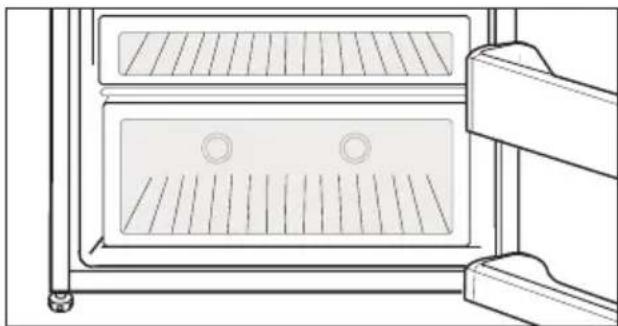

You can place the food, that you want to freeze, in these compartments in order to prepare them for freezing.

Line drawing of a hand placing a rectangular appliance into a rack with a mesh grille (no text or symbols)

Egg holder

You can install the egg holder to the desired door or body shelf.

Never store the egg holder in the freezer compartment

Technical line drawing of a mechanical component with circular cavities (no text or symbols)

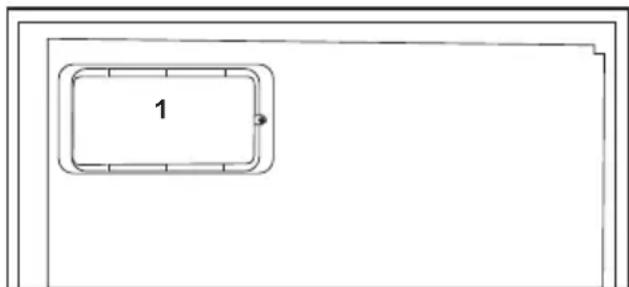

Water Dispenser

(in some models)

Water dispenser is a very useful feature based on reaching cold water without opening the door of your refrigerator. As you will not have to open your refrigerator door frequently, you will have saved energy.

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

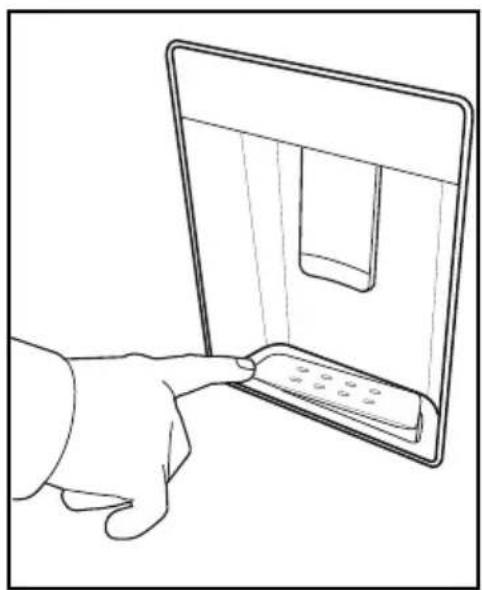

Using the water spring

Push the arm of the water dispenser with your glass. The dispenser will cease operating once you release the arm.

When operating the water dispenser, maximum flow can be obtained by pressing the arm fully. Please remember that the amount of flow from the dispenser is subject to the degree you press the arm.

As the level of the water in your glass/container rises, slightly lessen the pressure on the arm to prevent the overspill. If you slightly press the arm, the water will drop; this is quite normal and not a failure.

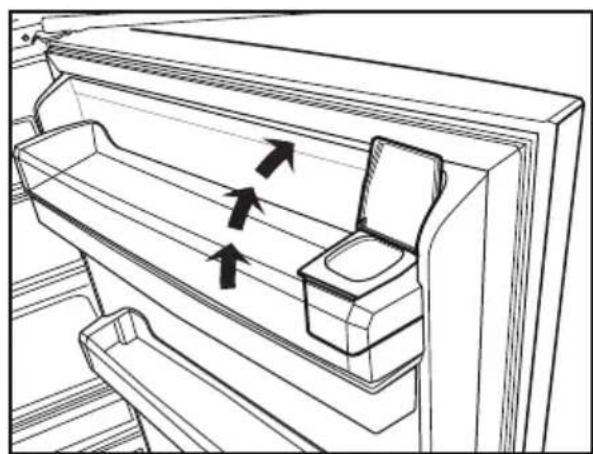

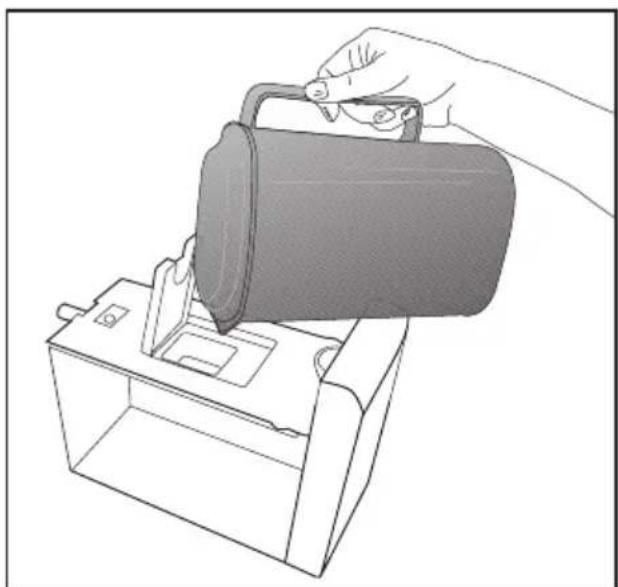

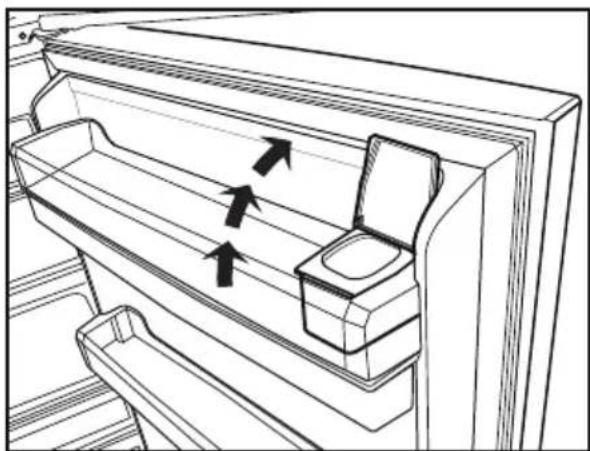

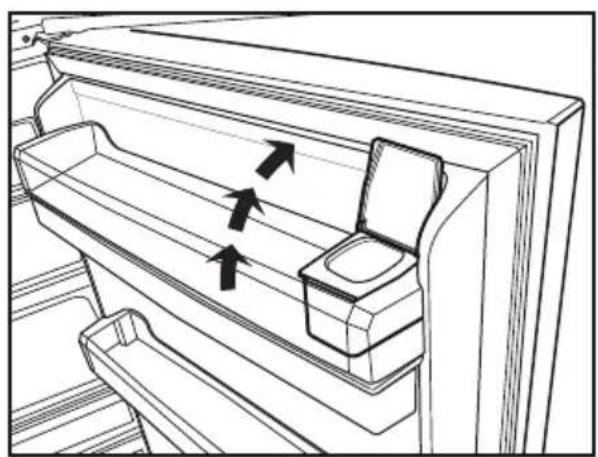

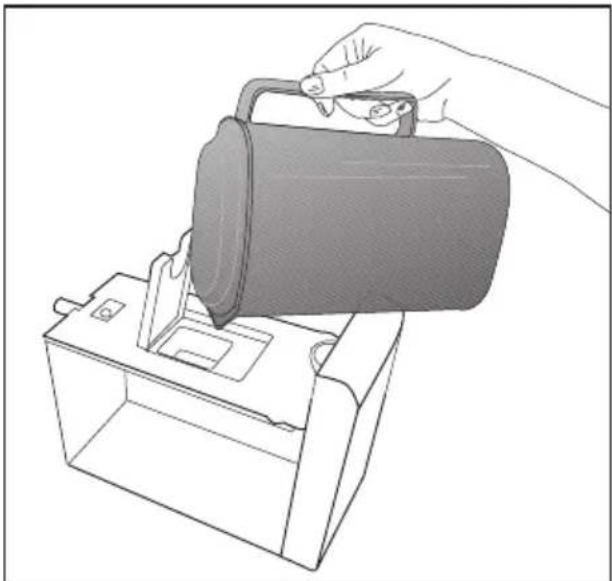

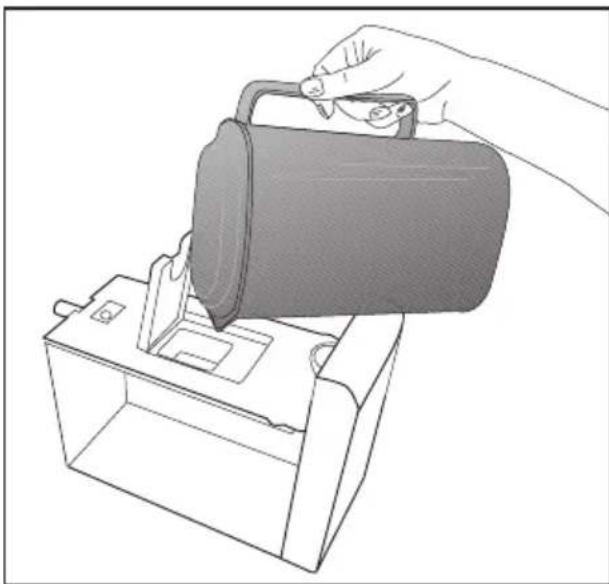

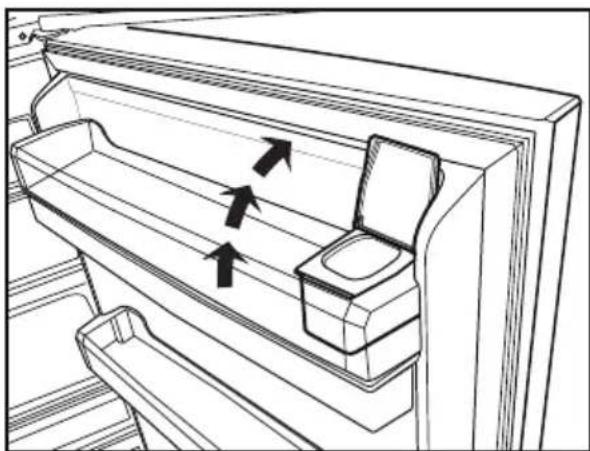

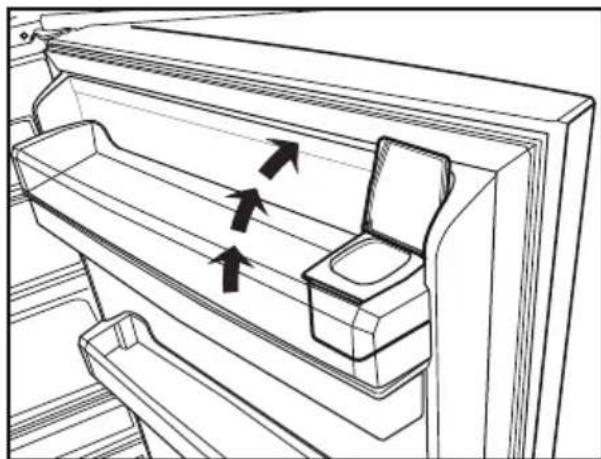

Filling the water dispenser water tank

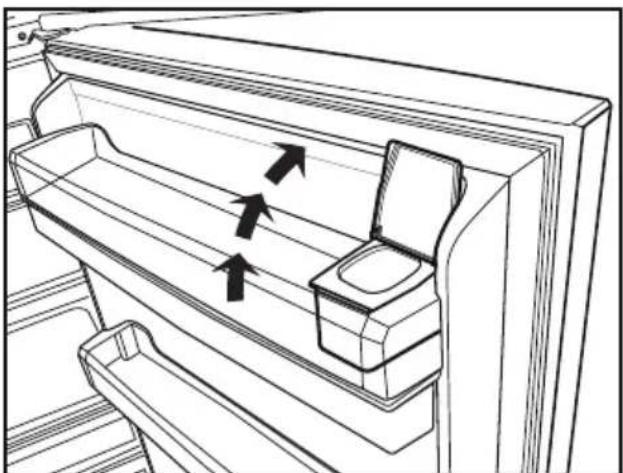

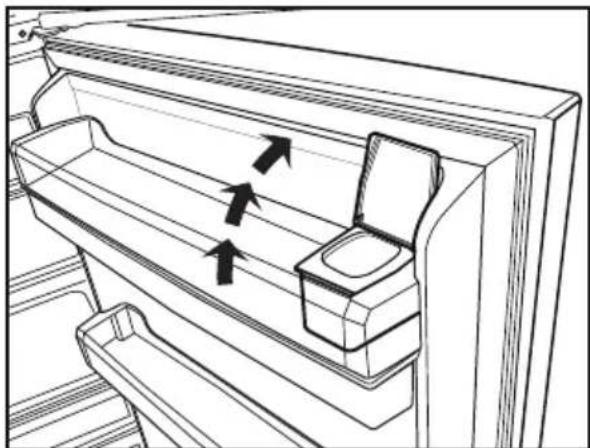

Water tank filling reservoir is located inside the door rack. Open the reservoir cover and fill in clean potable water. And then, close the lid.

Line drawing of a refrigerator interior showing front and side panels (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and toilet with directional arrows indicating movement (no text or symbols)

Warning!

- Do not fill the water tank with any other liquid except for water such as fruit juices, carbonated beverages or alcoholic drinks which are not suitable to use in the water dispenser. Water dispenser will be irreparably damaged if these kinds of liquids are used. Warranty does not cover such usages. Some chemical substances and additives contained in these kinds of drinks/liquids may damage the water tank material.

• Use clean and pure potable water only.
• Capacity of the water tank is 3 liters; do not overfill.
• Push the arm of the water dispenser with a rigid glass. If you are using disposable plastic glasses, push the arm with your fingers from behind the glass.

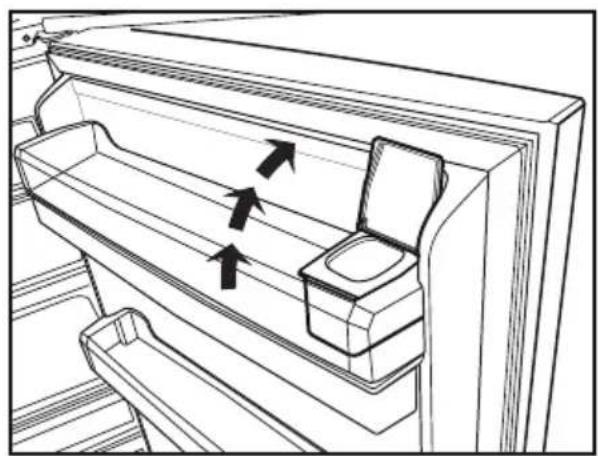

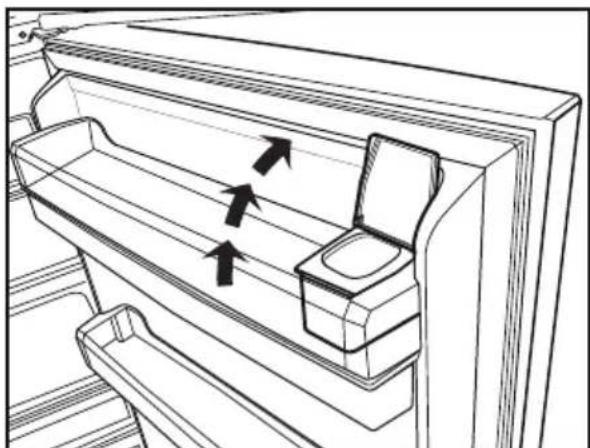

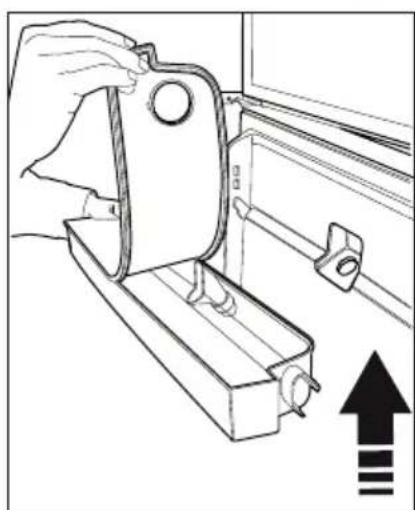

Cleaning the water tank

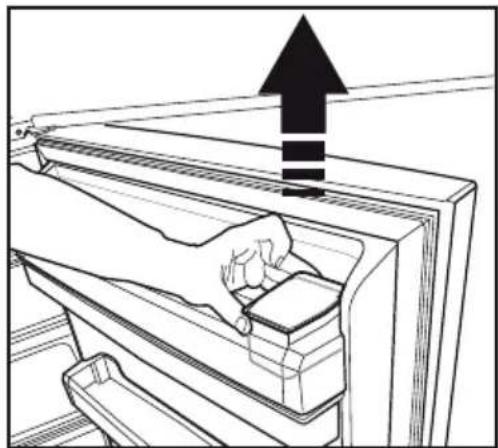

• Remove the water filling reservoir inside the door rack.

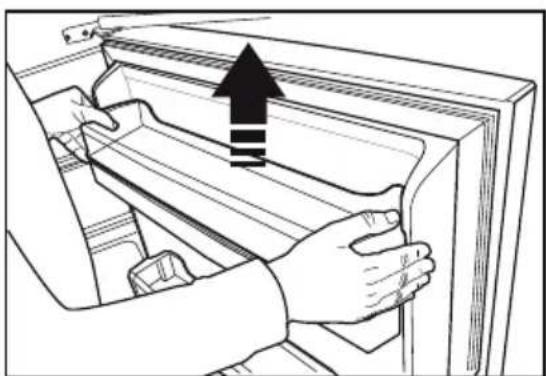

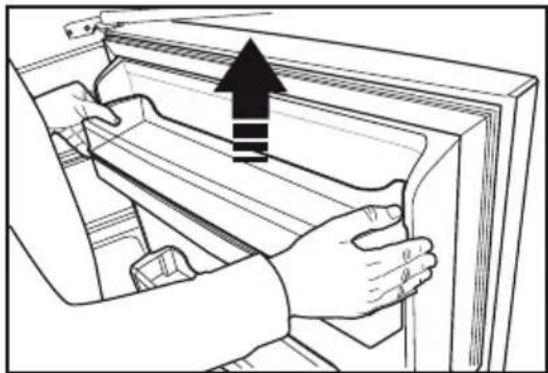

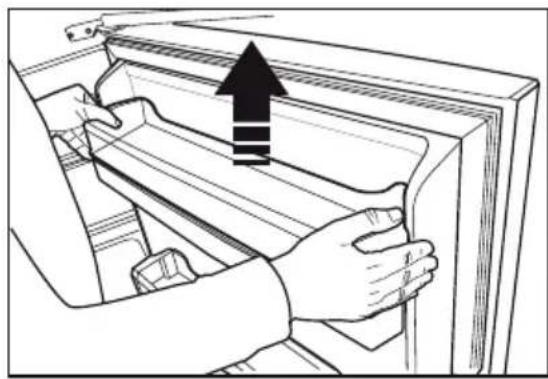

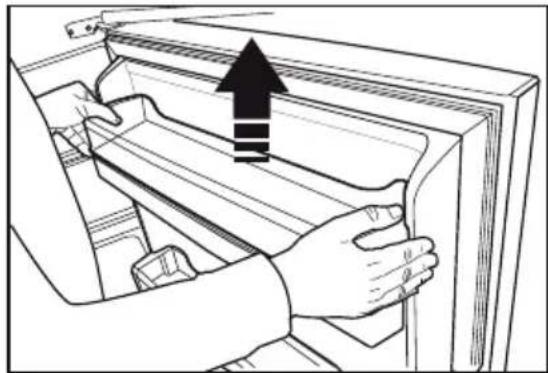

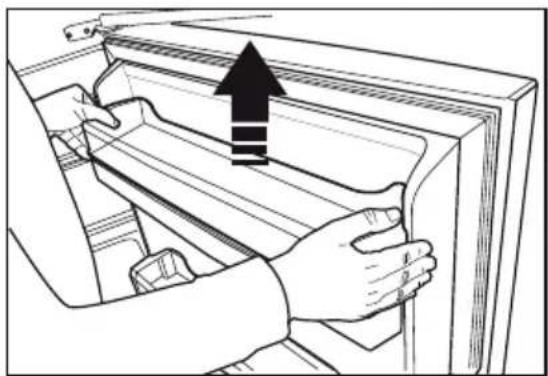

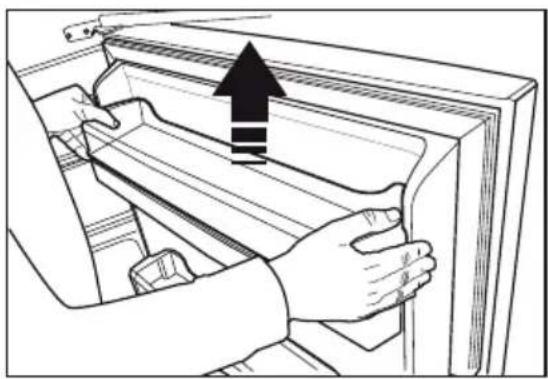

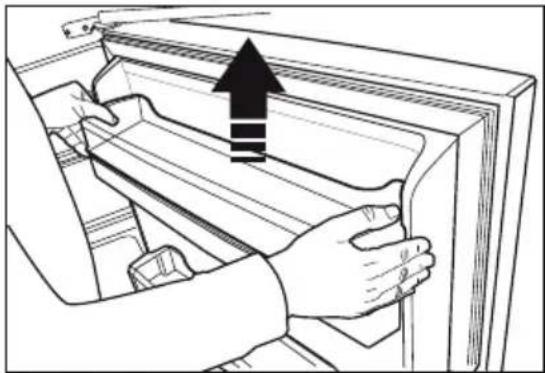

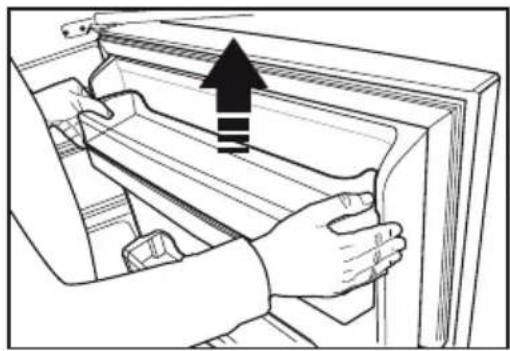

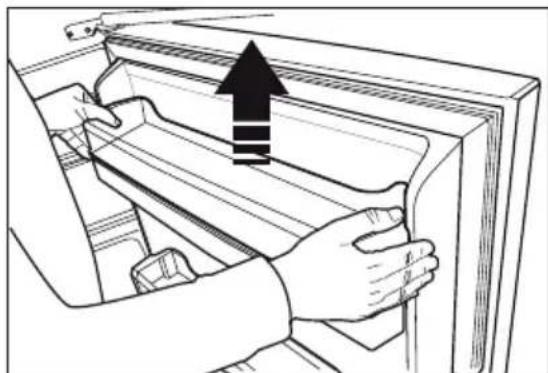

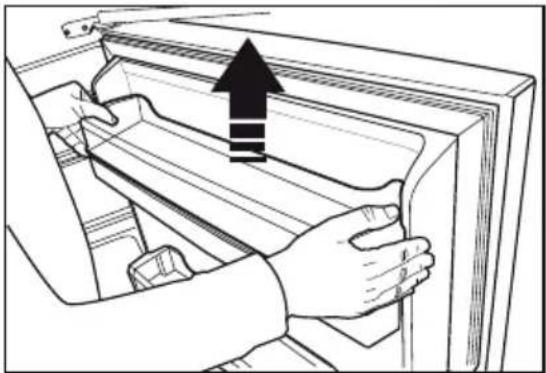

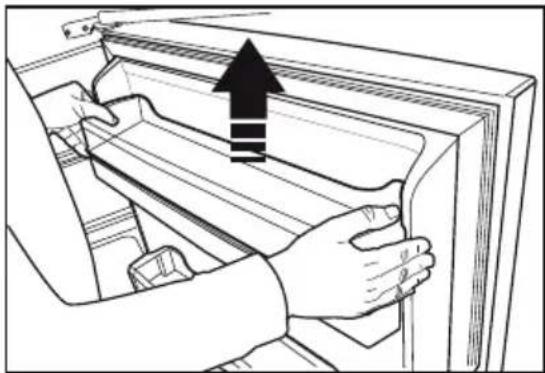

• Remove the door rack by holding from both sides.

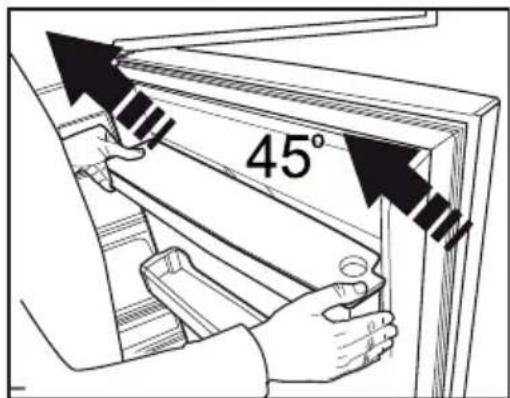

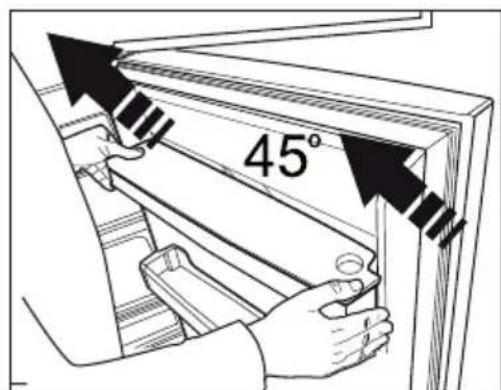

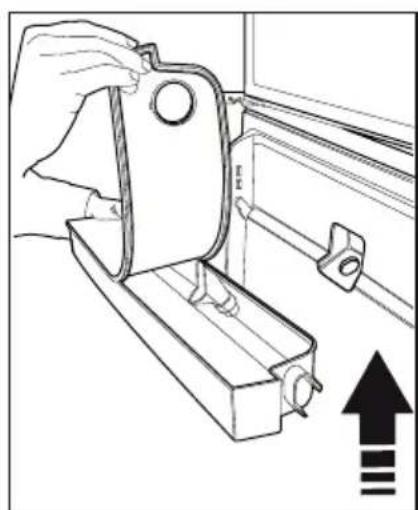

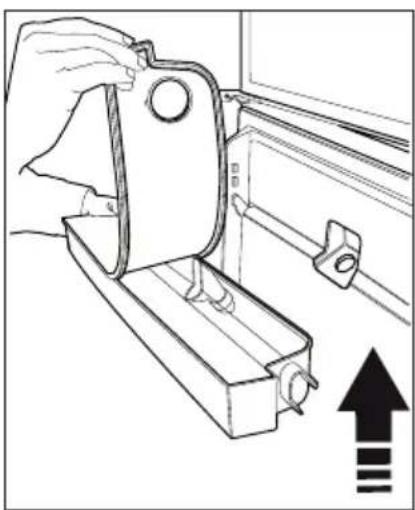

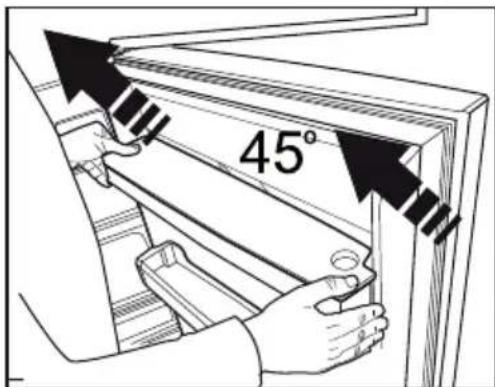

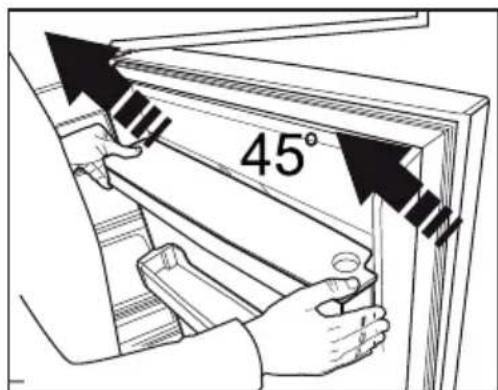

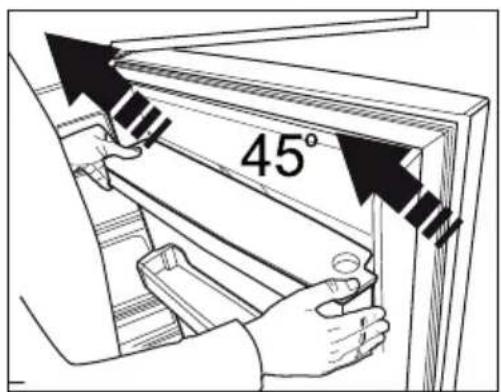

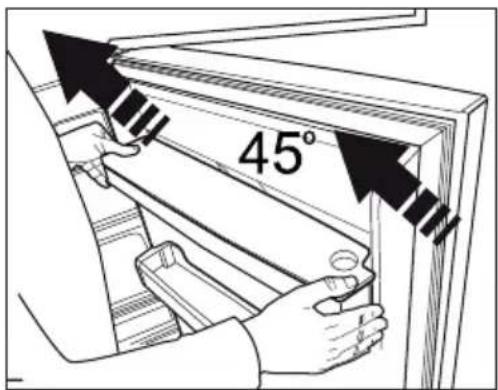

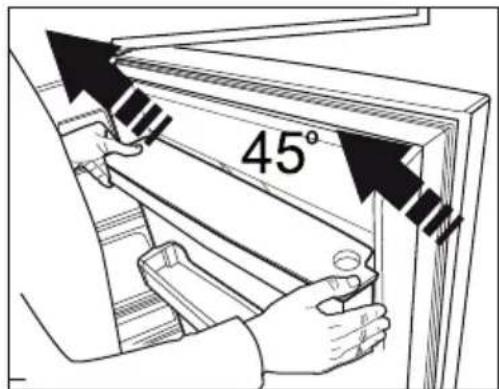

• Grab the water tank from both sides and remove it with an angle of 45^ .

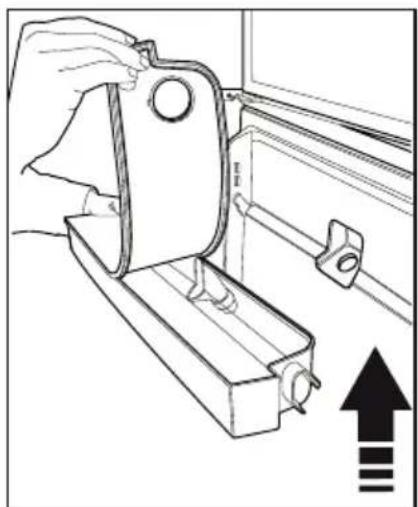

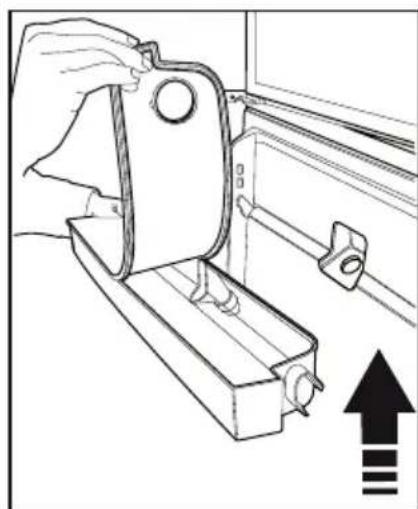

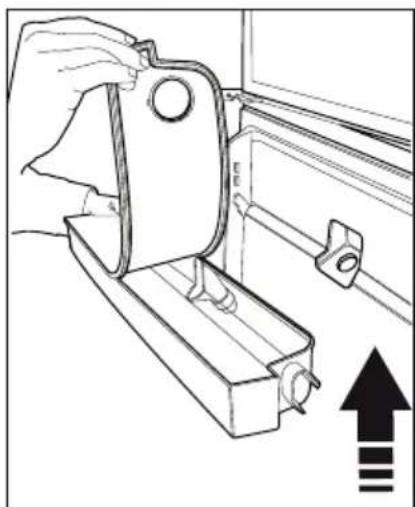

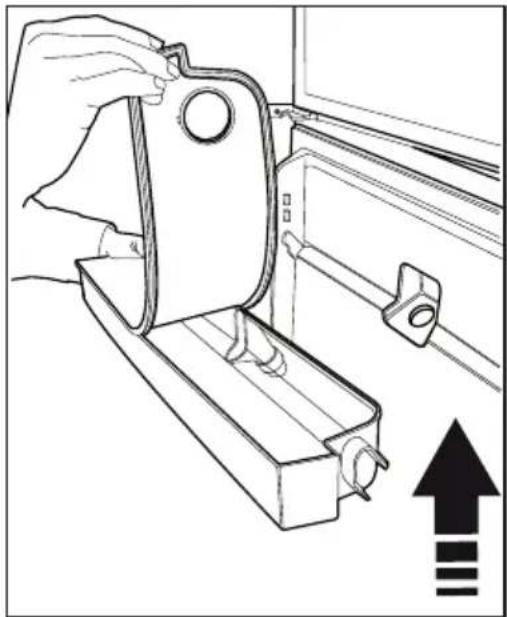

• Clean the water tank by removing its lid.

Important:

Components of the water tank and water dispenser should not be washed in dishwasher.

Line drawing of a hand placing a component into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an upward arrow and three vertical lines, no text or symbols present.

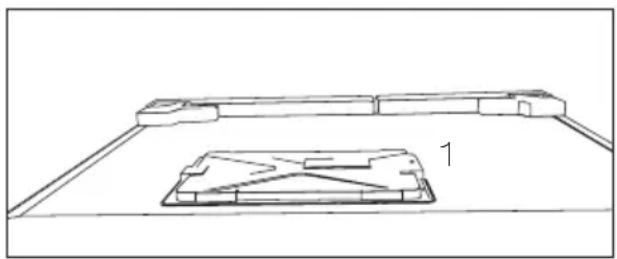

Water tray

Water that dripped while using the water dispenser accumulates in the spillage tray.

Take out the plastic strainer as shown in the figure.

With a clean and dry cloth, remove the water that has accumulated

CAUTION: Connect only to a potable water line.

Line drawing of a hand inserting a card into a device (no text or symbols)

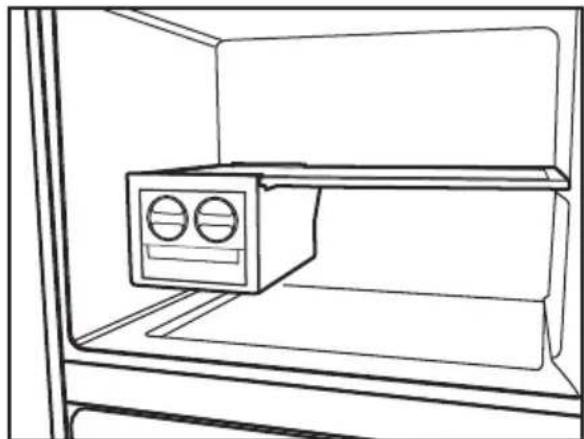

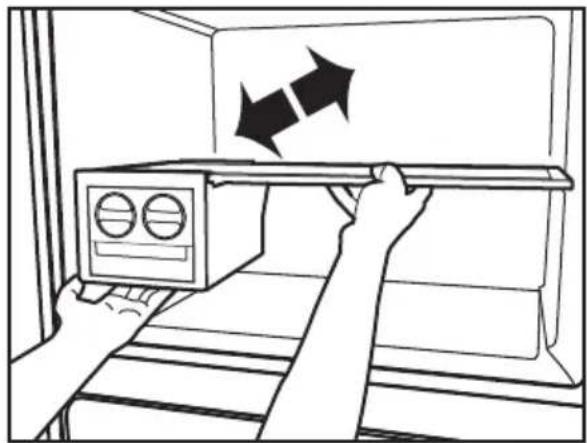

Rotary storage container

(in some models)

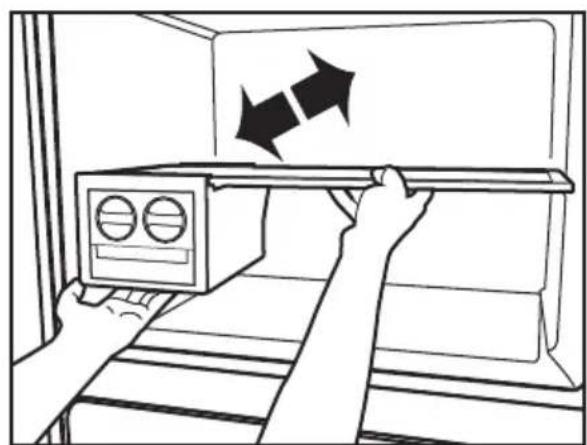

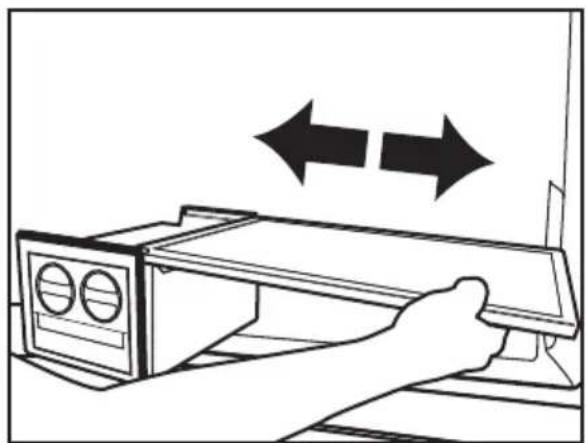

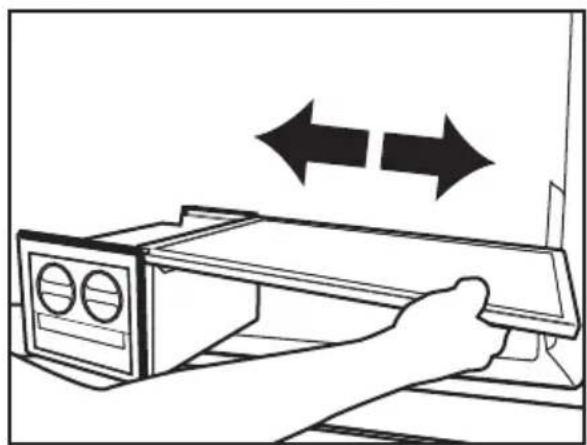

Sliding body shelf can be moved to left or right in order to allow you place long bottles, jars or boxes to a lower shelf (Fig. 1)

You can reach the food that you have placed into the shelf by grabbing and turning it from its right edge (Fig.2).

When you want to load or remove it to clean, turn it by 90 degrees, raise it up and pull towards yourself (Fig. 3-4).

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Blue light

(in some models)

Foodstuff stored in the crispers that are enlightened with a blue light continue their photosynthesis by means of the wavelength effect of blue light and thus, preserve their freshness and increase their vitamin content.

Line drawing of a double oven with ventilation grilles and mounting feet (no text or symbols)

Auto Icematic

(in some models)

Auto Icematic system allows you to obtain ice from the refrigerator easily. Remove the water tank in the fridge compartment, fill it wilt water and install it back to obtain ice from the Icematic.

First ice cubes will be ready in approximately 2 hours in the Icematic drawer located in the freezer compartment..

If you fill the water tank completely, you will be able to obtain approximately 60-70 ice cubes.

Change the water in water tank if it has waited around 2-3 weeks.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a box (no text or symbols)

Icematic and ice storage container

\*optional

Using the Icematic

Fill the Icematic with water and place it into its seat. Your ice will be ready approximately in two hours. Do not remove the Icematic from its seating to take ice.

Turn the knobs on the ice reservoirs clockwise by 90 degrees.

Ice cubes in the reservoirs will fall down into the ice storage container below.

You may take out the ice storage container and serve the ice cubes.

If you wish, you may keep the ice cubes in the ice storage container.

Ice storage container

Ice storage container is only intended for accumulating the ice cubes. Do not put water in it. Otherwise, it will break.

Illustration of a hand inserting a circular component into a rectangular appliance with a handle (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand opening a microwave oven into a rack, with arrows indicating direction (no text or symbols)

Line drawing of a hand opening a microwave oven with double-headed arrows indicating airflow direction (no text or symbols)

6 Maintenance and cleaning

⚠️Never use gasoline, benzene or similar substances for cleaning purposes.
⚠️ We recommend that you unplug the appliance before cleaning.
△Never use any sharp abrasive instrument, soap, household cleaner, detergent and wax polish for cleaning.
Use lukewarm water to clean the cabinet of your refrigerator and wipe it dry.
Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
Make sure that no water enters the lamp housing and other electrical items.
△If your refrigerator is not going to be used for a long period of time, unplug the power cable, remove all food, clean it and leave the door ajar.
Check door seals regularly to ensure they are clean and free from food particles.
⚠️To remove door racks, remove all the contents and then simply push the door rack upwards from the base.
⚠️Never use cleaning agents or water that contain chlorine to clean the outer surfaces and chromium coated parts of the product. Chlorine causes corrosion on such metal surfaces.
⚠️Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry.

Protection of plastic surfaces

Do not put the liquid oils or oil-cooked meals in your refrigerator in unsealed containers as they damage the plastic surfaces of your refrigerator. In case of spilling or smearing oil on the plastic surfaces, clean and rinse the relevant part of the surface at once with warm water.

7 Troubleshooting

Please review this list before calling the service. It will save your time and money. This list includes frequent complaints that are not arising from defective workmanship or material usage. Some of the features described here may not exist in your product.

The refrigerator does not operate.

The plug is not inserted into the socket correctly. >>> Insert the plug into the socket securely.The fuse of the socket which your refrigerator is connected to or the main fuse have blown out. >>> Check the fuse.

Condensation on the side wall of the fridge compartment (MULTIZONE, COOL CONTROL and FLEXI ZONE).

Ambient is vey cold. >>> Do not install the refrigerator in places where the temperature falls below 10 °C.Door has been opened frequently. >>> Do not open and close the door of refrigerator frequently.Ambient is vey humid. >>> Do not install your refrigerator into highly humid places.Food containing liquid is stored in open containers. >>> Do not store food with liquid content in open containers.Door of the refrigerator is left ajar. >>> Close the door of the refrigerator.Thermostat is set to a very cold level. >>> Set the thermostat to a suitable level.

Compressor is not running

Protective thermic of the compressor will blow out during sudden power failures or plug-out plug-ins as the refrigerant pressure in the cooling system of the refrigerator has not been balanced yet. The refrigerator will start running approximately after 6 minutes. Please call the service if the refrigerator does not startup at the end of this period.The refrigerator is in defrost cycle. >>> This is normal for a full-automatically defrosting refrigerator. Defrosting cycle occurs periodically.The refrigerator is not plugged into the socket. >>> Make sure that the plug is fit into the socket.Temperature settings are not made correctly. >>> Select the suitable temperature value.There is a power failure. >>> Refrigerator returns to normal operation when the power restores.

The operation noise increases when the refrigerator is running.

The operating performance of the refrigerator may change due to the changes in the ambient temperature. It is normal and not a fault.

The refrigerator is running frequently or for a long time.

i New product may be wider than the previous one. Larger refrigerators operate for a longer period of time.The ambient temperature may be high. >>> It is normal that the product operates for longer periods in hot ambient.The refrigerator is plugged in or loaded with food recently. >>> When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature. This is normal.Large amounts of hot food may have been put in the refrigerator recently. >>> Do not put hot food into the refrigerator.Doors are opened frequently or left ajar for a long time. >>>The warm air that has entered into the refrigerator causes the refrigerator to run for longer periods. Do not open the doors frequently.Freezer or fridge compartment door is left ajar. >>> Check if the doors are closed completely.The refrigerator is adjusted to a very low temperature. >>>Adjust the refrigerator temperature to a warmer degree and wait until the temperature is achieved.Door seal of the fridge or freezer may be soiled, worn out, broken or not properly seated. >>> Clean or replace the seal. Damaged/broken seal causes the refrigerator to run for a longer period of time in order to maintain the current temperature.

Freezer temperature is very low while the fridge temperature is sufficient.The freezer temperature is adjusted to a very low value. >>>Adjust the freezer temperature to a warmer degree and check.

Fridge temperature is very low while the freezer temperature is sufficient.The fridge temperature is adjusted to a very low value. >>>Adjust the fridge temperature to a warmer degree and check.

Food kept in the fridge compartment drawers are frozen.The fridge temperature is adjusted to a very high value. >>>Adjust the fridge temperature to a lower value and check.

Temperature in the fridge or freezer is very high.

The fridge temperature is adjusted to a very high value. >>>Fridge compartment temperature setting has an effect on the temperature of the freezer.Change the temperatures of the fridge or freezer and wait until the relevant compartments attain a sufficient temperature.Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently.Door is ajar. >>>Close the door completely.The refrigerator is plugged in or loaded with food recently. >>>This is normal.When the refrigerator is plugged in or loaded with food recently, it will take longer for it to attain the set temperature.Large amounts of hot food may have been put in the refrigerator recently. >>>Do not put hot food into the refrigerator.

Vibrations or noise.

The floor is not level or stable. >>>If the refrigerator rocks when moved slowly, balance it by adjusting its legs. Also make sure that the floor is strong enough to carry the refrigerator, and level.The items put onto the refrigerator may cause noise. >>>Remove the items on top of the refrigerator.

There are noises coming from the refrigerator like liquid flowing or spraying.

i Liquid and gas flows happen in accordance with the operating principles of your refrigerator. It is normal and not a fault.

Whistle comes from the refrigerator.

i Fans are used in order to cool the refrigerator. It is normal and not a fault.

Condensation on the inner walls of refrigerator.

i Hot and humid weather increases icing and condensation. It is normal and not a fault.Doors are opened frequently or left ajar for a long time. >>>Do not open the doors frequently. Close them if they are open.Door is ajar. >>>Close the door completely.

Humidity occurs on the outside of the refrigerator or between the doors.

i There may be humidity in the air; this is quite normal in humid weather. When the humidity is less, condensation will disappear.

Bad odor inside the refrigerator.

No regular cleaning is performed. >>> Clean the inside of the refrigerator regularly with a sponge, lukewarm water or sodium bicarbonate diluted in water.Some containers or package materials may cause the smell. >>> Use a different container or different brand packaging material.Food is put into the refrigerator in uncovered containers. >>> Keep the food in closed containers. Microorganisms spreading out from uncovered containers can cause unpleasant odors.Remove the foods that have expired best before dates and spoiled from the refrigerator.

The door is not closing.

Food packages are preventing the door from closing. >>> Replace the packages that are obstructing the door.The refrigerator is not completely even on the floor. >>> Adjust the legs to balance the refrigerator.The floor is not level or strong. >>> Make sure that the floor is level and capable to carry the refrigerator.

Crispers are stuck.

The food is touching the ceiling of the drawer. >>> Rearrange food in the drawer.

Simple diagram of a refrigerator with two vertical bars on the front panel (no text or symbols)

FR |

beko

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

1

Pure electrical circuit lines without any symbols

MILK juice etc. temperature sensor

3 Installation

Illustration of a hand inserting a screw into a computer motherboard (no text or symbols visible)

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

Three-panel line drawing showing hands installing a battery pack and inserting into a device (no text or symbols)

Compartiments amuse-gueule

Line drawing of a hand placing a rectangular appliance into a rack (no text or symbols)

Support à œufs

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Fontaine frigorifique

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior with three arrows indicating directional flow (no text or symbols)

Avertissement !

Diagram of a door handle assembly with an upward arrow indicating force or direction (no text or symbols present)

Illustration of hands installing or adjusting a refrigerator drawer with an upward arrow (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with an upward arrow and three vertical bars indicating measurement or assembly (no text or symbols present)

Bac à eau

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Éclairage bleu

Line drawing of a double oven with ventilation grilles and mounting feet (no text or symbols)

Diagram of a mechanical assembly with two arrows indicating direction, no text or symbols present

Line drawing of a hand inserting a device into a box (no text or symbols)

Illustration of a hand inserting a circular component into a rectangular appliance with a handle (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Illustration of a hand holding a microwave oven with two arrows indicating direction (no text or symbols)

Line drawing of a hand pressing down on a device with double-headed arrows indicating motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

HUI

beko

Kijelző panel ....14

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

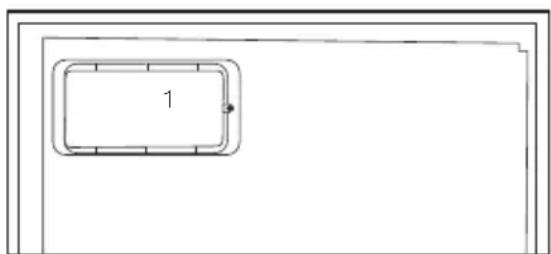

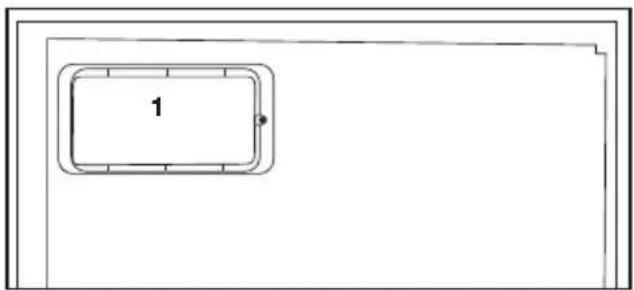

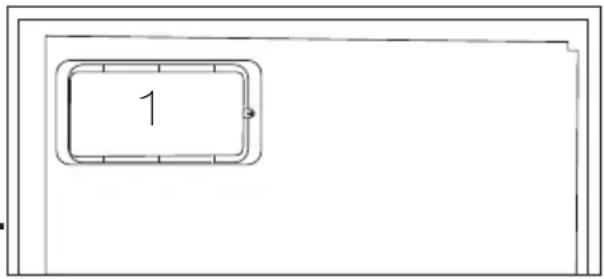

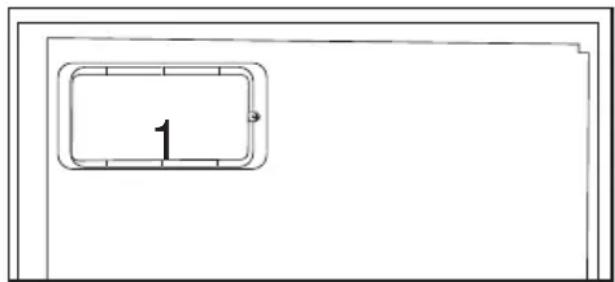

Simple line drawing of a rectangular frame with a numbered label '1' on the left side (no other text or symbols)

food temperature sensor

MILK JUICE etc. temperature sensor

3 Beüzemelés

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Diagram showing directional arrows and curved arrows around a rectangular structure (no text or symbols)

4 Előkészületek

Three-panel line drawing showing hands installing a battery pack and inserting into a device (no text or symbols)

Tartórekeszek

Line drawing of a hand placing a rectangular appliance into a rack with a mesh pattern (no text or symbols)

Tojástartó

Line drawing of a rectangular plastic tray with multiple circular cavities (no text or symbols)

Vízadagoló

(egyes modelleknél)

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing drawer, sink, and door (no text or symbols)

Figyelmeztetés!

Diagram of a door handle assembly with an upward arrow indicating direction (no text or symbols present)

Illustration of hands installing or adjusting a refrigerator drawer with an upward arrow (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with an upward arrow and three vertical bars indicating measurement or assembly (no text or symbols present)

Víztálca

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Kék világítás

(egyes modelleknél)

Line drawing of a double oven with ventilation grilles and mounting feet (no text or symbols)

Auto jégkészítő

(egyes modelleknél)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a box (no text or symbols)

Illustration of a hand using a rotary knob to move inside a closed storage cabinet (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Illustration of a hand holding a microwave oven with two arrows indicating direction (no text or symbols)

Illustration of a hand opening a device with two double-headed arrows indicating bidirectional movement (no text or symbols)

Simple line drawing of a refrigerator with two vertical bars on the front (no text or symbols)

DN 156720 D

DN 156720 DS

DN 156720 DX

DN 156720 X

DN 156721 X

DN 156720 H

DN 156720 DH

DN 156721 DH

DN 160103

DN 160103 X

DN 161620 C

DN 161620

DN 161620 X

DN 161600 C

DN163720DH

iTFA |AR|

beko

Frigorifero

Manuale utente

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

it

beko

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

1

Sicurezza bambini

Pure electrical circuit lines without any symbols

food temperature sensor

MILK juice etc. temperature sensor

3 Installazione

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

4 Preparazione

Line drawing of a hand inserting a grid into a rack (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned casing (no text or symbols)

Line drawing of hands using a handheld tool to adjust or install electronic components (no text or symbols visible)

Scomparti snack

Line drawing of a hand placing a rectangular object into a rack, with no visible text or symbols

Porta uova

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Erogatore d'acqua

(in alcuni modelli)

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing drawer, door, and drawer with directional arrows indicating movement (no text or symbols)

Avvertenza!

Line drawing of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Line drawing of hands installing or adjusting a refrigerator door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an upward arrow and three vertical lines indicating alignment or movement (no text or symbols)

Importante:

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Spia blu

(in alcuni modelli)

Technical line drawing of an oven with grating and ventilation slots (no text or symbols)

Auto Icematic

(in alcuni modelli)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand using a container to lift a cylindrical object into a box (no text or symbols)

Illustration of a hand inserting a circular component into a wall-mounted device (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand opening a microwave oven with two arrows indicating direction (no text or symbols)

Illustration of a hand inserting a device into a rack with double-headed arrows indicating vertical motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars (no text or symbols)

FA|

beko

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

1

Line drawing of a cabinet shelf with a box and cable inserted (no text or symbols)

Hand inserting a component into a device panel (no text or symbols visible)

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional motion (no text or symbols)

اتصالات برقى

tangyir dadan miyan roshnaiy laam

Line drawing of a hand placing a rectangular appliance into a rack with a mesh pattern (no text or symbols)

نگهدارنده تخم مرغ

Technical line drawing of a multi-ring plastic tray with circular cutouts (no text or symbols)

Line drawing of a hand inserting a component into a storage cabinet (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned casing (no text or symbols)

Line drawing of hands using a screwdriver to adjust or install a mechanical component (no text or symbols visible)

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and toilet (no text or symbols)

äxpâr!

Simple line drawing of a rectangular container with a central trough (no text or symbols)

Line drawing of a hand inserting a component into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with an upward arrow and striped pattern (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

سینی آب

Line drawing of a hand inserting a card into a device (no text or symbols)

آیسمتیک خودکار

(در برخی از مدلها)

Diagram of a mechanical assembly with two arrows indicating direction, no text or symbols present

Line drawing of a hand using a device to lift a container (no text or symbols)

روشنایی آبی

(در برخی از مدلها)

Line drawing of an oven with grating and two circular components, no text or symbols present

Illustration of a hand inserting a circular component into a rectangular appliance with a handle (no text or symbols)

Diagram illustrating three steps of appliance door opening, showing hand positioning and double-headed arrows indicating movement.

Cafazt sptwoh پlasitik

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

AR|

beko

Pure electrical circuit lines without any symbols

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

تأمين سلامة الأطفال

Illustration of a refrigerator interior showing a tray with food being washed, and a delivery box inside (no text or symbols)

Hand inserting a component into a device panel (no text or symbols visible)

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

التوصيل الكهربائي

Line drawing of a hand placing a rectangular appliance into a rack with a mesh grille (no text or symbols)

二十五 حامل البيض

Line drawing of a rectangular mechanical component with multiple circular cavities (no text or symbols)

Line drawing of a hand placing a grid component into a rack (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned casing (no text or symbols)

Line drawing of hands using a screwdriver to adjust or install a mechanical component (no text or symbols present)

Technical line drawing of a refrigerator with handle and side panel (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and toilet with directional arrows indicating airflow (no text or symbols)

تحذير!

Simple line drawing of a rectangular container with a central depression (no text or symbols)

استخدام صنبور الماء

Line drawing of a hand placing a tray into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an upward arrow and tick marks (no text or symbols)

صنوق التخزين الدوار

(في بعض الموديلات)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Line drawing of a hand inserting a card into a device (no text or symbols)

التجميد التلقائي

(في بعض الموديلات)

من درجagra.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand pouring liquid into a container using a tool (no text or symbols)

مصباح أزرق

(في بعض الموديلات)

Line drawing of an oven with grating and two circular vent slots, mounted on a shelf (no text or symbols)

Illustration of a hand pressing down on a wall-mounted device with circular buttons (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Illustration of a person installing or adjusting a cabinet with two arrows indicating direction (no text or symbols present)

Line drawing of a hand opening a microwave oven with double-headed arrows indicating bidirectional motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on the front panel (no text or symbols)

DN 156720 D

DN 156720 DS

DN 156720 DX

DN 156720 X

DN 156721 X

DN 156720 H

DN 156720 DH

DN 156721 DH

DN 160103

DN 160103 X

DN 161620 C

DN 161620

DN 161620 X

DN 161600 C

DN163720DH

SBHR |ES |

beko

Фрижидер

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

SB

beko

Molimo da prvo pročitate ovo uputstva za upotrebu!

Poštovani kupci,

Nadamo se da će vam ovaj proizvod, koji je proizveden u savremenim fabrikama i koji je prošao najstrože kontrole kvaliteta, dugo i efikasno služiti.

Diagram showing a device with a lightning bolt and cable, indicating electrical or mechanical damage.

• Ne priključujte frižider na zidnu utičnicu ako je labava.
• Voda se ne sme prskati direktno na unutrašnje ili spoljašnje delove proizvoda radi bezbednosti.

• Ne prskajte supstance koje sadrže zapaljive gasove, kao što je propan, blizu frižidera da bi se izbegla opasnost od požara i eksplozije.

• Ne stavljajte posude napunjene vodom na vrh frižidera je to može prouzrokovati električni udar ili požar.

• Ne prepunjavajte frižider preteranim količinama hrane. Ako se prepuni, hrana može pasti i povrediti vas i oštetiti frižider kada otvorite vrata. Ne stavljajte predmete na vrh frižidera jer mogu pasti prilikom otvaranja ili zatvaranja vrata frižidera.
• Materijali koji zahtevaju preciznu temperaturu, kao što su vakcine, lekovi osetljivi na temperaturu, materijali za naučne svrhe itd. ne smeju se čuvati u frižideru.
• Ako frižider nećete da koristite duže vreme, isključite ga iz struje. Mogući problem u kablu za napajanje može prouzrokovati požar.
• Frižider se može pomerati ako se podesive nožice ne stoje stabilno na podu. Pravilno učvršćivanje

podesivih nožica na podu može sprečiti pomeranje frižidera.

• Kada prenosite frižider, ne držite ga za ručicu na vratima. Inače mogu da se odvali.
• Ako proizvod morate da postavite pored drugog frižidera ili zamrzivača, rastojanje između uređaja treba da bude najmanje 8 cm. U suprotnom se susedni zidovi mogu ovlažiti.

- Nikada nemojte koristiti proizvod ako je otvoren odeljak koji se nalazi na vrhu ili poleđini vašeg proizvoda i koji sadrži elektronske štampane ploče (poklopac elektronskih štampanih ploča) (1).

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

Simple line drawing of a rectangular frame with a numbered label '1' in the center (no other text or symbols)

food temperature sensor

MILK juice etc. temperature sensor

Illustration of a hand inserting a component into a device (no text or symbols visible)

Pure diagram of a mechanical or structural system with arrows indicating direction, no text or symbols present

4 Priprema

Line drawing of a hand placing a grid component into a rack (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned body (no text or symbols)

Line drawing of hands using a handheld device to adjust or install a mechanical component (no text or symbols visible)

Odeljci za slatkiše

Line drawing of a hand placing a rectangular appliance into a rack with a mesh pattern (no text or symbols)

Odeljak za jaja

Možete da stavite držač na jaja u željenu policu vrata ili tela.

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Dozator za vodu

(kod nekih modela)

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing drawer, sink, and door (no text or symbols)

Upozorenje!

Line drawing of a hand using a tool to lift a wooden shelf, with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a refrigerator panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an upward arrow symbol (no text or labels)

Posuda za vodu

Line drawing of a hand inserting a card into a device (no text or symbols)

Obrtna posuda

(kod nekih modela)

Obrtna polica se može pomeriti levo ili desno da bi se obezbedio prostor za dugačke boce, tegle ili kutije na donjoj polici (sl. 1)

Hranu koju ste stavili u ovu policu možete uzeti tako što ćete je uhvatiti i okrenuti sa desne strane (sl.2).

Kada želite da je napunite ili izvadite radi čišćenja, okrenite je za 90 stepeni, podignite je i povucite prema sebi (sl. 3-4).

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Plavo svetlo

(kod nekih modela)

Hrana koja se čuva u odeljcima za povrće i koja se osvetljava plavim svetlom nastavlja svoju fotosintezu pomoću efekta dužine talasa plave svetlosti i tako zadržava svežinu i povećava sadržaj vitamina.

Technical line drawing of a double-door oven with ventilation grilles and mounting feet (no text or symbols)

Automatski ledomat

(kod nekih modela)

Sistem automatskog ledomata vam omogućava da lako dođete do leda iz frižidera. Uklonite rezervoar za vodu iz odeljka frižidera, napunite ga vodom i ponovo instalirajte da biste dobili led iz ledomata.

Prve kockice leda će biti spremne za oko 2 sata u fioci ledomata koja se nalazi u odeljku zamrzivača..

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a battery casing (no text or symbols)

Illustration of a hand using a rotary knob to move inside a closed door (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Illustration of a hand holding a microwave oven with two arrows indicating direction (no text or symbols)

Illustration of a hand operating a device with two double-headed arrows indicating bidirectional motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

HRI

beko

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with no visible text or symbols

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

food temperature sensor

MILK JUICE etc. temperature sensor

- Ne postavljajte vaš hladnjak izravno na sunčevu svjetlost ili blizu uređaja koji emitiraju toplinu kao što su pećnice, perilice suđa ili radijatori.

- Pazite da držite svoju hranu u zatvorenim posudama.

- Za uređaje s odjeljkom škrinje; možete spremiti maksimalnu količinu hrane u škrinju kad uklonite policu ili ladicu škrinje. Vrijednost potrošnje energije koja je navedena za vaš hladnjak je određena tako da je uklonjena polica ili ladica škrinje i pod maksimalnim opterećenjem. Ne postoji opasnost od uporabe police ili ladice prema oblicima i veličinama hrane koja će biti zamrznuta.

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

4 Priprema

Line drawing of a hand inserting a component into a rack with a vented grille (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned body (no text or symbols)

Line drawing of two hands using a handheld tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand placing a rectangular appliance into a rack (no text or symbols)

Držač jaja

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Pipa za vodu

(Kod nekih modela)

Pipa za vodu je vrlo korisna značajka kojom se može dobiti hladna voda bez otvaranja vrata vašeg hladnjaka. Kako nećete morati često otvarati vrata hladnjaka, uštedjet ćete energiju.

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing drawer, sink, and drawer with arrows indicating movement (no text or symbols)

Upozorenje!

- Nemojte puniti spremnik bilo kojom tekućinom osim vode, kao što su voćni sokovi, gazirana pića ili alkoholna pića koja nisu podesna za uporabu s pipom za vodu. Pipa za vodu će se pokvariti do nepopravljivosti ako se koriste te vrste tekućina. Jamstvo ne pokriva takvu uporabu. Neke kemijske tvari i aditivi koji su sadržani u toj vrsti pića/tekućina mogu oštetiti materijal spremnika za vodu.

• Koristite samo čistu pitku vodu.
• Kapacitet spremnika za vodu je 3 litre; nemojte prepuniti.
• Gurnite polugu pipe za vodu čvrstom čašom. Ako koristite jednokratne plastične čaše, gurnite krak prstima iza čaše.

Čišćenje spremnika s vodom

• Izvadite spremnik za vodu unutar police vrata.
• Uklonite policu na vratima tako da je držite s obje strane.
• Uhvatite spremnik za vodu s obje strane i uklonite ga s kutom od 45SDgr.
• Očistite spremnik za vodu tako da uklonite njegov poklopac.

Važno:

Line drawing of a hand placing a box into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a refrigerator panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an upward arrow indicating direction (no text or symbols)

Podloška za vodu

Line drawing of a hand inserting a card into a device (no text or symbols)

Rotirajući spremnik

(Kod nekih modela)

Klizna polica kućišta se može pomicati lijevo ili desno da bi se na donju policu mogle staviti duge boce, staklenke ili kutije (Slika 1).

Možete doći do hrane koju ste stavili na policu tako da je okrećete s desnog ruba (Slika 2).

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Plavo svjetlo

(Kod nekih modela)

Technical line drawing of a double-door oven with ventilation grilles and mounting feet (no text or symbols)

Auto ledomat

(Kod nekih modela)

Sustav automatskog ledomata vam omogućava da jednostavno dobijete led iz hladnjaka. Izvadite spremnik za vodu u odjeljku hladnjaka, napunite ga vodom i vratite nazad da biste iz ledomata dobili led.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a box (no text or symbols)

Illustration of a hand using a rotary knob to move inside a closed door (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Illustration of a hand holding a microwave oven with two arrows indicating direction (no text or symbols)

Illustration of a hand operating a device with two double-headed arrows indicating bidirectional motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

ES |

beko

Diagram showing a device with a lightning bolt and plug, no text or symbols present

Technical line drawing of a mechanical component with a base plate and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the label)

food temperature sensor

MILK juice etc. temperature sensor

3 Instalación

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Diagram showing a rectangular object with upward and downward arrows indicating motion or force direction, surrounded by curved arrows (no text or symbols)

4 Preparación

Line drawing of a hand inserting a component into a rack with a vented grille (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned body (no text or symbols)

Line drawing of two hands using a handheld tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand placing a grating into a refrigerator (no text or symbols)

Huevera

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Dispensador de agua

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Technical line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and toilet with directional arrows indicating flow (no text or symbols)

Advertencia

Line drawing of a hand placing a component into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a refrigerator door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an arrow indicating upward motion (no text or symbols)

Bandeja de agua

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating movement.

Luz azul

Technical line drawing of a double-door refrigerator with ventilation grilles and mounting feet (no text or symbols)

Auto Icematic

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a box (no text or symbols)

Illustration of a hand inserting a circular button into a wall-mounted device (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a hand opening a microwave oven into a rack, with arrows indicating direction (no text or symbols)

Illustration of a hand opening a device with double-headed arrows indicating bidirectional motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

DN 156720 D

DN 156720 DS

DN 156720 DX

DN 156720 X

DN 156721 X

DN 156720 H

DN 156720 DH

DN 156721 DH

DN 160103

DN 160103 X

DN 161620 C

DN 161620

DN 161620 X

DN 161600 C

DN163720DH

PTEL |UK|

beko

Frigorífico

Manual do Utilizador

Simple diagram of a refrigerator with two vertical bars (no text or symbols)

PTI

beko

Diagram showing a device with a lightning bolt and cable, no text or symbols present

- Não ligue o frigorífico à tomada, se a tomada de parede estiver solta.

Technical line drawing of a mechanical component with a base and housing (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' at the center (no other text or symbols)

Line drawing of a hand inserting a small rectangular object into a cabinet (no text or symbols)

3 Instalação

Illustration of a hand inserting a component into a device panel (no text or symbols visible)

Pure diagram of a beam with supports and curved arrows indicating direction (no text or symbols)

4 Preparação

Line drawing of a hand inserting a component into a rack with a vented grille (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned casing (no text or symbols)

Line drawing of hands using a screwdriver to adjust a mechanical component (no text or symbols)

Suporte para ovos

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Line drawing of a hand placing a rectangular appliance into a rack with a mesh grille (no text or symbols)

Dispensador de água

(em alguns modelos)

Simple line drawing of a test tube submerged in a rectangular container (no text or symbols)

Technical line drawings of a refrigerator interior showing front and side views with directional arrows indicating movement (no text or symbols)

Aviso!

Line drawing of a hand inserting a card into a device (no text or symbols)

Diagram of a hand inserting a component into a device, with an upward arrow indicating force or direction (no text or symbols present)

Illustration of hands installing or adjusting a door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an upward arrow and three vertical lines indicating measurement or assembly (no text or symbols present)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Luz azul

(em alguns modelos)

Line drawing of a microwave oven with ventilation grilles and top panel (no text or symbols)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a box (no text or symbols)

Icematic automático

(em alguns modelos)

Illustration of a hand using a rotary knob to move a circular button inside a rectangular appliance (no text or symbols)

Line drawing of an open refrigerator with a front-mounted air conditioner unit (no text or symbols)

Line drawing of a hand opening a microwave oven into a rack, with two arrows indicating direction (no text or symbols)

Illustration of a hand inserting a device into a rack with double-headed arrows indicating vertical motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on the front panel (no text or symbols)

EL |

beko

Diagram showing a mechanical or electrical component with a lightning bolt and wiring, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

food temperature sensor

MILK juice etc. temperature sensor

3 Εγκατάσταση

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Diagram showing a beam supported at both ends with curved arrows indicating rotational motion (no text or symbols)

4 Προετοιμασία

Line drawing of a hand placing a grid component into a rack (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-patterned body (no text or symbols)

Line drawing of a hand holding a mechanical device with a screwdriver inserted (no text or symbols)

Θάλαμοι σνακ

Line drawing of a hand placing a rectangular appliance into a rack with a mesh grille (no text or symbols)

Αυγοθήκη

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Διανομέας νερού

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and sink with directional arrows indicating movement (no text or symbols)

Προειδοποίηση!

Line drawing of a hand placing a component into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a refrigerator door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand using a tool to adjust or install a mechanical component, with an upward arrow and three vertical lines indicating motion (no text or symbols present)

Δίσκος νερού

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Μπλε φως

Line drawing of a refrigerator interior showing ventilation grilles and doorways (no text or symbols)

Diagram of a mechanical or architectural component with two arrows indicating direction, no text or symbols present

Line drawing of a hand using a device to lift a cylindrical container (no text or symbols)

Illustration of a hand inserting a circular component into a wall-mounted device (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Line drawing of a person using a microwave oven to lift a tray, with arrows indicating direction (no text or symbols)

Line drawing of a hand opening a microwave oven with double-headed arrows indicating bidirectional motion (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

UKI

beko

Diagram showing a device with wires and a plug, no text or symbols present

Technical line drawing of a mechanical component with a labeled part '1' (no text or symbols beyond the label)

1

Pure electrical circuit lines without any symbols

food temperature sensor

MILK juice etc. temperature sensor

3 Встановлення

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Pure diagram of a beam supported at both ends with directional arrows indicating motion, no text or symbols present.

Line drawing of a hand placing a component into a rack with a gridded air vent (no text or symbols)

Line drawing of a hand holding an electronic device with a grid-like internal structure (no text or symbols)

Illustration of hands using a screwdriver to adjust a mechanical component (no text or symbols visible)

Line drawing of a hand placing a rectangular appliance into a rack with a wavy top panel (no text or symbols)

Лоток для яєць

Line drawing of a rectangular plastic tray with multiple circular cavities (no text or symbols)

Дозатор для води

(у деяких моделях)

Simple line drawing of a test tube inside a rectangular container (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing tray, door, and drawer with directional arrows indicating movement (no text or symbols)

Попередження

Line drawing of a hand pressing down on a mechanical component with an upward arrow (no text or symbols)

Illustration of hands installing or adjusting a refrigerator door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a mechanical bracket with an upward arrow indicating motion (no text or symbols)

Лоток для води

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Синє світло

Technical line drawing of a double door with ventilation grilles and mounting feet (no text or symbols)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a device into a box (no text or symbols)

Illustration of a hand inserting a circular component into a rectangular device (no text or symbols)

Line drawing of an open refrigerator with a front-mounted air conditioner unit (no text or symbols)

Illustration of a hand installing or adjusting a cabinet with two arrows indicating direction (no text or symbols present)

Illustration of a hand inserting a device into a rack with double-headed arrows indicating direction (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

DN 156720 D

DN 156720 DS

DN 156720 DX

DN 156720 X

DN 156721 X

DN 156720 H

DN 156720 DH

DN 156721 DH

DN 160103

DN 160103 X

DN 161620 C

DN 161620

DN 161620 X

DN 161600 C

DN163720DH

SQRU | TR

beko

Frigorifer Manual Udhëzim

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

SQI

beko

Diagram of a refrigerator interior with a lightning bolt and cable, no text or symbols present

Technical line drawing of a mechanical component with labeled part '1' (no text or symbols beyond label)

1

Për produktet me dispenser uji;

Pure electrical circuit lines without any symbols

Hand inserting a component into a device casing (no text or symbols visible)

Diagram showing a rectangular structure with upward and downward arrows indicating rotational or directional movement (no text or symbols)

Three-panel line drawing showing hands installing a battery cover and inserting into a device (no text or symbols)

Line drawing of a hand placing a rectangular appliance into three compartments (no text or symbols)

Mbajtësja e vezëve

Technical line drawing of a mechanical component with multiple cylindrical cavities (no text or symbols)

Aparati i ujit

(në disa modele)

Simple line drawing of a rectangular container with a U-shaped tube inside (no text or symbols)

Përdorimi i ujit

Line drawing of a refrigerator interior showing front and side compartments (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and sink with directional arrows indicating airflow or movement (no text or symbols)

Paralajmërim!

Line drawing of a hand placing a component into a refrigerator with an upward arrow indicating motion (no text or symbols)

Illustration of hands installing or adjusting a refrigerator panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a mechanical bracket with an upward arrow and three vertical lines (no text or symbols)

Tava e ujit

Line drawing of a hand inserting a card into a device (no text or symbols)

Kontejneri i ruajtjes me rrotullim

(në disa modele)

Technical diagram showing four sequential steps of a mechanical assembly or lifting process, labeled 1 to 4.

Drita blu

(në disa modele)

Line drawing of an oven with grating and two circular components, no text or symbols present

Auto Icematic

(në disa modele)

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand pouring liquid into a container using a bag (no text or symbols)

Illustration of a hand pressing down on a wall-mounted device with circular buttons and an arrow indicating rotation (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Line drawing of a person opening a microwave oven with two arrows indicating direction (no text or symbols)

Line drawing of a hand opening a microwave oven with bidirectional arrows indicating movement (no text or symbols)

Simple line drawing of a refrigerator with two vertical bars on the front panel (no text or symbols)

RU

beko

Diagram showing a device with a lightning bolt and cable, no text or symbols present

Line drawing of a mechanical component with a rectangular base and attached bracket (no text or symbols)

Simple line drawing of a rectangular frame with a numbered label '1' in the center (no other text or symbols)

Illustration of a hand inserting a component into a device casing (no text or symbols visible)

Diagram showing a beam supported at both ends with curved arrows indicating direction, no text or symbols present.

4 Подготовка

Line drawing of a hand inserting a component into a rack with a vented insert (no text or symbols)

Line drawing of a hand holding an electronic device with internal components (no text or symbols)

Line drawing of two hands using a screwdriver to adjust or install a mechanical component (no text or symbols present)

Лотки для закусок

Line drawing of a hand placing a rectangular appliance into a rack with a mesh drain (no text or symbols)

Лоток для яиц

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Дозатор для воды

Simple line drawing of a rectangular container with a central depression (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing drawer, door, and drawer with directional arrows indicating movement (no text or symbols)

Внимание!

Diagram of a hand placing a box into a refrigerator with an upward arrow indicating motion (no text or symbols)

Line drawing of hands installing or adjusting a refrigerator door panel with an upward arrow (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with a pull rod, next to an upward arrow symbol (no text or labels present)

Поддон для воды

Line drawing of a hand inserting a card into a device (no text or symbols)

Technical diagram showing four sequential steps of a mechanical assembly with directional arrows indicating motion or movement.

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand pouring liquid into a container using a bag (no text or symbols)

Синий свет

Technical line drawing of a double oven with grating and ventilation slots (no text or symbols)

Simple diagram of a refrigerator with two vertical bars on opposite sides (no text or symbols)

TR

beko

Technical line drawing of a mechanical component with two parts stacked on a base, labeled '1' (no text or symbols beyond label)

Simple line drawing of a rectangular frame with a numbered label '1' inside (no text or symbols beyond the number)

Diagram showing a lightning bolt striking a wall-mounted device with a cable and plug, no text or symbols present

1.1.1 HC uyarısı

Pure electrical circuit lines without any symbols

Diagram of a refrigerator interior with numbered compartments and labeled storage areas

Hand using a screwdriver to adjust or install a component on a device (no text or symbols visible)

Kurulum

Pure diagram of a beam supported at both ends with curved arrows indicating direction, no text or symbols present.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Line drawing of a hand holding a small object near a shelf (no text or symbols)

4.2. İlk kullanım

Three-panel line drawing showing hands installing a battery pack into a rack, with no visible text or symbols.

5.9. Yumurtalık

Technical line drawing of a mechanical component with multiple circular cavities (no text or symbols)

Ürünün kullanımı

Line drawing of a hand placing a rectangular appliance into a rack (no text or symbols)

Mechanical assembly diagram showing a component being inserted into a housing with arrows indicating motion (no text or symbols present)

Line drawing of an oven with grating and two circular cutouts, no text or symbols present

Ürünün kullanımı

Technical line drawing of a mechanical assembly with two arrows indicating direction (no text or symbols)

Line drawing of a hand inserting a bag into a box (no text or symbols)

5.14. Buz yapma

Illustration of a hand pressing down on a wall-mounted device with circular vent slots (no text or symbols)

Line drawing of an open refrigerator with a mounted air conditioner unit (no text or symbols)

Line drawing of a person using a microwave oven to lift a tray, with arrows indicating motion (no text or symbols)

Line drawing of a hand opening a device with two double-headed arrows indicating bidirectional movement (no text or symbols)

Ürünün kullanımı

5.16. Su pinari

Simple line drawing of a container with a submerged object inside (no text or symbols)

Line drawing of a refrigerator interior showing front and side views (no text or symbols)

Line drawing of a refrigerator interior showing door, drawer, and toilet with directional arrows indicating airflow or movement (no text or symbols)

Ürünün kullanımı

Dikkat!

Diagram of a hand pressing down on a mechanical component with an upward arrow indicating motion (no text or symbols present)

Line drawing of a person opening a refrigerator with an upward arrow indicating motion (no text or symbols)

45°

Line drawing of a hand holding a metal bracket with an arrow indicating upward motion (no text or symbols)

Ürünün kullanımı

Su tepsisi

Line drawing of a device with a finger pointing at its base, showing a downward arrow and control panel (no text or symbols)
