USER MANUAL Pivot Suite Evenflo

Stroller/Travel System

Up to 55 lbs (25 kg)

Up to 45 in (114.3 cm)

POUSSETTE

Illustration of a baby stroller with four wheels and a canopy cover (no text or symbols)

Read all instructions before assembly and use of product. KEEP INSTRUCTIONS FOR FUTURE USE.

Identification of Parts 8

Choosing Mode of Use 9

Assembling Your Stroller.... 10

Using Your Stroller.... 15

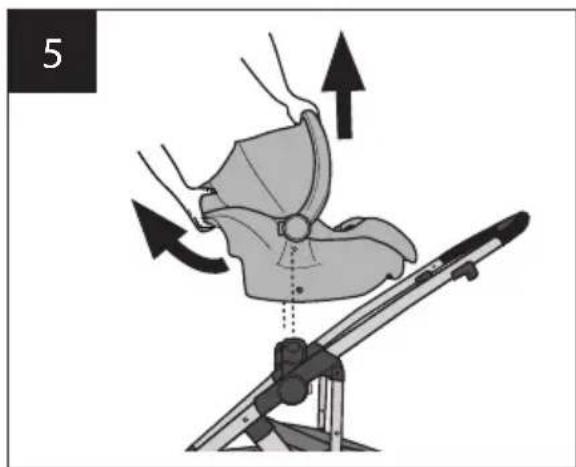

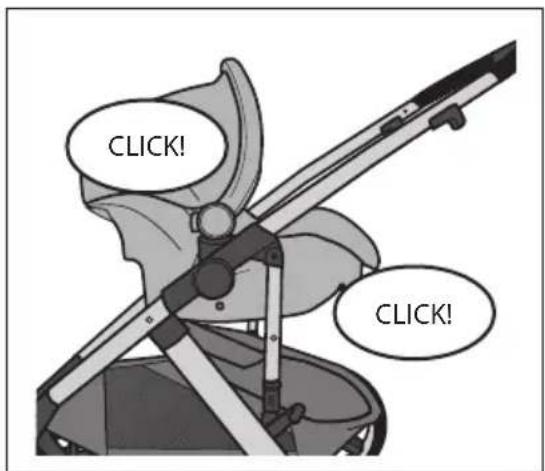

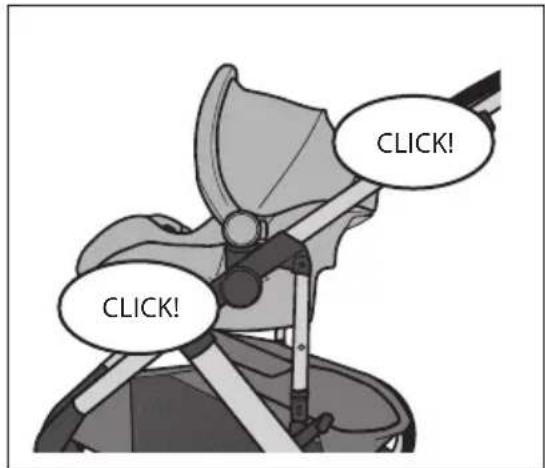

Using your Stroller with the Recommended Infant Car Seats 23

Pivot Suite Use Configurations.... 26

Care and Maintenance 28

Limited Warranty.... 28

ParentLink®

answers. advice. affirmation.™

- www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

• Canada: 1-937-773-3971 • México: 800-706-1200

Holds Evenflo SafeMax™ or LiteMax™ Infant Car Seats Only

Technical diagram of a stroller with numbered parts and close-ups of the front and side views, likely for assembly or maintenance instructions.

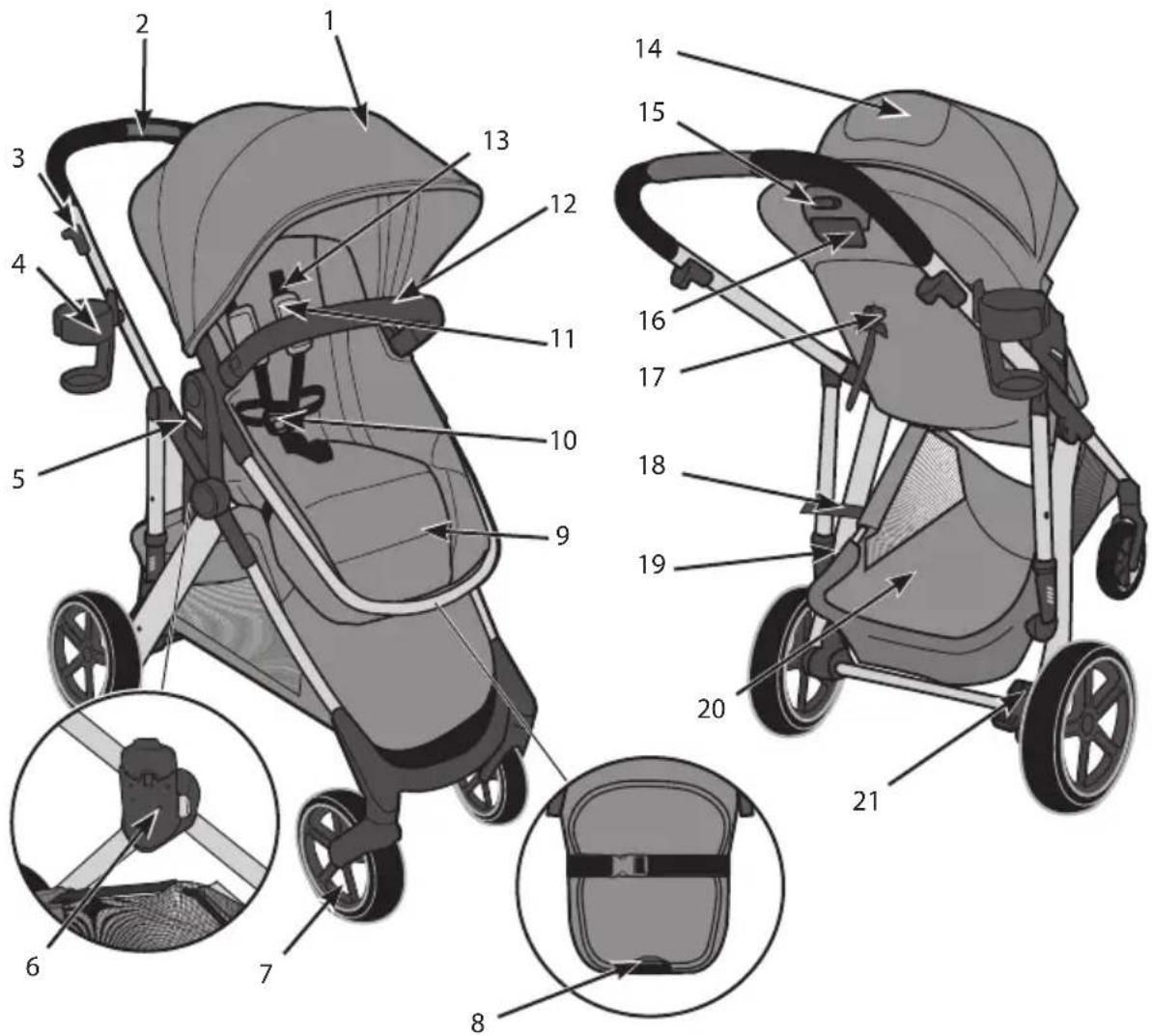

1. Canopy
2. Parent Handle
3. Fold Release Lever
4. Cupholder
5. Toddler Seat Release Button

6. Rotating Seat Mount

7. Swivel Wheel

8. Lower Seat Fold Button
9. Footrest
10. Harness Buckle
11. Harness Cover
12. Bumper Bar
13. Shoulder Straps

14. Canopy Window

15. Upper Seat Fold Button

16. Multi-Position Recline Handle
17. Multi-Position Recline Strap
18. Side Frame Lock
19. Suspension
20. Storage Basket
21. Brakes

WARNING!

DEATH or SERIOUS

INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS!

FAILURE TO DO SO COULD RESULT IN

SERIOUS INJURY OR DEATH!

• Only use Evenflo SafeMax™ and LiteMax™ infant car seats with this stroller.
  Other infant car seats or carriers are not designed to fit the stroller frame unless specified in the instructions. Any car seats used with this stroller that are not specified in the instructions may result in serious injury to your child.
• NEVER leave child unattended. ALWAYS keep child in view while in the stroller.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and discard packing material before using this product.
• To avoid serious injury from child falling or slipping out of stroller, ALWAYS use the waist restraint in Toddler Seat Mode and Carriage Mode.
• DO NOT carry or roll stroller on stairs or escalators with child in it.
• DO NOT hang items on handle bar or place them on the canopy as they can tip stroller over and injure child.
• Be sure stroller is fully assembled and locked in unfolded position before using.
• ALWAYS exercise care when going over curbs or steps, and never use stroller for anything other than transporting your child. Push stroller at a normal walking pace only; faster strolling can cause a loss of control and injury to the child.
• DO NOT place hot liquids in cup holder. Spills can burn you or your child.
• To avoid serious injury from child falling out of stroller, DO NOT raise or recline seat with child in stroller.
• DO NOT use stroller if any parts are missing or broken.
• DO NOT allow child to climb on, into, out of, or around stroller.
• DO NOT allow child to stand on the footrest. Stroller may tip over and injure child.

WARNING!

DEATH or SERIOUS

INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• DO NOT carry additional children, goods, or accessories in or on this stroller except as advised in these instructions. The stroller is intended for use with one child and to accommodate only the additional weights in storage as listed in these instructions.
• Care must be taken when folding or unfolding stroller to prevent finger injury to you or your child in hinge areas. Make sure child is not in the seat or near the stroller when folding or unfolding.
• NEVER leave stroller on a hill or incline, even with brakes set. Stroller may tip, injuring the child.
• To avoid accidental rolling, ALWAYS set brakes when stroller is not being pushed.

• AVOIDSTRANGULATION:

• DO NOT suspend strings or toys from the canopy.
• DO NOT place stroller anywhere near cords from window blinds, draperies, phone, etc.
• DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.
• If not properly secured, the child may slip into leg openings and strangle.

- When making adjustments to the stroller, ALWAYS ensure that all parts of the child's body are clear of any moving parts of the stroller.

- The canopy is not intended to provide UV protection.

- Sharp or heavy objects placed in pockets may cause damage to the stroller, or injury to the child.

- To ensure safety for your baby, please refer to the manufacturer's instructions for the use of your recommended infant car seats and keep all instructions available for reference.

- DO NOT lift stroller by using the infant car seat handle when installed on stroller.

- If unable to securely attach the infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).

WARNING!

DEATH or SERIOUS

INJURY can occur.

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• To avoid stroller instability and tip-overs, DO NOT load cup holder with over 1 lb (0.45 kg), and the main cargo basket with over 10 lbs (4.5 kg).
• NEVER use the toddler seat without the canopy attached.
• NEVER lift or carry the toddler seat by the bumper bar.
• NEVER use the stroller frame without the toddler seat or car seat attached.
• NEVERuse toddler seat in a motor vehicle or use it as a booster seat.
• To avoid falls, never remove toddler seat from the stroller with child in it.
• To avoid falls, always make sure the toddler seat or car seat is securely attached into the seat mounts on both sides of the stroller before placing child in the seat.
• When stroller is in carriage mode, it is intended for a child from birth up to 6 months of age OR who is incapable of sitting upright unassisted. ONLY use the stroller in the upright position with a child who is capable of sitting upright unassisted.
• NEVER use seat in the carriage mode position unless the straps under the seat are unbuckled and the seat is set up in Carriage Mode as per the instructions.
• DONOT exceed the maximum weight limits defined in the infant car seat or accessory manuals.
• NEVER use harness covers that are included on your stroller seat in your infant car seat.

Child Requirements - When stroller is in carriage mode, it is intended for a child up to 6 months of age OR who is incapable of sitting upright unassisted. Only use the stroller in the upright position with a child who is capable of sitting upright unassisted.

• Maximum weight:
- 55 lbs (25 kg) in toddler seat
• Maximum height:
- 45 inches (114.3 cm) in toddler seat

IMPORTANT: Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. If you are missing parts, do not use stroller and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 800-706-1200 (México) to order replacement parts.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at www.evenflo.com/registerproduct.

For future reference, record the Model Number and Date of Manufacture below. You can find this information on one of the rear stroller legs.

Model Number: ____

Date of Manufacture: ____

Identification of Parts

Black and white illustration of a wheeled bicycle wheel with a handle (no text or symbols)

Front Wheel Assembly (2)

Illustration of a person performing a stretching exercise (no text or symbols visible)

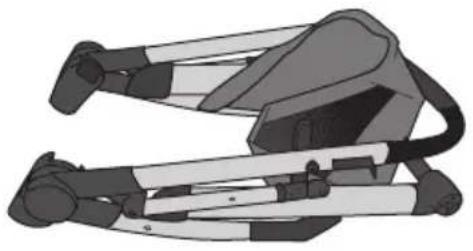

Frame

Black and white photo of a car wheel with five spokes (no text or symbols visible)

Rear Wheel (2)

Cupholder (1)

Black curved pipe or tube component with no visible text or symbols

Bumper Bar

Illustration of a gray backpack with straps and straps, shown in 3D style (no text or symbols)

Toddler Seat

Simple black curved pipe or handle component on white background (no text or symbols)

Basket Assembly
Bar

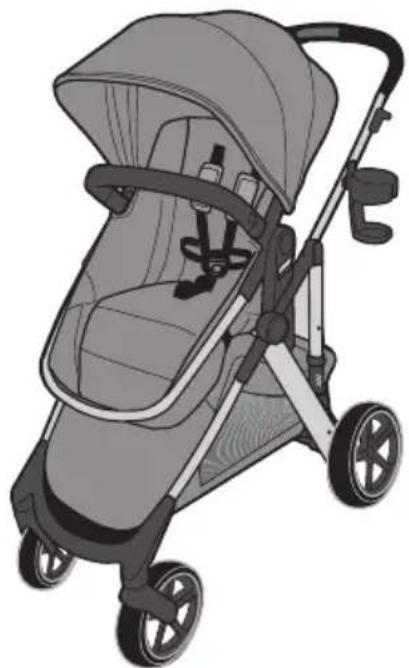

YOUR STROLLER SEAT CAN BE USED IN TWO DIFFERENT MODES:

TODDLER SEAT MODE OR CARRIAGE MODE.

Your stroller seat is shipped in carriage mode with the buckles unfastened under the footrest of the toddler seat. You will need to follow the instructions completely to make sure you set up your stroller in your preferred mode of use.

After the frame and the wheels have been assembled, you can choose to set the stroller up in Carriage Mode or Toddler Seat Mode by following instructions on pages 12 - 16.

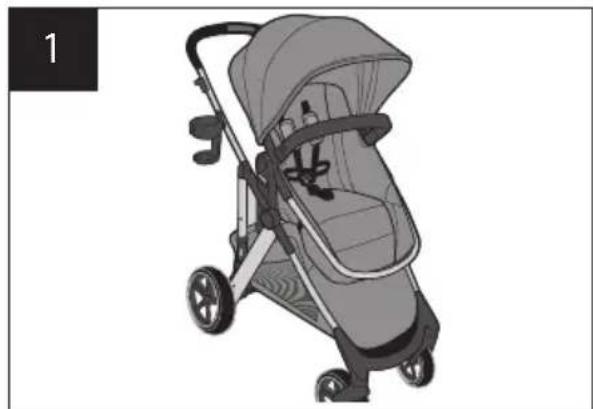

Toddler Seat Mode

Illustration of a baby stroller with four wheels and a canopy cover (no text or symbols)

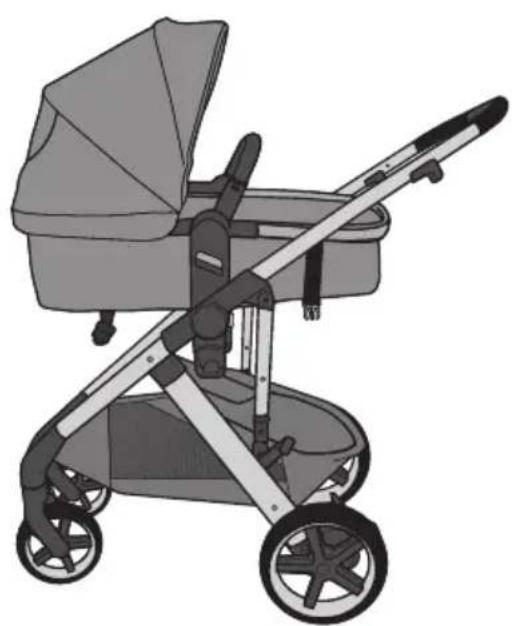

Carriage Mode

Illustration of a baby stroller with a canopy and front-mounted arms (no text or symbols)

Assembling Your Stroller - Frame

WARNING!

DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

1 Side Frame Lock

To protect flooring, place a protective covering (carton) beneath the stroller during assembly.

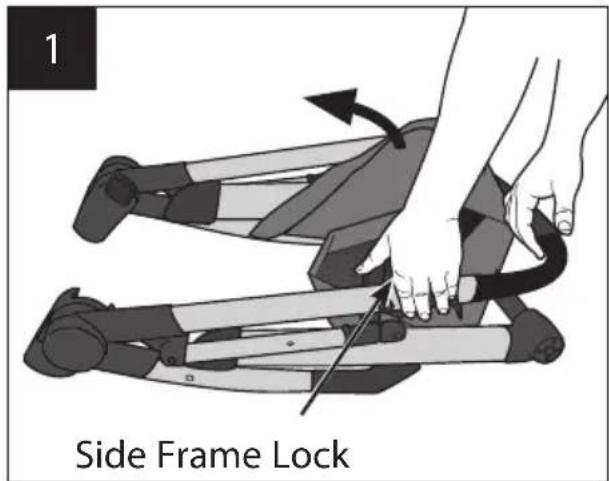

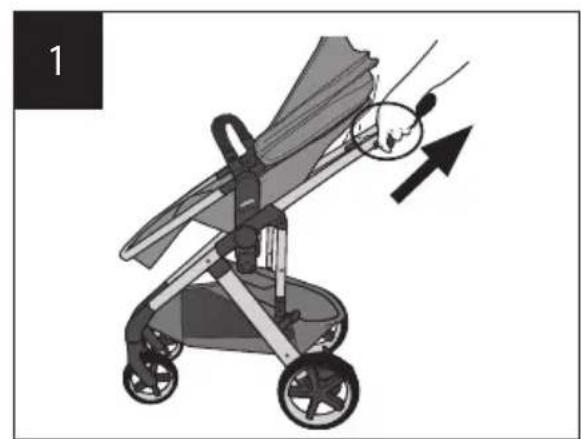

Unlatch side frame lock. Continue holding the lock open while unfolding the stroller.

2 CLICK!

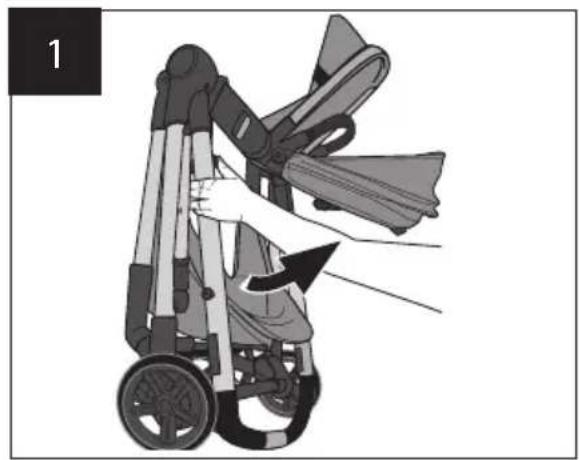

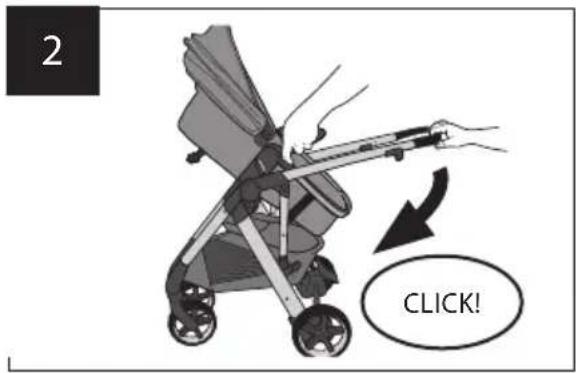

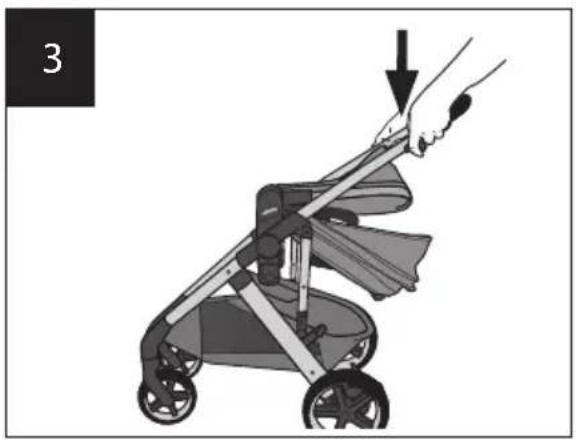

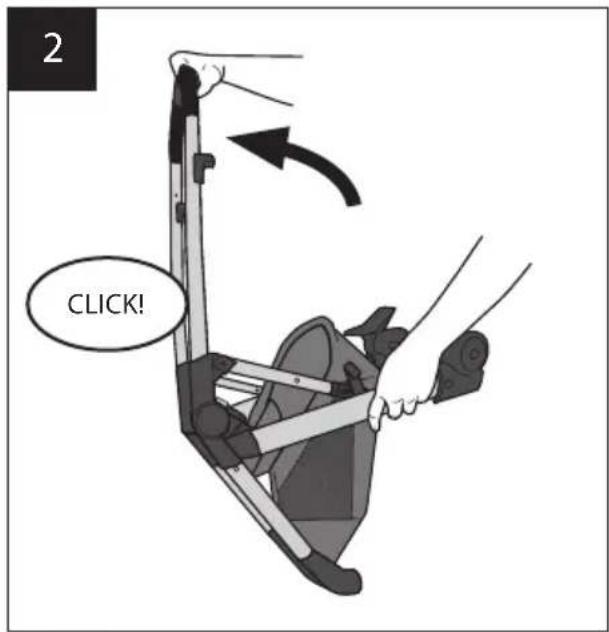

Grab the parent's handle and pull upward until the stroller opens fully with an audible click.

Illustration of a hand using a lever to lift a small boat, with an arrow indicating motion (no text or symbols present)

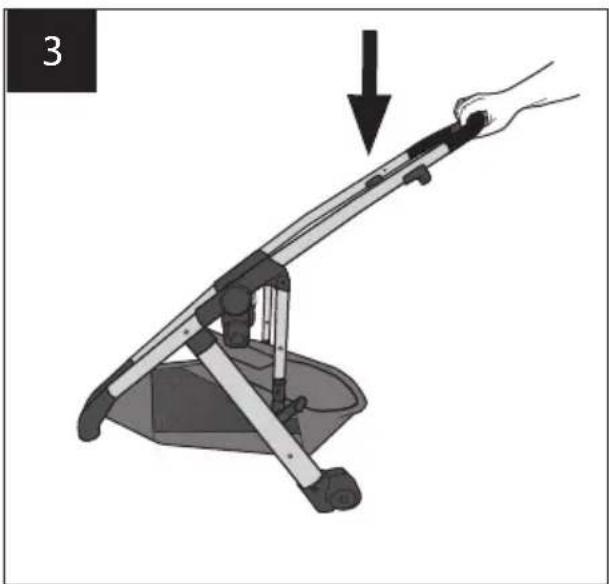

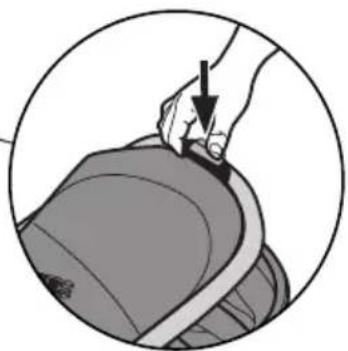

Make sure the stroller is locked in the open position by pushing down on the parent's handle.

1 CLICK!

Turn the stroller so the front of the stroller is facing upwards as shown.

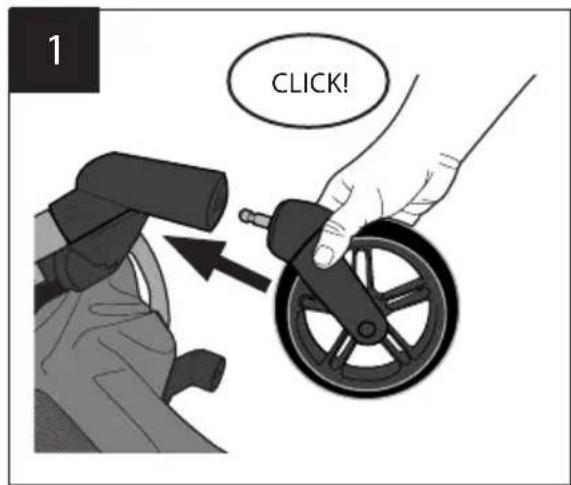

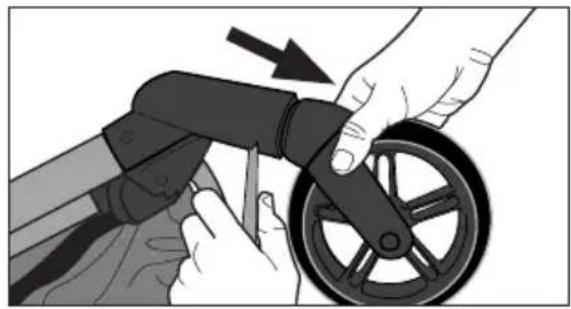

To attach front wheels, push wheel onto front leg tube until it clicks into place. Repeat on other side. Pull on wheels to make sure both of them are securely attached.

Illustration of hands using a steering wheel to adjust the steering wheel (no text or symbols present)

To remove front wheel, insert flat tool into slot and pull wheel off stroller.

2 CLICK!

Turn the stroller upside down as shown so the rear of the stroller is facing upwards.

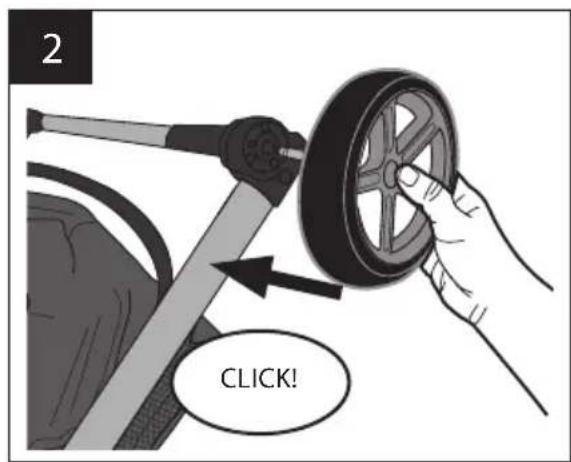

To attach rear wheels, push wheel onto rear leg tube until it clicks into place. Repeat on other side. Pull on wheels to make sure both of them are securely attached.

Mechanical assembly diagram showing a hand operating a stroller with a valve and wheel (no text or symbols)

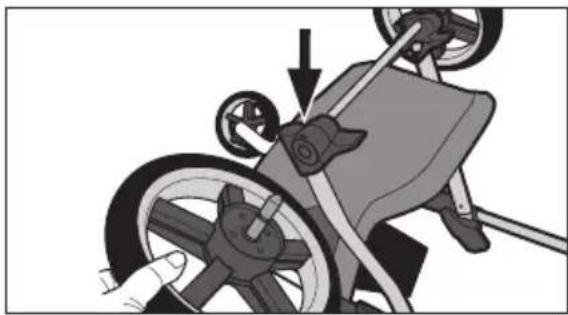

To remove rear wheel, press button on stroller frame as shown and pull wheel off stroller.

Assembling Your Stroller - Basket

1 CLICK!

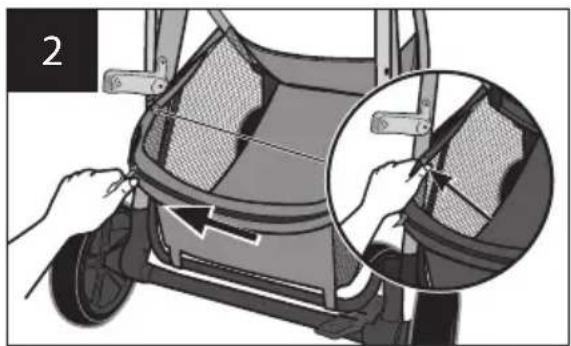

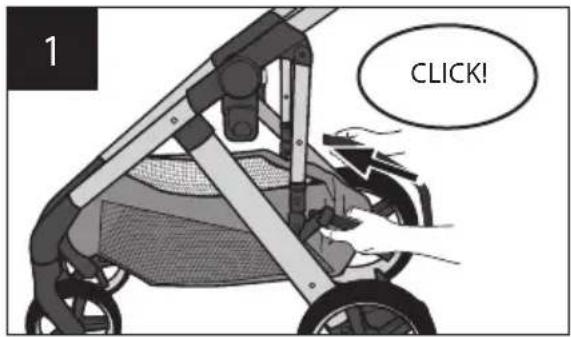

To assemble basket, locate the basket assembly bar and ensure the push buttons are on the bottom. Press the buttons in, then push basket assembly bar onto frame until it clicks into place on both sides with an audible click.

Illustration of a car interior with mesh mesh and hand tool, showing structural change (no text or symbols)

Once installed, pull on the basket assembly bar to make sure it is locked into place.

Complete assembly by zipping basket fabric around basket assembly bar and attaching snap buttons on both sides of the stroller frame.

Assembling Your Stroller - Toddler Seat Mode

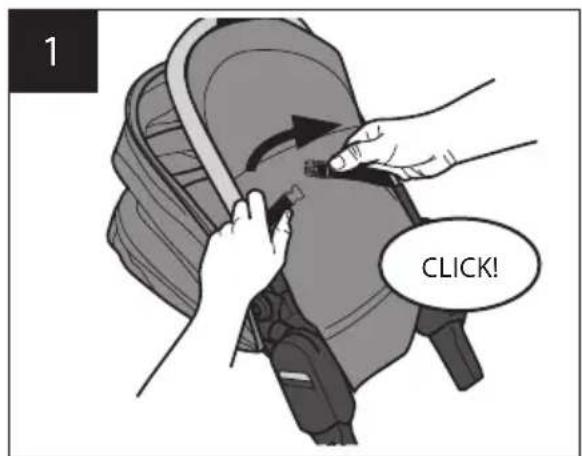

1 CLICK!

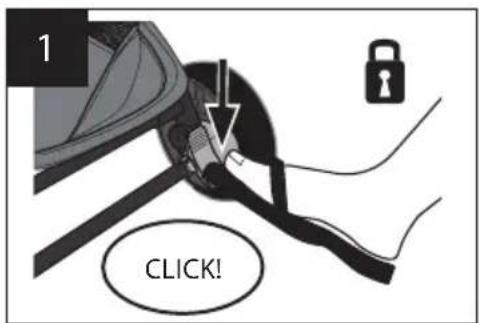

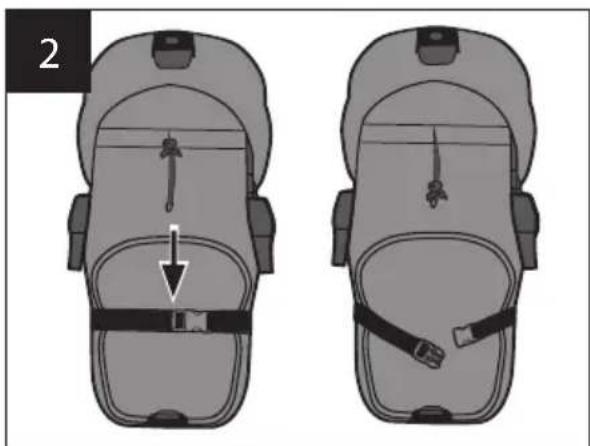

Fasten buckle behind leg rest of toddler seat.

IMPORTANT: Keep seat folded out of package.

The buckle MUST be fastened before placing child in the seating area.

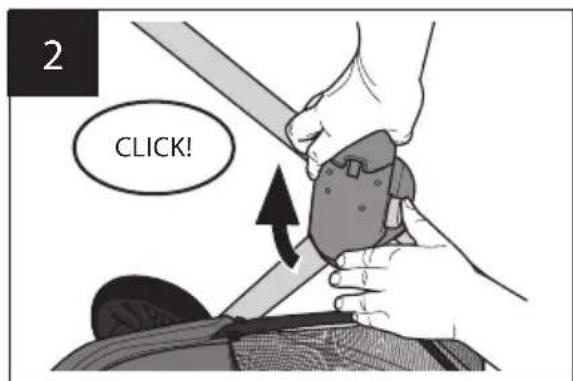

2 CLICK!

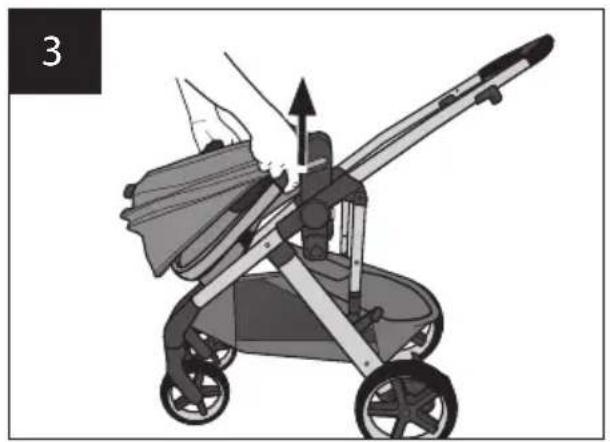

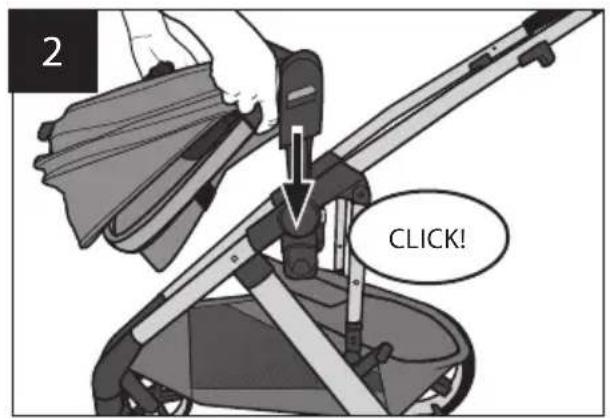

With toddler seat folded, line up toddler seat towers with seat mounts on the stroller frame. Slide seat onto the mounts until it clicks into place on both sides of the frame.

The toddler seat may be attached forward-facing or parent-facing.

Illustration of a baby stroller with a hand holding an upward arrow, no text or symbols present

CHECK to make sure it is securely attached by pulling up on it.

4 CLICK!

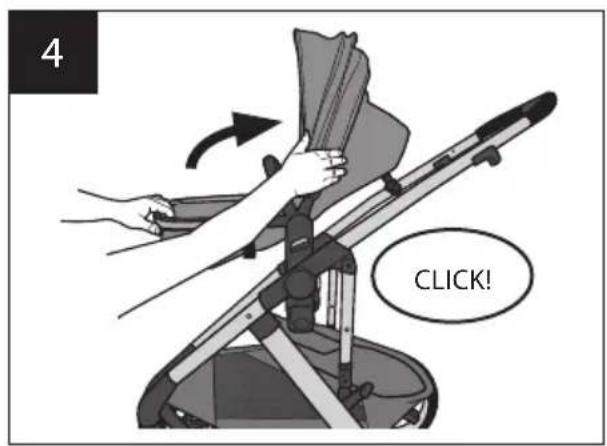

Continue to unfold toddler seat until it clicks into place.

Assembling Your Stroller - Toddler Seat Mode

WARNING!

DEATH or SERIOUS INJURY can occur.

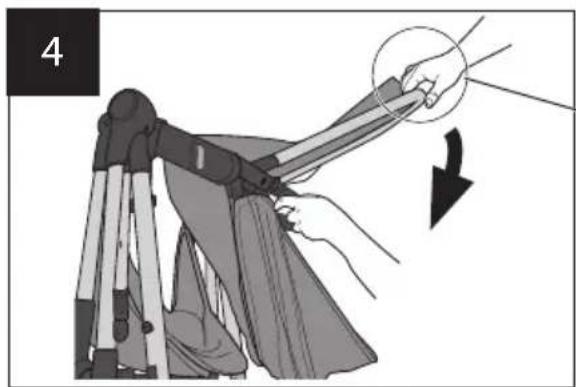

To avoid serious injury, DO NOT raise or recline seat with child in stroller.

Illustration of a person wearing a backpack and holding a tool, with arrows indicating motion or movement (no text or symbols)

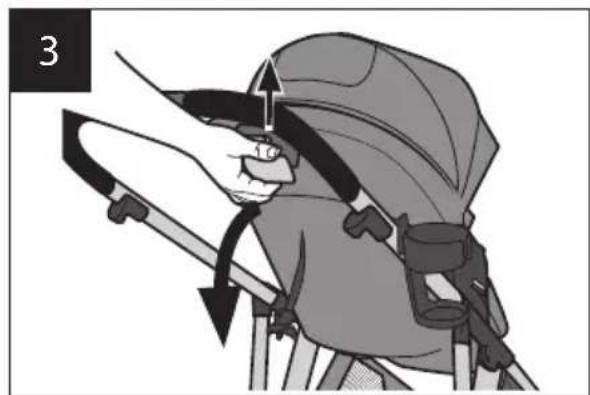

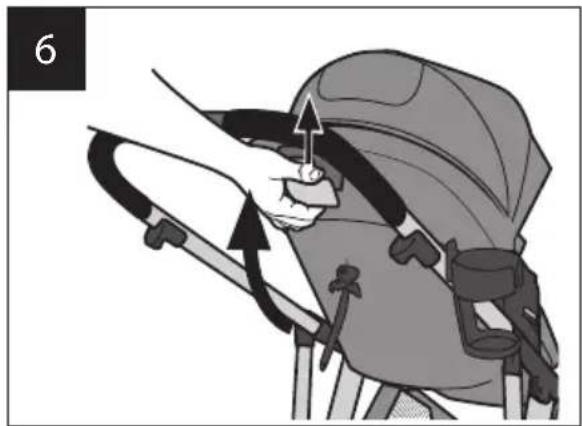

To recline toddler seat, lift multi-position recline handle at the top of the seat and rotate seat to the desired position.

7 CLICK! CLICK!

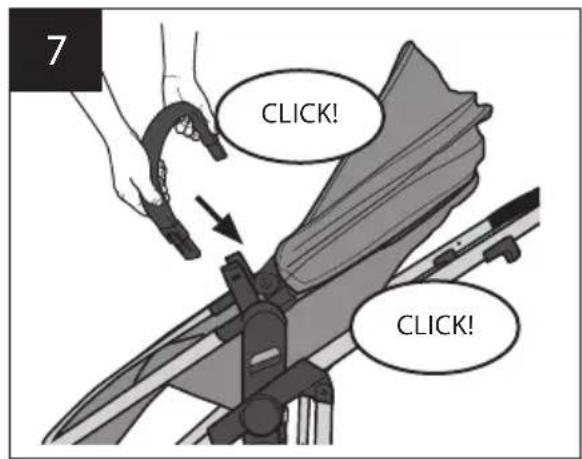

To attach bumper bar, push tabs into openings on stroller on both sides of frame until it clicks into place.

Pull on the bumper bar to make sure it is locked into place.

Illustration of hands operating a mechanical device with a tool, no visible text or symbols

To remove the bumper bar, push both tabs and remove the bumper bar from the stroller.

Using Your Stroller - Toddler Seat Mode to Carriage Mode

WARNING!

DEATH or SERIOUS INJURY can occur.

NEVER use seat in a reclined carriage position unless straps under seat are unbuckled and seat is set up in Carriage Mode as per the instructions.

NEVER lift or carry toddler seat by the bumper bar or with child in it. The toddler seat is not a carrier.

ALWAYS use the waist restraint when the toddler seat is in Carriage Mode.

To avoid falls, never remove toddler seat from the stroller with child in it.

Illustration of a baby stroller with no visible text or symbols

Two identical grayscale backpack diagrams with a directional arrow indicating movement or positioning (no text or symbols)

Illustration of a person in a hooded shirt holding a bow, with arrows indicating direction (no text or symbols)

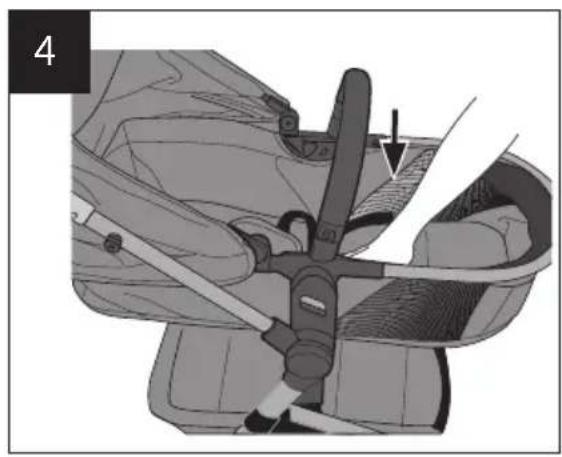

If you are in Toddler Seat Mode as shown, follow these steps to convert to Carriage Mode.

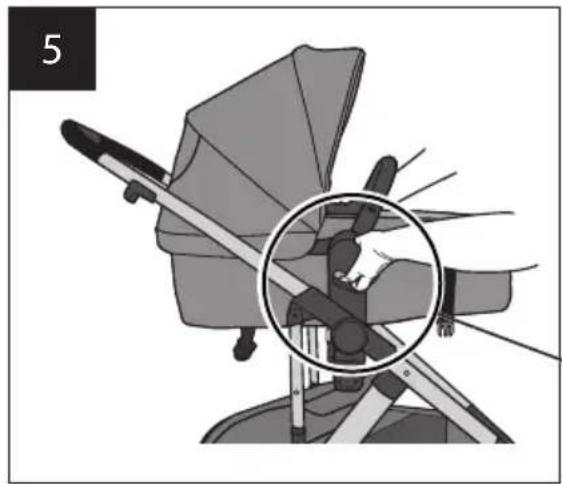

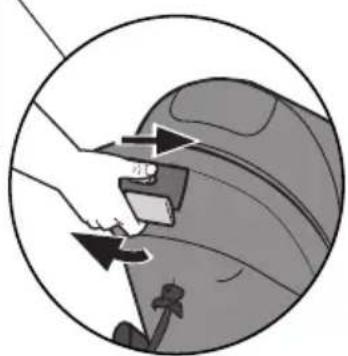

Unfasten buckles behind leg rest of toddler seat. To recline seat, squeeze button and pull down on multi-position recline strap.

IMPORTANT: The buckles MUST be unfastened before placing child in the seating area.

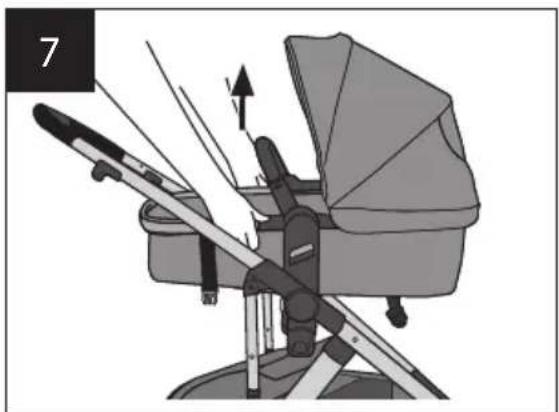

Lift multi-position recline handle and rotate seat all the way down so that it is flat.

Using Your Stroller - Toddler Seat Mode to Carriage Mode

Mechanical assembly diagram showing a belt drive mechanism with no visible text or symbols

Press down on the inside of the toddler seat to flatten out the inside.

Illustration of a person using a camera to adjust or install a device, with a magnified inset showing the tool (no text or symbols present)

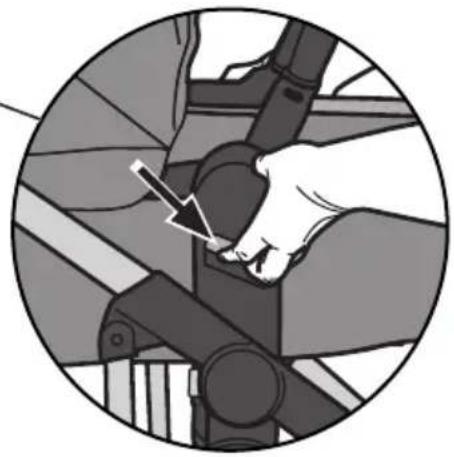

To remove and use in parent-facing mode: Press the release buttons on both sides of toddler seat, lift seat off stroller frame and turn it around and re-attach.

6 CLICK!

Close-up of a hand adjusting a mechanical component, possibly a valve or switch (no text or symbols visible)

Diagram of a mechanical device with lever and guide mechanism (no text or symbols)

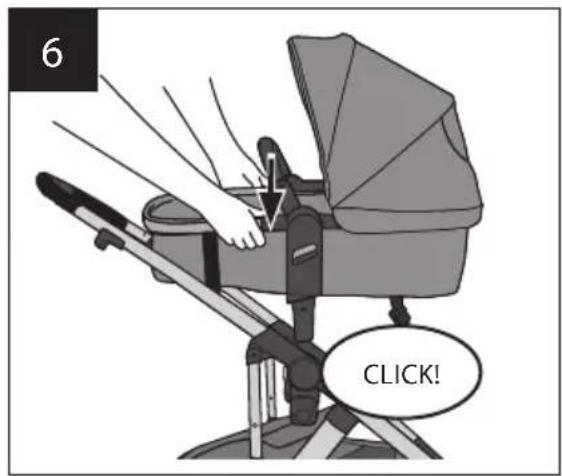

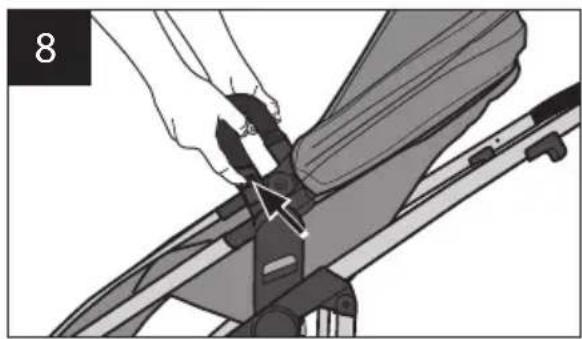

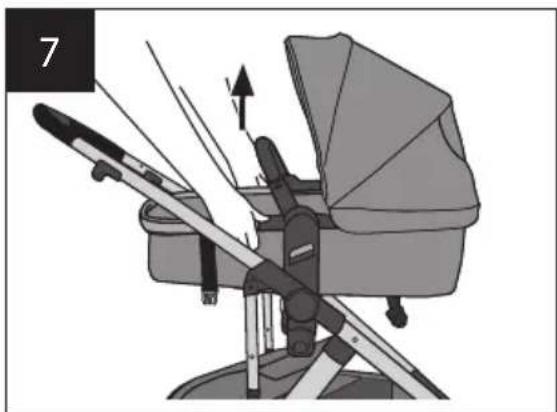

CHECK to make sure it is securely attached on both sides by pulling up on it.

Using Your Stroller - Cupholder

Illustration of a person adjusting a mechanical component with a directional arrow (no text or symbols)

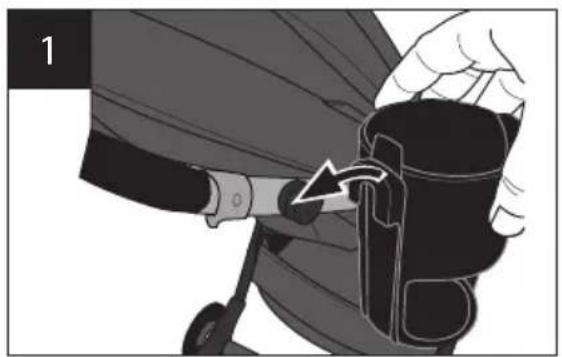

To attach cupholder, slide down on the mount on either side of stroller as shown.

Illustration of a hand holding a black mug with a handle, no text or symbols present

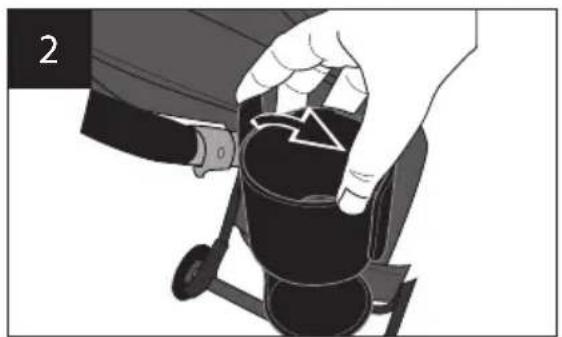

To remove cupholder, press tab towards center and slide up.

Using Your Stroller - Canopy

Mechanical assembly diagram showing a lever mechanism with curved arrows indicating motion (no text or symbols)

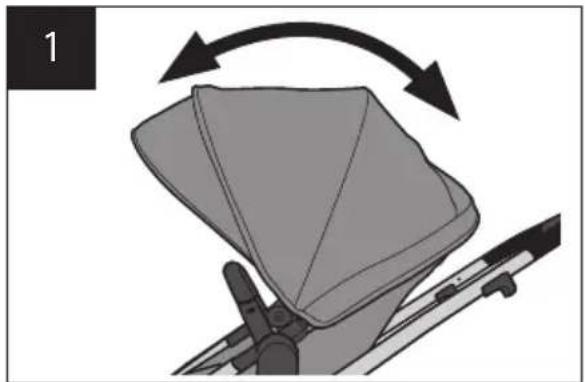

To open or close canopy, push to the front or the rear of the stroller as shown.

Illustration of a person wearing a helmet with motion arrows indicating movement (no text or symbols)

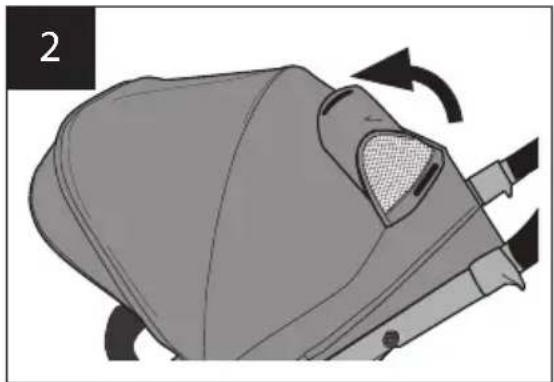

Canopy has a window that can be pulled back so you can view child in Toddler Seat Mode.

Using Your Stroller - Harness

WARNING!

DEATH or SERIOUS INJURY can occur.

To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.

G H L J K I K G H

NOTE: Verify the stroller is locked in the open position by pushing down on the parent's handle.

Lock the rear brakes and remove the bumper bar.

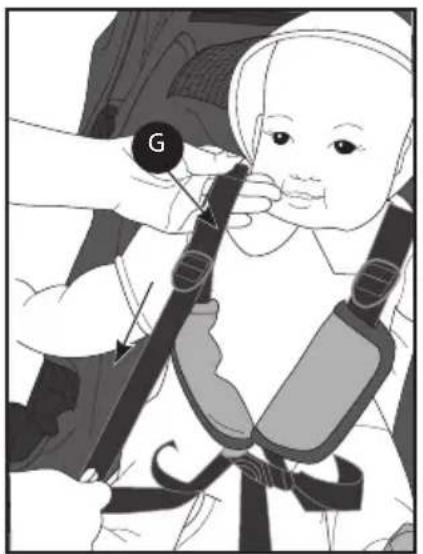

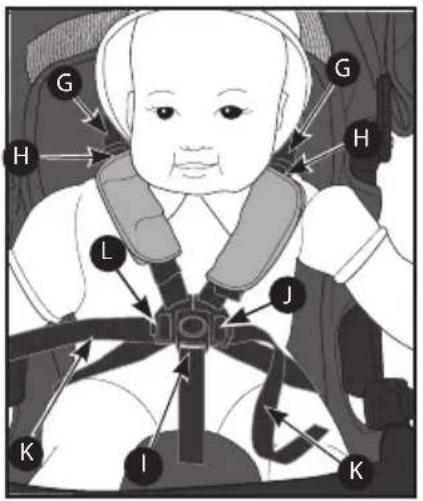

The harness shoulder straps Ⓖ must be at shoulder height or lower, closest to the baby's shoulders Ⓗ.

Illustration of a baby wearing a full-body seatbelt, with a hand adjusting the seatbelt (no text or symbols present)

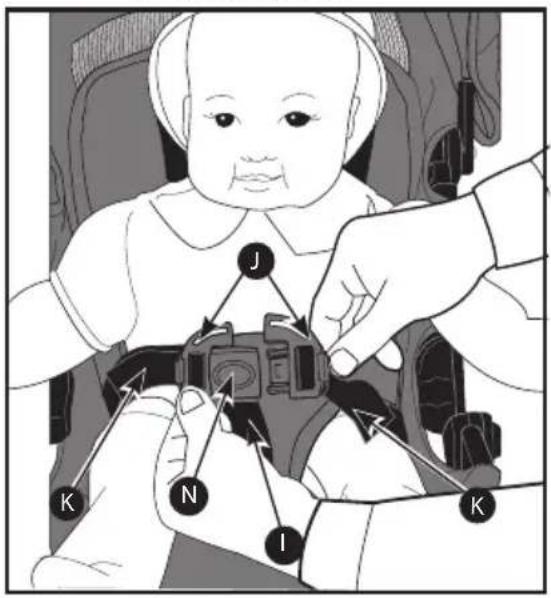

Place the baby in the seat and bring the buckle panel ① up between the child's legs. Fasten each buckle ②. For a snug, comfortable fit, pull the shoulder straps ③ to tighten the shoulder restraint and pull the waist restraint straps ④ to tighten the waist restraint.

NOTE: To loosen the waist straps Ⓚ, push in the release button Ⓛ on the buckle and pull.

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seatbelt (no text or symbols present)

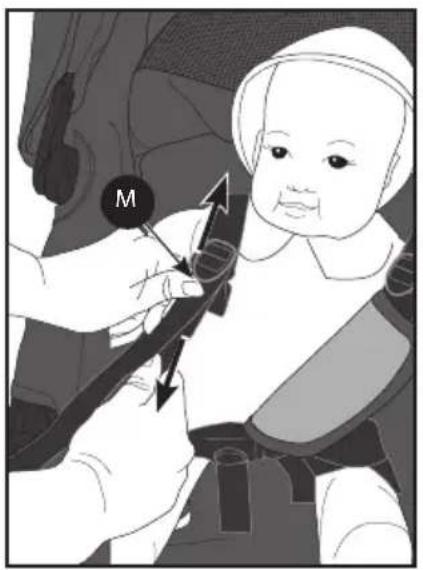

To loosen shoulder straps push up on the retainer Ⓜ while pulling down on the shoulder strap.

Once the child is properly restrained, re-attach the bumper bar.

Make sure the bumper bar locks into position with audible clicks.

Pull on the bumper bar to make sure it is locked into place.

3-Point Harness

Diagram illustrating infant car seatbelt usage with labeled points (I, J, K, N) and directional arrows indicating movement or positioning.

To change from 5-point to 3-point harness:

Unlock the Harness: Depress button Ⓝ as shown. Remove harness shoulder strap Ⓖ from each buckle ⚠ as shown.

Store shoulder harness straps for future use.

G J

Using Your Stroller - Brakes

WARNING!

DEATH or SERIOUS INJURY can occur.

ALWAYS lock brakes. Make sure brakes are on by trying to push the stroller.

1 CLICK!

To lock, press brake lever DOWN at bottom of brake as shown.

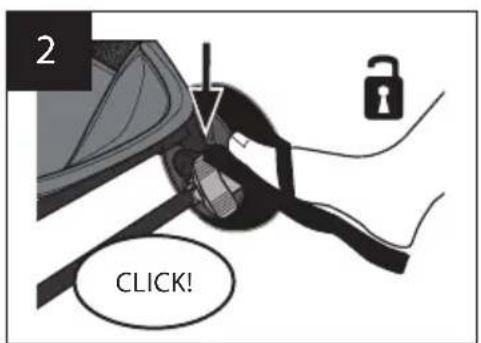

2 CLICK!

To unlock, push lever DOWN at top of brake as shown.

Using Your Stroller - Folding Stroller

WARNING!

DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

Illustration of a baby stroller with a hand holding a cup, showing body positioning and motion direction (no text or symbols)

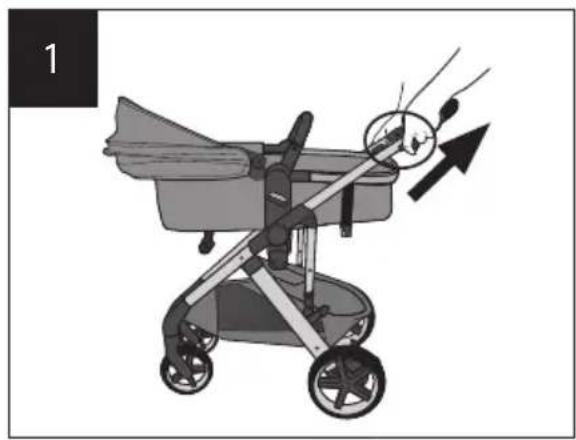

To fold the stroller forward-facing, remove your child, adjust seat back to upright position, lock the rear brakes, and close the canopy.

Illustration of a baby stroller with hands and a black arrow indicating motion (no text or symbols)

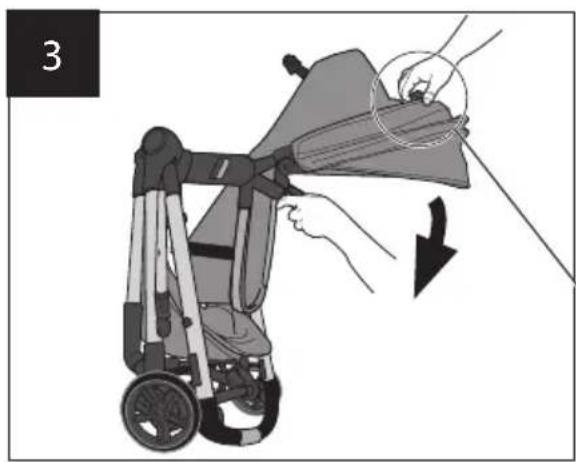

Pull the fold release levers on both sides of the stroller and use the bumper bar to help guide stroller down. Lower frame until the side frame lock clicks into place. Double check side frame lock is securely closed.

3 CLICK!

Stroller will stand on its handle and rear wheels when folded.

Illustration of a person using a device to lift a seat, showing hand placement and motion direction (no text or symbols)

While using the bumper bar to help guide the toddler seat, press the lower fold lock and fold the toddler seat forward as shown.

Illustration of a hand using a tool to lift a helmet, no text or symbols present

WARNING!

DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

Illustration of a stroller with motion arrows indicating movement (no text or symbols)

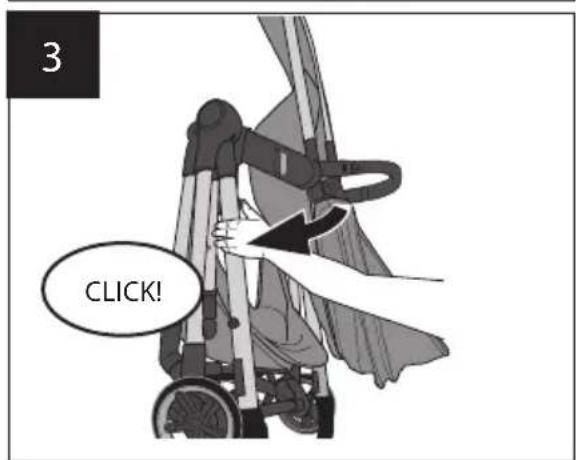

To fold the stroller parent-facing, remove your child, lock the rear brakes, and close the canopy.

Pull the fold release levers on both sides of the stroller and use the bumper bar to help guide stroller down. Lower frame until the side frame lock clicks into place. Double check side frame lock is securely closed.

2 CLICK!

Stroller will stand on its handle and rear wheels when folded.

Illustration of a person using a cart to lift a seatbelt, with hands adjusting the seatbelt and a black arrow indicating rotation (no text or symbols)

While using the bumper bar to help guide the toddler seat, fully lift the multi-position recline handle. With handle lifted, press the upper fold lock and fold the toddler seat forward as shown.

Illustration of a hand using a belt switch to adjust the seat area (no text or symbols present)

Using Your Stroller - Unfolding Stroller

Illustration of a person in a stroller being lifted by a hand, showing seatbelt and arm positioning (no text or symbols)

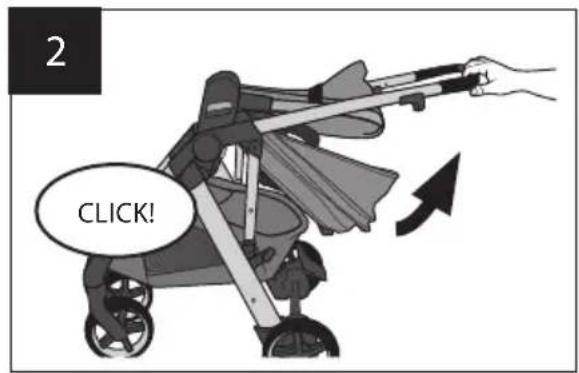

To unfold the stroller, unlatch side frame lock.

Continue holding lock open while unfolding the stroller.

2 CLICK!

Grab the parent's handle and pull upward until the stroller opens fully with an audible click.

Illustration of a baby stroller with a hand holding a tray, showing fabric and a downward arrow (no text or symbols)

Make sure stroller locks in open position by pushing down on parent's handle.

3 CLICK!

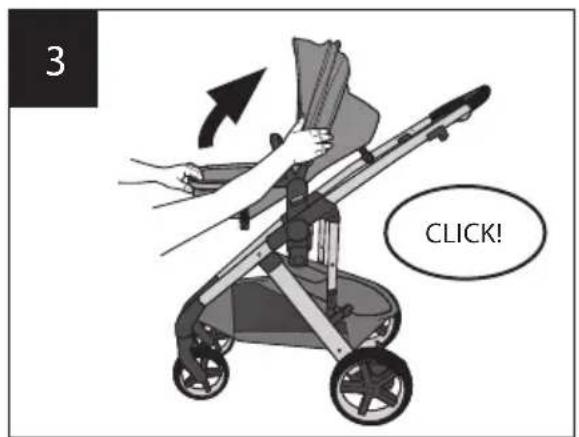

Continue to unfold toddler seat until it clicks into place.

WARNING!

DEATH or SERIOUS INJURY can occur.

• Only use Evenflo SafeMax™ or any version of the LiteMax™ infant car seats with this stroller. Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
• Before using the infant car seat with this stroller, read all the instructions provided with it and keep the instructions stored properly for future use.
• DO NOT lift stroller by using the infant car seat handle when installed on stroller.
• If unable to securely attach your infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
• To avoid serious injury, make sure the infant car seat is securely snapped onto the car seat mounts.
• SomeEvenflo SafeMax™ and LiteMax™ infant car seats have a blanket/boot option that must be removed for proper attachment to this stroller.

Illustration of a person assembling a mechanical component with an upward arrow indicating motion (no text or symbols)

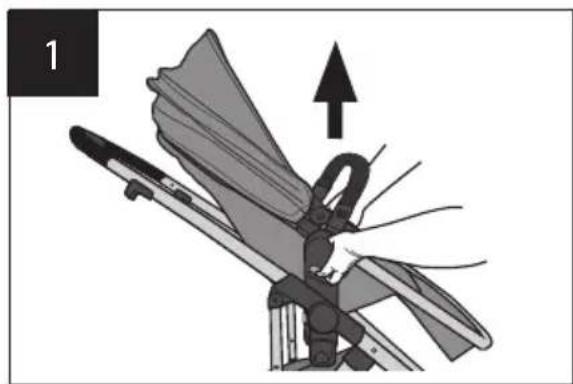

To remove the toddler seat, press the toddler seat release buttons on both sides of the toddler seat and lift seat off stroller frame.

2 CLICK!

Rotate the car seat mounts using the release button on both sides of the stroller as shown. Make sure mounts lock into position with an audible click.

Using your Stroller with the Recommended Infant Car Seats

3 CLICK!

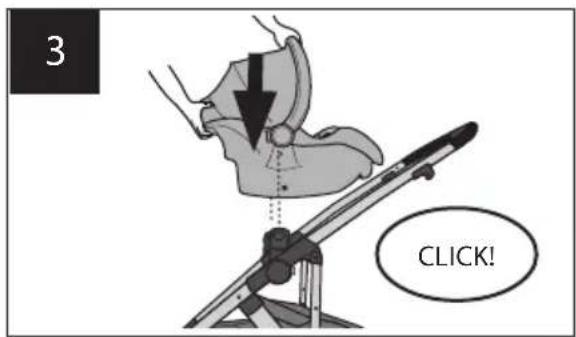

To attach car seat, insert car seat into the mounts until they both click into place on both sides of the frame.

NOTE: Please be sure handle is in upright position when used on the stroller, as shown.

CLICK! CLICK!

OR

CLICK! CLICK!

NOTE: The infant car seat may be installed parent-facing or forward-facing on the stroller frame.

Illustration of a baby stroller with an upward arrow indicating motion (no text or symbols)

Pull up on the infant car seat handle to test that it is properly locked into place.

Illustration of a person using a climbing device to lift a seat, with arrows indicating motion direction (no text or symbols)

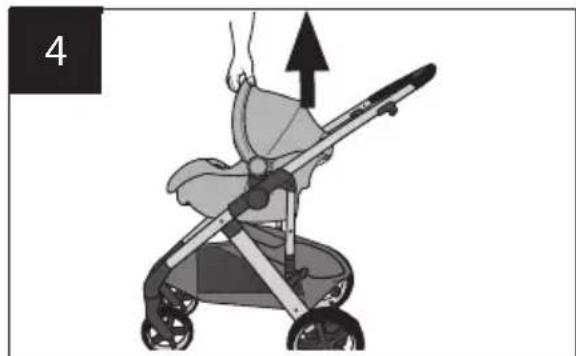

To remove infant car seat, lock brakes, squeeze handle on rear of seat and pull car seat up off of the stroller.

• Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user ("Purchaser") this Product (including any accessories) against defects in material or workmanship. Evenflo's sole obligation under this express limited warranty shall be, at Evenflo's option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at 1-800-233-5921 or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

Table des matières

Avertissements....4

Informations importantes.... 7

answers. advice. affirmation.™

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Black and white illustration of a wheeled bicycle wheel with a handle (no text or symbols)

Illustration of a person performing a stretching exercise (no text or symbols visible)

Châssis

Black and white illustration of a car wheel with five spokes (no text or symbols)

Roues arrière (2)

Porte-gobelet (1)

Black curved pipe or tube component with no visible text or symbols

Barre de protection

Illustration of a gray backpack with straps and straps, shown in 3D style (no text or symbols)

Simple black curved pipe or handle component on white background (no text or symbols)

Illustration of a baby stroller with four wheels and a canopy cover (no text or symbols)

Mode landau

Illustration of a baby stroller with a canopy and metal frame (no text or symbols)

Illustration of a hand using a lever to lift a slide, with a downward arrow indicating motion (no text or symbols)

Illustration of hands using a wristbelt to adjust the wheel rim (no text or symbols present)

Illustration of a stroller with a hand operating the wheel (no text or symbols)

Illustration of a car interior with hands adjusting the seat frame, showing a magnified inset of the seat area (no text or symbols present)

Illustration of a stroller with a hand holding an arrow, no text or symbols present

Illustration of a person wearing a backpack and holding a tool, with arrows indicating motion or movement (no text or symbols)

Illustration of hands operating a mechanical device with a tool, no visible text or symbols

Illustration of a baby stroller with decorative frame and wheels (no text or symbols)

Two side-view diagrams of a backpack with straps and seatbelt, showing different seat configurations (no text or symbols)

Illustration of a person using a tool to adjust or install a device, no text or symbols present

Mechanical assembly diagram showing a belt drive mechanism with no visible text or symbols

Illustration of a person using a camera lift device, showing the blade and handle assembly (no text or symbols)

Close-up of a hand operating a mechanical device in a vehicle (no visible text or symbols)

Diagram of a child's seat with a steering wheel and directional arrows indicating motion (no text or symbols)

Illustration of a person adjusting a mechanical component with a directional arrow (no text or symbols)

Illustration of a hand holding a black cylindrical object with a triangular handle, next to a chair (no text or symbols visible)

Diagram of a mechanical device with directional arrows indicating motion or rotation (no text or symbols)

Illustration of a person wearing a helmet with motion arrows indicating movement (no text or symbols)

G H G H L J K I K

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seatbelt (no text or symbols present)

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seatbelt (no text or symbols present)

Diagram illustrating infant car seatbelt usage with labeled points (I, J, K, N) and directional arrows indicating movement or force.

Illustration of a baby stroller with a hand holding a cup, showing body positioning and motion direction (no text or symbols)

Illustration of a baby stroller with hands holding a tray, showing a curved arrow indicating motion (no text or symbols)

Illustration of a person using a tripod to lift a cable, with hand and arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a helmet component, no text or symbols present

Illustration of a baby stroller with motion arrows indicating movement (no text or symbols)

Illustration of a person using a stroller to lift a seatbelt, with arrows indicating motion (no text or symbols)

Illustration of a hand using a belt switch to adjust seatbelt (no text or symbols present)

Illustration of a person in a stroller being lifted by a hand, with no visible text or symbols

Illustration of a baby stroller with a hand holding a tray, showing fabric and seat (no text or symbols)

Illustration of a person assembling or adjusting a mechanical component with an upward arrow (no text or symbols)

Illustration of a baby stroller with an upward arrow indicating motion (no text or symbols)

Illustration of a person using a climbing device to lift a seat, with arrows indicating motion direction (no text or symbols)

answers. advice. affirmation.™

www.evenflo.com

answers. advice. affirmation.™

- www.evenflo.com

Technical diagram of a stroller with numbered parts for identification and assembly reference.

Black bicycle steering wheel with a lever handle (no text or symbols visible)

Illustration of a person in a seated leg wearing a high-visibility vest (no text or symbols visible)

Armazón

Black and white illustration of a car wheel with five spokes (no text or symbols)

Ruedas traseras (2)

Portavasos (1)

Black curved object with a looped end, resembling a stylized tool or connector (no text or symbols visible)

Barra de tope

Illustration of a gray backpack with straps and straps, shown in 3D style (no text or symbols)

Pure curved black pipe or tube shape without any text, numbers, or symbols

Illustration of a baby stroller with four wheels and adjustable arms (no text or symbols)

Modo de moisés

Illustration of a baby stroller with a canopy and metal frame (no text or symbols)

Illustration of a hand using a lever to lift a small object, with an arrow indicating motion (no text or symbols present)

Illustration of hands using a wristwatch to adjust the wheel rim (no text or symbols present)

Illustration of a baby stroller with hand operating controls and a downward arrow indicating motion (no text or symbols)

Illustration of a car interior with mesh mesh and hand tool, showing structural components (no text or symbols)

Illustration of a stroller with a hand holding a tray, showing motion direction (no text or symbols)

Illustration of a person wearing a helmet and holding a tool, with arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing hands operating a lever mechanism (no text or symbols visible)

Illustration of a baby stroller with wheels and seatbelt (no text or symbols)

Two side-view diagrams of a backpack with straps and seatbelt, showing different seat configurations (no text or symbols)

Illustration of a person using a tool to adjust or install a device, no text or symbols present

Mechanical assembly diagram showing a clamp and lever mechanism (no text or symbols)

Illustration of a person using a camera to adjust equipment, with a magnified inset showing hand positioning (no text or symbols)

Close-up of a hand operating a mechanical device with a black arrow pointing to the handle (no text or symbols visible)

Diagram of a mechanical device with lever and guide mechanism (no text or symbols)

Illustration of a person adjusting a mechanical component with a directional arrow (no text or symbols)

Illustration of a hand holding a black cylindrical object with a triangular handle, next to a chair (no text or symbols visible)

Diagram of a mechanical device with directional arrows indicating motion or rotation (no text or symbols)

Illustration of a person wearing a helmet with motion arrows indicating movement (no text or symbols)

G H G H L J K I K

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seatbelt (no text or symbols present)

Illustration of a baby wearing a full-body safety harness, with a hand adjusting the seatbelt (no text or symbols present)

J K N I K

Illustration of a baby stroller with a hand holding a cup, showing motion direction (no text or symbols)

Illustration of a baby stroller with hands and a black arrow indicating motion (no text or symbols)

Illustration of a person using a leg brace to lift a rope, with arrows indicating motion direction (no text or symbols)

Illustration of a hand using a tool to lift a cap, no text or symbols present

¡ADVERTENCIA!

Illustration of a baby stroller with motion arrows indicating movement (no text or symbols)

Illustration of a person using a stroller to lift a seatbelt, with hands adjusting the seatbelt and a black arrow indicating motion (no text or symbols)

Illustration of a hand using a belt switch to adjust seatbelt (no text or symbols present)

Illustration of a person in a stroller being lifted by a hand, showing seatbelt and arm positioning (no text or symbols)

Illustration of a baby stroller with a hand holding a tray, showing fabric and a downward arrow (no text or symbols)

Illustration of a person assembling a chair with an upward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with an upward arrow indicating motion (no text or symbols)

Illustration of a person using a climbing device to lift a seat, with arrows indicating motion direction (no text or symbols)

answers. advice. affirmation.™

www.evenflo.com

EUA: 1-800-233-5921 8 AM – 5 PM E.T.

answers. advice. affirmation.™

www.evenflo.com

USA: 1-800-233-5921 8 AM - 5 PM E.T.

Canada: 1-937-773-3971

México: 800-706-1200
