USER MANUAL Crossback Glow TAURUS

CROSSBACK DIGITAL FLEX

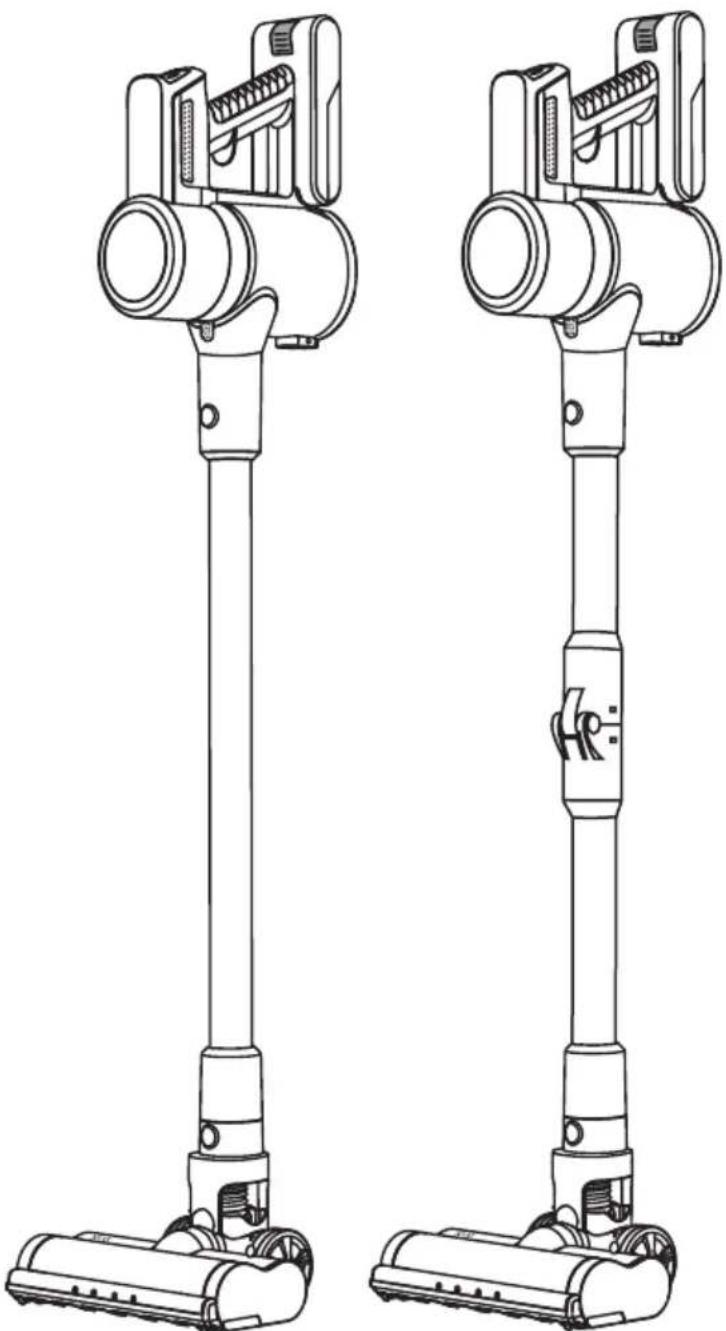

Line drawing of two different vacuum cleaner designs (no text or symbols)

EN. Instructions for use

FR. Mode d'emploi

Technical diagram of a handheld vacuum cleaner with labeled parts and exploded view, including power button, cable, and handle components.

Simple line drawing of a mechanical component with no text or symbols

Line drawing of a mechanical device labeled A1, showing a cylindrical component with a base and top (no text or symbols on the device itself)

Line drawing of a cylindrical device labeled A3, no text or symbols on the device itself

Simple line drawing of a hand holding a plug and cord with wires, enclosed in a rounded square frame (no text or symbols)

Line drawing of a hand using a handheld device to interact with a device, labeled 'Fig. 1' (no text or symbols on the diagram itself)

Line drawing of a mechanical device with a hand pointing to a component (no text or symbols)

Fig. 3

Illustration of a hand operating a device with directional arrows indicating motion (no text or symbols)

Fig. 5

Fig. 6

ES

CROSSBACK DIGITAL FLEX

Aspirador escoba

DESCRIPCIÓN

A Accesorios:

Stick vacuum cleaner

DESCRIPTION

A Accesories:

A1 Lance and multiuse brush

A3 Extralong lance

B Extension tube/ Flexible extension tube (*)

C Power supply

D Motorized turbobrush Helix

E Dust tank filter

F Battery indicator

G ON/OFF button

H Body

I Dust tank

J Lithium batteries

K Detachable batteries button

L Wall bracket

M Button to open the lower lid of the tank

N Tank release button

O Speed selector button.

(*) Includes in model Crossback Digital Flex

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE

Do not use the appliance if the parts or accessories are not properly fitted.

Do not use the appliance if the accessories or consumables attached to it are defective. Replace them immediately.

Do not use the appliance to gather up water or any other liquid.

Do not use the appliance if the on/off switch does not work.

Respect the MAX level indicator.

Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

Do not work on areas where there are metal objects, such as nails and/or screws.

Never vacuum hot or sharp objects (cigarette butts, ashes, nails, etc.).

Do not open the battery/ies under any

circumstances whatsoever.

The battery/ies should be stored at a temperature of below 40^ C.

Never leave the appliance connected and unattended if is not in use. This saves energy and prolongs the life of the appliance.

Do not use the appliance on any part of the body of a person or animal.

Do not use the appliance with pets or animals. Recharge the battery/ies only with the charger supplied by the manufacturer. A charger that is suitable for one type of battery may cause explosion or fire hazard when used with other battery/ies.

Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

INSTALLATION

Be sure to remove all packaging material from inside the appliance.

ASSEMBLING THE WALL BRACKET

The appliance has a charging base (K) which must be fixed to the wall.

Fix the wall bracket as you think appropriate, using plugs, screws, and adhesive...

Make sure that the bracket is firmly fixed; it should be able to support twice the weight of the appliance.

Fit the appliance into the wall support.

CHARGING THE BATTERY

Caution: A new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

Charge the battery at an atmospheric temperature of between 4 and 40°C.

A pilot light will come on to indicate that the charger is ready to begin charging the battery.

Approximately 4 to 5 hours are needed for a complete charge of the battery. Never attempt to over-charge the battery (although it is recommended that the first charge of the battery be of 6 hours in duration).

The pilot light will come on to indicate that the charger is charging the battery.

When the battery is charged disconnect the charger from the mains supply.

NB: Do not use the appliance while it is connected to the charger.

HOW TO CHECK THE BATTERY'S CHARGE LEVEL:

Press the ON/OFF button (G), the pilot lights that indicate if it is charged will light up.

If all four pilot lights come on this means that the appliance is fully charged.

If no pilot light lights up, this means that the battery is completely flat.

NB: For a long battery life, it is advisable to charge the battery, only, when it has run out completely.

INSTRUCTIONS FOR USE BEFORE USE

Make sure that product's packaging has been removed.

Before using this product for the first time, it is important to make a full charge of batteries.

Prepare the appliance according to the function you wish to use:

USE

Turn the appliance on, by using the on/off button.

Select the desired speed with the speed selector. (N) This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

FITTING AN ACCESSORY TO THE HAND VACUUM

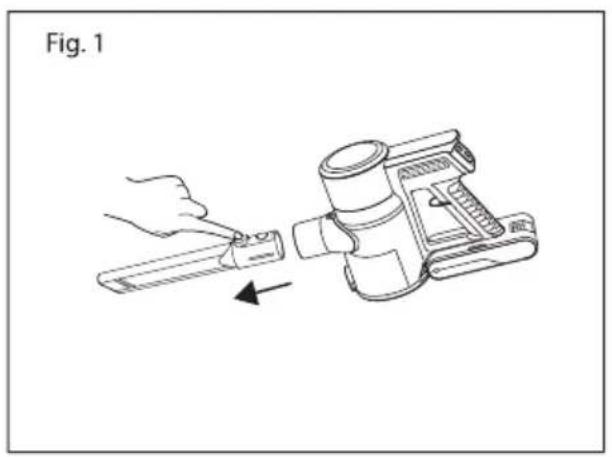

The hand vacuum is designed in such a way that it allows the following accessories to be fitted: (use the combination that best meets your requirements). (Fig.1).

Furniture brush: Equipped with a brush at the end, which brushes the surface as it is used.

Crevice nozzle: Specially designed for getting into cracks and difficult corners.

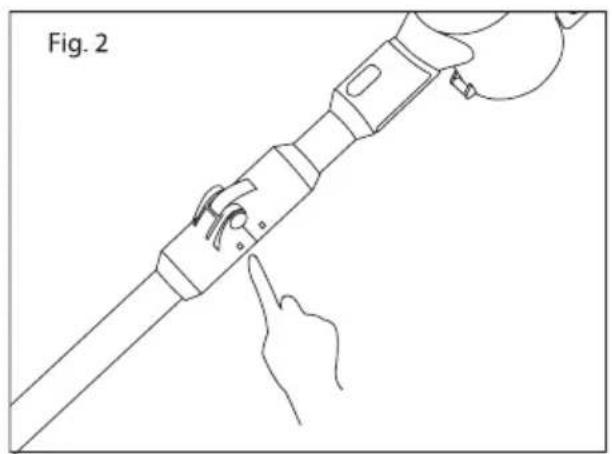

We can insert the accessories into the tube. (*) Press the button to bend the flexible tube and access hard-to-reach areas. (Fig.2)

ONCE YOU HAVE FINISHED USING THE APPLIANCE

Turn the appliance off using the on/off button.

Clean the appliance.

CLEANING

Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task. Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

Never submerge the appliance in water or any other liquid or place it under running water.

Empty the dust box when it is full (observation facilitated by transparent windows), or when vacuuming power is notably reduced.

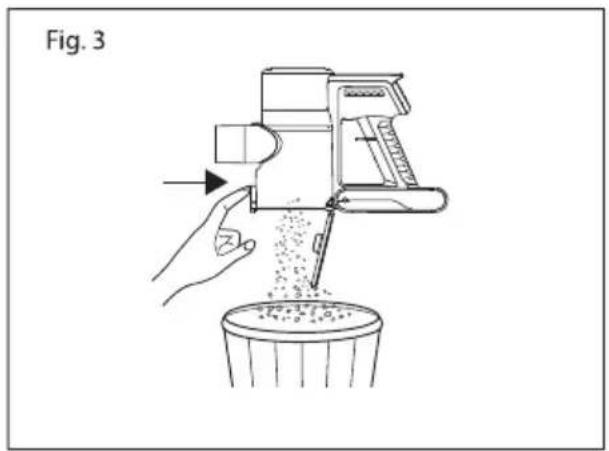

Open the lid of the dust box pressing the button to open the lower tank cover (M) located on the inside of the handle and empty the contents into the appropriate waste disposal receptacle. (Fig.3)

Check the condition of the dust box filter.

CHANGING THE FILTERS

Dust tank EPA filter (high efficiency air filter that efficiently retains spores, ash, sawdust, pollen...), it is advisable to change it a least once a year or after every 50 hours of use, or if its potency diminishes remarkably.

TO REMOVE THE FILTERS

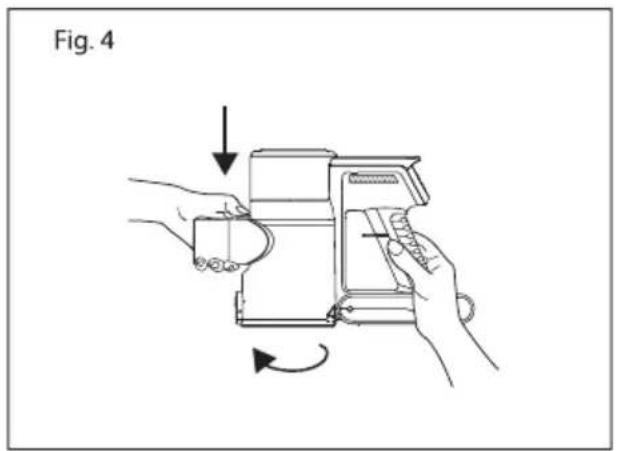

Remove the dust tank by pressing the button (N) turning to the left, as indicated by the arrow and the padlocks. (Fig. 4)

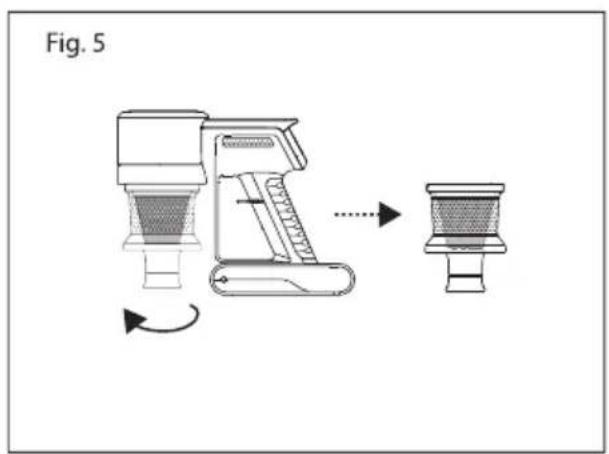

Extract the cyclone by turning to the left, the filter is inside the cyclone and to remove the filter from its anchor, turn to the right, as indicated by the arrow and the padlocks.

(Fig. 5)

To reassemble the filter, proceed with the above instructions, in reverse order.

CLEANING THE ROTARY BRUSH

To remove the brush:

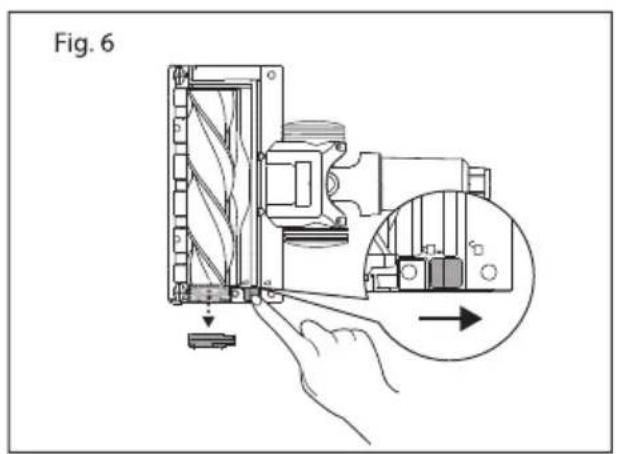

At the bottom of the shoe, you have to move the tab towards the open padlock and unhook the side piece that fixes the brush and pulls it out. (Fig. 6)

Remove the brush and clean.

To reassemble, follow the above instructions but in reverse.

SUPPLIES

Supplies can be acquired from distributors and authorised establishments (such as filters, battery etc...) for your appliance model.

Always use original supplies, designed specifically for your appliance model.

These supplies are available in specialist shops.

The type reference of the battery pack for this appliance is S7A for model HVCA72210B and S7B for model HVCA72211B

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE

CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

To remove the batteries, once the life of the appliance, proceed as follows:

Remove the battery pressing the detachable batteries button (K).

CROSSBACK GLOW CROSSBACK DIGITAL FLEX

Aspirateur balai

DESCRIPTION

A Accessoires

J Akumulatory litowe

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us.

You can download this instruction manual and its updates at http://taurus-home.com/
