USER MANUAL Omni Plus Evenflo

Up to 50 lbs (22.6 kg)

Up to 40 in (101.6 cm)

POUSSETTE

Line drawing of a baby stroller with adjustable seat, wheels, and camera (no text or symbols)

Read all instructions before assembly and use of product. KEEP INSTRUCTIONS FOR FUTURE USE.

Identification of Parts....8

Choosing Mode of Use 9

Assembling Your Stroller.... 10-13

Using Your Stroller 14-20

Using your Stroller with the Recommended Infant Car Seats on your Stroller Frame 21-22

Care and Maintenance.... 23

Limited Warranty 23

ParentLink®

answers. advice. affirmation.™

- www.evenflo.com • USA: 1-800-233-5921 8 AM – 5 PM E.T.

• Canada: 1-937-773-3971 • México: 800-706-1200

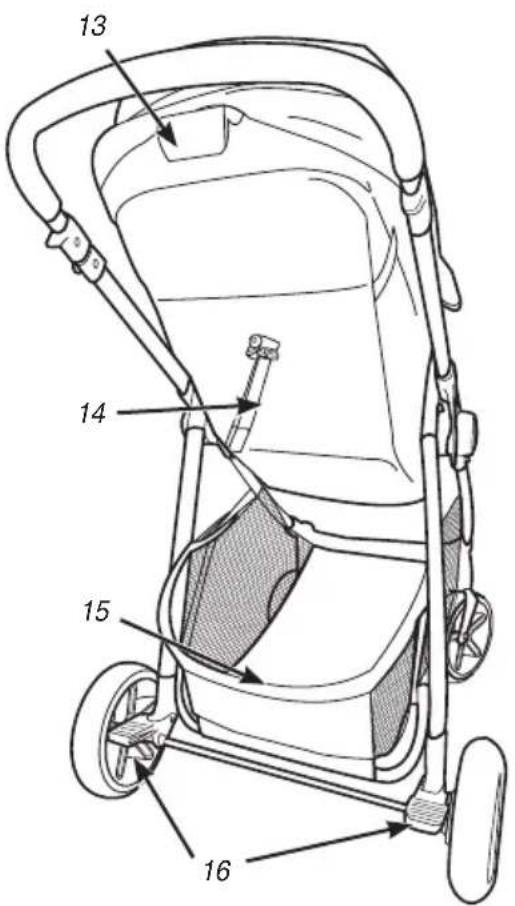

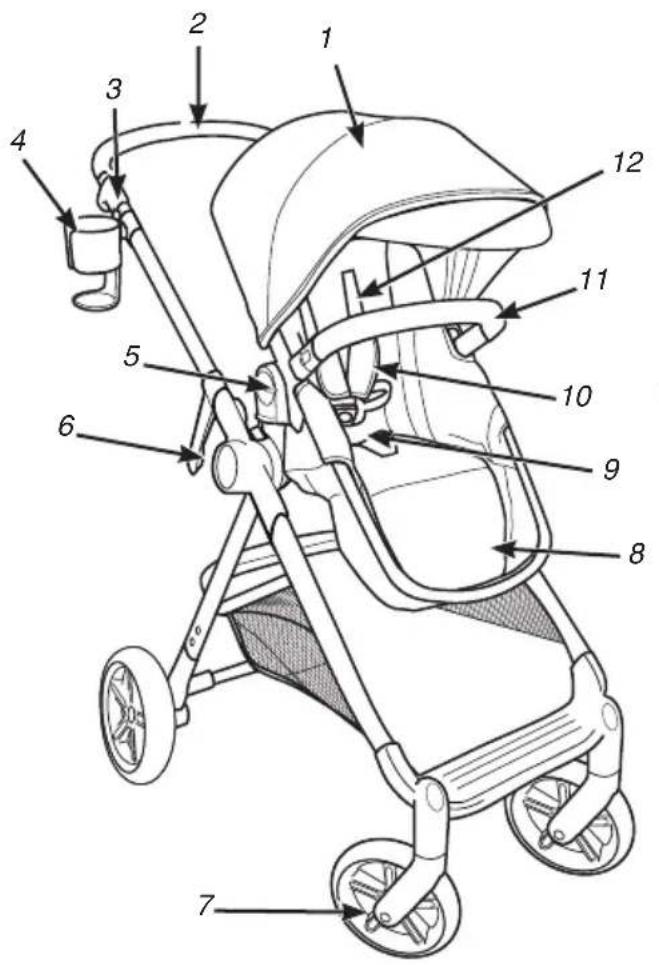

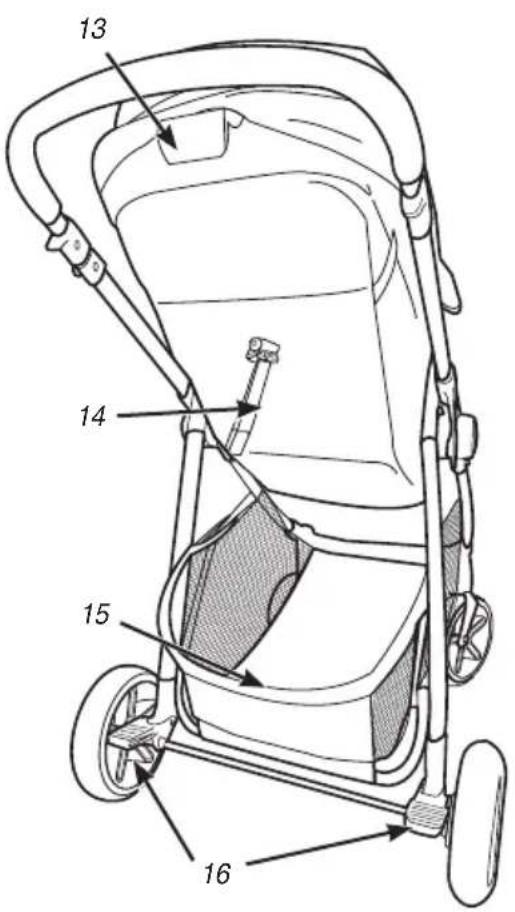

Technical diagram of a baby stroller with numbered parts for identification

13 14 15 16

1. Canopy
2. Parent's Handle
3. Fold Latch
4. Cupholder
5. Toddler Seat Release Button

6. Side Frame Lock

7. Swivel Wheel

8. Footrest
9. Buckle
10. Harness Covers (only on certain models)
11. Bumper Bar

12. Shoulder Straps

13. Multi-Position Recline Handle

14. Multi-Position Recline Strap
15. Storage Basket
16. Brakes

WARNING

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• Only use Evenflo SafeMax™ and LiteMax™ infant car seats with this stroller.
  Other infant car seats or carriers are not designed to fit the stroller frame unless specified in the instructions. If any car seats are used that are not specified in the instructions this may result in serious injury to your child.
• NEVER leave child unattended. ALWAYS keep child in view while in the stroller.
• Adult assembly required. Take care when unpacking and assembling; contains small parts and some items with sharp edges.
• To prevent a possible choking hazard, remove and discard packing material before using this product.
• Avoid serious injury from falling or sliding out. ALWAYS use waist restraint.
• DO NOT carry or roll stroller on stairs or escalators with child in it.
• DO NOT hang items on handle bar or place them on the canopy as they can tip stroller over and injure child.
• Be sure stroller is fully assembled and locked in unfolded position before using.
• ALWAYS exercise care when going over curbs or steps, and never use stroller for anything other than transporting your child. Push stroller at a normal walking pace only; faster strolling can cause a loss of control and injury to the child.
• DO NOT place hot liquids in cup holder. Spills can burn you or your child.
• To avoid serious injury from child falling out of stroller, DO NOT raise or recline seat with child in stroller.
• DO NOT use stroller if any parts are missing or broken.
• DO NOT allow child to climb on, into, out of, or around stroller.

WARNING

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• DO NOT allow child to stand on the footrest. Stroller may tip over and injure child.
• DO NOT carry additional children, goods, or accessories in or on this stroller except as advised in these instructions. The stroller is intended for use with one child and to accommodate only the additional weights in storage as listed in these instructions.
• Care must be taken when folding or unfolding stroller to prevent finger injury to you or your child in hinge areas. Make sure child is not in the seat or near the stroller when folding or unfolding.
• NEVER leave stroller on a hill or incline, even with brakes set. Stroller may tip, injuring the child.

• To avoid accidental rolling, ALWAYS set brakes when stroller is not being pushed.
  •AVOIDSTRANGULATION:

• DO NOT suspend strings or toys from the canopy.

• DO NOT place stroller anywhere near cords from window blinds, draperies, phone, etc.
• DO NOT place items with a string around your child's neck such as hood strings or pacifier cords.

• If not properly secured, the child may slip into leg openings and strangle.

• When making adjustments to the stroller, ALWAYS ensure that all parts of the child's body are clear of any moving parts of the stroller.

• The canopy is not intended to provide UV protection.
• Sharp or heavy objects placed in pockets may cause damage to the stroller, or injury to the child.
• To ensure safety for your baby, please refer to the manufacturer's instructions for the use of your recommended infant car seats and keep all instructions available for reference.
• DO NOT lift stroller by using the infant car seat handle when installed on stroller.

WARNING

READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS! FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY OR DEATH!

• If unable to securely attach the infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
• To avoid stroller instability and tip-overs, DO NOT load cup holder with over 1 lb (0.45 kg), and the main cargo basket with over 10 lbs (4.5 kg).
• NEVER use the toddler seat without the canopy attached.
• NEVER lift or carry the toddler seat by the bumper bar.
• NEVER use the stroller frame without the toddler seat or car seat attached.
• NEVERuse toddler seat in a motor vehicle or use it as a booster seat.
• To avoid falls, never remove toddler seat from the stroller with child in it.
• To avoid falls, always make sure the toddler seat or car seat is securely attached into the seat mounts on both sides of the stroller before placing child in the seat.
• When stroller seat is in carriage mode, it is intended for a child up to 6 months of age.
• NEVER use seat in the carriage mode position unless the straps under the seat are unbuckled and the seat is set up in carriage mode as per the instructions.

Child Requirements - When stroller is in carriage mode, it is intended for a child up to 6 months of age. Only use the stroller in the upright position with a child who is capable of sitting upright unassisted.

• Maximum weight: 50 lbs (22.6 kg)
• Maximum height: 40 inches (101.6 cm)

IMPORTANT: Read instructions carefully before use. Save these instructions for future reference. It is very important to assemble the stroller according to these instructions. If you are missing parts, do not use stroller and call Evenflo ParentLink at 1-800-233-5921 (U.S.A.), 1-937-773-3971 (Canada), or 800-706-1200 (México) to order replacement parts.

Registration Information

Please register this product so we can reach you if there is a safety alert or recall. We will not sell, rent, or share your personal information. To register your product, please complete and mail the card that came with it or visit our online registration at www.evenflo.com/registerproduct.

For future reference, record the Model Number and Date of Manufacture below. You can find this information on one of the rear stroller legs.

Model Number: ____

Date of Manufacture: ____

Two identical line drawings of a steering wheel with four spokes (no text or symbols)

(2) Front Wheel Assembly

Line drawing of a manual pliers tool with handle and blade (no text or symbols)

Frame

Line drawing of a two-dot-style vehicle with wheels and a lever (no text or symbols)

Rear Wheel Assembly

Technical line drawing of a mechanical component with no visible text or symbols

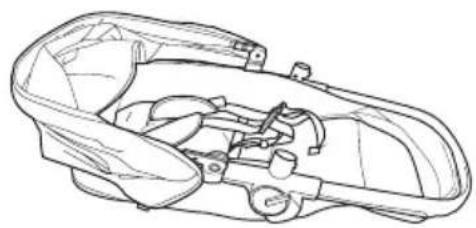

Toddler Seat

Line drawing of a curved mechanical component with flanges (no text or symbols)

CupholderBumper Bar

YOUR STROLLER SEAT CAN BE USED IN TWO DIFFERENT MODES.

TODDLER SEAT MODE OR CARRIAGE MODE.

Your stroller seat is shipped in carriage mode with the buckles unfastened under the footrest. You will need to follow the instructions completely to make sure you set up your stroller in your preferred mode of use.

After the frame and the wheels have been assembled, you can choose to set the stroller up in Carriage Mode or Toddler Seat Mode by following instructions on pages 12 - 16.

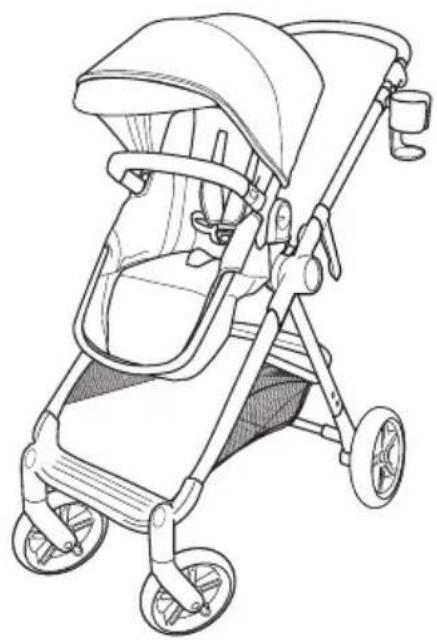

Toddler Seat Mode

Line drawing of a baby stroller with four wheels and a canopy cover (no text or symbols)

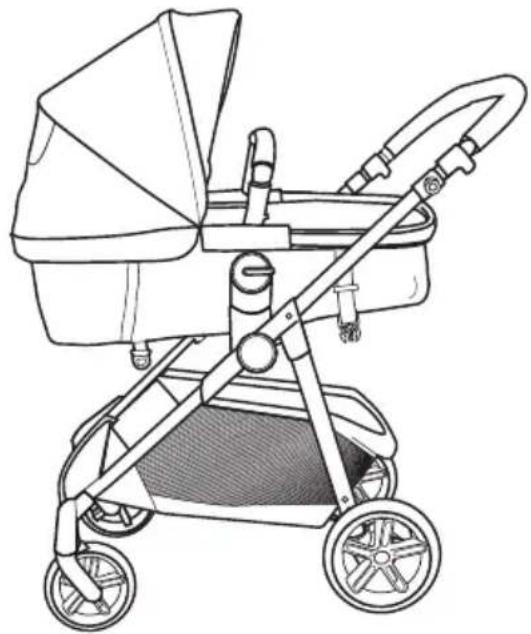

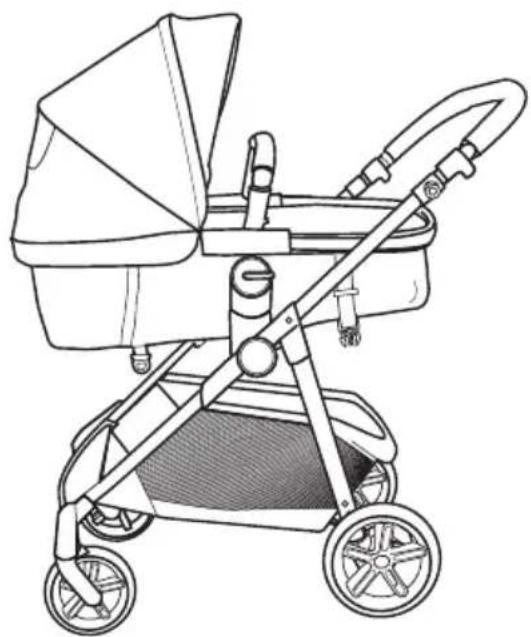

Carriage Mode

Line drawing of a baby stroller with front wheel, backrest, and seat (no text or symbols)

WARNING! DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

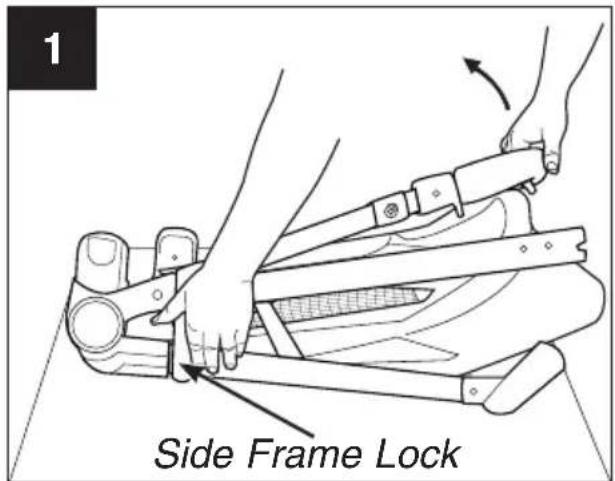

1 Side Frame Lock

To protect flooring, place a protective covering (carton) beneath the stroller during assembly.

Unlatch side frame lock. Continue holding the lock open while unfolding the stroller.

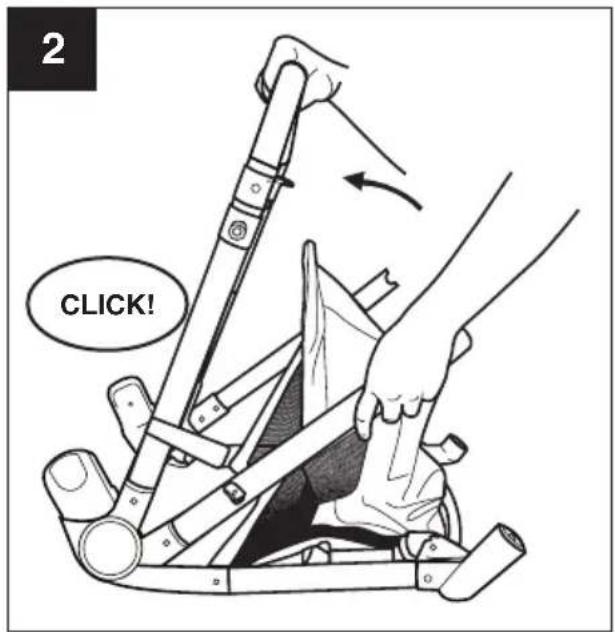

2 CLICK!

Grab the parent's handle and pull upward until the stroller opens fully with an audible click.

Diagram of a mechanical device with a hand holding a cable, showing a step and angle (no text or symbols)

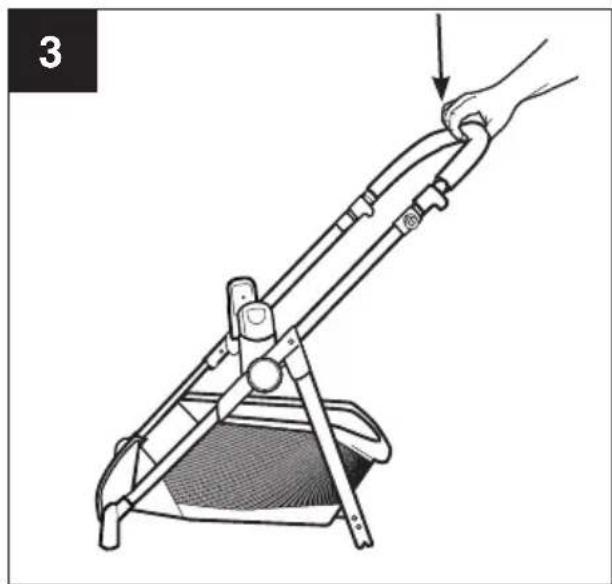

Make sure the stroller locks in the open position by pushing down on the parent's handle.

1 CLICK!

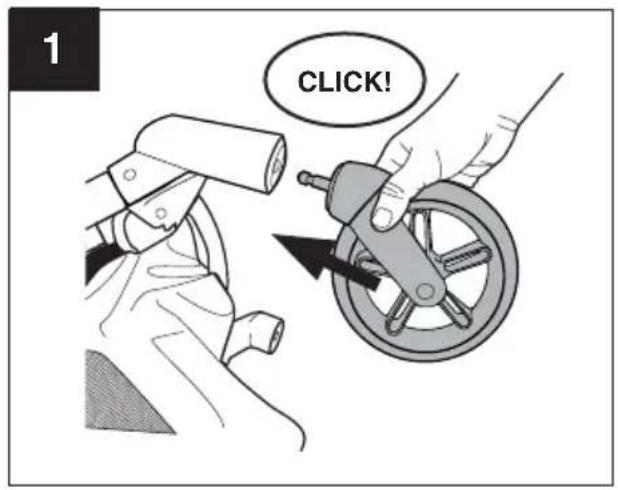

To attach front wheels, push wheel onto front leg tube until it clicks into place. Repeat on other side.

Pull on wheels to make sure both of them are attached.

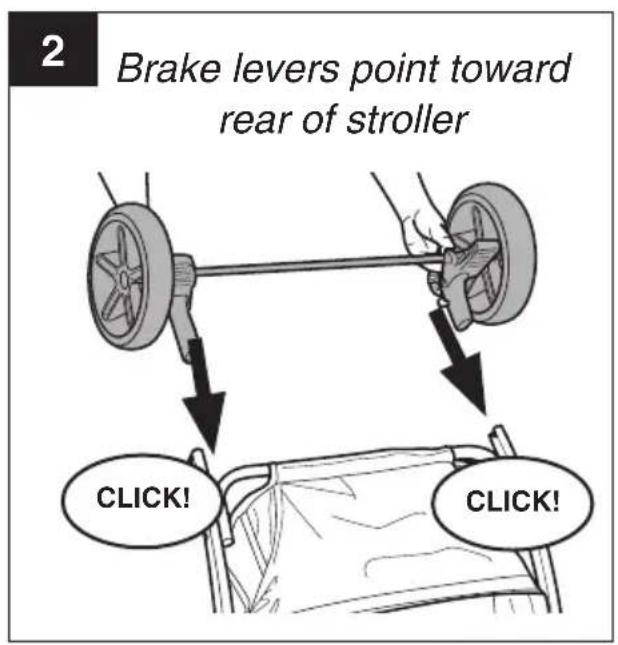

2 Brake levers point toward rear of stroller CLICK! CLICK!

To attach rear wheels, push wheels onto rear leg tubes until they click into place.

Pull on wheels to make sure both of them are attached.

1 CLICK!

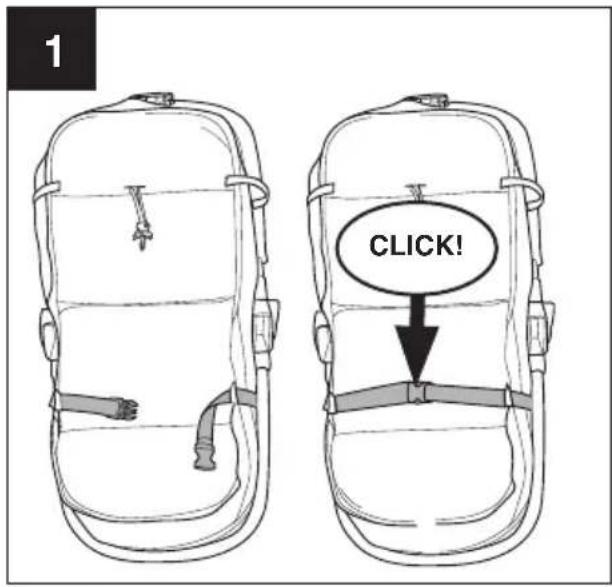

To set up seat in toddler seat mode, flip toddler seat over and attach the buckle on the seat as shown.

2 CLICK! CLICK!

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

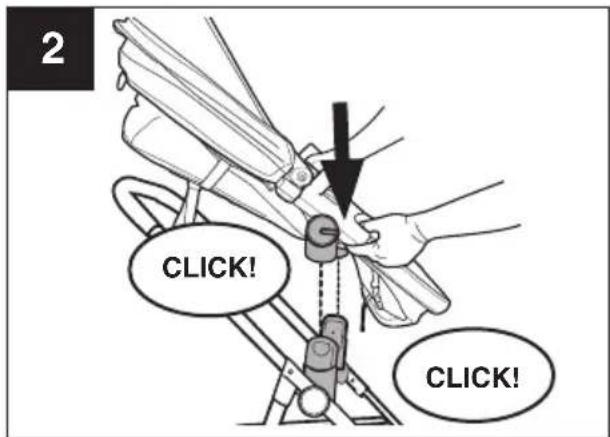

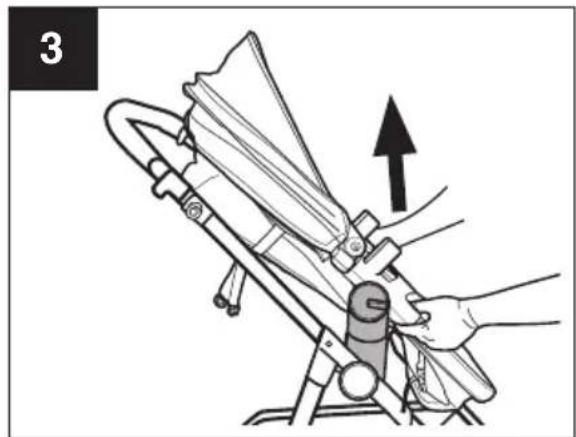

Turn seat back over and attach toddler seat to the mounts until they both click into place on both sides of the frame.

CHECK to make sure it is securely attached by pulling up on it.

The toddler seat may be attached forward or rear-facing.

NOTE: Stroller cannot be folded with seat in rear-facing position.

4 CLICK! CLICK!

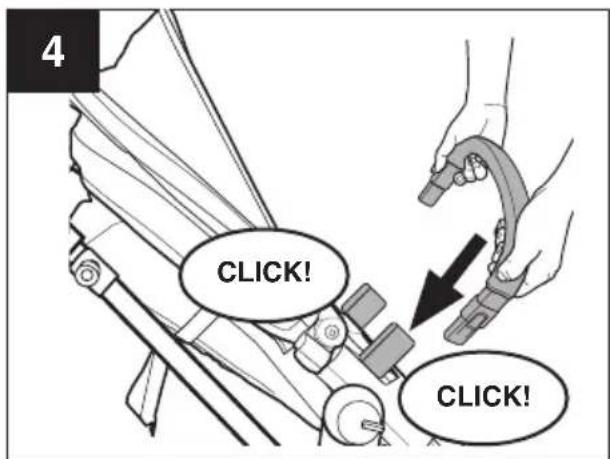

To attach bumper bar, push tabs into openings on stroller on either side of frame until it clicks into place.

Pull on the bumper bar to make sure it is locked into place.

Line drawing of hands operating a mechanical device with a tool, no text or symbols present

To remove the bumper bar, push both tabs and remove the bumper bar from the stroller.

Illustration of a hand using a tool to lift a car seatbelt, showing the grip and angle (no text or symbols)

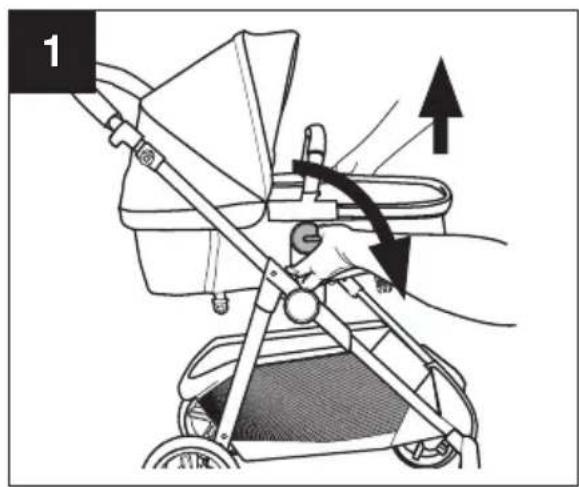

To recline toddler seat, lift handle and rotate to desired position.

Illustration of hands operating a mechanical device with a circular component, no text or symbols present

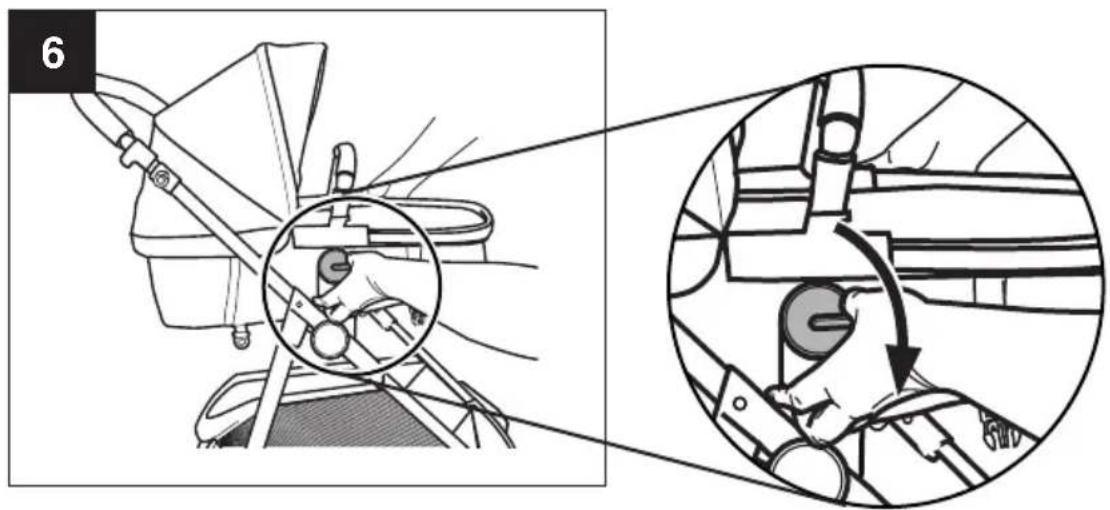

To remove toddler seat from frame, press levers on both sides of stroller and lift seat off stroller.

WARNING! DEATH or SERIOUS INJURY can occur.

NEVER use seat in a reclined carriage position unless straps under seat are unbuckled and seat is set up in reclined carriage mode as per the instructions.

Line drawing of a baby stroller with no text or symbols

If you are in Toddler Seat Mode as shown, follow these steps to convert to Carriage Mode.

Illustration of a hand holding a tool inside a car seat, with arrows indicating direction of movement (no text or symbols present)

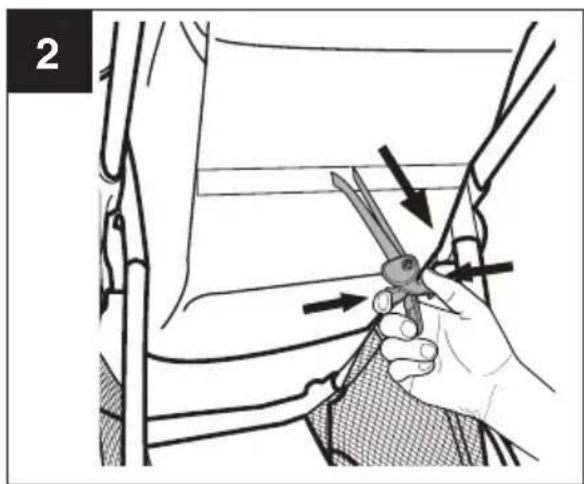

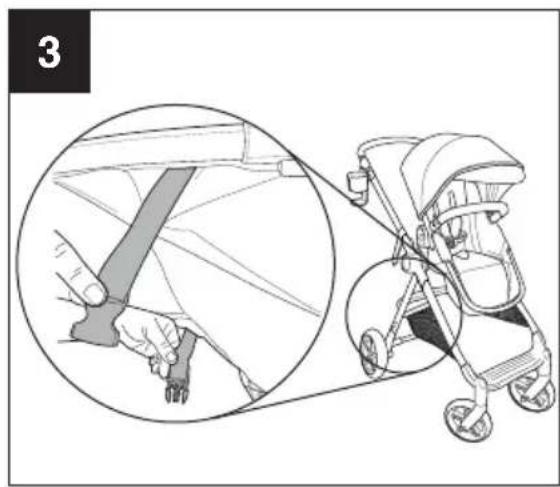

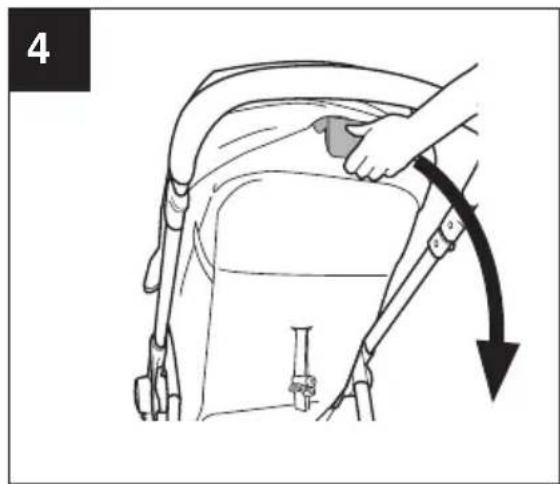

To recline seat, squeeze button and pull down the recline strap on the rear of seat.

Illustration of a stroller with a hand holding a tool, showing the blade being cut (no text or symbols present)

Unfasten buckle behind leg rest on toddler seat. Refer to page 12 Step 1, for buckle location.

Illustration of a hand using a tool to lift a seatbelt, with a curved arrow indicating motion (no text or symbols)

Lift handle and rotate seat all the way down so that it is flat.

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating direction (no text or symbols present)

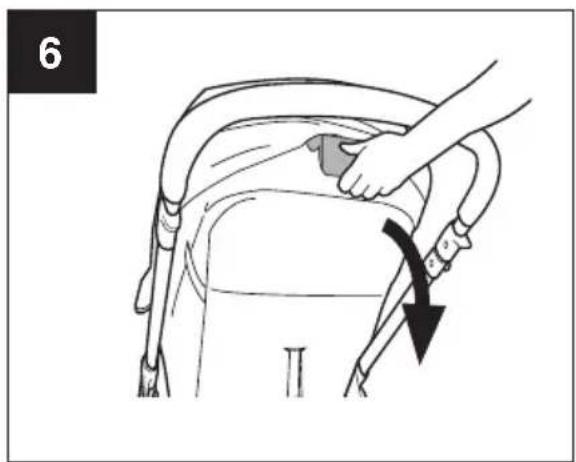

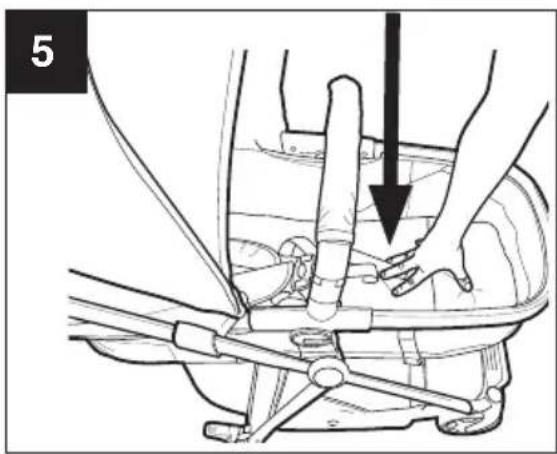

Press down on the inside of the toddler seat to flatten out the inside.

WARNING! DEATH or SERIOUS INJURY can occur.

NEVER lift or carry toddler seat by the bumper bar.

6

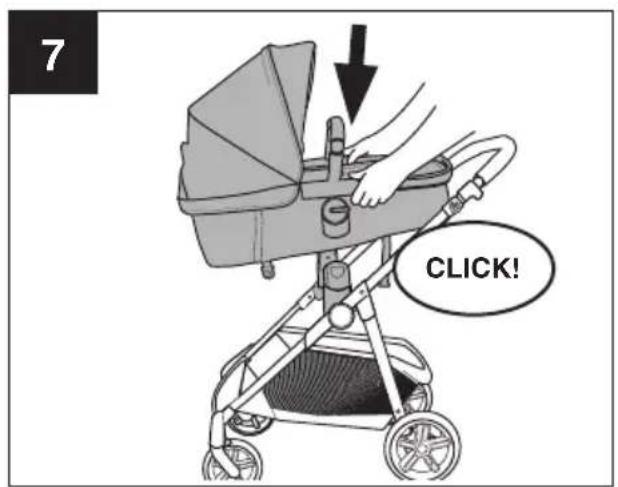

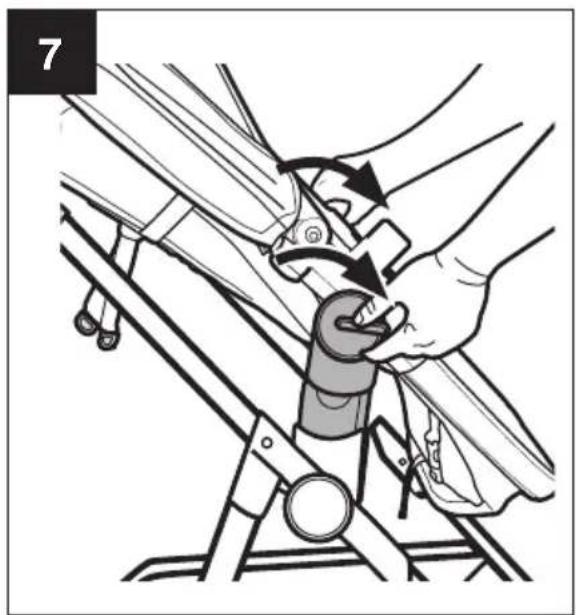

7 CLICK!

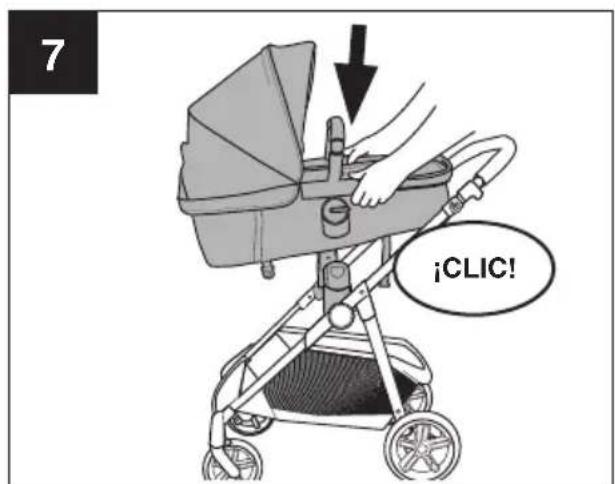

To remove and use in rear facing mode: depress the release buttons on both sides of toddler seat, lift seat off stroller frame and turn it around and re-attach.

Line drawing of a baby stroller with hand operating controls and a black arrow indicating upward motion (no text or symbols)

CHECK to make sure it is securely attached on both sides by pulling up on it.

WARNING! DEATH or SERIOUS INJURY can occur.

ALWAYS lock both brakes. Make sure brakes are on by trying to push the stroller.

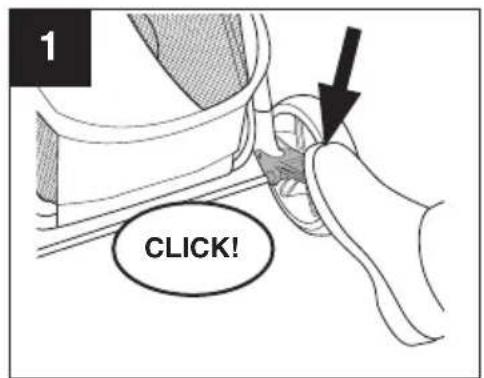

1 CLICK!

To lock, press lever DOWN on both rear wheels.

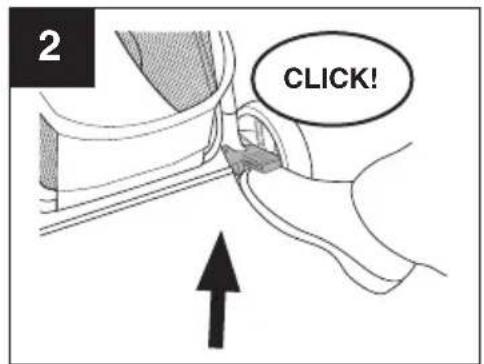

2 CLICK!

To unlock, press lever UP on both rear wheels.

Illustration of a hand adjusting a seatbelt mechanism, showing mechanical components and a belt shift (no text or symbols)

To attach cup holder, slide down on the mount as shown.

Illustration of a hand holding a cylindrical object with a black arrow indicating rotation (no text or symbols)

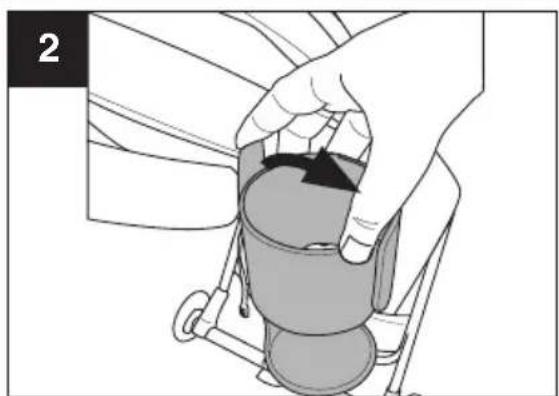

To remove cupholder, press tab towards center and slide up as shown.

WARNING! DEATH or SERIOUS INJURY can occur.

To avoid serious injury from falling or sliding out, ALWAYS use waist restraint.

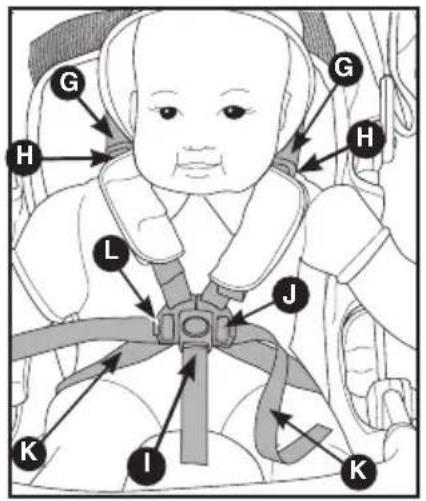

G H L J K I K

NOTE: Verify the stroller is locked in the open position by lifting up the rear of the stroller using the parent's handle.

Lock the rear brakes and remove the bumper bar.

The harness shoulder straps Ⓖ must be at shoulder height or lower, closest to the baby's shoulders Ⓗ.

G

Place the baby in the seat and bring the crotch panel ① up between the child's legs. Fasten each buckle ② . For a snug, comfortable fit, pull the shoulder straps ③ to tighten the shoulder restraint and pull the waist restraint straps ④ to tighten the waist restraint.

NOTE: To loosen the waist straps ⚪, push in the release button Ⓛ on the buckle and pull.

M

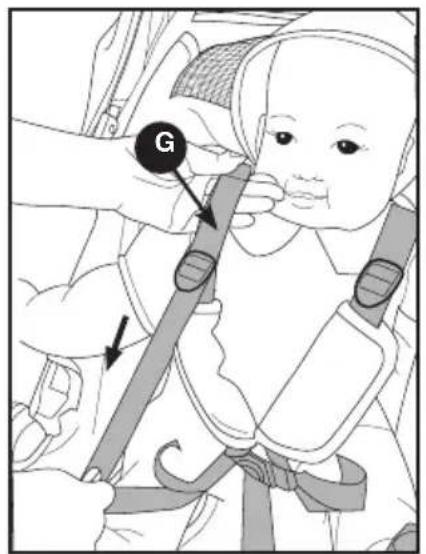

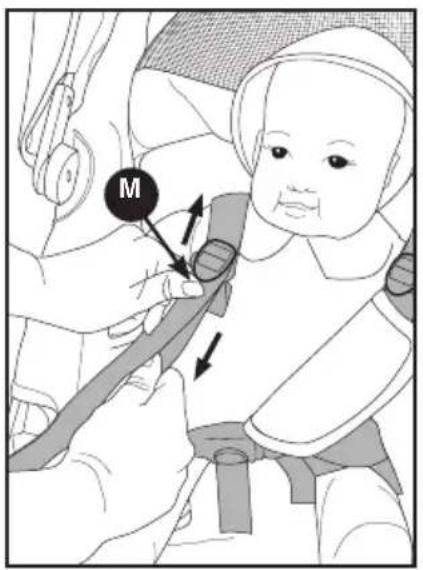

To loosen shoulder straps push up on the retainer Ⓜ while pulling down on the shoulder strap.

Once the child is properly restrained, re-attach the bumper bar.

Make sure the bumper bar locks into position with audible clicks.

Pull on the bumper bar to make sure it is locked into place.

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

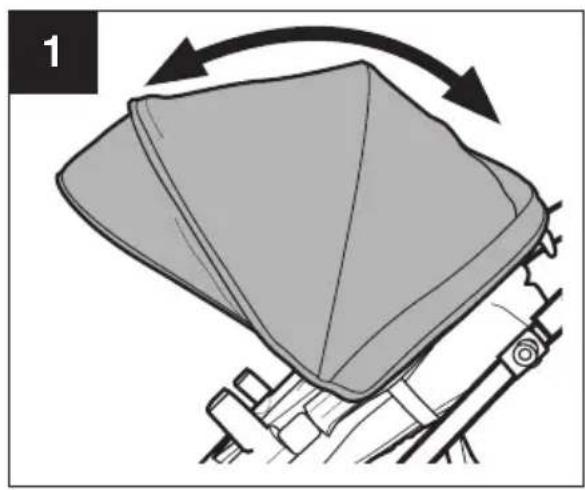

To open or close canopy, push to the front or the rear of the stroller.

Diagram of a mechanical component with an arrow indicating rotation or movement, no text or symbols present

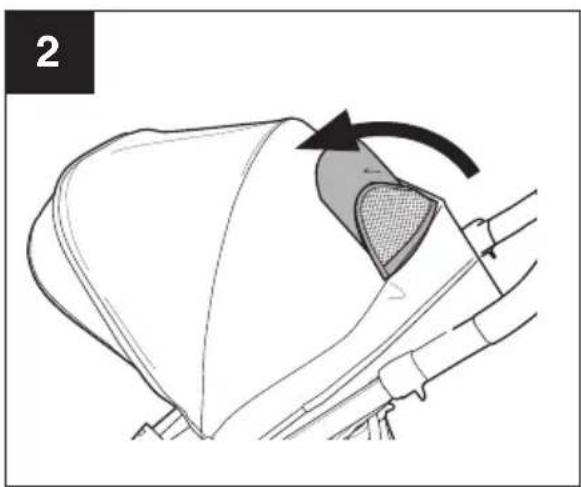

Canopy has a window that can be rolled back so you can view child.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

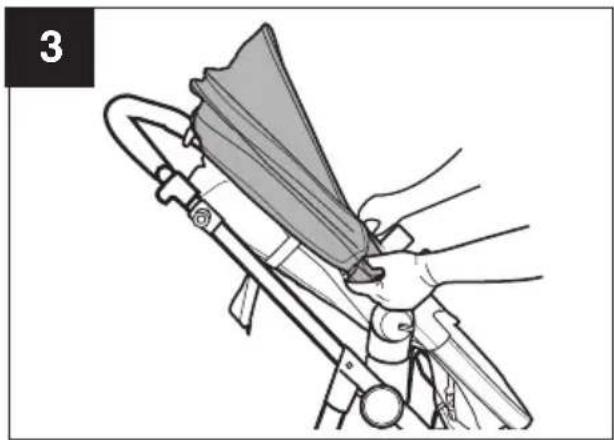

To remove canopy, unfasten canopy mounts from sides of toddler seat as shown.

Illustration of hands operating a bicycle steering wheel (no text or symbols)

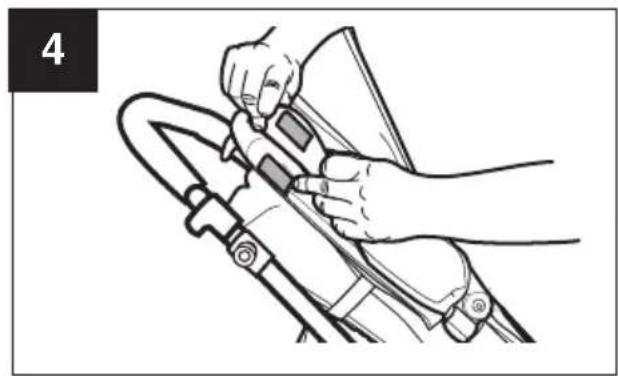

Unfasten hook and loop tape from top edge of canopy as shown. Repeat on other side of canopy.

WARNING! DEATH or SERIOUS INJURY can occur.

Care must be taken when folding or unfolding stroller to prevent finger injury in hinge areas.

Line drawing of a stroller with a hand holding a camera, showing motion direction (no text or symbols)

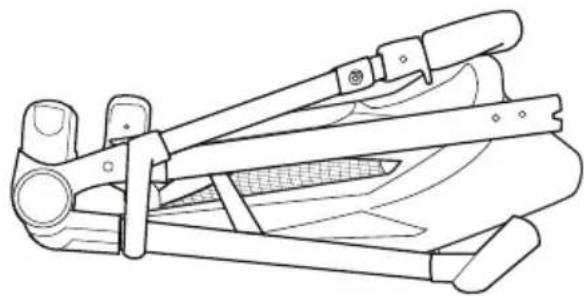

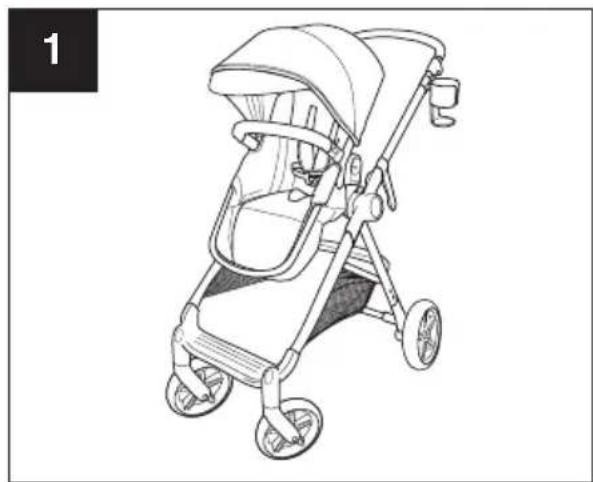

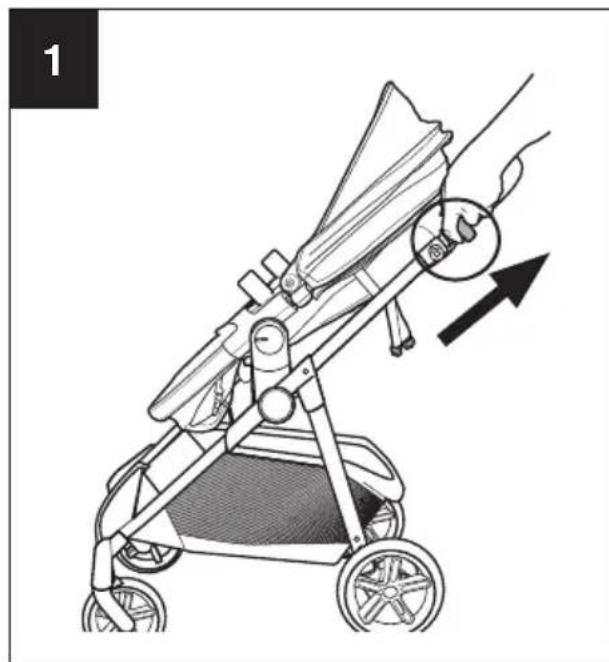

To fold the stroller, adjust seat back to upright position, lock the rear brakes, close the canopy, and remove your child.

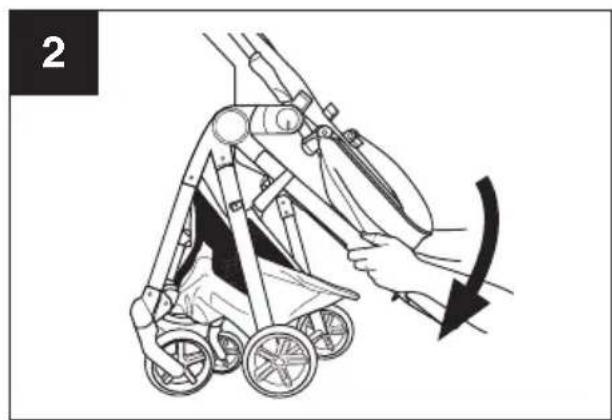

Pull the levers on both sides of the stroller and lower frame until the side frame lock clicks into place.

NOTE: Stroller cannot be folded with seat in rear-facing position.

Illustration of a stroller with hand and arrow indicating motion (no text or symbols)

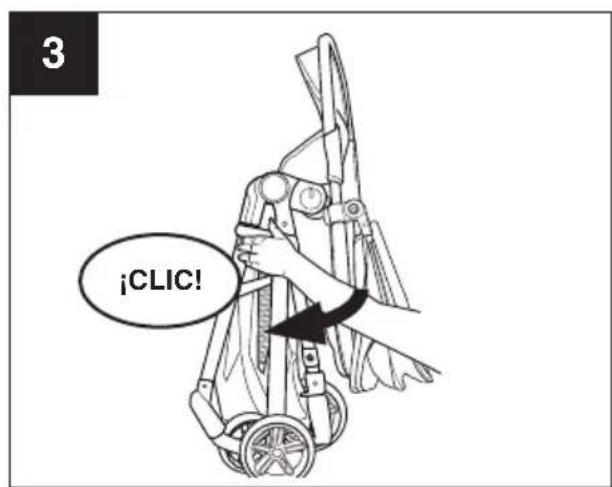

3 CLICK!

For more compact fold, you can remove the toddler seat before folding the stroller frame.

NEVER fold the stroller when the toddler seat is in the carriage mode.

WARNING! DEATH or SERIOUS INJURY can occur.

• Only use Evenflo SafeMax™ infant car seats or any version of the LiteMax™ infant car seat with this stroller. Other infant car seats or carriers are not designed to fit the stroller frame and if used with this stroller may result in serious injury to your child.
• Before using the infant car seat with this stroller, read all the instructions provided with it and keep the instructions stored properly for future use.
• DO NOT lift stroller by using the infant car seat handle when installed on stroller.
• If unable to securely attach your infant car seat to this stroller, remove the car seat and contact Evenflo ParentLink at 1-800-233-5921 (USA), 1-937-773-3971 (Canada), or 800-706-1200 (México).
• To avoid serious injury, make sure the infant car seat is securely snapped onto the car seat mounts.
• Some Evenflo SafeMax™ and LiteMax™ infant car seats have a blanket/boot option that must be removed for proper attachment to this stroller.

Illustration of a stroller with hand positioning and directional arrows indicating motion (no text or symbols)

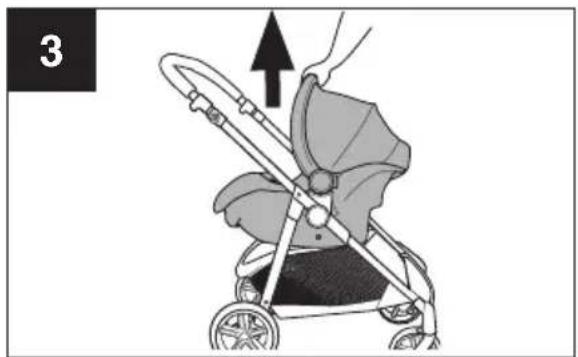

To remove the toddler seat, press the release buttons down on either side of the toddler seat and lift seat off stroller frame.

Illustration of a hand using a mechanical device to lift a seatbelt, with no visible text or symbols.

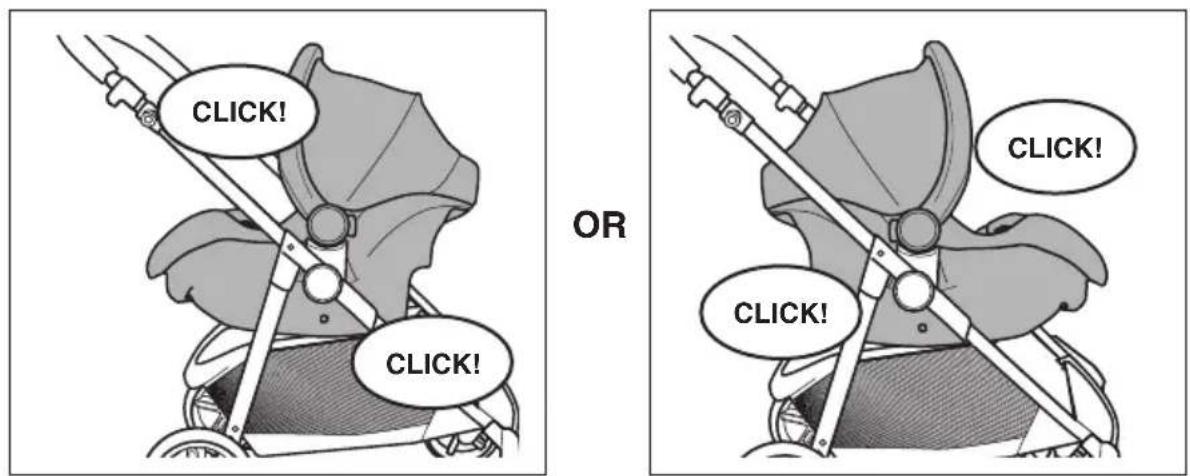

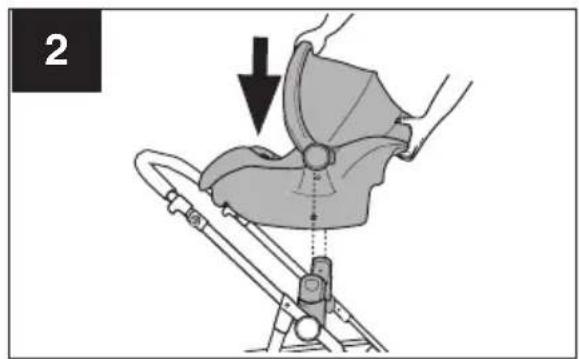

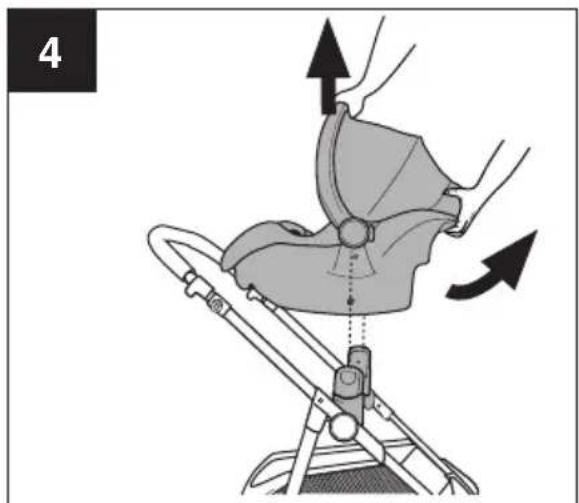

To attach car seat, insert car seat into the mounts until they both click into place on both sides of the frame.

NOTE: The infant car seat may be installed facing the parent or facing forward on the stroller frame.

Illustration of a baby stroller with a hand holding the basket and an arrow indicating motion (no text or symbols)

Pull up on the front and back of the infant car seat to test that it is properly locked into place.

Illustration of a person using a climbing device to lift a seatbelt, with arrows indicating motion direction (no text or symbols)

TO REMOVE, squeeze handle on rear of seat and pull car seat up off of the stroller.

• Clean minor spills and stains on cloth or plastic surfaces with cold water and mild soap. Air dry.
• Metal and plastic parts can be wiped clean with a soft damp cloth and dried with a soft cloth. DO NOT use abrasive cleaners or solvents.

LIMITED WARRANTY

For a period of 90 days from the original purchase of this Product, Evenflo warrants to the original end user (“Purchaser”) this Product (including any accessories) against defects in material or workmanship. Evenflo’s sole obligation under this express limited warranty shall be, at Evenflo’s option, to repair or replace any Product that is determined to be defective by Evenflo and determined to be covered by this warranty.

Repair or replacement as provided under this warranty is the exclusive remedy of the Purchaser. Proof of purchase in the form of a receipted invoice or bill of sale evidencing that the Product is within the warranty period must be presented to obtain warranty service. This express limited warranty is extended by Evenflo ONLY to the original Purchaser of the Product and is not assignable or transferable to subsequent purchasers or end users of the Product. For warranty service, contact Evenflo's ParentLink Consumer Resource Center at 1-800-233-5921 or www.evenflo.com.

EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS HEREBY DISCLAIMED. EVENFLO SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES OF ANY KIND FOR BREACH OF THE EXPRESS LIMITED WARRANTY ON THIS PRODUCT, OR ANY WARRANTY IMPLIED BY OPERATION OF LAW. OTHER THAN THE EXPRESS LIMITED WARRANTY SET FORTH ABOVE, THERE ARE NO OTHER WARRANTIES THAT ACCOMPANY THIS PRODUCT AND ANY ORAL, WRITTEN OR ANY OTHER EXPRESS REPRESENTATION OF ANY KIND IS HEREBY DISCLAIMED.

ParentLink®

answers. advice. affirmation.™

www.evenflo.com

USA: 1-800-233-5921 8 AM - 5 PM E.T.

Canada: 1-937-773-3971

México: 800-706-1200

TABLE DES MATIÈRES

Avertissements 26

Informations importantes.... 29

answers. advice. affirmation.™

Technical diagram of a baby stroller with numbered parts for identification

13 14 15 16

Two identical line drawings of a bicycle steering wheel (no text or symbols)

Line drawing of a manual pliers tool with handle and blade (no text or symbols)

Châssis

Simple line drawing of a two-dot-style vehicle chassis with wheels and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a curved mechanical component with flanges (no text or symbols)

Porte-gobeletBarre de protection

LE SIÈGE DE LA POUSSETTE PEUT ÊTRE UTILISÉ EN DEUX MODES DIFFÉRENTS.

MODE SIÈGE POUR TOUT-PETIT OU MODE LANDAU.

Line drawing of a baby stroller with four wheels and a canopy cover (no text or symbols)

Mode landau

Line drawing of a baby stroller with front wheel, backrest, and seat (no text or symbols)

Diagram of a mechanical device with a hand holding a cable, showing a step and angle (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component, with an arrow indicating upward motion (no text or symbols present)

Line drawing of hands operating a mechanical device with a tool, no text or symbols present

Illustration of a hand using a tool to lift a car seatbelt, showing the grip and angle (no text or symbols)

Illustration of hands operating a bicycle steering wheel (no text or symbols visible)

Line drawing of a baby stroller with no text or symbols

Illustration of a hand holding a tool inside a car seat, with arrows indicating motion or movement (no text or symbols present)

Illustration of a stroller with a hand holding a tool, showing the blade being cut (no text or symbols present)

Line drawing of a hand adjusting a seatbelt with a curved arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating force direction (no text or symbols present)

Line drawing of a baby stroller with hand operating controls (no text or symbols)

Mechanical assembly diagram showing a belt drive mechanism with no visible text or symbols

Illustration of a hand holding a cylindrical object with a black arrow indicating rotation (no text or symbols)

G H L J K I K G H

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a mechanical component with an arrow indicating rotation or movement, no visible text or symbols

Illustration of a hand using a tool to lift a blade, no text or symbols present

Line drawing of a person using a bicycle seatbelt device (no text or symbols)

Line drawing of a stroller with a hand holding a device, showing motion direction (no text or symbols)

Illustration of a stroller with hand and arrow indicating motion (no text or symbols)

3 CLIC!

Illustration of a mechanical device with a downward arrow indicating motion or force (no text or symbols present)

Illustration of a baby stroller with a hand holding the basket and an arrow indicating motion (no text or symbols)

Illustration of a person using a climbing device to lift a seatbelt, with arrows indicating motion direction (no text or symbols)

answers. advice. affirmation.™

www.evenflo.com

answers. advice. affirmation.™

- www.evenflo.com • EUA: 1-800-233-5921, 8 AM a 5 PM, hora del

Technical diagram of a baby stroller with numbered parts for identification

13 14 15 16

Two identical line drawings of a bicycle steering wheel (no text or symbols)

Line drawing of a manual pliers tool with handle and blade (no text or symbols)

Armazón

Simple line drawing of a two-dot-style vehicle chassis with wheels and a handle (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a curved mechanical component with flanges (no text or symbols)

PortavasosBarra de tope

EL ASIENTO DE SU CARRIOLA PUEDE UTILIZARSE EN DOS MODOS DIFERENTES.

MODO DE ASIENTO PARA NIÑOS PEQUEÑOS O MODO DE MOISÉS.

Line drawing of a baby stroller with four wheels and a canopy (no text or symbols)

Modo de moisés

Line drawing of a baby stroller with front wheel, backrest, and seat (no text or symbols)

¡ADVERTENCIA!

Illustration of a hand using a cable to lift a seatbelt, with no text or symbols present.

Illustration of a hand operating a mechanical device with an upward arrow indicating motion (no text or symbols present)

Line drawing of hands operating a mechanical device with a tool, no text or symbols present

Illustration of a hand using a tool to lift a car seatbelt, showing the grip and angle (no text or symbols)

Illustration of hands operating a mechanical device with a circular component, no text or symbols present

Line drawing of a baby stroller with no text or symbols

Illustration of a hand holding a tool near a vehicle's seat, with arrows indicating motion or force (no text or symbols)

Illustration of a stroller with a hand holding a tool, showing the blade being cut (no text or symbols present)

Illustration of a hand adjusting a seatbelt mechanism with a curved arrow indicating motion (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a black arrow indicating motion (no text or symbols present)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Mechanical diagram showing a rotating component with a curved arrow indicating motion (no text or symbols)

7 ¡CLIC!

Line drawing of a baby stroller with hand operating controls (no text or symbols)

Illustration of a hand adjusting a seatbelt mechanism, showing mechanical components and a belt shift (no text or symbols)

Illustration of a hand holding a cylindrical object with a black arrow indicating rotation (no text or symbols)

G H L J K I K G H

Diagram of a mechanical component with a curved arrow indicating rotation or movement (no text or symbols present)

Diagram of a mechanical component with an arrow indicating rotation, no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands operating a bicycle steering wheel (no text or symbols)

Line drawing of a stroller with a hand holding a device, showing motion direction (no text or symbols)

Illustration of a stroller with hand and arrow indicating motion (no text or symbols)

3 ¡CLIC!

Mechanical diagram showing a hand operating a curved mechanical component with a downward arrow indicating motion (no text or symbols)

Illustration of a baby stroller with a hand holding the basket and an arrow indicating motion (no text or symbols)

Illustration of a person using a climbing device to lift a seatbelt, with arrows indicating motion direction (no text or symbols)

answers. advice. affirmation.™

www.evenflo.com

EUA: 1-800-233-5921, 8 AM a 5 PM, hora del Este

answers. advice. affirmation.™

www.evenflo.com

USA: 1-800-233-5921 8 AM - 5 PM E.T.

Canada: 1-937-773-3971

México: 800-706-1200
