USER MANUAL Soundbar 550 BOSE

Please read and keep all safety, security, and use instructions.

Bose Corporation hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU and all other applicable EU directive requirements. The complete declaration of conformity can be found at: ____ www.Bose.com/compliance

This product conforms to all applicable Electromagnetic Compatibility Regulations 2016 and all other applicable UK regulations. The complete declaration of conformity can be found at: ____ www.Bose.com/compliance

Bose Corporation hereby declares that this product is in compliance with the essential requirements per Radio Equipment Regulations 2017 and all other applicable UK regulations. The complete declaration of conformity can be found at: ____ www.Bose.com/compliance

Important Safety Instructions

Read these instructions.

Clean only with a dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

Only use attachments/accessories specified by the manufacturer.

Refer all servicing to qualified personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNINGS/CAUTIONS

This symbol on the product means there is uninsulated, dangerous voltage within the product enclosure that may present a risk of electrical shock.

This symbol on the product means there are important operating and maintenance instructions in this guide.

▲WARNING

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

• Do not ingest battery, chemical burn hazard.
• The remote control supplied with this product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal chemical burns in just 2 hours and can lead to death.
• Keep new and used batteries away from children.
• Even used batteries may cause severe injury or death.
• Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children.
• Ensure the batteries are installed correctly according to polarity (+ and -).

• Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

• Call a local poison control center for treatment information.
• To avoid risk of explosion, fire or chemical burn, use caution in replacing the battery and replace only with an agency approved battery.
• Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.
• Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.
• Do not force discharge, recharge, disassemble, heat above 185^ (85°C) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.
  • Non-rechargeable batteries are not to be recharged.
• Battery Type: CR2032 | Nominal battery voltage: 3V

Contains small parts which may be a choking hazard. Not suitable for children under age 3.

This product contains magnetic material. Consult your physician on whether this might affect your implantable medical device.

• To reduce the risk of fire or electrical shock, do NOT expose this product to rain, dripping, splashing, or moisture and do not place liquid filled objects such as vases, on or near the product.
• Keep the product away from fire and heat sources. Do NOT place naked flame sources, such as lighted candles, on or near the product.
• Do NOT make unauthorized alterations to this product.
• Do NOT use a power inverter with this product.
• Do NOT use in vehicles or boats.
• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.
• Only use the following hardware to mount this product: Bose Soundbar Wall Bracket.
• When positioning the product, make sure it is not blocking any ventilation openings on your TV or monitor. Refer to the owner's guide that came with your TV or monitor and install in accordance with the manufacturer's instructions.
• Due to ventilation requirements, Bose does not recommend placing the product in a confined space such as in a wall cavity or in an enclosed cabinet.
• Do not place or install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
• Keep batteries out of reach of children.
• Batteries may cause a fire or chemical burn if mishandled. Do not recharge, disassemble, heat, or incinerate.
• The battery provided with this product may present a risk of fire, explosion or chemical burn if mishandled, incorrectly replaced or replaced with an incorrect type.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving product or antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by Bose Corporation could void the user's authority to operate this equipment.

This device complies with part 15 of the FCC Rules and with ISED Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment should be installed and operated with a minimum distance of 20 cm between radiator and your body.

This device for operation in the 5150 – 5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CAN ICES-3(B)/NMB-3(B)

For Europe:

Frequency bands of operation 2400 to 2483.5 MHz, 5150 to 5350 MHz, and 5470 to 5725 MHz. Maximum transmit power less than 20 dBm EIRP.

Frequency band of operation 5725 to 5850 MHz.

Maximum transmit power less than 14 dBm (25mW) EIRP.

Maximum transmit power is below regulatory limits such that SAR testing is not necessary and exempt per applicable regulations.

This device is restricted to indoor use when operating in the 5150 to 5350 MHz frequency range in all EU Member States listed in the table.

BE DK	IE UK(NI) FR	CY SK HU	AT SE
BG DE	PT EL HR LV	LT MT PL
CZ EE	FI ES IT RO	LU NL SI

This symbol means the product must not be discarded as household waste, and should be delivered to an appropriate collection facility for recycling. Proper disposal and recycling helps protect natural resources, human health and the environment. For more information on disposal and recycling of this product, contact your local municipality, disposal service, or the shop where you bought this product.

Low-power Radio-frequency Devices Technical Regulations

Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to an approved low power radio-frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications; If found, the user shall cease operating immediately until no interference is achieved. The said legal communications means radio communications is operated in compliance with the Telecommunications Management Act. The low power radio-frequency devices must be susceptible with the interference from legal communications or ISM radio wave radiated devices.

Product Power State Table

The product, in accordance with the Ecodesign Requirements for Energy Related Products Directive 2009/125/EC and the Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2020, is in compliance with the following norm(s) or document(s): Regulation (EC) No. 1275/2008, as amended by Regulation (EU) No. 801/2013.

Required Power State Information	Power Modes
	Standby Networked Standby
Power consumption in specified power mode, at 230V/50Hz inputTime after which equipment is automatically switched into modePower consumption in networked standby if all wired network ports are connected and all wireless network ports are activated, at 230V/50Hz input	< 0.5 W< 2.5 hoursN/A	all network types ≤ 2.0 W≤ 20 minutes≤ 2.0 W
Wireless network port activation/deactivation procedures. Deactivating all networks will enable standby mode.	Wi-Fi®: Activate using the Bose app.Deactivate by pressing and holding the Mute and Bluetooth buttons on the remote simultaneously.Bluetooth®: Activate by pairing with a Bluetooth source by pressing the Bluetooth button on the remote then selecting the soundbar in your mobile device Bluetooth list or by using the Bose app. Deactivate by clearing the pairing list by pressing and holding the Bluetooth button on the remote for 10 seconds.

Please dispose of used batteries properly, following local regulations. Do not incinerate.

China Restriction of Hazardous Substances Table

Names and Contents of Toxic or Hazardous Substances or Elements
	Toxic or Hazardous Substances and Elements
Part Name	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent (CR(VI))	Polybrominated Biphenyl (PBB)	Polybrominated diphenylether (PBDE)
PCBs X O O O O O
Metal Parts X O O O O O
Plastic Parts O O O O O O O
Speakers X O O O O O O
Cables X O O O O O O
This table is prepared in accordance with the provisions of SJ/T 11364.O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement of GB/T 26572.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used for this part is above the limit requirement of GB/T 26572.

Taiwan Restriction of Hazardous Substances Table

Equipment name: Powered Speaker, Type designation: 439269
	Restricted substances and its chemical symbols
Unit	Lead (Pb)	Mercury (Hg)	Cadmium (Cd)	Hexavalent chromium (Cr+6)	Polybrominated biphenyls (PBB)	Polybrominated diphenylethers (PBDE)
PCBs	-	○	○	○	○	○
Metal Parts	-	○	○	○	○	○
Plastic Parts	○	○	○	○	○	○
Speakers	-	○	○	○	○	○
Cables	-	○	○	○	○	○
Note 1: “○” indicates that the percentage content of the restricted substance does not exceed the percentage of reference value of presence. Note 2: The “-” indicates that the restricted substance corresponds to the exemption.

Date of Manufacture: The eighth digit in the serial number indicates the year of manufacture; "3" is 2013 or 2023.

Importers: Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100 | Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands | Bose de México S. de R.L. de C.V., Avenida Prado Sur #150, Piso 2, Interior 222 y 223, Colonia Lomas de Chapultepec V Sección, Miguel Hidalgo, Ciudad de México, C.P. 11000 Phone Number: [phone] | Bose Limited (H.K.), 9F., No.10, Sec. 3, Minsheng E. Road, Zhongshan Dist. Taipei City 10480, Phone Number: [phone] | Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Input Rating: 100 - 240V \~ 50/60Hz, 100W

The CMIIT ID is located on the product label on the back of the soundbar.

Please complete and retain for your records

The serial and model numbers are located on the back of the soundbar.

Serial number:

Model number: 439269

Please keep your receipt with your owner's guide. Now is a good time to register your Bose product. You can easily do this by going to worldwide.Bose.com/ProductRegistration

Security Information

This product is capable of receiving automatic security updates from Bose. To receive automatic security updates, you must complete the product setup process in the Bose app and connect the product to the Internet. If you do not complete the setup process, you will be responsible for installing security updates that Bose makes available.

Amazon, Alexa, Amazon Music, and all related marks are trademarks of Amazon.com, Inc. or its affiliates.

Apple, the Apple logo, Apple Music, and AirPlay are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc.

Use of the Works with Apple badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards.

The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bose Corporation is under license.

Dolby Atmos

Dolby, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2021 Dolby Laboratories. All rights reserved.

Google, Google Play, and Chromecast built-in are trademarks of Google LLC.

HDMI®

The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

This product contains the iHeartRadio service. iHeartRadio is a registered trademark of iHeartMedia, Inc.

This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such technology outside of this product is prohibited without a license from Microsoft.

Pandora is a trademark or registered trademark of Pandora Media, Inc. used with permission.

This product incorporates Spotify software which is subject to third-party licenses found here: ____ www.spotify.com/connect/third-party-licenses

Spotify is a registered trademark of Spotify AB.

Wi-Fi is a registered trademark of Wi-Fi Alliance®.

Bose, the B logo, QuietComfort, SimpleSync, SoundLink, SoundLink Revolve, and Voice4Video are trademarks of Bose Corporation.

Bose Corporation Headquarters: 1-877-230-5639

©2024 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.

To view the license disclosures that apply to the third-party software packages included as components of your Bose Soundbar 550 product:

1. On the remote, press and hold the Play/Pause button ▷II and Volume up button + for 5 seconds.
2. Connect a USB cable to the SERVICE connector on the back of the soundbar.
3. Connect the other end of the cable to a computer.
4. On the computer, enter http://203.0.113.1/opensource in a browser window to display the EULA and license disclosure.

WHAT'S IN THE BOX

Contents 12

DOLBY ATMOS® TECHNOLOGY 13

SOUNDBAR PLACEMENT

Recommendations 14

Wall mount the soundbar.... 15

Adjust audio for wall mounting.... 16

SET UP THE SOUNDBAR

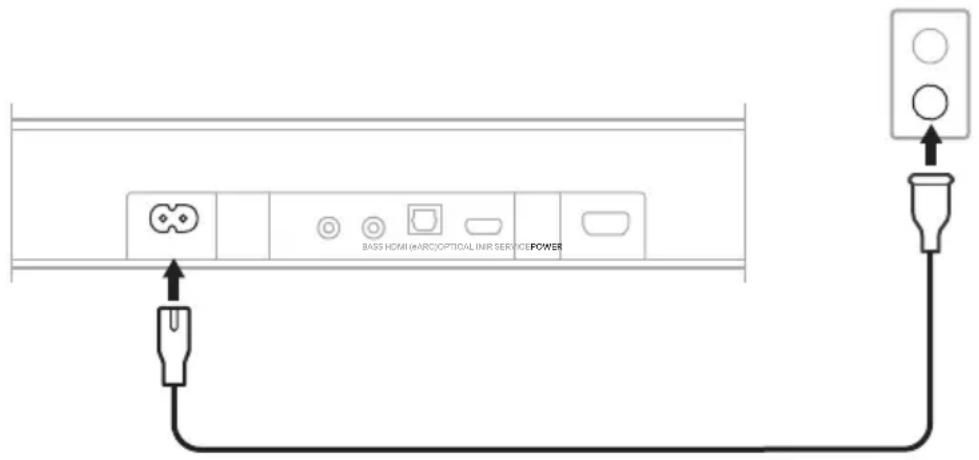

Connect the soundbar to power 17

Network standby 17

BOSE APP SETUP

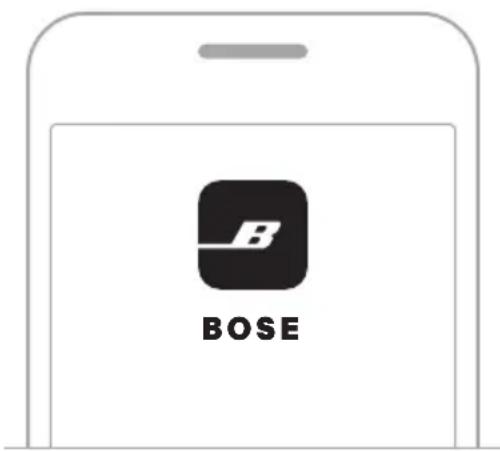

Download the Bose app.... 18

EXISTING BOSE APP USERS

Add the soundbar to an existing account.... 19

Connect to a different Wi-Fi ^® network.... 19

SOUNDBAR CONTROLS

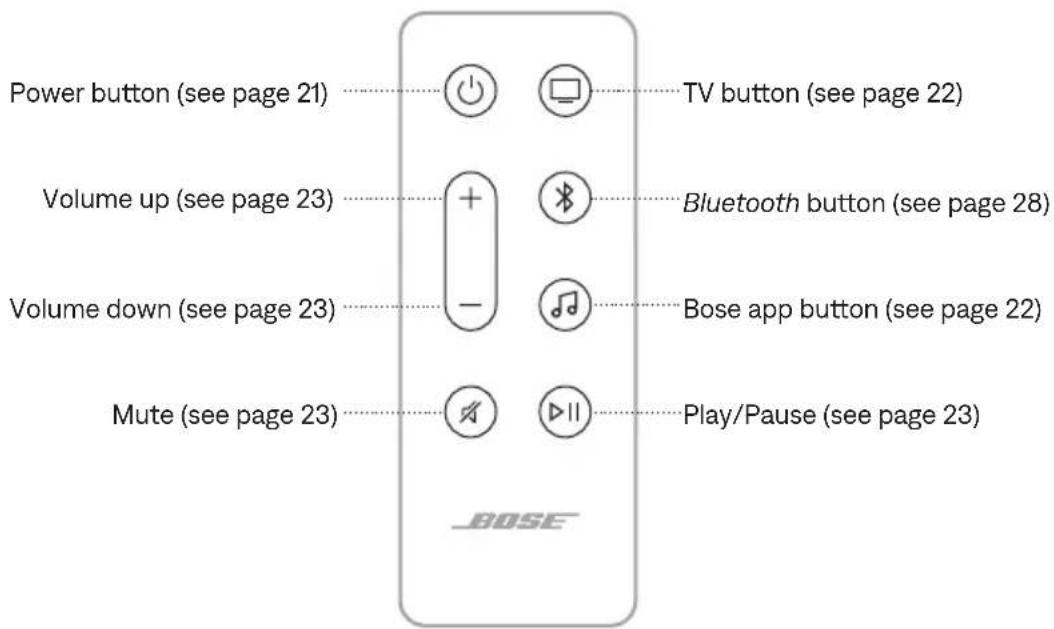

Remote functions 20

Power on/off 21

Auto-wake (optical connection only) 21

Sources 22

Media playback and volume 23

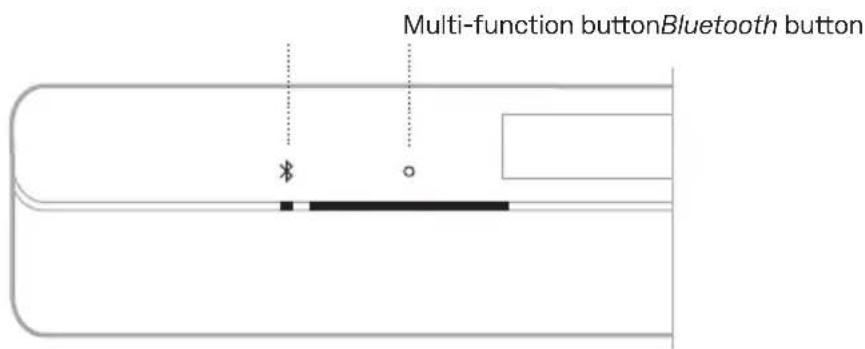

Soundbar control functions.... 24

Adjust the audio.... 24

WORKS WITH AMAZON ALEXA

Access Amazon Alexa.... 25

WORKS WITH GOOGLE ASSISTANT

Access Google Assistant.... 26

Use your voice.... 26

Use your phone 26

STREAM AUDIO WITH AIRPLAY

Stream audio from the Control Center 27

Stream audio from an app 27

BLUETOOTH® CONNECTIONS

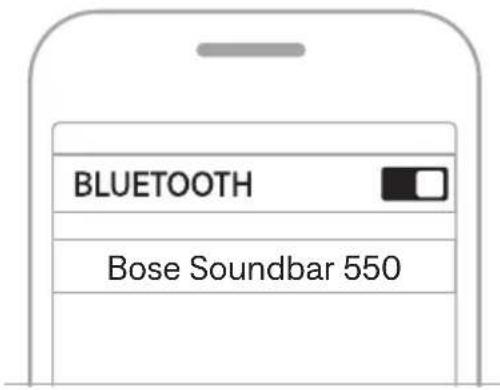

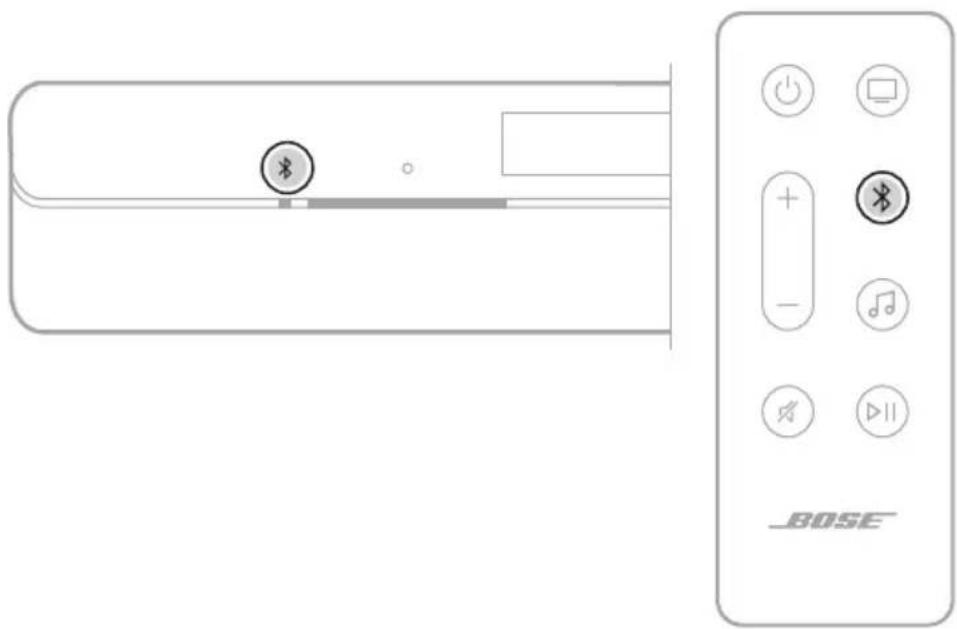

Connect a mobile device 28

Disconnect a mobile device 29

Reconnect a mobile device 29

Connect an additional mobile device.... 29

Clear the soundbar device list.... 29

SOUNDBAR STATUS

Wi-Fi status 30

Bluetooth status.... 30

Media playback and volume status.... 31

Update and error status 31

ADVANCED FEATURES

Disable/Enable Wi-Fi capability.... 32

CONNECT BOSE PRODUCTS

Connect accessories (optional).... 33

Connect a Bose SoundLink Bluetooth speaker or Bose headphones using SimpleSync™ technology.... 33

Benefits 33

Compatible products.... 33

Connect using the Bose app 34

Reconnect a Bose SoundLink Bluetooth speaker or Bose headphones 34

CARE AND MAINTENANCE

Update the soundbar 35

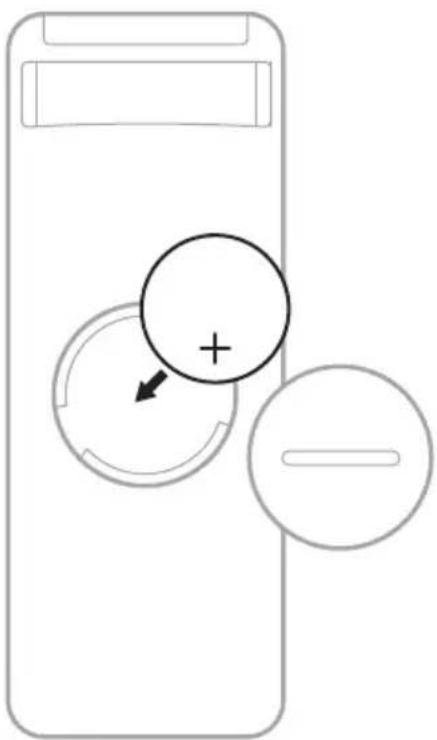

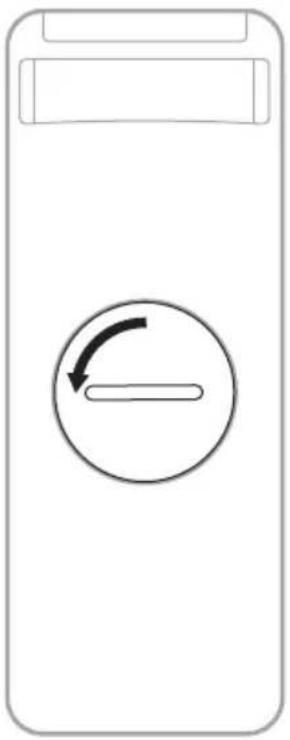

Replace the remote battery.... 35

Clean the soundbar 37

Replacement parts and accessories 37

Limited warranty.... 37

TROUBLESHOOTING

Try these solutions first.... 38

Other solutions.... 38

Restore the soundbar 45

APPENDIX: SETUP REFERENCE

Connection options 46

Connect the soundbar to your TV.... 47

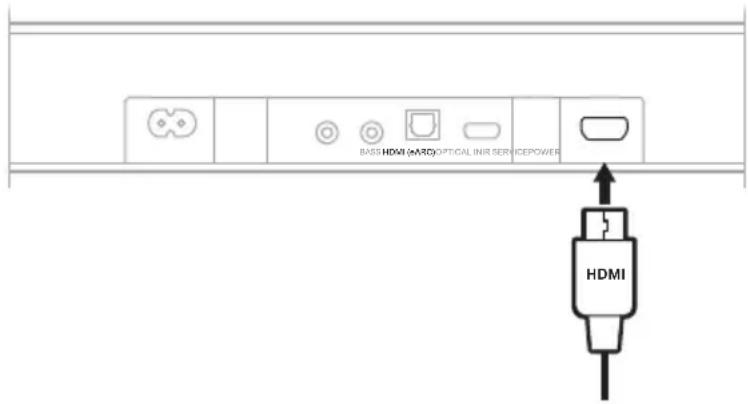

Option 1 (preferred): HDMI eARC or ARC...... 47

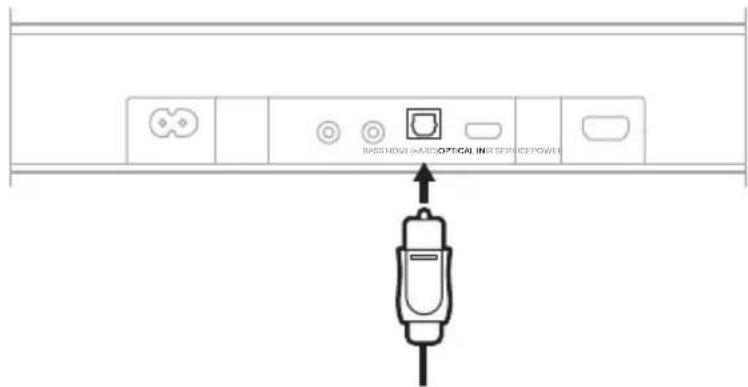

Option 2: Optical.... 48

Check for sound 49

CONTENTS

Confirm that the following parts are included:

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Remote (battery included) Power cord*

HDMI cable Optical cable

* May ship with multiple power cords. Use the power cord for your region.

NOTE: If any part of the product is damaged, don't use it. Contact your authorized Bose dealer or Bose customer service.

Visit: ____support.Bose.com/SB550

The Bose Soundbar 550 supports Dolby Atmos® technology. The soundbar uses up-firing and side-firing speakers to deliver high-quality sound from all directions, achieving a superb, immersive, and fully-encompassing surround-sound experience.

NOTE: To deliver the Dolby Atmos surround-sound experience, connect the soundbar to the HDMI eARC or ARC port on your TV (see page 47). If your TV doesn't have an eARC or ARC port, you can connect the optical cable to the optical port to receive spacious and life-like sound (see page 48).

RECOMMENDATIONS

• Place the soundbar below and in front of the TV (preferred) or above your TV with the front of the soundbar facing into the room.
• For best sound quality, make sure the up-firing speakers on the top of the soundbar and the side-firing speakers on the side of the soundbar aren't blocked.
• When the soundbar is mounted to the wall, make sure the top of the soundbar is at least 4 in (10 cm) away from the TV.
• If placing the soundbar on a shelf or TV stand, position the front of the soundbar as close as possible to the front edge of the shelf or stand for best sound quality.
• Place the soundbar outside of and away from metal cabinets, other audio/video components, and direct heat sources.
• Place the soundbar on its rubber feet on a stable and level surface. For proper support, both feet must be resting on the surface. Vibration can cause the soundbar to move, particularly on smooth surfaces like marble, glass, or highly polished wood.
• Keep the back side of the soundbar at least 0.4 in (1 cm) from any other surface. Blocking the port(s) affects sound quality.
• Make sure there is an AC (mains) outlet nearby.
• To avoid wireless interference, keep other wireless equipment at least 1 – 3 ft (0.3 – 0.9 m) away from the soundbar.
• To avoid wireless interference, some Wi-Fi access points may need to be placed up to 8 – 10 ft (2.4 – 3.0 m) away from the soundbar, optional bass module, and optional surround speakers.
• For best sound quality, don't place the soundbar in an enclosed cabinet or diagonally in a corner.
• Don't place any objects on top of the soundbar.

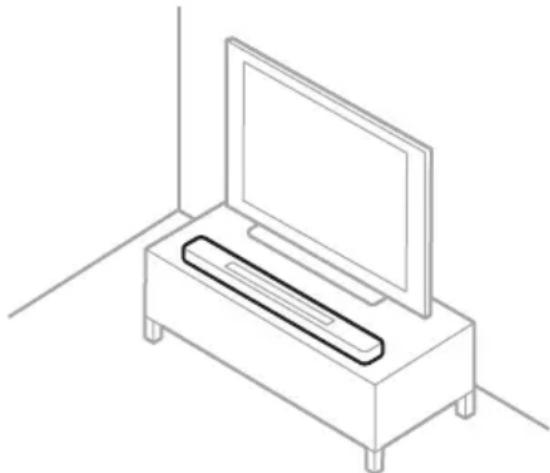

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

CAUTION: Do NOT place the soundbar on its front, back, or top when in use.

Two crossed-out rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

WALL MOUNT THE SOUNDBAR

You can mount the soundbar on a wall. To purchase the Bose Soundbar Wall Bracket, contact your authorized Bose dealer.

Visit: ____support.Bose.com/SB550

NOTE: Make sure the top of the soundbar is at least 4 in (10 cm) away from the TV.

4" / 10 cm

CAUTION: Do NOT use any other hardware to mount the soundbar.

Adjust audio for wall mounting

After you mount the soundbar, you must adjust audio for best sound quality.

On the remote, press and hold the Mute button ✗ for 5 seconds until you hear a tone and the light bar pulses white twice.

+ - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + - + -

NOTE: If you remove the soundbar from the wall, repeat to return the soundbar to default audio settings.

TIP: You can also adjust audio for wall mounting using the Bose app.

1. Connect the power cord to the port on the back of the soundbar.
2. Plug the other end of the power cord into an AC (mains) power outlet.

BASS HDMI (e-ARC) OPTICAL INR SERVICE POWER

The soundbar powers on, and the light bar glows solid amber.

NETWORK STANDBY

The soundbar transitions to network standby when audio has stopped and you have not pressed any buttons or talked to your Amazon Alexa Built-In device or your Google Assistant-enabled device for 20 minutes.

To wake the soundbar from network standby:

• On the remote, press the Power button ⏻, a source button (see page 22), or the Play/Pause button ▷|| (see page 20).
• Play or resume audio using your mobile device or using the Bose app.
• Talk to your Amazon Alexa Built-In device or your Google Assistant-enabled device.

NOTE: You can disable the standby timer using the Bose app. You can access this option from the Settings menu.

The Bose app lets you set up and control the soundbar from any mobile device, such as a smartphone or tablet.

Using the app, you can stream music, add music services, explore internet radio stations, enable Chromecast built-in, choose your voice prompt language, manage soundbar settings, and get new features.

NOTE: If you have already created a Bose account for another Bose product, add the soundbar to your existing account (see page 19).

DOWNLOAD THE BOSE APP

1. On your mobile device, download the Bose app.

BOSE

GET IT ON Google Play

1. Follow the app instructions.

ADD THE SOUNDBAR TO AN EXISTING ACCOUNT

To add your Bose Soundbar 550, open the Bose app and add your soundbar.

CONNECT TO A DIFFERENT WI-FI NETWORK

Connect to a different network if your network name or password has changed, or if you want to change or add another network.

1. On the remote, press and hold the Mute button ✗ and Bose app button ⏻ until the light bar glows amber.

BOSE

1. On your mobile device, open your Wi-Fi settings.
2. Select Bose Soundbar 550.
3. Open the Bose app and follow the app instructions.

NOTE: If the app doesn't prompt you for setup, go to the main screen and add the soundbar.

The soundbar controls are located on the top of the soundbar and on the remote.

TIP: You can also control your soundbar using the Bose app.

REMOTE FUNCTIONS

Use the remote to control the soundbar, select the source, and manage Bluetooth connections.

Power button (see page 21) TV button (see page 22) Volume up (see page 23) Bluetooth button (see page 28) Volume down (see page 23) Bose app button (see page 22) Mute (see page 23) Play/Pause (see page 23)

Power on/off

On the remote, press the Power button ⏻ to power the soundbar on/off.

BOSE

When powered on, the soundbar defaults to the last active source.

NOTES:

• When you plug the soundbar into an AC (mains) outlet, the soundbar automatically powers on.
• You can still control the soundbar with your voice using your Amazon Alexa-enabled device or Google Assistant-enabled device when the soundbar is powered off (see page 25).

Auto-wake (optical connection only)

You can set the soundbar to power on whenever a sound signal is received.

To toggle between auto-wake and default power settings, press and hold ⏻ for 10 seconds until you hear a tone and the light bar pulses white twice.

TIP: You can also control auto-wake using the Bose app. You can access this option from the Settings menu.

Sources

On the remote, press the appropriate button (TV □, Bluetooth ✝, or Bose app ⬇) to select the source.

BOSE

TIP: You can also use the Bose app to select a source.

Media playback and volume

+ - + ▶ ▶II _BOSE

FUNCTION WHAT TO DO

Play/Pause	Press ▷II .NOTES:When audio is paused, two lights in the center of the light bar glow solid white until audio resumes.You can't play/pause audio on a TV source.
Skip forward Double-press	▷II .
Skip backward Triple-press	▷II .
Volume up	Press +.NOTE: To quickly increase the volume, press and hold +.
Volume down	Press —.NOTE: To quickly decrease the volume, press and hold —.
Mute/Unmute	Press ⚠.When audio is muted, the left end of the light bar glows solid white until audio resumes.TIP: You can also press + to unmute audio.

SOUNDBAR CONTROL FUNCTIONS

You can use the Multi-function button to control media playback. You use the Bluetooth button to manage Bluetooth connections.

Multi-function buttonBluetooth button

FUNCTION WHAT TO DO

Select Bluetooth source	Press ✝.
Connect a mobile device	Press and hold ✝ until the light bar pulses blue.
Clear soundbar device list	Press and hold ✝ for 10 seconds until the light bar pulses white twice then fades to black .
Play/Pause Press ○.
Skip forward Double-press ○.
Skip back Triple-press ○.

ADJUST THE AUDIO

To adjust the bass, treble, center channel, height channel, and surround channels, use the Bose app. You can access these options from the Settings menu.

ACCESS AMAZON ALEXA

If you have a separate device with Alexa Built-In connected to your network, you can control the soundbar from that device with voice commands. To set up voice control, enable the skill and link your Alexa account to your Bose account. Then just ask Alexa to play music.

Just say "Alexa" on an Amazon Alexa-enabled device to get started. Then say your request on .

For example, try playing your favorite music. Just say, "Alexa, play My Workout playlist on Family Room".

NOTES:

• To access Alexa functionality, you must have a separate Alexa Built-In device and Wi-Fi connection.
• Make sure you say the soundbar name you've assigned in the Bose app. If multiple devices have the same name, use the name assigned in the Alexa app or change the name in the Bose app.
• Support for new apps is added periodically.
• Alexa isn't available in all languages and countries.
• For more information about what Alexa can do, visit: ____ https://www.amazon.com/usealexa

ACCESS GOOGLE ASSISTANT

The soundbar is compatible with a Google Assistant-enabled device connected to your Wi-Fi network using Chromecast built-in. With Chromecast built-in, you can stream audio from supported apps using just your voice or by simply tapping the Cast button on your phone. Choose from millions of songs from popular music services like Pandora, Spotify, and TuneIn.

To control the soundbar using your voice, use a Google Assistant-enabled device and enable Chromecast built-in in the Bose app. You can access this option from the Settings menu.

NOTES:

• To use Chromecast built-in, you must have a Google Assistant-enabled device and Wi-Fi connection.
• Support for new apps is added periodically.
• Google Assistant isn't available in all languages and countries.
• For more information on what Google Assistant can do, visit: ____ https://support.google.com/assistant

Use your voice

Just say "Hey Google" on a Google Assistant-enabled device to get started. Then say your request on .

For example, try playing your favorite music. Just say “Hey Google, play My Workout playlist on Family Room”.

NOTES:

• Make sure you say the soundbar name you assigned in the Bose app. If multiple soundbars have the same name, use the name assigned in the Google Assistant app or change the name in the Bose app.
• Google Assistant-enabled device required.

Use your phone

Your phone is your remote.

• Simply tap the Cast button from apps you already know and love. No new logins or downloads required.
• Use your phone to search, play, pause, and turn up the volume from anywhere in the home.
• While you're streaming, you can keep using your phone for other things – scroll through social media, send a text, and even accept calls.
• Enjoy music throughout your house when you use multi-room casting with Chromecast-enabled soundbars.

The soundbar is capable of playing AirPlay 2 audio, which allows you to quickly stream audio from your Apple device to the soundbar or multiple speakers.

NOTES:

• To use AirPlay 2, you need an Apple device running iOS 11.4 or later.
• Your Apple device and soundbar must be connected to the same Wi-Fi network.
  • For more information about AirPlay, visit: https://www.apple.com/airplay

STREAM AUDIO FROM THE CONTROL CENTER

1. On your Apple device, open the Control Center.
2. Tap and hold the audio card in the top-right corner of the screen, then tap the AirPlay icon 🔒.
3. Select your soundbar.

STREAM AUDIO FROM AN APP

1. Open a music app (like Apple Music), and select a track to play.
2. Tap 🔒.
3. Select your soundbar.

CONNECT A MOBILE DEVICE

1. On the soundbar or remote, press the Bluetooth button ✝.

BOSE

The light bar pulses blue.

1. On your mobile device, turn on the Bluetooth feature.

NOTE: The Bluetooth menu is usually found in the Settings menu.

1. Select your soundbar from the device list.

NOTE: Look for the name you entered for your soundbar in the Bose app. If you didn't name your soundbar, the default name appears.

BLUETOOTH Bose Soundbar 550

Once connected, you hear a tone, and the light bar glows solid white then fades to black. The soundbar's name appears in the mobile device list.

DISCONNECT A MOBILE DEVICE

Use the Bose app to disconnect your mobile device.

TIP: You can also use Bluetooth settings on your mobile device. Disabling the Bluetooth feature disconnects all other devices.

RECONNECT A MOBILE DEVICE

On the soundbar or remote, press the Bluetooth button ✝.

The soundbar tries to connect with the most recently-connected devices.

NOTES:

• Make sure the Bluetooth feature is enabled on your mobile device.
• The device must be within 30 ft (9 m) and powered on.

CONNECT AN ADDITIONAL MOBILE DEVICE

You can store up to eight devices in the soundbar device list.

NOTE: You can play audio from only one device at a time.

1. On the soundbar or remote, press and hold ✝ until the light bar pulses blue.
2. On your mobile device, select your soundbar from the device list.

NOTE: Make sure the Bluetooth feature is enabled on your mobile device.

CLEAR THE SOUNDBAR DEVICE LIST

1. On the soundbar or remote, press and hold ✗ for 10 seconds until the light bar pulses white twice then fades to black.

The light bar pulses blue.

1. Delete the soundbar from the Bluetooth list on your device.

All devices are cleared, and the soundbar is ready to connect (see page 28).

The LED light bar located on the front of the soundbar shows the soundbar status.

Pure technical line drawing of a mechanical component or bracket without any text, numbers, or symbols

Light bar

NOTE: The light bar displays one status at a time of the selected source.

WI-FI STATUS

Shows the Wi-Fi connection status of the soundbar.

LIGHT BAR ACTIVITY SYSTEM STATE

Pulsing white		Connecting to Wi-Fi
Solid white then fades to black		Connected to Wi-Fi

BLUETOOTH STATUS

Shows the Bluetooth connection status of mobile devices.

LIGHT BAR ACTIVITY SYSTEM STATE

Pulsing blue		Ready to connect to mobile device
Pulsing white		Connecting to mobile device
Solid white then fades to black		Connected to mobile device
White light pulses twice then fades to black		Clearing device list

Media playback and volume status

Shows the soundbar status when controlling media playback and volume.

LIGHT BAR ACTIVITY SYSTEM STATE

Two center lights glow solid white		Pause
Right end of the light bar pulses white		Volume up
Left end of the light bar pulses white		Volume down
Left end of the light bar glows solid white		Mute

UPDATE AND ERROR STATUS

Shows the status of software updates and error alerts.

LIGHT BAR ACTIVITY SYSTEM STATE

Solid amber		Wi-Fi setup in progress
White light slides from right to left		Downloading update
White light slides from left to right		Updating soundbar
Pulses red 4 times		Request is temporarily unavailable - try again later
Solid red		Error - contact Bose customerservice

DISABLE/ENABLE WI-FI CAPABILITY

On the remote, press and hold the Mute button ✗ and Bluetooth button ✗ until the light bar pulses white twice then fades to black.

+ - + - Bluetooth Music Audio ▶11 _BOSE

CONNECT ACCESSORIES (OPTIONAL)

You can connect any of these accessories to your soundbar. For more information, refer to your accessory owner's guide.

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONNECT A BOSE SOUNDLINK BLUETOOTH SPEAKER OR BOSE HEADPHONES USING SIMPLESYNC™ TECHNOLOGY

With Bose SimpleSync™ technology, you can connect certain Bose SoundLink Bluetooth speakers or Bose headphones to the soundbar for a new way to hear your music and movies.

Benefits

• A personal TV listening experience: Listen to TV without disturbing others by connecting your Bose headphones to the soundbar. Use independent volume controls on each product to lower or mute the soundbar while keeping your headphones as loud as you like.
• Another room of audio: Listen to the same song in two different rooms at the same time by connecting your Bose SoundLink Bluetooth speaker to the soundbar.

NOTE: SimpleSync™ technology has a Bluetooth range of up to 30 ft (9 m). Walls and construction materials can affect reception.

Compatible products

You can connect most Bose SoundLink Bluetooth speakers to the soundbar, as well as Bose headphones.

Popular compatible products include:

• Bose SoundLink Revolve+ Bluetooth speaker
• Bose SoundLink Mini Bluetooth speaker
• Bose SoundLink Micro Bluetooth speaker
• Bose SoundLink Flex Bluetooth Speaker
• Bose Noise Cancelling Headphones 700
• Bose QuietComfort 35 wireless headphones
• Bose QuietComfort 45 headphones

New products are added periodically. For a complete list and more information, visit: ____support.Bose.com/Groups

Connect using the Bose app

To connect your Bose SoundLink Bluetooth speaker or Bose headphones to the soundbar, use the Bose app. For more information, visit:

.support.Bose.com/SB550Grouping

NOTES:

• Make sure that the product you're connecting is powered on, within 30 ft (9 m) of the soundbar, and ready to connect to another device. For more information, refer to your product owner's guide.
• You can connect only one product at a time to the soundbar.

RECONNECT A BOSE SOUNDLINK BLUETOOTH SPEAKER OR BOSE HEADPHONES

Use the Bose app to reconnect the soundbar to a previously-connected compatible Bose product.

NOTE: The soundbar must be within range (30 ft or 9 m) and powered on.

UPDATE THE SOUNDBAR

The soundbar updates automatically when connected to the Bose app and your Wi-Fi network.

REPLACE THE REMOTE BATTERY

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

NOTE: For more information, "WARNINGS/CAUTIONS" on page 2.

1. Using a coin, turn the battery compartment cover left (counter-clockwise) and remove the cover.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

1. Insert the new battery flat side up, with the + symbol facing up.

Diagram showing a smartphone screen with a plus sign and two circular buttons labeled '+' and '-', indicating status or options.

NOTE: Use only an agency approved (e.g., UL) CR2032 or DL2032 3-volt lithium battery.

1. Reset the cover and turn it right (clockwise) to lock in place.

CLEAN THE SOUNDBAR

Wipe the outside surfaces of the soundbar with a soft, dry cloth.

CAUTIONS:

• Do NOT allow liquids to spill onto the soundbar or into any openings.
• Do NOT blow air into the up-firing speakers or soundbar.
• Do NOT use a vacuum to clean the up-firing speakers or soundbar.
• Do NOT use any sprays near the up-firing speakers or soundbar.
• Do NOT use any solvents, chemicals, or cleaning solutions containing alcohol, ammonia, or abrasives.
• Do NOT allow objects to drop into any openings.

REPLACEMENT PARTS AND ACCESSORIES

Replacement parts and accessories can be ordered through Bose customer service.

Visit: ____support.Bose.com/SB550

LIMITED WARRANTY

The soundbar is covered by a limited warranty. Visit our website at ____ worldwide.Bose.com/Warranty for details of the limited warrant

To register your product, visitworldwide.Bose.com/ProductRegistration for instructions. Failure to register will not affect your limited warranty rights.

TRY THESE SOLUTIONS FIRST

If you experience problems with the soundbar:

• Make sure the soundbar is connected to a live AC (mains) outlet.
• Secure all cables.
• Check the state of the soundbar (see page 30).
• Download the Bose app and run available software updates.
• Place the soundbar according to the placement guidelines (see page 14).
• Move the soundbar within the recommended range of your mobile device for properoperation.
• Make sure the soundbar is at least 1 – 3 ft (0.3 – 0.9 m) away from wirelesssequipment.
• Check that any Wi-Fi access points are placed up to 8 – 10 ft (2.4 – 3.0 m) away from the soundbar, optional bass module, and optional surround speakers.

OTHER SOLUTIONS

If you could not resolve your issue, see the table below to identify symptoms and solutions to common problems. You can also access troubleshooting articles, videos, and other resources at: support.Bose.com/SB550

If you are unable to resolve your issue, contact Bose customer service.

Visit: ____ worldwide.Bose.com/contact

SYMPTOM SOLUTION

No HDMI eARC port on your TV	Use your TV's HDMI ARC port.If your TV doesn't have an HDMI ARC port, use the optical cable to connect the soundbar to your TV.
No HDMI eARC, HDMI ARC, or optical port on your TV	If your TV is connected to a cable or satellite box, connect the HMDI cable from the soundbar to the cable or satellite box.Connect to your TV using an audio converter and separate audio cable, such as a coaxial, 3.5 mm, or analog audio cable (not provided). The type of converter and cable you need depends on the audio output ports available on your TV.
Soundbar doesn't power on	Plug the power cord into a different AC (mains) outlet.Use the remote control to power on the soundbar (see page 20).Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and plug them firmly into a live AC (mains) outlet.

SYMPTOM SOLUTION

Soundbar doesn't power off	The soundbar may be in network standby mode. On the remote, press the Power button ⏻ to wake the soundbar. Press ⏻ again to power off the soundbar.
Audio isn't playing in Dolby Atmos	Make sure the soundbar is connected to your TV's HDMI eARC or ARC port.Make sure the content you are playing is supported by Dolby Atmos. Check the Bose app Now Playing screen to make sure the audio is streaming in Dolby Atmos. If it's not streaming in Dolby Atmos, make sure the advanced audio settings of your TV are allowing Dolby Atmos to pass through to the soundbar. Refer to your TV owner's guide.
Remote is inconsistent or doesn't work	Replace the battery (see page 35).Make sure the remote is within operating range (20 ft or 6 m) of the soundbar.Make sure there are no obstructions between the remote and the soundbar.
Bose app doesn't work on mobile device	Make sure your mobile device is compatible with the Bose app and meets minimum system requirements. For more information, refer to the app store on your mobile device.Uninstall the Bose app on your mobile device then reinstall the app (see page 18).
Soundbar isn't visible to add toanother Bose account	Make sure sharing is enabled on your soundbar using the Bose app.Make sure the soundbar and your mobile device are connected to the same Wi-Fi network.
Soundbar and source don't power on/off simultaneously	Press the Power button ⏻ to power on/off the source.

SYMPTOM SOLUTION

Intermittent or no audiofromsoundbar

Increase the volume on the soundbar (see page 23) or your mobile device.If the left end of the light bar is glowing solid white, the soundbar is muted. Press the Mute button to unmute the soundbar.Make sure your mobile device isn't muted.Make sure you're using a compatible Bluetooth mobile device.Restart your mobile device.Restart your audio source.Switch to a different source (see page 22).Play audio from a different application or music service.If the audio is from a Wi-Fi source, reset the router.Restart your TV.Check the TV audio settings. Refer to your TV owner's guide.Update the TV software. Refer to your TV owner's guide.Disconnect the HDMI cable from your TV's HDMI eARC (or ARC) port and reconnect it.Make sure that the soundbar's HDMI cable is inserted into a port on your TV labeledHDMI eARC(Enhanced Audio Return Channel), not a standard HDMI port. If your TV doesn't have an HDMI eARC port, connect to the HDMI ARC port. If your TV doesn't have an ARC port, connect to the soundbar using the optical cable (see page 48).If the soundbar is connected to your TV's HDMI eARC (or ARC) port, make sure thatConsumer Electronics Control (CEC)is enabled in your TV system menu. Your TV may refer to CEC by a different name. Refer to your TV owner's guide.If the soundbar is connected to your TV's optical port, make sure the optical cable is inserted into a port on your TV labeledOutputor OUT, not Input or IN.Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30seconds, and plug them firmly into a live AC (mains) outlet.Check the Advanced CEC setting in the Bose app. You can access this option from the Settings menu. For more information, visit: ____support.Bose.com/SB550_CEC

Soundbar doesn't connect to bass module or surround speakers

Refer to your bass module or surround speakers owner's guide for troubleshooting (see page 33).Make sure your bass module or surround speakers are compatible with the soundbar (see page 33).Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and firmly plug them into the AC (mains) outlet.

SYMPTOM SOLUTION

No audio from bass module or surround speakers	Make sure your bass module or surround speakers are compatible with the soundbar (see page 33).Make sure the software is current in the Bose app.Adjust the bass level using the Bose app (see page 24).Switch to a different source (see page 22).
Sound is coming fromTVspeaker	Make sure that the soundbar's HDMI cable is inserted into a port on your TV labeledHDMI eARC(Enhanced Audio Return Channel), not a standard HDMI port. If your TV doesn't have an HDMI eARC port, connect to the HDMI ARC port. If your TV doesn't have an ARC port, connect to the soundbar using the optical cable (see page 48).Disconnect the HDMI cable from your TV's HDMI eARC (or ARC) port and reconnect it.Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and firmly plug them into the AC (mains) outlet.Turn off your TV speakers. Refer to your TV owner's guide.Decrease your TV volume to its lowest setting.If the soundbar is connected to your TV's HDMI eARC (or ARC) port, make sure thatConsumer Electronics Control (CEC)is enabled in your TV system menu. Your TV may refer to CEC by a different name.Refer to your TV owner's guide.Check the Advanced CEC setting in the Bose app. You can access this option from the Settings menu. For more information, visit: ____support.Bose.com/SB550_CEC
Poor or distorted audio	Test different sources if available.Make sure that your TV can output surround sound audio. Refer to your TV owner's guide.If the audio is being played from another device, reduce the volume of that device.Adjust the bass level using the Bose app (see page 24).Power off your TV speakers. Refer to your TV owner's guide.Check for sound (see page 49).

SYMPTOM SOLUTION

Soundbar doesn't play audio from the correct source or selects the incorrect source after a delay	Check the Advanced CEC setting in the Bose app. You can access this option from the Settings menu. For more information, visit: ____support.Bose.com/SB550_CEC Disable CEC on your source. Refer to the source owner's guide.
Soundbar doesn't connectto Wi-Fi network	In the Bose app, select the correct network name, and enter the network password (case-sensitive).Make sure the soundbar and your mobile device are connected to the same Wi-Fi network.If your network information has changed, see page 19.Enable Wi-Fi on the mobile device you are using for setup.Close other open applications on your mobile device.Restart your mobile device and router.If your router supports both 2.4 GHz and 5G Hz bands, make sure both the device (mobile or computer) and soundbar are connecting to the same band.NOTE: Give each band a unique name to make sure you're connecting to the correct band.Reset the router.Unplug the power cords for the soundbar and optional bass module or surround speakers, wait 30 seconds, and firmly plug them into the AC (mains) outlet. Uninstall the Bose app on your mobile device, reinstall the app, and restart setup.If connecting to a different network and the app doesn't prompt you for setup, go to the main screen and add the soundbar.
Soundbar doesn't connect with Bluetooth device	On your mobile device, turn the Bluetooth feature off and then on. Delete the soundbar from the Bluetooth list. Connect again (see page 28).Connect a different mobile device (see page 28).Make sure you're using a compatible Bluetooth mobile device. Visit: ____support.Bose.com/SB550_BTDelete the soundbar from your mobile device Bluetooth list. Connect again (see page 28).Clear the soundbar device list (see page 29). Connect again (see page 28).

SYMPTOM SOLUTION

Soundbar doesn't stream audio using AirPlay	Make sure your soundbar is powered on and in range (see page 21).Make sure your Apple device and your soundbar are connected to the same Wi-Fi network.Update your Apple device.Make sure the soundbar is up-to-date (see page 35).If you can't find the AirPlay icon 🔒 in the music app you are streaming from, stream audio from the Control Center.For additional support, visit:https://www.apple.com/airplay
Amazon Alexa can't control the soundbar	Make sure you have an Amazon Alexa-enabled device connected to your network (see page 25).Make sure you say the name you assigned in Bose app.Connect your mobile device to Wi-Fi.Make sure you're in a country where Amazon Alexa is available (see page 25).Make sure you are using the most up-to-date version of the Amazon Alexa app.Make sure your mobile device is compatible.For additional support, visit:____https://www.amazon.com/usealexa
Google Assistant can't control the soundbar	Make sure you have a Google Assistant-enabled device connected to your network (see page 26).Make sure you say the name you assigned in the Bose app.Make sure Chromecast built-in is enabled in the Bose app (see page 26).Connect your mobile device to Wi-Fi.Make sure you're in a country where Google Assistant is available.Make sure you are using the most up-to-date version of the Google Assistant app.Make sure your mobile device is compatible.For additional support, visit:____https://support.google.com/assistant
Soundbar doesn't connecttoa Bose SoundLink Bluetooth speaker or Bose headphones	Make sure that your speaker or headphones are powered on, within 30 ft (9 m) of the soundbar, and ready to connect to another device. For more information, refer to your product owner's guide.

SYMPTOM SOLUTION

Soundbar doesn’t reconnect to previously-connected Bose SoundLinkBluetooth speaker or Bose headphones

Connect using the Bose app (see page 18).

Poor audio quality from a connected Bose SoundLinkBluetooth speaker or Bose headphones

If your router supports both 2.4 GHz and 5 GHz bands, and the soundbar is connected to a 2.4 GHz frequency, connect to the 5 GHz frequency.Not all Bose SoundLink Bluetooth speakers can play audio in perfect sync when connected to the soundbar. To check if your product is compatible, visit: support.Bose.com/GroupsMake sure Sync with Group is enabled in the Bose app (see page 18). You can access this option from the Settings menu.Install any available software updates for your speaker or headphones. To check for updates, open the appropriate Bose app for your product on your mobile device or visit btu.Bose.com on your computer.

RESTORE THE SOUNDBAR

Restoring the factory settings clears all source, volume, and network settings from the soundbar and returns the soundbar to its default settings.

1. On the remote, press and hold the Volume down button — and Play/Pause button ▷ll for 5 seconds until the light bar pulses white twice then fades to black.

- BOSE

The soundbar reboots. When the reset is complete, the light bar glows solid amber.

1. To restore the soundbar's network and audio settings, launch the Bose app on your mobile device and add the soundbar to your network (see "Add the soundbar to an existing account" on page 19).

CONNECTION OPTIONS

Connect the soundbar to your TV using one of the following connection options:

- Option 1 (preferred): HDMI eARC (Enhanced Audio Return Channel) or ARC

- Option 2: Optical

NOTES:

- To deliver the Dolby Atmos surround-sound experience, connect the soundbar to the HDMI eARC or ARC port on your TV (see page 47). If your TV doesn't have an eARC or ARC port, you can connect the optical cable to the optical port to receive spacious and life-like sound (see page 48).

- To use your TV remote to control the power, volume, and mute functions of the soundbar, the soundbar must be connected to the HDMI eARC or ARC port on your TV.

1. On the back of your TV, locate the HDMI IN and Audio OUT (optical) ports.

NOTE: Your TV port panel may not appear as shown. Look for the shape of the port.

Option 1 (Preferred)
HDMI eARC (or ARC): Use the HDMI cable for this connection.
Optical: If your TV doesn't have an HDMI eARC (or ARC) port, use the optical cable for this connection.

Option 2

1. Choose an audio cable.

CONNECT THE SOUNDBAR TO YOUR TV

After choosing an audio cable, connect the soundbar to your TV.

Option 1 (preferred): HDMI eARC or ARC

1. Insert one end of the HDMI cable into your TV's HDMI eARC or ARC port.
2. Insert the other end of the cable into the HDMI (eARC) port on the soundbar.

BASS HDMI (AARD) OPTICAL INR SERVICE POWER HDMI

Option 2: Optical

If your TV doesn't have an HDMI eARC (or ARC) port, use the optical cable to connect the soundbar to your TV.

1. Remove the protective cap from both ends of the optical cable.

Simple line drawing of a USB cable with an input cable and output cable (no text or symbols)

CAUTION: Inserting the plug with the cap attached can damage the plug and/or the port.

1. Insert one end of the optical cable into your TV's Optical OUT port.

CAUTION: Inserting the plug with the wrong orientation can damage the plug and/or the port.

1. Hold the plug at the other end of the optical cable.

2. Align the plug with the soundbar's OPTICAL IN port, and insert the plug carefully.

BASISHAVA (AASI/OPTICAL INSIP SERVICE)

NOTE: The port has a hinged door that swings inward when inserting the plug.

1. Firmly push the plug into the port until you hear or feel a click.

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

CHECK FOR SOUND

1. Power on your TV using your TV remote.
2. In the audio section of your TV's menu, turn off your TV speakers.

NOTE: Refer to your TV owner's guide for more information.

1. If you are using a cable/satellite box or other secondary source:

a. Power on this source.
b. Select the appropriate TV input.

1. Power on the soundbar (see page 21).

You hear sound coming from the soundbar.

1. On the soundbar remote, press the Mute button ✗.

You don't hear sound coming from the TV speakers or soundbar.

NOTE: If you hear sound coming from your TV after your soundbar is muted, see "Sound is coming from TV speaker" on page 41.

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

www.spotify.com/connect/third-party-licenses

STREAM LYD MED AIRPLAY

TILSLUT PRODUKTER FRA BOSE

Simple line drawing of a rectangular object with a horizontal bar and a small rectangle on top (no text or symbols)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a mounted screen and a cable (no text or symbols)

FORSIGTIG: Placer IKKE soundbaren på dens front, bagside eller top, når den er i brug.

Two crossed-out rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

MONTERING AF SOUNDBAR PÅ VÆGGEN

FÅ ADGANG TIL GOOGLE ASSISTENT

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

TILSLUT EN BOSE SOUNDLINK BLUETOOTH-H∅JTTALER ELLER BOSE-HOVEDTELEFONER VED HJÆLP AF SIMPLESYNC™-TEKNOLOGI

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

BEMÆRK: Du kan finde flere oplysninger under "ADVARSLER/FORSIGTIGHEDSFORHOLDSREGLER" på side 2.

Simple line drawing of a smartphone with a circular button and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons labeled with arrows, indicating action or status.

TILSLUTNING AF SOUNDBAREN TIL DIT TV

Simple line drawing of a plug with a cable, no text or symbols present

BASS HDMI (GAR/OPTICAL INR SERV ICEPOWES

Simple line drawing of a flashlight with radiating lines, no text or symbols present

TJEK LYDEN

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a mounted screen and stand (no text or symbols)

Two identical 3D rectangular shapes with a diagonal line and 'no' symbol, no text or labels present.

WANDMONTAGE DER SOUNDBAR

4" / 10 cm

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

BOSE SOUNDLINK BLUETOOTH-LAUTSPRECHER ODER BOSE-KOPFHÖRER MITHILFE VON SIMPLESYNC™-TECHNOLOGIE VERBINDEN

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

ÜBERPRÜFEN DES TONS

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

AUDIO STREAMEN MET AIRPLAY

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a mounted screen and cable (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

DE SOUNDBAR AAN DE MUUR BEVESTIGEN

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

EEN BOSE SOUNDLINK BLUETOOTH-LUIDSPREKER OF BOSE-HOOFDTELEFOON VERBINDEN MET SIMPLESYNC™- TECHNOLOGIE

• Bose SoundLink Revolve+ Bluetooth speaker
• Bose SoundLink Mini Bluetooth speaker
• Bose SoundLink Micro Bluetooth speaker
• Bose SoundLink Flex Bluetooth Speaker
• Bose Noise Cancelling Headphones 700
• Bose QuietComfort 35 wireless headphones
• Bose QuietComfort 45 headphones

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

HET GELUID CONTROLEREN

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a rectangular object with a horizontal bar and a small rectangle inside, no text or symbols present.

Bose Soundbar 550

Visite: ____support.Bose.com/SB550

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a box (no text or symbols)

Two safety symbols: a crossed-out rectangular object and a rectangular block with holes, both without any text or labels.

MONTAR LA BARRA DE SONIDO EN LA PARED

Visite: ____ support.Bose.com/SB550

+ - + - Bluetooth NOTES ▶II _BOSE

FUNCIÓN QUÉ HACER

Pure technical diagram of a mechanical or electrical component with no text, numbers, or symbols

Barra de luces

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONECTAR UN ALTAVOZ BOSE SOUNDLINK BLUETOOTH O AURICULARES BOSE USANDO LA TECNOLOGÍA SIMPLESYNC™

.support.Bose.com/SB550Grouping

NOTAS:

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow, no text or symbols present.

Diagram showing a smartphone screen with a plus sign and two circular buttons labeled '+' and '-', indicating status or options.

Visite: ____support.Bose.com/SB550

GARANTÍA LIMITADA

Visite: ____ worldwide.Bose.com/contact

SÍNTOMA SOLUCIÓN

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

VERIFICAR EL SONIDO

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Maahantuoja Kiinassa: Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100

Maahantuojat: Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd. Minhang District, Shanghai 201100 | Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, The Netherlands | Bose de México S. de R.L. de C.V., Avenida Prado Sur #150, Piso 2, Interior 222 y 223, Colonia Lomas de Chapultepec V Sección, Miguel Hidalgo, Ciudad de México, C.P. 11000 Puhelinnumero: [phone] | Bose Limited (H.K.), 9F., No. 10, Sec. 3, Minsheng E. Road, Zhongshan Dist. Taipei City 10480, Puhelinnumero: [phone] | Bose Limited, Bose House, Quayside Chatham Maritime, Chatham, Kent, ME4 4QZ, United Kingdom

Tuloarvot: 100–240 V ∼ 50/60 Hz, 100 W

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a mounted screen and a side panel, placed on a wooden box (no text or symbols)

Two crossed-out rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

SOUNDBARIN KIINNITTÄMINEN SEINÄÄN

KAUKOSÄÄTIMEN TOIMINNOT

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

BOSE SOUNDLINK BLUETOOTH -KAIUTTIMEN TAI BOSE-KUULOKKEIDEN YHDISTÄMINEN SIMPLESYNC™- TEKNOLOGIALLA

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone screen with a plus sign and two circular buttons labeled '+' and '-', indicating status or options.

Simple line drawing of a USB drive with cable and connector (no text or symbols)

Simple line drawing of a flashlight with radiating lines, no text or symbols present

ÄÄNEN TARKISTAMINEN

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

CONNEXION DES PRODUITS BOSE

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a flat-screen cable, placed on a matching stand (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

FIXATION MURALE DE LA BARRE DE SON

Power + - Bluetooth Music speaker BOSE

Line drawing of a remote control with speaker and sound icons, no text or symbols present

Pure electrical circuit lines without any symbols

Barre lumineuse

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow, no text or symbols present.

Diagram showing a smartphone screen with two circular buttons labeled '+' and '-', indicating positive and negative options respectively.

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, no text or symbols present

VÉRIFICATION DU SON

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

STREAMING AUDIO CON AIRPLAY

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Visitare: ____ support.Bose.com/SB550

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular base (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

MONTARE A PARETE LA SOUNDBAR

Visitare: ____ support.Bose.com/SB550

+ - + - BESE

CONNETTERSI A UNA RETE WI-FI DIVERSA

Power + - Bluetooth Music speaker BOSE

ACCEDERE AD ASSISTENTE GOOGLE

STREAMING AUDIO DAL CENTRO DI CONTROLLO

STREAMING AUDIO DA UN'APP

Pure technical line drawing of a mechanical component with no text, numbers, or symbols

Barra luminosa

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONNETTERE UN DIFFUSORE BLUETOOTH BOSE SOUNDLINK O LE CUFFIE BOSE MEDIANTE LA TECNOLOGIA SIMPLESYNC™

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Visitare: ____ worldwide.Bose.com/contact

SINTOMO SOLUZIONE

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

VERIFICARE IL SUONO

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN - Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a mounted screen and a side panel (no text or symbols)

Two crossed-out rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

A HANGSUGÁRZÓ FELSZERELÉSE A FALRA

Line drawing of a remote control with speaker and playback buttons, no text or symbols present

Pure diagram of a device outline with no text, numbers, or symbols

Fénysáv

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

A BOSE SOUNDLINK BLUETOOTH-HANGSZÓRÓ VAGY A BOSE FEJHALLGATÓ CSATLAKOZTATÁSA A SIMPLESYNC™ TECHNOLÓGIA HASZNÁLATÁVAL

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

+ - BESE BOSE

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

ELLENÓRIZZE A HANGOT

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

KONFIGURERE LYDPLANKEN

STR∅MME LYD MED AIRPLAY

KOBLE TIL BOSE-PRODUKTER

STELL OG VEDLIKEHOLD

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a flat-screen TV set with a mounted screen and a cable (no text or symbols)

Two crossed-out construction materials with no visible text or symbols, one marked by a diagonal line and the other by a horizontal line (no text or symbols present)

VEGGMONTERING AV LYDPLANKEN

Du kan montere lydplanken på veggen. Du kan kjøpe Bose Soundbar Wall Bracket hos en autorisert Bose-forhandler.

Gå til ____ support.Bose.com/SB550

KOBLE LYDPLANKEN TIL STR∅M

KOBLE TIL MOBILENHETER PÅ NYTT

Trykk på Bluetooth-knappen ✝ på lydplanken eller fjernkontrollen.

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

KOBLE TIL BOSE SOUNDLINK BLUETOOTH SPEAKER ELLER BOSE-HODETELEFONER MED SIMPLESYNC™-TEKNOLOGI

OPPDATERE LYDPLANKEN

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone screen with a plus sign and two circular buttons labeled with arrows, indicating action or status.

TILBAKESTILLE LYDPLANKEN

KOBLE LYDPLANKEN TIL TV-EN

Simple line drawing of a plug with a cable, no text or symbols present

FORSIKTIG: Hvis du setter inn pluggen med hetten på, kan det føre til skade på pluggen og/eller porten.

1. Sett den ene enden av den optiske kabelen inn i Optical OUT-porten på TV-en.

FORSIKTIG: Hvis du setter inn pluggen feil vei, kan det føre til skade på pluggen og porten.

BASISHAVA (AASI/OPTICAL INSIP SERVICE)

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

KONTROLLERE LYDEN

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

UŻYTKOWNICY APLIKACJI BOSE

Simple line drawing of a rectangular object with a horizontal bar and a small rectangle on top (no text or symbols)

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two identical 3D rectangular blocks with a diagonal line and a 'no' symbol, no text or labels present.

MONTAŻ LISTWY DŻWIĘKOWEJ NA ŚCIANIE

+ - + - Bluetooth NOT ▶II _BOSE

FUNKCJA PROCEDURA

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

POŁĄCZENIE Z GŁOŚNIKIEM BOSE BLUETOOTH SOUNDLINK LUB SŁUCHAWKAMI BOSE PRZY UŻYCIU TECHNOLOGII SIMPLESYNC™

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone screen with two circular buttons labeled '+' and '-', indicating status or options.

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

SPRAWDZANIE DŻWIĘKU

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSO' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Visite: ____ support.Bose.com/SB550

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen on a base (no text or symbols)

Two crossed-out construction materials with no visible text or symbols, one marked by a diagonal line and the other by a horizontal line (no text or symbols present)

MONTAGEM DA BARRA DE SOM NA PAREDE

Visite: ____ support.Bose.com/SB550

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

Barra de luz

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

CONECTAR UM ALTO-FALANTE BOSE SOUNDLINK BLUETOOTH OU FONES DE OUVIDO BOSE USANDO A TECNOLOGIA SIMPLESYNC™

.support.Bose.com/SB550Grouping

OBSERVAÇÕES:

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone with two circular buttons labeled '+' and '-', indicating positive and negative options respectively.

Visite: ____ support.Bose.com/SB550

GARANTIA LIMITADA

Visite ____ worldwide.Bose.com/contact

SINTOMA SOLUÇÃO

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

VERIFICAR O ÁUDIO

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

ANSLUTA BOSE-PRODUKTER

Simple line drawing of a rectangular object with a horizontal bar and a small rectangle inside, no text or symbols present.

Bose Soundbar 550

Line drawing of a modern TV set with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

VÄGGMONTERING AV SOUNDBARHÖGTALAREN

KOMMA ÅT GOOGLE ASSISTENT

UPPDATERING OCH FELSTATUS

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

ANSLUTA EN BOSE SOUNDLINK BLUETOOTH-HÖGTALARE ELLER BOSE-HÖRLURAR MED SIMPLESYNC™-TEKNIK

.support.Bose.com/SB550Grouping

TÄNK PÅ FÖLJANDE:

UPPDATERA SOUNDBARHÖGTALAREN

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone with a plus sign and two circular buttons, one with an arrow pointing to it.

ANSLUTA SOUNDBARHÖGTALAREN TILL TV:N

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

KONTROLLERA LJUDET

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

www.spotify.com/connect/third-party-licenses

Simple line drawing of a rectangular object with a horizontal bar and label 'ROSE' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular base (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a crossed-out rectangular block, each enclosed by a 'no' symbol (no text or labels)

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
- A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone screen with circular buttons and a plus sign, indicating positive and negative options.

Simple line drawing of a USB flash drive with an input cable and output cable (no text or symbols)

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

การตรวจสอบเสียง

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a rectangular object with a horizontal bar and label 'BOSC' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

리모콘(배터리 포함)

전원 코드*

HDMI 케이블 광 케이블

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a box (no text or symbols)

Two prohibition symbols: one with a rectangular block and the other with a rectangular block, both without any text or labels.

사운드바 월 마운팅

• Bose Bass Module 700: __Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

support.Bose.com/SB550Grouping

참고:

WARNING • INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested. • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours. • KEEP new and used batteries OUT OF REACH of CHILDREN • Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to the main button.

Simple line drawing of a plug with a cable, no text or symbols present

Illustration of a flashlight with radiating lines indicating electrical discharge (no text or symbols)

사운드 확인

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Pure diagram of a rectangular object with a horizontal line and a small rectangle inside, no text or symbols present.

Bose Soundbar 550

遥控器（含电池） 电源线 *

HDMI 连接线 光缆

Line drawing of a flat-screen TV set with a mounted screen and a cable (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

墙式安装条形音箱

Power + - Blu Music Audio Power BOSE

• Bose Bass Module 700: __Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Simple line drawing of a plug with a cable, no text or symbols present

Illustration of a flashlight with radiating lines indicating illumination (no text or symbols)

检查声音效果

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

www.spotify.com/connect/third-party-licenses

Pure diagram of a rectangular object with a horizontal line and a small rectangle inside, no text or symbols present.

Bose Soundbar 550

遙控器(隨附電池)電源線 *

HDMI 連接線 光纜

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen on a base (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

牆式安裝條形音箱

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone screen with a plus sign and two circular buttons, one with an arrow pointing to it.

Pure electrical circuit lines without any symbols

Simple line drawing of a flashlight with radiating lines, no text or symbols present

檢查聲音效果

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Bose Corporation Headquarters: 1-877-230-5639

Simple line drawing of a rectangular object with a horizontal bar and label 'BOSC' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

リモコン(電池付属) 電源コード*

HDMIケーブル 光ケーブル

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a base (no text or symbols)

Two crossed-out rectangular objects with a diagonal line and a 'no' symbol, no text or labels present.

サウンドバーを壁に取り付ける

BASS HDMI (ARC)OPTICAL INR SERVICEPOWER

• Bose Bass Module 700: __Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

• Bose SoundLink Revolve+ Bluetooth speaker
• Bose SoundLink Mini Bluetooth speaker
• Bose SoundLink Micro Bluetooth speaker
• Bose SoundLink Flex Bluetooth speaker
• Bose Noise Cancelling Headphones 700
• Bose QuietComfort 35 wireless headphones
• Bose QuietComfort 45 headphones

support.Bose.com/SB550Grouping

注記:

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone with a plus sign and two circular buttons, one with an arrow pointing to it.

Simple line drawing of a USB flash drive with an input cable and output cable (no text or symbols)

Illustration of a flashlight with radiating lines indicating electrical discharge (no text or symbols)

音が出ることを確認する

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

www.spotify.com/connect/third-party-licenses

Simple line drawing of a rectangular object with a horizontal bar and label 'BONE' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

देखें: ____ support.Bose.com/SB550

Line drawing of a flat-screen TV set with a mounted screen and a cable (no text or symbols)

Two identical 3D rectangular objects with a diagonal line and a crossed-out rectangular block, both marked with a 'no' symbol (no text or labels present)

देखें: ____ support.Bose.com/SB550

• Bose Bass Module 700: Bose.com/BM700
• Bose Bass Module 500: Bose.com/BM500
• Bose Surround Speakers 700: Bose.com/SS700
• Bose Surround Speakers: Bose.com/SS

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and an arrow indicating rotation (no text or symbols)

Diagram showing a smartphone screen with two circular buttons labeled '+' and '-', indicating status or options.

Pure electrical circuit lines without any symbols

BASS FLOOR (AUX, OPTICAL INFLATION, ICE POWER)

Simple line drawing of a flashlight with radiating lines, no text or symbols present.

साउंड की जाँच

• INGESTION HAZARD: This product contains a button cell or coin battery. • DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH of CHILDREN
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

• حرق كيمياني.

Bose Electronics (Shanghai) Company Limited, Level 6, Tower D, No. 2337 Gudai Rd.: المستوردون

Bose Products B.V., Gorslaan 60, 1441 RG Purmerend, I Minhang District, Shanghai 201100

. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratories. Dholy Laboratory

www.spotify.com/connect/third-party-licenses

Simple line drawing of a rectangular object with a horizontal bar and label 'MUSERV' at the bottom (no text or symbols on the object itself)

Bose Soundbar 550

کبل ضوئى

Line drawing of a simple TV setup with a flat-screen monitor and a rectangular screen mounted on a box (no text or symbols)

Two crossed-out rectangular objects with a diagonal line and no text or symbols, both marked as 'no' (no text present)

Bose Bass Module 500: Bose.com/BM500

Bose Surround Speakers 700: Bose.com/SS700

Bose Surround Speakers: Bose.com/SS

support.Bose.com/Groups

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
  • A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Simple line drawing of a smartphone with a circular button and arrow symbol (no text or labels)

Diagram showing a smartphone with a plus sign and two circular buttons labeled with minus signs, indicating status or options.

ت-facing Insiders Modified.

Simple line drawing of a USB drive with cable and connector (no text or symbols)

Simple line drawing of a flashlight with radiating lines, enclosed in a circle (no text or symbols)

تحفق من الصوت
